ISO/IEC 15476-6:2006

INTERNATIONAL ISO/IEC
STANDARD 15476-6
First edition
2006-02-15


Information technology — CDIF semantic
metamodel —
Part 6:
State/event models
Technologies de l'information — Métamodèle sémantique CDIF —
Partie 6: Modèles «state/event»




Reference number
ISO/IEC 15476-6:2006(E)
©
ISO/IEC 2006

---------------------- Page: 1 ----------------------
ISO/IEC 15476-6:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO/IEC 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 15476-6:2006E)
Contents
Foreword  .iv
Introduction .v
1 Scope.1
2 Conformance.2
2.1 General.2
2.2 Input conformance.2
2.3 Output conformance.2
2.4 Round-trip conformance.3
3 Normative references.3
4 Terms and definitions.3
4.1 From other International Standards .4

5 Symbols (and abbreviated terms).4
5.1 Naming, diagramming and definition conventions .4
5.2 Abbreviations.4
6 State/Event subject area overview.4
6.1 Introduction.4
6.2 Diagram.5
6.3 State/Event model.5
6.4 State.5
6.5 Transition.6
6.6 Condition.6
6.7 Action.6
7 State/Event subject area summary.6
7.1 AttributableMetaObject hierarchy.6
7.2 MetaEntity summary.7
7.3 MetaRelationship summary.8
8 State/Event subject area specification .10
8.1 Introduction.10
8.2 Subject area definition.10
8.3 Meta-entity definitions.10
8.4 Meta-relationship definitions.15
© ISO/IEC 2006 — All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 15476-6:2006(E)

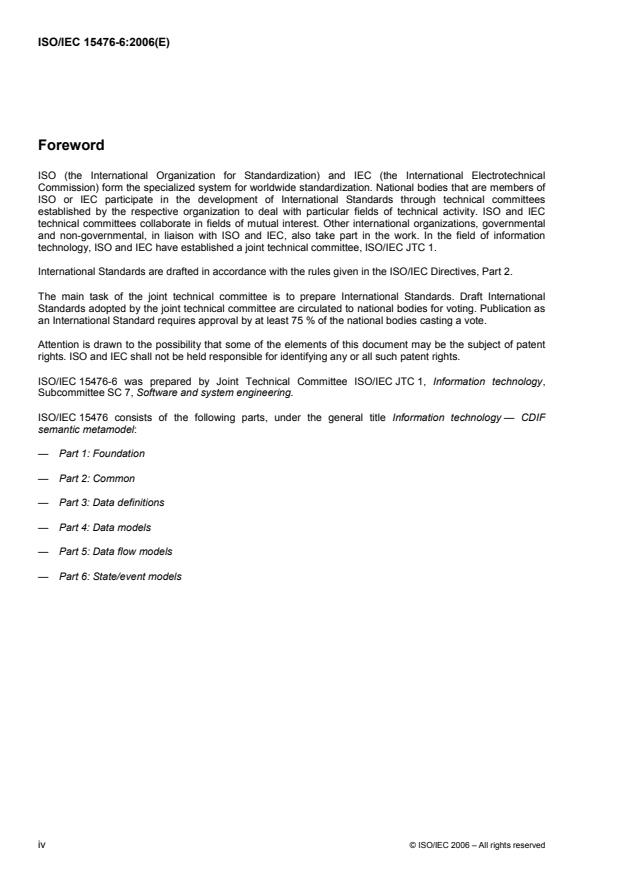

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 15476-6 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 7, Software and system engineering.
ISO/IEC 15476 consists of the following parts, under the general title Information technology — CDIF
semantic metamodel:
— Part 1: Foundation
— Part 2: Common
— Part 3: Data definitions
— Part 4: Data models
— Part 5: Data flow models
— Part 6: State/event models

iv © ISO/IEC 2006 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 15476-6:2006(E)

Introduction
This International Standard will assist the vendors and users of modelling tools and meta-data repositories in
developing mechanisms for interchanging information. This International Standard specifies an element of a family
of related International Standards. When used together, these International Standards specify a mechanism for
transferring information between tools.
ISO/IEC 15474-1:2002, Information technology - CDIF framework - Part 1: Overview and ISO/IEC 15474-2:2002,
Information technology - CDIF framework - Part 2: Modelling and extensibility should be read first when initially
exploring CDIF. The first explains the overall CDIF architecture and how the family of International Standards fits
together. The second explains the scope, and modelling approach in CDIF. The CDIF meta-metamodel and
extensibility mechanism are also defined in that document.
This International Standard explains the State/event models subject area of the CDIF semantic metamodel, that
defines objects in state transition diagrams and state transition tables. The CDIF semantic metamodel is used to
ensure that the information transferred by tools communicating using CDIF is expressed with an agreed meaning.
This International Standard has been developed with the wide support and participation of vendors, users,
academia and government involved in or familiar with the CASE industry, its products and the general requirements
associated with interchanging information between these products.
This document is organized into the following Clauses:
⎯ Clause 1 to 5 are prescribed ISO/IEC Clauses.
⎯ Clause 6: Subject area overview:
This Clause gives an overview of the coverage of this subject area.
⎯ Clause 7: Subject area summary:
This Clause gives an overview of the content of this subject area.
⎯ Clause 8: Subject area specification:
This Clause gives the formal specification of all the objects defined in the subject area, and the formal
reference to those used, but not defined in the subject area.
This document is intended to be used by anyone wishing to understand and/or use CDIF. This document provides
a definition of a single subject area of the CDIF semantic metamodel. It is suitable for:
⎯ Those evaluating CDIF;
⎯ Those who wish to understand the principles and concepts of a CDIF transfer; and
⎯ Those developing importers and exporters.
This document, ISO/IEC 15474-1:2002, Information technology - CDIF framework - Part 1: Overview, and the
framework document ISO/IEC 15474-2:2002, Information technology - CDIF framework - Part 2: Modelling and
extensibility, should be read first when initially exploring CDIF and before attempting to read other documents in the
CDIF family of standards.
© ISO/IEC 2006 — All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC 15476-6:2006(E)
While there are no specific prerequisites for reading this document, it will be helpful for the reader to have familiarity
with the following:
⎯ Entity-Relationship-Attribute modelling;
⎯ Modelling (CASE) tools;
⎯ Information repositories;
⎯ Data dictionaries;
⎯ Multiple meta-layer modelling.
vi © ISO/IEC 2006 — All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD                                      ISO/IEC 15476-6:2006(E)

Information technology — CDIF semantic metamodel —
Part 6:
State/event models
1 Scope

The CDIF family of International Standards is primarily designed to be used as a description of a mechanism for
transferring information between modelling tools. It facilitates a successful transfer when the authors of the
importing and exporting tools have nothing in common except an agreement to conform to CDIF. The language that
is defined for the transfer format also has applicability as a general language for import/export from repositories.
The CDIF semantic metamodel defined for CASE also has applicability as the basis of standard definitions for use
in repositories.
The International Standards which form the complete family of CDIF standards are documented in
ISO/IEC 15474-1:2002, Information technology — CDIF framework — Part 1: Overview. These standards cover the
overall framework, the transfer format and the CDIF semantic metamodel.

15474 CDIF Framework
Part 1 : Overview Part 2 : Modeling and Extensibility
15476 CDIF Semantic Metamodel 15475 CDIF Transfer Format
Part 1 : Foundation
Part 1 : General rules for
syntaxes and encodings
Part 2 : Common
Part 2 : Syntax SYNTAX.1
Part 3 : Data definitions
Part 4 : Data models
Part 5 : Data flow models
Part 3 : Encoding ENCODING.1
Part 6 : State/event models
Part n : .
Part n : .

Figure 1 − CDIF family of International Standards
The diagram in Figure 1 depicts the various International Standards that comprise the CDIF family of standards.
The shaded box depicts this International Standard and its position in the CDIF family of standards.
© ISO/IEC 2006 — All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/IEC 15476-6:2006(E)
This International Standard defines the State/Event Subject Area of the CDIF semantic metamodel. This subject
area contains meta-objects that describe the entities of state transition diagrams and state transition tables, and
also meta-relationships and meta-attributes that are necessary for available state transition.
2 Conformance
2.1  General
A product is fully standards conformant to a CDIF subject area standard if and only if it is input-conformant, output-
conformant and round-trip conformant to each and every MetaEntity, MetaRelationship, MetaAttribute, and
AttributableMetaObject which is defined and/or used in that standard, and it is also CDIF architecture conformant. A
product may be partially input-conformant, and/or partially output-conformant, and/or partially round-trip conformant
to a CDIF subject area standard.
2.2  Input conformance
Input conformance for a specific MetaEntity, MetaRelationship, MetaAttribute, or AttributableMetaObject (short:
CollectableMetaObject) is determined by applying the following test:
A set of meta-data containing all meanings and structures standardized by a CDIF subject area is imported by the
product under test. Then the meta-data which has arrived in the product is examined. The following options exist
for the relation between the input (CDIF) meta-data and the imported (product) meta-data:
For a specific CollectableMetaObject:
1 The product is input conformant if each instance of the specific CollectableMetaObject has arrived in the product
without change of meaning or structure. If the CollectableMetaObject is a meta-entity or meta-relationship, its
structural relationships to other CollectableMetaObjects have been preserved. If the CollectableMetaObject is a
meta-attribute, the value of the meta-attribute has been preserved.
2 The product is input morphing conformant if each instance of the specific CollectableMetaObject has arrived in
the product, but with some changes in meaning or structure. If the CollectableMetaObject is a meta-attribute,
the value(s) for some instances of the meta-attribute have changed.
3 The product is not input conformant for that CollectableMetaObject if neither of the previous tests is satisfied.
2.3  Output conformance
Output conformance for a specific CollectableMetaObject is determined by applying the following test:
For the product being tested, a set of meta-data that includes all possible meanings and structures representable in
that product is exported. Then the meta-data that has been exported is examined. The following options exist for
the relation between the product's meta-data and the exported (CDIF) meta-data:
For a specific CollectableMetaObject:
1 The product is output conformant if all of the meaning and structure for the specific CollectableMetaObject has
been represented as meta-data in the product and has been exported as one or more instances of that
CollectableMetaObject. If the CollectableMetaObject is a meta-attribute, the correct value of the meta-attribute
has been exported.
2 The product is output morphing conformant if each instance of meta-data in the product that has the same
meaning and structure as the CollectableMetaObject has been exported, but some instances have been
exported as a different CollectableMetaObject or some of the meaning and structure has been changed.
3 If the product does not represent the meaning and structure associated with the CollectableMetaObject, output
conformance for that CollectableMetaObject is not applicable to the product.
2 © ISO/IEC 2006 — All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 15476-6:2006(E)
4 In all other cases, the product is not output conformant for that CollectableMetaObject.
2.4  Round-trip conformance
Round-trip conformance for a specific CollectableMetaObject is determined by applying the following test:
A set of meta-data containing all meanings and structures standardized by a CDIF subject area is imported by the
product under test. Then the meta-data is exported again. The following options exist for the relation between the
input meta-data and the output meta-data:
For a specific CollectableMetaObject:
1 The product is round-trip conformant if the meaning and structure of each instance of the CollectableMetaObject
is preserved without changes during the round-trip. For a vendor to claim round-trip conformance, it is also
necessary for the tool to be able to perform create, read, update, and delete operations on the imported
(product) meta-data corresponding to the instances of the CollectableMetaObject.
2 The product is round-trip morphing conformant if each instance of the input CollectableMetaObject is preserved,
but with some changes in meaning and/or structure. If the CollectableMetaObject is a meta-entity or meta-
relationship, some of its instances' structural relationships to other CollectableMetaObjects have changed, or
some instances have been transformed into other CollectableMetaObjects, or instances of other
CollectableMetaObjects have been transformed into instances of the CollectableMetaObject. If the
CollectableMetaObject is a meta-attribute, the values of some instances of the meta-attribute have changed or
the domain of the meta-attribute has changed.
3 In all other cases, the product is not round-trip conformant for that CollectableMetaObject.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
ISO/IEC 11411, Information technology — Representation for human communication of state transition of
software.
ISO/IEC 13238-1, Information technology — Data management export/import — Part 1: Standardization framework.
ISO/IEC 15474-1, Information technology — CDIF framework — Part 1: Overview
ISO/IEC 15474-2, Information technology — CDIF framework — Part 2: Modelling and extensibility
ISO/IEC 15476-1, Information technology — CDIF semantic metamodel — Part 1: Foundation
ISO/IEC 15476-2, Information technology — CDIF Semantic metamodel — Part 2: Common.
4 Terms and definitions
For the purposes of this document, the following definitions apply. Unless otherwise noted, the definitions are
specific to this International Standard.
© ISO/IEC 2006 — All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/IEC 15476-6:2006(E)
4.1  From other International Standards
4.1.1 ISO/IEC 15474-1
This part of ISO/IEC 15476 makes use of the following terms defined in ISO/IEC 15474-1:
CDIF
CDIF family of standards
CDIF semantic metamodel
CDIF meta-metamodel
CDIF transfer
Instance
Meta-attribute
Meta-entity
Metamodel
Meta-object
Meta-relationship
Model
Subject area
Transfer
Transfer format

4.1.2 ISO/IEC 13238-1
This part of ISO/IEC 15476 makes use of the following terms from ISO/IEC 13238-1:
Exporter
Importer

4.1.3 For this International Standard
For the purpose of this part of ISO/IEC 15476 new terms are defined when introduced. Double quotes are used to
introduce new terms (e.g., "model layer")
5 Symbols (and abbreviated terms)
5.1  Naming, diagramming and definition conventions
Conventions for naming, diagramming, describing and defining meta-objects can be found in Clause 7 of the
framework document (ISO/IEC 15474-2:2002, Information technology - CDIF framework - Part 2: Modelling and
extensibility).
5.2  Abbreviations
The following abbreviation is used in this International Standard:
CDIF CASE Data Interchange Format (originally)
6 State/Event subject area overview
6.1 Introduction
State/Event models based on “finite state machine” are effective to describe dynamic behavior or specification of
software. Graphical notations and semantic concepts of state diagram and state table based on the State/Event
4 © ISO/IEC 2006 — All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC 15476-6:2006(E)
models are defined in ISO/IEC 11411 ”Information technology – Representation for human communication of state
transition of software”. This International Standard provides machine readable semantic metamodel of the
State/Event models.
6.2 Diagram


Semantic

Information
Object



Collects

Component StateEvent
Object Model
0:N 0:1



ComesFrom
Has

0:N
1:1
State Transition Condition Action
LeadsTo 0:N 1:1

1:1
0:N
0:N 0:1

Performs
Figure 2 ⎯ State/Event Models subject area subtypes

6.3 State/Event model
A State/Event model consists of states, transitions between states, conditions which are the selection conditions for
the transitions and actions performed with transitions. A software behavior or specification modeled by a
State/Event model is represented as sequentially executed machine triggered by sequential events such as data
input from outside of the model. And there are not any parallel executions in a State/Event model.
In State/Event models, the software is waiting on one of the states for the expected events. It is triggered by the
event, selects the transition using the condition from among the potentially possible transitions. And selected
transition and an action accompanied by the transition are performed. After those, on the next state, the next event
will be waiting.
In the case of describing software behavior/specification by “finite state machine” model, which tries to represents
all accumulated history by states, it is often necessary many states without number. To avoid this problem, to
make it practical, State/Event models of this International Standard introduces variables which have memory within
a model. The variables can be used in describing conditions or actions.
6.4 State
A state is a accumulated history of the data which the software accepted till then, and also it represents the stage
of progress of software in this execution. A state is the “state waiting for the events”. In the states, the software is
© ISO/IEC 2006 — All rights reserved 5

---------------------- Page: 11 ----------------------
ISO/IEC 15476-6:2006(E)
waiting for expected events such as data input from outside of the model, therefore no other function shall not be
provided.
A complete State/Event models shall have one and only one initial state and shall have zero or more final state. In
initial sate, the software starts its activity. In final states, the software terminated its activity.
6.5 Transition
A transition is a change from one state to another state or the same state. In State/Event models, transitions
represent all potential traces of state changes between states. These transitions triggered by events such as data
input from outside of the model, and a transition whose condition is satisfied takes place. And an action may take
place along with the transition. Description of a transition may represent consisting of following three parts
⎯ direction part : To describe from which state the transition starts, and to which state the transition terminates;
⎯ condition part : To describe the condition for selecting one transition;
⎯ action part : To describe the action takes place along with the transition.
6.6 Condition
Transition conditions are the conditions that describe which transition must take place. In complete State/Event
models, conditions related to transitions which start from one state shall be mutually exclusive and cover all
expected case.
Conditions shall be described in text data. In the text data, the condition may be described using variables which
have memory within a model as well as data accepted from outside of the model. For example, there is a
character-input-wating state which have transitions depending on the input character. In this case, one of the
condition is follows: If "a Roman letter, a numeral letter or a hyphen is received,and the number of stacked letters
which had already accepted is smallerthan 30", then the transition takes places. This condition shows there is one
variable, "the number of stacked letters which had been alreadyaccepted", in this State/Event model.
6.7 Action
It is nesesarry to specify the action when the transition takes place. An action shall be describe in text data, such as
data processing function, data outputting function to the outside of the model.

7 State/Event subject area summary
7.1 AttributableMetaObject hierarchy
MetaObjectName   Subject Area
RootEntity   Foundation
 SemanticInformationObject Common
  ComponentObject Common
  Action  State/Event Models
  Condition  State/Event Models
  State  State/Event Models
  Transition  State/Event Models
  StateEventModel State/Event Models
RootEntity.IsRelatedTo.RootEntity Common
 StateEventModel.Collects.ComponentObject State/Event Models
 Transition.ComesFrom.State State/Event Models
 Transition.Has.Condition State/Event Models
6 © ISO/IEC 2006 — All rights reserved

---------------------- Page: 12 ----------------------
ISO/IEC 15476-6:2006(E)
 Transition.LeadsTo.State State/Event Models
 Transition.Performs.Action State/Event Models

7.2 MetaEntity summary
MetaEntity Name
Inherited MetaAttribute Name
Local MetaAttribute Name Mandatory/Optional
Action
BriefDescription Optional
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
FullDescription Optional
Name Optional
TimeCreated Optional
TimeUpdated Optional

ActionText Mandatory

ComponentObject
BriefDescription Optional
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
FullDescription Optional
TimeCreated Optional
TimeUpdated Optional

Name Optional

Condition
BriefDescription Optional
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
FullDescription Optional
Name Optional
TimeCreated Optional
TimeUpdated Optional

ConditionText Mandatory

© ISO/IEC 2006 — All rights reserved 7

---------------------- Page: 13 ----------------------
ISO/IEC 15476-6:2006(E)
SemanticInformationObject
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
TimeCreated Optional
TimeUpdated Optional

BriefDescription Optional
FullDescription Optional
State
BriefDescription Optional
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
FullDescription Optional
Name Optional
TimeCreated Optional
TimeUpdated Optional

IsFinalState Mandatory
IsInitialState Mandatory
SequenceNumber Optional

StateEventModel
BriefDescription Optional
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
FullDescription Optional
TimeCreated Optional
TimeUpdated Optional

Transition
BriefDescription Optional
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
FullDescription Optional
Name Optional
TimeCreated Optional
TimeUpdated Optional
7.3 MetaRelationship summary
MetaRelationship Name
Inherited MetaAttribute Name
Local MetaAttribute Name Mandatory/Optional

8 © ISO/IEC 2006 — All rights reserved

---------------------- Page: 14 ----------------------
ISO/IEC 15476-6:2006(E)
StateEventModel.Collects.ComponentObject
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
TimeCreated Optional
TimeUpdated Optional

Transition.ComesFrom.State
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
TimeCreated Optional
TimeUpdated Optional

Transition.Has.Condition
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
TimeCreated Optional
TimeUpdated Optional

Transition.LeadsTo.State
CDIFIdentifier Mandatory
DateCreated Optional
DateUpdated Optional
T
...
