ISO 11898-6:2013

INTERNATIONAL ISO
STANDARD 11898-6
First edition
2013-11-01
Road vehicles — Controller area
network (CAN) —
Part 6:
High-speed medium access unit with
selective wake-up functionality
Véhicules routiers — Gestionnaire de réseau de communication CAN —
Partie 6: Unité d’accès au médium haute vitesse avec fonctionnalité de
réveil sélectif
Reference number
ISO 11898-6:2013(E)
©
ISO 2013

---------------------- Page: 1 ----------------------
ISO 11898-6:2013(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 11898-6:2013(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 3
5 Functional description of medium access unit (MAU) with selective wake-
up functionality. 4
5.1 General . 4
5.2 Compliance classes . 4
5.3 Configuration and status data . 4
5.4 Physical medium attachment sublayer specification. 5
6 Conformance tests .12
7 Electrical specification of high-speed medium access unit (HS-MAU) .12
7.1 Physical medium attachment sublayer specification.12
7.2 CAN transceiver .12
Bibliography .14
© ISO 2013 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 11898-6:2013(E)

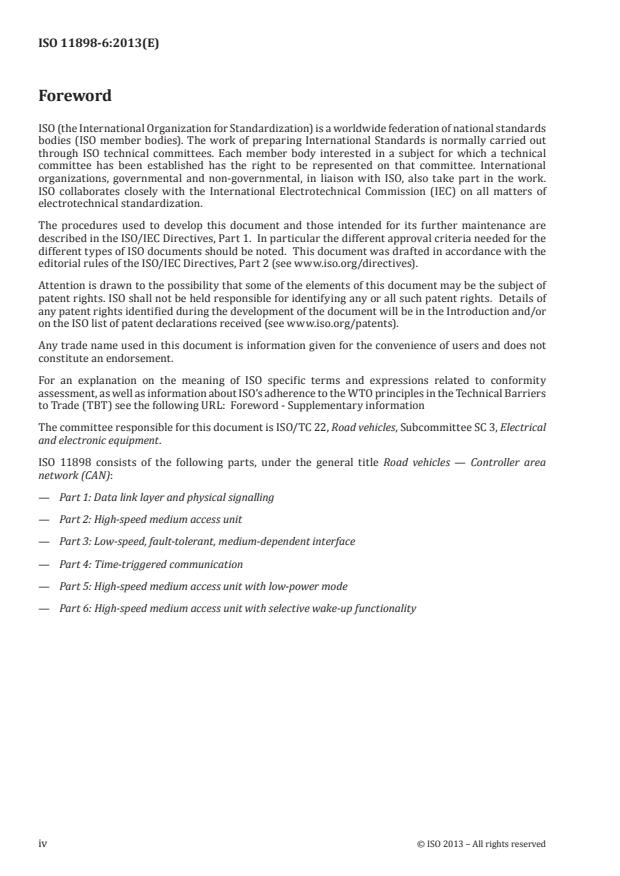

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 3, Electrical
and electronic equipment.
ISO 11898 consists of the following parts, under the general title Road vehicles — Controller area
network (CAN):
— Part 1: Data link layer and physical signalling
— Part 2: High-speed medium access unit
— Part 3: Low-speed, fault-tolerant, medium-dependent interface
— Part 4: Time-triggered communication
— Part 5: High-speed medium access unit with low-power mode
— Part 6: High-speed medium access unit with selective wake-up functionality
iv © ISO 2013 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 11898-6:2013(E)

Introduction
This International Standard was first published as one document in 1993. It covered the controller area
network (CAN) data link layer, as well as the high-speed physical layer.
In the reviewed and restructured ISO 11898 series:
— ISO 11898-1 describes the data link layer including the logical link control (LLC) sublayer and the
medium access control (MAC) sublayer as well as the physical signalling (PHS) sublayer;
— ISO 11898-2 defines the high-speed medium access unit (MAU);
— ISO 11898-3 defines the low-speed fault-tolerant medium access unit (MAU);
— ISO 11898-4 defines the time-triggered communication;
— ISO 11898-5 defines the power modes of the high-speed medium access unit (MAU);
— ISO 11898-6 defines the selective wake-up functionality of the high-speed medium access unit (MAU).
© ISO 2013 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 11898-6:2013(E)
Road vehicles — Controller area network (CAN) —
Part 6:
High-speed medium access unit with selective wake-up
functionality
1 Scope
This part of ISO 11898 specifies the controller area network (CAN) physical layer for transmission rates
up to 1 Mbit/s. It describes the medium access unit (MAU) functions.
This part of ISO 11898 represents an extension of ISO 11898-2 and ISO 11898-5, specifying a selective
wake-up mechanism using configurable CAN frames.
Physical layer implementations according to this part of ISO 11898 are compliant with all parameters
of ISO 11898-2 and ISO 11898-5. Implementations according to this part of ISO 11898, ISO 11898-2, and
ISO 11898-5 are interoperable and can be used at the same time within one network.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 7637-3, Road vehicles — Electrical disturbances from conduction and coupling — Part 3: Electrical
transient transmission by capacitive and inductive coupling via lines other than supply lines
ISO 11898-1, Road vehicles — Controller area network (CAN) — Part 1: Data link layer and physical signalling
ISO 11898-2:2003, Road vehicles — Controller area network (CAN) — Part 2: High-speed medium access unit
ISO 11898-5:2007, Road vehicles — Controller area network (CAN) — Part 5: High-speed medium access
unit with low-power mode
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 11898-1, ISO 11898-2, and
ISO 11898-5 and the following apply.
3.1
bias unit
subpart of the transceiver which provides the biasing voltage
Note 1 to entry: Figure 1 depicts the subparts of a transceiver.
3.2
bit rate
number of bits per time during transmission, independent of bit representation
3.3
CAN node
communication participant of the CAN system which contains typically a transceiver, a CAN controller,
and a processing unit
© ISO 2013 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 11898-6:2013(E)

3.4
CAN controller
subpart of a CAN node which implements the data link layer protocol and the physical signalling as
defined in ISO 11898-1
3.5
data mask bit
optional configuration bit to disable the data length code (DLC) and data field judgment for the wake-up
frame validation
3.6
decoding unit
subpart of the control unit with selective wake-up function which analyses the CAN communication to
detect wake-up frames
Note 1 to entry: Figure 1 depicts the subparts of a transceiver.
3.7
mode control unit
subpart of the transceiver with selective wake-up function which controls all functions and other
subparts of a transceiver
Note 1 to entry: Figure 1 depicts the subparts of a transceiver.
3.8
selective wake-up
functionality of a transceiver to make the operation of a CAN system with partial networking possible
3.9
receiver
subpart of the transceiver which is responsible to transform physical bus signals to logical signals and
provides them to the CAN controller
Note 1 to entry: Figure 1 depicts the subparts of a transceiver.
3.10
transceiver
component that adapts logical signals to the physical layer and vice versa
Note 1 to entry: Figure 1 depicts the subparts of a transceiver.
3.11
transmitter
subpart of a transceiver which is responsible to transform logical signals to physical bus signals and sets
them on the bus
Note 1 to entry: Figure 1 depicts the subparts of a transceiver.
3.12
CAN activity filter time (of a CAN node)
t
Filter
duration of dominant and recessive bus-levels on the bus lines CAN_H and CAN_L for detecting activity
on the CAN bus
3.13
wake-up frame
CAN frame which causes a wake-up of one or more CAN nodes after being analysed
2 © ISO 2013 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 11898-6:2013(E)

Figure 1 — Subparts of a transceiver
3.14
wake-up pattern
two periods of dominant bus-levels, separated by a period of recessive bus-level each of at least t
Filter
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO 11898-1, ISO 11898-2,
and ISO 11898-5 and the following apply.
ID Identifier field
PHS Physical signalling
R Internal receiver input resistors
IN
V Voltage on CAN_H bus line
CAN_H
V Voltage on CAN_L bus line
CAN_L
V Differential CAN voltage ( = V − V )
diff CAN_H CAN_L
WUF Wake-up frame
WUP Wake-up pattern
© ISO 2013 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 11898-6:2013(E)

5 Functional description of medium access unit (MAU) with selective wake-up
functionality
5.1 General
This specification discloses the respective hardware functionalities for CAN high-speed transceivers
with selective wake-up capability. The transceivers with this capability shall be interoperable with CAN
transceivers according to ISO 11898-2 and ISO 11898-5 (for details, see Clause 7).
If CAN transceivers with selective wake-up function are used, it is possible to define sub-networks of
nodes, which only change to active state if they receive a configured wake-up frame.
The node state is changed from inactive to active only if the transceiver has received a frame and
accepted it as a wake-up event. Acceptance of a CAN frame as a wake-up event is done by the mode control
unit of the transceiver by comparing configured and received ID and, if not disabled, DLC and data.
Configuration is done via implementation specific interfaces (e.g. host interface). In case of erroneous
communication, the transceiver shall wake-up upon or after an overflow of the internal error counter.
CAN transceivers with selective wake-up function are able to recognize and decode CAN frames by the
decoding unit. An automatic voltage biasing function at CAN_H and CAN_L is used in CAN transceivers
with selective wake-up function.
5.2 Compliance classes
The following compliance classes are defined.
— Compliant to ISO 11898-6:
The CAN transceiver fulfils all requirements of this part of ISO 11898.
— Compliant to automatic voltage biasing as defined in ISO 11898-6:
The CAN transceiver fulfils only the requirements of the automatic voltage biasing at the CAN pins
(see 5.4.3.2).
5.3 Configuration and status data
5.3.1 General
The transceiver shall support read access to all its configuration data.
5.3.2 List of configuration data
The following configuration data are given.
— ID (mandatory)
— ID mask (mandatory)
— DLC (mandatory)
— Data field bits (mandatory)
— Bit rate (mandatory)
— Data mask bit (optional)
— Frame error counter overflow threshold value (optional)
4 © ISO 2013 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 11898-6:2013(E)

5.3.3 List of status data
Furthermore, the following status data are defined.
— Frame error counter value (optional)
5.3.4 Optional support of data mask bit
Optionally, a data mask bit can be implemented to indicate if the DLC and data field bits shall be part of
the WUF validation (data mask bit set) or if only the ID field shall be considered for the WUF validation
(data mask bit not set).
If the data mask bit is not implemented, the DLC and data field bits shall be part of the WUF validation.
5.4 Physical medium attachment sublayer specification
5.4.1 General
Two different termination models are recommended for the high-speed medium access unit according
to Figure 2:
— termination with single resistor between CAN_H and CAN_L;
— split termination dividing the single resistor into two resistors with same value in series connection,
while the centre tap is connected to a grounding capacitor and optionally to a dedicated split supply.
Figure 2 — Termination variants, single-resistor termination, and split termination
In order to support low-power functionality, two different modes of operation are defined as follows.
— Normal mode:  (as defined in ISO 11898-2)
— Low-power mode, which is split into the two following sub-states:
— without selective wake-up function: (as defined in this part of ISO 118
...
