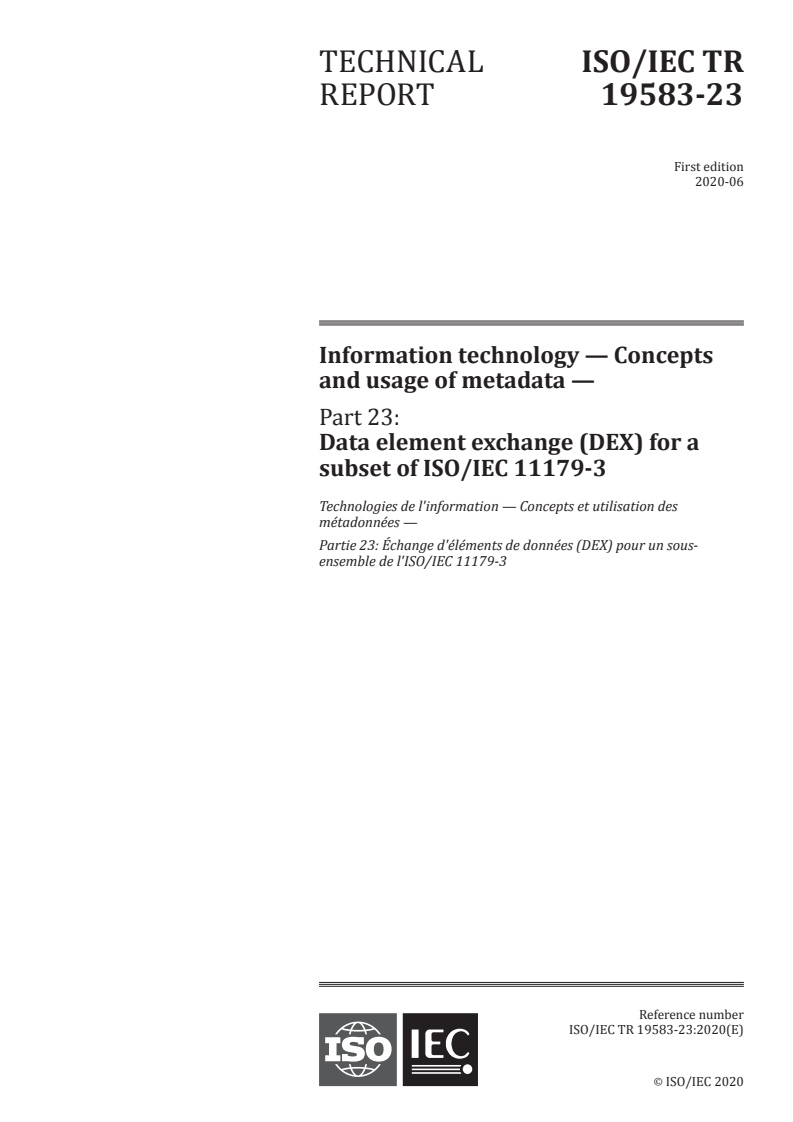

ISO/IEC TR 19583-23:2020

TECHNICAL ISO/IEC TR
REPORT 19583-23
First edition
2020-06
Information technology — Concepts
and usage of metadata —
Part 23:
Data element exchange (DEX) for a
subset of ISO/IEC 11179-3
Technologies de l'information — Concepts et utilisation des
métadonnées —
Partie 23: Échange d'éléments de données (DEX) pour un sous-
ensemble de l'ISO/IEC 11179-3
Reference number
©
ISO/IEC 2020

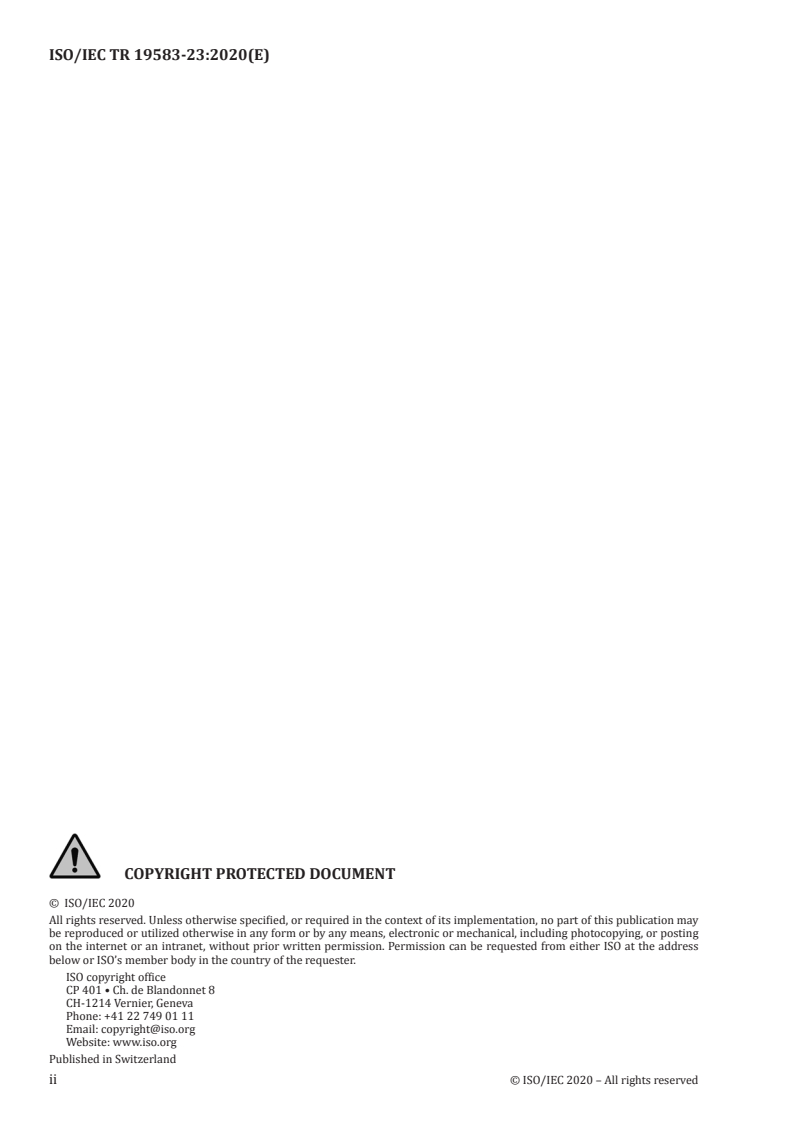

© ISO/IEC 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved

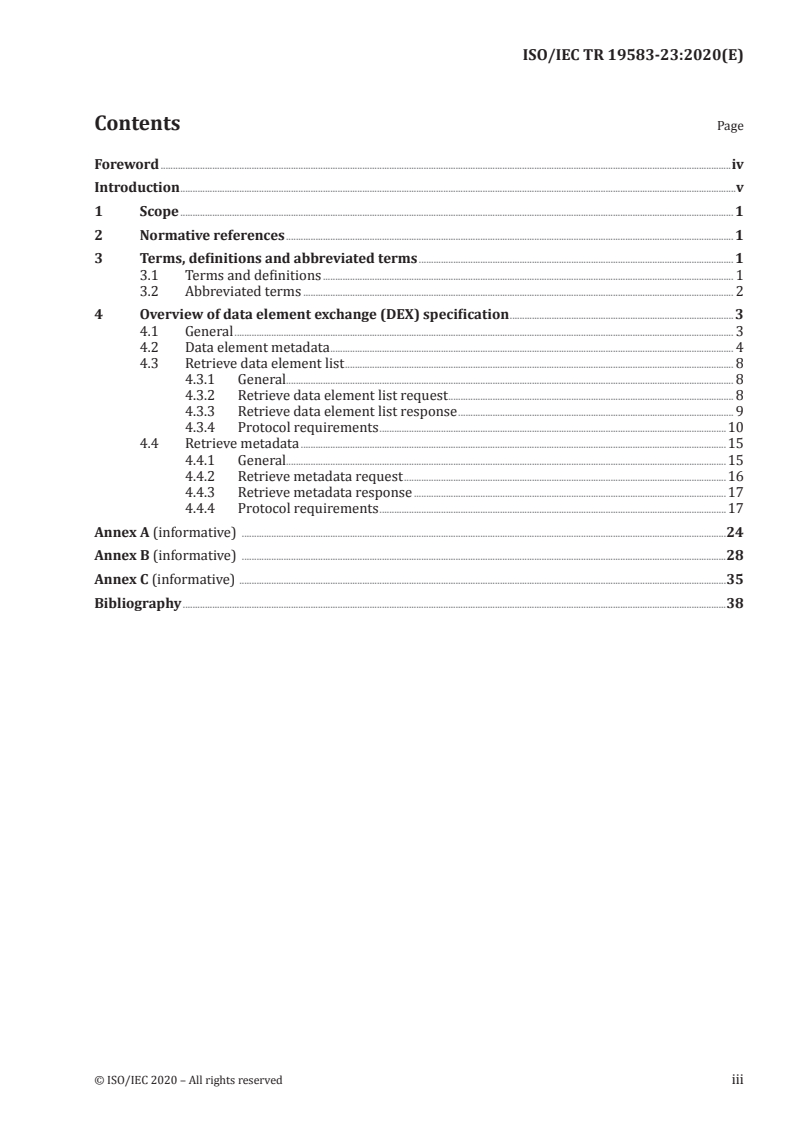

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 2
4 Overview of data element exchange (DEX) specification . 3
4.1 General . 3
4.2 Data element metadata . 4
4.3 Retrieve data element list . 8
4.3.1 General. 8
4.3.2 Retrieve data element list request . 8
4.3.3 Retrieve data element list response . 9
4.3.4 Protocol requirements .10
4.4 Retrieve metadata .15
4.4.1 General.15
4.4.2 Retrieve metadata request .16
4.4.3 Retrieve metadata response .17
4.4.4 Protocol requirements .17
Annex A (informative) .24
Annex B (informative) .28
Annex C (informative) .35
Bibliography .38
© ISO/IEC 2020 – All rights reserved iii

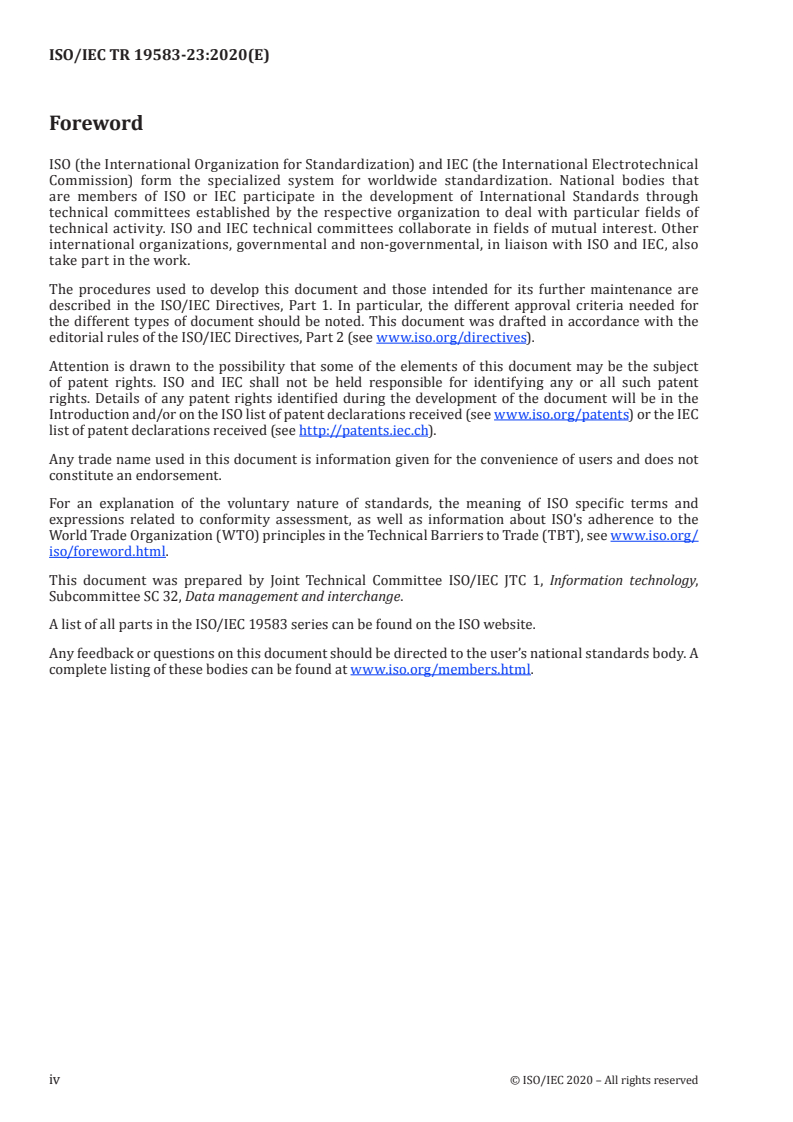

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC
list of patent declarations received (see http:// patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 32, Data management and interchange.
A list of all parts in the ISO/IEC 19583 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO/IEC 2020 – All rights reserved

Introduction
The ISO/IEC 11179 series addresses the semantics of data, the representation of data, and the
registration of the descriptions of that data, i.e. metadata. While ISO/IEC 11179-3 provides the basic
conceptual model for a metadata registry (MDR) in which information about metadata can be recorded
and maintained, implementers and users of the registries described in the ISO/IEC 11179 series require
further guidance to exchange data element definitions with each other via a standard-based protocol.
It is necessary to have a common protocol and message semantics to be able to communicate with an
MDR to locate the data elements given the search criteria and exchange metadata of data elements by
addressing the technical and semantic interoperability challenges.
This document was developed to describe a message exchange framework specification for
communicating a subset of data element metadata with an ISO/IEC 11179-3 MDR.
© ISO/IEC 2020 – All rights reserved v

TECHNICAL REPORT ISO/IEC TR 19583-23:2020(E)
Information technology — Concepts and usage of
metadata —
Part 23:
Data element exchange (DEX) for a subset of ISO/IEC
11179-3
1 Scope
This document specifies the message exchange framework for communicating data element definitions
with an ISO/IEC 11179-3 metadata registry (MDR). It defines message semantics, protocols and
bindings for a set of transactions allowing the exchange of a commonly used subset of data element
metadata with an ISO/IEC 11179-3 MDR.
This document establishes the following data element message exchange interoperability specifications:
— retrieving data element list from an ISO/IEC 11179-3 MDR matching the selection criteria;
— retrieving metadata of a selected data element from an ISO/IEC 11179-3 MDR.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 11179-3, Information technology — Metadata registries (MDR) — Part 3: Registry metamodel
and basic attributes
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11179-3 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
3.1.1
target data model
information view of an application schema
Note 1 to entry: Implementation-dependent realizations of logical information models such as XML serializations,
RDF serializations, JSON serializations and relational database schemas.
[SOURCE: ISO/TS 19129:2009, 4.1.2, modified — Note 1 to entry has been added.]
© ISO/IEC 2020 – All rights reserved 1

3.1.2
mapping specification
procedural functions to locate the data element in a given target data model (3.1.1)
Note 1 to entry: A mapping specification includes a mapping script (3.1.3), the type of the script (e.g. XPATH) and
the target data model on which the mapping script can be executed.
3.1.3
mapping script
executable script on a given target data model (3.1.1)
[1]
Note 1 to entry: A mapping script can be an XPATH expression to be executed on XML documents .
3.1.4
metadata consumer
actor that retrieves the metadata created by the metadata source (3.1.5)
Note 1 to entry: A metadata consumer can optionally query the metadata source (3.1.5) for a list of data elements
matching the selection criteria (3.1.6).
3.1.5
metadata source
actor responsible for creation of the data element list matching the selection criteria (3.1.6) and the
creation of metadata for a selected data element per request from the metadata consumer (3.1.4)
Note 1 to entry: A metadata source is associated with an ISO/IEC 11179-3 metadata registry.
3.1.6
selection criteria
logical expression, the criteria being satisfied only if the expression evaluates to the value TRUE
[SOURCE: ISO 10303-14:2005, 3.3.9]
3.1.7
value set
finite set in a specific correspondence with the index-set of the list
Note 1 to entry: A value set is identified with a unique ID and version.
[SOURCE: ISO 8485:1989, 5.3.1.4, modified — Note 1 to entry has been added.]
3.2 Abbreviated terms
CDASH Clinical Data Acquisition Standards Harmonization
CDISC Clinical Data Interchange Standards Consortium
DEX data element exchange
FHIR fast healthcare interoperability resources
HITSP Healthcare Information Technology Standards Panel
JSON JavaScript object notation
MDR metadata registry
NAV navigation error (due to unknown data element)
NCI National Cancer Institute
2 © ISO/IEC 2020 – All rights reserved

POSIX portable operating system interface
RDF resource description framework
regex regular expressions
REST representational state transfer
SDTM study data tabulation model
SPARQL simple protocol and RDF query language
SQL structured query language
XML eXtensible Markup Language
XPATH XML path language
XSD XML schema definition
VERUNK version unknown
4 Overview of data element exchange (DEX) specification
4.1 General
The objective of DEX specification is to describe a message exchange framework for communicating
a subset of administered data element definitions with an ISO/IEC 11179-3 MDR. It defines message
semantics, protocols and bindings for a set of transactions allowing the exchange of a subset of
administered data element metadata with an ISO/IEC 11179-3 MDR.
Two actors are defined as a part of this specification:
— Metadata source: The metadata source is responsible for the creation of the data element list
matching the selection criteria and the creation of metadata for a selected data element per request
from the metadata consumer. The metadata source is associated with an ISO/IEC MDR.
— Metadata consumer: The metadata consumer is responsible for the importation of metadata created
by the metadata source. The metadata consumer can optionally query the metadata source for a list
of data elements matching the selection criteria.
The following data element message exchange patterns are supported between the metadata source
and metadata consumer actors:
— Retrieving a data element list from an ISO/IEC 11179-3 MDR matching the selection criteria.
— Retrieving metadata of a selected data element from an ISO/IEC 11179-3 MDR.
Corresponding to these message exchange patterns, two transaction specifications are provided:
— retrieve data element list;
— retrieve metadata.
The retrieve data element list transaction is an optional preparatory act to retrieve the identification
information for the list of data elements matching the given the selection criteria, which can be used
in the second retrieve metadata transaction to collect the metadata of the selected data element. The
core content to be exchanged as a result of the retrieve metadata message exchange pattern is “data
element metadata”. In 4.2, details of this content are examined first since the search criteria as a part
of retrieve data element list also depends on this content specification. In 4.3 and 4.4, the transaction
specifications of retrieve data element list and retrieve metadata are presented.
© ISO/IEC 2020 – All rights reserved 3

4.2 Data element metadata
The data element metadata is a flattened subset of the metadata attributes defined in the ISO/IEC 11179
series as depicted in Table 1. A mapping of DEX attributes to ISO/IEC 11179-3 attributes is available in
Annex C. On top of the ISO/IEC 11179 series-based metadata of a data element, the attribute Mapping_
Specification has been added to specify the mapping of an abstract data element definition to different
target data models.
The attribute names in Tables 1 through 9 are based on ISO/IEC 11179-3. An ISO/IEC 11179 series class
attribute is specified by using the class name and attribute name separated by a period e.g. 11179_class_
name.attribute_name. The attribute name is written in the form of 11179_Class_Name if the attribute is
composing inner attributes defined within a separate table. The optionality field can have the following
values with their associated meanings:
R required
R2 required if the information is available
O optional
The string data type corresponds to xsd: string and the date data type corresponds to xsd: date. The
format for xsd: date is YYYY-MM-DD where Y is the year, M is the month, D is the day of month.
Table 1 — Data_Element metadata details
Attribute name Optionality Is repeatable Type Description
identifier R No string The universally unique iden-
tifier of the data element. This
identifier should be the same
as the identifier in the received
retrieve metadata request
message.
registration_authority_identifier R No string The authority who has defined
and registered the data element
to the metadata source.
EXAMPLES  CDISC, HITSP, NCI.
See ISO/IEC 11179-3:2013
6.3.8.2.
This attribute is comprised of
international_code_designator,
organization_identifier, organi-
zation_part_identifer. All these
attributes can be used to create
the string for the registra-
tion_authority_identifier. This is
a mandatory field since the data
elements must be administered
for this specification.
version R No string The version of the data element.
designation.sign R No string The designation (name) of the
data element that can be used
for display purposes.
definition.text R No string The definition that gives an
unambiguous description of the
data element and its use.
4 © ISO/IEC 2020 – All rights reserved

Table 1 (continued)
Attribute name Optionality Is repeatable Type Description
registry_specifiation.context R2 No string The specific domain in which
this data element is defined.
EXAMPLES  CDASH, SDTM.
If such a context is defined by
the registration authority for
this data element in the MDR,
then this attribute is mandatory.
creation_date R No date The date when this data
element is created.
effective_date R No date The date when this data
element becomes effective to
be used.
until_date R2 No date The date when the data
element is no longer expected to
be used.
last_change_date R2 No date The date when the data
element was last revised.
change_description R2 No string A note that indicates the revi-
sion reason and description of
the updates.
Data_Element_Concept R No See Table 2 for the The concept which is the mean-
details of Data_ ing part of the data element
Element_ definition. A data element is
Concept created with an association of
a data element concept and a
value domain.
Value_Domain R No See Table 3 for The domain from which the
the details of data element takes its values.
Value_Domain Each data element is composed
of a data element concept and a
value domain.
Mapping_Specification R Yes See Table 5 for The exact specification to locate
the details of the data element in a target
Mapping_ data model. This attribute is
Specification an extension on top of ISO/
IEC 11179-3.
© ISO/IEC 2020 – All rights reserved 5

Table 2 — Data_Element_Concept details
Attribute name Optionality Is repeatable Type Description
identifier R No string The universally unique
identifier of the data
element concept.
version R No string The version of the data
element concept.
designation.sign R No string The textual representa-
tion of the data element
concept.
object_class.designation.sign R2 No string An object class represents
a set of ideas, abstrac-
tions, or things in the real
world that are identified
with explicit boundaries
and meaning and whose
properties and behaviour
follow the same rules. This
attribute is the name of
the object class of the data
element concept.
property.designation.sign R2 No string A property is a characteris-
tic common to all members
of an object class. This
attribute is the name of
the property of the data
element concept.
Table 3 — Value_Domain details
Attribute name Optionality Is repeatable Type Description
identifier R No string The universally unique
identifier of the value
domain.
type R No string The type of the value
domain. Valid types are
defined, enumerated and
described.
datatype.name R No string The data type which
represents the character-
istics of the permissible
values for the property of
the data element.
EXAMPLE  xsd: string.
unit_of_measure R2 No string Actual units in which
the associated values of
the property of the data
element are measured.
source_uri R2 No string A reference to the exter-
nal value set, if the value
domain’s type is "de-
fined" (ISO/IEC 11179-
3:2013/Amd 1:2020).
Permissible_Value R2 Yes See Table 4 for the The permissible value set
details of from which the values of
Permissible_Value. this data element can be
selected.
6 © ISO/IEC 2020 – All rights reserved

Table 4 — Value_Domain Permissible_Value details
Attribute name Optionality Is repeatable Type Description
permitted_value R No string The permitted value.
value_meaning.designation.sign R No string The textual
representation of
the meaning of the
permitted value.
begin_date R No date The date that this value
becomes effective.
end_date R2 No date The date that this
value becomes invalid.
Table 5 — Mapping_Specification summary
Attribute name Optionality Is repeatable Type Description
Target_Data_Model R No See Table 7 for the The data model that the data el-
details of Target_ ement is interrelated with. It can
Data_Model be a database schema, an OWL
schema, an XML schema, etc.
type R No string The type of the mapping
specification. The type should
be selected from the mapping
specification type value set (See
Table 6).
mapping_script R No string The executable script to locate
the data element in a target
data model.
EXAMPLE  XPATH scripts,
SPARQL or SQL queries.
Table 6 — Mapping specification type value set
Mapping specification Description
type
XPath is a language that describes a way to locate and process items in XML docu-
XPATH ments by using an addressing syntax based on a path through the document's logical
structure or hierarchy.
SQL is an industry-standard language for creating, updating and querying relational
SQL
database management systems.
SPARQL is a standard query language and data access protocol for use with the
SPARQL
RDF data model.
A query with a set of parameters (http:// www .hl7 .org/ implement/ standards/ fhir/
FHIR Query
query .html).
Other Any mapping specification that is not one of the above types.
© ISO/IEC 2020 – All rights reserved 7

Table 7 — Target_Data_Model details
Attribute Optionality Is repeatable Type Description
name
name R No string The name of the target data model.
EXAMPLE  ASTM/HL7 CCD.
description R No string Textual description of the target data
model. If available, the unique identifier
for the target data model can be present-
ed here.
EXAMPLE  2.16.840.1.113883.10.20.1 for
ASTM/HL7 CCD.
url R2 No string If available a reference to the schema of
the target data model.
4.3 Retrieve data element list
4.3.1 General
This transaction is used by the metadata consumer to retrieve a list of data elements from the metadata
source matching the given selection criteria. The interaction diagram is depicted in Figure 1. In 4.3.2
through 4.3.4 the triggering events for the request and response messages involved in this transaction,
the message semantics of the request and response messages and the expected action that needs to be
carried out by the receiving actors are presented.
Figure 1 — Retrieve metadata element list transaction
4.3.2 Retrieve data element list request
4.3.2.1 Trigger events
The metadata consumer wants to retrieve the metadata of a list of data elements matching the selection
criteria by defining several filters. The metadata consumer sends a retrieve data element list request to
the metadata source.
4.3.2.2 Message semantics
The metadata consumer sends a retrieve data element list request message to specify the selection
criteria to filter and return the metadata of a list of data elements. The selection criteria are represented
as a set of filters as depicted in Table 8. The metadata consumer should send zero or more filters in the
retrieve data element list request. Each filter applies a filtering criterion on the specified attribute of the
data element. Providing no filters inside the retrieve data element list request means that the metadata
consumer queries for all available data elements. More than one filter means that the metadata source
8 © ISO/IEC 2020 – All rights reserved

should semantically create an intersection of the matching data elements for each filter. That is, logical
AND operator is implicitly assumed on multiple filters. In 4.3.4 the protocol requirements and the
format of the message are described in full detail.
Table 8 — Filter details
Attribute Optionality Is repeatable Type Description
name
name R No string The name of the data element
attribute to apply the filter on.
operator R No string The operation of the filter. The opera-
tor should be selected from the filter
operator value set (see Table 9).
value R No string The value of the filtered attribute to
apply while executing the operator.
Table 9 — Filter operator value set
Filter Operator Description
Checks for mathematical equality of the given filter value with the value of the data
equals
element attribute.
This operator should compare the contents of the referenced attribute with the regex
[4]
match using the POSIX matching rules. If the regex matches the attribute, the data ele-
ment matches. All regex matches should be executed in case insensitive mode.
Date comparisons expects the argument in the format of xsd: date (YYYY-MM-DD)
before and compare it with the attribute using a date comparison. This operator should
filter out the dates before or equals to the given filter date.
Date comparisons expects the argument in the format of xsd: date (YYYY-MM-DD)
after and compare it with the attribute using a date comparison. This operator should
filter out the dates after or equals to the given filter date.
4.3.2.3 Expected action
The metadata source should perform matching in accordance with the filter operator rules described in
Table 9. Any data element which has metadata that matches all of the provided filters at the same time
should be included in the response. That is, multiple filters should be linked together with logical AND
operator.
4.3.3 Retrieve data element list response
4.3.3.1 Trigger events
This message will be triggered by a retrieve data element list request message.
4.3.3.2 Message semantics
The response should be a retrieve data element list response message which should have one Data_
Element_Summary attribute (presented in Table 10) for each matching data element. If no matching
data elements are found, data element list response message should be empty. In 4.3.4 the protocol
requirements and the format of the message are described in full detail.
Table 10 — Data_Element_Summary in the retrieve data element list response message
Attribute name Optionality Is repeatable Type Description
Data_Element_Summary R2 Yes See Table 11 for the de- The summary
tails of Data_Element_ information about
Summary the data element.
© ISO/IEC 2020 – All rights reserved 9

The atttributes of the Data_Element_Summary are presented in Table 11. The string data type
corresponds to xsd: string and the date data type corresponds to xsd: date. The format for xsd: date is
YYYY-MM-DD where Y is the year, M is the month, D is the day of month.
Table 11 — The attributes of the Data_Element_Summary in the retrieve data element list
response message
Attribute name Optionality Is repeata- Type Description
ble
identifier R No string The universally unique identifier of the
data element.
registration_authority_ R No string The authority who has defined and reg-
identifier istered the data element to the metada-
ta source
(EXAMPLES  CDISC, HITSP, NCI).
version R No string The version of the data element.
designation.sign R No string The name of the data element that can
be used for display purposes
definition.text R No string Definition that gives an unambiguous de-
scription of the data element and its use.
registry_specification.context R2 No string The specific context in which this data
element is defined
(EXAMPLES  CDASH, SDTM, HITSP
C154). If such a contextualDomain is
defined by the registrationAuthority for
this data element in the MDR, then it is
mandatory.
Value_Domain.type R No string The type of the value domain. valid
types are defined, enumerated and
described
Value_Domain.datatype.name R No string The data type of the value domain.
Value_Domain.source_uri R2 No string A reference to the external value set,
if the value domain’s type is ‘‘defined’
( I S O/ I E C 11179 -3:2013: A md1: 2020)
(EXAMPLES  http:// snomed .info/ ct,
http:// loinc .org)
Permissible_Value R2 Yes Table 4 Provide 3 permissible_value elements.
Provide all if there are fewer permit-
ted values.
4.3.3.3 Expected action
A metadata consumer processes the Data_Element_Summary elements according to its business
process logic.
4.3.4 Protocol requirements
4.3.4.1 General
There are two different protocol requirements for the retrieve data element list transaction. The
[3]
protocol of this transaction should be based on SOAP 1.2 and it should support HTTP REST.
SOAP
The relevant XML namespace definitions can be seen in Table 12.
10 © ISO/IEC 2020 – All rights reserved

Table 12 — WSDL namespace definitions
soap12 http:// schemas .xmlsoap .org/ wsdl/ soap12/
wsdl http:// schemas .xmlsoap .org/ wsdl/
xsd http:// www .w3 .org/ 2001/ XMLSchema
dex urn: iso: it: metadata: dex: 2016
These are the requirements for the retrieve data element list transaction presented in the order in
[2]
which they should appear in the WSDL definition (see Annex A for an informative WSDL):
— The following types should be included (xsd: include) in the /definitions/types: namespace="urn:
iso: it: metadata: dex: 2016", schema="DEX.xsd"
— The /definitions/message/part/@element attribute of the Retrieve Data Element List Request
message should be defined as “dex: RetrieveDataEementListRequest”
— The /definitions/message/part/@element attribute of the Retrieve Data Element List Response
message should be defined as “dex: RetrieveDataEle mentListResponse”
— The /definitions/portType/operation/input/@message attribute for the Retrieve Data Element
List Operation should be defined as “dex: RetrieveDataElemen tListRequestMessage”
— The /definitions/portType/operation/output/@message attribute for the Retrieve Data
Element List Operation should be defined as “dex: RetrieveDataElemen tListResponseMessage”
— The /definitions/binding/operation/soap12: operation/ @ soapAction attribute should be
defined as “urn: iso: it: metadata: dex: 2016: RetrieveDataElementList”
These are the requirements that affect the wire format of the SOAP message. The other WSDL properties
are only used within the WSDL definition and do not affect interoperability. Full sample request and
response messages are presented in 4.3.4.2 and 4.3.4.3.
A full XML schema document for the DEX types is available in Annex A.
REST
For the HTTP REST binding, this transaction is required to be served under “/DataElements” endpoint
after the base endpoint which can be set according to the requirements of the serving host. One
example can be http:// example .com/ service/ mdr/ api/ 2016/ DataElements. Retrieve data element list
transaction should bind to HTTP GET method of the identified endpoint.
The protocol requirements for the request and response messages are given in 4.3.4.2 and 4.3.4.3.
4.3.4.2 Retrieve data element list request message
SOAP
Within the request message payload the element is defined as:
— Zero or more /dex: RetrieveDataEle mentListRequest/ dex: filter element containing
— a required /dex: RetrieveDataEle mentListRequest/ dex: filter/ dex: name element with type
“xsd: string”
— a required /dex: RetrieveDataEle mentListRequest/ dex: filter/ dex: operator element with type
“xsd: string”
— a required /dex: RetrieveDataEle mentListRequest/ dex: filter/ dex: value element with type
“xsd: string”
© ISO/IEC 2020 – All rights reserved 11

A sample retrieve data element list SOAP request is given as follows:
soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:wsa=http://www.
w3.org/2005/08/addressing
xmlns:xsd="http://www.w3.org/2001/XMLSchema">

urn:uuid:f43f7bda-a5f9-42b1-b8dc-e78be1a2a180
urn:iso:it:metadata:dex:2016:RetrieveDataElementList




designation.sign
match
.*sex.*




REST
Since the transaction is bound to HTTP GET, the search parameters are required to be query parameters
which will be visible in the query link. The query parameters should be given in a filter query within
the format "filter=name: operator: value". The name of the parameter should be followed by a colon and
then the operator followed by another colon, and finally the value for that parameter. It should be noted
that the value itself may contain colons. Multiple filter parameters mean the matching data elements for
the filters should be intersected such as applying a logical AND operator. The names of the HTTP query
parameters are the same as the names of the attributes identified as Data Element Metadata in Table 1.
Values of the operator should be selected from the set defined in Table 8.
A sample request message which is the REST equivalent of the given SOAP request example is as follows:
http:// example .com/ service/ mdr/ api/ 2016/ DataElements ?filter = designation .sign: match: .*sex .*
4.3.4.3 Retrieve data element list response message
SOAP
Metadata source should include within the response message payload for the SOAP binding option the
element which contains:
— Zero or more /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary element,
containing
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: identifier
element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: registration_
authority_identifier element with type “xsd: string”
12 © ISO/IEC 2020 – All rights reserved

— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: version
element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: designation.
sign element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: definition
.text element with type “xsd: string”
— an optional /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: registry
_specification .context element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: Value
_Domain .type element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: Value
_Domain .datatype .name element with type “xsd: string”
— an optional /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex: Value
_Domain .source _uri element with type “xsd: string”
— zero or more /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex:
Permissible _Value element containing
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex:
Permissible _Value/ dex: permitted _value element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex:
Permissible _Value/ dex: value _meaning .designation .sign element with type “xsd: string”
— a required /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex:
Permissible _Value/ dex: begin _date element with type “xsd: date”
— an optional /dex: RetrieveDataEle mentListResponse/ dex:D ata _Element _Summary/ dex:
Permissible _Value/ dex: end _date element with type “xsd: date”
© ISO/IEC 2020 – All rights reserved 13

A sample Retrieve Data Element List SOAP Response is given as follows:
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:wsa="http://www.w3.org/2005/08/addressing" xmlns:xsd="http://www.w3.org/2001/
XMLSchema">

urn:iso:it:metadata:dex:2016:RetrieveDataElementListResponse wsa:Action>
urn:uuid:7ec4961a-712f-11e7-8cf7-a6006ad3dba0




8426f5a8-712f-11e7-8cf7-a6006ad3dba0
CDISC:ClinicalResearch:DataElements dex:registration_authority_identifier>
0.1
DMSEX
The assemblage of physical properties or qualities
by which male is distinguished from female; the physical difference between male and female;
the distinguishing peculiarity of male or female (NCI – CDISC Definition). Record the
appropriate sex (e.g., F (female), M (male).
CDASH context>
Enumerated
xsd:string name>

F
Female
2016-01-01


M
Male
2016-01-01





14 © ISO/IEC 2020 – All rights reserved

REST
The REST binding should return a JSON serialization of the retrieve data element list response message.
The JSON response is a list of JSON objects where each JSON object represents a dex: Data _Element
_Summary conceptually. Metadata source should include within the response message payload for the
HTTP REST binding option a JSON list which can be empty if there are no matching data elements.
A sample retrieve data element list JSON response is given as follows:
[{
"identifier": "8426f5a8-712f-11e7-8cf7-a6006ad3dba0",
"registration_authority_identifier": "CDISC:ClinicalResearch:DataElements",
"version": "0.1",
"designation.sign": "DMSEX",
"definition.text": "The assemblage of physical properties or qualities by which
male is distinguished from female; the physical difference between male and female;
the distinguishing peculiarity of male or female (NCI – CDISC Definition). Record the
appropriate sex (e.g., F (female), M (male).",
"registry_specification.context": "CDASH",
"Value_Domain.type": "Enumerated",
"Value_Domain.datatype.name": "xsd:string",
"Permissible_Values": [
{
"permitted_value": "F",
"value_meaning.designation.sign": "Female",
"begin_date": "2016-01-01"
},
{
"permitted_value": "M",
"value_meaning.designation.sign": "Male",
"begin_date": "2016-01-01"
}
]
}]
4.4 Retrieve metadata
4.4.1 General
The metadata consumer uses the retrieve metadata transaction to retrieve the metadata of a selected
data element from the metadata source. The interaction diagram is depicted in Figure 2. In 4.4.2
through 4.4.4 the triggering events for the request and response messages involved in this transaction,
the message semantics of the request and response messages and the expected action that needs to be
carried out by the receiving actors are presented.
© ISO/IEC 2020 – All rights reserved 15

Figure 2 — Retrieve metadata transaction
4.4.2 Retrieve metadata request
4.4.2.1 Trigger events
The metadata consumer wants to retrieve a specific data element. The metadata consumer knows the
identifier (ID) of the data element, either by performing a retrieve data element list transaction or by
other means not defined by this document.
4.4.2.2 Message semantics
The retrieve metadata request should carry the following information presented in Table 13:
— A required identifier that identifies the data element.
— A required registration authority identifier that indicates the authority who has defined and
registered the data element to the metadata source.
— An optional version that identifies a specific version of the data element. If no version is specified,
the metadata consumer is requesting the most recent version of the data element.
The string data type corresponds to xsd: string.
Table 13 — Summary of the attributes in the retrieve metadata request message
Attribute name Optionality Type Description
identifier R string The universally unique identifier
of the data element.
registration_authority_identifier R string The authority who has defined
and registered the data element
to the metadata source
(EXAMPLES  CDISC, HITSP, NCI).
version O string The version of the data element.
If no version is specified, the
metadata consumer is request-
ing the most recent version of
the
...
