Overview
ISO 8653:2016 - Jewellery - Ring-sizes - Definition, measurement and designation specifies a harmonized method to measure and designate ring sizes during manufacturing and quality control. The standard defines the ring-size (the circumference of the largest cylinder that can be inserted in the ring), the required ring stick characteristics used for measurement, and rules for labeling ring sizes (designation). It aims to reduce conflicts between manufacturers, brands and retailers by providing a single, repeatable measurement method.
Key topics and technical requirements
- Definition
- Ring-size = circumference of the bigger cylinder that could be inserted in the ring (expressed in millimetres).
- Apparatus (ring stick)
- Measurement scale length: 160.0 mm ± 0.5 mm.
- Material: metal or material with equivalent wear resistance.
- Minimum and maximum ring-sizes: 41 to 76.
- Specified diameters and tolerances for sample sizes (from Table 1):
- Size 41 → 13.05 mm ± 0.02 mm
- Size 51 → 16.23 mm ± 0.02 mm
- Size 61 → 19.42 mm ± 0.02 mm
- Size 71 → 22.60 mm ± 0.02 mm
- Size 76 → 24.19 mm ± 0.02 mm
- Ring sticks shall be regularly checked, for example with a finger gauge set matching the same diameters and tolerances.
- Measurement method
- Slide the ring down the ring stick without external force; the contact point on the stick determines the measured circumference.
- Two inside profiles:
- Rounded inside profile - measurement point at middle of ring thickness.
- Flat inside profile - measurement point at the bottom of ring thickness.
- Particular ring shapes
- Rules for signet rings/mountings (place flat part on stick), interlaced circles (read under bottom), and square rings (inscribe a circle so flats are not aligned with stick flats).
- Designation
- Designate as: Ring-size ISO 8653 - <inner circumference in mm (rounded)> (example: Ring-size ISO 8653 - 43). If size is marked on the ring, only the circumference may be shown (e.g., “43”).
Applications
- Standardizes ring-size measurement in manufacturing, inspection and QA processes.
- Useful for jewellery manufacturers, quality control labs, brand compliance teams, retailers and e-commerce product specification.
- Helps avoid disputes between suppliers and principals by providing a consistent acceptance criterion for ring dimensions and tolerances.
- Supports accurate customer-facing sizing tools when finger gauge sets are used for jeweller-consumer measurement.
Who should use it
- Jewellery manufacturers and production engineers
- Quality assurance and metrology personnel in jewellery supply chains
- Brand compliance and product specification teams
- Retailers and service labs performing size verification or resizing
Related standards
- Developed under ISO/TC 174 (Jewellery). For guidance on standards development and conformity terms see the ISO/IEC Directives and ISO documentation.
ISO 8653:2016 - Jewellery -- Ring-sizes -- Definition, measurement and designation
ISO 8653:2016 - Bijouterie, joaillerie -- Taille de bagues -- Définition, mesurage et désignation
Frequently Asked Questions
ISO 8653:2016 is a standard published by the International Organization for Standardization (ISO). Its full title is "Jewellery - Ring-sizes - Definition, measurement and designation". This standard covers: ISO 8653:2016 specifies a method to measure the ring-size using a ring stick with defined characteristics, which is mainly used during manufacturing steps, and specifies the designation of the ring-size. NOTE For jeweller-consumer relationships, the finger size is measured with a finger gauge set made up of a ring for each size with the same diameter and tolerance than the ring stick ones.
ISO 8653:2016 specifies a method to measure the ring-size using a ring stick with defined characteristics, which is mainly used during manufacturing steps, and specifies the designation of the ring-size. NOTE For jeweller-consumer relationships, the finger size is measured with a finger gauge set made up of a ring for each size with the same diameter and tolerance than the ring stick ones.
ISO 8653:2016 is classified under the following ICS (International Classification for Standards) categories: 39.060 - Jewellery. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 8653:2016 has the following relationships with other standards: It is inter standard links to ISO 19901-5:2021, ISO 8653:1986. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 8653:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 8653
Second edition
2016-01-15
Jewellery — Ring-sizes — Definition,
measurement and designation
Bijouterie, joaillerie — Taille de bagues — Définition, mesurage et
désignation
Reference number
©
ISO 2016

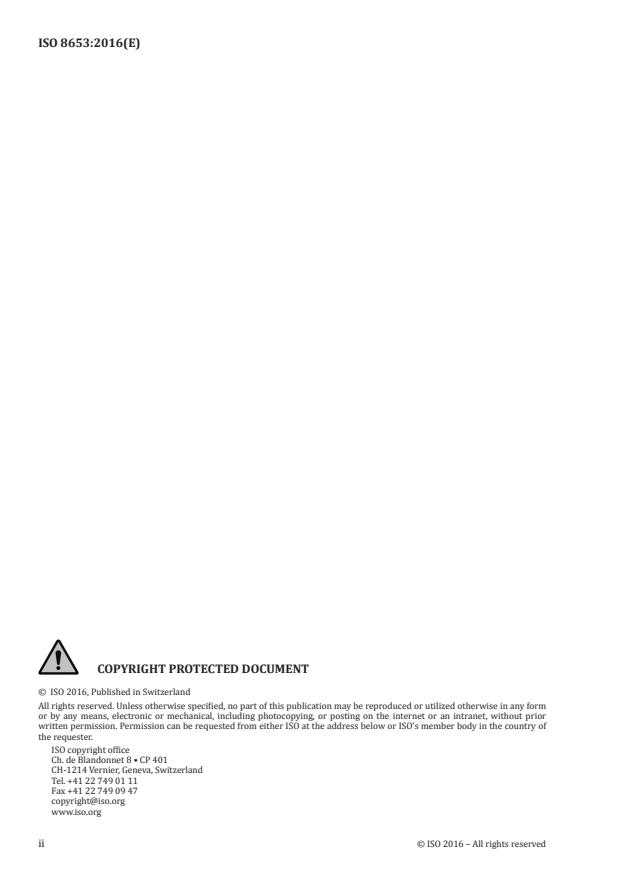

© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Terms and definitions . 1
3 Apparatus . 1
4 Ring-size measurement . 2
4.1 Method . 2
4.2 Ring inside profile . 2
4.3 Particular shapes of rings . 2
4.3.1 General. 2
4.3.2 Ring with mounting, signet-ring . 2
4.3.3 Ring with several interlaced circles . 3
4.3.4 Square ring . 3
5 Designation . 4

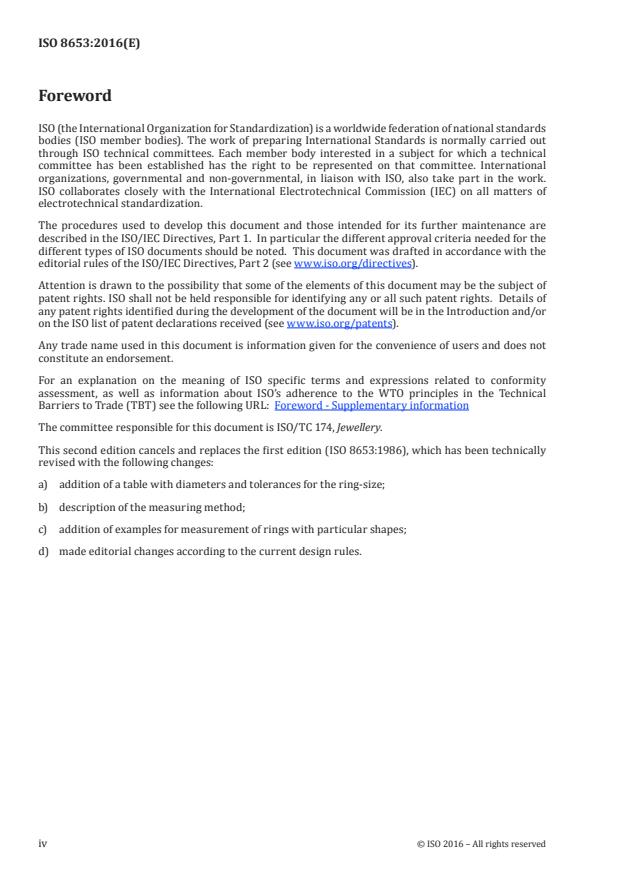

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the foll
...
NORME ISO
INTERNATIONALE 8653
Deuxième édition
2016-01-15
Bijouterie, joaillerie — Taille de bagues
— Définition, mesurage et désignation
Jewellery — Ring-sizes — Definition, measurement and designation
Numéro de référence
©
ISO 2016

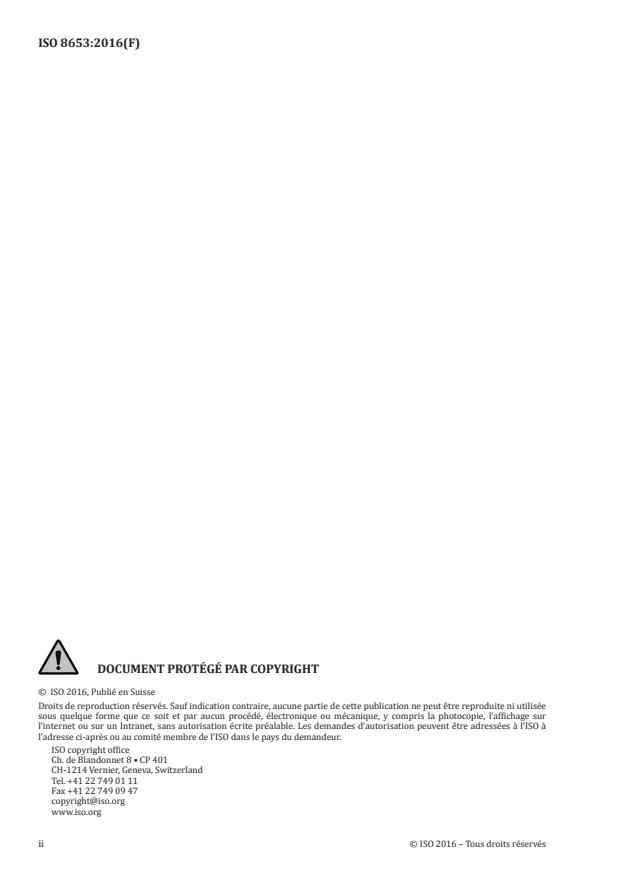

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2016, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Termes et définitions . 1
3 Appareillage . 1
4 Mesurage de la taille de bague . 2
4.1 Méthode . 2
4.2 Profils intérieurs de bagues . 2
4.3 Cas particuliers de bagues . 2
4.3.1 Généralités . 2
4.3.2 Bague avec insert, chevalière . 2
4.3.3 Bagues entrelacées . . . 3
4.3.4 Bague carrée . 3
5 Désignation . 4

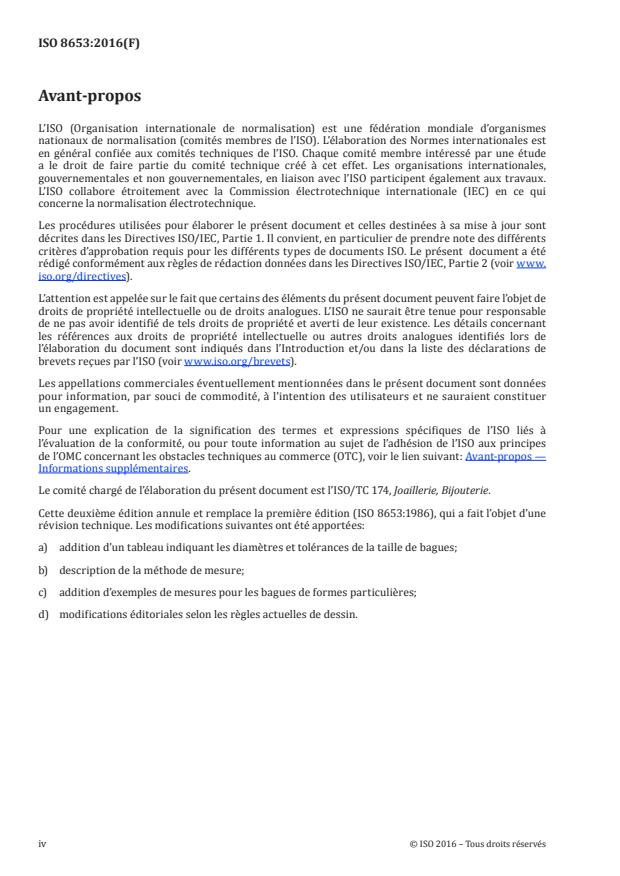

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.
iso.org/directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer
un engagement.
Pour une explication de la signification des termes et expressions spécifiques de l’ISO liés à
l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion de l’ISO aux principes
de l’OMC concernant les obstacles techniques au commerce (OTC), voir le lien suivant: Avant-propos —
Informations supplémentaires.
Le comité chargé de l’é
...
