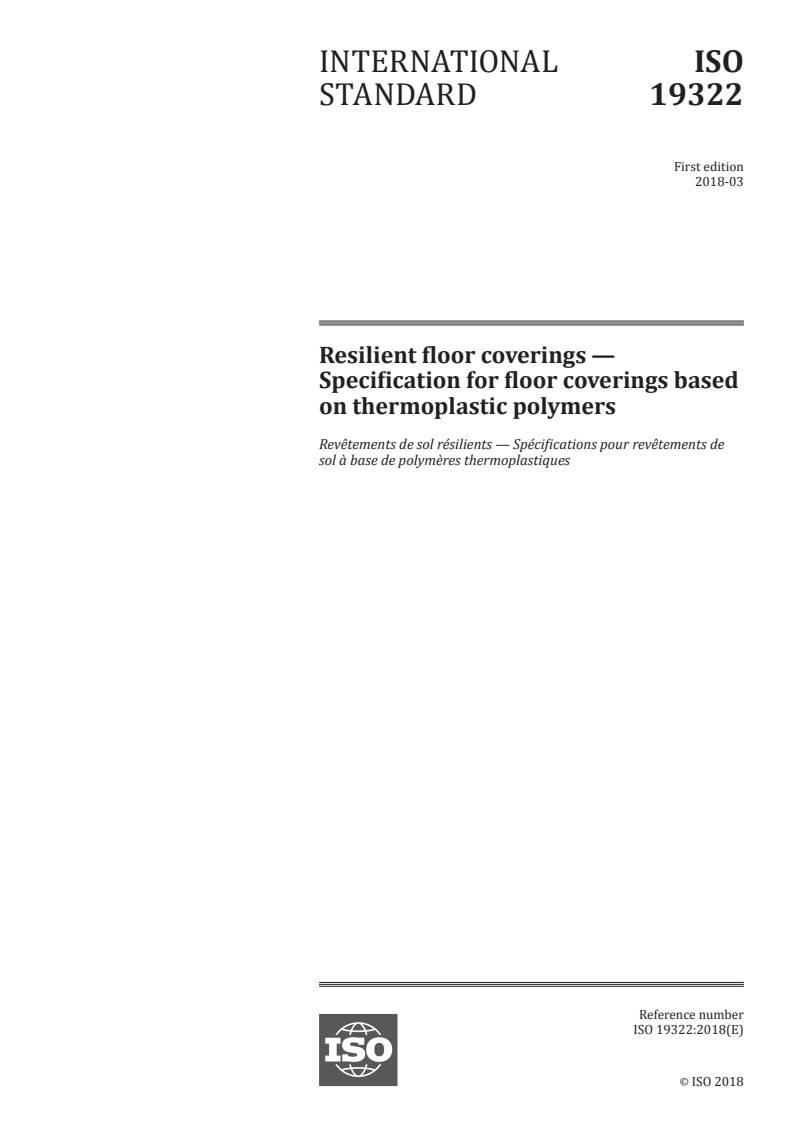

ISO 19322:2018

INTERNATIONAL ISO
STANDARD 19322
First edition
2018-03
Resilient floor coverings —
Specification for floor coverings based
on thermoplastic polymers
Revêtements de sol résilients — Spécifications pour revêtements de
sol à base de polymères thermoplastiques
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

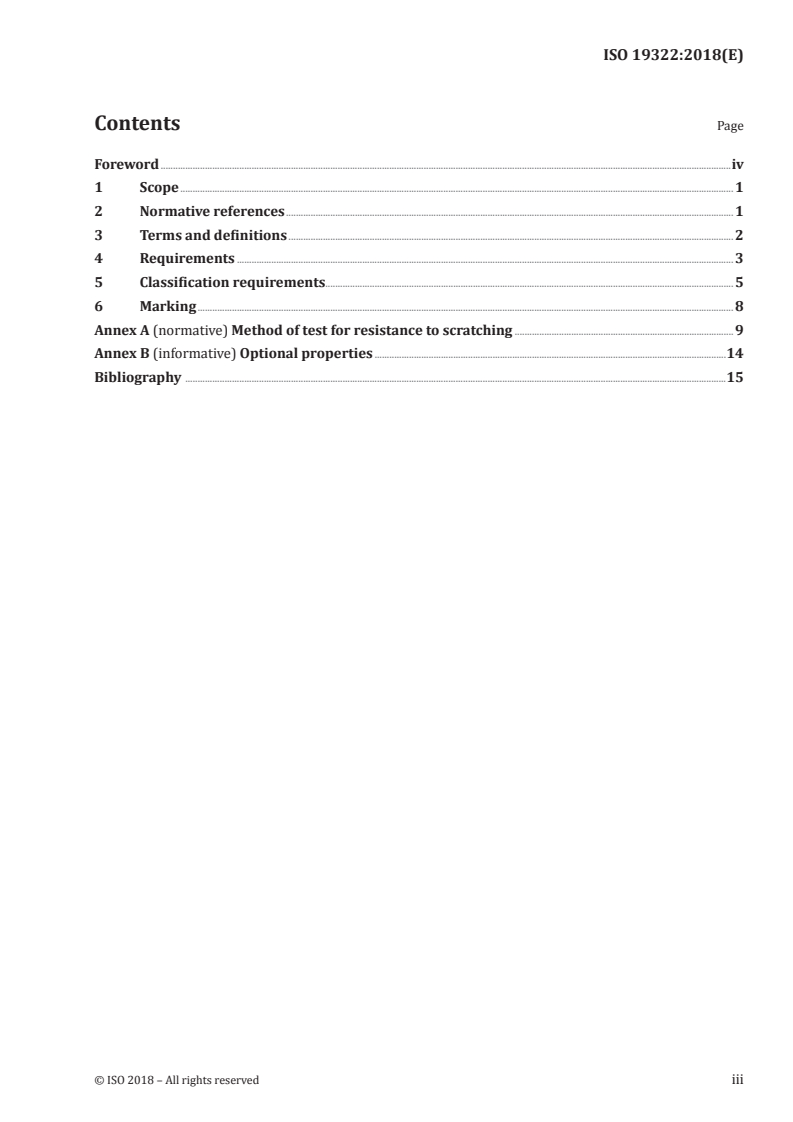

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Requirements . 3
5 Classification requirements . 5
6 Marking . 8
Annex A (normative) Method of test for resistance to scratching . 9
Annex B (informative) Optional properties .14
Bibliography .15

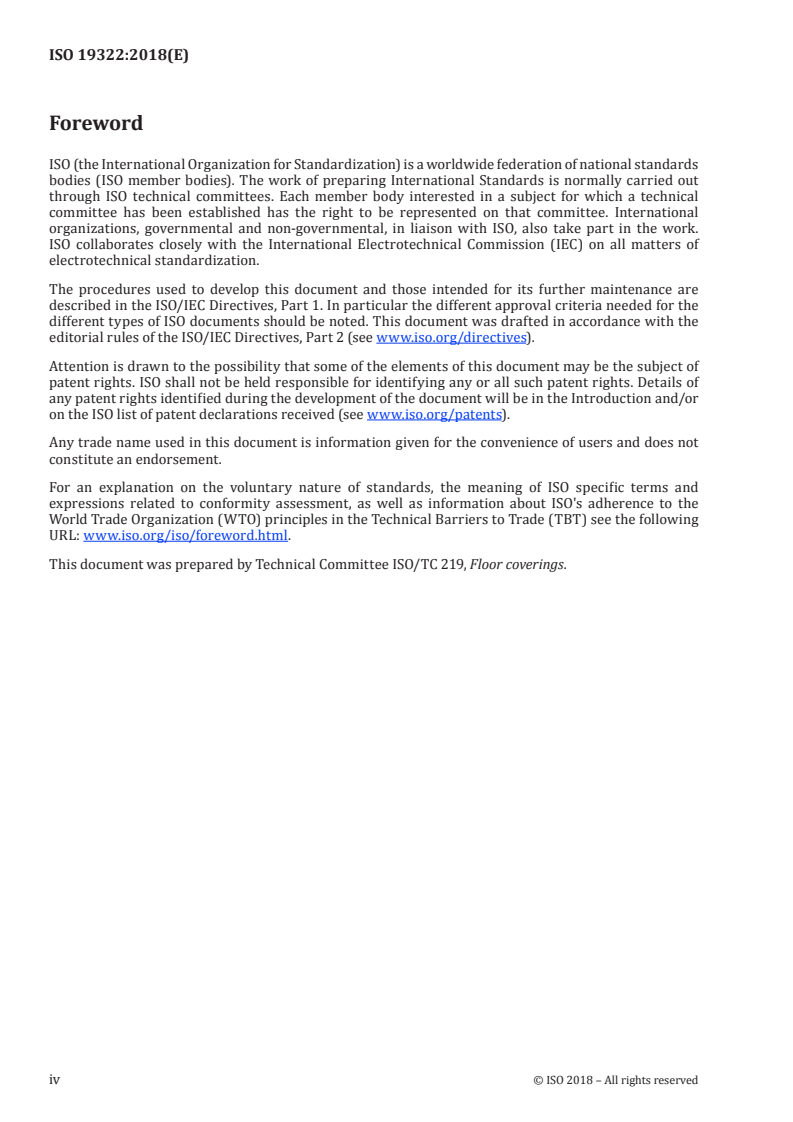

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 219, Floor coverings.
iv © ISO 2018 – All rights reserved

INTERNATIONAL STANDARD ISO 19322:2018(E)
Resilient floor coverings — Specification for floor
coverings based on thermoplastic polymers
1 Scope
This document specifies the characteristics for resilient floor coverings based upon thermoplastic
polymers, supplied either in roll, plank or tile form.
To encourage the consumer to make an informed choice, this document includes a classification
system (see ISO 10874) based on intensity of use, which shows where these floor coverings should give
satisfactory service. It also specifies requirements for marking.
This specification does not apply to floor coverings specified in ISO 10581, ISO 10582, ISO 10595,
ISO 11638, ISO 10575, ISO 10577, ISO 24011 and ISO 26986.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 105-B02, Textiles — Tests for colour fastness — Part B02: Colour fastness to artificial light: Xenon arc
fading lamp test
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 4918, Resilient, textile and laminate floor coverings — Castor chair test
ISO 9405, Textile floor coverings — Assessment of changes in appearance
ISO 10874, Resilient, textile and laminate floor coverings — Classification
ISO 16581, Resilient and laminate floor coverings — Determination of the effect of simulated movement of
a furniture leg
ISO 16906, Resilient floor coverings — Determination of seam strength
ISO 23997, Resilient floor coverings — Determination of mass per unit area
ISO 23999, Resilient floor coverings — Determination of dimensional stability and curling after
exposure to heat
ISO 24340, Resilient floor coverings — Determination of thickness of layers
ISO 24341, Resilient and textile floor coverings — Determination of length, width and straightness of sheet
ISO 24342, Resilient and textile floor-coverings — Determination of side length, edge straightness and
squareness of tiles
ISO 24343-1, Resilient and laminate floor coverings — Determination of indentation and residual
indentation — Part 1: Residual indentation
ISO 24343-2, Resilient and laminate floor coverings — Determination of indentation and residual
indentation — Part 2: Short-term residual indentation of resilient floor covering
ISO 24344, Resilient floor coverings — Determination of flexibility and deflection
ISO 24345, Resilient floor coverings — Determination of peel resistance
ISO 24346, Resilient floor coverings — Determination of overall thickness
EN 1372, Adhesives — Test method for adhesives for floor coverings and wall coverings — Peel test
ASTM F 1515, Standard Test Method for Measuring Light Stability of Resilient Flooring by Color Change
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
homogeneous floor covering
floor covering with one or more layers of the same composition and colour, patterned throughout its
thickness
3.2
heterogeneous floor covering
floor covering consisting of a wear layer (3.8) and other layer(s) which differ in composition and/or
design and can contain a reinforcement
3.3
factory finish
transparent coating applied during the manufacture, usually not thicker than 0,03 mm not using
thermoplastic polymer (3.6) as base resin
Note 1 to entry: This coating should not be counted as part of the wear layer (3.8).
3.4
product with backing
homogeneous (3.1) or a heterogeneous floor covering (3.2) with a backing of any material different from
the upper layers or a backing made with a foamed layer
Note 1 to entry: Typical example backings include materials such as cork, foams, polyester or jute.
3.5
scratch
permanent damage or mark on the surface of the floor covering made with a sharp or pointed object
3.6
thermoplastic polymer
polymers that become liquid when heated above Tg (glass transition temperature) or Tm (melting
temperature) and return to the solid state when cooled
Note 1 to entry: This cycle of melting and freezing can be repeated.
3.7
plank
tile with a ratio length divided by width superior or equal to 1,3
3.8
wear layer
portion of a resilient floor covering that contains or protects the pattern and design exclusive of
temporary factory finishes (3.3) or maintenance coating(s)
2 © ISO 2018 – All rights reserved

4 Requirements
Floor coverings described in this document shall comply with the appropriate general requirements
specified in Table 1, when tested in accordance with the methods given therein.
Some optional properties required for specific applications are defined in Annex B (informative).
Table 1 — General requirements
Requirement
Characteristic Test method
For product without backing For product with foamed
or with non-foamed backing backing
Roll form
— Length (in m) not less than the nominal value ISO 24341
— Width (in mm) not less than the nominal value
Tiles/planks:
Side length and Deviation ≤ 0,13 % of nominal length up to 0,5 mm maximum.
square panel
Width Deviation < 0,1 % up to 0,5 mm maximum.
Squareness and Deviation allowed at any point
ISO 24342
straightness
≤ 400 mm ≤ 0,25 mm
> 400 mm ≤ 0,35 mm
> 400 mm ≤ 0,50 mm
(intended for welding)
Overall thickness
a
— Average thickness Nominal value + 0,13 mm Nominal value + 0,18 mm
ISO 24346
− 0,10 mm               − 0,15 mm
b b
— Individual results Average value ± 0,15 mm Average value ± 0,20 mm
Thickness of wear For heterogeneous floor coverings, thickness of wear layer should
layer be declared in mm.
a
— Average thickness Nominal value + 13 %
− 10 %
— Individual results and shall not exceed ± 0,1 mm
ISO 24340
Individual results shall not exceed 0,05 mm or 15 % below the
average, whichever is greater. Where this requirement is not met
by only one individual value, a new single value has to be
measured. If this still does not meet the requirement, the test
result does not pass.
Total mass per unit area Nominal value + 13 %
ISO 23997
in g/m (average)
− 10 %
Dimensional stability
ISO 23999
after exposure to heat:
a
Average of the batch.
b
Average of the results of one sample.
c
Provided that manufacturer-specified installation procedures are strictly followed to ensure an adhesive strength of
more than 50 N/50 mm at 90 °, when pulled and measured at a speed of 100 mm/min complying with EN 1372.
d
Floating installation: Without any fixation to the subfloor. Loose lay (e.g. pressure-sensitive adhesives): Installed with
an adhesive strength less than 50 N/50 mm at 90 °, when pulled and measured at a speed of 100 mm/min complying with
EN 1372.
e
Test with blue wool scale N°6 according to ISO 105-B02. Compare the sample with a reference sample which was stored
in the dark.
Table 1 (continued)
Sheets and tiles |change of dimension| ≤ 0,4 % Two procedures
intended for welding are set up:
c
and glued installation
Procedure A: 80 °C
Procedure B: 50 °C
Tiles/planks intended |change of dimension| ≤ 0,25 % The choice of the
for dry-joint laying and procedure is the
c
glued installation decision of the
manufacturer.
A result cannot be
claimed without
reporting the
procedure used.
Tiles/planks intended |change of dimension| ≤ 0,15 %
for loose lay or floating
d
installation
Curling under exposure
ISO 23999
to heat in mm
Rolls and tiles intended |curling| ≤ 8 mm Two procedures
for welding and glued are set up:
c
installation
Procedure A: 80 °C
Procedure B: 50 °C
Tiles/planks intended |curling| ≤ 2 mm The choice of the
for dry-joint laying and procedure is the
c
glued installation decision of the
manufacturer.
A result cannot be
claimed without
mentioning the
procedure used.
Tiles/planks intended |curling| ≤ 1 mm
for loose lay or floating
d
installation
Flexibility (only for Test using a 20 mm mandrel. For products which show signs of
sheet floorings) cracking, perform a further test using a 50 mm mandrel. If results ISO 24344:2008,
show no further cracking, record the use of a 50 mm diameter Method A
mandrel.
Colour fastness to ≥ 6 ISO 105-B02
artificial light
e
or Method 3
ΔE ≤ 8 after 300 h, where ΔE is the colour change. ASTM F1515
Peel resistance of Average: ≥ 50 N/50 mm
the backing
ISO 24345
Individual
results: ≥ 40 N/50 mm
a
Average of the batch.
b
Average of the results of one sample.
c
Provided that manufacturer-specified installation procedures are strictly followed to ensure an adhesive strength of
more than 50 N/50 mm at 90 °, when pulled and measured at a speed of 100 mm/min complying with EN 1372.
d
Floating installation: Without any fixation to the subfloor. Loose lay (e.g. pressure-sensitive adhesives): Installed with
an adhesive strength less than 50 N/50 mm at 90 °, when pulled and measured at a speed of 100 mm/min complying with
EN 1372.
e
Test with blue wool scale N°6 according to ISO 105-B02. Compare the sample with a reference sample which was stored
in the dark.
4 © ISO 2018 – All rights reserved

5 Classification requirements
The classification scheme for resilient floor coverings shall be as defined in ISO 10874. The requirements
for the use of resilient floor coverings based upon thermoplastic polymers in accordance with this
scheme are specified in Table 2.
Table 2 — Classification requirement for level of use (minimal)
Class Symbol Level of Overall thickness Residual indentation Seam strength if
use (mm) (mm) welding is required
(N/50 mm)
a
ISO 24343-1
Test method ISO 24346 ISO 16906
b
ISO 24343-2
Product Product Product Product
without with without with
backing or foamed backing foamed
with non- backing or with backing
foamed non-foamed
backing backing
Domestic
a b
21 Moderate/ ≥ 1 ≥ 2,5 ≤ 0,
...
