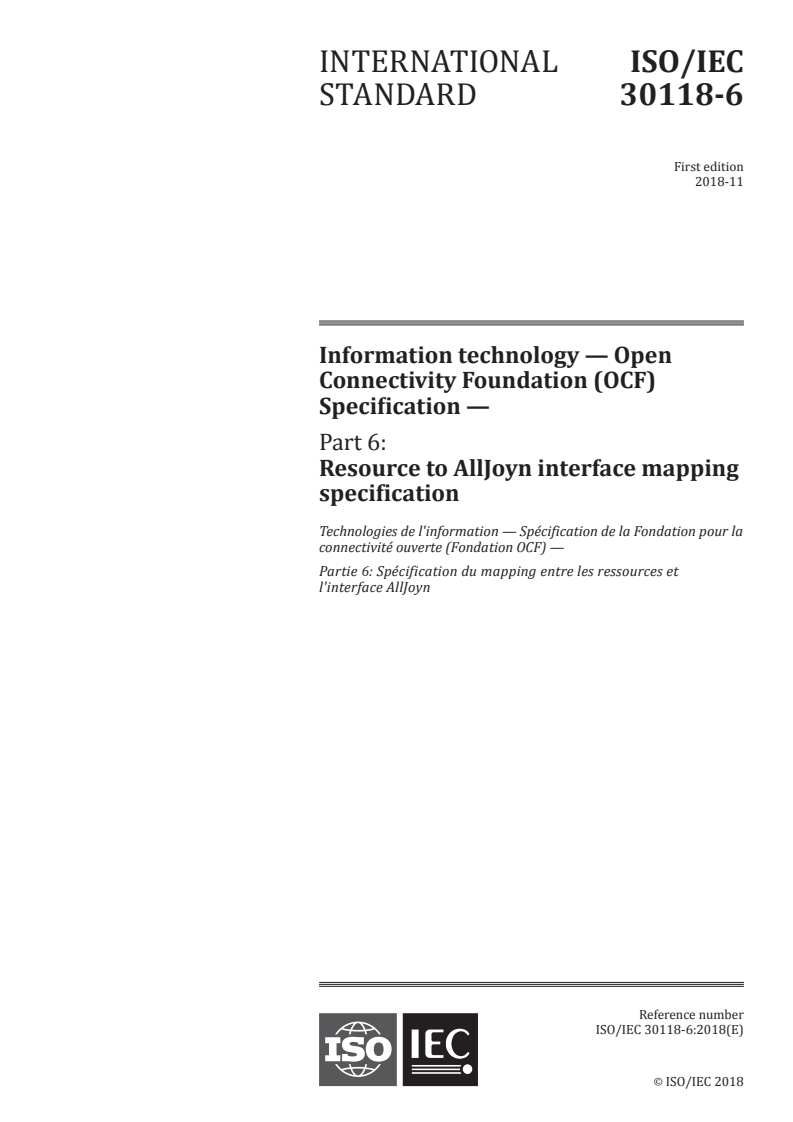

ISO/IEC 30118-6:2018

INTERNATIONAL ISO/IEC
STANDARD 30118-6
First edition
2018-11
Information technology — Open
Connectivity Foundation (OCF)
Specification —
Part 6:
Resource to AllJoyn interface mapping
specification
Technologies de l'information — Spécification de la Fondation pour la
connectivité ouverte (Fondation OCF) —
Partie 6: Spécification du mapping entre les ressources et
l'interface AllJoyn
Reference number
©
ISO/IEC 2018
© ISO/IEC 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved

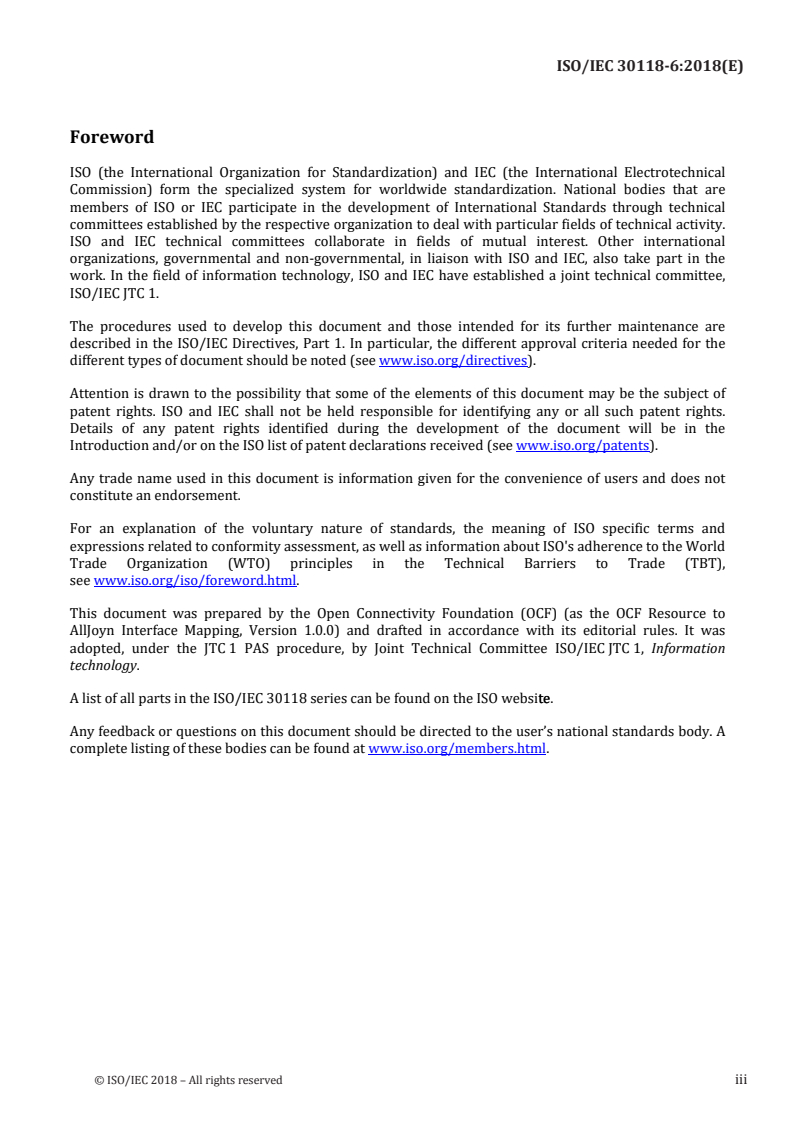

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non‐governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of document should be noted (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the World
Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),
see www.iso.org/iso/foreword.html.
This document was prepared by the Open Connectivity Foundation (OCF) (as the OCF Resource to
AllJoyn Interface Mapping, Version 1.0.0) and drafted in accordance with its editorial rules. It was
adopted, under the JTC 1 PAS procedure, by Joint Technical Committee ISO/IEC JTC 1, Information
technology.
A list of all parts in the ISO/IEC 30118 series can be found on the ISO websitete.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
© ISO/IEC 2018 – All rights reserved iii

CONTENTS
1 Scope . 10
2 Normative references . 10
3 Terms, definitions symbols and abbreviations . 11
3.1 Terms and definitions . 11
3.2 Symbols and abbreviations . 11
3.3 Conventions . 11
4 Document conventions and organization . 11
4.1 Notation . 11
4.2 Data types . 12
5 Theory of Operation . 12
5.1 Interworking Approach . 12
5.2 Mapping Syntax . 12
5.2.1 General . 12
5.2.2 Value Assignment . 12
5.2.3 Property Naming . 12
5.2.4 Arrays . 12
5.2.5 Default Mapping . 13
5.2.6 Conditional Mapping . 13
5.2.7 Loops . 13
5.2.8 Method Invocation . 13
6 Device Type Mapping . 13
6.1 Introduction . 13
6.2 AllJoyn Device Types to OCF Device Types . 13
6.3 OCF Device Types with no AllJoyn Equivalent . 15
7 Resource to Interface Equivalence . 16
7.1 Introduction . 16
7.2 AllJoyn Interfaces to OCF Resources . 16
8 Detailed Mapping APIs . 18
8.1 Air Quality Mapping . 19
8.1.1 Introduction . 19
8.1.2 Example URI . 20
8.1.3 Resource Type . 20
8.1.4 RAML Definition . 20
8.1.5 Property Definition . 22
8.1.6 CRUDN behavior . 22
8.2 Air Quality Level Mapping . 22
8.2.1 Introduction . 22
8.2.2 Example URI . 22
8.2.3 Resource Type . 22
© ISO/IEC 2018 – All rights reserved

8.2.4 RAML Definition . 22
8.2.5 Property Definition . 24
8.2.6 CRUDN behavior . 25
8.3 Current Humidity Mapping . 25
8.3.1 Introduction . 25
8.3.2 Example URI . 25
8.3.3 Resource Type . 25
8.3.4 RAML Definition . 25
8.3.5 Property Definition . 27
8.3.6 CRUDN behavior . 27
8.4 Current Temperature Mapping . 27
8.4.1 Introduction . 27
8.4.2 Example URI . 27
8.4.3 Resource Type . 27
8.4.4 RAML Definition . 27
8.4.5 Property Definition . 29
8.4.6 CRUDN behavior . 29
8.5 Target Humidity Mapping . 29
8.5.1 Introduction . 29
8.5.2 Example URI . 29
8.5.3 Resource Type . 29
8.5.4 RAML Definition . 29
8.5.5 Property Definition . 34
8.5.6 CRUDN behavior . 35
8.6 Target Temperature Mapping . 35
8.6.1 Introduction . 35
8.6.2 Example URI . 35
8.6.3 Resource Type . 35
8.6.4 RAML Definition . 35
8.6.5 Property Definition . 40
8.6.6 CRUDN behavior . 40
8.7 Audio Volume Mapping . 40
8.7.1 Introduction . 40
8.7.2 Example URI . 40
8.7.3 Resource Type . 40
8.7.4 RAML Definition . 40
8.7.5 Property Definition . 44
8.7.6 CRUDN behavior . 44
8.8 Climate Control Mode Mapping . 44
8.8.1 Introduction . 44
8.8.2 Example URI . 44
8.8.3 Resource Type . 44
8.8.4 RAML Definition . 44
8.8.5 Property Definition . 48
© ISO/IEC 2018 – All rights reserved

8.8.6 CRUDN behavior . 49
8.9 Closed Status Mapping . 49
8.9.1 Introduction . 49
8.9.2 Example URI . 49
8.9.3 Resource Type . 49
8.9.4 RAML Definition . 49
8.9.5 Property Definition . 50
8.9.6 CRUDN behavior . 50
8.10 Cycle Control Mapping . 50
8.10.1 Introduction . 50
8.10.2 Example URI . 50
8.10.3 Resource Type . 50
8.10.4 RAML Definition . 50
8.10.5 Property Definition . 52
8.10.6 CRUDN behavior . 52
8.11 Fan Speed Level Mapping . 52
8.11.1 Introduction . 52
8.11.2 Example URI . 52
8.11.3 Resource Type . 53
8.11.4 RAML Definition . 53
8.11.5 Property Definition . 56
8.11.6 CRUDN behavior . 56
8.12 Heating Zone Mapping. 56
8.12.1 Introduction . 56
8.12.2 Example URI . 57
8.12.3 Resource Type . 57
8.12.4 RAML Definition . 57
8.12.5 Property Definition . 58
8.12.6 CRUDN behavior . 59
8.13 HVAC Fan Mode Mapping . 59
8.13.1 Introduction . 59
8.13.2 Example URI . 59
8.13.3 Resource Type . 59
8.13.4 RAML Definition . 59
8.13.5 Property Definition . 62
8.13.6 CRUDN behavior . 62
8.14 On Off Mapping . 63
8.14.1 Introduction . 63
8.14.2 Example URI . 63
8.14.3 Resource Type . 63
8.14.4 RAML Definition . 63
8.14.5 Property Definition . 67
8.14.6 CRUDN behavior . 67
8.15 Oven Cycle Phase Mapping . 67
© ISO/IEC 2018 – All rights reserved

8.15.1 Introduction . 67
8.15.2 Example URI . 67
8.15.3 Resource Type . 67
8.15.4 RAML Definition . 67
8.15.5 Property Definition . 69
8.15.6 CRUDN behavior . 69
Annex A Swagger2.0 (Informative) . 70
A.1 Audio Volume Mapping . 70
A.1.1 Introduction . 70
A.1.2 Example URI . 70
A.1.3 Resource Type . 70
A.1.4 Swagger2.0 Definition . 70
A.1.5 Property Definition . 72
A.1.6 CRUDN behavior . 73
A.2 Climate Control Mode Mapping . 73
A.2.1 Introduction . 73
A.2.2 Example URI . 73
A.2.3 Resource Type . 73
A.2.4 Swagger2.0 Definition . 73
A.2.5 Property Definition . 76
A.2.6 CRUDN behavior . 76
A.3 Closed Status Mapping . 77
A.3.1 Introduction . 77
A.3.2 Example URI . 77
A.3.3 Resource Type . 77
A.3.4 Swagger2.0 Definition . 77
A.3.5 Property Definition . 78
A.3.6 CRUDN behavior . 78
A.4 Air Quality Mapping . 78
A.4.1 Introduction . 78
A.4.2 Example URI . 79
A.4.3 Resource Type . 79
A.4.4 Swagger2.0 Definition . 79
A.4.5 Property Definition . 81
A.4.6 CRUDN behavior . 81
A.5 Air Quality Level Mapping . 81
A.5.1 Introduction . 81
A.5.2 Example URI . 82
A.5.3 Resource Type . 82
A.5.4 Swagger2.0 Definition . 82
A.5.5 Property Definition . 84
A.5.6 CRUDN behavior . 85
A.6 Current Humidity Mapping . 85
A.6.1 Introduction . 85
© ISO/IEC 2018 – All rights reserved

A.6.2 Example URI . 85
A.6.3 Resource Type . 85
A.6.4 Swagger2.0 Definition . 85
A.6.5 Property Definition . 86
A.6.6 CRUDN behavior . 87
A.7 Current Temperature Mapping . 87
A.7.1 Introduction . 87
A.7.2 Example URI . 87
A.7.3 Resource Type . 87
A.7.4 Swagger2.0 Definition . 87
A.7.5 Property Definition . 89
A.7.6 CRUDN behavior . 89
A.8 Cycle Control Mapping . 89
A.8.1 Introduction . 89
A.8.2 Example URI . 89
A.8.3 Resource Type . 90
A.8.4 Swagger2.0 Definition . 90
A.8.5 Property Definition . 91
A.8.6 CRUDN behavior . 92
A.9 Fan Speed Level Mapping . 92
A.9.1 Introduction . 92
A.9.2 Example URI . 92
A.9.3 Resource Type . 92
A.9.4 Swagger2.0 Definition . 92
A.9.5 Property Definition . 95
A.9.6 CRUDN behavior . 95
A.10 Heating Zone Mapping. 95
A.10.1 Introduction . 95
A.10.2 Example URI . 96
A.10.3 Resource Type . 96
A.10.4 Swagger2.0 Definition . 96
A.10.5 Property Definition . 97
A.10.6 CRUDN behavior . 98
A.11 HVAC Fan Mode Mapping . 98
A.11.1 Introduction . 98
A.11.2 Example URI . 98
A.11.3 Resource Type . 98
A.11.4 Swagger2.0 Definition . 98
A.11.5 Property Definition . 101
A.11.6 CRUDN behavior . 101
A.12 On Off Mapping . 101
A.12.1 Introduction . 101
A.12.2 Example URI . 101
A.12.3 Resource Type . 101
© ISO/IEC 2018 – All rights reserved

A.12.4 Swagger2.0 Definition . 101
A.12.5 Property Definition . 103
A.12.6 CRUDN behavior . 103
A.13 Oven Cycle Phase Mapping . 104
A.13.1 Introduction . 104
A.13.2 Example URI . 104
A.13.3 Resource Type . 104
A.13.4 Swagger2.0 Definition . 104
A.13.5 Property Definition . 106
A.13.6 CRUDN behavior . 106
A.14 Target Humidity Mapping . 106
A.14.1 Introduction . 106
A.14.2 Example URI . 106
A.14.3 Resource Type . 106
A.14.4 Swagger2.0 Definition . 107
A.14.5 Property Definition . 110
A.14.6 CRUDN behavior . 111
A.15 Target Temperature Mapping . 111
A.15.1 Introduction . 111
A.15.2 Example URI . 111
A.15.3 Resource Type . 111
A.15.4 Swagger2.0 Definition . 111
A.15.5 Property Definition . 115
A.15.6 CRUDN behavior . 115

© ISO/IEC 2018 – All rights reserved

Figures
No table of figures entries found.
© ISO/IEC 2018 – All rights reserved

Tables
Table 6-1 AllJoyn to OCF Device Type Mapping. . 14
Table 7-1 AllJoyn Interface to OCF Resource Type Mapping – Minimum Interface Set . 16
Table 7-2 AllJoyn Interface to OCF Resource Type Mapping – Optional Interface Set . 17
Table 8-1 Interface to Resource Summary . 18

© ISO/IEC 2018 – All rights reserved

1 Scope
The OCF Resource to AllJoyn Interface Mapping specification (“this specification”) provides
detailed mapping information to provide equivalency between AllJoyn defined Interfaces and OCF
defined Resources,
This specification provides mapping for Device Types (AllJoyn to/from OCF), identifies equivalent
OCF Resources for both mandatory and optional AllJoyn interfaces and for each interface defines
the detailed Property by Property mapping using OCF defined extensions to JSON schema to
programmatically define the mappings.

2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
OCF Core Specification, Open Interconnect Consortium Core Specification, Version 1.0.
OCF Resource Type Specification, Open Interconnect Consortium Resource Type Specification,
Version 1.0
OCF Smart Home Device Specification, Open Interconnect Consortium Smart Home Device
Specification, Version 1.0
Derived Models for Interoperability between IoT Ecosystems, Stevens & Merriam, March 2016
https://www.iab.org/wp-content/IAB-uploads/2016/03/OCF-Derived-Models-for-Interoperability-
Between-IoT-Ecosystems_v2-examples.pdf
IETF RFC 7159, The JavaScript Object Notation (JSON) Data Interchange Format, March 2014
http://www.ietf.org/rfc/rfc7159.txt
RAML, Restful API modelling language, Version 0.8.
https://github.com/raml-org/raml-spec/blob/master/versions/raml-08/raml-08.md
AllJoyn Common Data Model Interface Definitions
https://wiki.alljoyn.org/cdm
Swagger2.0, Swagger RESTful API Documentation Specification, Version 2.0
http://swagger.io/specification/
OCF Resource Type Definitions, API Definition Language for OCF Resource Type Definitions,
Release OCF-v1.0.0
https://github.com/openconnectivityfoundation/derivedmodels

© ISO/IEC 2018 – All rights reserved

3 Terms, definitions symbols and abbreviations
3.1 Terms and definitions
3.2 Symbols and abbreviations
3.2.1
OCF
Open Connectivity Foundation
The organization that created these specifications
3.2.2
RAML
RESTful API Modelling Language
RAML is a simple and succinct way of describing practically-RESTful APIs. See RAML.
3.3 Conventions
In this specification a number of terms, conditions, mechanisms, sequences, parameters, events,
states, or similar terms are printed with the first letter of each word in uppercase and the rest
lowercase (e.g., Network Architecture). Any lowercase uses of these words have the normal
technical English meaning.
4 Document conventions and organization
For the purposes of this document, the terms and definitions given in OCF Core Specification and
OCF Resource Type Specification apply.
4.1 Notation
In this document, features are described as required, recommended, allowed or DEPRECATED as
follows:
Required (or shall or mandatory).
These basic features shall be implemented to comply with the Mapping Specification. The
phrases “shall not”, and “PROHIBITED” indicate behavior that is prohibited, i.e. that if
performed means the implementation is not in compliance.
Recommended (or should).
These features add functionality supported by the Mapping Specification and should be
implemented. Recommended features take advantage of the capabilities the Mapping
Specification, usually without imposing major increase of complexity. Notice that for compliance
testing, if a recommended feature is implemented, it shall meet the specified requirements to
be in compliance with these guidelines. Some recommended features could become
requirements in the future. The phrase “should not” indicates behavior that is permitted but not
recommended.
Allowed (or allowed).
These features are neither required nor recommended by the Mapping Specification, but if the
feature is implemented, it shall meet the specified requirements to be in compliance with these
guidelines.
Conditionally allowed (CA)
The definition or behaviour depends on a condition. If the specified condition is met, then the
definition or behaviour is allowed, otherwise it is not allowed.
Conditionally required (CR)
© ISO/IEC 2018 – All rights reserved

The definition or behaviour depends on a condition. If the specified condition is met, then the
definition or behaviour is required. Otherwise the definition or behaviour is allowed as default
unless specifically defined as not allowed.
DEPRECATED
Although these features are still described in this specification, they should not be implemented
except for backward compatibility. The occurrence of a deprecated feature during operation of
an implementation compliant with the current specification has no effect on the
implementation’s operation and does not produce any error conditions. Backward compatibility
may require that a feature is implemented and functions as specified but it shall never be used
by implementations compliant with this specification.
Strings that are to be taken literally are enclosed in “double quotes”.
Words that are emphasized are printed in italic.
4.2 Data types
See OCF Core Specification.
5 Theory of Operation
5.1 Interworking Approach
The interworking between AllJoyn defined interfaces and OCF defined Resource Types is modelled
using the derived model syntax described in Derived Models for Interoperability . Determination
of the minimum set of AllJoyn interfaces for which equivalency is required within the OCF data
model was done by listing the set of interfaces required for each of the device types defined by
the CDM Project inside of AllJoyn. Where the AllJoyn interface supports methods then an
actuation design pattern is applied.
5.2 Mapping Syntax
Within the defined syntax for derived modelling used by this Specification there are two blocks that
define the actual Property-Property equivalence or mapping. These blocks are identified by the
keywords ‘x-to-ocf’ and ‘x-from-ocf’. Derived Models for Interoperability does not define a rigid
syntax for these blocks; they are free form string arrays that contain pseudo-coded mapping logic.
Within this specification we apply the rules in the following sub-sections to these blocks to ensure
consistency and re-usability and extensibility of the mapping logic that is defined.
5.2.1 General
All statements are terminated with a carriage return.
5.2.2 Value Assignment
The equals sign (=) is used to assign one value to another. The assignee is on the left of the
operator; the value being assigned on the right.
5.2.3 Property Naming
All Property names are identical to the name used by the original model; for example from the OCF
Temperature Resource the Property name ‘temperature’ is used whereas when referred to the
derived ecosystem then the semantically equivalent Property name is used.
When the same name is used by both OCF and the derived ecosystem for semantically equivalent
values then the name of the OCF defined Property is prepended by the ecosystem designator ‘ocf’
to avoid ambiguity (e.g. ‘ocf.step’)
5.2.4 Arrays
An array element is indicated by the use of square brackets ‘[]’ with the index of the element
contained therein, e.g. range[1]. All arrays start at an index of 0. If an entire array is being
referenced then no index is included, e.g. selectablehumiditylevels[].
© ISO/IEC 2018 – All rights reserved

5.2.5 Default Mapping
There are cases where the specified mapping is not possible as one or more of the Properties
being mapped is optional in the source model. In all such instances a default mapping is provided.
The default map is indicated by the prepending of an ‘otherwise:’ modifier to the assignment. (e.g.
‘otherwise: step = 1’)
5.2.6 Conditional Mapping
When a mapping is dependent on the meeting of other conditions then the syntax:
if ‘condition’, ‘mapping’.
Is applied.
E.g. if step >0, ocf.step = step.
5.2.7 Loops
When a mapping can be represented by a repeated loop governed by some condition then the
syntax:
for ‘initialize’, ‘condition’, ‘increment’: ‘mapping’
Where:
‘initialize’ is an initial local loop control variable setting.
‘condition’ is the loop controller, the loop repeats until the condition evaluates to ‘false’.
‘increment’ allows for update of the control variable, if omitted an increment of ‘1’ is assumed.
Is applied.
E.g. for x=0, x < sizeof(supportedmodes): ocf.supportedmodes[x] =
modearray[supportedmodes[x]]
5.2.8 Method Invocation
The invocation of a method or remote procedure call (RPC) from the derived ecosystem as part of
the mapping from an OCF Resource is indicated by the use if a double colon ‘::’ delimiter between
the applicable resource, service, interface or other construct identifier and the method or RPC
name. The method name always includes trailing parentheses which would include any
parameters should they be passed.
For example when dealing with the switchon() method from AllJoyn this gives a complete method
invocation as: operation.oncontrol::switchon().
6 Device Type Mapping
6.1 Introduction
This Section contains the mappings to/from Device Types.
6.2 AllJoyn Device Types to OCF Device Types
The following table captures the equivalency mapping between AllJoyn defined Device Types (see
AllJoyn Common Data Model Interface Definitions) and OCF defined Device Types (see Table 10-
1 in OCF Smart Home Device Specification). The minimum interface set for the AllJoyn definitions
is provided in the HAE Theory of Operation; the minimum Resource sets for each OCF Device is
provided in OCF Smart Home Device Specification.
© ISO/IEC 2018 – All rights reserved

Table 6-1 AllJoyn to OCF Device Type Mapping.
Classification AllJoyn Device AllJoyn OCF Device Type
Type ID
Air Care Air Conditioner 5 oic.d.airconditioner
Air Purifier 9 oic.d.airpurifier
Air Quality Monitor 11 oic.d.aqm
Dehumidifier 8 oic.d.dehumidifier
Humidifier 7 oic.d.humidifier
Electric Fan 10 oic.d.fan
Thermostat 6 oic.d.thermostat
Fabric Care Clothes Washer 12 oic.d.washer
Clothes Dryer 13 oic.d.dryer
Clothes Washer-
14 oic.d.washerdryer
Dryer
Food Preservation Refrigerator 2 oic.d.refrigerator
Ice-Maker 4 oic.r.icemaker (maps to Resource)
Freezer 3 oic.d.freezer
Food Preparation Oven 17 oic.d.oven
Cooktop 18 oic.d.cooktop
Cookerhood 19 oic.d.cookerhood
Food probe 20 oic.d.foodprobe
Dish Care Dishwasher 15 oic.d.dishwasher
Floor Care
...
