ISO 5609:1989

IS0
I NTER NATIONAL
STANDARD
Second edition
1989-04-01
Boring bars for indexable inserts - Dimensions
Porte-plaquette de tournage intérieur - Dimensions
Reference number
IS0 5609 : 1989 (E)
IS0 5609 : 1989 (E)

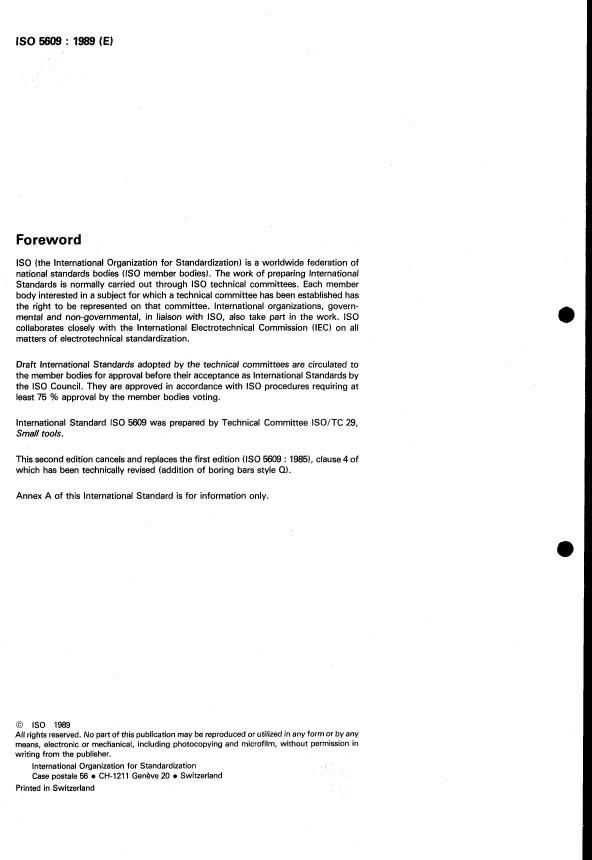

Foreword
IS0 (the International Organization for Standardization) is a worldwide federation of
national standards bodies (IS0 member bodies). The work of preparing International
Standards is normally carried out through IS0 technical committees. Each member
body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the work. IS0
collaborates closely with the International Electrotechnical Commission (IEC) on all
matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the IS0 Council. They are approved in accordance with IS0 procedures requiring at
least 75 % approval by the member bodies voting.
International Standard IS0 5609 was prepared by Technical Committee ISO/TC 29,
Small tools.
This second edition cancels and replaces the first edition (IS0 5609 : 19851, clause 4 of
which has been technically revised (addition of boring bars style QI.
Annex A of this International Standard is for information only.
O IS0 1989
All rights reserved. No part of this publication may be reproduced or utilized in any form or by any
means, electronic or meclianical, including photocopying and microfilm, without permission in
writing from the publisher.
International Organization for Standardization
Case postale 56 0 CH-1211 Genève 20 0 Switzerland
Printed in Switzerland
IS0 5609 : 1989 (E)
INTERNATIONAL STANDARD
Boring bars for indexable inserts - Dimensions
1 Scope 2 Remark
This International Standard specifies the general dimensions of The designation system for boring bars is given in IS0 6261.
solid steel boring bars with cylindrical shank for indexable
inserts, and specifies preferred boring bars (see clause 4).
3 Dimensions
3.1 General dimensions
See figure 1 and table 1.
a
d
m=f+-
Figure 1
Table 1
Dimensions in millimetres
ihank diameter, d 97 08 10 12 16 20 25 32 40 50 60
preferred series 80 100 125 150 180 200 250 300 350 400
Shank length, 11 k16
secondaryseries 100 125 150 200 250 300 350 400 450 500
Iimension, f 6 7 9 11 13 17 22 27 35 43
i
Minimum diameter of bore, D,in 11 13 16 20 25 32 40 506380
NOTE - One or more flats on the shank may be provided at the manufacturer’s option.
-
IS0 5609 : 1989 (E)
Table 2

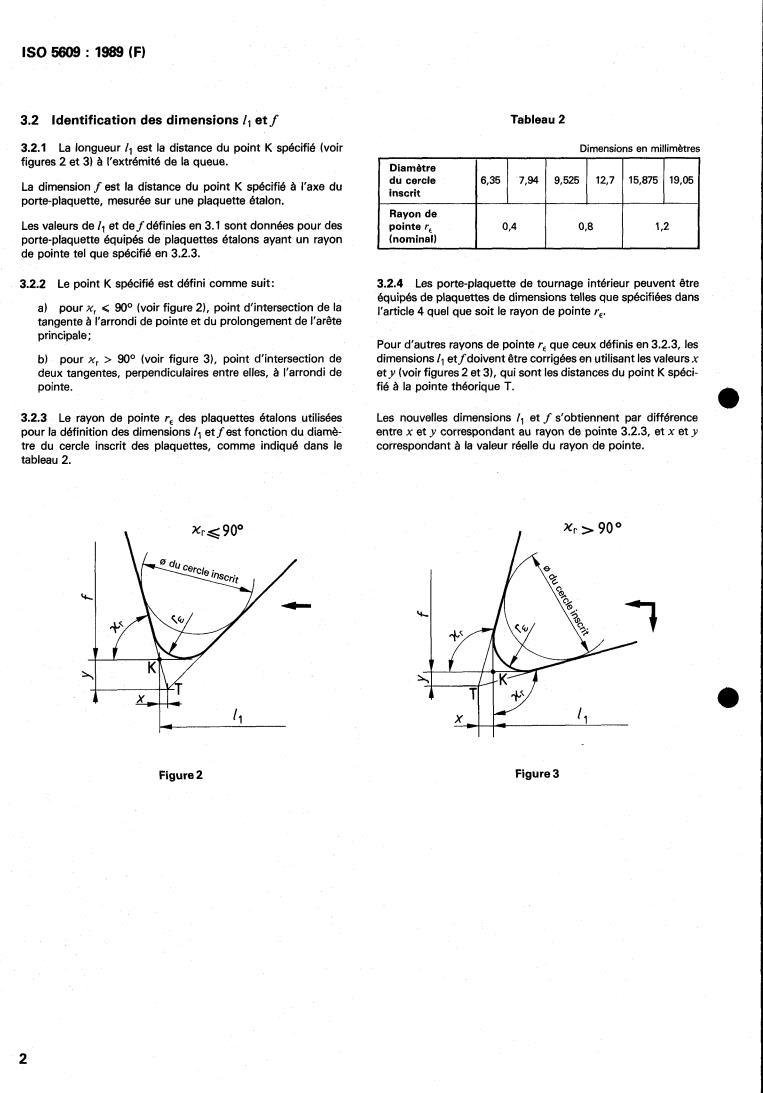

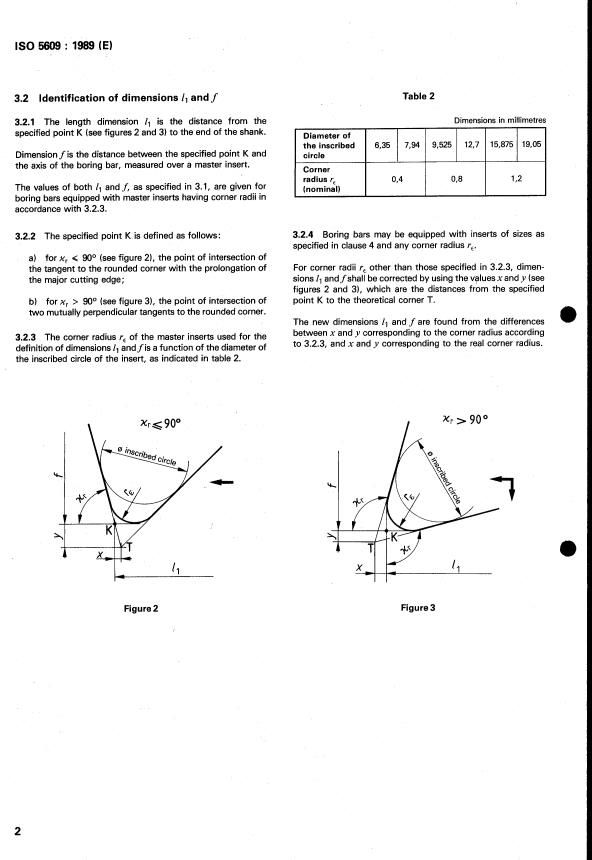

3.2 Identification of dimensions l1 and f
3.2.1 The length dimension Il is the distance from the
specified point K (see
...
