ISO 14229-3:2012

INTERNATIONAL ISO
STANDARD 14229-3
First edition
2012-12-01
Corrected version
2013-01-15
Road vehicles — Unified diagnostic
services (UDS) —
Part 3:
Unified diagnostic services on CAN
implementation (UDSonCAN)
Véhicules routiers — Services de diagnostic unifiés (SDU) —
Partie 3: SDU sur l’implémentation du gestionnaire de réseau de
communication (SDUsurCAN)
Reference number
©
ISO 2012

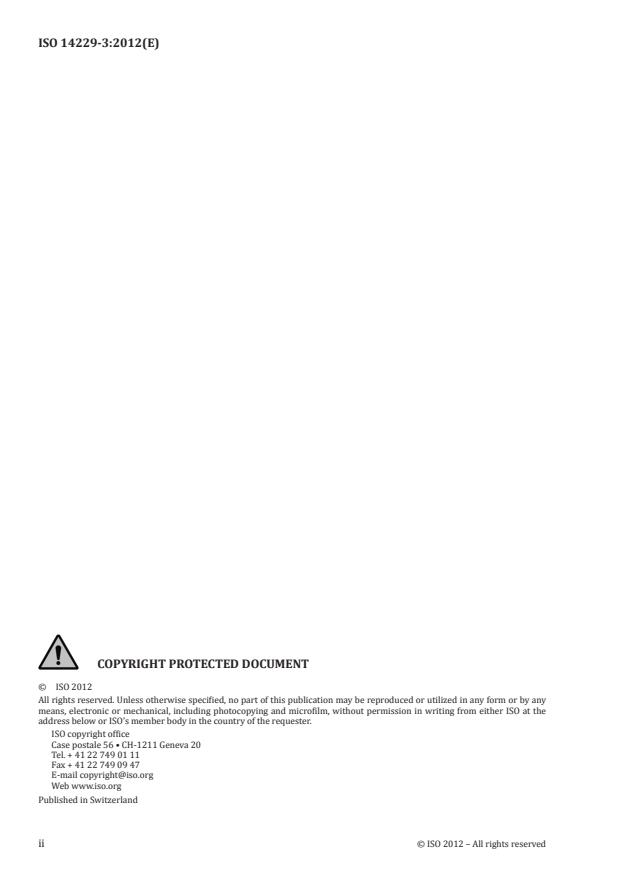

© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 1
4 Conventions . 2
5 Document overview. 2
6 Unified diagnostic services implementation on CAN . 4
6.1 General . 4
6.2 UDS on CAN services overview . 4
6.3 ResponseOnEvent (0x86) service DoCAN implementation requirements . 5
6.4 ReadDataByPeriodicIdentifier (0x2A) service . 7
7 Application layer requirements .13
7.1 Application layer services .13
7.2 Application layer protocol .13
7.3 Application layer timing.13
8 Presentation layer requirements .13
9 Session layer requirements .13
10 Transport/Network layer interface adaptation .13
10.1 General information .13
10.2 DoCAN Transport/Network layer interface adaptation .14
11 Data link layer diagnostic implementation requirements .15
11.1 Usage of legislated 11-bit OBD CAN Identifiers for enhanced diagnostics .15
11.2 Usage of legislated 29-bit OBD CAN Identifiers for enhanced diagnostics .15
Bibliography
.............................................................................................................................................................................................................................16
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14229-3 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 3,
Electrical and electronic equipment.
This first edition of ISO 14229-3 cancels and replaces ISO 15765-3:2004.
This corrected version incorporates the above information regarding ISO 14229-3 cancelling and
replacing ISO 15765-3:2004.
ISO 14229 consists of the following parts, under the general title Road vehicles — Unified diagnostic
services (UDS):
— Part 1: Specification and requirements
— Part 2: Session layer services
— Part 3: Unified diagnostic services on CAN implementation (UDSonCAN)
— Part 4: Unified diagnostic services on FlexRay implementation (UDSonFR)
— Part 5: Unified diagnostic services on Internet Protocol implementation (UDSonIP)
— Part 6: Unified diagnostic services on K-Line implementation (UDSonK-Line)
The following parts are under preparation / are planned:
— Part 7: Unified diagnostic services on Local Interconnet Network implementation(UDSonLIN)
iv © ISO 2012 – All rights reserved

Introduction
This part of ISO 14229 has been established in order to enable the implementation of unified diagnostic
services, as specified in ISO 14229-3, on Controller Area Networks (UDSonCAN).
To achieve this, it is based on the Open Systems Interconnection (OSI) Basic Reference Model specified in
ISO/IEC 7498-1 and ISO/IEC 10731, which structures communication systems into seven layers. When
mapped on this model, the services specified by ISO 14229 are divided into
— Application layer (layer 7):
— Vehicle manufacturer enhanced diagnostics: ISO 14229-1, ISO 14229-3,
— Legislated OBD: ISO 15031-5,
— Legislated WWH-OBD: ISO 14229-1 / ISO 27145-3;
— Presentation layer (layer 6):
— Vehicle manufacturer enhanced diagnostics: vehicle manufacturer specific,
— Legislated OBD: SAE J1930-DA, SAE J1979-DA, SAE J2012-DA,
— Legislated WWH-OBD: ISO 27145-2 with reference to SAE J1930-DA, SAE J1939, Companion
Spreadsheet (SPNs), SAE J1939-73:2010, Appendix A (FMIs), SAE J1979-DA and SAE J2012-DA;
— Session layer services (layer 5):
— Vehicle manufacturer enhanced diagnostics: ISO 14229-2,
— Legislated OBD: ISO 14229-2,
— Legislated WWH-OBD: ISO 14229-2;
— Transport layer services (layer 4):
— Vehicle manufacturer enhanced diagnostics: ISO 15765-2,
— Legislated OBD: ISO 15765-2, ISO 15765-4
— Legislated WWH-OBD: ISO 27145-4;
— Network layer services (layer 3):
— Vehicle manufacturer enhanced diagnostics: ISO 15765-2,
— Legislated OBD: ISO 15765-2, ISO 15765-4
— Legislated WWH-OBD: ISO 27145-4;
— Data link layer (layer 2):
— Vehicle manufacturer enhanced diagnostics: ISO 11898-1, ISO 11898-2, ISO 11898-3, ISO 11898-5,
— Legislated OBD: ISO 11898-1, ISO 11898-2, ISO 15765-4,
— Legislated WWH-OBD: ISO 27145-4;
— Physical layer (layer 3):
— Vehicle manufacturer enhanced diagnostics: ISO 11898-1, ISO 11898-2, ISO 11898-3, ISO 11898-5,
— Legislated OBD: ISO 11898-1, ISO 11898-2, ISO 15765-4,
— Legislated WWH-OBD: ISO 27145-4;
in accordance with Table 1.
Table 1 — DoCAN enhanced diagnostics, legislated OBD and WWH-OBD specification reference
applicable to the OSI layers
Legislated
Vehicle manufac-
OBD Legislated WWH-OBD
Applicability OSI 7 layers turer enhanced
(On-Board (On-Board Diagnostics)
diagnostics
Diagnostics)
Application ISO 14229-1, ISO/
ISO 15031-5 ISO 14229-1, ISO 27145-3
(layer 7) FDIS 14229-3
ISO 27145-2 SAE J1930-DA,
SAE J1930-DA,
Presentation vehicle manufac- SAE J1939 Companion Spreadsheet (SPNs),
SAE J1979-DA,
(layer 6) turer specific SAE J1939 −73:2010, Appendix A (FMIs),
SAE J2012-DA
SAE J1979-DA, SAE J2012-DA
Seven layer Session
ISO 14229-2
according to (layer 5)
ISO/IEC 7498-1
Transport
and ISO/
(layer 4)
ISO 15765-2, ISO 15765-2,
IEC 10731
ISO 15765-2 ISO 13400-2
ISO 15765-4 ISO 15765-4
Network
(layer 3)
ISO 27145-4
Data link
ISO 11898-1,
ISO 11898-1, ISO 11898-1,
(layer 2)
ISO 11898-2, ISO 13400-3,
ISO 11898-2, ISO 11898-2,
ISO 11898-3, IEEE 802.3
Physical
ISO 15765-4 ISO 15765-4
ISO 11898-5
(layer 1)
vi © ISO 2012 – All rights reserved

INTERNATIONAL STANDARD ISO 14229-3:2012(E)
Road vehicles — Unified diagnostic services (UDS) —
Part 3:
Unified diagnostic services on CAN implementation
(UDSonCAN)
1 Scope
This part of ISO 14229 specifies the implementation of a common set of unified diagnostic services
(UDS) on controller area networks (CAN) in road vehicles (UDSonCAN).
UDSonCAN references ISO 14229-1 and ISO 14229-2 and specifies implementation requirements of the
diagnostic services to be used for diagnostic communication over CAN.
NOTE UDSonCAN does not specify any requirement for the in-vehicle CAN bus architecture.
This part of ISO 14229 does not include any redundant information of the documents as listed in the
Introduction. It focuses on
— additional requirements specific to the implementation of UDS on the CAN network, and
— specific restrictions in the implementation of UDS on the CAN network.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 14229-1, Road vehicles — Unified diagnostic services (UDS) — Part 1: Specification and requirements
ISO 14229-2, Road vehicles — Unified diagnostic services (UDS) — Part 2: Session layer services
ISO 15765-1, Road vehicles — Diagnostic communication over Controller Area Network (DoCAN) — Part 1:
General information and use case definition
ISO 15765-2, Road vehicles — Diagnostic communication over Controller Area Network (DoCAN) — Part 2:
Transport protocol and network layer services
ISO 15765-4, Road vehicles — Diagnostic communication over Controller Area Network (DoCAN) — Part 4:
Requirements for emissions-related systems
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14229-1, ISO 14229-2,
ISO 15765-1, ISO 15765-2 and ISO 15765-4 apply.
3.2 Abbreviated terms
CF consecutive frame
DA destination address
DLC data length code
FF first frame
FC flow control
ID identifier
NA network address
SA source address
SF single frame
SM subnet mask
SOM start of message
STRT serviceToRespondTo
TA target address
UDS unified diagnostic services
USDT unacknowledged segmented data transfer
UUDT unacknowledged unsegmented data transfer
4 Conventions
This part of ISO 14229 is based on the conventions discussed in the OSI Service Conventions
(ISO/IEC 10731:1994) as they apply for diagnostic services.
5 Document overview
Figure 1 illustrates the documents required to implement UDSonCAN.
2 © ISO 2012 – All rights reserved

Uniied Diagnostic Services (UDS)
subset
ISO 14229-1 UDS
ISO 14229-3 UDS
speciication and
OSI Layer 7
UDSonCAN
requirements
Application
vehicle manufacturer speciic
OSI Layer 6
Presentation
ISO 14229-2 UDS
OSI Layer 5
session layer services
Session
Standardized Service Primitive Interface
DoCAN
ISO 14229-3 UDS –
UDSonCAN
implementation
OSI Layer 4
Transport
ISO 15765-2 DoCAN
transport protocol
and
network
layer services
OSI Layer 3
Network
ISO 11898-1 CAN
data link layer and physical
OSI Layer 2
signalling
Data Link
ISO 11898 CAN
Part 2: High-speed medium access unit
Part 3: Low-speed, fault-tolerant, medium-
OSI Layer 1
dependent interface
Physical
Part 5: High-speed medium access unit
with low-power mode
Figure 1 — UDSonCAN document reference according to OSI model
6 Unified diagnostic services implementation on CAN
6.1 General
This clause defines how the diagnostic services as defined in ISO 14229-1 apply to DoCAN. For each
applicable service, the applicable sub-function and data parameters are defined.
NOTE The sub-function parameter definitions take into account that the most significant bit is used for the
suppressPosRspMsgIndicationBit parameter as defined in ISO 14229-1.
6.2 UDS on CAN services overview
The purpose of Table 2 is to reference all ISO 14229-1 and ISO 14229-2 services as they are applicable
for an implementation in ISO 14229-3, UDSonCAN. Table 2 contains the sum of all applicable services.
Certain applications using this part of ISO 14229 to implement UDSonCAN may restrict the number
of useable services and may categorize them in certain application areas/diagnostic sessions (default
session, programming session, etc.).
Services in Table 2 that are marked “No CAN specific requirements” shall be implemented as defined
in ISO 14229-1 and ISO 14229-2 with no additional restrictions. Services that are marked “CAN specific
requirements” shall be implemented as defined by the subclause listed in the Table 2 entry.
Table 2 — Overview of applicable ISO 14229-1, Unified diagnostic services and data ranges
Diagnostic service name Comment Reference in this
(ISO 14229-1) document
Diagnostic and Communication Management Functional Unit
DiagnosticSessionControl No CAN specific requirements —
ECUReset No CAN specific requirements —
SecurityAccess No CAN specific requirements —
CommunicationControl No CAN specific requirements —
TesterPresent No CAN specific requirements —
SecuredData-Transmission No CAN specific requirements —
ControlDTCSetting No CAN specific requirements —
ResponseOnEvent CAN specific requirements see 6.3
LinkControl No CAN specific requirements —
Data Transmission Functional Unit
ReadDataByIdentifier No CAN specific requirements —
ReadMemoryByAddress No CAN specific requirements —
ReadScalingDataByIdentifier No CAN specific requirements —
ReadDataByPeriodicIdentifier CAN specific requirements see 6.4
DynamicallyDefineDataIdentifier No CAN specific requirements —
WriteDataByIdentifier No CAN specific requirements —
WriteMemoryByAddress No CAN specific requirements —
ReadDTCInformation No CAN specific requirements —
ClearDiagnosticInformation No CAN specific requirements —
Data Transmission Functional Unit
ReadDTCInformation No CAN specific requirements —
ClearDiagnosticInformation No CAN specific requirements —
4 © ISO 2012 – All rights reserved

Table 2 (continued)
Input/Output Control Functional Unit
InputOutputControlByIdentifier No CAN specific requirements —
Remote Activation Of Routine Functional Unit
RoutineControl No CAN specific requirements —
Upload/Download Functional Unit
RequestDownload No CAN specific requirements —
RequestUpload No CAN specific requirements —
TransferData No CAN specific requirements —
RequestTransferExit No CAN specific requirements —
RequestFileTransfer No CAN specific requirements —
6.3 ResponseOnEvent (0x86) service DoCAN implementation requirements
In addition to the generic implementation requirements stated in ISO 14229-1 the following additional
CAN specific implementation requirements shall apply.
While the ResponseOnEvent service is active, the server shall be able to process concurrent
diagnostic request and response messages accordingly. This should be accomplished with a different
serviceToRespondTo CAN Identifiers. If the same diagnostic request/response CAN Identifiers are used for
diagnostic communication and the serviceToRespondTo-responses, the following restrictions shall apply:
a) The server may ignore an incoming diagnostic request issued by the client that initiated the
event, after an event has occurred and the serviceToRespondTo-response is in progress, until the
serviceToRespondTo-response is completed. If another client issued the request, the server may or
may not ignore the request, depending on the server’s capabilities.
b) When the client receives any response after sending a diagnostic request, the response shall be
classified according to the possible serviceToRespondTo-responses and the expected diagnostic
responses to the previously sent request.
1) If the response is a serviceToRespondTo-response (one of the possible responses set up with
ResponseOnEvent-service), the client shall repeat the request after the serviceToRespondTo-
response has been received completely.
2) If the response is ambiguous (i.e. the response could originate from the serviceToRespondTo
initiated by an event or from the response to a diagnostic request), the client shall present
the response both as a serviceToRespondTo-response and as the response to the diagnostic
request. The client shall not repeat the request with the exception of NegativeResponseCode
busyRepeatRequest (0x21) (see the negative response code definitions in ISO 14229-1.
client server
SF-Diag-Request STRT-ResponseFF Event
server ignores request
STRT-FC
STRT-CF
STRT-CF
the STRT-response is completed
and the tester repeats the
diagnostic request, if the
response is a valid STRT-
SF-Diag-Request
response.
server responds to request
Response
Figure 2 — Concurrent request when the event occurs
c) When the specified event is detected, the server shall respond immediately with the appropriate
serviceToRespondTo-response message. The immediate serviceToRespondTo-response message
shall not disrupt any other diagnostic request or response transmission already in progress (i.e. the
serviceToRespondTo-response shall be delayed until the current message transmission has been
completed, see Figure 3).
client server
SF Diag-Request
Diag-Resp. FF
Event
FC
STRT-Response
is delayed
Diag.- Response is
completed
STRT-Resp. FF
and the server sends the
STRT-response.
FC
STRT-CF
STRT-CF
Figure 3 — Event occurrence during a message in progress
6 © ISO 2012 – All rights reserved

6.4 ReadDataByPeriodicIdentifier (0x2A) service
6.4.1 Periodic transmission response message
The ReadDataByPeriodicIdentifier service allows the client to request the perio
...
