ISO/IEC/IEEE 42010:2022

INTERNATIONAL ISO/
STANDARD IEC/IEEE
Second edition
2022-11
Software, systems and enterprise —
Architecture description
Logiciel, systèmes et entreprise — Description de l'architecture
Reference number
© ISO/IEC 2022
© IEEE 2022
© ISO/IEC 2022
© IEEE 2022

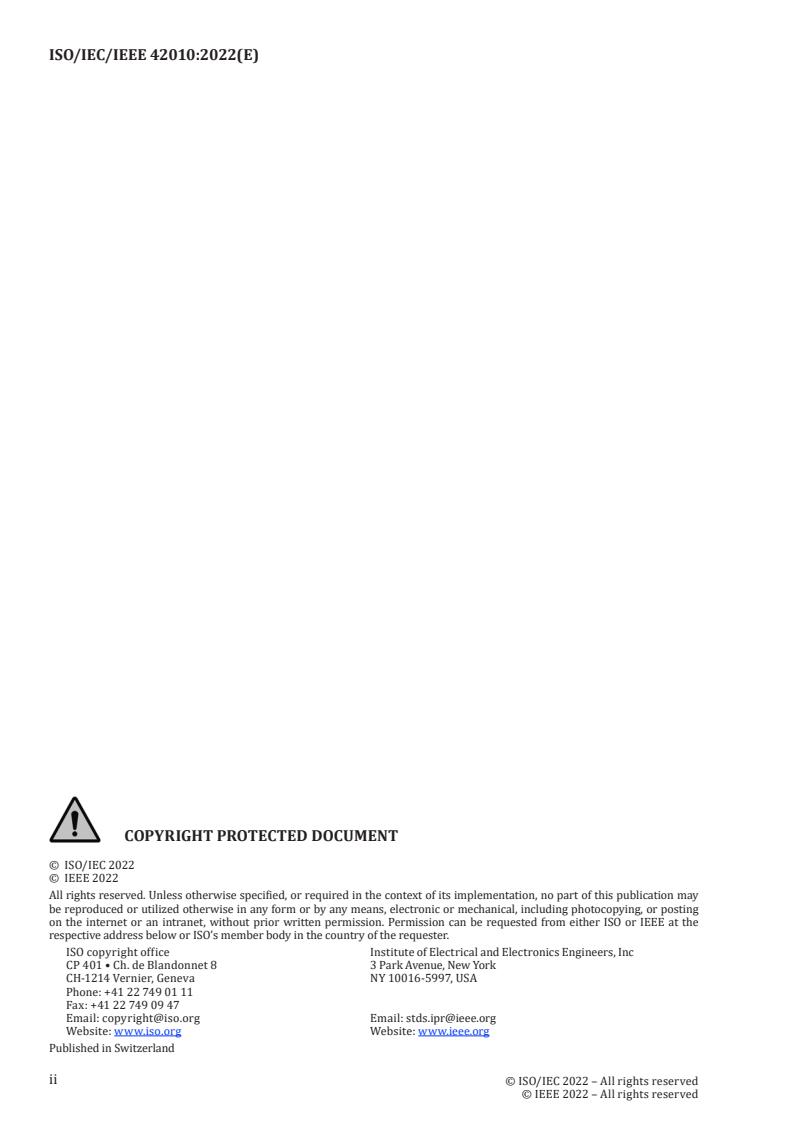

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO or IEEE at the
respective address below or ISO’s member body in the country of the requester.
ISO copyright office Institute of Electrical and Electronics Engineers, Inc
CP 401 • Ch. de Blandonnet 8 3 Park Avenue, New York
CH-1214 Vernier, Geneva NY 10016-5997, USA
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org Email: stds.ipr@ieee.org
Website: www.iso.org Website: www.ieee.org
Published in Switzerland
ii
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

Contents Page
Foreword .v
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Conformance . 5
5 Conceptual foundations. 5
5.1 General . 5
5.2 Conceptual models of an architecture description . 6
5.2.1 Context of architecture description . 6
5.2.2 Architectures and architecture descriptions . 6
5.2.3 Stakeholders and concerns . 7
5.2.4 Stakeholder perspectives . 8
5.2.5 Aspects . 8
5.2.6 Architecture considerations . 9
5.2.7 Architecture views and architecture viewpoints . 9
5.2.8 Model kinds, legends and architecture view components . 11
5.2.9 Architecture description (AD) elements .12
5.2.10 View methods .12
5.2.11 AD element correspondence . 13
5.2.12 Architecture decisions and rationale . 14
5.3 Architecture description in the life cycle . 15
5.4 Architecture description frameworks and languages . 15
5.4.1 General .15
5.4.2 Architecture description frameworks . 15
5.4.3 ADF utilization . 17
5.4.4 Architecture description languages . 18
6 Specification of an architecture description .19
6.1 Architecture description identification and overview . 19
6.2 Identification of stakeholders .20
6.3 Identification of stakeholder perspectives . 20
6.4 Identification of concerns . 20
6.5 Identification of aspects . 21
6.6 Inclusion of architecture viewpoints . 21
6.7 Inclusion of architecture views . 21
6.8 Inclusion of view components . .22
6.9 Recording of architecture correspondences . 23
6.9.1 Consistency within an architecture description .23
6.9.2 Correspondences . 23
6.9.3 Correspondence methods. 23
6.10 Recording of architecture decisions and rationale . 24
6.10.1 Decision recording . 24
6.10.2 Rationale recording . 25
7 Architecture description frameworks and architecture description languages .25
7.1 Specification of an architecture description framework . 25
7.2 Specification of an architecture description language . 27
8 Architecture viewpoints and model kinds .27
8.1 Specification of an architecture viewpoint . 27
8.2 Specification of a model kind .28
8.3 View methods .28
Annex A (informative) Notes on terms and concepts .29
iii
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

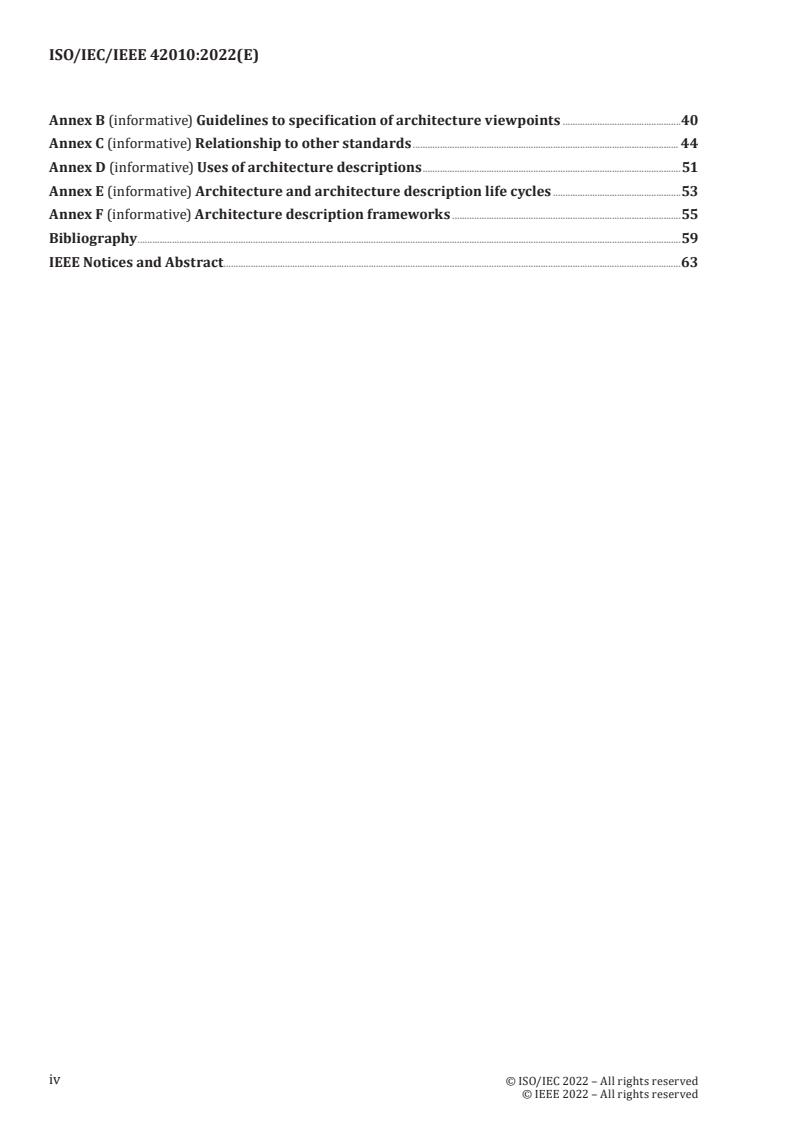

Annex B (informative) Guidelines to specification of architecture viewpoints .40
Annex C (informative) Relationship to other standards . 44
Annex D (informative) Uses of architecture descriptions .51
Annex E (informative) Architecture and architecture description life cycles .53
Annex F (informative) Architecture description frameworks .55
Bibliography .59
IEEE Notices and Abstract.63
iv
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed
for the different types of ISO/IEC documents should be noted. This document was drafted in
accordance with the rules given in the ISO/IEC Directives, Part 2 (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE-SA) Standards Board. The IEEE develops its
standards through a consensus development process, approved by the American National Standards
Institute, which brings together volunteers representing varied viewpoints and interests to achieve the
final product. Volunteers are not necessarily members of the Institute and serve without compensation.
While the IEEE administers the process and establishes rules to promote fairness in the consensus
development process, the IEEE does not independently evaluate, test, or verify the accuracy of any of
the information contained in its standards.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC
list of patent declarations received (see https://patents.iec.ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
ISO/IEC/IEEE 42010 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 7, Software and systems engineering, in cooperation with the Software and Systems
Engineering Standards Committee of the Computer Society of the IEEE, under the Partner Standards
Development Organization cooperation agreement between ISO and IEEE.
This second edition cancels and replaces the first edition (ISO/IEC/IEEE 42010:2011), which has been
technically revised.
The main changes are as follows:
— The term used to refer to the subject of an architecture description is changed from “system of interest”
to “entity of interest” (EoI) to be compatible with ISO/IEC/IEEE 42020 and ISO/IEC/IEEE 42030
standards and to allow for its application in non-system architecture situations. The term “entity”
is also used in this document when entities are considered as surrounding things in an environment
of an EoI.
— The term “architecture description framework” (ADF) replaces “architecture framework” in
the previous edition. It is defined in order to differentiate ADFs from other kinds of architecting
frameworks like architecture evaluation frameworks specified in ISO/IEC/IEEE 42030.
v
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

— Architecture description element, introduced in the 2011 edition (see ISO/IEC/IEEE 42010:2011,
4.2.6, 5.7 and A.6) is now defined in Clause 3 as identified or named part of an architecture description
allowing representing at least stakeholders, concerns, perspectives, and aspects identified in an AD,
and views, view components, viewpoints, and model kinds included in an AD.
— Aspect and stakeholder perspective concepts ―already introduced in the 2011 edition (See 3.5, note
1 of 5.6, Annex A and B) are defined and described to accommodate current practice where these
ideas are prevalent.
— A correspondence defines an identified or named relation between AD elements, as in Clause 4.2.6
of the 2011 edition. But, to clarify the relationship between AD and correspondence, a note 1 to the
definition is added to state that for the purpose of correspondences, an architecture description
can be considered as an AD element in another architecture description. This correspondence
between ADs is necessary because an architecture can be described by more than one AD and these
alternatives of architectures have related for activities like trade-off analysis and decision making.
— The term “architecture view component” is introduced as a separable portion of one or more
architecture views, replacing “architecture model” in the 2011 edition. This change is to account for
the fact that some parts of a view are model-based while others may not be. View components can
be derived from an information source, which can sometimes be a model.
— Model-based view components are governed by model kinds and documented by legends. Non-
model-based view components are documented by legends.
— Model kinds are identified as a new conformance case to encourage model-based architecting.
— The concept of architecture viewpoint is updated to accommodate current practice where a
viewpoint governs one or more architecture views within an AD.
— The definition of “model kind” given by the 2011 edition is extended to include categories of models
as used by ADF like UAF.
— The figures use an informal entity-relationship diagram notation replacing UML class diagrams in
the 2011 edition, to facilitate comprehension by users of this document. The multiplicities of the
relationships are explained in the text when necessary.
— Annex E illustrates a few concepts pertaining to architecture life cycles and architecture description
life cycles.
— Annex F shows examples of how some architecture description frameworks can conform to
requirements of this document.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
vi
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

Introduction
The complexity of human-made entities has grown to an unprecedented level. This has led to new
opportunities, and also increased challenges for organizations that create and use these entities.
Architecting is increasingly applied by organizations, teams and individuals, to help manage the
complexity faced by stakeholders of these entities.
Examples of entities include the following: Enterprise, organization, solution, system (including
software systems), subsystem, process, business, data (as a data item or data structure), application,
information technology (as a collection), mission, product, service, software item, hardware item,
product line, family of systems, system of systems, collection of systems, collection of applications.
An architecture of an entity, expressed in one or more architecture descriptions (AD), assists in
understanding the fundamental concepts or properties of the entity, pertaining to its structure,
behaviour, design and evolution, such as feasibility, utility and maintainability and fundamental concepts
for its development, operation, employment, external impacts, utilization and decommissioning.
ADs are used by the parties that create, use and manage human-made entities to improve communication
and cooperation, enabling all parties, organizations, teams and individuals to work together in an
integrated and coherent fashion.
NOTE ISO/IEC/IEEE 42020 specifies a set of processes for architecting which can be employed in support of
creating one or more ADs. The architecture elaboration process in ISO/IEC/IEEE 42020 is especially relevant for
creation of ADs.
Whereas an AD is a tangible work product, an architecture is intangible and abstract, understood
through its concepts, properties and principles.
Architecture description frameworks (ADF) are used to codify the conventions and common practices
of architecture description. Architecture description languages (ADL) are used to codify the description
of architectures within different communities and domains of application.
ADs have many uses, such as design, development, documentation, analysis, evaluation, maintenance,
risk mitigation, downstream user specifications, tool specification, communication, planning, guidance,
life cycle support, decision support, review, training, design validation, solution trade studies, cost
comparison and analysis, by a variety of stakeholders throughout the life cycles of their entities of
interest. Annex D describes more uses of an AD.
This document provides terms, definitions and relationships for best practices in ADs. The provisions
of this document serve to specify desired properties of ADs. This document also gives provisions that
specify desired properties of ADFs and ADLs in order to usefully support the development and use of
ADs. This document provides a basis for considering and comparing ADFs and ADLs by providing a
common ontology for specifying their contents.
This document can be used to establish a coherent architecting practice for developing ADs, ADFs
and ADLs within an organization, in the context of an entity of interest (EoI) or its architecture. The
provisions of this document can be used to assess conformance of specifications of ADs, ADFs, ADLs,
viewpoints and model kinds.
The intent of this document is to enable a range of consistent and coherent approaches to describing an
architecture including document-centric and model-based techniques.
This document also provides motivations for use of architecture-related terms and concepts in other
documents such as guides and standards.
Users of this document are advised to consult Clause 5 to gain appreciation of the conceptual
foundations, along with the concepts and principles associated with an AD work product.
This document does not explicitly address completeness or correctness regarding the inclusion of
particular elements in an AD. Nevertheless, completeness and correctness of an AD can be partially
checked, for example, through the consistency of the AD elements established, whether relationships
vii
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

are transitive, and whether AD elements are shown in the views. Consistency rules can also be defined
by showing whether the same particular AD element has correspondences with an AD. In addition,
specifications that appear as elements within an AD are expected to be complete, precise and verifiable
with respect to the subject of the specification.
In this document, the following verbal forms are used:
— “shall” indicates a requirement;
— “should” indicates a recommendation;
— “may” indicates a permission.
viii
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC/IEEE 42010:2022(E)
Software, systems and enterprise — Architecture
description
1 Scope
This document specifies requirements for the structure and expression of an architecture description
(AD) for various entities, including software, systems, enterprises, systems of systems, families of
systems, products (goods or services), product lines, service lines, technologies and business domains.
This document distinguishes the architecture of an entity of interest from an AD expressing that
architecture. Architectures are not the subject of this document.
This document specifies requirements for use of the architectural concepts and their relationships as
captured in an AD. It does not specify requirements for any entity of interest or its environment.
This document specifies requirements for an architecture description framework (ADF), an architecture
description language (ADL), architecture viewpoints and model kinds in order to usefully support the
development and use of an AD.
This document specifies conformance to the requirements for an AD, ADF, ADL, architecture viewpoint
and model kind.
This document does not specify the processes, architecting methods, models, notations, techniques or
tools by which an AD is created, utilized or managed.
This document does not specify any format or media for recording an AD.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO, IEC and IEEE maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp/ ui
— IEC Electropedia: available at https:// www .electropedia .org/
— IEEE Standards Dictionary Online: available at https:// dictionary .ieee .org/
NOTE For additional terms and definitions in the field of systems and software engineering, see
ISO/IEC/IEEE 24765, which is published periodically as a “snapshot” of the SEVOCAB (Systems and software
Engineering Vocabulary) database and is publicly accessible at www .computer .org/ sevocab.
3.1
architecting
conceiving, defining, expressing, documenting, communicating, certifying proper implementation of,
maintaining and improving an architecture (3.2) throughout the life cycle of an entity of interest (3.12)
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

3.2
architecture
fundamental concepts or properties of an entity in its environment (3.13) and governing principles for
the realization and evolution of this entity and its related life cycle processes
[SOURCE: ISO/IEC/IEEE 42020:2019, 3.3, modified — The notes to entry have been removed.]
3.3
architecture description
AD
work product used to express an architecture (3.2)
Note 1 to entry: A work product is an artifact produced by a process (see ISO/IEC 20246:2017, 3.18).
Note 2 to entry: An AD is a tangible representation of information provided to the stakeholders (3.17). An AD is
considered an information part (3.14).
3.4
architecture description element
AD element
identified or named part of an architecture description (3.3)
Note 1 to entry: AD elements include stakeholders (3.17), concerns (3.10), stakeholder perspectives (3.18), and
aspects (3.9) identified in an AD (3.3), ADLs (3.6), ADFs (3.5) and correspondences (3.11) and correspondence
methods used in an AD, and architecture views (3.7), view components (3.19), architecture viewpoints (3.8), and
model kinds (3.15) included in an AD (3.3).
Note 2 to entry: For the purpose of correspondences (3.11), an AD (3.3) can be considered as an AD element in
another AD (3.3).
3.5
architecture description framework
ADF
conventions, principles and practices for the description of architectures (3.2) established within a
specific domain of application or community of stakeholders (3.17)
EXAMPLE Generalized Enterprise-Referencing Architectures Modelling Framework (GERAM)
[2]
(ISO 15704:2019, Annex B), Reference Model of Open Distributed Processing (RM-ODP), Unified Architecture
[48] [44]
Framework (UAF) , and NATO Architecture Framework (NAF) .
Note 1 to entry: Architecture description frameworks promote structured organization, consistency of
description, greater potential for reuse, and completeness of architecture views (3.7) and models.
3.6
architecture description language
ADL
means of expression, with syntax and semantics, consisting of a set of representations, conventions,
and associated rules intended to be used to describe an architecture (3.2)
[57] [61] [49] [47]
EXAMPLE Architecture Analysis and Design Language (AADL), ArchiMate, UML, SysML, UAF
[48]
Profile .
3.7
architecture view
information part (3.14) comprising portion of an architecture description (3.3)
EXAMPLE An Information or Data View addresses information-relevant concerns framed by an Information
viewpoint. It contains as view components (3.19), a conceptual data model, a data management model and a data
access model and correspondences linking those components together.
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

3.8
architecture viewpoint
set of conventions for the creation, interpretation and use of an architecture view (3.7) to frame one or
more concerns (3.10)
Note 1 to entry: In this document, “to frame” concerns means “to shape, compose, give expression to” those
concerns. It is used to distinguish the stages of framing concerns by a viewpoint from addressing those concerns
in a resulting view. This is analogous to the distinction between “framing a problem” and “solving that problem”.
Note 2 to entry: A viewpoint is a frame of reference for the concerns determined by the architect as relevant to
the purpose of the architecture description (3.3).
Note 3 to entry: The conventions of an architecture viewpoint are documented in a specification (3.16) of that
viewpoint. In some communities and architecture description frameworks, “view specification” and viewpoint
are synonyms.
Note 4 to entry: The identification of a viewpoint is often the result of prior knowledge, experience and praxis
in the domain(s) to which the viewpoint applies, indicating the information relevant to addressing the concern
(3.10).
3.9
aspect
part of an entity’s character or nature
EXAMPLE Functional, structural and informational aspects of an entity.
Note 1 to entry: A particular aspect can be used for capturing the relevant features of the entity of interest (3.12)
as a refinement of one or more concerns (3.10) under examination with respect to some part of its character, e.g.
the structural character, functional character or informational character of the entity.
Note 2 to entry: Aspects enable the architect to analyse, address and structure concerns (3.10). In general, there
is a many-to-many relation between aspects and concerns (3.10).
Note 3 to entry: See 5.2.5 for more discussion and examples.
3.10
concern
matter of relevance or importance to a stakeholder (3.17)
Note 1 to entry: concerns can be identified with regards to an entity of interest (3.12) or independently, such as
with regards to environment, scenario, situation or use case of that entity.
Note 2 to entry: In this document, interest in an entity is intended to encompass interest in that entity’s
environment (3.13), life cycle, architecture (3.2), requirements, design, implementation and operation. Such
interests are captured via aspects (3.9), concerns and stakeholder perspectives (3.18).
Note 3 to entry: The identification of a concern is often the result of prior knowledge, experience and praxis in
the domain to which the concern applies.
Note 4 to entry: See 5.2.3 for more discussion and examples.
[SOURCE: ISO/IEC/IEEE 42020:2019, 3.8, Notes have been modified]
3.11
correspondence
identified or named relationship between two or more architecture description elements (3.4)
EXAMPLE Correspondences are used to express a wide range of relationships, such as equivalence,
composition, refinement, consistency, traceability, dependency, constraint, satisfaction, and obligation.
Note 1 to entry: For the purpose of correspondences, an architecture description (3.3) can be considered as an AD
element (3.4) in another architecture description (3.3).
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

Note 2 to entry: Correspondences can be identified or named relationship between architecture description
elements (3.4) in different architecture descriptions (3.3) or between architecture description elements (3.4) stated
in different notations.
3.12
entity of interest
EoI
subject of an architecture description (3.3)
EXAMPLE Enterprise, organization, solution, system (including software systems), subsystem, process,
business, data (as a data item or data structure), application, information technology (as a collection), mission,
product, service, software item, hardware item, product line, family of systems, system of systems, collection of
systems, collection of applications.
Note 1 to entry: In this document, the term entity of interest refers to the entity whose architecture (3.2) is under
consideration in the preparation of an architecture description (3.3).
Note 2 to entry: This document distinguishes the entity of interest from other entities which are not the subject
of the architecture description (3.3).
Note 3 to entry: In this document, interest in an entity is intended to encompass interest in that entity’s
environment, life cycle, architecture, requirements, design, implementation and operation. Such interests are
captured via aspects, concerns and stakeholder perspectives.
3.13
environment
context of surrounding things, conditions, or influences upon an entity
Note 1 to entry: The environment of an entity of interest (3.12) includes external entities that can have various
influences upon an entity, such as developmental, technological, business, operational, organizational, political,
economic, legal, regulatory, ecological and social influences as well as external physical effects such as
electromagnetic radiation, charged particles, gravitational effects, and electric and magnetic fields.
Note 2 to entry: A label attached as a qualifier to the term environment identifies a particular context within
another context, such as development environment, test environment, and operational environment.
3.14
information part
separately identifiable body of information that is produced, stored, and delivered for human and
machine use
3.15
model kind
category of model distinguished by its key characteristics and modelling conventions
EXAMPLE Functional models, activity models, structural models, use case models, geopolitical models,
analytic models and economic models.
3.16
specification
information part (3.14) that identifies, in a complete, precise and verifiable manner, the requirements,
design, behaviour, or other expected characteristics of an entity
[SOURCE: ISO/IEC/IEEE 15289:2019, 3.1.26 — “a system, service or process” replaced with “an entity”,
“information item” replaced with “information part”]
3.17
stakeholder
role, position, individual, organization, or classes thereof, having an interest, right, share, or claim, in an
entity of interest (3.12)
EXAMPLE End users, operators, acquirers, owners, suppliers, architects, developers, builders, maintainers,
regulators, taxpayers, certifying agencies, and markets.
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

3.18
stakeholder perspective
way of thinking about an entity of interest (3.12), especially as it relates to concerns (3.10)
EXAMPLE The labels given to the middle three rows (i.e. owner, designer and builder) of the Zachman
[67] [48]
framework correspond to stakeholder perspectives. The rows in the Unified Architecture Framework
[44]
and NATO Architecture Framework grids correspond to stakeholder perspectives (although they are called
”domains” and “subjects of concerns,” respectively in those frameworks). See 5.2.4 for more examples.
Note 1 to entry: The way one thinks about an entity can be influenced by one’s beliefs, training, experience,
knowledge, personality, character traits, culture, peer pressure, role or stance, etc.
3.19
view component
architecture view component
separable portion of one or more architecture views (3.7) that is governed by the applicable model kind
(3.15) or legend
EXAMPLE An architecture view component describing access control mechanisms can be used in several
views of an architecture description (3.3) to explain functional flows, behaviour and security features of an entity.
Note 1 to entry: In the context of an architecture description (3.3), a legend is an informal documentation of
conventions.
4 Conformance
The requirements in this document are contained in Clauses 6, 7 and 8. There are five situations in
which claims of conformance with the provisions of this document can be made.
1) When conformance is claimed for an architecture description, the claim shall demonstrate that the
specification of the architecture description meets the requirements listed in Clause 6.
2) When conformance is claimed for an architecture description framework, the claim shall
demonstrate that the specification of the architecture description framework meets the
requirements listed in 7.1.
3) When conformance is claimed for an architecture description language, the claim shall demonstrate
that the specification of the architecture description language meets the requirements listed in 7.2.
4) When conformance is claimed for an architecture viewpoint, the claim shall demonstrate that the
specification of the architecture viewpoint meets the requirements listed in 8.1.
5) When conformance is claimed for a model kind, the claim shall demonstrate that the specification
of the model kind meets the requirements listed in 8.2.
This document is designed such that “tailoring” is neither required nor permitted for its use when
claims of conformance are made.
5 Conceptual foundations
5.1 General
This clause introduces the conceptual foundations of architecture description expressed in a set of
conceptual models (see 5.2) and the application of those foundations to ADs (5.2), ADFs (see 5.4.2) and
ADLs (see 5.4.3). The use of the architecture descriptions to support different architecture practices
is outlined in Annex D. The concepts introduced in this clause are used in Clauses 6 to 8 to express
requirements.
NOTE Annex A provides further discussion of the terms and concepts used in this document and presents
examples of their use in an historical context.
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

5.2 Conceptual models of an architecture description
5.2.1 Context of architecture description
The term "entity of interest" is used in this document to refer to the subject of an architecture
description. The term is intended to encompass, but is not limited to, entities within the following fields
of application, reflecting the intended scope of this document as specified in Clause 1.
— software, including software products and services, per ISO/IEC/IEEE 12207;
— systems, including one-of-a-kind systems, mass-produced systems, customized, adaptive systems,
stand-alone and embedded systems, per ISO/IEC/IEEE 15288;
— enterprises as described in ISO 15704, i.e. human undertakings or ventures that have mission, goals
and objectives to offer products or services, or to achieve a desired project outcome or business
outcome.
This document takes no position on what constitutes an entity within those or other fields of application
or elsewhere. An entity can be a concrete entity or an abstract entity. An AD as specified in this
document is suitable not only for entities in the fields of applications listed above, but also for entities in
fields such as natural systems or conceptual systems.
Each entity of interest is situated in an environment which influences its characteristics and
behaviours. The environment determines the totality of influences upon the entity of interest and the
totality of influences of the entity of interest upon that environment, including its interactions with the
environment and other entities, throughout the life cycle of that entity of interest.
Figure 1 depicts key concepts pertaining to an entity of interest and its architectures as a means of
understanding ADs.
NOTE 1 The figures and text in the remainder of Clause 5 constitute a set of conceptual models of architecture
description. Figures 1 to 6 use an informal entity-relationship diagram notation to facilitate comprehension by
users of this document. In the figures, rounded rectangles represent information objects, and arrows represent
relationships between objects with the annotation read in the arrow direction. The figures illustrate the key
concepts described throughout Clause 5. Annex A presents the full conceptual model.
NOTE 2 Identification of the EoI can emerge from the analysis of the concerns of the stakeholders or can
preexist before identification of some stakeholders and their concerns.
EXAMPLE The identification of an EoI generally results from the definition of the problem space. The
problem description can be expressed with an architecture definition of a set of operational capabilities (often
called “capability architecture”). At this capability definition stage, identified stakeholders are potentially
concerned by the future EoI.
5.2.2 Architectures and architecture descriptions
The architecture of an entity of interest comprises the fundamental concepts or properties of that
entity considered in its environment. The architecture of an entity of interest can pertain to any or all
of the entity’s:
— constituent elements;
— interactions or interrelationships among its elements;
— interactions or interrelationships with its environment, including with other entities in that
environment;
— behaviour and structure;
— principles governing its design, use, operation and evolution.
© ISO/IEC 2022 – All rights reserved
© IEEE 2022 – All rights reserved

An AD is an expression of an architecture. ADs are work products resulting from architecting efforts. As
a work product, an AD is devised for the specific purpose for which the architecting effort is undertaken,
which is distinct from the purpose of the entity of interest. An AD comprises AD elements (see 5.2.10).
The architecture of an entity of interest can be understood through one or more distinct ADs, each
created for a purpose relative to the architecture and stakeholder needs. Different ADs can, for example,
be based on different stakeholders (see 5.2.3), stakeholder perspectives (see 5.2.4), time periods
(sometimes termed epochs), or specific contexts or usage within the environment.
NOTE ISO/IEC/IEEE 42020 specifies a set of processes for architecting which can be employed in support of
creating one or more ADs.
5.2.3 Stakeholders and concerns
Stakeholders are parties with direct or indirect interests in an entity. Among the stakeholders are those
parties that have influence or control over and those who are impacted by an entity. A stakeholder’s
interests are typically expressed as concerns about an entity of interest or the architecture of which
they are aware. Concerns are often the result of the stakeholder's perspective gained from domain
knowledge, experience, training, responsibility and authority.
Concerns are matters of interest or importance to one or more stakeholders. A concern can be shared
by one or more stakeholders and a stakeholder can hold more than one concern. The legitimacy and
importance of a concern held by a stakeholder can be a consequence of the role of the stakeholder (e.g.
owner, end user or participant, developer, architect, maintainer, disposer) or financial or social rights,
shares, impact or claims (e.g. funding organization, governmental body, party receiving environmental
impact from entity, stakeholder of an entity impacted by the entity of interest).
Some stakeholders’ concerns are contrary to the success of the entity of interest. These stakeholders
can have disagreements on the grounds of political or environmental considerations, can seek active
disruption of the entity’s operations, or even outright destruction of the entity. Adversarial concerns can
be taken into account when developing the architecture of the entity. For example, political objections
can be resolved by incorporating a negotiated solution in the architecture of the entity
...
