ISO 12239:2010

INTERNATIONAL ISO
STANDARD 12239
Second edition
2010-12-15
Smoke alarms using scattered light,
transmitted light or ionization
Détecteurs de fumée à lumière dispersée, lumière transmise
ou ionisation
Reference number
©
ISO 2010
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

Contents Page
Foreword .v
Introduction.vi
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 General requirements .4
4.1 Compliance .4
4.2 Alarm condition .4
4.3 Mains-on visual indicator .5
4.4 Fault condition visual indicator — Optional function.5
4.5 Smoke alarm signals.5
4.6 Test facility.5
4.7 Means of calibration.5
4.8 User-replaceable components .5
4.9 Primary power source.5
4.10 Secondary power source.6
4.11 Battery connections.6
4.12 User-replaceable battery.7
4.13 Electrical safety .7
4.14 Connection of external ancillary devices.7
4.15 Terminals for external conductors .7
4.16 Protection against the ingress of foreign bodies .7
4.17 Interconnectable smoke alarms — Optional function.8
4.18 Alarm-silence facility — Optional function.8
4.19 Radioactive material in type B smoke alarms .8
4.20 Smoke alarms with voice — Optional function .8
4.21 Marking.9
4.22 Data.10
4.23 Additional requirements for software controlled smoke alarms.11
5 Tests .12
5.1 General .12
5.2 Directional dependence.16
5.3 Initial sensitivity.16
5.4 Repeatability .16
5.5 Air movement.17
5.6 Dazzling .17
5.7 Dry heat (operational) .18
5.8 Cold (operational).19
5.9 Damp heat (operational) .20
5.10 Sulfur dioxide (SO ) corrosion .21
5.11 Impact (operational) .22
5.12 Vibration, sinusoidal (operational) .23
5.13 Vibration, sinusoidal (endurance) .24
5.14 Extended temperature (operational) — Optional function.25
5.15 Electromagnetic compatibility (EMC) immunity tests (operational) .25
5.16 Fire sensitivity .26
5.17 Battery-low condition.27
5.18 85 dBA Sound output — Optional function .28
5.19 70 dBA Sound output — Optional function .29

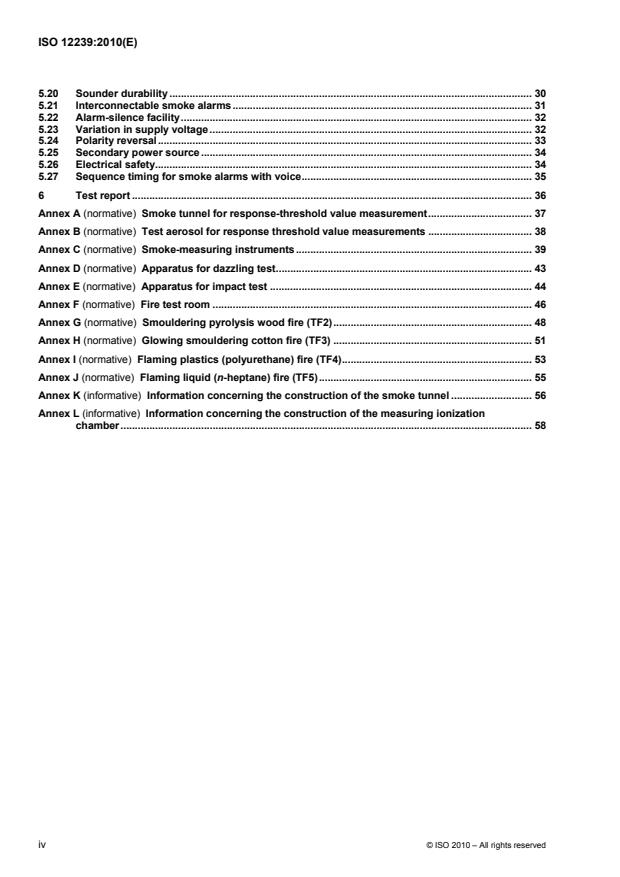

5.20 Sounder durability . 30
5.21 Interconnectable smoke alarms. 31
5.22 Alarm-silence facility. 32
5.23 Variation in supply voltage. 32
5.24 Polarity reversal. 33
5.25 Secondary power source . 34
5.26 Electrical safety. 34
5.27 Sequence timing for smoke alarms with voice. 35
6 Test report . 36
Annex A (normative) Smoke tunnel for response-threshold value measurement. 37
Annex B (normative) Test aerosol for response threshold value measurements . 38
Annex C (normative) Smoke-measuring instruments. 39
Annex D (normative) Apparatus for dazzling test. 43
Annex E (normative) Apparatus for impact test . 44
Annex F (normative) Fire test room . 46
Annex G (normative) Smouldering pyrolysis wood fire (TF2). 48
Annex H (normative) Glowing smouldering cotton fire (TF3) . 51
Annex I (normative) Flaming plastics (polyurethane) fire (TF4). 53
Annex J (normative) Flaming liquid (n-heptane) fire (TF5). 55
Annex K (informative) Information concerning the construction of the smoke tunnel . 56
Annex L (informative) Information concerning the construction of the measuring ionization
chamber. 58

iv © ISO 2010 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12239 was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 3, Fire detection and alarm systems.
This second edition cancels and replaces the first edition (ISO 12239:2003), which has been technically
revised.
Introduction
This International Standard for smoke alarms is drafted on the basis of functions that are to be provided on all
smoke alarms covered by this standard, and optional functions with requirements which may be provided. It is
intended that the options shall be used for specific applications, as recommended in application guidelines.
Each optional function is included as a separate entity, with its own set of associated requirements, in order to
permit smoke alarms covered by this standard with different combinations of functions to conform to this
International Standard.
Two optional sound output levels are specified in this International Standard. The options allow national
regulators to specify minimum sound output levels (70 dBA or 85 dBA) as required under national regulations.
Two optional sound output patterns are specified in this International Standard. The options allow national
regulators to choose a sound pattern complying with ISO 8201 or ISO 7731 depending on the desired
response by building occupants to an alarm condition.
An optional extended temperature-range test is included for smoke alarms installed in areas subject to a
greater temperature range, such as leisure accommodation vehicles.
Other functions may also be provided, even if not specified in this International Standard, if they do not
jeopardize any function required by this document.

vi © ISO 2010 – All rights reserved

INTERNATIONAL STANDARD ISO 12239:2010(E)

Smoke alarms using scattered light, transmitted light
or ionization
IMPORTANT — Certain types of smoke alarms contain radioactive materials. The national
requirements for radiation protection differ from country to country and they are not specified in this
International Standard. Such smoke alarms should, however, comply with the applicable national
standards, which should be consistent with the recommendations of the Nuclear Energy Agency
(NEA) of the Organisation for Economic Co-operation and Development (OECD).
1 Scope
This International Standard specifies requirements, test methods, performance criteria, and manufacturer's
instructions for smoke alarms that operate using scattered light, transmitted light, or ionization, and are
intended for household or similar residential applications.
For the testing of other types of smoke alarms, or smoke alarms working on different principles, this
International Standard should be used only for guidance. Smoke alarms with special characteristics and
developed for specific risks are not covered by this International Standard.
This International Standard allows, although it does not require, the inclusion within the smoke alarm of
facilities for the following:
⎯ visual alarm condition indication;
⎯ visual fault condition indication;
⎯ extended temperature-range operation;
⎯ interconnection with other similar smoke alarms or accessories;
⎯ alarm-silencing facility.
Where such facilities are included, this International Standard specifies applicable requirements.
This International Standard does not cover devices intended for incorporation in systems using separate
control and indicating equipment. Such systems are specified in all parts of ISO 7240.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 209, Aluminium and aluminium alloys — Chemical composition
ISO 2919, Radiation protection — Sealed radioactive sources — General requirements and classification
ISO 7240-3, Fire detection and alarm systems — Part 3: Audible alarm devices
ISO 7731, Ergonomics — Danger signals for public and work areas — Auditory danger signals
ISO 8201, Acoustics — Audible emergency evacuation signal
EN 50130-4, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard: Immunity
requirements for components of fire, intruder and social alarm systems
IEC 60065:2005, Audio, video and similar electronic apparatus — Safety requirements
IEC 60068-1, Environmental testing — Part 1: General and guidance
IEC 60068-2-1, Environmental testing — Part 2-1: Tests — Test A: Cold
IEC 60068-2-2, Environmental testing — Part 2-2: Tests — Test B: Dry heat
IEC 60068-2-6, Environmental testing — Part 2-6: Tests — Test Fc: Vibration (sinusoidal)
IEC 60068-2-42, Environmental testing — Part 2-42: Tests — Test Kc: Sulphur dioxide test for contacts and
connections
IEC 60068-2-78, Environmental testing — Part 2-78: Tests — Test Cab: Damp heat, steady state
IEC 60950-1:2005, Information technology equipment — Safety — Part 1: General requirements
IEC 61672-1:2002, Electroacoustics — Sound level meters — Part 1: Specifications
OECD, Recommendations for ionization chamber smoke detectors in implementation of radiation protection
standards. Nuclear Energy Agency, Organisation for Economic Co-operation and Development, Paris, France.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
aerosol density
smoke density
amount of particulates per volume as described operationally by one of two parameters:
⎯ m (3.9)
⎯ y (3.18)
NOTE These parameters are not concentrations sensu stricto, but represent values which are proportional to the
concentration and have been shown to function in lieu of a true concentration value for the purposes of these tests.
3.2
alarm condition
audible signal specified by the manufacturer as indicating the existence of a fire
3.3
alarm-silence facility
means of temporarily disabling or desensitizing a smoke alarm
3.4
battery-low condition
combination of battery voltage and series resistance which results in a fault warning
2 © ISO 2010 – All rights reserved

3.5
fault condition
condition in which the smoke alarm is affected by an adverse condition of a component
3.6
fault warning
audible signal specified by the manufacturer as indicating the existence of an actual or incipient fault that may
prevent an alarm condition
3.7
interconnectable smoke alarm
smoke alarm which may be interconnected with other smoke alarms to provide a common alarm condition
3.8
least sensitive orientation
point of rotation, relative to air flow, about the vertical axis where a detector produces the maximum response
threshold value
3.9
m
absorbance index
measured light attenuation characterizing the concentration of particulates in smoke or an aerosol
NOTE The equation for m is given in Annex C.
3.10
most sensitive orientation
point of rotation, relative to air flow, about the vertical axis where a detector produces the minimum response
threshold value
3.11
normal condition
condition in which the smoke alarm is supplied with power but is not giving either an alarm condition or a fault
condition, although able to give such signals if the occasion arises
3.12
primary power source
source of power intended to supply the smoke alarm
3.13
response threshold
A
th
smoke concentration at which the smoke alarm changes to its alarm condition
3.14
secondary power source
source of power intended to supply the smoke alarm in the event that the primary power source is unavailable
3.15
smoke alarm
device containing within one housing all the components, except possibly the power source, necessary for
detecting smoke and generating an alarm condition
3.16
type A smoke alarm
type A
smoke alarm that does not contain radioactive materials
3.17
type B smoke alarm
type B
smoke alarm containing radioactive materials
3.18
y
dimensionless variable, reflecting the change in the current flowing in an ionization chamber as a known
function of the concentration of particulates in the smoke or aerosol
NOTE The equation for y is given in Annex C.
4 General requirements
4.1 Compliance
In order to comply with this International Standard, the smoke alarm shall meet the requirements of this clause,
shall be tested as specified in Clause 5 and shall meet the requirements of the tests.
4.2 Alarm condition
4.2.1 Aural indicator
4.2.1.1 Signal pattern
4.2.1.1.1 Where the smoke alarm is used to alert occupants to evacuate the area, the alarm condition shall
be the emergency evacuation signal defined in ISO 8201.
4.2.1.1.2 Where the smoke alarm is used to alert occupants to investigate the area for the cause of the
alarm condition, the alarm condition shall be the auditory danger signal defined in ISO 7731.
4.2.1.2 Signal level — Optional function
The alarm condition aural indicator shall commence sounding at a level not greater than 45 dBA, rising
gradually to the maximum level of not more than 105 dBA over a period of between 3 s to 10 s (see 5.18 and
5.19).
4.2.1.3 Signal frequency characteristics — Optional function
The audible alarm signal shall have a fundamental frequency of 520 Hz with odd harmonics to approximate a
square wave.
4.2.2 Visual indicator
4.2.2.1 Interconnectable smoke alarms
Interconnectable smoke alarms shall be provided with an integral red visual indicator, by which the individual
smoke alarm, when in alarm condition, may be identified. Visual indicators shall not operate on interconnected
smoke alarms that have not detected smoke.This visual indicator may also perform other additional functions,
but the alarm indication needs to be distinct from any additional function.
4.2.2.2 Non-interconnectable smoke alarms — Optional function
Smoke alarms that do not include an interconnection function shall be provided with an integral red visual
alarm condition indicator. The indicator shall flash or be continuously illuminated when the alarm condition is
present. The indicator may be combined with the fault condition visual indicator. The failure of any visual
alarm condition indicator shall not prevent the alarm condition.
4 © ISO 2010 – All rights reserved

4.3 Mains-on visual indicator
A smoke alarm intended for connection to the a.c. mains shall be provided with a mains-on visual indicator.
The indicator shall be continuously illuminated when the mains power is present. The indicator shall be green.
4.4 Fault condition visual indicator — Optional function
The smoke alarm shall be provided with an integral amber or yellow visual fault condition indicator. The
indicator shall flash or be continuously illuminated when the fault condition is present. The indicator may be
combined with the alarm condition visual indicator. The failure of any visual fault condition indicator shall not
prevent the alarm condition.
4.5 Smoke alarm signals
The following conditions shall apply to smoke alarms which employ features in addition to the requirements of
this International Standard.
⎯ The alarm condition shall take precedence over any other signal, even when such other signal is initiated
first.
⎯ The alarm signal shall be distinctive from the signals of non-alarm condition functions. Use of a common
sounder is permitted if distinctive signals are obtained.
⎯ If an aural fault condition is provided, it shall be distinctive from alarm condition signals but may be
common to all functions employed.
⎯ Any fault condition associated with features, in addition to the requirements of this International Standard,
shall not interfere with the operation and supervision of the smoke alarm.
4.6 Test facility
A test facility shall be provided to simulate the ability of the sensing assembly to detect the presence of smoke.
The test facility shall be accessible from outside the smoke alarm when installed as specified in the installation
instructions.
4.7 Means of calibration
The manufacturer's means of calibration shall not be readily adjustable after manufacture.
4.8 User-replaceable components
Except for batteries or fuses, a smoke alarm shall have no user-replaceable or serviceable components.
4.9 Primary power source
4.9.1 General
The primary power source of the smoke alarm may be internal or external to the smoke alarm housing.
4.9.2 Internal
Where the primary power source is internal to the smoke alarm, the source shall meet the following
requirements:
a) be capable of supplying the quiescent load of the smoke alarm together with the additional load resulting
from weekly operation of the test facility of 10 s for at least 1 year before the battery-low condition is
given;
b) provide a distinctive battery-low condition before the battery is incapable of operating for alarm condition
purposes (see 5.17);
c) at the point when a battery-low condition commences, have sufficient capacity for the smoke alarm to
produce an alarm condition, as specified in 5.18 or 5.19 as appropriate, for at least 4 min or, in the
absence of smoke, a battery-low condition for at least 30 d;
d) be replaceable by the user, unless the power-source operating life in the smoke alarm is 10 years or
greater.
In the absence of suitable test procedures to verify battery capacity, data concerning the smoke-alarm loads
and the battery characteristics shall be provided by the manufacturer to indicate that the above requirement
can be met.
4.9.3 External
Where the primary power source is external to the smoke alarm, an internal or external secondary power
source shall be provided (see 4.10).
4.10 Secondary power source
4.10.1 General
4.10.1.1 For smoke alarms intended for connection to an external primary power source, a secondary
power source shall be provided and the following requirements shall apply.
a) Primary-cell secondary power source: the secondary power source shall be capable of meeting the
requirements of 4.9.2.
b) Rechargeable-cell secondary power source: the secondary power source shall be capable of supplying
the quiescent load of the smoke alarm for a minimum period of 72 h, followed by an alarm condition as
specified in 5.18 or 5.19 as appropriate, for at least 4 min in the event of fire or, in the absence of smoke,
a fault warning for at least 24 h.
4.10.1.2 In the absence of suitable test procedures to verify the secondary power source, data concerning
the smoke alarm loads and the secondary facility characteristics shall be provided by the manufacturer to
indicate that the above requirements can be met.
4.10.2 Monitoring of secondary power source
The secondary power source shall be monitored for fault conditions. These conditions shall include battery-
low condition and open- and short-circuit failure of the secondary power source.
4.11 Battery connections
4.11.1 Except where a polarized connector is used, lead or terminal connections to batteries shall be
identified with the correct polarity (e.g. plus or minus). The polarity may be indicated on the unit adjacent to
the battery terminals or leads.
4.11.2 Any leads connecting the terminal connectors of batteries in smoke alarms to the smoke-alarm circuit
board shall be provided with strain-relieving devices adjacent to both battery terminal connectors and the
smoke alarm circuit board so that when the leads are subjected to a pull of 20 N without jerks for 1 min in any
direction allowed by the design, the pull is not transmitted to the joints between the leads and the battery
terminal connectors or between the leads and the smoke alarm circuit board.
6 © ISO 2010 – All rights reserved

4.12 User-replaceable battery
4.12.1 General
Removal and replacement of user-replaceable batteries shall not require the use of tools.
4.12.2 Indication
The removal of any user-replaceable battery shall result in a visual, mechanical or aural warning that the
battery has been removed. The visual warning shall not depend upon a power source.
Conformity may be achieved by, but is not restricted to, one of the following examples:
⎯ a warning flag that will be exposed with the battery removed and the cover closed;
⎯ a hinged cover or battery compartment that cannot be closed when the battery is removed;
⎯ a unit that cannot be replaced upon its mounting base/bracket with the battery removed.
4.13 Electrical safety
The apparatus shall be designed and constructed so as to present no danger, either in normal use or under
fault conditions, as determined by 5.26.
4.14 Connection of external ancillary devices
The smoke alarm may provide for connections to external ancillary devices (e.g. remote indicators, control
relays, transmitters). Open- or short-circuit failure of these connections shall not prevent the correct operation
of the smoke alarm.
4.15 Terminals for external conductors
4.15.1 The smoke alarm or base, as appropriate, if intended to have external connections, shall provide for
the connection of conductors by means of screws, nuts or equally effective devices.
4.15.2 For mains-powered smoke alarms which utilize a “flying lead”-type connector, the connector shall be
regarded as a conductor. “Flying lead”-type connectors shall be subjected to a pull test, such that when the
connector is subjected to a pull of 20 N without jerks for 1 min in any direction allowed by the design, the
connector does not become detached.
4.15.3 If terminals are provided, they shall allow the connection of conductors having nominal cross-sectional
2 2
areas of between 0,4 mm and 1,5 mm . Terminals shall be designed so that they clamp the conductor
between metal surfaces without rotation of those surfaces but with sufficient contact pressure and without
damage to the conductor. Disconnection of the conductors, or access to the conductors for disconnection,
shall not be possible without the use of a tool.
4.16 Protection against the ingress of foreign bodies
The smoke alarm shall be so designed that a sphere of diameter larger than (1,3 ± 0,05) mm cannot pass into
the sensor chamber(s).
NOTE This requirement is intended to restrict the access of insects into the sensitive parts of the smoke alarm. It is
known that this requirement is not sufficient to prevent the access of all insects; however, it is considered that extreme
restrictions on the size of the access holes may introduce the danger of clogging by dust, etc. It may, therefore, be
necessary to take other measures.
4.17 Interconnectable smoke alarms — Optional function
If a means of connecting a number of smoke alarms to give a common alarm condition is provided, the
following shall apply.
a) The audible alarm condition shall be emitted by all of the interconnecting smoke alarms when smoke is
detected by any of the interconnected smoke alarms.
b) If the smoke alarms are provided with an alarm-silence facility, initiation of the alarm-silence period of one
of the smoke alarms shall not prevent the audible alarm condition being emitted by that smoke alarm
when smoke is detected by any of the other smoke alarms.
c) The interconnection of the maximum number of smoke alarms allowed by the manufacturer shall not have
a significant effect on the sensitivity of the smoke alarms nor on their ability to meet the battery capacity
(see 5.17) or sound output requirements (see 5.18 or 5.19 as applicable).
d) For battery-operated smoke alarms, open- or short-circuits of the interconnecting leads either shall not
prevent the smoke alarms from functioning individually or shall result in an alarm condition or fault
condition.
This requirement does not apply to mains- or mains/battery-supplied smoke alarms for which the supply and
interconnect wiring should be installed in accordance with the appropriate national regulations.
4.18 Alarm-silence facility — Optional function
If means of temporarily disabling or desensitizing a smoke alarm are provided, the following shall apply.
a) The initiation of the alarm-silence period shall require the operation of a manual control. This control may
be the same as a manual control provided for the test facility (see 4.6). This control may be integral or
separate to the smoke alarm.
b) Operation of the alarm-silence control shall disable or desensitize the smoke alarm for at least 5 min. The
sensitivity of the smoke alarm shall be restored within 15 min of operation of the alarm-silence control. If
the alarm-silence period is adjustable, it shall not be possible to set it to less than 5 min or to more than
15 min.
c) Continuous operation of the alarm-silence control shall not lead to the smoke alarm being disabled or
desensitized for more than 15 min without an alarm condition, a fault warning occurring.
NOTE This requirement is intended to prevent the permanent loss of sensitivity due to accidental or deliberate
jamming of the control.
4.19 Radioactive material in type B smoke alarms
4.19.1 Direct contact with radioactive sources shall not be possible without the use of tools.
4.19.2 Radioactive sources shall be sealed in compliance with the relevant requirements of ISO 2919, with a
minimum classification of C32222.
4.19.3 The normal activity of the radio-nuclide shall be not more than 37 kBq. Radium-226 shall not be used.
4.20 Smoke alarms with voice — Optional function
4.20.1 Smoke alarms using voice messages shall be capable of producing an audible warning signal and a
voice message or messages.
8 © ISO 2010 – All rights reserved

4.20.2 All messages related to fire safety shall be declared by the manufacturer and shall be considered by
the testing authority. The message determined to be worst case shall be subject to a conformance
assessment.
When selecting the worst case message, message length, loudness and repetition timing should be
considered.
4.20.3 For messages that require immediate action, the warning signal and message sequence broadcast by
the device shall be within the following limits:
a) warning signal, lasting for 2 s to 10 s; followed by
b) silence, lasting for 0,25 s to 2 s; followed by
c) voice message; followed by
d) silence, lasting for 0,25 s to 5 s.
The time for each cycle shall not exceed 30 s.
The periods of silence may need to be longer than indicated in certain circumstances, for example in spaces
with long reverberation times, but shall not be such that the time between the start of each cycle exceeds 30 s.
NOTE For other messages, it is permitted to extend either the silence period after the voice message or the period
within which the message is repeated, or both.
4.21 Marking
4.21.1 Smoke-alarm
4.21.1.1 Each smoke alarm shall be legibly and indelibly marked with the following:
a) the number and date of this International Standard (i.e. ISO 12239:2010);
b) the name or trademark and address of the manufacturer or supplier;
c) the model designation (type or number);
d) the type of smoke alarm (type A or type B) and an explanation of the meaning of the type designation;
e) the nominal sound level output as measured in 5.18 or 5.19 as appropriate;
f) the aural alarm condition signal (ISO 8201 or ISO 7731);
g) the date of manufacture or the batch number;
h) the manufacturer's recommended date for replacement, subject to normal, regular maintenance (provision
may be made for a place to note the date of change of the smoke alarm);
i) for smoke alarms incorporating user-replaceable batteries, the type and number of batteries
recommended by the manufacturer and the following instruction to the user, which shall be visible during
the operation of changing the batteries:
“Test the smoke alarm for correct operation using the test facility whenever the battery is
replaced”
j) for smoke alarms incorporating non-replaceable batteries, the following warning which shall be visible
during normal use:
“WARNING — Battery not replaceable — See instruction manual”
k) for type B, smoke alarms shall be permanently marked with the trefoil symbol, name of radionuclide and
activity. Additional marking requirements may be required by national regulations, and include any
additional advice regarding restrictions of trade or disposal of the smoke alarm;
l) markings required in IEC 60065:2005, Clause 5, which may be on any external part of the apparatus, but
it is not necessary for the specified markings to be visible after installation;
m) for class I apparatus in accordance with IEC 60065, the following information shall be visible near the
mains input terminals:
“WARNING — THIS APPARATUS MUST BE GROUNDED”; and
if live parts are made accessible when a cover is removed or opened, a warning to that effect, which is
visible before the cover is removed or opened;
n) a notice on the outer surface of the enclosure: DO NOT PAINT. The letters shall be not less than 3 mm
high and plainly visible after the smoke alarm is installed in its intended manner.
4.21.1.2 Conformity shall be checked by visual inspection. The indelibility of the marking shall be checked
by establishing that it cannot be removed when rubbed lightly with a piece of cloth soaked first with petroleum
spirit then with water.
4.21.2 Packaging
The point-of-sale packaging shall be marked with the following:
a) the model designation (type or number);
b) the type of smoke alarm (type A or type B) and an explanation of the meaning of the type designation;
c) the nominal sound level output as measured in 5.18 or 5.19 as appropriate;
d) the aural alarm condition signal (ISO 8201 or ISO 7731);
e) for smoke alarms using 520 Hz alarm condition signal frequency, the nominal frequency;
f) for type B smoke alarms, permanently marked with the trefoil symbol, name of radionuclide and activity.
The markings shall be visible from the outside of the packaging. Additional markings may be required by
national regulations, and include any additional advice regarding restrictions of trade or disposal of the
smoke alarm.
4.22 Data
4.22.1 Information supplied on or with smoke alarms shall include instructions on siting, installation and
maintenance.
4.22.2 The information provided with smoke alarms incorporating user-replaceable batteries shall include
specific guidance on changing the batteries. This guidance shall include any advice which is necessary to
ensure that the battery is properly connected. It shall also include a recommendation that the operation of the
smoke alarm be tested with the test facility whenever the batteries are replaced.
4.22.3 It is recommended that the information should also state that if the smoke alarm fails to operate
correctly, the advice of the manufacturer should be sought.
10 © ISO 2010 – All rights reserved

4.22.4 For smoke alarms incorporating non-replaceable batteries, information shall be given on the action to
be taken if a battery-low condition is indicated.
4.22.5 Information for interconnectable smoke alarms shall state the maximum number that may be
interconnected. Details of suitable cables shall also be given.
4.22.6 Information for smoke alarms intended for connection to mains supplies shall include a warning that
draws attention to the hazards associated with mains voltages and recommends that the smoke alarm,
together with any associated supply and interconnect wiring, be installed in accordance with appropriate
national electrical installation regulations.
4.22.7 If it is claimed that the smoke alarm is also suitable for use in extended temperature range, this shall
be stated in the information supplied on or with the smoke alarm.
4.23 Additional requirements for software controlled smoke alarms
4.23.1 General
For smoke alarms which rely on software control in order to fulfil the requirements of this International
Standard, the requirements of 4.23.2, 4.23.3 and 4.23.4 shall be met.
4.23.2 Software documentation
4.23.2.1 The manufacturer shall submit documentation which gives an overview of the software design.
This documentation shall be in sufficient detail for the design to be inspected for compliance with this
International Standard and shall include at least the following:
a) functional description of the main program flow (e.g. as a flow diagram or structogram), including
1) a brief description of the modules and the functions that they perform,
2) the way in which the modules interact,
3) the overall hierarchy of the program,
4) the way in which the software interacts with the hardware of the smoke alarm,
5) the way in which the modules are named, including any interrupt processing;
b) description of those areas of memory used for different purposes (e.g. the program, site-specific data and
running data);
c) designation by which the software and its version can be uniquely identified.
4.23.2.2 The manufacturer shall prepare and maintain detailed design documentation. This shall be
available for inspection in a manner that respects the manufacturers' rights for confidentiality. It shall comprise
at least the following:
a) overview of the whole system configuration, including all software and hardware components;
b) description of each part of the program, containing at least:
1) the name of the part,
2) a description of the tasks performed,
3) a description of the interfaces, including the type of data transfer, the valid data range and the
checking for valid data;
c) full source code listings, as hard copy or in machine-readable form (e.g. ASCII-code), including all global
and local variables, constants and labels used, and sufficient comment for the program flow to be
recognized;
d) details of any software tools used in the design and implementation phase (CASE tools, compilers, etc.).
NOTE This detailed design documentation can be reviewed at the manufacturer's premises.
4.23.3 Software design
In order to ensure the reliability of the device, the following requirements for software de
...
