ISO 17862:2022

INTERNATIONAL ISO
STANDARD 17862
Second edition
2022-09
Surface chemical analysis —
Secondary ion mass spectrometry —
Linearity of intensity scale in single
ion counting time-of-flight mass
analysers
Analyse chimique des surfaces — Spectrométrie de masse des ions
secondaires — Linéarité de l'échelle d'intensité des analyseurs de
masse à temps de vol pour comptage des ions individuels
Reference number
ISO 17862:2022(E)
© ISO 2022

---------------------- Page: 1 ----------------------
ISO 17862:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
  © ISO 2022 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 17862:2022(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Symbols . 1
3.3 Abbreviated terms . 3
4 Outline of method . 3
5 Procedure for evaluating the intensity linearity . 5
5.1 Obtaining the reference sample . 5
5.2 Preparation for mounting the sample . 5
5.3 Mounting the sample . 5
5.4 Operating the instrument . 5
5.4.1 General . 5
5.4.2 Setting the ion beam . 6
5.4.3 Setting the mass analyser . 6
5.5 Acquiring the data . 7
5.6 Checking the linearity . 10
5.6.1 The relation of corrected and measured counts . 10
5.6.2 The measured ratios for isotopes. 11
5.6.3 Fitting the data .12
5.6.4 Assessing the linear region without and with any instrumental intensity
correction .12
5.6.5 Correcting the intensity and checking the validity of any instrumental
correction . 13
6 Interval for repeat measurements .15
Annex A (normative) Computation of raster size, ion beam current, number of frames for
analysis and counts per pulse .16
Bibliography .18
iii
© ISO 2022 – All rights reserved

---------------------- Page: 3 ----------------------
ISO 17862:2022(E)

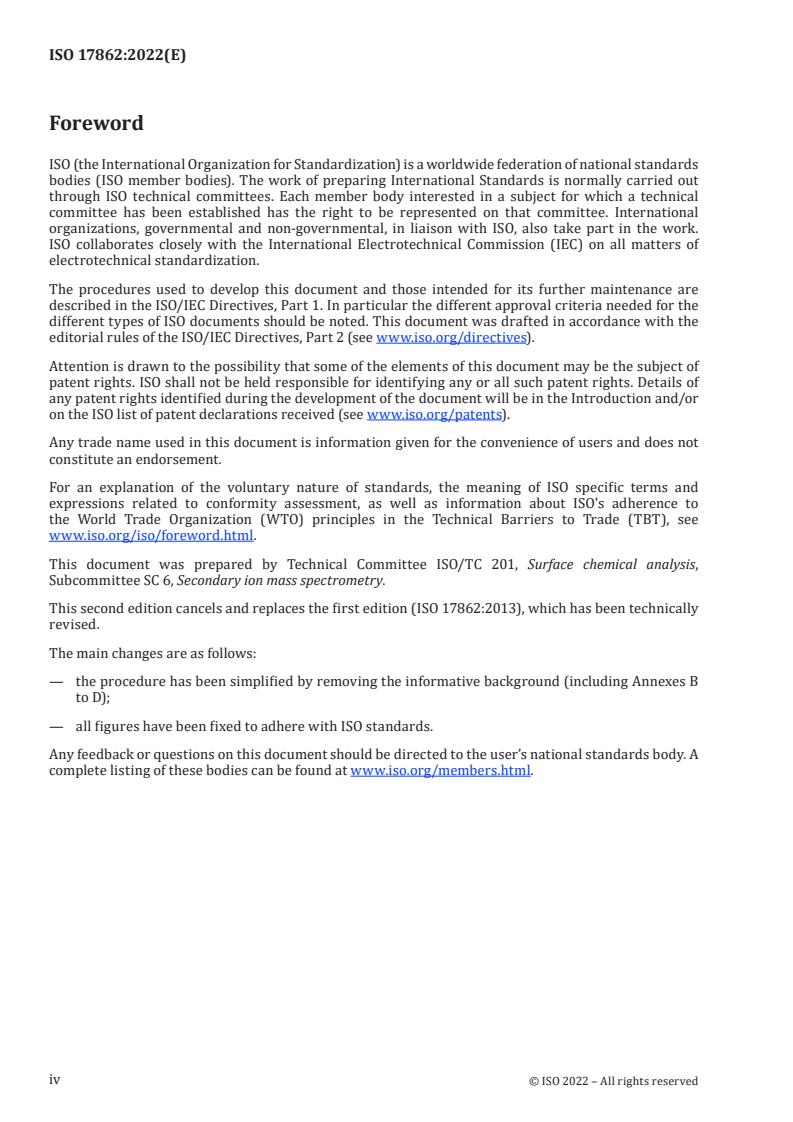

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 201, Surface chemical analysis,
Subcommittee SC 6, Secondary ion mass spectrometry.
This second edition cancels and replaces the first edition (ISO 17862:2013), which has been technically
revised.
The main changes are as follows:
— the procedure has been simplified by removing the informative background (including Annexes B
to D);
— all figures have been fixed to adhere with ISO standards.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
  © ISO 2022 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 17862:2022(E)
Introduction
For the quantitative analysis of materials using secondary ion mass spectrometry (SIMS), measurements
are made of the spectral intensities. Nonlinearity in the instrument intensity scale, unless corrected,
leads directly to errors in the relative amounts of material determined at surfaces and in-depth profiles.
In general, intensity scales are linear at very low count rates, or more correctly low counts per pulse,
but become progressively nonlinear as the count rates rise. Measurements of intensity rely on the
measurement system delivering an intensity signal fixed in proportion to the intensity being measured.
In counting systems, this proportionality is expected to be unity. If this proportionality varies with the
signal level or counting rate, the measurement system is said to be nonlinear. It is rare for nonlinearities
below 1 % to be treated as significant. The intensity scale nonlinearity can exceed 1 % for count rates
[2]
that exceed 5 % of the maximum permissible count rate . For many instruments, the nonlinearity
behaviour will not vary significantly from month-to-month, provided the detection system is correctly
set. For these instruments, the count rate can be corrected, using the relevant relationship, so that the
corrected intensity is then linear for a greatly extended fraction of the maximum obtainable count
rate. This correction to the intensity scale might or might not already be available in the instrument's
data capture or processing computer. In this document, a simple test of linearity is provided for the
intensity lost in systems in which secondary ions arrive at a detector based on a microchannel plate or
scintillator and photomultiplier followed by a time-to-digital converter. If this test is shown to be valid,
a correction is provided that, for suitable instruments, can extend the intensity scale by up to a factor
of more than 50. For some instruments, the nonlinearity cannot be predictable nor described by any
simple relationship. For these instruments, this document allows the extent of the nonlinearity to be
measured and a maximum count rate for an acceptable limit of divergence from linearity to be defined.
In some cases, adjustments to the instrumental settings can improve the situation so that the required
correction is then valid. The limit of divergence from linearity is set by the user appropriately for the
analyses to be conducted.
Although there are a number of causes of nonlinearities in TOF-SIMS instrumentation, the most
significant is intensity saturation caused by the effective dead-time of the detector system. This arises
since only one secondary ion count per primary ion pulse can be detected within a dead-time interval
τ, regardless of the actual number of secondary ions arriving at the detector. Nonlinearity can also be
aggravated by unwanted background in the spectra.
This document provides, and can only provide, a correction to the dead-time nonlinearity for a somewhat
ideal situation and not for all cases. Nevertheless, the significantly enhanced dynamic range or rate of
working can be very important. Suggestions are included to optimize the instrument to provide the
best measurement capability and to diagnose simple instrumental defects such as detector faults, e.g.
a low detector efficiency or a detector not providing single ion counting. Then, a dead-time Poissonian
correction is established to correct the measured counts within certain limits set by the analyst. This
establishes an upper value for c , the count per pulse, either before or after correction. This upper limit
M
is generally applicable to peaks where the signal is constant with both time and spatial distribution,
where there is only one peak within the dead-time interval, and where the background intensities
are negligible (these conditions are not always satisfied in practice). This is explored and explained in
detail in Reference [2]. The results from applying this document relate to a “best-case scenario” and
the linearity achievable with Formula (1) can be lower in real cases where it is not practical to use a
wide peak integration limit of ± the dead-time. More advanced dead-time correction routines should be
sought in these cases and their effectiveness can be tested using the methodology here.
This document requires technical skills that may go beyond everyday operation and should be used
when characterizing a new spectrometer so that it can be operated in an appropriate intensity range. It
should then be repeated after any substantive modification to the detection circuits, after replacement
of the microchannel plate (MCP), or at approximately 1 year intervals.
v
© ISO 2022 – All rights reserved

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 17862:2022(E)
Surface chemical analysis — Secondary ion mass
spectrometry — Linearity of intensity scale in single ion
counting time-of-flight mass analysers
1 Scope
This document specifies a method for determining the maximum count rate for an acceptable limit of
divergence from linearity of the intensity scale in single ion counting time-of-flight (TOF) secondary
ion mass spectrometers using a test based on isotopic ratios in spectra from poly(tetrafluoroethylene)
(PTFE). It also includes a method to correct for intensity nonlinearity arising from intensity lost from
a microchannel plate (MCP) or scintillator and photomultiplier followed by a time-to-digital converter
(TDC) detection system caused by secondary ions arriving during its dead-time. The correction
can increase the intensity range for 95 % linearity by a factor of up to more than 50 so that a higher
maximum count rate can be employed for those spectrometers for which the relevant correction
formulae have been shown to be valid.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 13084, Surface chemical analysis — Secondary ion mass spectrometry — Calibration of the mass scale
for a time-of-flight secondary ion mass spectrometer
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.2 Symbols
The term intensity is used below and elsewhere. This refers to a measurement of peak area in the
spectrum.
c measured counts per pulse intensity
M
c corrected counts per pulse intensity
P
F shorthand for F (i,j)
M M
12 + 13 12 +
F (i,j) ratio of measured intensities for the ith C F and C C F secondary ions in Table 1
M x y x-1 y
F shorthand for F (i,j)
P P
1
© ISO 2022 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 17862:2022(E)
12 + 13 12 +
F (i,j) ratio of corrected intensities for the ith C F and C C F secondary ions in Table 1
P x y x-1 y
i index number for ion pair listed in Table 1
i highest primary ion current used for the saturation analysis
max
I integrated measured secondary ion intensity of a specified SIMS peak
M
I (X) integrated measured secondary ion intensity of the SIMS fragment X
M
I integrated corrected secondary ion intensity of a specified SIMS peak
P
I (X) integrated corrected secondary ion intensity of the SIMS fragment X
P
j index number for spectrum in the measurement series
k index number for setting the different primary ion currents
L shorthand for L (i,j)
P P
L (i,j) ratio of F (i,j) to the product α(i) and β(i)
P P
L shorthand for L (i,j)
M M
L (i,j) ratio of F (i,j) to the product α(i) and β(i)
M M
T
theoretical ratio of measured and corrected intensities per pulse
L
M
n number of raster frames used to generate each SIMS intensity
N total number of primary pulses used to generate the SIMS spectrum
R length of the raster side used to generate each SIMS intensity
V mass analyser desired energy acceptance, in eV
E
V mass analyser reflector voltage referred to the sample potential
R
V mass analyser reflector voltage referred to the sample potential for a secondary ion intensity to
T
fall to half the maximum intensity
12 + 13 12 +
α(i) expected isotope ratio of the ith C F and C C F secondary ions in Table 1
x y x-1 y
β(i) scaling factor to correct α(i) for the measured data, found by fitting
τ detection system dead-time
13 12
x number of C or C atoms in the characteristic PTFE secondary ion
y number of F atoms in the characteristic PTFE secondary ion
Symbols used in Annex A
A peak intensity of a selected peak (counts)
c secondary ion counts per primary ion pulse (counts)
d beam diameter (m)
e charge on the electron (C)
2
  © ISO 2022 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 17862:2022(E)
F pulse repetition rate or frequency (s−1)
iP pulsed ion beam current (A) (i.e. the time-averaged current with pulsing on)
I DC ion beam current (ions/s) (i.e. the current with the pulsing off)
J total ion fluence (ions/m2)
M number of pixels along a line of the raster
P total number of primary ion pulses in the acquisition time T (no units)
Q total number of incident ions
R raster size (m)
T total spectrum acquisition time (s)
w pulse width (s)
3.3 Abbreviated terms
For the purposes of this document, the following abbreviated terms apply.
MCP microchannel plate
PTFE poly(tetrafluoroethylene)
SIMS secondary ion mass spectrometry
TDC time-to-digital converter
ToF time-of-flight
4 Outline of method
The method is outlined by the flow chart shown in Figure 1. In this method, secondary ion spectra
are measured for PTFE tape analysed in the “as received” condition with no in-house cleaning and no
further sample preparation as described from 5.1 to 5.3. The analytical conditions are chosen by the
analyst as described in 5.4 to provide secondary ion intensities per pulse in the linear and nonlinear
ranges of detector ion counting. This is established using 16 test spectra for a test sample to define
the correct range of primary ion beam current settings and 16 data spectra are then measured for the
analysis sample to provide data for the linearity establishment. In order to ensure that the instrument is
operating in the best condition for linearity, considerations for setting the ion beam, the mass analyser,
the charge compensation, and the ion detection system are described from 5.5.2 to 5.5.5. PTFE is a bulk
insulator and requires charge neutralization.
The spectrometer should be operated under conditions that give the most stable performance. It
is recommended that analysts use ISO 23830 to confirm the repeatability of their instrument. The
protocol described in this document is closely aligned with that in ISO 23830 and those using ISO 23830
are already familiar with much of the procedure given here.
The acquisition of data is described in 5.5 and details of the peaks to be measured are given in Table 1.
The behaviour expected is described in 5.6 with relevant formulae. If the linearity is adequate, either
for the data directly or for the data after correction using the instrument's data capture computer,
the work is complete until, through changes to the instrument or the passage of time, a repeat of
this document is required. If the linearity is inadequate, and if the instrument follows the predicted
behaviour, a correction can be made as described in 5.6.5 which can extend the linear range by a factor
3
© ISO 2022 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 17862:2022(E)
of more than 50. The work is now complete until, through changes to the instrument or the passage of
time, a repeat of this document is required.
Figure 1 — Flow chart of the work
4
  © ISO 2022 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 17862:2022(E)
5 Procedure for evaluating the intensity linearity
5.1 Obtaining the reference sample
For the calibration of ToF-SIMS, spectrometers obtain a new roll of PTFE tape of the type used for
domestic plumbing. Label and keep this roll with your reference samples.
NOTE The PTFE is usually in the form of a roll of tape of length 12 m, width 12 mm, and approximately
0,075 mm thick and is often sold for domestic plumbing.
5.2 Preparation for mounting the sample
Samples shall only be handled with clean, uncoated stainless steel tweezers. Any fingerprints on the
sample shall be avoided.
12 13
NOTE This document uses the intensity ratio of natural C and C isotopes to determine the linearity.
For the isotope ratio method to be successful, it is important that the isotope peaks can be measured without
any significant background from peak interferences. Since most ToF-SIMS instruments do not have sufficient
13 12
resolution to completely separate between a fragment with C and the peak interference with CH, it is
important to have no hydrogen in the reference material and a low surface energy so that hydrocarbon
contamination is minimized. PTFE has both crucial attributes and, importantly, is very easy to obtain and use.
5.3 Mounting the sample
5.3.1 To manipulate the samples, the gloves are used to hold the tweezers and not the sample. Avoid
any wiping materials, sometimes used to handle samples, as they can result in unwanted contamination
of the sample surface. Unnecessary contact of the sample with the gloves shall be avoided. Sample
mounts and other materials used to hold samples shall be cleaned regularly whenever there is a
possibility of cross-contamination of samples. The use of tapes containing silicones and other mobile
[3]
species shall be avoided .
5.3.2 Remove and discard the first 20 cm of the material from the roll obtained in 5.1 and then cut
appropriately sized samples from the subsequent material with clean scissors. As the roll is unwound,
a fresh surface of PTFE is exposed and it is this surface that is analysed. Do not clean the sample. Mount
samples on the sample holder to produce a flat, even surface using a mechanical clamping or fixing
method. Do not use adhesive tape. Ensure that the reverse side of the sample is against a conducting
surface, electrically connected to the sample holder. The PTFE shall not be placed over a hole.
NOTE 1 Common mounting systems include metal plates with holes of various sizes and metal grids. The grid
often helps if severe charging is experienced.
NOTE 2 The presence of a hole under the sample leads to poor mass resolution and repeatability in systems
that use high extraction fields such as time-of-flight and magnetic sector systems.
A repeat of this document is required in Clause 6. For this, a fresh sample is required and for consistency,
the sample should be from the same roll.
5.4 Operating the instrument
5.4.1 General
Operate the instrument in accordance with the manufacturer's or local documented instructions.
The instrument shall have fully cooled following any bakeout. Ensure that the operation is within the
manufacturer's recommended ranges for ion beam current, counting rates, spectrometer scan rate,
and any other parameter specified by the manufacturer. Check that the detector multiplier settings are
correctly adjusted (see 5.4.5).
5
© ISO 2022 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 17862:2022(E)
5.4.2 Setting the ion beam
5.4.2.1 In this document, the primary ion current is to be varied to provide secondary ion intensities
per primary ion pulse that range from the linear regime to highly nonlinear regime. If many ion sources
12 +
are available, use the one generating the highest intensities for the CF peak from PTFE. It does
3
not matter if it is an atomic primary ion or a cluster primary ion, so long as the beam current can be
adjusted to give a large range of secondary ion intensities and detector saturation as discussed in 5.5.4.
The ion beam should be set according to the method specified in Annex A.
5.4.2.2 In setting the primary ion beam to provide a range of currents on the target sample, it is
important that the following conditions are satisfied.
a) The pulse width and peak shape do not change drastically at different current settings.
b) The peak width is much smaller than the dead-time of the detector (determined following 5.5.10
but is usually approximately 50 ns).
c) The selected C F peaks (see Table 1) do not suffer from mass interference.
x y
5.4.2.3 The ion beam should be centred in the acceptance area of the mass spectrometer as well as
possible using specific standard procedures of the instrument.
16 2
5.4.2.4 A maximum ion fluence of 1 × 10 ions/m is recommended for each measurement. A typical
ion beam raster area for this work is 200 μm × 200 μm but can be increased to 400 μm × 400 μm to
satisfy the fluence requirements given generically by Formula (A.2) with illustrative numbers and
where R is the length of the raster side. For example, a 0,5 pA pulsed beam and a 200 μm square raster
requires 128 s acquisition time. This beam would need to be defocused to a diameter greater than
3,1 μm for a 128 × 128 pixel display. If it can only be defocused to 1 μm, a 256 × 256 pixel display shall
be used or the local fluence maximum on a pixel will be exceeded by more than a factor of 2. During a
digital raster scan, an over-focused ion beam will drill a matrix of small holes. For this reason, a large
diameter defocused beam is required. The precise minimum beam size depends on the instrument used
but can be evaluated using Formula (A.1).
5.4.2.5 The number of frames acquired, n, should be kept above 20, as described in Formula (A.4),
so that the final frame, which most likely will not be a full frame, represents only a small fraction of
the data. It is recommended that a random raster pattern is used to minimize local sample charging, if
available.
5.4.2.6 For good statistics, the integrated spectrum over the whole analysis area is required.
5.4.3 Setting the mass analyser
5.4.3.1 Choose the spectrometer operating settings which provide high intensities and for which the
linearity is to be determined. Select settings to measure positive secondary ions.
NOTE The consistency of the intensities varies with the combination of settings used. In general, the
repeatability is best when using an energy acceptance of the mass analyser of 50 eV or more.
5.4.3.2 In general, the mass analyser should be operated in the condition that gives the most stable
and repeatable performance with good, high mass sensitivity and optimal transmission. Ensure that
charge compensation is switched on and is operating correctly. Ensure that the detector is set correctly
according to local procedures.
5.4.3.3 For reflection instruments, the surface potential shall be adjusted to optimise transmission. In
many instruments, the optimal surface potential is determined by simultaneously varying the relectron
voltage, lens voltages and alignment plates. The effect of reflector voltage on the peak intensity of the
6
  © ISO 2022 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 17862:2022(E)
+
CF ion from PTFE is shown in Figure 2. As the reflector voltage is made more positive, the peaks move
2
down the apparent mass scale, because the ions are reflected earlier, and their flight time is reduced.
The reflector potential at which the ion signal begins to increase rapidly is approximately equal to the
sample potential.
5.4.3.4 After setting the reflector potential as that in 5.4.3.3, the reflector potential might need
13
further minor adjustment to ensure that strong metastable peaks do not overlap the weaker C isotopic
peaks identified in Table 1.

Key
X apparent mass (u)
Y intensity (counts)
+
Figure 2 — The effect of reflector voltage on the CF peak intensity from PTFE
2
5.5 Acquiring the data
5.5.1 Be prepared to analyse a fresh area of material each time with a total fluence of less than
16 2 12 2
1 × 10 ions/m (1 × 10 ions/cm ) from an array of 9 measurement positions as shown in Figure 3
(a minimum of 9 is required). Here, the example
...
