ISO 11861:1999
(Main)Textile floor coverings - Coir mats - Types and specification
Textile floor coverings - Coir mats - Types and specification
This International Standard specifies the requirements for mats produced from coir fibre, with or without pile.
Revêtements de sol textiles — Tapis brosses à base de fibres de noix de coco — Types et spécifications
La présente Norme internationale spécifie les caractéristiques des tapis-brosses à base de fibres de noix de coco, avec ou sans velours.
General Information
- Status
- Published
- Publication Date
- 21-Jul-1999
- Technical Committee
- ISO/TC 219 - Floor coverings
- Drafting Committee
- ISO/TC 219 - Floor coverings
- Current Stage
- 9060 - Close of review
- Completion Date
- 02-Dec-2030
Overview
ISO 11861:1999, "Textile floor coverings - Coir mats - Types and specification", defines requirements for mats produced from coir fibre (extracted from the coconut Cocos nucifera), with or without pile. The standard classifies types of coir mats, sets construction and dimensional tolerances, specifies marking requirements, and includes a normative Annex A describing test methods for key properties. ISO 11861 is intended to ensure consistent quality, interoperability, and clear product information for coir floor coverings.
Key topics and requirements
- Types of coir mats: bit mat, corridor mat, creel mat, fibre mat, gymnasia mat, loop mat, mesh mat, rod mat, rope (lover’s knot) mat, and sinnet mat - defined by construction and pile formation.
- Constructional particulars: number of ends and picks per decimetre, pile height (for pile mats), dimensions and mass (g/m²) are to be agreed between purchaser and supplier.
- Tolerances (as specified by Table 1):
- Number of ends per dm: nominal ±1 (see Annex A.1)
- Number of picks per dm: nominal value with agreed tolerance
- Pile height (pile mats): nominal ± 3 mm
- Dimensions: nominal ± 10 mm
- Mass: nominal ± 5 %
- Marking: mats or attached labels must show ISO number and year (ISO 11861:1999), mat type, dimensions, ends and picks per decimetre, pile height (mm), and mass (g/m²).
- Testing methods (Annex A, normative):
- Determination of ends and picks per decimetre (referencing ISO 7211-2 and ISO 1763 for non-pile mats)
- Determination of mass in g/m² (referencing ISO 8543 or weighing the whole mat and measuring dimensions per ISO 3018)
Applications and who uses it
ISO 11861 is relevant for:
- Coir mat manufacturers - to design, produce and declare products that meet agreed quality and dimensional tolerances.
- Purchasers, importers and distributors - to specify requirements in contracts and ensure supplier compliance.
- Quality control and testing laboratories - to carry out standardized measurements for mass, pile height and thread count.
- Architects, specifiers and interior designers - to select coir mats with predictable properties for commercial and residential flooring, entrance matting, and heavy-traffic areas.
- Procurement and compliance teams - to label and document products for traceability and regulatory or trade requirements.
Related standards
ISO 11861 references and aligns with several textile and floor-covering test standards, including:
- ISO 1763, ISO 2549, ISO 3018, ISO 7211-2, ISO 8543 - for tuft counts, pile measurement, dimensions and mass determination.
By following ISO 11861, stakeholders achieve consistent specification, testing and labelling of coir mats, improving product quality, comparability, and market transparency. Keywords: ISO 11861, coir mats, textile floor coverings, coir fibre, pile height, mass g/m2, ends and picks per decimetre.
ISO 11861:1999 - Textile floor coverings -- Coir mats -- Types and specification
ISO 11861:1999 - Revetements de sol textiles -- Tapis brosses a base de fibres de noix de coco -- Types et spécifications
Frequently Asked Questions
ISO 11861:1999 is a standard published by the International Organization for Standardization (ISO). Its full title is "Textile floor coverings - Coir mats - Types and specification". This standard covers: This International Standard specifies the requirements for mats produced from coir fibre, with or without pile.
This International Standard specifies the requirements for mats produced from coir fibre, with or without pile.
ISO 11861:1999 is classified under the following ICS (International Classification for Standards) categories: 59.080.60 - Textile floor coverings; 97.150 - Floor coverings. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 11861:1999 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

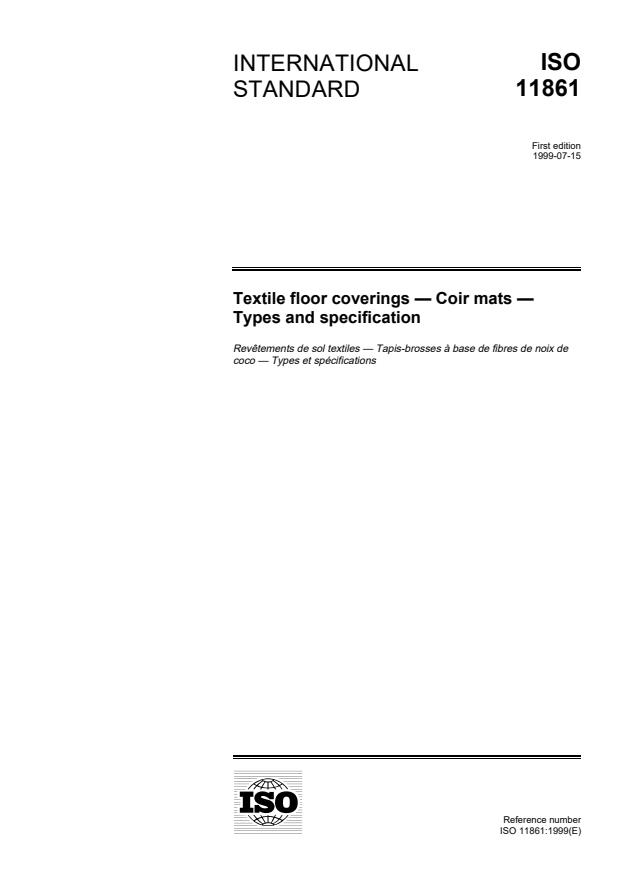

INTERNATIONAL ISO
STANDARD 11861
First edition
1999-07-15
Textile floor coverings — Coir mats —
Types and specification
Revêtements de sol textiles — Tapis-brosses à base de fibres de noix de
coco — Types et spécifications
A
Reference number
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 11861 was prepared by Technical Committee ISO/TC 38, Textiles, Subcommittee
SC 12, Textile floor coverings.
Annex A forms a normative part of this International Standard.
© ISO 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet iso@iso.ch
Printed in Switzerland
ii

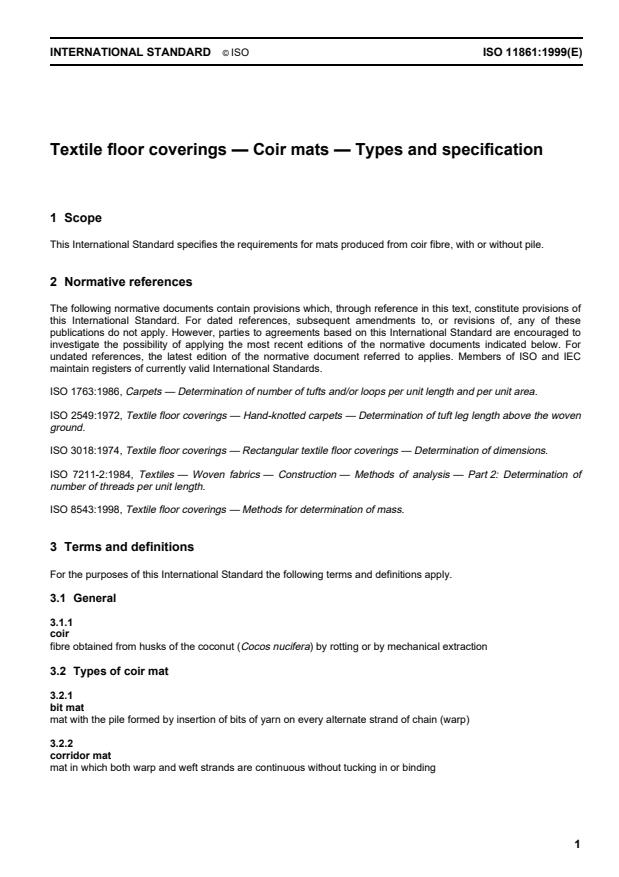

INTERNATIONAL STANDARD © ISO ISO 11861:1999(E)
Textile floor coverings — Coir mats — Types and specification
1 Scope
This International Standard specifies the requirements for mats produced from coir fibre, with or without pile.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 1763:1986, Carpets — Determination of number of tufts and/or loops per unit length and per unit area.
ISO 2549:1972, Textile floor coverings — Hand-knotted carpets — Determination of tuft leg length above the woven
ground.
ISO 3018:1974, Textile floor coverings — Rectangular textile floor coverings — Determination of dimensions.
ISO 7211-2:1984, Textiles — Woven fabrics — Construction — Methods of analysis — Part 2: Determination of
number of threads per unit length.
ISO 8543:1998, Textile floor coverings — Methods for determination of mass.
3 Terms and definitions
For the purposes of this International Standard the following terms and definitions apply.
3.1 General
3.1.1
coir
fibre obtained from husks of the coconut (Cocos nucifera) by rotting or by mechanical extraction
3.2 Types of coir mat
3.2.1
bit mat
mat with the pile formed by i
...

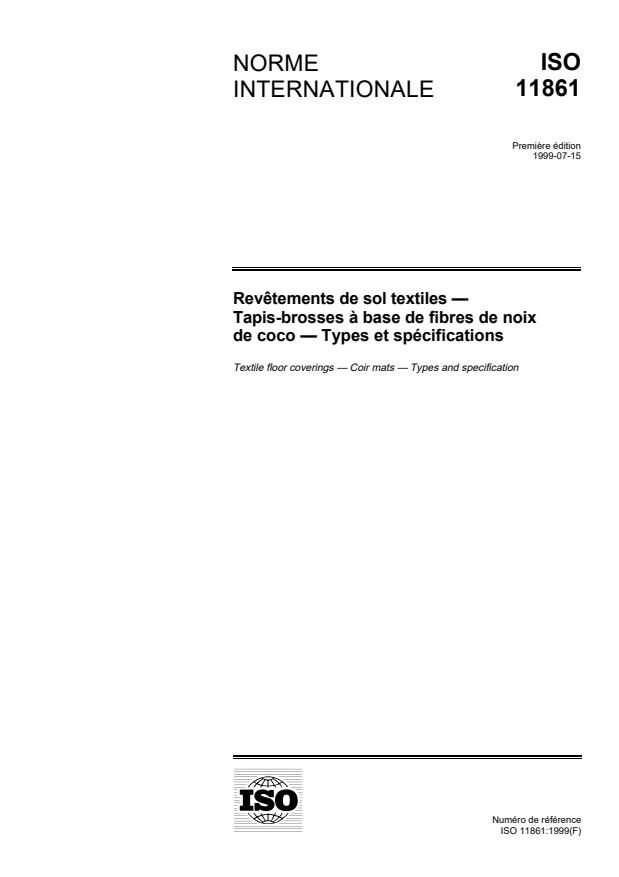

NORME ISO
INTERNATIONALE 11861
Première édition
1999-07-15
Revêtements de sol textiles —
Tapis-brosses à base de fibres de noix
de coco — Types et spécifications
Textile floor coverings — Coir mats — Types and specification
A
Numéro de référence

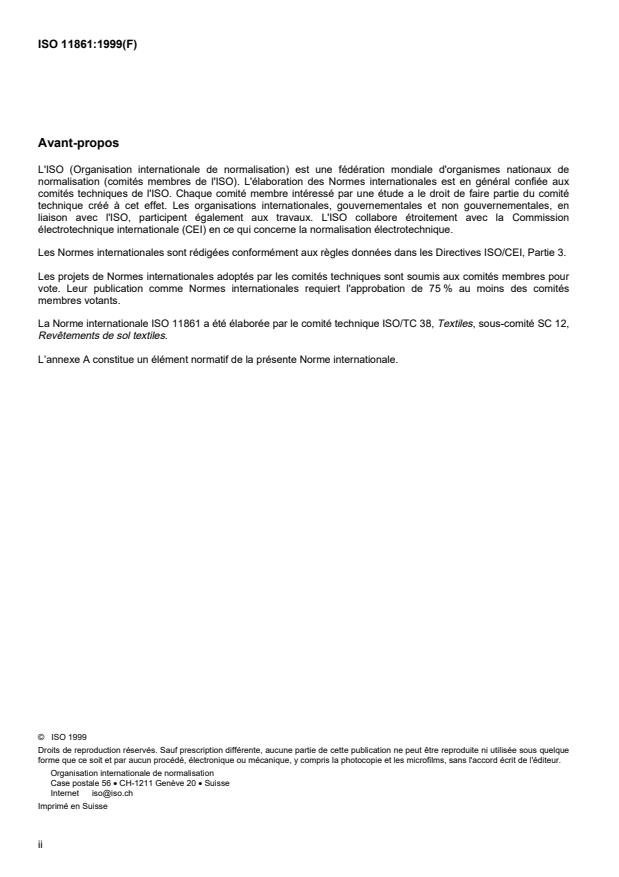

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée aux
comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du comité
technique créé à cet effet. Les organisations internationales, gouvernementales et non gouvernementales, en
liaison avec l'ISO, participent également aux travaux. L'ISO collabore étroitement avec la Commission
électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI, Partie 3.
Les projets de Normes internationales adoptés par les comités techniques sont soumis aux comités membres pour
vote. Leur publication comme Normes internationales requiert l'approbation de 75 % au moins des comités
membres votants.
La Norme internationale ISO 11861 a été élaborée par le comité technique ISO/TC 38, Textiles, sous-comité SC 12,
Revêtements de sol textiles.
L’annexe A constitue un élément normatif de la présente Norme internationale.
© ISO 1999
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous quelque
forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit de l'éditeur.
Organisation internationale de normalisation
Case postale 56 • CH-1211 Genève 20 • Suisse
Internet iso@iso.ch
Imprimé en Suisse
ii

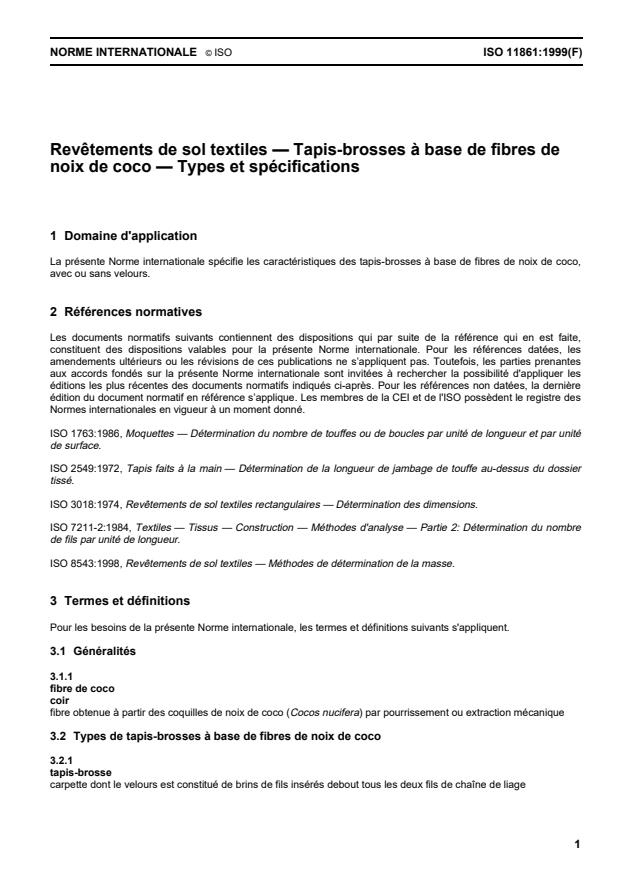

NORME INTERNATIONALE © ISO ISO 11861:1999(F)
Revêtements de sol textiles — Tapis-brosses à base de fibres de
noix de coco — Types et spécifications
1 Domaine d'application
La présente Norme internationale spécifie les caractéristiques des tapis-brosses à base de fibres de noix de coco,
avec ou sans velours.
2 Références normatives
Les documents normatifs suivants contiennent des dispositions qui par suite de la référence qui en est faite,
constituent des dispositions valables pour la présente Norme internationale. Pour les références datées, les
amendements ultérieurs ou les révisions de ces publications ne s’appliquent pas. Toutefois, les parties prenantes
aux accords fondés sur la présente Norme internationale sont invitées à rechercher la possibilité d'appliquer les
éditions les plus récentes des documents normatifs indiqués ci-après. Pour les références non datées, la dernière
édition du document normatif en référence s’applique. Les membres de la CEI et de l'ISO possèdent le registre des
Normes internationales en vigueur à un moment donné.
ISO 1763:1986, Moquettes — Détermination du nombre de touffes ou de boucles par unité de longueur et par unité
.
de surface
ISO 2549:1972, Tapis faits à la main — Détermination de la longueur de jambage de touffe au-dessus du dossier
tissé.
ISO 3018:1974, Revêtements de sol textiles rectangulaires — Détermination des dimensions.
ISO 7211-2:1984, Textiles — Tissus — Construction — Méthodes d'analyse — Partie 2: Détermination du nombre
de fils par unité de longueur.
ISO 8543:1998, Revêtements de sol textiles — Méthodes de détermination de la masse.
3 Termes et définitions
Pour les besoins de la présente Norme internationale, les termes et définitions suivants s'appliquent.
3.1 Généralités
3.1.1
fibre de coco
coir
fibre obtenue à partir des coquilles de noix de coco (Cocos nucifera) par pourrissement ou extraction mécanique
3.2 Types de tapis-brosses à base de fibres de noix de coco
3.2.1
tapis-brosse
carpette dont le velours est constitué de brins de fils insérés debout tous les deux fils de chaîne de liage
...
