ISO/TS 7240-9:2012

TECHNICAL ISO/TS
SPECIFICATION 7240-9
Second edition
2012-12-15
Fire detection and alarm systems —
Part 9:
Test fires for fire detectors
Systèmes de détection et d’alarme d’incendie —
Partie 9: Essais sur foyers pour détecteurs d’incendie
Reference number
ISO/TS 7240-9:2012(E)
©
ISO 2012

---------------------- Page: 1 ----------------------
ISO/TS 7240-9:2012(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TS 7240-9:2012(E)

Contents Page
Foreword .iv
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and symbols . 1
4 Characteristics of test fires — Description . 1
5 Test laboratory . 2
5.1 Dimensions . 2
5.2 Ambient test conditions . 3
5.3 Instruments . 3
6 Test method . 3
6.1 Arrangement . 3
6.2 Ventilation system . 4
6.3 Measurement parameters . 5
6.4 End-of-test parameters . 6
7 Test fires . 6
7.1 General . 6
7.2 Test fire TF1 — Open cellulosic (wood) fire . 6
7.3 Test fire TF2 — Rapid smouldering pyrolysis (wood) fire . 9
7.4 Test fire TF2a — Slow smouldering pyrolysis (wood) fire .12
7.5 Test fire TF2b — Smouldering pyrolysis (wood) fire .14
7.6 Test fire TF3 — Glowing (fast smouldering) cotton fire .16
7.7 Test fire TF3a — Glowing (slow smouldering) cotton fire .19
7.8 Test fire TF3b — Glowing (smouldering) cotton fire .21
7.9 Test fire TF4 — Open plastics (polyurethane) fire .23
7.10 Test fire TF5 — Liquid (heptane) fire .26
7.11 Test fire TF5a — Liquid (heptane) small fire .29
7.12 Test fire TF5b — Liquid (heptane) medium fire .30
7.13 Test fire TF6 — Liquid (methylated spirit) fire .32
7.14 Test fire TF7 — Slow smouldering (pyrolysis) wood fire .33
7.15 Test fire TF8 — Low temperature black smoke (decalin) liquid fire .34
7.16 Test fire TF9 — Deep seated smouldering cotton fire .37
Annex A (normative) m value for different light beam lengths .39
Annex B (normative) y value .43
Annex C (normative) Optical measuring instrument .47
Annex D (normative) Measuring ionization chamber (MIC) .48
Annex E (normative) Spark-generating equipment
...........................................................................................................................54
© ISO 2012 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TS 7240-9:2012(E)

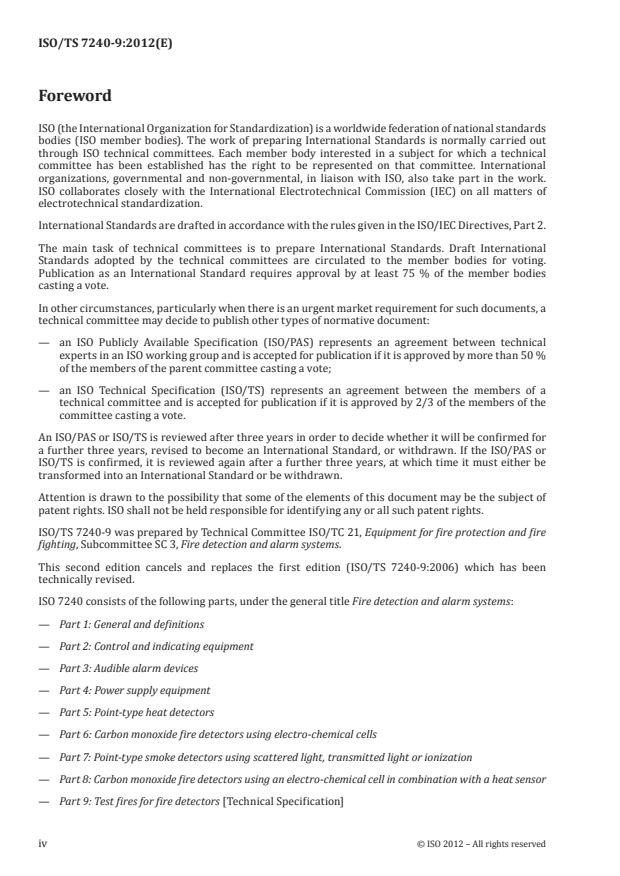

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
— an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical
experts in an ISO working group and is accepted for publication if it is approved by more than 50 %
of the members of the parent committee casting a vote;
— an ISO Technical Specification (ISO/TS) represents an agreement between the members of a
technical committee and is accepted for publication if it is approved by 2/3 of the members of the
committee casting a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for
a further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or
ISO/TS is confirmed, it is reviewed again after a further three years, at which time it must either be
transformed into an International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 7240-9 was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire
fighting, Subcommittee SC 3, Fire detection and alarm systems.
This second edition cancels and replaces the first edition (ISO/TS 7240-9:2006) which has been
technically revised.
ISO 7240 consists of the following parts, under the general title Fire detection and alarm systems:
— Part 1: General and definitions
— Part 2: Control and indicating equipment
— Part 3: Audible alarm devices
— Part 4: Power supply equipment
— Part 5: Point-type heat detectors
— Part 6: Carbon monoxide fire detectors using electro-chemical cells
— Part 7: Point-type smoke detectors using scattered light, transmitted light or ionization
— Part 8: Carbon monoxide fire detectors using an electro-chemical cell in combination with a heat sensor
— Part 9: Test fires for fire detectors [Technical Specification]
iv © ISO 2012 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TS 7240-9:2012(E)

— Part 10: Point-type flame detectors
— Part 11: Manual call points
— Part 12: Line type smoke detectors using a transmitted optical beam
— Part 13: Compatibility assessment of system components
— Part 14: Guidelines for drafting codes of practice for design, installation and use of fire detection and fire
alarm systems in and around buildings [Technical Report]
— Part 15: Point type fire detectors using scattered light, transmitted light or ionization sensors in
combination with a heat sensor
— Part 16: Sound system control and indicating equipment
— Part 17: Short-circuit isolators
— Part 18: Input/output devices
— Part 19: Design, installation, commissioning and service of sound systems for emergency purposes
— Part 20: Aspirating smoke detectors
— Part 21: Routing equipment
— Part 22: Smoke-detection equipment for ducts
1)
— Part 23: Visual alarm devices
— Part 24: Sound-system loudspeakers
— Part 25: Components using radio transmission paths
— Part 27: Point-type fire detectors using a scattered-light, transmitted-light or ionization smoke sensor,
an electrochemical-cell carbon-monoxide sensor and a heat sensor
— Part 28: Fire protection control equipment
A part 29 dealing with video fire detectors is under development.
1) To be published.
© ISO 2012 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/TS 7240-9:2012(E)

Introduction
This part of ISO 7240 is based on ISO/TR 7240-9:2006. It provides a summary of the standard test
fires defined in other parts of ISO 7240 and where they are used. It has been published to provide a
convenient catalogue of fire tests but the formal definition and description of each fire remains within
the individual parts of ISO 7240.
The combustibles selected represent a spectrum of large (m) and small ( y) combustion particles for
both grey and black smoke. These include burning liquids, plastics and cellulosic (wood) materials, and
glowing and smouldering fabrics.
Figure 1 shows the limits of m vs y where they are defined for the relevant test fires. It illustrates how
the test fires are designed to represent a reasonable cross–section of fire types and thus ensure that the
response characteristics of the detectors being assessed are broadly capable of detecting the majority
of common fires that may occur in practise.
Key
Y absorption index, m, dB/m
X MIC, y (dimensionless)
Figure 1 — Composite of ISO test fires TF1 to TF5, TF7 and TF8 profile curves:
m versus y
The test fires in this part of ISO 7240 are intended to be applicable for the evaluation of all automatic
fire detectors (smoke, heat, flame, etc.). They are employed on a selective basis for use in concert with
a specified International Standard covering the particular type of detector. For example, test fire TF6,
methylated spirits, is used to evaluate the response of heat detectors. Test fires TF1 through TF5 are
selected to evaluate the response of system-connected smoke detectors. Test fire TF7 is selected in
lieu of test fire TF2 to evaluate the response of smoke alarms intended primarily for installation in
residential type occupancies. In view of the residential type application, smoke alarms are evaluated for
compliance with test fire TF7 using a 3 m high rather than a 4 m high ceiling. Test fires TF2, TF3 and TF9
are suitable for testing the response of a detector to carbon monoxide. Carbon monoxide output curves
are also shown for TF4, TF5 and TF8.
vi © ISO 2012 – All rights reserved

---------------------- Page: 6 ----------------------
TECHNICAL SPECIFICATION ISO/TS 7240-9:2012(E)
Fire detection and alarm systems —
Part 9:
Test fires for fire detectors
1 Scope
This Technical Specification describes methods of test using test fires to which fire detectors, such as
smoke, heat, flame are subjected as specified in other parts of ISO 7240 for such detectors.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7240-1, Fire detection and alarm systems — Part 1: General and definitions
3 Terms, definitions and symbols
For the purposes of this document, the terms, definitions and symbols given in ISO 7240-1 and the
following apply.
3.1
sensitivity
relative degree of response of a smoke detector
Note 1 to entry: A high sensitivity denotes response to a lower concentration of smoke particles than a low
sensitivity under identical smoke build-up conditions.
4 Characteristics of test fires — Description
Fifteen test fires are described in Clause 7 and designated TF1 through TF9. Their characteristic features
are shown in Table 1.
The test fires shall be carried out in accordance with the descriptions of Clause 7. It is permissible to
vary slightly the quantities of fuel used, if necessary, to produce the required values of fire parameters.
© ISO 2012 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/TS 7240-9:2012(E)

Table 1 — Characteristics of test fires
Designation
Develop- Aerosol Visible Carbon
TF = Test Type of fire Up-current Smoke
ment of heat spectrum portion monoxide
fire
TF1 Open cellulosic Strong Strong Yes Predomin- Dark Very weak
(wood) antly
invisible
TF2 Rapid smouldering Weak Weak Yes Predomin- Light, high Yes
pyrolysis (wood) antly visible scattering
TF2a Slow smouldering Weak Weak Yes Predomin- Light, high Yes
pyrolysis (wood) antly visible scattering
TF2b Smouldering Weak Weak Yes Predomin- Light, high Yes
pyrolysis (wood) antly visible scattering
TF3 Glowing (fast Weak Very weak Yes Partially Light, high Strong
smouldering) visible scattering
(cotton)
TF3a Glowing (slow Weak Very weak Yes Partially Light, high Strong
smouldering) cotton visible scattering
TF3b Glowing (smoulder- Weak Very weak Yes Partially Light, high Strong
ing) cotton visible scattering
TF4 Open plastics Strong Strong Yes Partially Very dark Weak
(polyurethane) invisible
TF5 Liquid (n-heptane) Strong Strong Yes Predomin- Very dark Weak
antly
invisible
TF5a Liquid (n-heptane) Strong Strong Yes Predomin- Very dark Weak
small antly
invisible
TF5b Liquid (n-heptane) Strong Strong Yes Predomin- Very dark Weak
medium antly
invisible
TF6 Liquid (methylated Strong Strong No None None Very weak
spirit)
TF7 Slow smouldering Weak Weak Yes Predomin- Light, high Very weak
(pyrolysis) wood antly visible scattering
TF8 Low temperature Weak Weak Yes Predomin- Dark Very weak
black smoke antly visible
(decalin) liquid
TF9 Deep seated smoul- Weak Weak Yes Predomin- Light, high Yes
dering cotton antly visible scattering
5 Test laboratory
5.1 Dimensions
The dimensions of the test room shall be within the following limits:
— length: 10 m ± 1 m;
— width: 7 m ± 1 m;
— height: 4 m ± 0,2 m for all tests except TF7 which specifies a 3 m ± 0,2 m ceiling height. This can be
achieved by placing the hotplate on a 1 m high platform.
2 © ISO 2012 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/TS 7240-9:2012(E)

The ceiling and walls shall be flat with no obstructions between the fire source and the detectors and
instrumentation. The fire source shall be centred as much as possible with respect to the four walls
to minimize reflection of smoke and/or heat. Fire curtains may be employed to reduce the room size
within specified limits, if needed.
5.2 Ambient test conditions
The following ambient conditions shall be established prior to conducting each test fire:
a) temperature: (15 to 35) °C. Recommend maximum 2 °C difference between ceiling and floor
temperatures for smouldering tests TF2, TF3, TF3a, TF3b and TF7;
b) relative humidity: (25 to 75) %;
c) air pressure: (86 to 106) kPa;
d) air movement: negligible;
e) MIC reading: less than y = 0,05;
f) optical beam reading: less than m = 0,05 dB/m;
g) CO concentration: less than S = 5 µl/l
NOTE For improved consistency of test fires, the temperature can be controlled to (31 to 25) °C and the
relative humidity can be controlled to (45 to 55) %.
5.3 Instruments
The measuring instruments or their specification employed during the test fires are described under
the following annexes:
— optical measuring equipment (see Annex C);
— measuring ionization chamber (see Annex D);
— spark generator (see Annex E).
6 Test method
6.1 Arrangement
The location and arrangement of the detectors under test, smoke density, temperature and carbon
monoxide level measuring instrumentation, and test fire location are illustrated in Figure 2.
For those tests that require ignition inside the test room, the personnel entrusted with the performance
of the test shall leave the test room immediately after igniting the fuel, taking care to prevent air
movement, which may affect the development of the test. All doors, windows, or other openings shall be
kept closed during the test.
© ISO 2012 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/TS 7240-9:2012(E)

a) Plan view of fire test room
b) Mounting position for instruments and specimens
Key
1 specimens and measuring instruments [see Figure 2(b)]
2 optimum position of sampling point for aspirating smoke detectors
3 ventilation system for aspirating smoke detectors [see Figure 3]
4 position of test fire
5 ceiling
Figure 2 — Location of detectors, fire and measuring instruments
6.2 Ventilation system
As a consequence of the low quantity of aerosols generated by reduced fire tests, it is necessary, for the
reduced fire tests TF2a, TF2b, TF3a, TF3b, TF5a and TF5b, to introduce in the fire test room a ventilation
system to increase the homogeneity of the atmosphere close to the sampling points. The following
specifies those characteristics of the ventilation system which are of primary importance.
4 © ISO 2012 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/TS 7240-9:2012(E)

The ventilation system consists of a square duct opened in both extremities (see Figure 3).
A fan is located in the duct as described in Figure 3. The diameter of the fan shall be as close as possible to
the dimensions of the sides of the square section of the duct. At the location of the fan, the section of the duct
not occupied by the fan shall be closed. The axis of the fan shall be the same as the axis of the square duct.
The ventilation system shall create an airflow at (1,0 ± 0,2) m/s at the output of the duct (the airflow
direction is given in Figure 3). Conformity with this requirement shall be regularly verified during the
fire tests by measurements at the centre of the duct output section (see key item 5 in Figure 3).
Key
1 fan
2 square duct
3 ground
4 stand
5 location of the flow velocity measurement
L length of the duct
h height of the fire test room [see Figure 2]
a
Air flow.
Figure 3 — Ventilation system
6.3 Measurement parameters
During each test record the relevant test fire parameters listed in Table 2.
© ISO 2012 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO/TS 7240-9:2012(E)

Table 2 — Test fire parameters
Parameter Symbol Unit
Temperature T °C
Temperature change Δ T °C
Time t seconds (s) or minutes (min) as required
Smoke density (optical) m dB/m
Smoke density (ionization) y dimensionless
Carbon monoxide concentration S µl/l
See Annexes A and B for tables of m values and y values.
6.4 End-of-test parameters
The values of the fire parameters at the end of the test (T , m , y , t , S ) together with the profile curves
E E E E E
are used as the control of the validity and reproducibility of the test fires. The test shall be considered
finished when the specific limits for each test specified in Clause 7 is reached. If a detector responds
after the specified end of test fire parameters have been reached, the detector shall be considered as
having failed the test.
7 Test fires
7.1 General
This Clause contains a description of the 15 test fires, including type and amount of combustible material,
illustration of 10 test setups, method of ignition, pre-conditioning of combustible material (if needed)
and end-of-test parameters.
To permit more flexibility in conducting the tests and interpreting the results, the following guidelines
may be followed. This should also result in a higher success rate for a valid test.
a) Because of variation in smoke build-up that frequently occurs, the build-up curve occasionally may
drift out of the limits for a short interval or near the end of the test. The test is to be considered valid if
the detectors being evaluated respond during the time interval when the build-up is within the limits.
b) The following exceptions would apply to the guidelines in a):
If the build-up curve drifted to the left of the m vs y limit, the test could be considered valid if ionization
type detectors actuated during that interval since they respond worse to large particles.
c) The fuels specified are the preferred test materials. Alternate fuels may be used as substitutes
because of the availability of national natural resources. The alternate fuel source shall exhibit
the same characteristics as the preferred fuels, i.e. colour of smoke and particle size distribution
(within the profile).
d) Where the detector under test does not contain a carbon monoxide sensor, the profile curves for CO
concentration need not apply to the test fire.
7.2 Test fire TF1 — Open cellulosic (wood) fire
7.2.1 Fuel
Approximately 70 dried beechwood sticks, each stick having dimensions of 10 mm × 20 mm by 250 mm.
6 © ISO 2012 – All rights reserved

---------------------- Page: 12 ----------------------
ISO/TS 7240-9:2012(E)

7.2.2 Conditioning
Dry the sticks in a heating oven so the moisture content is less than 3 %.
7.2.3 Preparation
If necessary, transport the sticks from the oven in a closed plastic bag and open the bag just prior to
laying out the sticks in the test arrangement.
7.2.4 Arrangement
Superimpose seven layers on a base surface measuring approx. 50 cm wide × 50 cm long × 8 cm high;
see Figure 4.
Dimensions in centimetres
Key
1 container for methylated spirits
Figure 4 — Wood arrangement for test fire TF1
7.2.5 Ignition
3
0,5 cm methylated spirits in a bowl 5 cm in diameter. Locate the bowl in the centre of base surface.
7.2.6 Method of ignition
Ignite by flame or spark in the methylated spirits.
© ISO 2012 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO/TS 7240-9:2012(E)

7.2.7 Test validity criteria
The development of the fire shall be such that the curves of m against y, and m against time, t, fall within
the hatched areas shown in Figures 5 and 6, respectively. That is, 0,45 dB/m < m < 0,75 dB/m and
270 s < t < 370 s at the end-of-test condition y = 6,0.
E
For detectors using scattered or transmitted light, if the end of test condition, y = 6,0 is reached before
E
all the specimens have responded, then the test is only considered valid if m ≥ 0,6 dB/m.
Figure 5 — Limits for m against y, Fire TF1
Figure 6 — Limits for m against time y, Fire TF1
7.2.8 Variables
The number of sticks may be varied in order for the test fire to remain within the profile curve limits.
7.2.9 End-of-test condition
The end-of-test condition shall be when
— y = 6;
E
— t > 370 s; or
E
— all the specimens have generated an alarm signal.
8 © ISO 2012 – All rights reserved

---------------------- Page: 14 ----------------------
ISO/TS 7240-9:2012(E)

7.3 Test fire TF2 — Rapid smouldering pyrolysis (wood) fire
7.3.1 Fuel
Approximately 10 dried beechwood sticks, each stick having dimensions of 75 mm × 25 mm × 20 mm.
7.3.2 Conditioning
Dry the sticks in a heating oven so the moisture content is approximately 5 %.
7.3.3 Preparation
If necessary, transport the sticks from the oven in a closed plastic bag and open the bag just prior to
laying out the sticks in the test arrangement.
7.3.4 Hotplate
The hotplate shall have a 220 mm diameter grooved surface with eight concentric grooves with a
distance of 3 mm between grooves. Each groove shall be 2 mm deep and 5 mm wide, with the outer
groove 4 mm from the edge. The hotplate shall have a rating of approximately 2 kW.
Measure the temperature of the hotplate by attaching a sensor to the fifth groove, counted from the
edge of the hotplate, and securing the sensor to provide a good thermal contact.
7.3.5 Arrangement
Arrange the sticks radially on the grooved hotplate surface, with the 20 mm side in contact with the
surface such that the temperature sensor lies between the sticks and is not covered, as shown in Figure 7.
© ISO 2012 – All rights reserved 9

---------------------- Page: 15 ----------------------
ISO/TS 7240-9:2012(E)

Key
1 grooved hotplate
2 temperature sensor
3 wooden sticks
Figure 7 — Arrangement of sticks on hotplate
7.3.6 Heating rate
Power the hotplate such that its temperature rises from ambient to 600 °C in approximately 11 min and
is maintained for the duration of the test.
7.3.7 Test validity criteria
No flaming shall occur before the end-of-test condition has been reached. The development of the fire
shall be such that the curves of m against y, m against time, t, and, for detectors incorporating carbon
monoxide sensors, S against time, t, fall within the limits shown in Figures 8, 9 and 10, respectively. That
is, 1,23 < y < 2,05 and 570 s < t < 840 s at the end-of-test condition m = 2 dB/m and 45 µl/l < S < 100 µl/l
E
at end-of-test condition t = 840 s.
For detectors using ionization, if the end of test condition, m = 2 dB/m, is reached before all the
E
specimens have responded, then the test is only considered valid if a y = ≥ 1,6.
For detectors incorporating carbon monoxide sensors, if the end of test condition, m = 2 dB/m is reached
E
before all the specimens have responded, then the test is only considered valid if S > 45 µl/l.
10 © ISO 2012 – All rights reserved

---------------------- Page: 16 ----------------------
ISO/TS 7240-9:2012(E)

Figure 8 — Limits for m against y, Fire TF2
Figure 9 — Limits for m against time, t, Fire TF2
© ISO 2012 – All rights reserved 11

---------------------- Page: 17 ----------------------
ISO/TS 7240-9:2012(E)

Figure 10 — Limits for S against time, t, Fire TF2
7.3.8 Variables
The number of sticks, the rate of temperature increase of the hotplate and the degree of conditioning of
the wood may be varied in order for the test fire to remain within the profile curve limits.
7.3.9 End-of-test condition
The end-of-test condition shall be when
— m = 2 dB/m;
E
— t > 840 s;
E
— for detectors incorporating carbon monoxide sensors, S > 100 µl/l; or
— all the specimens have generated an alarm signal.
7.4 Test fire TF
...
