ISO 7879:1997
(Main)Diesel engines — Cradle-mounted in-line fuel injection pumps — Mounting dimensions
Diesel engines — Cradle-mounted in-line fuel injection pumps — Mounting dimensions
Moteurs diesels — Pompes d'injection en ligne à fixation par le berceau — Dimensions de montage
General Information
- Status
- Published
- Publication Date
- 19-Nov-1997
- Technical Committee
- ISO/TC 22/SC 34 - Propulsion, powertrain and powertrain fluids
- Drafting Committee
- ISO/TC 22/SC 34/WG 2 - Injection equipment
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 08-Jan-2026
- Completion Date
- 10-Jan-2026
Relations
- Revises
ISO 7879:1990 - Road vehicles - Cradle-mounted in-line fuel injection pumps - Mounting dimensions - Effective Date
- 15-Apr-2008
Overview
ISO 7879:1997 - "Diesel engines - Cradle-mounted in-line fuel injection pumps - Mounting dimensions" is an international standard that defines the mounting dimensions and tolerances for cradle‑mounted in-line fuel injection pumps used on compression‑ignition (diesel) engines. Published as the third edition in 1997 and prepared by ISO/TC 22/SC 7, the standard provides dimensional tables and figures (Types 1–3) with values in millimetres to ensure mechanical compatibility and interchangeability of pump units.
Key topics and requirements
- Dimensional requirements for cradle-mounted in-line fuel injection pumps, presented in figures and tabulated values for various cylinder counts (4, 6, 8 and extended sizes in Type 3 such as 10 and 12).
- Tolerances and nominal values specified in millimetres to control fit and alignment between pump cradle and engine mounting.

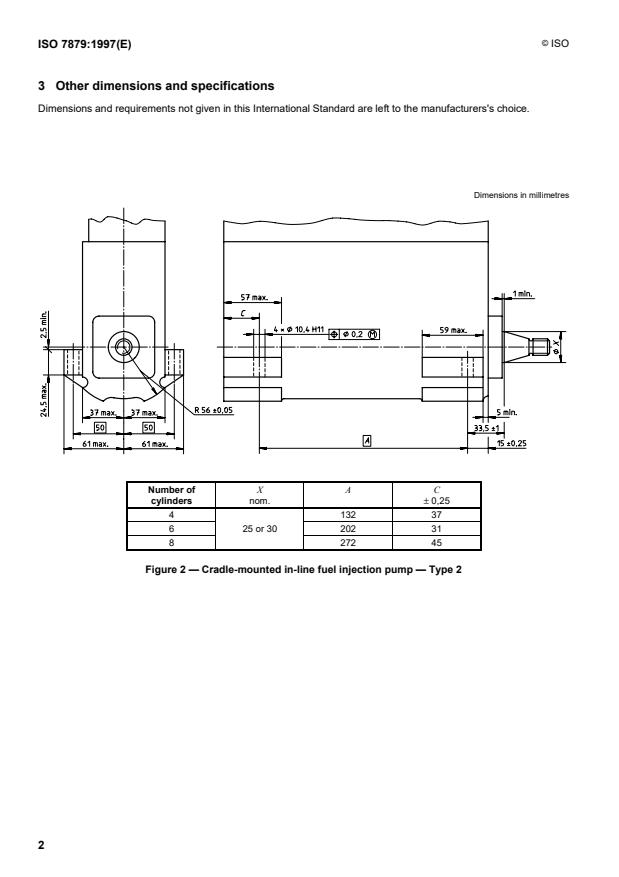

- Multiple pump types (Type 1, 2, 3) with corresponding mounting layouts and critical dimensions illustrated in figures 1–3.
- Manufacturer choice: dimensions and requirements not covered by the standard are explicitly left to the manufacturer’s discretion.
- Informative annex (Annex A) and bibliographic references to related ISO documents on pump tapers and mounting flanges.
Applications and practical value
- Ensures mechanical compatibility between cradle‑mounted in-line fuel injection pumps and engine cradles, reducing redesign and fitment issues.
- Guides design engineers and CAD modelers when creating engine mounting interfaces and assemblies.
- Supports pump manufacturers and OEMs in producing units that meet common mounting profiles for interchangeability and aftermarket replacement.
- Used by service technicians and repair shops to verify mounting dimensions when fitting replacement pumps or performing engine overhauls.
- Useful for quality control, procurement specifications, and supplier communication to ensure consistent mounting geometry across suppliers.
Who should use this standard
- Engine manufacturers and integrators (OEMs)
- Fuel injection pump designers and suppliers
- Aftermarket and replacement pump manufacturers
- Mechanical design and installation engineers
- Maintenance and repair facilities working on diesel engines
Related standards
Annex A (informative) cites related ISO standards that complement ISO 7879:
- ISO 6519 - Tapers for shaft ends and hubs
- ISO 7299 - End‑mounting flanges for fuel injection pumps
- ISO 7612 - Base‑mounted in‑line fuel injection pumps - Mounting dimensions
Keywords: ISO 7879, diesel engines, cradle-mounted in-line fuel injection pumps, mounting dimensions, pump mounting, engine compatibility, injection pump standards.
ISO 7879:1997 - Diesel engines -- Cradle-mounted in-line fuel injection pumps -- Mounting dimensions
ISO 7879:1997 - Moteurs diesels -- Pompes d'injection en ligne a fixation par le berceau -- Dimensions de montage
Frequently Asked Questions
ISO 7879:1997 is a standard published by the International Organization for Standardization (ISO). Its full title is "Diesel engines — Cradle-mounted in-line fuel injection pumps — Mounting dimensions". This standard covers: Diesel engines — Cradle-mounted in-line fuel injection pumps — Mounting dimensions
Diesel engines — Cradle-mounted in-line fuel injection pumps — Mounting dimensions
ISO 7879:1997 is classified under the following ICS (International Classification for Standards) categories: 43.060.40 - Fuel systems. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 7879:1997 has the following relationships with other standards: It is inter standard links to ISO 7879:1990. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 7879:1997 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 7879
Third edition
1997-12-01
Diesel engines — Cradle-mounted in-line
fuel injection pumps — Mounting
dimensions
Moteurs diesels — Pompes d'injection en ligne à fixation par le berceau —
Dimensions de montage
A
Reference number

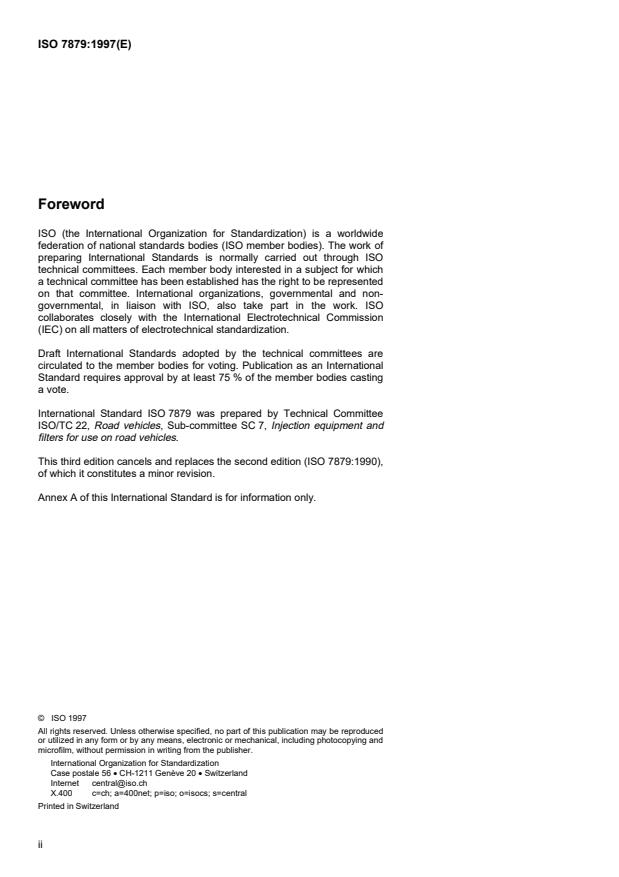

Foreword
