(Main)Cross recessed raised countersunk head drilling screws with tapping screw thread
Cross recessed raised countersunk head drilling screws with tapping screw thread
Vis autoperceuses à tête fraisée bombée à empreinte cruciforme, avec filetage de vis à tôle
La présente Norme internationale spécifie les caractéristiques des vis autoperceuses à tête fraisée bombée à empreinte cruciforme, avec filetage de vis à tôle ST2,9 à ST6,3 inclus.
General Information
- Status
- Published
- Publication Date
- 01-Sep-1999
- Technical Committee
- ISO/TC 2/SC 13 - Fasteners with non-metric thread
- Drafting Committee
- ISO/TC 2/SC 13 - Fasteners with non-metric thread
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 10-Jul-2024
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 06-Jun-2022
- Consolidated By
ISO/TR 24578:2012 - Hydrometry - Acoustic Doppler profiler - Method and application for measurement of flow in open channels - Effective Date
- 06-Jun-2022
Overview
ISO 15483:1999 specifies the characteristics of cross recessed raised countersunk head drilling screws with tapping screw thread. The standard covers dimensional, geometric and identification requirements for drilling screws with tapping threads in sizes ST2,9 to ST6,3, and defines head and recess forms used in manufacture, inspection and procurement of these fasteners.
Key topics and requirements
- Product range: Drilling screws with tapping screw thread sizes from ST2,9 up to ST6,3.
- Head and recess types: Raised countersunk head with cross recess variants (Type H and Type Z); cross recess sizes corresponding to No. 1, 2 and 3.
- Dimensions and tolerances: Nominal lengths, head heights, thread run-out and drilling point characteristics are defined (see Table 1 in the standard). Pitch (P), major diameters and drilling ranges (sheet/plate thickness) are specified for correct selection and gauging.
- Mechanical and functional properties: References ISO 10666 for drilling-point function and mechanical/functional requirements. Product grade and tolerance guidance references ISO 4759-1.
- Surface finish and acceptance: Plain finish is covered; electroplating requirements are referenced to ISO 4042. Acceptance inspection procedures are referenced to ISO 3269.
- Designation: The standard defines a clear designation format. Example:
Drilling screw ISO 15483 - ST3,5 3 16 - Z
Applications and users
ISO 15483 is practical for organizations involved in the specification, manufacture, inspection and procurement of self-drilling tapping screws:
- Fastener manufacturers and production engineers (to design and produce compliant screws)
- Product designers and mechanical engineers (to select correct screw geometry and drilling range for sheet-metal assemblies)
- Quality assurance and inspection teams (for dimensional and acceptance checks)
- Purchasing and supply chain specialists (for unambiguous component identification in procurement)
- Fastener distributors and installers (to match screws to material thickness and application)
Typical applications include fastening thin sheet metal, light structural components and assemblies where a raised countersunk aesthetic or flush seating is required.
Related standards
ISO 15483 cross-references and works with several ISO standards:
- ISO 10666 - Drilling screws with tapping screw thread: mechanical and functional properties
- ISO 1478 - Tapping screw threads
- ISO 4757 - Cross recesses for screws
- ISO 4759-1 - Tolerances for fasteners (product grades)
- ISO 4042 - Electroplated coatings (finish)
- ISO 3269 - Fasteners - Acceptance inspection
Keywords: ISO 15483, cross recessed raised countersunk head drilling screws, tapping screw thread, drilling screws, fasteners, ISO standard, screw dimensions, Type H, Type Z.
ISO 15483:1999 - Cross recessed raised countersunk head drilling screws with tapping screw thread Released:9/2/1999
ISO 15483:1999 - Vis autoperceuses à tête fraisée bombée à empreinte cruciforme, avec filetage de vis à tôle Released:9/2/1999
Frequently Asked Questions
ISO 15483:1999 is a standard published by the International Organization for Standardization (ISO). Its full title is "Cross recessed raised countersunk head drilling screws with tapping screw thread". This standard covers: La présente Norme internationale spécifie les caractéristiques des vis autoperceuses à tête fraisée bombée à empreinte cruciforme, avec filetage de vis à tôle ST2,9 à ST6,3 inclus.
La présente Norme internationale spécifie les caractéristiques des vis autoperceuses à tête fraisée bombée à empreinte cruciforme, avec filetage de vis à tôle ST2,9 à ST6,3 inclus.
ISO 15483:1999 is classified under the following ICS (International Classification for Standards) categories: 21.060.10 - Bolts, screws, studs. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 15483:1999 has the following relationships with other standards: It is inter standard links to ISO 3189-3:1985, ISO/TR 24578:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 15483:1999 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 15483
First edition
1999-08-01
Cross recessed raised countersunk head
drilling screws with tapping screw thread
Vis autoperceuses à tête fraisée bombée à empreinte cruciforme,
avec filetage de vis à tôle
A
Reference number

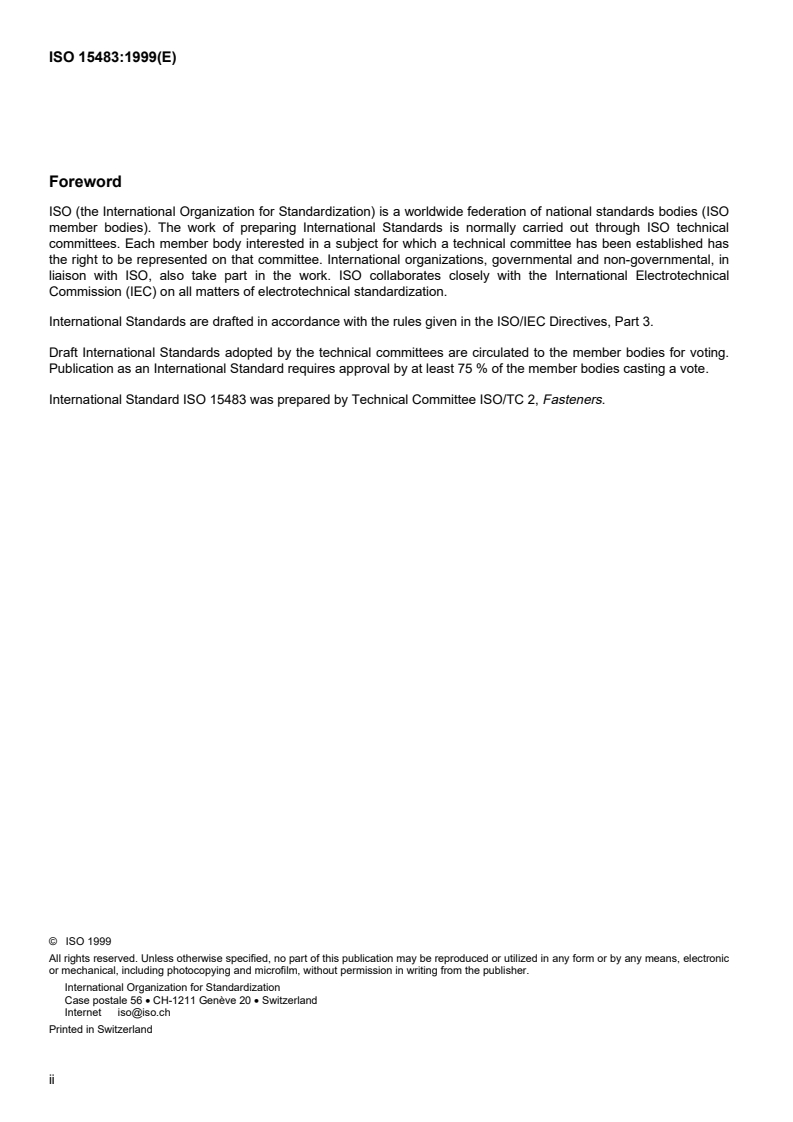

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 15483 was prepared by Technical Committee ISO/TC 2, Fasteners.
© ISO 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet iso@iso.ch
Printed in Switzerland
ii
INTERNATIONAL STANDARD © ISO ISO 15483:1999(E)
Cross recessed raised countersunk head drilling screws
with tapping screw thread
1 Scope
This International Standard specifies the characteristics of cross recessed raised countersunk head drilling screws
with tapping screw threads from ST2,9 up to and including ST6,3.
Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 1478:1999, Tapping screws thread.
1)
ISO 3269:— , Fasteners — Acceptance inspection.
ISO 4042:1999, Fasteners — Electroplated coatings.
ISO 4757:1983, Cross recesses for screws.
2)
ISO 4759-1:— , Tolerances for fasteners — Part 1: Bolts, screws, studs and nuts — Product grades A,
...

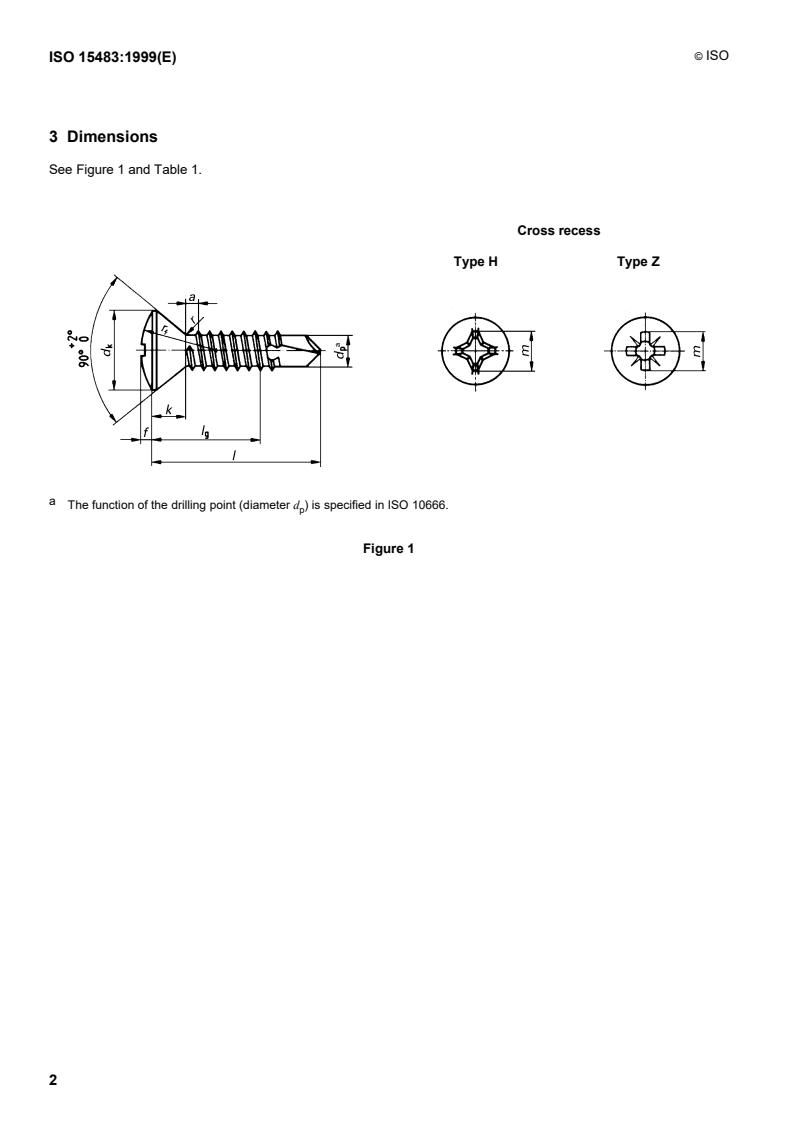

NORME ISO
INTERNATIONALE 15483
Première édition
1999-08-01
Vis autoperceuses à tête fraisée bombée
à empreinte cruciforme, avec filetage
de vis à tôle
Cross recessed raised countersunk head drilling screws with tapping screw
thread
A
Numéro de référence

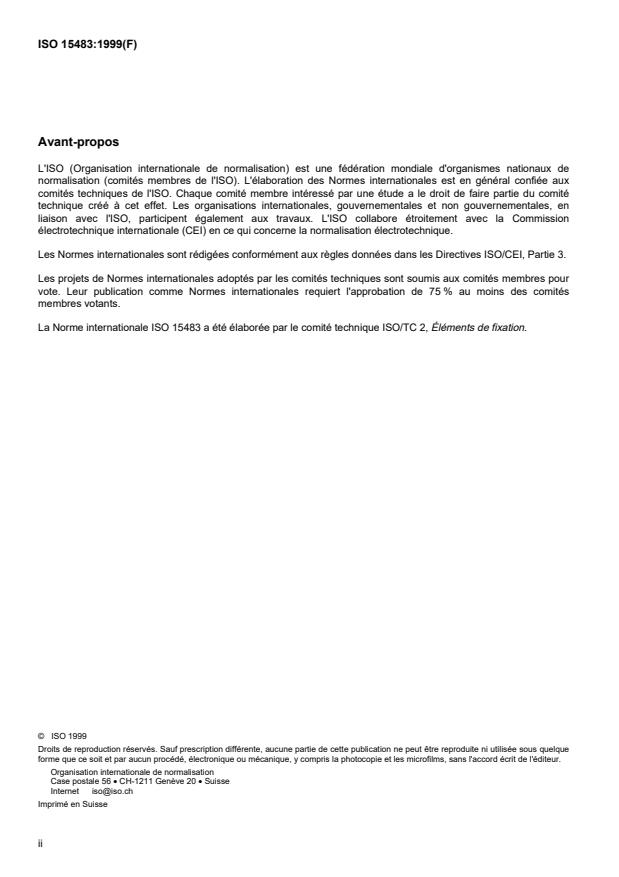

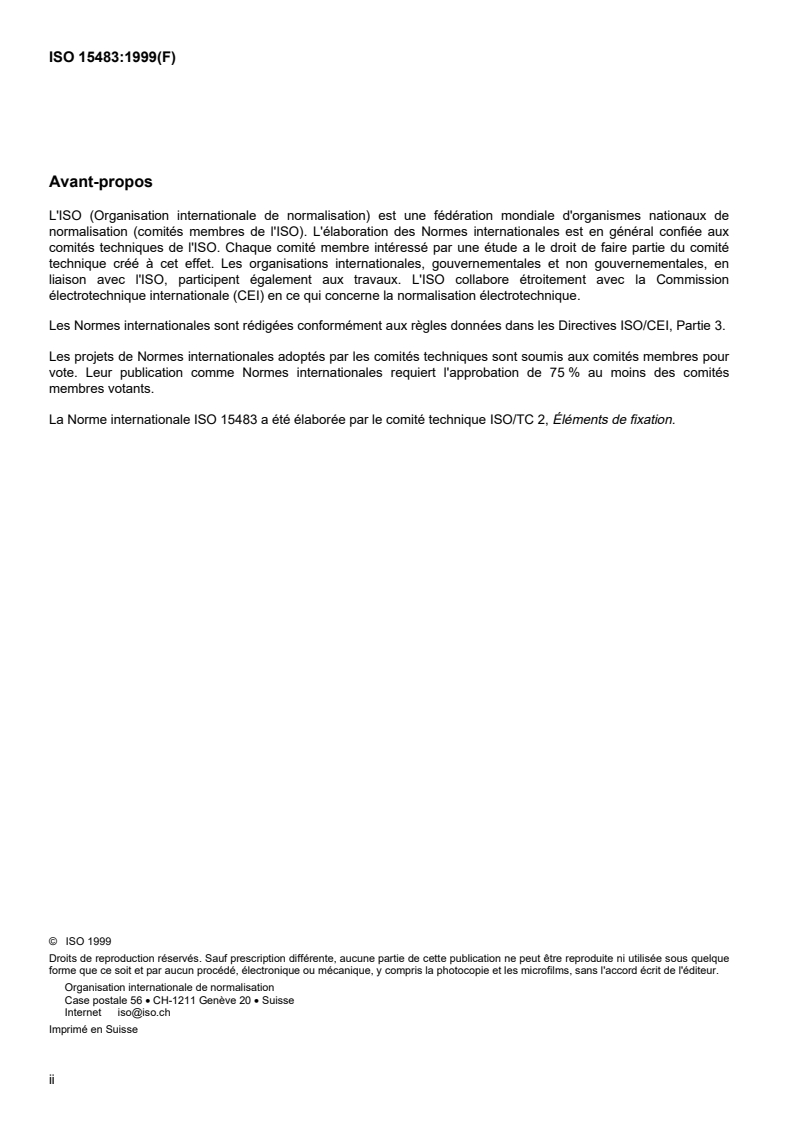

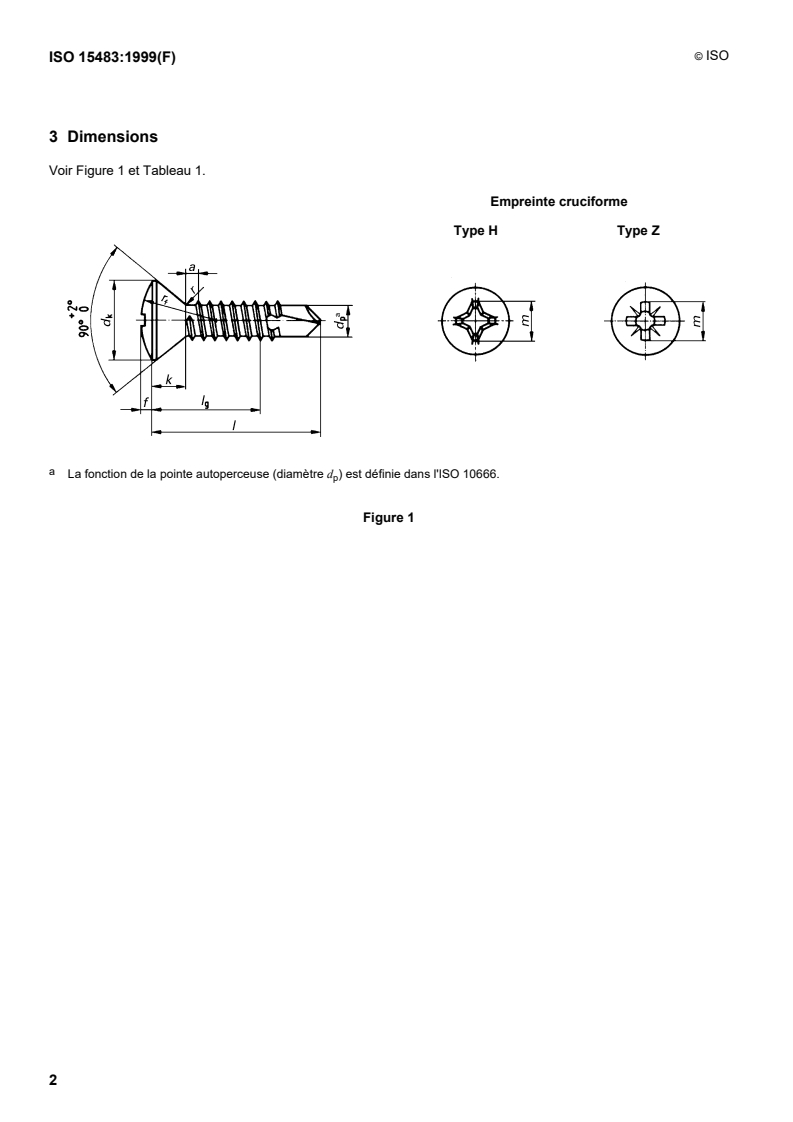

Avant-propos
