ISO 14520-15:2015

INTERNATIONAL ISO
STANDARD 14520-15
Third edition
2015-02-15
Gaseous fire-extinguishing
systems — Physical properties and
system design —
Part 15:
IG-541 extinguishant
Systèmes d’extinction d’incendie utilisant des agents gazeux —
Propriétés physiques et conception des systèmes —
Partie 15: Agent extincteur IG-541
Reference number
ISO 14520-15:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 14520-15:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 14520-15:2015(E)

Contents Page
Foreword .iv
1 Scope . 1
2 Normative reference . 1
3 Terms and definitions . 1
4 Characteristics and uses . 1
4.1 General . 1
4.2 Use of IG-541 systems . 2
5 Safety of personnel . 6
6 System design . 7
6.1 Fill pressure . 7
6.2 Superpressurization . 7
6.3 Extinguishant quantity . 8
7 Environmental Properties . 8
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 14520-15:2015(E)

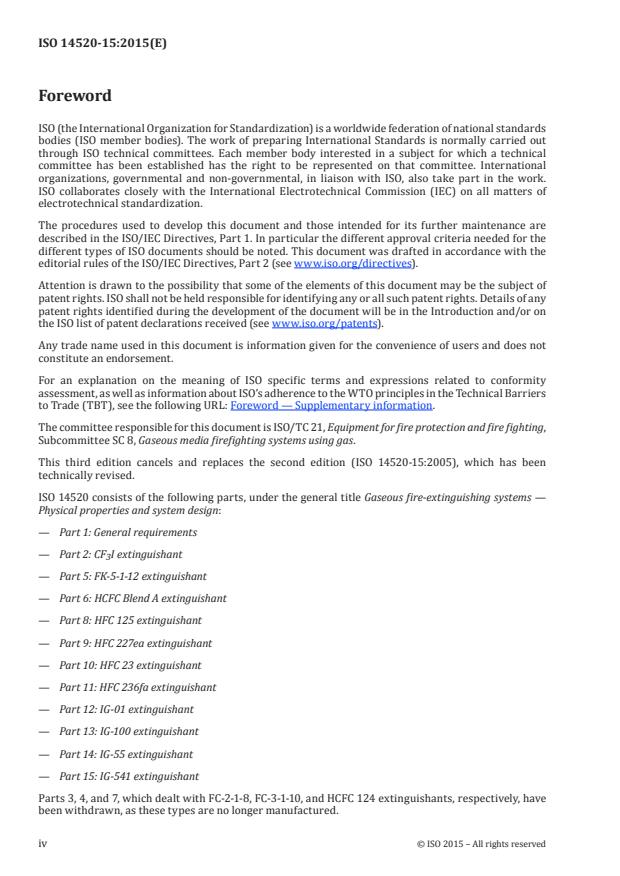

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT), see the following URL: Foreword — Supplementary information.
The committee responsible for this document is ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 8, Gaseous media firefighting systems using gas.
This third edition cancels and replaces the second edition (ISO 14520-15:2005), which has been
technically revised.
ISO 14520 consists of the following parts, under the general title Gaseous fire-extinguishing systems —
Physical properties and system design:
— Part 1: General requirements
— Part 2: CF I extinguishant
3
— Part 5: FK-5-1-12 extinguishant
— Part 6: HCFC Blend A extinguishant
— Part 8: HFC 125 extinguishant
— Part 9: HFC 227ea extinguishant
— Part 10: HFC 23 extinguishant
— Part 11: HFC 236fa extinguishant
— Part 12: IG-01 extinguishant
— Part 13: IG-100 extinguishant
— Part 14: IG-55 extinguishant
— Part 15: IG-541 extinguishant
Parts 3, 4, and 7, which dealt with FC-2-1-8, FC-3-1-10, and HCFC 124 extinguishants, respectively, have
been withdrawn, as these types are no longer manufactured.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 14520-15:2015(E)
Gaseous fire-extinguishing systems — Physical properties
and system design —
Part 15:
IG-541 extinguishant
1 Scope
This part of ISO 14520 contains specific requirements for gaseous fire-extinguishing systems, with
respect to the IG-541 extinguishant. It includes details of physical properties, specification, usage, and
safety aspects.
This part of ISO 14520 covers systems operating at nominal pressures of 150 bar, 200 bar, and 300 bar
at 15 °C. This does not preclude the use of other systems, although design data for other pressures are
not available at this time.
2 Normative reference
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 14520-1:2006, Gaseous fire-extinguishing systems — Physical properties and system design —
Part 1: General requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14520-1 apply.
4 Characteristics and uses
4.1 General
IG-541 is a colourless, odourless, electrically non-conductive gas with a density approximately the same
as that of air.
It is an inert gas mixture consisting nominally of 52 % nitrogen, 40 % argon, and 8 % carbon dioxide.
The mixture specification for IG-541 (based on 8 % carbon dioxide with tolerance of ± 5 %) is as follows:
a) carbon dioxide percentage range 7,6 % to 8,4 %;
b) argon percentage range 37,2 % to 42,8 %;
c) nitrogen percentage range 48,8 % to 55,2 %.
Individual container or batch analysis is based on carbon dioxide measurement only.
Extinguishant IG-541 shall comply with the specification shown in Table 1.
The physical properties are shown in Table 2.
© ISO 2015 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 14520-15:2015(E)

IG-541 extinguishes fires mainly by a reduction of oxygen concentration in the atmosphere of the
hazard enclosure.
Table 1 — Component gas specification for IG-541
Argon Nitrogen Carbon dioxide
Purity 99,997 % by volume, 99,99 % by volume, 99,5 % by volume,
min. min. min.
−6 −6 −6
Moisture 4 × 10 by mass, 5 × 10 by mass, 10 × 10 by mass,
max. max. max.
−6 −6 −6
Oxygen 3 × 10 by mass, 3 × 10 by mass, 10 × 10 by mass,
max. max. max.
NOTE Only principal contaminants are shown. Other measurements can include
hydrocarbons, CO, NO, NO . Most are < 20 × 10–6.
2
Table 2 — Physical properties of IG-541
Property Units Value
Molecular mass — 34,0
Boiling point at 1,013 bar (absolute) °C –196
Freezing point °C –78,5
Critical temperature °C —
Critical pressure bar abs —
3
Critical volume cm /mol —
3
Critical density kg/m —
Vapour pressure 20 °C bar abs 152
3
Liquid density 20 °C kg/m —
3
Saturated vapour density 20 °C kg/m —
3
Specific volume of superheated vapour m /kg 0,706
at 1,013 bar and 20 °C
Components N 52 % by volume
2
Ar 40 % by volume
CO 8 % by volume
2
Chemical name Nitrogen/argon/carbon dioxide
4.2 Use of IG-541 systems
IG-541 total flooding systems can be used for extinguishing fires of all classes within the limits specified
in ISO 14520-1:2006, Clause 4.
The extinguishant requirements per volume of protected space are shown in Table 3 for various levels
of concentration. These are based on methods shown in ISO 14520-1:2006, 7.6.
The extinguishing concentrations and design concentrations for heptane and surface class A hazards a
...
