ISO/IEC 24570:2018

INTERNATIONAL ISO/IEC
STANDARD 24570
Second edition
2018-02
Software engineering — NESMA
functional size measurement method
— Definitions and counting guidelines
for the application of function point
analysis
Ingénierie du logiciel — Méthode de mesure de la taille fonctionnelle
NESMA — Définitions et manuel des pratiques de comptage pour
l'application de l'analyse des points fonctionnels
Reference number
©
ISO/IEC 2018
© ISO/IEC 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved

Contents Page
Foreword .v
Introduction to this Standard .vi
1 Scope . 1
1.1 Purpose . 1
1.2 Conformity . 1
1.3 Applicability . 1
1.4 Focus . 1
2 Introduction to FPA . 2
2.1 Brief description of FPA . 2
2.1.1 Background, purpose and application of FPA . 2
2.1.2 Rationale behind FPA . 2
2.2 Use of FPA: application versus project functional size . 3
2.3 Types of function point analyses . 3
2.4 Function point analyses during a project . 3
2.5 Scope of the analysis and boundary of the application to be analyzed . 4
2.6 Users . 4
2.7 Functions and function types . 4
2.8 The complexity of a function. 5
2.9 The valuing of functions . 6
2.10 The functional size . 6
3 Guidelines to perform an FPA . 7
3.1 Step-by-step plan to perform an FPA . 7
3.2 Types of function point analyses and their accuracy . 7
3.2.1 Indicative function point analysis . 8
3.2.2 High level function point analysis . 9
3.2.3 Detailed function point analysis . 9
3.3 Role of the quality of the specifications .10
3.4 FPA during a project .10
3.5 Determining the functional size of an application .11
3.5.1 Determining the application boundary .11
3.5.2 Functional size of new applications .12
3.5.3 Functional size of enhanced applications .12
3.5.4 Functional size of re-built applications .12
3.6 Determining the functional size of a project .13
3.6.1 Determining the scope of a project function point analysis .13
3.6.2 Functional size of development projects .14
3.6.3 Functional size of enhancement projects .15
3.6.4 The project function point analysis during the replacement of an application.16
3.7 Definition of functional change .16
3.7.1 General.16
3.7.2 Modification of a transactional function .16
3.7.3 Modification of a data function .16
3.7.4 Modification of a DET .17
3.8 FPA in specific situations .17
3.8.1 Analyzing on the basis of traditional design .17
3.8.2 Analyzing packaged software .17
3.8.3 Analyzing screens or windows .19
3.8.4 Analyzing when prototyping .20
3.9 Illustration: FPA and the application life cycle .21
3.9.1 FPA during the requirements phase .21
3.9.2 FPA during the analysis phase.22
3.9.3 FPA during the functional design phase .23
3.9.4 FPA during the construction phase .24

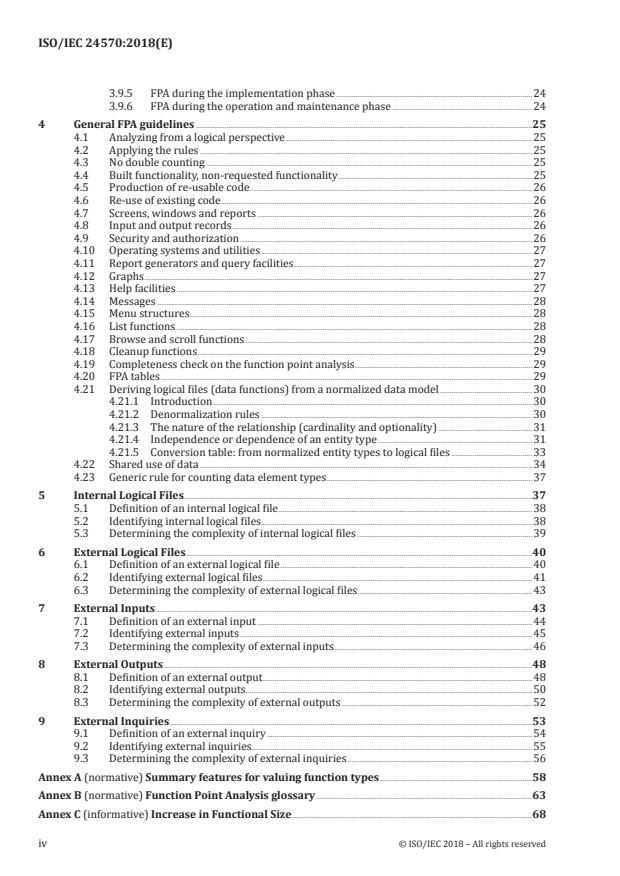

© ISO/IEC 2018 – All rights reserved iii

3.9.5 FPA during the implementation phase .24
3.9.6 FPA during the operation and maintenance phase .24
4 General FPA guidelines .25
4.1 Analyzing from a logical perspective .25
4.2 Applying the rules .25
4.3 No double counting .25
4.4 Built functionality, non-requested functionality .25
4.5 Production of re-usable code .26
4.6 Re-use of existing code .26
4.7 Screens, windows and reports .26
4.8 Input and output records .26
4.9 Security and authorization .26
4.10 Operating systems and utilities .27
4.11 Report generators and query facilities .27
4.12 Graphs .27
4.13 Help facilities .27
4.14 Messages .28
4.15 Menu structures .28
4.16 List functions .28
4.17 Browse and scroll functions .28
4.18 Cleanup functions .29
4.19 Completeness check on the function point analysis .29
4.20 FPA tables .29
4.21 Deriving logical files (data functions) from a normalized data model .30
4.21.1 Introduction .30
4.21.2 Denormalization rules .30
4.21.3 The nature of the relationship (cardinality and optionality) .31
4.21.4 Independence or dependence of an entity type .31
4.21.5 Conversion table: from normalized entity types to logical files .33
4.22 Shared use of data .34
4.23 Generic rule for counting data element types .37
5 Internal Logical Files .37
5.1 Definition of an internal logical file .38
5.2 Identifying internal logical files .38
5.3 Determining the complexity of internal logical files .39
6 External Logical Files .40
6.1 Definition of an external logical file .40
6.2 Identifying external logical files .41
6.3 Determining the complexity of external logical files.43
7 External Inputs .43
7.1 Definition of an external input .44
7.2 Identifying external inputs .45
7.3 Determining the complexity of external inputs .46
8 External Outputs .48
8.1 Definition of an external output .48
8.2 Identifying external outputs .50
8.3 Determining the complexity of external outputs .52
9 External Inquiries .53
9.1 Definition of an external inquiry .54
9.2 Identifying external inquiries.55
9.3 Determining the complexity of external inquiries .56
Annex A (normative) Summary features for valuing function types .58
Annex B (normative) Function Point Analysis glossary .63
Annex C (informative) Increase in Functional Size .68
iv © ISO/IEC 2018 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by NESMA and was adopted, under the PAS procedure, by Joint Technical
Committee ISO/IEC JTC 1, Information Technology, in parallel with its approval by national bodies of ISO
and IEC.
This International Standard is the latest release in the continually improving Nesma method.
This method is a consistent interpretation of functional size measurement in conformance with
ISO/IEC 14143-1:2007. The Nesma functional size measurement method is known as Function Point
1)
Analysis (FPA) and the unit of functional size is called Function Point.
This second edition cancels and replaces the first edition (ISO/IEC 24570:2005), which is now obsolete.
Functional size measurements as determined based on this new edition of the standard are identical
to those based on the previous edition of the standard. Results obtained in the past do not need to be
updated.
1) In this document the abbreviation FPA is used for the term Function Point Analysis.
© ISO/IEC 2018 – All rights reserved v

Introduction to this Standard
Reason for this International Standard
Over the years a number of "dialects" have arisen for function point analysis. These dialects complicate
the goal of determining the number of function points and make it almost impossible for organizations
to compare results. One insufficiently acknowledged reason for this is that different interpretations of
the "Albrecht" method have arisen.
This International Standard provides clarity by formulating standards for the definitions and counting
guidelines that pertain to FPA.
Intended audience
This International Standard is meant for everyone who performs function point analyses. It is assumed
that the reader has some knowledge of function point analysis. Nevertheless, we have attempted to
produce an International Standard that is both complete and includes sufficient introductory material
and explanation for the new user.
Application of this standard in practice
This International Standard is one component in the Nesma publications. It is recommended that it be
read in conjunction with the other Nesma publications. These provide guidance to application of the
rules specified within this International Standard and background information to aid in understanding
the use and applicability of the resulting functional size. Supporting Nesma publications include the
following:
— Examples to illustrate the use of the Nesma method in specific situations and a fully documented
Hotel case.
— Nesma website at nesma.org which contains a number of documents that can be used in a specific
context, for example guidelines how FPA can be used in a Data Warehouse environment, with UML
documentation, or different aspects in contracts.
vi © ISO/IEC 2018 – All rights reserved

Organization of this International Standard
Clause 1 describes the scope of this International Standard.
Clause 2 provides an introduction to FPA and in which the functional aspect of FPA is emphasized. It
will also spell out briefly what FPA is and explains the terms that form the basis for the concept of FPA.
Matters such as distinguishing between an application function point analysis and a project function
point analysis are examined, just as are other various types of function point analyses, the role of FPA
during a project, users, and function point analysis.
Clause 3 provides an overview of the position of FPA in a project and explains the types of function
point analyses that can be carried out during the life cycle of an application. In other words, the clause
explains when FPA can be applied and what information is needed minimally in order to count. The
clause will also give a step-by-step plan for performing a function point analysis and indicates how
projects, applications, and packaged software should be counted. Each of these requires their approach.
Clause 4 states general counting guidelines for a function point analysis.
Clauses 5, 6, 7, 8 and 9 successively give the definitions and guidelines used to identify function types
and to determine the complexity of function types for internal logical files, external logical files,
external inputs, external outputs, and external inquiries. The guidelines are broken down per function
type for identifying the function type concerned, for determining the number of data element types,
and for determining the number of record types or referenced logical files.
Annex A is meant to be a short summary of the guidelines and contains the most important features of
each function type, as well as the tables for valuing the function types.
Annex B contains the definitions of the terms in this International Standard.
Annex C describes the mechanisms behind the increase in functional size.
This International Standard has been set up in such a way that the reader does not necessarily have
to start at Clause 1 before continuing on to Clause 2, then 3 and 4 etc. Instead, the reader can look
up what is important to him. For one reader, specific counting guidelines for a particular function
type may be important, while someone else may want a more general frame of reference for an initial
introduction to FPA.
© ISO/IEC 2018 – All rights reserved vii

INTERNATIONAL STANDARD ISO/IEC 24570:2018(E)
Software engineering — NESMA functional size
measurement method — Definitions and counting
guidelines for the application of function point analysis
1 Scope
1.1 Purpose
This International Standard specifies the set of definitions, rules and guidelines for applying the Nesma
Function Point Analysis (FPA) method.
1.2 Conformity
This International Standard is conformant with all mandatory provisions of ISO/IEC 14143-1:2007.
1.3 Applicability
This International Standard can be applied to all functional domains.
1.4 Focus
The International Standard focuses on how the functional size of an application is determined. The
International Standard does not go into any of the aspects that play a role when project budgets are
established on the basis of this functional size (e.g. productivity standards and productivity attributes).
The figure below indicates what this International Standard will and will not cover.
Figure 1 — Scope of the International Standard
© ISO/IEC 2018 – All rights reserved 1

2 Introduction to FPA
This clause gives a short description of FPA and explains a number of important concepts related to it.
More specifically, subclause 2.1 provides a brief synopsis of FPA. Subclauses 2.2 through 2.4 distinguish
between the different types of function point analyses. Subclauses 2.5 through 2.9 discuss each of the
following successively within the context of FPA:
— The boundaries for an analysis
— Users
— Function types
— The complexity of a function type
— The valuing of function types
Subclause 2.10 defines the term functional size and describes how it is determined.
2.1 Brief description of FPA
2.1.1 Background, purpose and application of FPA
FPA was developed by A.J. Albrecht at IBM between 1974 and 1979 as a result of productivity research
into a large number of projects. The first release of FPA was introduced in 1979, followed by adaptations
based on practical experiences in 1983 and 1984.
FPA introduces a unit, the function point, to help measure the size of an application that is to be
developed or maintained. The word "application" within the framework of FPA means "an automated
information system". The function point expresses the quantity of information processing that
an application provides to a user. This unit of measurement is separate from the way in which the
information processing is realized in a technological sense. A function point is an abstract term and can
be compared somewhat to so-called "rental points". Rental points are based on the number of rooms in
a house, the surface area of these rooms, the number of facilities the house has, and the location of the
house. This then serves as a measurement for a residence offered to a potential tenant.
FPA was first used to measure the productivity of system development and system maintenance after
an application was built. It soon became clear that the technique could also be used to support project
budgeting because the data needed for an FPA can be made available early on in a project.
2.1.2 Rationale behind FPA
The three separate words that make up the term "Function Point Analysis" can be used to explain the
way of thinking behind FPA.
Function
As mentioned earlier, FPA bases itself on the functionality that an application provides to a user
(see subclause 2.6). Because users see only the "outside" or the boundary (see subclause 2.5) of an
application, FPA examines the specifications that describe the application's exchange of information
with its environment. Functionality is derived from incoming and outgoing information flows (these
can be both data or control information), as well as from the logical files that an application contains
or uses. The functionality of an application is measured by identifying data functions and transactional
functions (see subclause 2.7).
Point
The complexity of a function type is determined according to certain standard guidelines (see
subclause 2.8). Each function is worth a number of points, depending on its complexity (subclause 2.9).
The sum of these points yields the functional size (see subclause 2.10).
2 © ISO/IEC 2018 – All rights reserved

Analysis
FPA is the analysis of an application or the analysis of the description/specification of an application
in order to establish its functional size. The act of establishing the functional size of an application or
project is therefore called function point analysis.
In order to be able to perform a function point analysis the following must first be determined:
— purpose of the function point analysis (subclause 2.2);
— scope of the analysis and boundaries of the application or project to be analyzed (subclause 2.5).
This concludes a summary of the methodology and a brief description of FPA. The subclauses that follow
explain the various terms used in FPA.
2.2 Use of FPA: application versus project functional size
Functional size can be linked to applications or to projects. This means that a distinction is made
between the following two objectives:
— Determining the functional size of an application.
— Determining the functional size of a project.
Application functional size
is the number of function points that is a measure for the amount of functionality that an application is
to supply or has already supplied to a user. It also is a measure for the functional size of an application
that must be maintained.
Project functional size
is the number of function points that is a measure for the amount of functionality of a new application
or of changes to an existing application. Changes to an existing application pertain to adding, changing,
and deleting functions. The project functional size is an essential parameter when determining the
effort and schedule required for a project.
Determining the application functional size is elaborated on in subclause 3.5. Subclause 3.6 discusses
the project functional size further.
2.3 Types of function point analyses
One of three types of function point analyses can be chosen, depending on the degree of detail of the
specifications available. The following represent the different types of function point analyses. Notice
that they are listed by degree of detail, number one having the least detail and number three the most:
1 Indicative function point analysis
2 High level function point analysis (previously known as Estimated)
3 Detailed function point analysis
These function point analyses are explained further in subclause 3.2.
2.4 Function point analyses during a project
Function point analyses can be carried out at different times during a project. They can therefore be
related to the phases of a project (e.g. the planning phase, the execution phase, and the evaluation
phase). As a result, the following breakdown of function point analyses arises: the initial function point
analysis, the interim function point analysis, and the final function point analysis. These analyses are
discussed further in subclause 3.4.
© ISO/IEC 2018 – All rights reserved 3

2.5 Scope of the analysis and boundary of the application to be analyzed
The scope of the analysis is the set of functional requirements/specifications to be included in the
function point analysis. When the scope has been determined, the boundary can be defined, the
conceptual interface between the application and its users and/or other applications.
As indicated earlier in subclause 2.1, the scope of the analysis and the boundary of an application to be
counted plays an important role in FPA. Consequently, the boundaries of the application to be counted
must first be determined in order to be able to perform a function point analysis.
The boundary is necessary in order to be able to determine:
— the application that certain data belongs to;
— which data crosses the boundary.
As mentioned in subclause 2.2, a distinction is made between a function point analysis for an application
and a function point analysis for a project. Subclause 3.5.1 provides guidelines for determining the
application functional size and subclause 3.6.1 gives guidelines for determining the project functional size.
2.6 Users
FPA acknowledges three types of users:
— The people and/or organizations that use or are going to use the application to be measured. This
category includes, amongst others, the following: end-users, functional managers, and operators.
— The owner and/or employee(s) who determine(s) the requirements and wishes included in the
specifications. These requirements and wishes are recorded on the basis of the demands of the end-
user(s) for example, but also on the basis of requirements that a government or its legislation can
impose on the application.
— Other applications that use the data or the functions of the application to be analyzed.
Because the function point analysis takes place from the perspective of the user(s), it is always
necessary to have it done in cooperation with the user or, at the very least, to have the result of the
analysis verified by the user. The user, after all, is the only one who can determine whether a certain
function is being requested.
2.7 Functions and function types
The function point analysis measures the size of the functions of (a part of) an application. The analysis
revolves around the what and not the how of the application to be analyzed. Only those components that
the user requests, can recognize and considers significant are assessed. These components are called
functions or base functional components. A function belongs to a function type.
FPA defines function types as follows:
The five types of components of which an application exists, as seen from the perspective of FPA. These
components determine the amount of functionality an application provides to a user.
4 © ISO/IEC 2018 – All rights reserved

Figure 2 — Functions and function types
Function types are categorized into two main groups:
— Data function types
— Transactional function types
A data function is:
a logical group of data seen from the perspective of the user. FPA distinguishes between the following
data function types:
— Internal logical files
— External logical files
A transactional function is:
an elementary process that meets the following criteria:
— the function has an autonomous meaning to the user and fully executes one complete processing of
information, and
— after the function has been executed, the application is in a consistent state.
FPA distinguishes between the following transactional function types:
— External inputs
— External outputs
— External inquiries
Each function type is discussed in detail in clauses 5 through 9.
2.8 The complexity of a function
The complexity of a function is defined as follows:
The weight of a function on the basis of which a number of function points are allocated to the function.
The complexity of a function is determined by using the appropriate complexity matrix. A separate
table has been defined for each function type. Complexity depends on the number of data element types
and the number of referenced logical files connected to a given function. Three levels of complexity are
distinguished:
© ISO/IEC 2018 – All rights reserved 5

Low: Few data element types and/or referenced logical files are involved with the function.
Average: The function is neither low nor high with regards to complexity.
High: Many data element types and/or referenced logical files are involved with the function.
The complexity tables that determine the levels of complexity are included in Annex A.
2.9 The valuing of functions
After the complexity of a function has been determined as described in clauses 5 through 9, the number
of function points can be allocated to the function. This shall be done according to the rating in Table 1.
Table 1 — Function point table
High level specifications are enough to identify functions and their type when performing a high level
function point analysis (see subclause 3.2.2), but it will be difficult to determine the complexity of
these functions. In such a case, a data function is rated as low, while the rating average is used for a
transactional function.
2.10 The functional size
The Number of function points: see Functional size functional size is the sum of the number of function
points assigned to each of the functions (in the way described above) that lie within the scope of the
object to be analyzed, that is the application or the project.
The functional size can also serve as a basis for preparing a project budget, by multiplying the number
of function points with a productivity rate based on historical data (such as hours per function point).
The preparation of a project budget is beyond the focus of this standard. More information on this
subject can be found on the Nesma website nesma.org.
A Nesma FSM measurement result on the functional user requirements or specifications for a piece of
software shall be labeled according to the following convention:

F(unction) P(oint) (ISO/IEC 24570:2018)

6 © ISO/IEC 2018 – All rights reserved

3 Guidelines to perform an FPA
This clause indicates how function point analysis shall be carried out. To this end, subclause 3.1 first
presents a generally applicable step-by-step plan. Subclause 3.2 then indicates how to act when dealing
with an indicative, high level, and detailed function point analysis. Subclause 3.3 goes into the role of
the quality of specifications, while subclause 3.4 explains the use of FPA during a project. Subclauses
3.5 and 3.6 show how an application and a project functional size are determined in the event of
development and in the event of enhancement, respectively. Subclause 3.7 introduces the definition of
a functional change. Subclause 3.8 states what must be taken into consideration when dealing with the
different ways of recording specifications. Subclause 3.9 concludes the clause with an illustration of
how the different types of function point analyses can be applied during the life cycle of an application.
For illustration purposes, this subclause will assume a generic application life cycle as phasing method.
3.1 Step-by-step plan to perform an FPA
Below follows a step-by-step plan to perform a function point analysis
Step 1: Collect the available documentation. The documentation that should be present for an in-
dicative function point analysis, a high level function point analysis, and a detailed function
point analysis is described in subclauses 3.2.1, 3.2.2 and 3.2.3 respectively.
Step 2: Determine the users of the application (see subclause 2.6).
Step 3: Establish whether an application function point analysis or a project function point analysis
must be carried out. If an application function point analysis must be performed, follow the
instructions stated in subclause 3.5. If a project function point analysis must be performed,
follow the instructions in subclause 3.6.
Step 4: Determine from which other application(s) the application to be analyzed receives and/or
uses data.
Step 5: Identify the functions and determine their type and complexity according to the guidelines
described in clauses 5 through 9. When doing so, adhere to the sequence in which the clauses
appear. Assign the number of function points using the function point table illustrated in
subclause 2.9. This will result in the functional size.
Register the structure of the analysis and the number of function points. Particularly record
any preconditions that have been used and assumptions that have been made.
Step 6: Together with the user(s), verify the result in relation to those aspects where specific in-
terpretation of the available specifications was needed. If necessary, make any corrections
as a result of that verification.
Step 7: Verify the result with an FPA expert in relation to those aspects where specific interpre-
tation of the counting guidelines was needed. This may or may not be necessary. Make any
corrections that are required as a result of that verification.
3.2 Types of function point analyses and their accuracy
Depending on the degree of detail of the specifications available, one of three types of function point
analyses can be chosen: an indicative, a high level, or a detailed function point analysis. Each type of
function point analysis mentioned in this subclause can be used both for the determination of the
project size as for the determination of the application size. The minimum specifications required are
different for each of the three types of function point analysis. In the subclauses below, the specifications
required to perform each of the three type
...
