Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 11712
First edition
2009-05-15
Anaesthetic and respiratory equipment —
Supralaryngeal airways and connectors
Matériel d'anesthésie et de réanimation respiratoire — Canules
supralaryngées et raccords
Reference number
©
ISO 2009
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 General requirements. 3
5 *Requirements. 4
5.1 Supralaryngeal airways. 4
5.1.1 *Size designation . 4
5.1.2 Materials . 4
5.1.3 *Ventilatory opening. 4
5.1.4 *Safeguards against collapse of the ventilatory pathway . 5
5.1.5 *Sealing mechanism. 5
5.1.6 *Internal volume. 5
5.1.7 Maximum instrument size. 5
5.2 Supralaryngeal airway connectors . 6
6 Requirements for supralaryngeal airways and connectors supplied sterile . 6
6.1 Sterility assurance. 6
6.2 Packaging for supralaryngeal airways and connectors supplied sterile. 6
7 Cleaning and disinfection or sterilization . 6
8 Markings . 6
8.1 Use of symbols . 6
8.2 Marking of the supralaryngeal airway . 6
8.3 Marking on the supralaryngeal airway individual pack . 7
9 Accompanying documents. 7
Annex A (informative) Rationale . 10
Annex B (normative) Evaluation and documentation of the clinical performance in human
subjects . 15
Annex C (normative) Test methods to determine kink resistance. 17
Annex D (informative) Hazard identification for risk assessment. 22
Annex E (informative) Guidance on materials and design. 26
Bibliography . 28

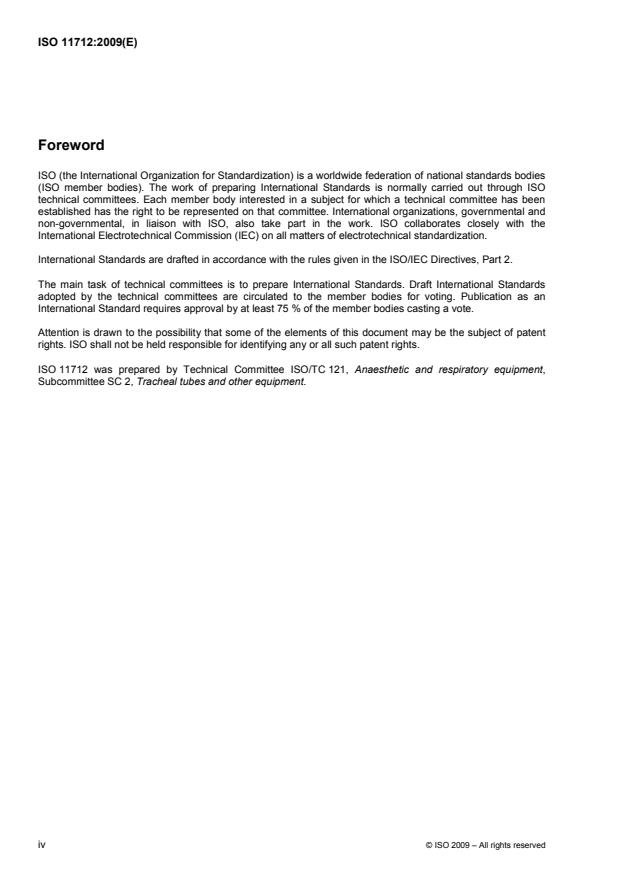

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11712 was prepared by Technical Committee ISO/TC 121, Anaesthetic and respiratory equipment,
Subcommittee SC 2, Tracheal tubes and other equipment.
iv © ISO 2009 – All rights reserved

Introduction
* A supralaryngeal airway is a device placed through the mouth, intended to seal the supralaryngeal area to
maintain airway patency without passing through the vocal cords and to independently facilitate ventilation
with or without delivery of anesthesia gases. Devices intended to provide a breathing airway and/or to
simultaneously provide a guide for the intubation of tracheal tubes, bronchoscopes and suction devices are
also included in the scope of this International Standard, as are the connectors inserted into the machine end
of these devices.
* Examples of supralaryngeal airway devices are laryngeal masks, laryngeal tubes, airways and seals,
cuffed oropharyngeal airways, and pharyngeal airways, and combination airway/esophageal obturators.
The requirements of this International Standard were developed using the hazard identification for risk
assessment in Annex D.
The requirements for testing and disclosure apply to devices introduced to the market after the publication of
this International Standard.
Throughout this International Standard, terms defined in ISO 4135 or in this International Standard appear in
bold type.
Throughout this International Standard, text for which a rationale is provided in Annex A is indicated by an
asterisk (*).
INTERNATIONAL STANDARD ISO 11712:2009(E)

Anaesthetic and respiratory equipment — Supralaryngeal
airways and connectors
1 Scope
1.1 This International Standard provides the essential requirements for the design of supralaryngeal
airways and connectors. These devices are intended to open and seal the supralaryngeal area to provide an
unobstructed airway in patients during spontaneous, assisted or controlled ventilation.
1.2 This International Standard specifies the dimensions, basic properties and method of size designation
of the available types of supralaryngeal airways. Airways devised for specialized applications are not
specifically covered, although most may be classified by the sizing and dimensions (or other characteristics)
required by this International Standard.
1.3 The following devices are outside the scope of this International Standard: nasal and oropharyngeal
airways, anesthetic masks, oro- and naso-tracheal tubes, cricothyrotomy devices, dental appliances, tracheal
stents, tracheal tubes, ventilating laryngoscopes, CPAP devices, esophageal obturators, bougies and devices
that require surgical placement.
1.4 This International Standard requires dimensional disclosure so the operator will know which auxiliary
instruments, such as tracheal tubes and bronchoscopes will be size-compatible.
1.5 Flammability of airways, for example if used with certain flammable anesthetics, electrosurgical units or
lasers, is a well-recognized hazard that is outside the scope of this International Standard. See E.1.7.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 594-1, Conical fittings with a 6 % (Luer) taper for syringes, needles and certain other medical
equipment — Part 1: General requirements
ISO 4135, Anaesthetic and respiratory equipment — Vocabulary
ISO 5356-1, Anaesthetic and respiratory equipment — Conical connectors — Part 1: Cones and sockets
ISO 5361:1999, Anaesthetic and respiratory equipment — Tracheal tubes and connectors
ISO 7000, Graphical symbols for use on equipment — Index and synopsis
ISO 10993-1, Biological evaluation of medical devices — Part 1: Evaluation and testing within a risk
management process
ISO 11607:2003, Packaging for terminally sterilized medical devices
ISO 11134, Sterilization of health care products — Requirements for validation and routine control —
Industrial moist heat sterilization
ISO 11135:1994, Medical Devices — Validation and routine control of ethylene oxide sterilization
ISO 11137-1, Sterilization of health care products — Radiation — Part 1: Requirements for development,
validation and routine control of a sterilization process for medical devices
ISO 11990, Optics and optical instruments — Lasers and laser-related equipment — Determination of laser
resistance of tracheal tube shafts
ISO/TR 11991, Guidance on airway management during laser surgery of upper airway
ISO 14155-1, Clinical investigation of medical devices for human subjects — Part 1: General requirements
ISO 14155-2, Clinical investigation of medical devices for human subjects — Part 2: Clinical investigation
plans
ISO 14408, Tracheal tubes designed for laser surgery — Requirements for marking and accompanying
information
3 Terms and definitions
For the purposes of this document, the terms and definitions in ISO 4135 and the following apply.
3.1
auxiliary ventilatory opening
secondary opening in the ventilatory pathway intended for passage of ventilatory gases at or near the patient
end
3.2
cuff
compliant seal permanently attached to the supralaryngeal airway to provide a seal between the tube and the
oropharynx
3.3
external seal
seal that is positioned outside the patient
EXAMPLE A seal between a face mask and the face.
3.4
internal seal
seal that is positioned inside the patient at some point in the respiratory tract
NOTE For supralaryngeal airways the internal seal is typically located in proximity to the glottic inlet.
3.5
patency
openness (lack of obstruction) of the supralaryngeal airway
3.6
patient end
that end of the supralaryngeal airway intended to be inserted into the patient
3.7
machine end
that end of the supralaryngeal airway or the supralaryngeal airway connector intended to connect to the
breathing system
2 © ISO 2009 – All rights reserved

3.8
pressure drop
pressure differential at a specified flow
3.9
sealing mechanism
that portion of the device in contact with the patient that enables isolation of ventilatory gases
3.10
supralaryngeal airway
device placed through the mouth but not through the vocal cords, which is intended to form an internal seal in
the supralaryngeal area to maintain airway patency
3.11
supralaryngeal airway connector
tubular component of an supralaryngeal airway intended for connection to a breathing system or ventilation
bag
3.12
ventilatory opening
opening in the supralaryngeal airway near the patient end and intended to allow passage of gases and/or
devices such as a tracheal tube, suction catheter or endoscope
NOTE A supralaryngeal airway can have more than one ventilatory opening.
3.13
ventilatory pathway
part of the supralaryngeal airway through which gases are intended to pass
4 General requirements
4.1 This International Standard specifies requirements that are generally applicable to risks associated with
supralaryngeal airways. An established risk management process shall be applied to the design of the
device. See Annex D for an informative list of identified hazards.
4.2 The supralaryngeal airway shall permit ventilation in those head and neck positions, and in those
patient positions for which the device is intended.
4.3 The supralaryngeal airway shall permit ventilation when the patient is in the supine position and the
head and neck are at neutral positions and at least ± 30° of:
a) flexion;
b) extension;
c) right and left rotation;
d) right and left lateral flexion (tilt).
4.4 The supralaryngeal airway shall also permit ventilation in the following positions and in any position
intended for use:
a) Trendelenburg's (head down, 10°);
b) sitting (45°).
Compliance shall be tested by examination of the mitigations described in a risk assessment and associated
verification and validation studies.
NOTE 1 See Annex A and Annex D.
If clinical studies are performed, these studies shall document measurements taken during the conditions for
which performance is claimed. The clinical studies shall comply with the requirements of ISO 14155-1, and
ISO 14155-2.
NOTE 2 See also Annex B for evaluating and documenting the clinical performance of supralaryngeal airways in
human subjects.
4.5 The supralaryngeal airway shall, when transported, stored and used as intended by the manufacturer,
minimize safety hazards which could reasonably be foreseen in normal and single-fault condition.
4.6 Where the requirements of this International Standard refer to freedom from unacceptable risk,
acceptability or unacceptability of this risk is determined by the manufacturer in accordance with the
manufacturer's policy for determining acceptable risk.
4.7 The manufacturer may use type tests different from those detailed within this International Standard, if
an equivalent degree of safety is obtained. However, in the event of dispute, the methods specified herein
shall be used as the reference methods.
4.8 Many of the test clauses within this International Standard establish acceptance criteria for performance
aspects. These acceptance criteria shall always be met. If the manufacturer chooses to specify in the
accompanying documents higher performance levels than those specified within this International Standard
these manufacturer-specified levels become the acceptance levels and shall also be met.
5 *Requirements
5.1 Supralaryngeal airways
5.1.1 *Size designation
The size of a supralaryngeal airway shall be designated using the following convention:
a) the range of sizes shall be from 0 to 6; the smallest increment permitted is 0,5;
b) sizes from 0 to 6 shall be designated for the smallest to largest size devices; the transition size from
pediatric to adult is size 3.
5.1.2 Materials
5.1.2.1 Supralaryngeal airways, including the sealing mechanism and connector in its ready-for-use
state after any preparation for use recommended by the manufacturer, shall satisfy appropriate biological
safety testing, as indicated in ISO 10993-1. Initial biocompatibility evaluation tests shall include all materials in
the supralaryngeal airway and be tested as external communicating, tissue/bone/dentin communicating,
< 24 h contact devices. If the proposed contact duration is greater than 24 h, biocompatibility tests shall
include those tests for > 24 hr duration.
5.1.2.2 The marking of the supralaryngeal airway shall be durable and legible.
NOTE See Annex E.
5.1.3 *Ventilatory opening
An opening intended to allow ventilation shall be provided at or near the patient end of the device. Auxiliary
ventilatory openings may be provided to reduce the risk from obstruction.
Compliance shall be determined by inspection.
4 © ISO 2009 – All rights reserved

5.1.4 *Safeguards against collapse of the ventilatory pathway
Means shall be provided to resist collapse of the ventilatory pathway from kinking or compression.
The kink resistance of the supralaryngeal airway lumen shall be tested in accordance with Annex C.
The resistance to compression shall be evaluated by examination of the mitigations described in a risk
assessment and associated verification and validation studies.
5.1.5 *Sealing mechanism
5.1.5.1 A sealing mechanism shall be integrally attached to the supralaryngeal airway.
5.1.5.2 The sealing mechanism shall produce no audible leak under a positive pressure of 10 cm/H O for
a minimum of 3 s.
Compliance shall be tested by clinical study measurements. Functional testers or patient simulators shall
not be used to validate the performance of the supralaryngeal airway. The clinical studies shall document
measurements taken during the conditions for which performance is claimed. The clinical studies shall comply
with the requirements of ISO 14155-1 and ISO 14155-2.
NOTE See also Annex B.
5.1.5.3 The sealing mechanism shall not occlude the ventilatory opening nor collapse the ventilatory
pathway.
Compliance shall be tested by a method chosen by the manufacturer based upon an examination of the
mitigations described in a risk assessment and associated verification and validation studies.
5.1.5.4 Inflation/deflation system.
If provided, the inflation system shall include an inflating tube, a pilot balloon or other device to indicate
inflation or deflation.
NOTE This (these) device(s) may also serve as a pressure-indicating or pressure-limiting device.
5.1.5.5 *The free end of the inflation tube shall be either open or sealed with a closure device or inflation
valve. If interface with an external inflation device is required, the free end of the inflation tube shall be
capable of accepting a male conical fitting with a 6 % (Luer) taper, complying with ISO 594-1.
5.1.5.6 The intentional deflation of the sealing mechanism shall not be prevented by the inflation tube,
inflation valve or any closure device acting as a non-return valve.
5.1.6 *Internal volume
The internal volume of the ventilatory pathway shall be measured in accordance with the following test
method.
Cap one end of the ventilatory pathway. Measure the volume of water in millilitres required to fill the
ventilatory pathway from the ventilatory opening up to and including the 15 mm connector at the machine
end of the device.
5.1.7 Maximum instrument size
The maximum size of devices that will easily pass through the ventilatory pathway shall be specified by the
manufacturer. Devices may include (but are not limited to) tracheal tubes, suction catheters, fiberoptic scopes,
bougies, etc. The instrument may be lubricated with water or water-soluble lubricant to assist the passage
[see 9 e)].
Compliance shall be determined by functional testing.
5.2 Supralaryngeal airway connectors
5.2.1 The machine end of a supralaryngeal airway connector shall be a male 15 mm conical connector
complying with ISO 5356-1. Any transition in the inside diameter shall be smooth to permit an adequate lead-
in for smooth passage and removal of an instrument.
5.2.2 The opening at the patient end shall have a plane at 90° ± 5° to the long axis of the patient end of
the connector.
6 Requirements for supralaryngeal airways and connectors supplied sterile
6.1 Sterility assurance
Supralaryngeal airways with connectors supplied and marked as “STERILE” shall satisfy the requirements of
ISO 11134, ISO 11135 or ISO 11137-1, if applicable.
6.2 Packaging for supralaryngeal airways and connectors supplied sterile
Each supralaryngeal airway and connector (if supplied) and marked as “STERILE” shall be contained in an
individual pack. The pack shall serve as an effective barrier to the penetration of microorganisms and
particulate material, in accordance with ISO 11607. The pack shall permit the aseptic extraction of the
contents and shall not be capable of reclosure without clearly revealing that the pack has been opened.
7 Cleaning and disinfection or sterilization
Supralaryngeal airways and connectors not intended for single use shall be designed to be suitable for
cleaning and disinfection or sterilization by methods described in the accompanying documents.
NOTE See Annex E.
8 Markings
8.1 Use of symbols
Symbols shall be accompanied by equivalent text in United States English on devices intended for use in the
United States. The requirements of 8.2 may be met by the appropriate symbols as given in ISO 7000.
8.2 Marking of the supralaryngeal airway
8.2.1 Marking of the supralaryngeal airways shall include the following:
a) the name and/or trademark of the manufacturer or supplier;
b) the designated size in bold type in accordance with 5.1.1; devices that encompass a range of sizes shall
be marked with the corresponding range;
c) the words “SINGLE USE” or equivalent, for supralaryngeal airways not intended for re-use;
d) *normal depth of insertion marking(s) or indicator(s) visible around the shaft of the supralaryngeal
airway corresponding to patient's incisors or gums to show the typical range of intended depth of
insertion;
NOTE Depth of insertion range marking(s) need not be continuously circumferential around the tube.
e) depth mark(s), if provided, in centimeters measured from the patient end of the ventilatory opening.
6 © ISO 2009 – All rights reserved

8.2.2 Marking materials shall:
a) be nontoxic and tissue-compatible;
b) resist deterioration by anaesthetic agents;
c) remain legible during use.
8.3 Marking on the supralaryngeal airway individual pack
The following shall be marked on, or be visible through, the supralaryngeal airway individual pack:
a) a description of contents;
b) the designated size in accordance with 5.1.1; devices that encompass a range of sizes shall be marked
with the corresponding range;
c) the name and/or trademark of the manufacturer and/or supplier;
d) the batch number or serial number;
e) the word “STERILE” if appropriate;
NOTE It is recommended that the method of sterilization be given.
f) for supralaryngeal airways not intended for re-use, the words “SINGLE USE” or equivalent;
g) instructions for action in the event of damage to the sterile packaging for supralaryngeal airways
supplied sterile;
h) expiration date, if appropriate.
9 Accompanying documents
The manufacturer shall disclose the following information in the accompanying documents:
a) instructions for use, including proper insertion and stabilization techniques for the supralaryngeal
airway;
b) instructions for use with other instruments such as tracheal tubes or bronchoscopes, where indicated;
c) the internal volume in millilitres as tested in 5.1.6;
d) the pressure drop in centimetres H O at a specified test flow, as determined in Annex C;
e) the maximum device size, as tested in 5.1.7, for tracheal tubes and fiberoptic bronchoscopes;
f) whether the device is intended for single use or is re-usable;
g) instructions for action in the event of damage to the packaging for supralaryngeal airways supplied
sterile;
h) minimum interdental gap, in millimeters, required for insertion;
i) a diagram of the device, showing the major components, including the nominal length of the internal
pathway(s), in centimeters from the machine end of the connector to the ventilatory opening and any
other working channels within the device;
j) a diagram showing the intended position of the supralaryngeal airway with the anatomic landmarks
listed in Figure 1; other landmarks shall be included when identified as mitigations in a risk assessment
and associated verification and validation studies;
k) a warning if the supralaryngeal airway does not protect the trachea or lungs from the risk of aspiration;
l) a precaution that the patency of the supralaryngeal airway should be reconfirmed after any change in
the patient's head or neck position;
m) a statement that a summary of the methods, materials, data and results of clinical studies that validate the
requirements of this International Standard is available on request, if applicable;
n) a warning that the supralaryngeal airway contains natural rubber latex, if applicable;
o) a statement that use of a bite block is recommended, unless a bite block is an integral part of the
supralaryngeal airway;
p) a warning that the cuff volume or pressure may change in the presence of nitrous oxide, oxygen or other
medical gases, if applicable;
q) a warning that supralaryngeal airways may be flammable in the presence of lasers and electrocautery
equipment;
r) information regarding precautions necessary for the disposal of biohazardous materials;
s) the manufacturer shall disclose appropriate storage conditions;
t) instructions for cleaning and disinfection or sterilization, and the maximum number of reuses, if the device
is re-usable.
8 © ISO 2009 – All rights reserved

Key
Anatomic landmarks
1 esophagus
2 trachea
3 vocal cords/folds
4 thyroid cartilage
5 laryngeal inlet
6 epiglottis
7 hyoid bone
8 tongue
9 incisors
Supralaryngeal airway components to be labelled (but not shown here):
10 sealing mechanism
11 ventilatory opening
12 normal depth of insertion marks
NOTE This diagram is for use in the depiction of the intended position of the supralaryngeal airway in relation to
anatomic landmarks.
Figure 1 — Diagram of the airway

Annex A
(informative)
Rationale
NOTE The subclause numbering in this annex corresponds that in the main body of the text and hence does not
follow a logical numerical order.
A.1 Introduction
Supralaryngeal airways represent a class of medical devices that are designed to facilitate spontaneous,
assisted or controlled ventilation. Supralaryngeal airways differ from other airway devices, such as
oropharyngeal airways and tracheal tubes, in that they do not require a facial seal
...


МЕЖДУНАРОДНЫЙ ISO
СТАНДАРТ 5171
Третье издание
2009-05-15
Оборудование газовое сварочное.
Манометры, применяемые при сварке,
резке и аналогичных процессах
Gas welding equipment — Pressure gauges used in welding, cutting
and allied processes
Ответственность за подготовку русской версии несѐт GOST R
(Российская Федерация) в соответствии со статьѐй 18.1 Устава

Ссылочный номер
ISO 5171:2009 (R)
©
ISO 2009
ISO 5171:2009(R)

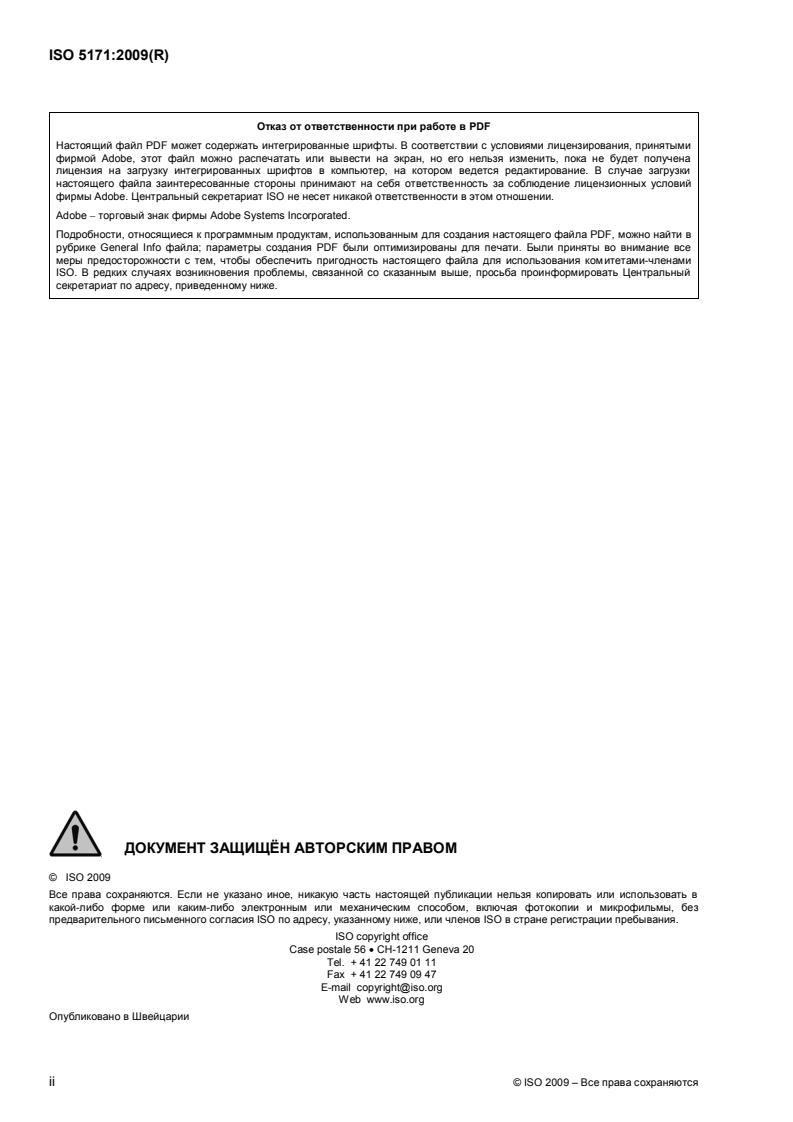

Отказ от ответственности при работе в PDF
Настоящий файл PDF может содержать интегрированные шрифты. В соответствии с условиями лицензирования, принятыми
фирмой Adobe, этот файл можно распечатать или вывести на экран, но его нельзя изменить, пока не будет получена
лицензия на загрузку интегрированных шрифтов в компьютер, на котором ведется редактирование. В случае загрузки
настоящего файла заинтересованные стороны принимают на себя ответственность за соблюдение лицензионных условий
фирмы Adobe. Центральный секретариат ISO не несет никакой ответственности в этом отношении.
Adobe  торговый знак фирмы Adobe Systems Incorporated.
Подробности, относящиеся к программным продуктам, использованным для создания настоящего файла PDF, можно найти в
рубрике General Info файла; параметры создания PDF были оптимизированы для печати. Были приняты во внимание все
меры предосторожности с тем, чтобы обеспечить пригодность настоящего файла для использования комитетами-членами
ISO. В редких случаях возникновения проблемы, связанной со сказанным выше, просьба проинформировать Центральный
секретариат по адресу, приведенному ниже.

ДОКУМЕНТ ЗАЩИЩЁН АВТОРСКИМ ПРАВОМ

©  ISO 2009
Все права сохраняются. Если не указано иное, никакую часть настоящей публикации нельзя копировать или использовать в
какой-либо форме или каким-либо электронным или механическим способом, включая фотокопии и микрофильмы, без
предварительного письменного согласия ISO по адресу, указанному ниже, или членов ISO в стране регистрации пребывания.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Опубликовано в Швейцарии
ii © ISO 2009 – Все права сохраняются

ISO 5171:2009(R)
Содержание Страница

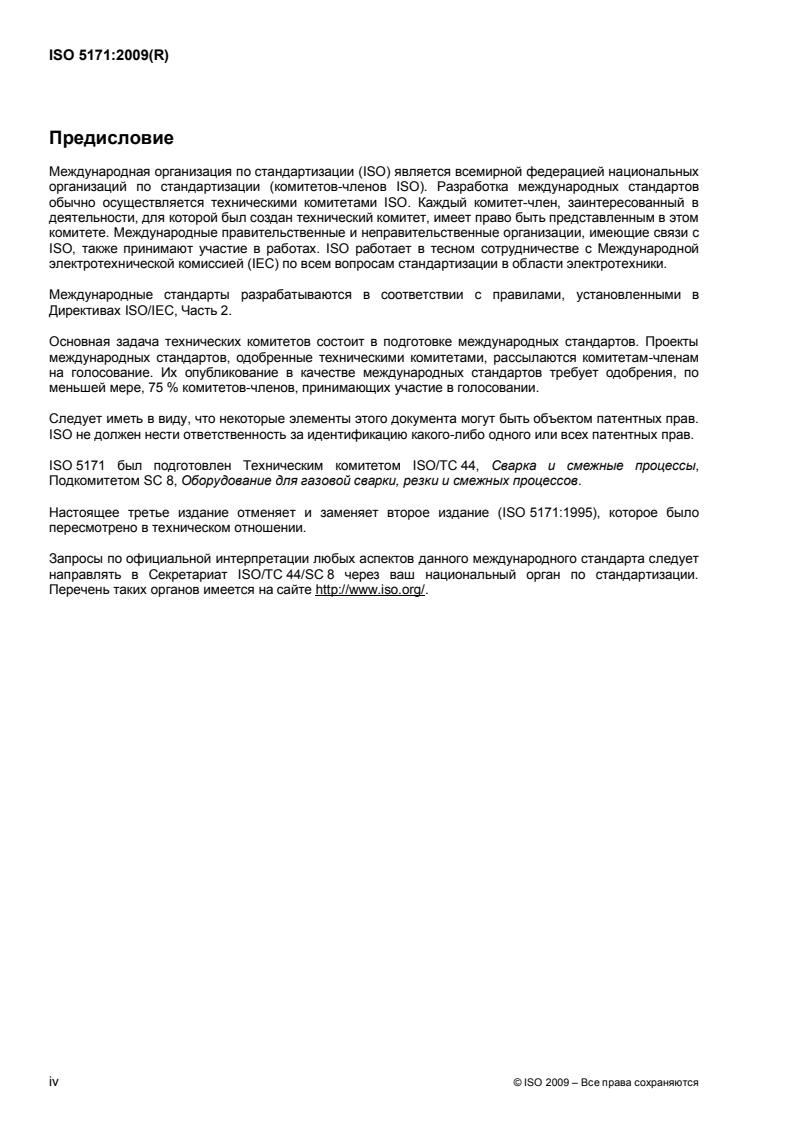

Предисловие .iv
1 Область применения .1
2 Нормативные ссылки .1
3 Термины и определения .1
4 Давление .2
4.1 Единица давления .2
4.2 Максимальное показание шкалы .3
4.3 Метка максимального давления .3
5 Требования на производстве .3
5.1 Материалы .3
5.2 Конструкция и размеры .4
6 Безопасность .8
7 Маркировка .8
8 Испытания .8
8.1 Общие положения .8
8.2 Конструкция и производственный стандарт .9
8.3 Точность .9
8.4 Испытания кручением . 10
8.5 Испытания на изгиб. 10
8.6 Испытания выпускного отверстия корпуса . 11
8.7 Испытания избыточным давлением. 12
8.8 Испытания на горючесть . 12
Библиография . 13

ISO 5171:2009(R)
Предисловие
Международная организация по стандартизации (ISO) является всемирной федерацией национальных
организаций по стандартизации (комитетов-членов ISO). Разработка международных стандартов
обычно осуществляется техническими комитетами ISO. Каждый комитет-член, заинтересованный в
деятельности, для которой был создан технический комитет, имеет право быть представленным в этом
комитете. Международные правительственные и неправительственные организации, имеющие связи с
ISO, также принимают участие в работах. ISO работает в тесном сотрудничестве с Международной
электротехнической комиссией (IEC) по всем вопросам стандартизации в области электротехники.
Международные стандарты разрабатываются в соответствии с правилами, установленными в
Директивах ISO/IEC, Часть 2.
Основная задача технических комитетов состоит в подготовке международных стандартов. Проекты
международных стандартов, одобренные техническими комитетами, рассылаются комитетам-членам
на голосование. Их опубликование в качестве международных стандартов требует одобрения, по
меньшей мере, 75 % комитетов-членов, принимающих участие в голосовании.
Следует иметь в виду, что некоторые элементы этого документа могут быть объектом патентных прав.
ISO не должен нести ответственность за идентификацию какого-либо одного или всех патентных прав.
ISO 5171 был подготовлен Техническим комитетом ISO/TC 44, Сварка и смежные процессы,
Подкомитетом SC 8, Оборудование для газовой сварки, резки и смежных процессов.
Настоящее третье издание отменяет и заменяет второе издание (ISO 5171:1995), которое было
пересмотрено в техническом отношении.
Запросы по официальной интерпретации любых аспектов данного международного стандарта следует
направлять в Секретариат ISO/TC 44/SC 8 через ваш национальный орган по стандартизации.
Перечень таких органов имеется на сайте http://www.iso.org/.

iv © ISO 2009 – Все права сохраняются

МЕЖДУНАРОДНЫЙ СТАНДАРТ ISO 5171:2009(R)

Оборудование газовое сварочное. Манометры,
применяемые при сварке, резке и аналогичных процессах
1 Область применения
Настоящий международный стандарт устанавливает требования для трубчатых манометров, обычно
используемых в системах сжатого газа при давлениях до 30 МПа (300 бар) при сварке, резке и
смежных процессах. Этот стандарт включает также применение для сжатого ацетилена в баллонах и
сжиженных газов под давлением.
Он не применяется к манометрам для ацетилена на заводах по выработке ацетилена.
2 Нормативные ссылки
Следующие ссылочные документы обязательны для применения в настоящем документе. В случае
датированных ссылок применяются только цитированные издания. При недатированных ссылках
используется последнее издание ссылочного документа (включая все изменения)
ISO 7-1, Резьбы трубные, обеспечивающие герметичность соединения. Часть 1. Размеры, допуски
и обозначение
ISO 228-1, Резьбы трубные, не обеспечивающие герметичность соединения. Часть 1. Размеры,
допуски и обозначения
ISO 497, Предпочтительные числа первого и второго приближений и ряды, содержащие эти числа.
Правила выбора и применения
ISO 4589-2:1996, Пластмассы. Определение характеристик горения по кислородному индексу.
Часть 2. Испытание при температуре окружающей среды
ISO 9539, Материалы, применяемые в оборудовании для газовой сварки, резки и аналогичных
процессов
ISO 10102, Инструмент крепежный для винтов и гаек. Гаечные двухсторонние ключи с открытым
зевом. Длина ключей и толщина головки
1)
ANSI/ASME B1.20.1, Резьбы трубные, общего назначения (дюймовые)
3 Термины и определения
Для целей настоящего документа применяются указанные ниже определения.

1) Опубликовано Американским национальным институтом стандартов и имеется в нѐм (ANSI), 11 West 42nd
Street, Нью-Йорк, NY 10036.
ISO 5171:2009(R)
3.1
трубчатые манометры
Bourdon-tube pressure gauges
устройство, включающее эластичную трубку, дающее прямые показания стрелкой, и имеющее
градуированную шкалу измеряемого давления
3.2
корпус
case
наружный корпус, содержащий пружинный манометр и перемещающиеся детали
3.3
круговая шкала
dial
пластина или область, на которой нанесена шкала
3.4
фланец
flange
круговое расширение корпуса, используемое для монтажа
3.5
указатель
pointer
индикаторное устройство, положение которого относительно шкалы указывает величину измеряемого
давления
3.6
стопорное устройство указателя
pointer stop
выступ, останавливающий перемещение указателя
3.7
шкала
scale
система меток, используемая совместно со связанными с ней цифровыми обозначениями,
относительно которой регистрируется положение указателя
3.8
отверстие
устройство для сброса
vent
blowout device
устройство для обеспечения безопасности или область выпуска, включѐнные в корпус или тыльную
плиту, позволяющие выполнить быстрый сброс внутреннего давления в случае протечки или разрыва
трубки манометра
3.9
окно
window
прозрачная передняя часть, через которую наблюдают круговую шкалу
4 Давление
4.1 Единица давления
Все показания давления представляют собой значения манометрического (эффективного) давления в
мегапаскалях (МПа) и барах.
2 © ISO 2009 – Все права сохраняются

ISO 5171:2009(R)
4.2 Максимальное показание шкалы
Когда это практически целесообразно, максимальное показание шкалы для конкретного газа и уровня
давления должно быть выбрано из указанных в Таблице 1 значений. Если это нецелесообразно
практически, максимальное показание шкалы должно быть выбрано из ряда R10 предпочтительных
чисел, или более округлѐнных значений, указанных в ISO 497.
4.3 Метка максимального давления
Максимальное рабочее давление должно быть указано на шкале символом или цветной меткой и не
должно превышать 3/4 от максимального показания шкалы.
ПРИМЕЧАНИЕ В случае манометров, используемых с регуляторами в соответствии с ISO 2503, метка
максимального давления обычно p в манометрах низкого давления и p в манометрах высокого давления,
2 1
согласно определению в ISO 2503:1998, Таблица 4.
Таблица 1 — Максимальное показание шкалы
Значения в мегапаскалях (барах)
Уровень давления Ацетилен Кислород и другие газы
0,25 (2,5)
0,4 (4)
0,1 (1) 0,6 (6)
Низкое давление (LP) 0,16 (1,6) 1,0 (10)
0,25 (2,5) 1,6 (16)
2,5 (25)
4,0 (40)
25 (250)
a, b, c
Высокое давление (HP)  4 (40) 31,5 (315)
40 (400)
a 2
25 МПа (250 бар) давление в манометрах для применения с CO и в баллонах для сжатого газа, заполненных до
максимального установленного давления заполнения 18,5 МПа (185 бар) при 15 °C.
b
31,5 МПа (315 бар) давление в манометрах для применения в баллонах для сжатого газа, заполненных до максимального
установленного давления заполнения 23 МПа (230 бар) при 15 °C.
c
40 МПа (400 бар) давление в манометрах для применения в баллонах для сжатого газа, заполненных до максимального
установленного давления заполнения 30 МПа (300 бар) при 15 °C.
5 Требования на производстве
5.1 Материалы
5.1.1 Общие положения
Материалы компонент манометров, предназначенных для использования в контакте с газом, должны
обладать достаточной стойкостью по отношению к химическому воздействию газа при рабочих
условиях.
Трубки Бурдона и другие детали, находящиеся в контакте с ацетиленом в виде газа, должны
соответствовать ISO 9539.
5.1.2 Манометры для измерения давления кислорода
Трубки Бурдона и другие детали, находящиеся в контакте с газом, должны быть стойкими по
отношению к химическому воздействию кислорода и не возгораться при рабочих условиях.
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

Loading comments...
