ISO 13317-5:2025

International
Standard
ISO 13317-5
First edition
Determination of particle size
2025-01
distribution by gravitational liquid
sedimentation methods —
Part 5:
Photosedimentation techniques
Détermination de la distribution granulométrique par les
méthodes de sédimentation par gravité dans un liquide —
Partie 5: Techniques de photosédimentation
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms. 6
5 Measurement principle and instrumentation . 8
5.1 General measurement principle .8
5.2 Primary and derived measurement results .10
5.3 Instrumentation .11
6 Measurement data and calculation of distribution function .13
6.1 Primary and derived measurands . 13
6.2 Intrinsically measured distribution functions . 15
6.3 Conversion to volume-weighted distribution functions .17
6.4 Determination of the start position .18
6.5 Assumptions behind data analysis in photosedimentation . 20
6.5.1 Assumptions related to Stokes law . 20
6.5.2 Assumptions related to photometric particle quantification .21
6.6 Working range with respect to particle size and concentration .21
6.6.1 Limits defined by the applicability of Stokes law .21
6.6.2 Limits defined by the applicability of photometric detection . 22
7 Performing size analyses .24
7.1 General .24
7.2 Sampling .24
7.3 Dispersion process and primary sample preparation.24
7.4 Secondary sample preparation (sample conditioning) . 25
7.5 Instrument preparation . 25
7.6 Measurement . 26
7.7 Data analysis . 26
7.8 Reporting .27
8 System qualification and quality control .28
8.1 General remarks . 28
8.2 Reference materials . 29
8.3 Performance qualification. 30
8.4 Measurement uncertainty . 30
Annex A (informative) Measurement position .33
Annex B (informative) Calculation of number-weighted particle size distribution .37
Annex C (informative) Detailed multi-wavelength approach .40
Annex D (informative) Guide to uncertainty determination .42
Annex E (informative) Beyond velocity and size determination. 47
Bibliography .50

iii

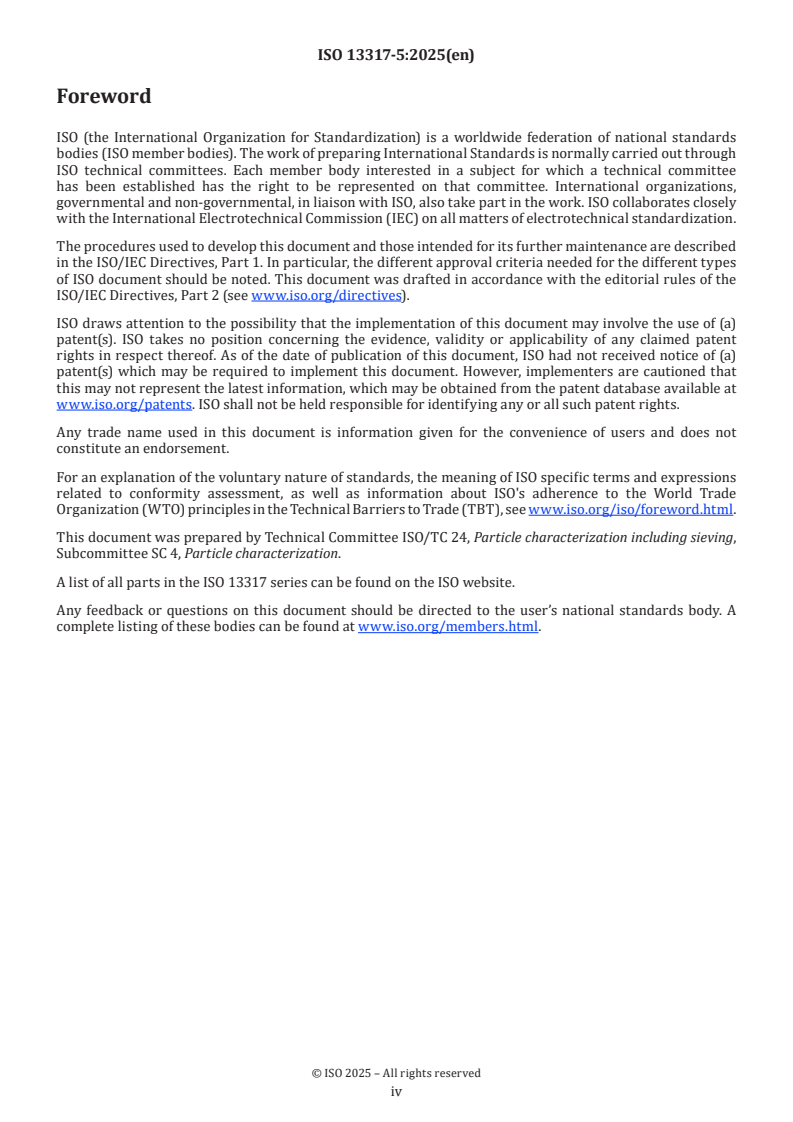

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 24, Particle characterization including sieving,
Subcommittee SC 4, Particle characterization.
A list of all parts in the ISO 13317 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The principles of gravitational photosedimentation and its potential use for the granulometric
characterization of particle systems have been known for several decades. Recent developments in
optoelectronics and data processing have boosted the commercial success and popularity of this
measurement technique, which is currently employed in manifold academic and industrial applications.
This document is a part of the ISO 13317 series that provides a general overview on the principles, techniques,
methods and underlying physics of particle size analysis by gravitational sedimentation. Photosedimentation
employs photometric signals (i.e. transmitted, reflected or scattered light) in order to monitor the changes
in the local particle concentration, which arise by the downward or upward particle migration under
gravity (called hereafter sedimentation). The temporal or spatial functions of these signals can be directly
transformed to distributions of the sedimentation velocity, without referring to model assumptions or being
restricted by essential preconditions. Provided the applicability of Stokes’ law on particle mobility, one can
derive equivalent diameters from the sedimentation velocities (the Stokes diameter) and the corresponding
particle size distributions. Size fractions are then intrinsically weighted by photometric quantities (e.g. light
extinction or scattered light intensity), which is in contrast to the sedimentation techniques described in
ISO 13317-2, ISO 13317-3 and ISO 13317-4. However, conversion into volume-weighted distributions is often
an integrated part of signal processing, which employs established models for light-particle interactions. A
noteworthy feature of gravitational photosedimentation is its ability to finely resolve details in the particle
distribution functions. This is related to the physical fractionating of particle systems under gravity and
constitutes an advantage compared to spectroscopic ensemble techniques.
Gravitational photosedimentation facilitates the granulometric characterization of dispersed materials
of non-zero density contrast to the continuous phase, including solid particles and emulsion droplets.
The available measurement range depends on dispersed and continuous phase properties and typically
amounts to 200 nm to 100 μm for aqueous samples, whereas the sedimentation velocity can be quantified
for the range 0,6 µm/s to 10 mm/s. Also, the working range with regard to particle concentration is strongly
affected by material properties and by particle size, yet it is typically well below 1 vol%. The data analysis
relies on the assumption that all particles have the same density and comparable shape and do not undergo
chemical or physical change in the continuous phase.
In addition, photosedimentation techniques that monitor gravity-induced concentration changes along the
complete sample height, e.g. by position-scanning or time-resolved projection, facilitate the characterization
of dense dispersion beyond particle size, e.g. with respect to clarification, segregation, agglomeration,
consolidation and physico-chemical stability (see ISO/TR 13097). Gravitational photosed
...
