ISO 8735:1997
(Main)Parallel pins with internal thread, of hardened steel and martensitic stainless steel
Parallel pins with internal thread, of hardened steel and martensitic stainless steel
Goupilles cylindriques à trou taraudé en acier trempé et en acier inoxydable martensitique
La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques à trou taraudé, trempées à coeur ou cémentées et en acier inoxydable martensitique, de diamètre nominal, d1, de 6 mm à 50 mm inclus.
General Information
- Status
- Published
- Publication Date
- 12-Nov-1997
- Technical Committee
- ISO/TC 2 - Fasteners
- Drafting Committee
- ISO/TC 2/WG 13 - Washer and non-threaded fasteners
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 19-Jun-2023
- Completion Date
- 13-Dec-2025
Relations
- Consolidates
ISO 3160-1:1982 - Watch cases and accessories - Gold alloy coverings - Part 1: General requirements - Effective Date
- 06-Jun-2022
- Effective Date
- 15-Apr-2008
Overview
ISO 8735:1997 specifies requirements for parallel (cylindrical) pins with internal thread, made of hardened steel and martensitic stainless steel. The standard covers nominal diameters from 6 mm to 50 mm and defines two main types: Type A (through‑hardened, with crown) and Type B (flat, case‑hardened). It provides dimensions, material and hardness requirements, surface finish and quality criteria, and example designation formats.
Key topics and technical requirements
- Diameter and length range: nominal diameters d = 6–50 mm; common nominal lengths listed (16 mm up to 200 mm and beyond in 20 mm steps).
- Types:
- Type A: pins through‑hardened (also available in martensitic stainless steel C1).
- Type B: case‑hardened (cemented) steel pins.
- Materials and composition: the standard gives compositional limits for the steels and the martensitic stainless variant (C1) and permits other materials by agreement.
- Hardness:
- Through‑hardened pins: specified bulk and surface hardness ranges (e.g., 550–650 HV30 surface range referenced in the standard).
- Case‑hardened pins: surface hardness and case depth requirements (minimum case hardness and typical case thickness specified).
- Thread and tolerances: internal threads follow metric ISO tolerances (metric threads, tolerance grade 6H per ISO 965‑2). Thread pitches and matching nominal thread sizes (M4–M24 depending on pin diameter) are listed.
- Surface quality and finish: surface roughness and absence of harmful defects required; coatings are permitted but must address hydrogen embrittlement risks and follow suitable post‑treatment (see ISO 4042).
- Inspection and acceptance: reception and inspection procedures reference ISO 3269.
- Designation examples: e.g., “Goupille cylindrique ISO 8735 – 6·30 – A – St” (hardened steel, 6×30 mm, Type A) or “Goupille cylindrique ISO 8735 – 6·30 – C1” (martensitic stainless C1).
Applications and users
- Typical applications: precise locating, alignment and load‑bearing dowel/pin applications in machinery, tooling, automotive assemblies, and precision equipment where controlled fit, strength and corrosion resistance are required.
- Who uses this standard:
- Mechanical designers and engineers specifying pins for assemblies
- Fastener and component manufacturers producing to ISO dimensions and hardness
- Quality assurance and inspection teams verifying acceptance criteria
- Procurement and supply chain professionals sourcing standardized pins
Related standards
- ISO 965‑2 - metric thread tolerances (6H)
- ISO 3269 - fasteners - acceptance inspection
- ISO 3506‑1 - mechanical properties of corrosion‑resistant stainless fasteners (reference for C1)
- ISO 4042 - electroplated coatings and hydrogen embrittlement precautions
Keywords: ISO 8735, parallel pins, parallel pins with internal thread, cylindrical pins, hardened steel pins, martensitic stainless steel, dowel pins, fastener standard, pin dimensions, thread tolerances.
ISO 8735:1997 - Parallel pins with internal thread, of hardened steel and martensitic stainless steel
ISO 8735:1997 - Goupilles cylindriques a trou taraudé en acier trempé et en acier inoxydable martensitique
Frequently Asked Questions
ISO 8735:1997 is a standard published by the International Organization for Standardization (ISO). Its full title is "Parallel pins with internal thread, of hardened steel and martensitic stainless steel". This standard covers: La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques à trou taraudé, trempées à coeur ou cémentées et en acier inoxydable martensitique, de diamètre nominal, d1, de 6 mm à 50 mm inclus.
La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques à trou taraudé, trempées à coeur ou cémentées et en acier inoxydable martensitique, de diamètre nominal, d1, de 6 mm à 50 mm inclus.
ISO 8735:1997 is classified under the following ICS (International Classification for Standards) categories: 21.060.50 - Pins, nails. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 8735:1997 has the following relationships with other standards: It is inter standard links to ISO 3160-1:1982, ISO 8735:1987. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 8735:1997 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 8735
Second edition
1997-11-15
Parallel pins with internal thread,
of hardened steel and martensitic
stainless steel
Goupilles cylindriques à trou taraudé en acier trempé et
en acier inoxydable martensitique
A
Reference number

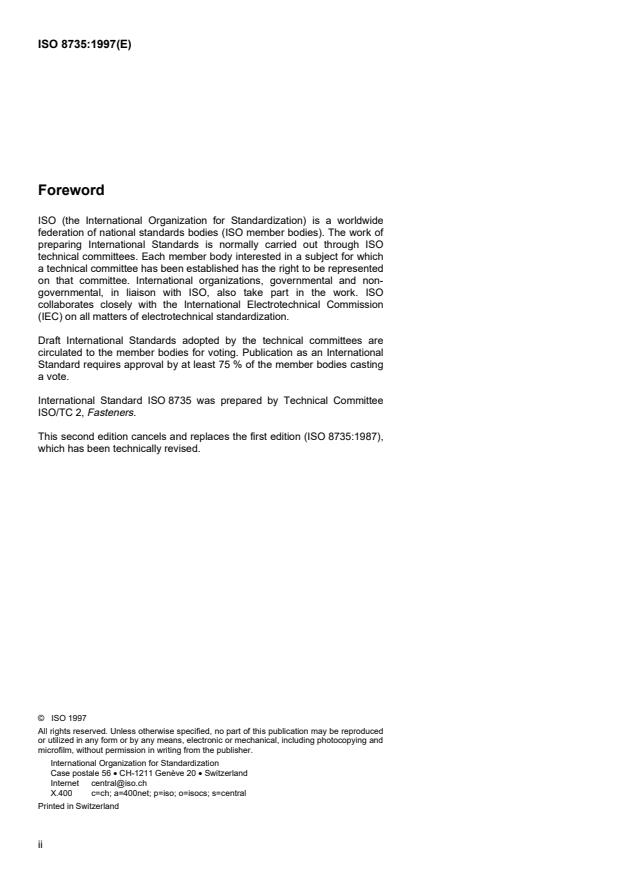

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national standards bodies (ISO member bodies). The work of
preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 8735 was prepared by Technical Committee
ISO/TC 2, Fasteners.
This second edition cancels and replaces the first edition (ISO 8735:1987),
which has been technically revised.
© ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet central@iso.ch
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland
ii
©
INTERNATIONAL STANDARD ISO ISO 8735:1997(E)
Parallel pins with internal thread of hardened steel and
martensitic stainless steel
1 Scope
This International Standard specifies the characteristics of parallel pins with internal thread of steel, through
hardened or case hardened and martensitic stainless steel, with nominal diameters d from 6 mm to 50 mm
inclusive.
2 Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this
International Standard. At the time of publication, the editions indicated were valid. All standards are subject
to revision, and parties to agreements based on this International Standard are encouraged to investigate the
possibility of applying the most recent editions of the standards indicated below. Members of IEC and ISO
maintain registers of currently valid International Standards.
1)
ISO 965-2:– , ISO general purpose metric screw threads – Tolerances – Part 2: Limits of sizes for general
purpose bolt and nut threads – Medium quality.
ISO 3269:1988, Fasteners – Acceptance inspection.
ISO 3506-1:1997, Corrosion-resistant stainless steel fasteners – Part 1: Bolts, screws and studs.
2)
ISO 4042:– , Fasteners – Electroplated coatings.
1) To be published. (Revision of ISO 965-2:1980)
2) To be published. (Revision of ISO 4042:1989)
©
ISO

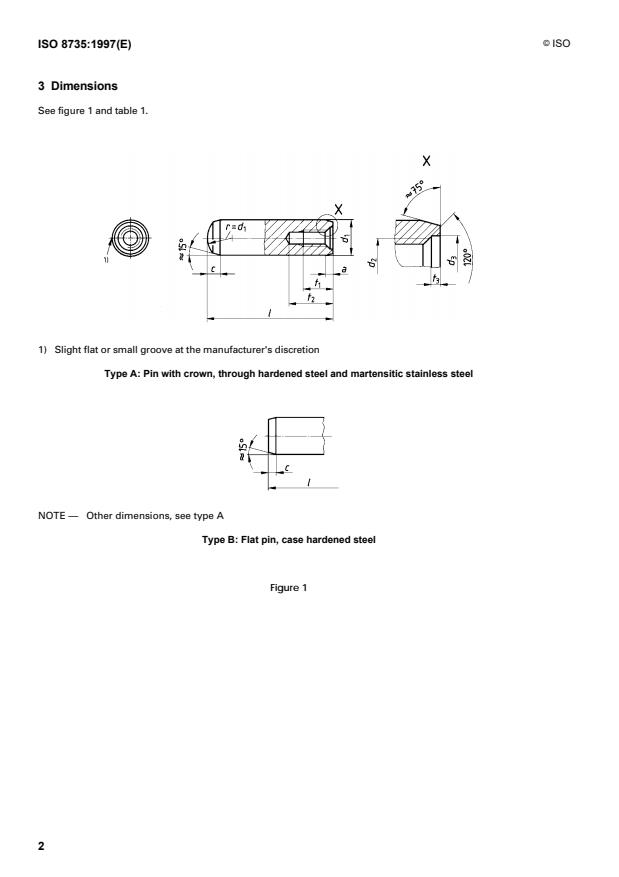

3 Dimensions
See figure 1 and table 1.
1) Slight flat or small groove at the manufacturer's discretion
Type A: Pin with crown, through hardened steel and martensitic stainless steel
NOTE — Other dimensions, see type A
Type B: Flat pin, case hardened steel
Figure 1
©
ISO
Table 1 — Dimensi
...
NORME ISO
INTERNATIONALE 8735
Deuxième édition
1997-11-15
Goupilles cylindriques à trou taraudé
en acier trempé et en acier inoxydable
martensitique
Parallel pins with internal thread, of hardened steel and martensitic
stainless steel
A
Numéro de référence

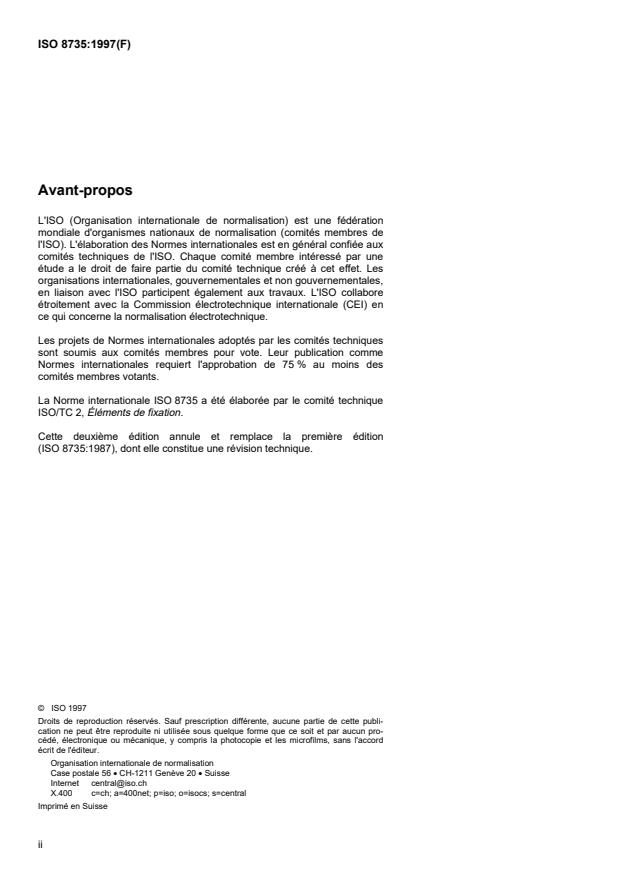

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération
mondiale d'organismes nationaux de normalisation (comités membres de
l'ISO). L'élaboration des Normes internationales est en général confiée aux
comités techniques de l'ISO. Chaque comité membre intéressé par une
étude a le droit de faire partie du comité technique créé à cet effet. Les
organisations internationales, gouvernementales et non gouvernementales,
en liaison avec l'ISO participent également aux travaux. L'ISO collabore
étroitement avec la Commission électrotechnique internationale (CEI) en
ce qui concerne la normalisation électrotechnique.
Les projets de Normes internationales adoptés par les comités techniques
sont soumis aux comités membres pour vote. Leur publication comme
Normes internationales requiert l'approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 8735 a été élaborée par le comité technique
ISO/TC 2, Éléments de fixation.
Cette deuxième édition annule et remplace la première édition
(ISO 8735:1987), dont elle constitue une révision technique.
© ISO 1997
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publi-
cation ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun pro-
cédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord
écrit de l'éditeur.
Organisation internationale de normalisation
Case postale 56 • CH-1211 Genève 20 • Suisse
Internet central@iso.ch
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Imprimé en Suisse
ii
©
NORME INTERNATIONALE ISO ISO 8735:1997(F)
Goupilles cylindriques à trou taraudé en acier trempé
et en acier inoxydable martensitique
1 Domaine d'application
La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques à trou
taraudé, trempées à cœur ou cémentées et en acier inoxydable martensitique, de diamètre
nominal, d , de 6 mm à 50 mm inclus.
2 Références normatives
Les normes suivantes contiennent des dispositions qui, par suite de la référence qui en est faite,
constituent des dispositions valables pour la présente Norme internationale. Au moment de la
publication, les éditions indiquées étaient en vigueur. Toute norme est sujette à révision et les
parties prenantes des accords fondés sur la présente Norme internationale sont invitées à
rechercher la possibilité d'appliquer les éditions les plus récentes des normes indiquées ci-après.
Les membres de la CEI et de l'ISO possèdent le registre des Normes internationales en vigueur à
un moment donné.
1)
Filetages métriques ISO pour usages généraux — Tolérances — Partie 2:
ISO 965-2:— ,
Dimensions limites pour la boulonnerie d'usage courant — Qualité moyenne.
ISO 3269:1988, Éléments de fixation — Contrôle de réception.
Caractéristiques mécaniques des éléments de fixation en acier inoxydable
ISO 3506-1:1997,
résistant à la corrosion — Partie 1: Vis et goujons.
2)
Éléments de fixation — Revêtements électrolytiques.
ISO 4042:— ,
____________
1) À publier. (Révision de l'ISO 965-2:1980)
2) À publier. (Révision de l'ISO 4042:1989)
©
ISO

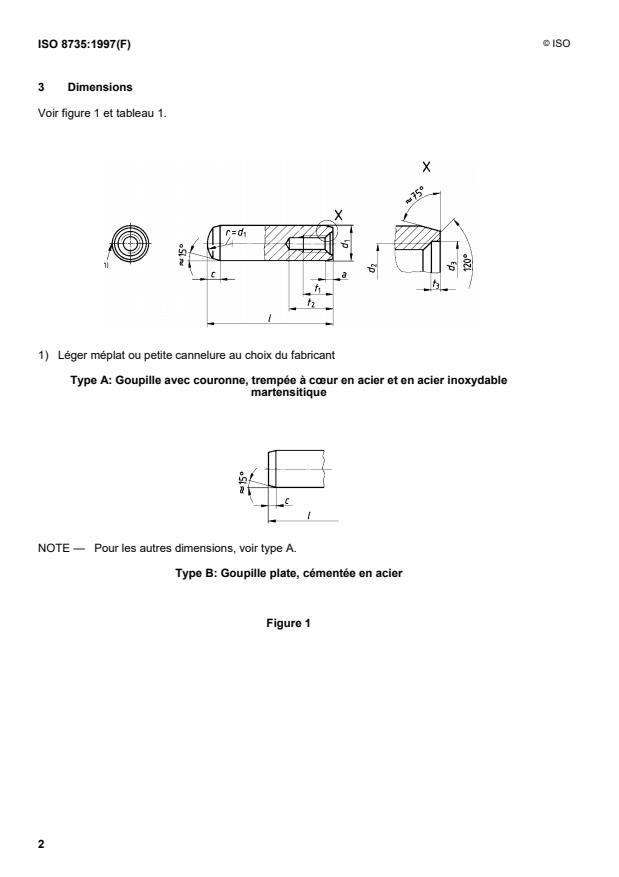

3 Dimensions
Voir figure 1 et tableau 1.
1) Léger méplat ou petite cannelure au choix du fabricant
Type A: Goupille avec couronne, trempée à cœur en acier et en acier inoxydable
martensitique
NOTE — Pour les autres dimensions, voir type A.
Type B: Goupille plate, cémentée en acier
Figure 1
©
ISO
...
