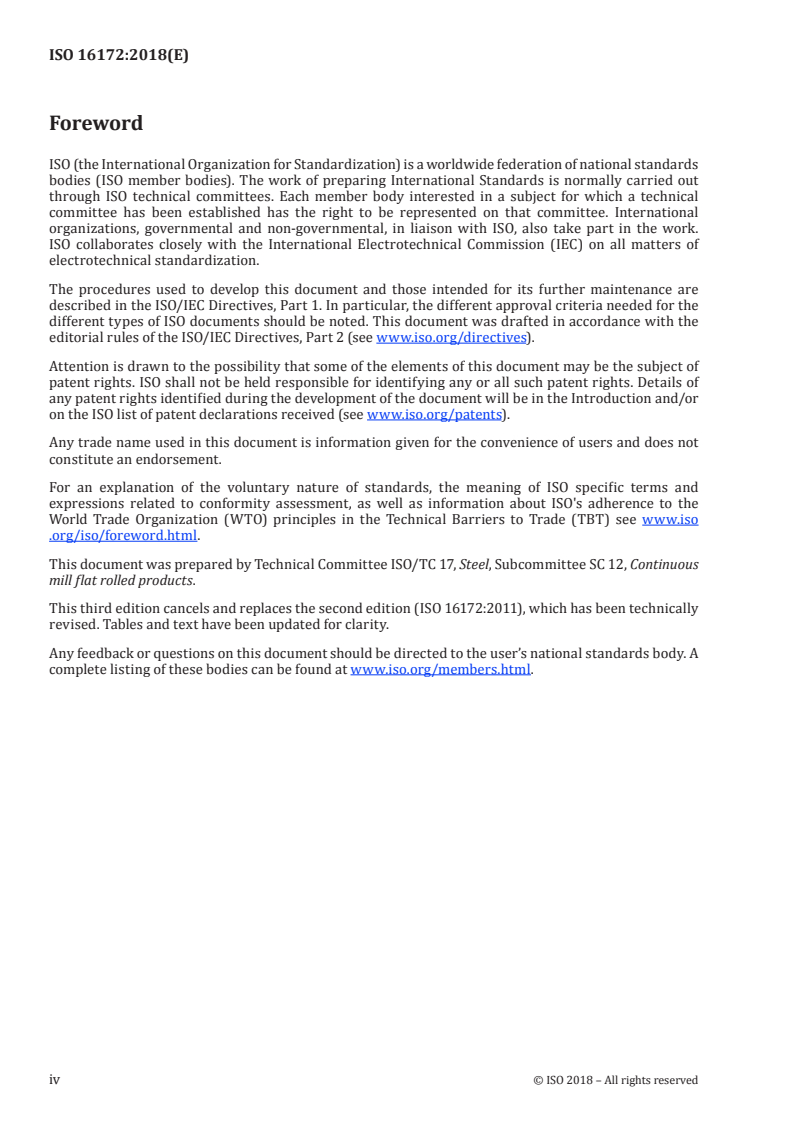

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 12, Continuous
mill flat rolled products.
This third edition cancels and replaces the second edition (ISO 16172:2011), which has been technically
revised. Tables and text have been updated for clarity.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved

INTERNATIONAL STANDARD ISO 16172:2018(E)
Steel sheet, metallic-coated by the continuous hot-dip
process for corrugated steel pipe
1 Scope
This document is applicable to the minimum requirements for steel sheet used in the manufacture
of corrugated steel pipe, in coils, flat cut lengths and corrugated cut lengths metallic-coated by the
continuous hot-dip process.
This product is intended for storm sewers, culverts, drains and similar uses.
Several metallic-coated materials are covered, which relies on users to determine which product best
serves their needs. Four different metallic coatings are included:
— zinc coated;
— zinc-5 % aluminium-mischmetal alloy coated;
— 55 % aluminium-zinc alloy coated;
— aluminium-silicon alloy coated.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1460, Metallic coatings — Hot dip galvanized coatings on ferrous materials — Gravimetric
determination of the mass per unit area
ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
ISO 16163, Continuously hot-dipped coated steel sheet products — Dimensional and shape tolerances
3 Terms, definitions and abbreviated terms
For the purposes of this document, the following terms, definitions and abbreviated terms apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1 Terms and definitions
3.1.1
fabricator
organization that produces the finished pipe
3.1.2
manufacturer
organization that produces the metal sheet from which the pipe is made
3.1.3
purchaser
person or agency that purchases the finished pipe
Note 1 to entry: For the purposes of this document, the fabricator (3.1.1) may also be considered as the purchaser
of the sheet, where that term is used in this document. Such an interpretation does not restrict the purcha
...
