ISO/TS 18409:2018

TECHNICAL ISO/TS
SPECIFICATION 18409
First edition
2018-04
Hydraulic fluid power — Hose
and hose assemblies — Method of
collecting a fluid sample for analyzing
the cleanliness of a hose or hose
assembly
Transmissions hydrauliques — Flexibles et flexibles de raccordement
— Méthode de collecte d'échantillon de fluide pour l'évaluation de la
propreté de flexibles ou flexibles de raccordement
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Test equipment. 2
5 Contaminant collection methods . 3
5.1 General . 3
5.2 Procedure for collecting a sample using the agitation (“slosh”) method . 4
5.3 Procedure for collecting a sample using the quick rinse method . 5
6 Identification statement (reference to this document) . 6
Annex A (informative) Choice of the contaminant collection method . 7
Annex B (normative) Determination of the controlled volume and controlled surface.8
Annex C (normative) Agitation (slosh) method — Instructions on filling and rotating the
test item, and collecting the test liquid . 9
Annex D (normative) Requirements for the dispensing system for quick rinse method .11
Bibliography .13

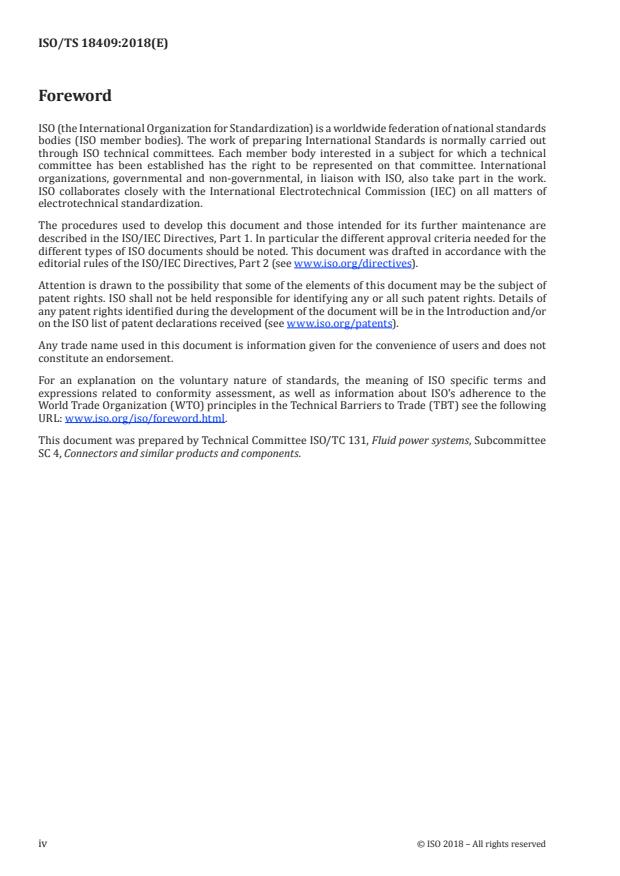

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 131, Fluid power systems, Subcommittee
SC 4, Connectors and similar products and components.
iv © ISO 2018 – All rights reserved

Introduction
In hydraulic fluid power systems, power is transmitted and controlled through a pressurized liquid
within a circuit where piping allows the fluid to flow between components. Part of the piping may
consist of hose assemblies, usually manufactured by assembling a length of hose, cut out from a hose
coil, with specific connectors at its ends.
One of the functions of the hydraulic liquid in a system is to separate and lubricate the moving parts
of components. The presence of solid particles produces wear, resulting in loss of efficiency, reduced
component life and subsequent unreliability. Thus, hydraulic liquid cleanliness is very important for the
system’s uninterrupted operation and long life.
The amount of solid contamination present in a hydraulic system at start-up has a great influence on
reliability during initial operation and subsequent component life. Components should be cleaned to an
appropriate level after manufacturing and prior to use.
Hose assemblies are potential sources of contamination because of the bulk hose manufacturing
processes, which can be intrinsically dirty, and because of other contaminants coming from assembly
operations (hose cutting, dirty connectors, etc.) and/or storage.
It may be required to assess the actual built-in solid contamination of hose assemblies before installation
(e.g. ISO 4413: 2010, 5.4.6.4, in general requirements for piping).
TECHNICAL SPECIFICATION ISO/TS 18409:2018(E)
Hydraulic fluid power — Hose and hose assemblies —
Method of collecting a fluid sample for analyzing the
cleanliness of a hose or hose assembly
1 Scope
This document specifies two methods for collecting a fluid sample to be used to analyse the cleanliness
of hydraulic fluid power hoses or hose assemblies within a certain inside diameter and length range
(this range includes the majority of hose assemblies of real fluid power applications).
The two methods described in this document are intended for collecting only solid particulate
contamination; they may not be appropriate for collecting contamination in liquid or grease form.
This document is a specific application of ISO 18413:2015, specifically Annexes A and B.
The scope of this document does not include providing efficient and effective cleaning methods for hose
assemblies. These methods are recommended for statistical validation of other hose cleaning methods,
which are more suitable for systematic processing of large production batches.
Contamination analysis is excluded from the scope of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3722, Hydraulic fluid power — Fluid sample containers — Qualifying and controlling cleaning methods
ISO 4405, Hydraulic fluid power — Fluid contamination — Determination of particulate contamination by
the gravimetric method
ISO 4406, Hydraulic fluid power — Fluids — Method for coding the level of contamination by solid particles
ISO 4407, Hydraulic fluid power — Fluid contamination — Determination of particulate contamination by
the counting method using an optical microscope
ISO 4788, Laboratory glassware — Graduated measuring cylinders
ISO 5598, Fluid power systems and components — Vocabulary
ISO 11500, Hydraulic fluid power — Determination of the particulate contamination level of a liquid sample
by automatic particle counting using the light-extinction principle
ISO 18413, Hydraulic fluid power — Cleanliness of components — Inspection document and principles
related to contaminant extraction and analysis, and data reporting
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5598 and ISO 18413 and the
following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
3.1
SCL
hose cleanliness level
hose assembly cleanliness level
cleanliness level of a hydraulic fluid power hose or hose assembly with regards to solid particulate
contamination
Note 1 to entry: This may consist of a set of numbers of contaminant particles per 100 ml in each particle size
class of interest or any other cleanliness level code agreed upon.
3.2
contaminant
loose or detachable solid material present in a hose or hose assembly or on a wetted surface of a hose or
hose assembly
3.3
controlled surface
A
C
wetted surface of a part or component that is subject to a cleanliness requirement
Note 1 to entry: For the purposes of this document, A represents the nominal surface area of the test item that is
C
exposed to system liquid.
3.4
controlled volume
V
C
volume of a part or component that is subject to a cleanliness requirement
Note 1 to entry: For the purposes of this document, V represents the nominal internal volume of the test item
C
that the system liquid will occupy during normal end use.
3.5
external surfaces
those surfaces that will not be in contact with the system liquid during normal operation of the hose
assembly
3.6
nominal inside diameter
d
int
nominal inside diameter of the hose
Note 1 to entry: This is to be considered a dimensional quantity for calculation purposes in accordance with
Annex B.
3.7
nominal length of the test item
L
nominal length of the hose or hose assembly whose cleanliness shall be analysed
Note 1 to entry: This is to be considered a dimensional quantity for calculation purposes in accordance with
Annex B.
4 Test equipment
4.1 Sample containers, cleaned, qualified, and controlled as appropriate for purpose. ISO 3722
provides an acceptable method of qualification and control.
2 © ISO 2018 – All rights reserved

4.2 Graduated cylinders or beakers, as required, conforming to ISO 4788 and cleaned, qualified,
and controlled as appropriate for purpose. ISO 3722 provides an acceptable method of qualification and
control.
4.3 Caps or plugs, as required to seal test items; these shall be leak-free and properly rinsed or flushed
and shall not increase the measured contamination of the test item.
4.4 Test liquid, with the following characteristics:
a) It shall be compatible with all materials used in the test item, as well as with the working liquid of
the final system. It should also be compatible with the test equipment, including seals and filters.
b) It shall have a viscosity of ≤5 mm /s at the test temperature.
c) It shall have a contamination level sufficiently low to minimize its contribution to the total
measured test item’s contamination. If different specifications are not agreed upon between the
involved parties, the test liquid contamination level is sufficiently low when the contaminant
present in a test liquid volume equal to V is less than 10 % of the SCL, in each size class. When the
C
SCL. is not specified, test liquid contamination shall not exceed in any size range the limit number
of particles per 100 ml given in Table 1 (limits are cumulative: all particles over the given size are
recorded).
Table 1 — Default limits of cumulative numbers of particles of specific sizes
Particle size
[μm (c)]
> 6 > 14 > 21 > 38 > 70
Maximum
number of
9 730 1 730 306 53 8
particles per
100 ml
WARNING — Test liquid might be a solvent (for example, petroleum ether) with a low flash
point. In this case, exercise care as there could be a risk of explosion. Appropriate precautions
should be taken to avoid inhalation of fumes from these solvents. Always use suitable protective
equipment and applicable health and safety recommendations.
4.5 Test liquid dispensing system, a simple, low-pressure hydraulic system for detaching
contaminants from the test item with the quick
...
