– 2 – TR 80002-1 © IEC:2009(E)

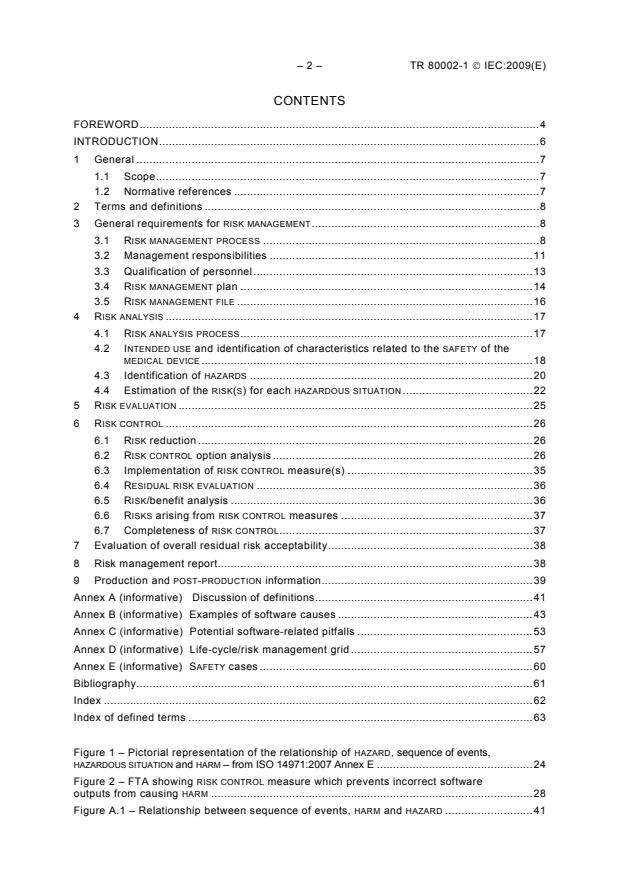

CONTENTS
FOREWORD.4
INTRODUCTION.6
1 General .7
1.1 Scope.7
1.2 Normative references .7
2 Terms and definitions .8
3 General requirements for RISK MANAGEMENT.8
3.1 RISK MANAGEMENT PROCESS .8
3.2 Management responsibilities .11
3.3 Qualification of personnel.13
3.4 RISK MANAGEMENT plan .14
3.5 RISK MANAGEMENT FILE .16
4 RISK ANALYSIS .17
4.1 RISK ANALYSIS PROCESS.17
4.2 INTENDED USE and identification of characteristics related to the SAFETY of the
MEDICAL DEVICE .18
4.3 Identification of HAZARDS .20
4.4 Estimation of the RISK(S) for each HAZARDOUS SITUATION .22
5 RISK EVALUATION .25
6 RISK CONTROL .26
6.1 RISK reduction .26
6.2 RISK CONTROL option analysis .26
6.3 Implementation of RISK CONTROL measure(s) .35
6.4 RESIDUAL RISK EVALUATION .36
6.5 RISK/benefit analysis .36
6.6 RISKS arising from RISK CONTROL measures .37
6.7 Completeness of RISK CONTROL.37
7 Evaluation of overall residual risk acceptability.38
8 Risk management report.38
9 Production and POST-PRODUCTION information.39
Annex A (informative)  Discussion of definitions.41
Annex B (informative) Examples of software causes .43
Annex C (informative) Potential software-related pitfalls .53
Annex D (informative) Life-cycle/risk management grid.57
Annex E (informative) SAFETY cases .70H60
34HBibliography.71H61
35HIndex .72H62
36HIndex of defined terms .73H63

Figure 1 – Pictorial representation of the relationship of HAZARD, sequence of events,
HAZARDOUS SITUATION and HARM – from ISO 14971:2007 Annex E .74H24
Figure 2 – FTA showing RISK CONTROL measure which prevents incorrect software
HARM .75H28
outputs from causing
Figure A.1 – Relationship between sequence of events, HARM and HAZARD .76H41

---------------------- Page: 4 ----------------------
TR 80002-1 © IEC:2009(E) – 3 –

Table 1 – Requirements for documentation to be included in the RISK MANAGEMENT FILE
in addition to ISO 14971:2007 requirements .17
Table A.1 – Relationship between HAZARDS, foreseeable sequences of events,
HAZARDOUS SITUATIONS and the HARM that can occur .42
Table B.1 – Examples of causes by software function area .43
Table B.2 – Examples of software causes that can introduce side-effects .48
Table B.3 – Methods to facilitate assurance that RISK CONTROL methods are likely to
perform as intended.52
Table C.1 – Potential software-related pitfalls to avoid.53
Table D.1 – LIFE-CYCLE/RISK MANAGEMENT grid .57

---------------------- Page: 5 ----------------------
– 4 – TR 80002-1 © IEC:2009(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

MEDICAL DEVICE SOFTWARE –

Part 1: Guidance on the application of ISO 14971
to medical device software


FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC 80002-1, which is a technical report, has been prepared by a joint working group of
subcommittee 62A: Common aspects of electrical equipment used in medical practice, of IEC
technical committee 62: Electrical equipment in medical practice, and ISO technical
committee 210: Quality management and corresponding general aspects for MEDICAL DEVICES.

---------------------- Page: 6 ----------------------
TR 80002-1 © IEC:2009(E) – 5 –
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
62A/639A/DTR 62A/664/RVC

Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table. In ISO, the technical report has been approved
by 16 P-members out of 17 having cast a vote.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this technical report the following print types are used:
• requirements and definitions: in roman type.
• informative material appearing outside of tables, such as notes, examples and references: in smaller type.
Normative text of tables is also in a smaller type.
• TERMS USED THROUGHOUT THIS TECHNICAL REPORT THAT HAVE BEEN DEFINED IN CLAUSE 2 AND
ALSO GIVEN IN THE INDEX: IN SMALL CAPITALS.
A list of all parts of the IEC 80002 series, published under the general title Medical device
software, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.


IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

---------------------- Page: 7 ----------------------
– 6 – TR 80002-1 © IEC:2009(E)
INTRODUCTION
Software is often an integral part of MEDICAL DEVICE technology. Establishing the SAFETY and
effectiveness of a MEDICAL DEVICE containing software requires knowledge of what the
software is intended to do and demonstration that the implementation of the software fulfils
those intentions without causing any unacceptable RISKS.
It is important to understand that software is not itself a HAZARD, but software may contribute
to HAZARDOUS SITUATIONS. Software should always be considered in a SYSTEM perspective and
software RISK MANAGEMENT cannot be performed in isolation from the SYSTEM.
Complex software designs can permit complex sequences of events which may contribute to
HAZARDOUS SITUATIONS. Much of the TASK of software RISK MANAGEMENT consists of identifying
those sequences of events that can lead to a HAZARDOUS SITUATION and identifying points in
the sequences of events at which the sequence can be interrupted, preventing HARM or
reducing its probability.
Software sequences of events which contribute to HAZARDOUS SITUATIONS may fall into two
categories:
a) sequences of events representing unforeseen software responses to inputs (errors in
specification of the software);
b) sequences of events arising from incorrect coding (errors in implementation of the
software).
These categories are specific to software, arising from the difficulty of correctly specifying and
implementing a complex SYSTEM and the difficulty of completely verifying a complex SYSTEM.
Since it is very difficult to estimate the probability of software ANOMALIES that could contribute
to HAZARDOUS SITUATIONS, and since software does not fail randomly in use due to wear and
tear, the focus of software aspects of RISK ANALYSIS should be on identification of potential
software functionality and ANOMALIES that could result in HAZARDOUS SITUATIONS – not on
estimating probability. RISKS arising from software ANOMALIES need most often to be evaluated
on the SEVERITY of the HARM alone.
RISK MANAGEMENT is always a challenge and becomes even more challenging when software
is involved. The following clauses contain additional details regarding the specifics of software
and provide guidance for understanding ISO 14971:2007 in a software perspective.
• Organization of the technical report
This technical report is organized to follow the structure of ISO 14971:2007 and guidance is
provided for each RISK MANAGEMENT activity in relation to software.
There is some intentional REDUNDANCY in the information provided due to the iterative nature
of RISK MANAGEMENT activities in the software LIFE-CYCLE.

---------------------- Page: 8 ----------------------
TR 80002-1 © IEC:2009(E) – 7 –
MEDICAL DEVICE SOFTWARE –

Part 1: Guidance on the application of ISO 14971
to medical device software



1 General
1.1 Scope
This technical report provides guidance for the application of the requirements contained in
ISO 14971:2007, Medical devices— Application of risk management to medical devices to
MEDICAL DEVICE SOFTWARE with reference to IEC 62304:2006, Medical device software—
Software life cycle processes. It does not add to, or otherwise change, the requirements of
ISO 14971:2007 or IEC 62304:2006.
This technical report is aimed at RISK MANAGEMENT practitioners who need to perform RISK
MANAGEMENT when software is included in the MEDICAL DEVICE/SYSTEM, and at software
engineers who need to understand how to fulfil the requirements for RISK MANAGEMENT
addressed in ISO 14971.
ISO 14971, recognized worldwide by regulators, is widely acknowledged as the principal
standard to use when performing MEDICAL DEVICE RISK MANAGEMENT. IEC 62304:2006, makes
a normative reference to ISO 14971 requiring its use. The content of these two standards
provides the foundation for this technical report.
It should be noted that even though ISO 14971 and this technical report focus on MEDICAL
, this technical report may be used to implement a SAFETY RISK MANAGEMENT PROCESS
DEVICES
for all software in the healthcare environment independent of whether it is classified as a
MEDICAL DEVICE.
This technical report does not address:
– areas already covered by existing or planned standards, e.g. alarms, usability
engineering, networking, etc.;
– production or quality management system software; or
– software development tools.
This technical report is not intended to be used as the basis of regulatory inspection or
certification assessment activities.
For the purposes of this technical report, “should” is used to indicate that amongst several
possibilities to meet a requirement, one is recommended as being particularly suitable,
without mentioning or excluding others, or that a certain course of action is preferred but not
necessarily required. This term is not to be interpreted as indicating requirements.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 62304:2006, Medical device software – Software life cycle processes
ISO 14971:2007, Medical devices – Application of risk management to medical devices

---------------------- Page: 9 ----------------------
– 8 – TR 80002-1 © IEC:2009(E)
2 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14971:2007,
IEC 62304:2006 and the following terms and definitions apply.
NOTE An index of defined terms is found beginning on page 63.
2.1
DIVERSITY
a form of REDUNDANCY in which the redundant elements use different (diverse) components,
technologies or methods to reduce the probability that all of the elements fail simultaneously
due to a common cause
2.2
REDUNDANCY
provision of multiple components or mechanisms to achieve the same function such that
failure of one or more of the components or mechanisms does not prevent the performance of
the function
2.3
SAFETY-RELATED SOFTWARE
software that can contribute to a HAZARDOUS SITUATION or software used in the implementation
of RISK CONTROL measures
3 General requirements for RISK MANAGEMENT
3.1 RISK MANAGEMENT PROCESS
3.1.1 General
Text of ISO 14971:2007
3  General requirements for RISK MANAGEMENT

3.1  RISK MANAGEMENT PROCESS

The MANUFACTURER shall establish, document and maintain throughout the LIFE-CYCLE an
ongoing PROCESS for identifying HAZARDS associated with a MEDICAL DEVICE, estimating and
evaluating the associated RISKS, controlling these RISKS, and monitoring the effectiveness of
the controls. This PROCESS shall include the following elements:

- RISK ANALYSIS;

- RISK EVALUATION;

- RISK CONTROL;

- production and POST-PRODUCTION information.

Where a documented product realization PROCESS exists, such as that described in Clause 7

1
of ISO 13485:2003 [1] , it shall incorporate the appropriate parts of the RISK MANAGEMENT
PROCESS.

NOTE 1 A documented quality management system PROCESS can be used to deal with SAFETY in a
systematic manner, in particular to enable the early identification of HAZARDS and HAZARDOUS SITUATIONS
in complex MEDICAL DEVICES and systems.

—————————
1)
 Figures in square brackets refer to the Bibliography.

---------------------- Page: 10 ----------------------
TR 80002-1 © IEC:2009(E) – 9 –
NOTE 2 A schematic representation of the RISK MANAGEMENT PROCESS is shown in Figure 1. Depending
on the specific LIFE-CYCLE phase, individual elements of RISK MANAGEMENT can have varying emphasis.
Also, RISK MANAGEMENT activities can be performed iteratively or in multiple steps as appropriate to the
MEDICAL DEVICE. Annex B contains a more detailed overview of the steps in the RISK MANAGEMENT
PROCESS.

Compliance is checked by inspection of appropriate documents.

Risk analysis
• Intended use and
identification of
characteristics related to the
safety of the medical device
• Identification of hazards
• Estimation of the risk(s) for
each hazardous situation
Risk evaluation
Risk control
• Risk control option analysis
• Implementation of risk
control measure(s)
• Residual risk evaluation
• Risk/benefit analysis
• Risks arising from risk
control measures
• Completeness of risk control
Evaluation of overall residual
risk acceptability
Risk management report
Production and post-production
information
IEC  1836/09


Figure 1 – A schematic representation of the RISK MANAGEMENT PROCESS

SAFETY is a property of the SYSTEM (in this case the whole MEDICAL DEVICE), which can include
software. RISK MANAGEMENT should be performed on the SYSTEM comprising the software and
its whole hardware environment. Software RISK MANAGEMENT activities should not be
conducted in isolation from the SYSTEM.
While software aspects of RISK MANAGEMENT can not be effectively performed in isolation from
overall MEDICAL DEVICE RISK MANAGEMENT, there are activities that may be best performed by
software engineers as an integral part of the software LIFE-CYCLE. There are also elements of
software that require more focus and different explanation than that provided in
ISO 14971:2007 for overall MEDICAL DEVICE RISK MANAGEMENT. It is important to stress that
even the software aspects of RISK MANAGEMENT need to focus on the MEDICAL DEVICE RISK in
order to be effective.
Risk assessment
Risk management

---------------------- Page: 11 ----------------------
– 10 – TR 80002-1 © IEC:2009(E)
NOTE 1 Software aspects of RISK MANAGEMENT can not be effectively performed in isolation from overall MEDICAL
DEVICE RISK MANAGEMENT because of the interdependence of hardware failures, software failures, and hardware
and software RISK CONTROL measures.
NOTE 2 For instance all software failures are systematic not random (as many types of hardware
failures/breakdowns are) and their probability can not be accurately estimated. Therefore, the way in which the
probability component of RISK is applied to software is quite different. See 4. 4. 3.
There are many opportunities for software engineers to contribute to the overall SAFETY of the
MEDICAL DEVICE during the early stages of MEDICAL DEVICE design. The role of software in the
SAFETY of the MEDICAL DEVICE should be considered before the SYSTEM design is finalised.
MEDICAL DEVICE design PROCESS, the software engineer can contribute
By participating in the
to SAFETY-related decisions concerning software-related RISKS as the design evolves. Such
decisions should include but not be limited to:
• the provision of adequate hardware resources to support the software;
• the partitioning of functions between hardware and software;
• the intended use of the whole MEDICAL DEVICE and the intended use of the software user
interfaces;
• the avoidance of unnecessarily complex software.
3.1.2 Iteration
Typical software development LIFE-CYCLES often use iteration. The use of iteration allows:
• investigation of the feasibility of different software designs;
• development of different SOFTWARE ITEMS at different times;
• staged delivery of different VERSIONS of the software;
• correction of errors made during the software development PROCESS.
IEC 62304:2006 requires iteration of RISK MANAGEMENT activities and coordination with SYSTEM
design activities throughout the software LIFE-CYCLE. For example, during software
development, Subclause 5.2.4 of IEC 62304:2006 requires the re-evaluation of the MEDICAL
DEVICE RISK ASSESSMENT when software requirements are established. This re-evaluation may
cause an update to SYSTEM requirement specifications and the MEDICAL DEVICE RISK
ASSESSMENT. RISK EVALUATION should be repeated at all stages from requirements via
ARCHITECTURE and design to the implementation of software.
ISO 14971 does not prescribe a design and development PROCESS, and it generally only
requires RISK MANAGEMENT steps to be done before and after (not during) the implementation
of the design (including RISK CONTROL measures). For example, when a RISK CONTROL
measure has been implemented, ISO 14971 requires that it be reviewed to ensure that it has
not caused any further HAZARDS and HAZARDOUS SITUATIONS. This should not be interpreted as
an instruction to perform this review only after the implementation is complete—it is
advantageous to address any further HAZARDS as soon as they become apparent. This implies
iteration within the implementation of the RISK CONTROL measure.
It is important that all DELIVERABLES are kept consistent at all times. Iteration is a threat to the
consistency of DELIVERABLES. It is therefore important that rigorous configuration management
be used to ensure that all effects of a change are identified and all relevant DELIVERABLES are
updated after a change. This is particularly important if software is involved, since software
can be changed rapidly and an apparently small change can have unexpected side effects. All
information related to the software needs to be up to date in order to avoid miscommunication
between engineers. Proposals for software changes are examined for side-effects, especially
side-effects which affect SAFETY. This may lead to repetition of parts of the RISK MANAGEMENT
PROCESS.

---------------------- Page: 12 ----------------------
TR 80002-1 © IEC:2009(E) – 11 –
3.1.3 Pro-active or reactive design approach to SAFETY
RISK MANAGEMENT should begin early with substantial input to the MEDICAL DEVICE
specification, taking SAFETY into consideration in early design phases, i.e. a pro-active design
approach is preferable to a reactive design approach. With a pro-active approach, SAFETY is
considered along with other customer needs and captured as early SAFETY requirements.
While a reactive approach is sometimes unavoidable (for example when a legacy product is
updated), the proactive approach is usually the most effective, quickest and cheapest way to
achieve a safe MEDICAL DEVICE.
The advantages of a pro-active SAFETY design are:
– from the outset the SYSTEM specification not only includes what the MEDICAL DEVICE should
do but also identifies the SYSTEM behaviours that should be avoided in order to reduce the
RISK;
– from the outset a SYSTEM ARCHITECTURE can be planned that can be demonstrated to
provide the desired features while avoiding or preventing unsafe states;
– as the ARCHITECTURE is elaborated into a full design, RISK CONTROL measures can be
developed while avoiding rework;
– the choice of SAFETY approaches and RISK CONTROL measures can be made early (for
example, inherent SAFETY by design can be maximized and information for SAFETY
minimized).
3.1.4 Characteristics of safe SYSTEMS incorporating software
Highly desirable characteristics of safe SYSTEMS include:
– the use of simple hardware SAFETY mechanisms to avoid excessive demands on SAFETY-
RELATED SOFTWARE ITEMS;
– the use of only very simple SAFETY-RELATED SOFTWARE ITEMS;
– the distribution of SAFETY-RELATED SOFTWARE ITEMS be
...
