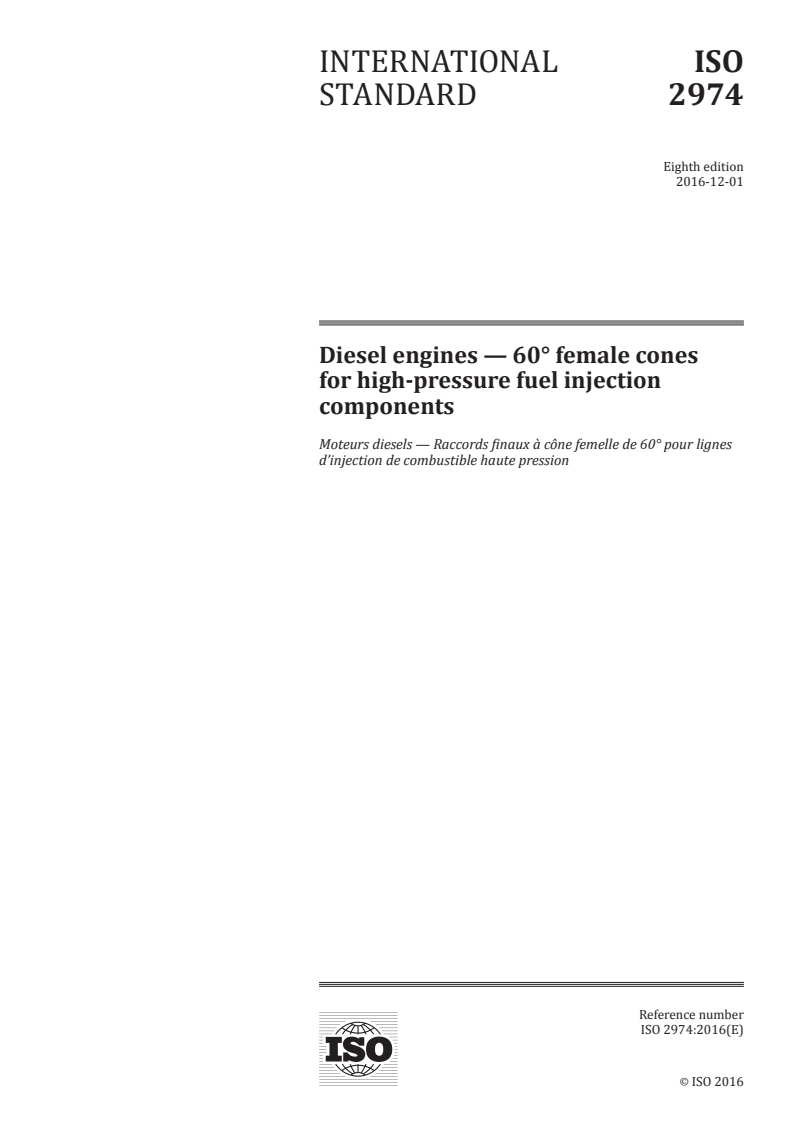

ISO 2974:2016

INTERNATIONAL ISO
STANDARD 2974
Eighth edition
2016-12-01
Diesel engines — 60° female cones
for high-pressure fuel injection
components
Moteurs diesels — Raccords finaux à cône femelle de 60° pour lignes
d’injection de combustible haute pression
Reference number
ISO 2974:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO 2974:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 2974:2016(E)

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 Dimensions and tolerances . 2
4.2 Materials . 2
5 Designation . 2
6 Figures and tables . 3
6.1 Integral 60° female cone . 3
6.2 Fabricated 60° female cone . 7
Bibliography . 9
© ISO 2016 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 2974:2016(E)

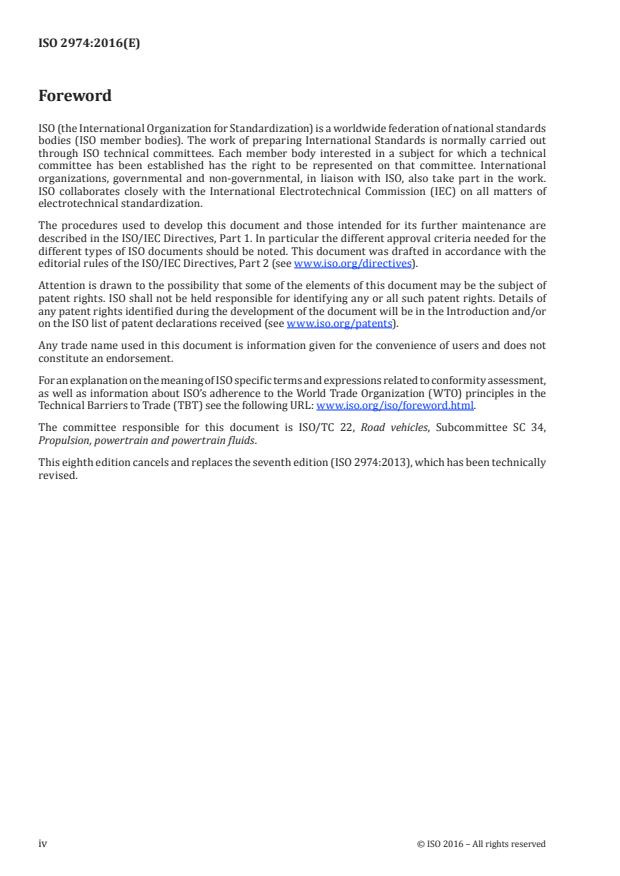

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 34,
Propulsion, powertrain and powertrain fluids.
This eighth edition cancels and replaces the seventh edition (ISO 2974:2013), which has been technically
revised.
iv © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 2974:2016(E)
Diesel engines — 60° female cones for high-pressure fuel
injection components
1 Scope
This document specifies the dimensional requirements of end-connections for high-pressure fuel
injection equipment components used on diesel (compression-ignition) engines.
It is applicable to externally threaded 60° female cones (see Figures 1, 2, 5, and 6) and intended for use
with high-pressure fuel injection pipe assemblies with tube outside diameters of
— up to and including 12 mm for integral female cones (see Table 1), and
— up to and including 9 mm for fabricated female cones (see Table 2).
Details of the pipe connection ends referenced in this document are shown in ISO 13296.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 261, ISO general purpose metric screw threads — General plan
ISO 1302, Geometrical Product Specifications (GPS) — Indication of surface texture in technical product
documentation
ISO 3508, Thread run-outs for fasteners with thread in accordance with ISO 261 and ISO 262
ISO 13296, Diesel engines — High-pressure fuel injection pipe assemblies — General requirements and
dimensions
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
integral female cone
female cone where the sealing cone and the thread are connected in the same part
Note 1 to entry: See Figures 1 and 2.
3.2
fabricated female cone
female cone where the sealing cone and the thread are separate parts prior to joining
EXAMPLE Joined by welding.
Note 1 to entry: See Figures 5 and 6.
© ISO 2016 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 2974:2016(E)

3.3
reference diameter
S
baseline for dimensioning of the female cone and the pipe end form
Note 1 to entry: S may or may not be coincident with the intended nominal sealing interface between the female
cone and the pipe end form.
4 Requirements
4.1 Dimensions and tolerances
The following figures indicate the requirements for the 60° female cones at fuel injectors, CR-injectors,
fuel injection pumps, high-pressure supply pumps, and rails to allow interchangeability for high-
pressure fuel injection pipe assemblies according to ISO 13296:
— Figures 1, 2, 3, and 4 for integral female cones;
— Figures 5, 6, and 7 for fabricated female cones.
The 60° female cone and its relationship to the external thread shall meet the requirements of Figure 1
...
