ISO/IEC 11801:2002/AMD1:2008/COR1:2008

ISO/IEC 11801
(Second edition – 2002)
Amendment 1 (2008)
Information technology –
Generic cabling for customer premises

CORRIGENDUM 1
Page 22 of Amendment 1
Replace the existing Table 17 by the following new Table 17:
Table 17 – Propagation delay for channel
Maximum propagation delay
Frequency
Class
MHz μs
A f = 0,1 20,000
0,1 ≤ f ≤ 1 5,000
B
1 ≤ f ≤ NOTE
C, D, E, E , F, F
A A
0,534 + 0,036 f + 4 × 0,002 5
NOTE The equation for propagation delay applies to the upper frequency of the class.
Page 24 of Amendment 1
6.4.14.4 Coupling attenuation
Move the existing third paragraph from before Table 22 to after Table 22:
It is possible to assess coupling attenuation by laboratory measurements of representative samples of
channels assembled using their component and connector termination practices.
Page 25 of Amendment 1
6.4.15.1 General
Replace the existing second paragraph by the following new second paragraph:
If coupling attenuation for Class E or F channels is 10 dB better than Table 22 or for Class F
A A
channels is 25 dB better than Table 22, then the requirements of 6.4.15 are met by design.

6.4.15.2 Power sum alien NEXT (PS ANEXT)
Replace the last identifier by the following identifier:
ANEXT is the alien near-end crosstalk loss coupled from pair i of disturbing channel (l) to the
l, i,k
pair k of the disturbed channel.
Page 26 of Amendment 1
Table 23 – PS ANEXT for channel
b
Replace the last line of footnote by the following line:
IL is the insertion loss of a pair i at 100 MHz.
100MHz,i
September 2008

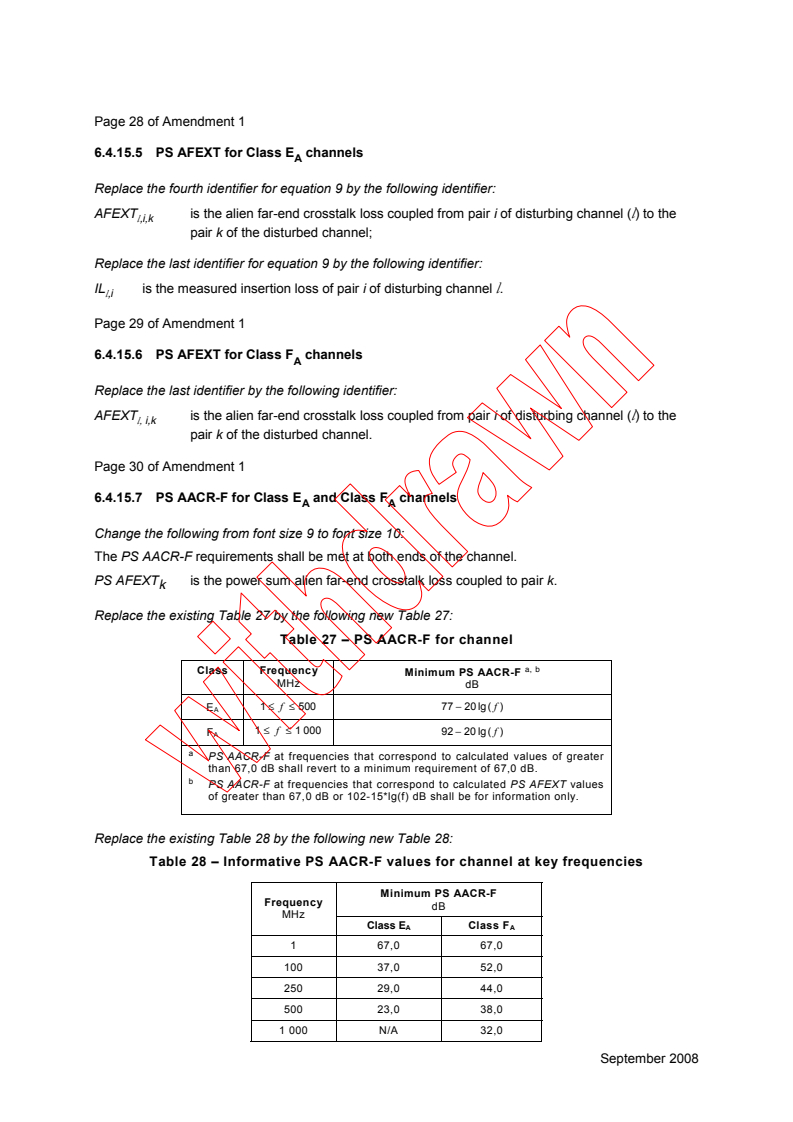

Page 28 of Amendment 1
6.4.15.5 PS AFEXT for Class E channels
A
Replace the fourth identifier for equation 9 by the following identifier:

AFEXT is the alien far-end crosstalk loss coupled from pair i of disturbing channel (l) to the
l,i,k
pair k of the disturbed channel;

Replace the last identifier for equation 9 by the following identifier:

IL is the measured insertion loss of pair i of disturbing channel l.
l,i
Page 29 of Amendment 1
6.4.15.6 PS AFEXT for Class F channels
A
Replace the last identifier by the following identifier:
AFEXT is the alien far-end crosstalk loss coupled from pair i of disturbing channel (l) to the
l, i,k
pair k of the disturbed channel.
Page 30 of Amendment 1
6.4.15.7 PS AACR-F for Class E and Class F channels
A A
Change the following from font size 9 to font size 10:
The PS AACR-F requirements shall be met at both ends of the channel.
PS AFEXT is the power sum alien far-end crosstalk loss coupled to pair k.
k
Replace the existing Table 27 by the following new Table 27:
Table 27 – PS AACR-F for channel
a, b
Class Frequency
Minimum PS AACR-F
MHz
dB
1 ≤ f ≤ 500 77 − 20 lg ( f )
E
A
1 ≤ f ≤ 1 000 92 − 20 lg ( f )
F
A
a
PS AACR-
...
