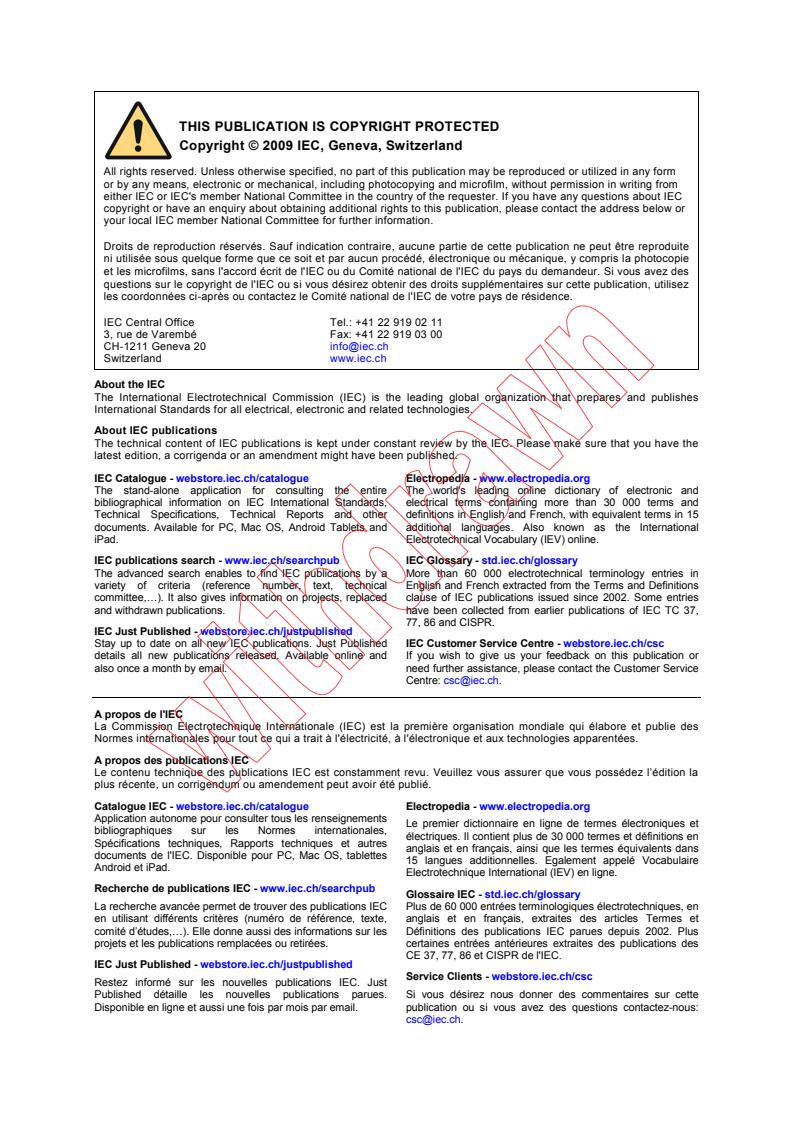

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60793-1-47 ®
Edition 3.0 2009-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical fibres –
Part 1-47: Measurement methods and test procedures – Macrobending loss

Fibres optiques –
Partie 1-47: Méthodes de mesure et procédures d’essai – Pertes par

macrocourbures
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8322-3073-2

– 2 – IEC 60793-1-47:2009  IEC 2009

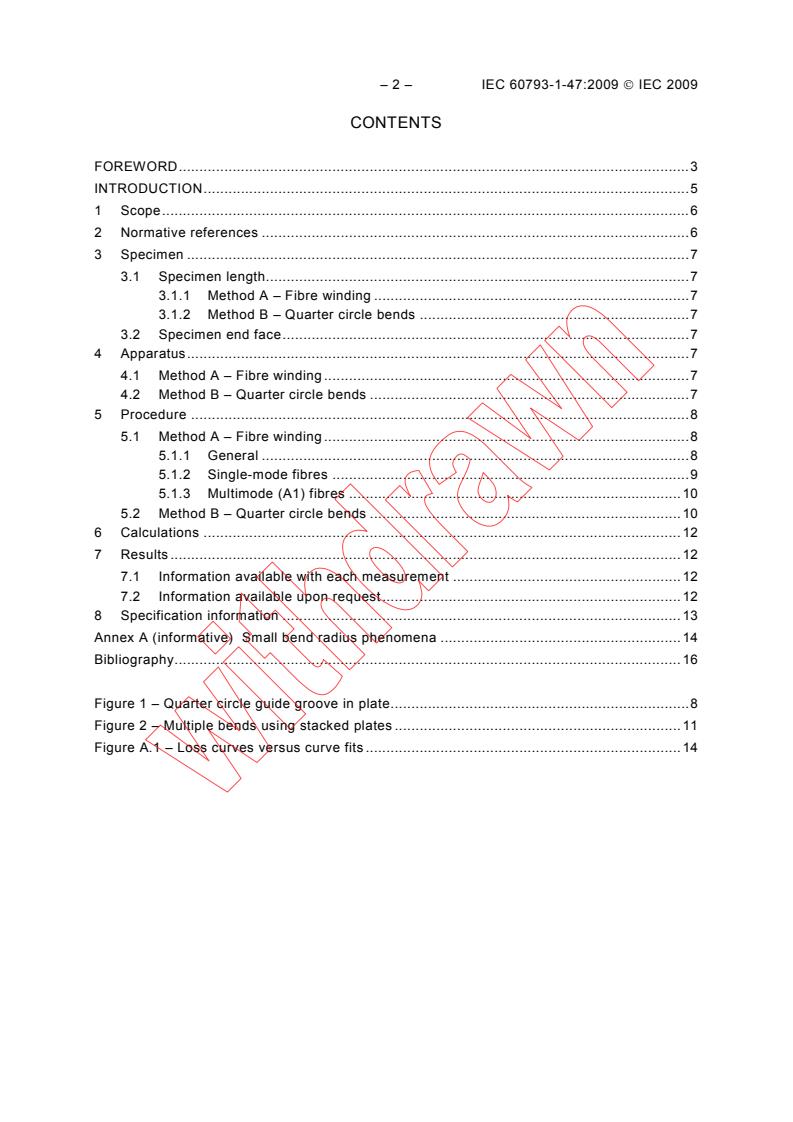

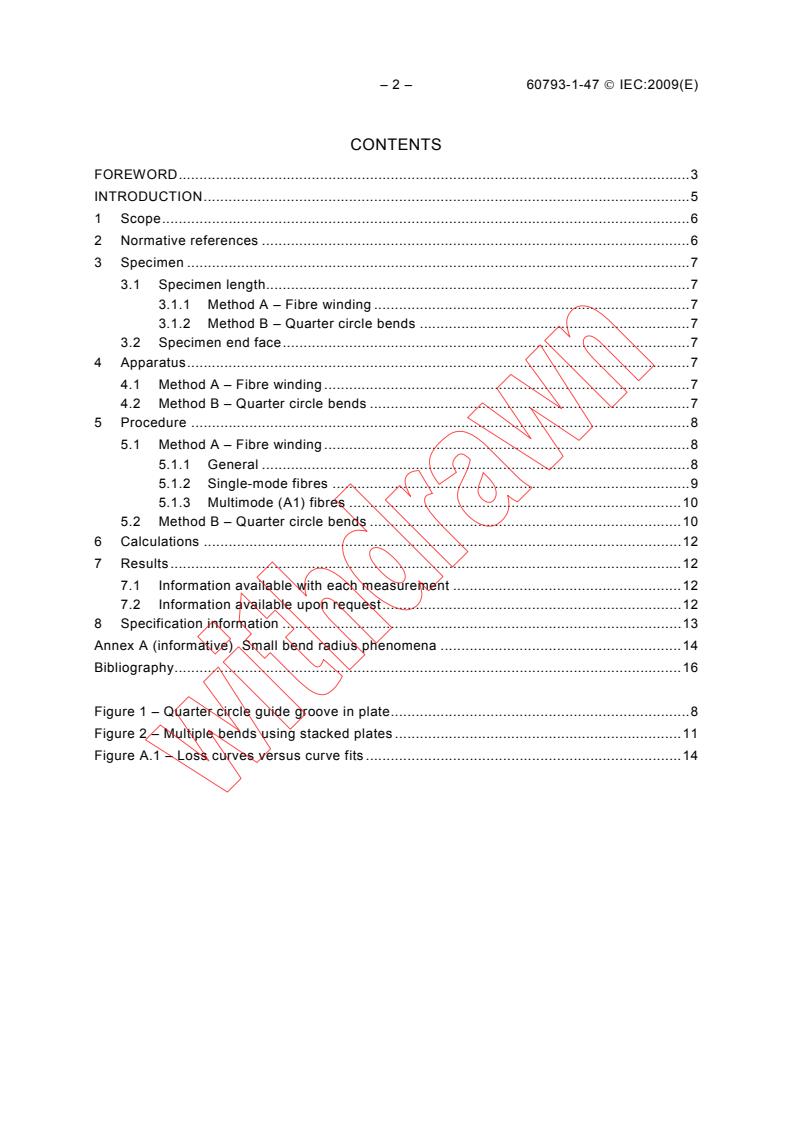

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Specimen . 7
3.1 Specimen length. 7
3.1.1 Method A – Fibre winding . 7
3.1.2 Method B – Quarter circle bends . 7
3.2 Specimen end face . 7
4 Apparatus . 7
4.1 Method A – Fibre winding . 7
4.2 Method B – Quarter circle bends . 7
5 Procedure . 8
5.1 Method A – Fibre winding . 8
5.1.1 General . 8
5.1.2 Single-mode fibres . 9
5.1.3 Multimode (A1) fibres . 10
5.2 Method B – Quarter circle bends . 10
6 Calculations . 12
7 Results . 12
7.1 Information available with each measurement . 12
7.2 Information available upon request . 12
8 Specification information . 13
Annex A (informative) Small bend radius phenomena . 14
Bibliography . 16

Figure 1 – Quarter circle guide groove in plate . 8
Figure 2 – Multiple bends using stacked plates . 11
Figure A.1 – Loss curves versus curve fits . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRES –
Part 1-47: Measurement methods and test procedures –
Macrobending loss
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60793-1-47 has been prepared by subcommittee 86A: Fibres and
cables, of IEC technical committee 86: Fibre optics.
This third edition cancels and replaces the second edition published in 2006. It constitutes a
technical revision. The main change is listed below:
• Introduction of the Annex A describing small bend radius phenomena.
This standard is to be read in conjunction with IEC 60793-1-1.

– 4 – IEC 60793-1-47:2009  IEC 2009
This bilingual version (2015-12) corresponds to the monolingual English version, published in
2009-03.
The text of this standard is based on the following documents:
CDV Report on voting
86A/1207/CDV 86A/1240/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 60793 series, published under the general title Optical fibres, can be
found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Publications in the IEC 60793-1 series concern measurement methods and test procedures as
they apply to optical fibres.
Within the same series, several different areas are grouped, but all numbers are possibly not
used, as follows:
– Parts 1-10 to 1-19: General
– Parts 1-20 to 1-29: Measurement methods and test procedures for dimensions
– Parts 1-30 to 1-39: Measurement methods and test procedures for mechanical
characteristics
– Parts 1-40 to 1-49: Measurement methods and test procedures for transmission and
optical characteristics
– Parts 1-50 to 1-59: Measurement methods and test procedures for environmental
characteristics
– 6 – IEC 60793-1-47:2009  IEC 2009
OPTICAL FIBRES –
Part 1-47: Measurement methods and test procedures –
Macrobending loss
1 Scope
This part of IEC 60793 establishes uniform requirements for measuring the macrobending
loss of single-mode fibres (category B) at 1 550 nm or 1 625 nm, category A1 multimode
fibres at 850 nm or 1 300 nm, and category A3 and A4 multimode fibres at 650 nm, 850 nm or
1 300 nm, thereby assisting in the inspection of fibres and cables for commercial purposes.
The standard gives two methods for measuring macrobending sensitivity:
• Method A – Fibre winding, pertains to category B single-mode fibres and category A1
multimode fibres.
• Method B – Quarter circle bends, pertains to category A3 and A4 multimode fibres.
For both of these methods, the optical power is measured using either the power monitoring
or the cut-back technique.
Methods A and B are expected to produce different results if they are applied to the same
fibre. This is because the key difference between the two methods is the deployment,
including the bend radius and amount of fibre that is bent. The reason for the difference is
that A3 and A4 multimode fibres are expected to be deployed in short lengths with relatively
fewer bends compared to single-mode and category A1 multimode fibres.
In the following text, the “curvature radius” is defined as the radius of the suitable circular
shaped support (e.g. mandrel or guiding groove on a flat surface) on which the fibre can be
bent.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60793-1-1: Optical fibres – Part 1-1: Measurement methods and test procedures –
General and guidance
IEC 60793-1-40: Optical fibres – Part 1-40: Measurement methods and test procedures –
Attenuation
IEC 60793-1-46: Optical fibres – Part 1-46: Measurement methods and test procedures –
Monitoring of changes in optical transmittance
IEC 61280-4-1: Fibre-optic communication subsystem test procedures – Part 4-1: Cable plant
and links – Multimode fibre-optic cable plant attenuation measurement

3 Specimen
3.1 Specimen length
3.1.1 Method A – Fibre winding
The specimen shall be a known length of fibre, as specified in the detail specification. In
particular, the length of the sample tested for loss is determined by the measurement set-up,
i.e. curvature radius (R) and number of turns (N); any further fibre length does not affect the
measurement results, provided that the signal to noise (S/N) ratio is optimised.
3.1.2 Method B – Quarter circle bends
The specimen length shall be determined according to the details shown in 5.2.
3.2 Specimen end face
Prepare a flat end face, orthogonal to the fibre axis, at the input and output ends of each test
specimen.
4 Apparatus
4.1 Method A – Fibre winding
The apparatus consists of a tool (e.g. a mandrel or a guiding groove on a flat surface) able to
hold the sample bent with a radius as stated in the specification (e.g. 30 mm for single-mode
fibres and 37,5 mm for multimode fibres) and a loss-measurement instrument. Determine the
macrobending loss at the wavelength as stated in the specification (e.g. 850 nm or 1 300 nm
for multimode fibres, 1 550 nm or 1 625 nm for singlemode fibre) by using either the
transmitted power monitoring technique (method A of IEC 60793-1-46) or the cut-back
technique (method A of IEC 60793-1-40), taking care of the appropriate launch condition for
the specific fibre type.
4.2 Method B – Quarter circle bends
The apparatus consists of one or more plates, each containing one or more “guide grooves,”
and a loss-measurement instrument. The plates shall be designed to be stacked during the
test without contacting the sample fibre in a lower or higher plate; such contact will affect the
measurement results. Each guide groove shall have a quarter circle segment (i.e. 90°) as
shown in Figure 1. The bend radius r, i.e. the radius of the quarter circle segment, shall be
stated in the detail specification. The width of each guide groove shall be at least 0,4 mm
greater than the diameter of the fibre.
Determine the macrobending loss at the wavelength as stated in the specification (e.g.
650 nm, 850 nm, or 1 300 nm) by using either the transmitted power monitoring technique
(method A of IEC 60793-1-46) or the cut-back technique (method A of IEC 60793-1-40),
taking care of the appropriate launch condition for the specific fibre type.

– 8 – IEC 60793-1-47:2009  IEC 2009

Guide groove
Bend
radius r
IEC  1485/06
Figure 1 – Quarter circle guide groove in plate
5 Procedure
5.1 Method A – Fibre winding
5.1.1 General
Loosely wind the fibre on the tool, avoiding excessive fibre twist. The number of turns,
curvature radius and wavelength at which loss is to be measured are discussed in the
following paragraphs.
Since the actual curvature radius is critical, a maximum tolerance of ± 0,1 mm (for radii lower
than or equal to 15 mm) or ± 0,5 mm to 1,0 mm (for larger radii) is accepted: a tighter
tolerance on small radii is required for higher measurement sensitivity.
Both for single-mode and for multimode fibres, two optical powers can be measured using:
– the power-monitoring technique, which measures the fibre attenuation increase due to a
change from the straight condition to a bent condition, or
– the cut-back technique, which measures the total attenuation of the fibre in the bent
condition. In order to determine the induced attenuation due to macrobending, this value
should be corrected for the intrinsic attenuation of the fibre.
The fibre length outside the mandrel and the reference cut-back length shall be free of bends
that might introduce a significant change in the measurement result. Collection of excess fibre
in a bend radius of at least 140 mm is recommended.
It is also possible to rewind the fibre from a mandrel with a large radius (introducing negligible
macrobend loss) to the mandrel with the required radius. In this case, the macrobend loss can
be determined directly by using the power-monitoring technique (without the correction for the
intrinsic attenuation of the fibre).
Care must be taken in order not to introduce torsion on any fibre part during the
measurements, as this would affect the result.

5.1.2 Single-mode fibres
Different applications may require different deployment conditions: fibre types have been
developed which exhibit bending performances optimized for each condition.
Two typical environments are recognized for (possibly) different fibre types, for which different
measurement set-ups should be considered when characterizing fibre performances.
a) Long distance networks: far from urban areas, space occupancy is not typically an
issue, and bends imposed to the fibres can be limited to relatively large radii. Fibres
designed for this application should be tested in similar conditions, i.e. with the
samples wrapped around relatively large radius mandrels, e.g. in the range 25 mm to
30 mm.
This measurement set-up is mainly affected by errors related to low S/N ratio and by
unwanted tension, torsions or kinks on the relatively long fibre length used for the
measurement.
b) Access networks: operating conditions require bending radii as small as possible,
compatible with lifetime expectations and acceptable losses. Fibres designed for this
application should be tested in similar conditions, i.e. with the samples bent at small
radii, e.g. in the range 7,5 mm to 15 mm (see Annex A).
The measurement can be affected by different sources, one of which is reflections.
The reflection of light at the coating/air or coating/glass, at surrounding surfaces
(including, when used, the mandrel surface), or at connectors are some examples.
o
The test can be carried out on samples either making complete (360 ) turn(s), in open air or
around a suitable support (mandrel), or making an equivalent number of partial turns, for
o o
example u-turns (180 ) or quarter turns (90 ), in open air or around suitable supports. The
length under test is different for complete and partial turns, for example the length of a
complete turn being twice the length of a u-turn or four times the length of a quarter turn. In
the following, the term "coil" refers to one complete turn. One coil could also be made of, for
example two consecutive u-turns or four consecutive quarter turns. This should be taken into
account while normalizing the results to the length o the sample (number of coils).
The following recommendations apply to test conditions in both cases (items a) and b)
above):
Number of turns
The number of turns should be in accordance with the values stated in the product
specification.
For single-mode fibres, the attenuation increases in a linear fashion with the number of
turns.
For each radius, the number of turns shall be chosen in such a way that:
– the induced loss is significantly higher than the detection limit of the set-up; when
necessary, for example for low bend loss fibres, tests may be carried out with more
turns than the specification requires – followed by linear normalization to the
specified number;
– the induced loss is significantly lower than the onset of the non-linear region in the
set-up; for bending radii in the range 5 mm to 10 mm this may imply that not more
than 5 to 10 turns should be used.
Bend radius
—————————
If there is excessive displacement between successive u-turns, the length of the sample arranged on two u-
turns can be shorter than one coil. A maximum displacement between adjacent u-turns of 0,5 mm is therefore
suggested.
– 10 – IEC 60793-1-47:2009  IEC 2009
The value of bend radius shall be in accordance with the values stated in the product
2.
specification
Wavelength
The measurement wavelength shall be 1 550 nm or 1 625 nm, in accordance with the relevant
product specification; it should be considered that bending losses increase exponentially with
the wavelength.
NOTE The homogeneity of bend loss in different angular positions over the cross section needs to be verified
either by multiple angular position tests or by verifying the homogeneity of the effective refractive index profile
establishing the guiding properties of the bent fibre under test
5.1.3 Multimode (A1) fibres
Macrobending loss in A1 multimode fibres varies with bend radius and number of turns around
a mandrel, but is rather independent of the measuring wavelength, except for possible
oscillating effects with wavelength, which are related to successive mode groups passing cut-
off and having increased bend loss at these wavelengths.
The values of bend radius and number of turns shall be in accordance with the values stated
in the specification. When testing multiple turns, the attenuation that occurs over a specific
turn depends on the attenuation of the preceding turns. The incremental macrobending added
loss decreases with each added turn. Macrobending added loss produced by multiple turns
should not be expressed in the units of “dB/turn” by dividing the total added loss by the
number of turns. Instead it must be reported in dB for the specified number of bends. An
extrapolation to more than the specified number of turns will result in an overestimation of the
overall loss.
For multimode fibres only, the launching characteristics of the light source at the launching
position of the fibre being tested shall be consistent with the expected fibre application.
Further details on MM launching conditions can be found in IEC 61280-4-1.
5.2 Method B – Quarter circle bends
The fibre to be tested should be carefully set in the guide groove(s). See Figure 1. The
beginning of each controlled bend shall be s metres apart from the beginning of the next
controlled bend. The beginning of the controlled bend closest to the launch end shall be 1 m
from launch. The end of the controlled bend closest to the detector end shall be 1 m from the
detector. See Figure 2.
The minimum specimen length shall be determined according to the following Equation (1):
L= ( n−1)× s+ 2
(1)
s= π× R+ 2× R
where
L is the minimum sample length, (m)
n is the number of quarter-turn bends,
s is the interval between each bend, (m) and
R is the slack bend radius (m).
—————————
Bending loss on single-mode fibre increases exponentially as wavelength increases and as radius decreases
(see Annex A).
Guide groove
1 m
plates
Fibre under test
Light
source
r
n
R > 150 mm
detector
IEC  1486/06
Figure 2 – Multiple bends using stacked plates
Macrobending loss caused by multiple bends of various radii can be measured simultaneously
by stacking plates cut with grooves of various specified bend radii. See Figure 2.
Unless otherwise specified in the detail specification, the default values for the test are as
follows:
• macrobend radius: r = 25 mm,
• number of macrobends: n = 10,
• slack bend radius, R ≥ 150 mm,
• wavelengths: 650 nm, 850 nm or 1 300 nm.
These parameters correspond to the interval between each macrobend being s ≥ 1 m, and a
sample length L ≥ 11 m.
The added fibre loss caused by bending shall be measured using either the transmitted power
monitoring technique (method A of IEC 60793-1-46) or the cut-back technique (method A of
IEC 60793-1-40). Use cladding mode strippers at the source and detector ends of the
specimen. A suitable cladding mode stripper consists of three turns of the fibre under test
around a 15 mm radius mandrel.
Perform the test using the following procedure:
a) Cut the fibre to the appropriate length and wrap it on a spool or lay it on a flat surface so
that the fibre has a bend radius ≥ 150 mm.
1 m
– 12 – IEC 60793-1-47:2009  IEC 2009
b) Measure the transmitted power.
c) Place the fibre in the measurement apparatus (Figures 1 and 2).
d) Measure the transmitted power.
NOTE When testing multiple macrobends, such as using the default value of n = 10, the mode distribution
encountered at a specific macrobend may depend on how many macrobends precede it. For example, the first
bend might influence the launch condition at the second bend, and the second bend might influence the launch
condition at the third bend, etc. Consequently, the macrobending added loss at a given bend may be different than
the macrobending added loss at another bend. In particular, the first bend may have the largest influence on
following bends. Consequently, the macrobending added loss produced by multiple bends should not be expressed
in the units of “dB/bend” (by dividing the total added loss by the number of bends). Therefore, the specification for
macrobend added loss should not be stated in the units of “dB/bend.”
6 Calculations
The results are reported in dB as:
 P 
str
 
Loss(dB)= 10log (2)
 
P
Bend
 
where P is the power measured without the bend and P is the power measured with the
str Bend
bend present .
NOTE For single-mode fibre, the loss can be reported in dB/turn.
7 Results
7.1 Information available with each measurement
Report the following information with each measurement:
– date and title of measurement;
– identification of specimen;
– length of specimen;
– curvature radius and measurement set-up (Method A);
– macrobend radius (Method B);
– number of turns (Method A);
– number of macrobends (Method B);
– wavelength(s) of interest;
– launching conditions (MM fibres only)
– macrobending loss (dB).
7.2 Information available upon request
The following information shall be available upon request:
– measurement method used: A or B ;
– power measurement method: power monitoring or cut-back;
– description of measurement apparatus arrangement;
– details of computation technique;
– date of latest calibration of equipment.
—————————
The power through the straight fibre can be calculated from the fibre attenuation coefficient, the length tested,
and the output power of the source

8 Specification information
The detail specification shall specify the following information:
– type of fibre to be measured;
– launching conditions (MM fibres only)
– radius of curvature (Method A);
– macrobend radius (Method B);
– number of turns (Method A);
– number of macrobends (Method B);
– failure or acceptance criteria;
– information to be reported;
– wavelength(s) of interest;
– any deviations to the procedure that apply.

– 14 – IEC 60793-1-47:2009  IEC 2009
Annex A
(informative)
Small bend radius phenomena
A.1 General
This annex illustrates some features of single-mode fibre behaviour when bent to particularly
small radii, depending on the fibre construction. It is based on practical experience of several
fibre manufacturers.
The phenomena described in this annex might affect the quality of transmission. It is therefore
recommended that fibre performances are confirmed under actual operating conditions, for
example wavelength, bend radii and bent fibre length.
A.2 Interference between propagating and radiating modes
When measuring macrobending loss at low bend radii, a secondary effect due to interference
among the fundamental propagating mode in the core and radiating modes can occur if the
length of the sample under bend is not sufficient to suppress radiating modes. In this
phenomenon, the propagating optical signal is irradiated from the bent fibre core and back
reflected at curved interfaces outside the core (e.g. core-cladding or cladding-coating or
coating-air, like in the so called whispering gallery modes phenomenon), thus interfering with
the propagating mode. Under certain deployment conditions, constructive and destructive
effects can occur leading to wavelength dependent losses at a certain bend radius.
In case these effects occur in the wavelength dependent loss, curve fitting can be applied for
processing the spectral loss curve; the fit shall be based on the exponential behaviour of loss
vs. wavelength. It is expected that the fitting will produce values that would be obtained with
the interference effects substantially reduced, as would be the case if the test was carried out
on a number of turns sufficiently large to suppress interference effects. The fitting technique
however allows the measurement to be carried out and completed preventing the need of
unpractical set-ups and measurement conditions.
An example of this oscillating behaviour and of a possible fitting curve (A) is shown in the
following Figure A.1. Two consecutive deployments in a R = 7,5 mm test set-up with 18x a
180° bend (u-turns deployment) result in different loss curves but with coincident curve fits.
NOTE When fitting in the presence of peaks and valleys, verify that there are enough of them, for example four,
so that their effect is balanced.
1,2
1,0
A
0,8
0,6
0,4
0,2
0,0
1 450 1 475 1 500 1 525 1 550 1 575 1 600 1 625 1 650
nm
IEC  381/09
Figure A.1 – Loss curves versus curve fits
dB/turn
A similar oscillatory behaviour can be observed at a fixed wavelength for changing radii
and/or for changing temperature: fitting techniques are also possible in this case.
Regarding the fitting curve, several different models have been developed and can be found
in scientific literature; two simplified models are given in the following as an example.
For a fixed bend, loss variations with wavelength can be represented by
α⋅λ
Bend Loss(dB)= Ae
where A and α are coefficients depending on fibre design.
At a fixed wavelength and for restricted regions around a certain value of the radius (e.g. 15
mm or 30 mm for B1 fibres) the loss trends with bend radius may be represented by
−βR
Bend Loss(dB)= Be
where R is the bend radius of the circularly deployed fibre and again where B and β are
coefficients which depend on fibre design.
Due to the statistical nature (to some extent) of the interference phenomenon, it is
recommended that the fit is carried out:
a) on data represented on a y-axis log-scale;
b) by minimizing the median vs. mean difference, instead of the root mean square error.
A.3 Polarization effects
When measuring macrobending loss at very low bend radii, polarization of the propagating or
radiating light may affect the results. Since the light leaving the fibre is subjected to several
reflections from different interfaces (e.g. cladding to coating, coating to air, coating to contact
materials), some degree of polarization may be present even for un-polarized sources. These
polarization depending losses (PDL) are functions of the wavelength, and should be taken
into account when comparing results from different measurements or laboratories.
A.4 High power damage
In some extreme conditions (very high power, very tight bends), the temperature of the
coating and of the glass can rise to very high values, eventually causing the coating to break
down and the glass to collapse. These extreme conditions, however, are not typical of standard
telecom networks deployment and operations. Detailed information about this phenomenon
can be found in IEC/TR 62547.
– 16 – IEC 60793-1-47:2009  IEC 2009
Bibliography
IEC/TR 62547, Guidelines for the measurement of high-power damage sensitivity of single-
mode fibres to bends – Guidance for the interpretation of results

___________
– 18 – IEC 60793-1-47:2009  IEC 2009
SOMMAIRE
AVANT-PROPOS . 19
INTRODUCTION . 21
1 Domaine d'application . 22
2 Références normatives . 22
3 Eprouvette . 23
3.1 Longueur d'éprouvette . 23
3.1.1 Méthode A – Enroulement de fibre . 23
3.1.2 Méthode B – Courbes d'un quart de cercle . 23
3.2 Extrémités de l'éprouvette . 23
4 Matériel . 23
4.1 Méthode A – Enroulement de fibre . 23
4.2 Méthode B – Courbes d'un quart de cercle . 23
5 Procédure . 24
5.1 Méthode A – Enroulement de fibre . 24
5.1.1 Généralités . 24
5.1.2 Fibres unimodales . 25
5.1.3 Fibres multimodales (A1) . 26
5.2 Méthode B – Courbes d'un quart de cercle . 26
6 Calculs . 28
7 Résultats . 29
7.1 Informations nécessaires pour chaque mesure . 29
7.2 Informations disponibles sur demande . 29
8 Informations relatives à la spécification . 29
Annexe A (informative) Phénomènes liés aux petits rayons de courbure . 30
Bibliographie . 33

Figure 1 – Rainure de guidage d'un quart de cercle sur la plaquette . 24
Figure 2 – Courbes multiples avec utilisation de plaquettes superposées . 27
Figure A.1 – Courbes de pertes par rapport aux ajustements des courbes . 31

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
FIBRES OPTIQUES –
Partie 1-47: Méthodes de mesure et procédures d’essai –
Pertes par macrocourbures
AVANT-PROPOS
1) La Commission Électrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l'IEC). L'IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
