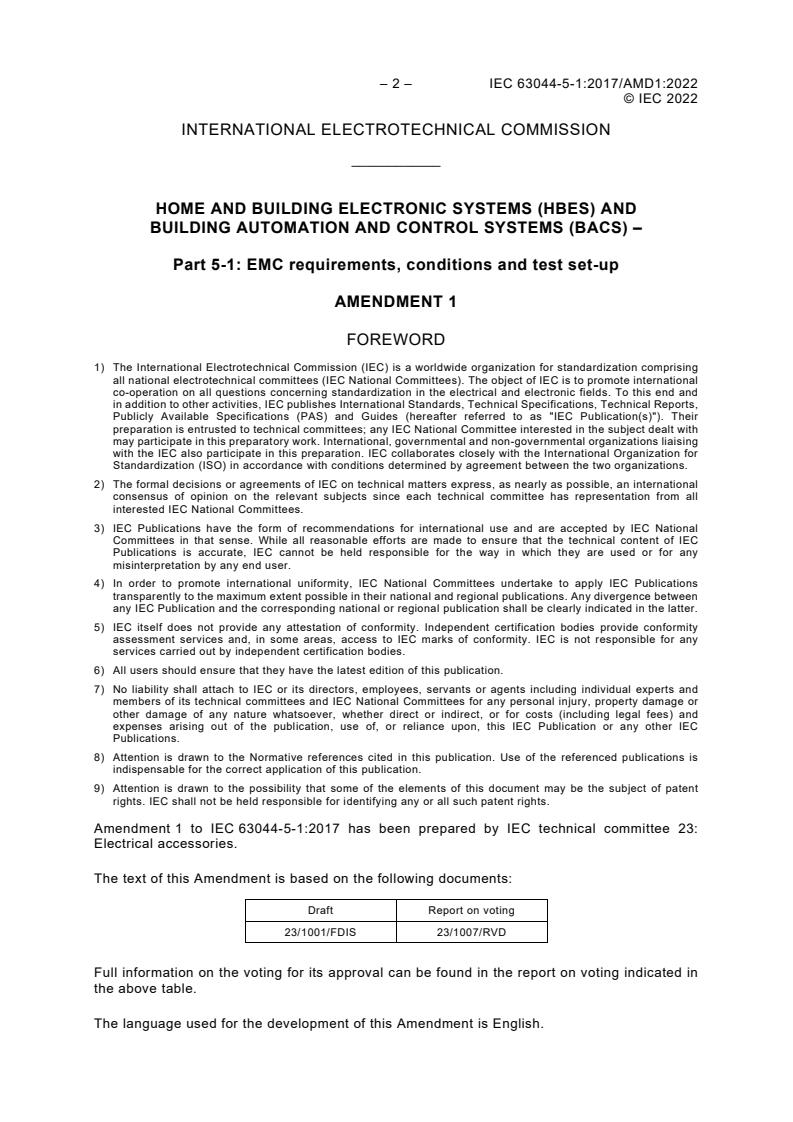

– 2 – IEC 63044-5-1:2017/AMD1:2022
© IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOME AND BUILDING ELECTRONIC SYSTEMS (HBES) AND
BUILDING AUTOMATION AND CONTROL SYSTEMS (BACS) –

Part 5-1: EMC requirements, conditions and test set-up

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 63044-5-1:2017 has been prepared by IEC technical committee 23:
Electrical accessories.
The text of this Amendment is based on the following documents:
Draft Report on voting
23/1001/FDIS 23/1007/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

___________
1 Scope
Replace the first two paragraphs by the following:
"This product family standard specifies the EMC requirements for HBES/BACS devices."
In the note, replace "CISPR 22 and 23" by "CISPR 32".
Modify the last but one paragraph as follows:
"This document provides general performance requirements, standard test conditions and test
set-ups."
Delete the last paragraph (i.e., the paragraph with the dashed list).

– 4 – IEC 63044-5-1:2017/AMD1:2022
© IEC 2022
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
3.1.1 port
Replace Figure 1 by the following (new captions added):

Figure 1 – EUT ports
4 General requirements
In the third dashed list item, delete "(see Annex C for examples)".
5 Performance criteria
5.1 General performance criteria
In the second paragraph, replace "shall be provided by the manufacturer" by "shall be based
on intended use".
In the last dashed list item, delete "on request by the manufacturer".
Replace title of Subclause 5.2 by "Specific performance criteria" (the former title to
Subclause 5.2 "Performance criterion A" will become the title to 5.2.1 (see description on next
line)).
Renumber the existing Subclauses 5.2, 5.3 and 5.4 as 5.2.1, 5.2.2 and 5.2.3. The following
additional changes are made to the content of the former 5.2 and 5.3:

© IEC 2022
5.2.1 Performance criterion A
In the first paragraph (content of the former 5.2 now falling under 5.2.1), delete "according to
its product documentation".
5.2.2 Performance criterion B
In the first paragraph (content of the former 5.3 now falling under 5.2.2), delete "according to
its product documentation".
In the second paragraph, delete the first sentence.
In the last dashed list item, delete the part of the sentence after the second comma (i.e. "but
not loss of…"), replace that second comma with a full stop, and add the following sentence:
"Loss of communication is allowed during the application time of the disturbance but the
communication shall be restored after application of the disturbance has stopped."
6 Standard test conditions
6.1 General
Replace "a" by "one" in the first sentence.
6.2.4 Surge
Modify the second sentence as follows:
Number of pulses: 2 positive + 2 negative at each of the following angles: 0°, 90°, 180°, 270°.
6.3.2 Conducted emission
In the first paragraph, delete "CISPR 22 and".
6.3.3 Radiated emission
In the first paragraph, delete "CISPR 22 and".
In the second paragraph, delete "either" and "or horizontally".
Delete 6.3.4 Low frequency emission
Annex B – Test set-ups
Clause B.4 Replace "CISPR 16" by "CISPR 32".
Annex C – Examples of product standards
Delete Annex C.
___________
– 6 – IEC 63044-5-1:2017/AMD1:2022
© IEC 2022
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
SYSTÈMES ÉLECTRONIQUES POUR LES FOYERS DOMESTIQUES
ET LES BÂTIMENTS (HBES) ET SYSTÈMES DE GESTION
TECHNIQUE DU BÂTIMENT (SGTB) –

Partie 5-1: CEM Exigences générales, condition et montage d’essais

AMENDEMENT 1
AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
