IEC 61158-4-19:2019
(Main)Industrial communication networks - Fieldbus specifications - Part 4-19: Data-link layer protocol specification - Type 19 elements
Industrial communication networks - Fieldbus specifications - Part 4-19: Data-link layer protocol specification - Type 19 elements
IEC 61158-4-19:2019 specifies procedures for the timely transfer of data and control information from one data-link user entity to a peer user entity, and among the data-link entities forming the distributed data-link service provider and the structure of the fieldbus DLPDUs used for the transfer of data and control information by the protocol of this standard, and their representation as physical interface data units. This fourth edition cancels and replaces the third edition published in 2014 and constitutes a technical revision.
The main changes are:
•improving the hotplug and redundancy features;
•improving the phase switching and the error handling;
•editorial improvements
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 4-19: Spécification de protocole de la couche liaison de données - Eléments de Type 19
IEC 61158-4-19:2019 La couche liaison de données assure les communications de messagerie prioritaires de base entre les appareils d’un environnement d’automatisation.
Ce protocole offre à toutes les entités de liaison de données participantes
a) des opportunités de communication cyclique à démarrage synchrone, selon un ordre préétabli, et
b) de manière asynchrone cyclique ou acyclique, tel que requis à chaque cycle par chacune de ces entités de liaison de données.
Ainsi, ce protocole peut être caractérisé comme un protocole qui offre un accès cyclique et acyclique asynchrone, mais avec un redémarrage synchrone de chaque cycle.
General Information
- Status
- Published
- Publication Date
- 17-Apr-2019
- Technical Committee
- SC 65C - Industrial networks
- Drafting Committee
- WG 9 - TC 65/SC 65C/WG 9
- Current Stage
- PPUB - Publication issued
- Start Date
- 18-Apr-2019
- Completion Date
- 26-Apr-2019
Relations
- Effective Date
- 05-Sep-2023
Overview - IEC 61158-4-19:2019 (Data-link layer protocol - Type 19)
IEC 61158-4-19:2019 is part of the IEC 61158 fieldbus family and defines the data-link layer protocol (DLP) elements for Type 19 fieldbus communication. The standard specifies procedures for the timely transfer of data and control information between peer data-link user entities, the structure of fieldbus DLPDUs (data-link protocol data units) and their representation as physical interface data units. Edition 4.0 (2019) supersedes the 2014 edition and introduces technical revisions focused on improved hotplug and redundancy, enhanced phase switching and error handling, and editorial clarifications.
Key Topics and Technical Requirements
- DLPDU structure and identification: Definitions for DLPDU headers, payloads, MAC addresses and EtherType usage for Type 19 elements.
- Cyclic communication and phases: Management of cyclic real‑time communication, communication phases (CP) and phase switching procedures.
- Connection and state machines: Producer/consumer and topology state machines to manage connections, configuration and transitions.
- Topology and redundancy: Support and procedures for ring and line topologies, redundancy handling, ring-break recovery and channel recovery.
- Hot-plug procedures: State machine and behavior for device insertion/removal without disrupting real‑time communication.
- Service channel (SVC) and RT channel: Mechanisms for non-cyclic service exchanges (SVC) and real‑time cyclic data (RT).
- Multiplexing and data containers: Techniques for multiplexing real‑time data with data containers (standard and extended) and diagnostics.
- Timing and telegram handling: Calculation and timing constraints for Type 19 telegrams and real‑time channel scheduling.
- Diagnostics and watchdog: Error handling, watchdog behavior, and diagnostic messages to maintain robustness.
- Advanced features: SMP session control, oversampling support and real‑time bit (RTB) handling for fine-grained data timing.
Applications and Who Uses This Standard
IEC 61158-4-19 is used by:
- Industrial automation device manufacturers (fieldbus interface, I/O modules, PLC/RTU vendors) implementing Type 19 data‑link behavior.
- Network and firmware engineers designing data‑link layer implementations and RT communication stacks.
- System integrators and control engineers deploying deterministic fieldbus networks requiring hot‑plug, redundancy and phase control.
- Test and certification laboratories validating conformance, timing, and topology behavior.
Typical applications include distributed control systems, factory automation networks, and process industries where deterministic, timely fieldbus communication and robust redundancy/hot‑plug behavior are required.
Related Standards
- Other parts of the IEC 61158 series (additional protocol layer and type specifications).
- Fieldbus profile guidance such as IEC 61784 (where applicable for application profiles and functional safety integration).
Keywords: IEC 61158-4-19:2019, fieldbus, data-link layer protocol, Type 19, DLPDU, hotplug, redundancy, phase switching, cyclic communication, SVC, RT channel, multiplexing.
IEC 61158-4-19:2019 - Industrial communication networks - Fieldbus specifications - Part 4 -19: Data-link layer protocol specification - Type 19 elements
IEC 61158-4-19:2019 - Industrial communication networks - Fieldbus specifications - Part 4-19: Data-link layer protocol specification - Type 19 elements
Frequently Asked Questions
IEC 61158-4-19:2019 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Industrial communication networks - Fieldbus specifications - Part 4-19: Data-link layer protocol specification - Type 19 elements". This standard covers: IEC 61158-4-19:2019 specifies procedures for the timely transfer of data and control information from one data-link user entity to a peer user entity, and among the data-link entities forming the distributed data-link service provider and the structure of the fieldbus DLPDUs used for the transfer of data and control information by the protocol of this standard, and their representation as physical interface data units. This fourth edition cancels and replaces the third edition published in 2014 and constitutes a technical revision. The main changes are: •improving the hotplug and redundancy features; •improving the phase switching and the error handling; •editorial improvements
IEC 61158-4-19:2019 specifies procedures for the timely transfer of data and control information from one data-link user entity to a peer user entity, and among the data-link entities forming the distributed data-link service provider and the structure of the fieldbus DLPDUs used for the transfer of data and control information by the protocol of this standard, and their representation as physical interface data units. This fourth edition cancels and replaces the third edition published in 2014 and constitutes a technical revision. The main changes are: •improving the hotplug and redundancy features; •improving the phase switching and the error handling; •editorial improvements
IEC 61158-4-19:2019 is classified under the following ICS (International Classification for Standards) categories: 25.040.40 - Industrial process measurement and control; 35.100.20 - Data link layer; 35.110 - Networking. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 61158-4-19:2019 has the following relationships with other standards: It is inter standard links to IEC 61158-4-19:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 61158-4-19:2019 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 61158-4-19 ®
Edition 4.0 2019-04
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Fieldbus specifications –
Part 4-19: Data-link layer protocol specification – Type 19 elements
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61158-4-19 ®
Edition 4.0 2019-04
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Fieldbus specifications –
Part 4-19: Data-link layer protocol specification – Type 19 elements
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.100.20; 35.110 ISBN 978-2-8322-6776-9
– 2 – IEC 61158-4-19:2019 © IEC 2019

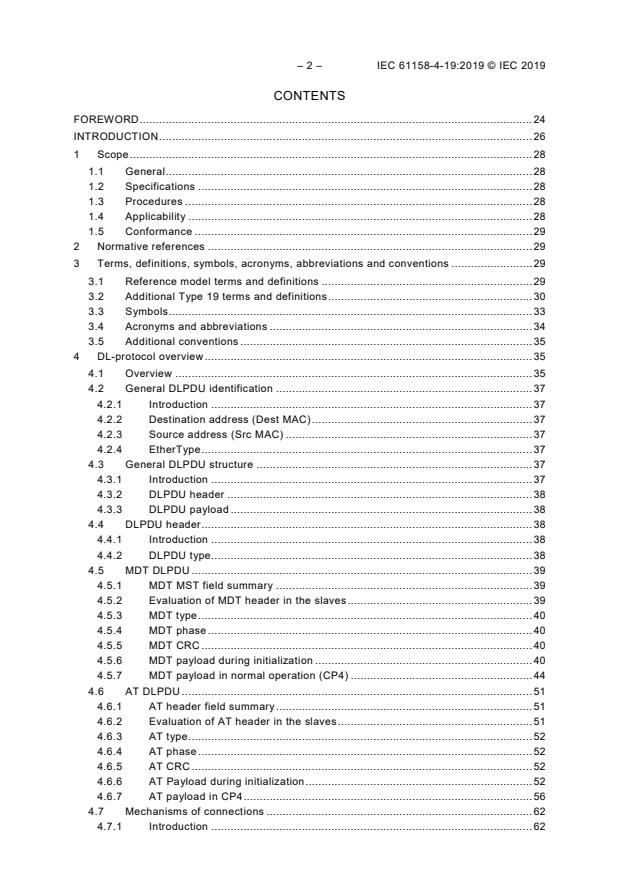

CONTENTS
