IEC 60598-2-2:2011

IEC 60598-2-2 ®
Edition 3.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-2: Particular requirements – Recessed luminaires

Luminaires –
Partie 2-2: Règles particulières – Luminaires encastrés

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60598-2-2 ®
Edition 3.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-2: Particular requirements – Recessed luminaires

Luminaires –
Partie 2-2: Règles particulières – Luminaires encastrés

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX H
ICS 29.140.50 ISBN 978-2-88912-772-6

– 2 – 60598-2-2 © IEC:2011

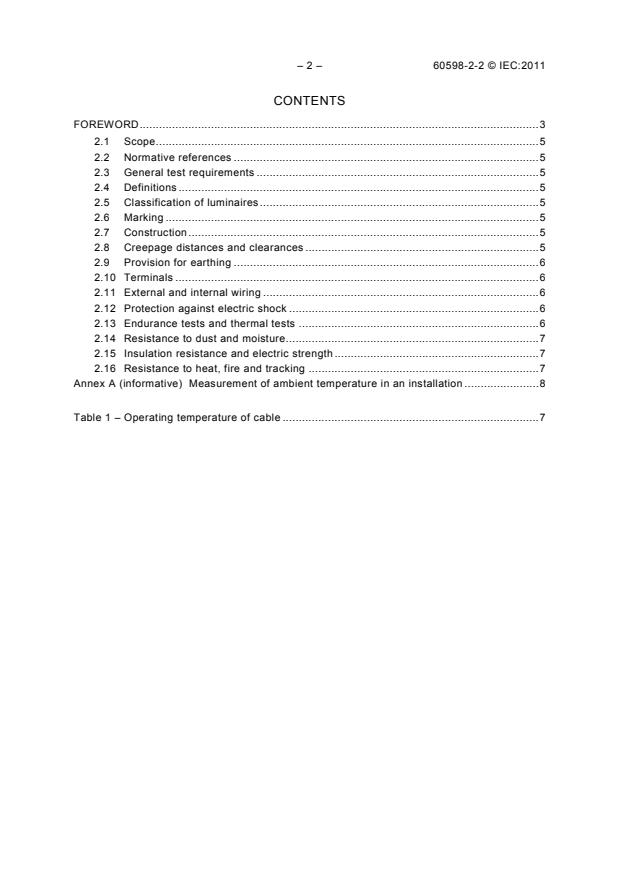

CONTENTS
FOREWORD . 3
2.1 Scope . 5
2.2 Normative references . 5
2.3 General test requirements . 5
2.4 Definitions . 5
2.5 Classification of luminaires . 5
2.6 Marking . 5
2.7 Construction . 5
2.8 Creepage distances and clearances . 5
2.9 Provision for earthing . 6
2.10 Terminals . 6
2.11 External and internal wiring . 6
2.12 Protection against electric shock . 6
2.13 Endurance tests and thermal tests . 6
2.14 Resistance to dust and moisture . 7
2.15 Insulation resistance and electric strength . 7
2.16 Resistance to heat, fire and tracking . 7
Annex A (informative) Measurement of ambient temperature in an installation . 8

Table 1 – Operating temperature of cable . 7

60598-2-2 © IEC:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-2: Particular requirements –
Recessed luminaires
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60598-2-2 has been prepared by subcommittee 34D: Luminaires,
of IEC technical committee 34: Lamps and related equipment.
This third edition cancels and replaces the second edition published in 1996 and its
Amendment 1 (1997), of which is constitutes a technical revision. The changes introduced by
this new edition are those required to maintain consistency later versions of IEC 60598-1 that
have been published since the previous edition of this standard.
The text of this standard is based on the following documents:
FDIS Report on voting
34D/1030/FDIS 34D/1038/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – 60598-2-2 © IEC:2011
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This publication shall be read in conjunction with IEC 60598-1: Luminaires – Part 1: General
requirements and tests. It was established on the basis of the seventh edition (2008) of that
standard.
A list of all the parts in the IEC 60598 series, published under the general title Luminaires can
be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60598-2-2 © IEC:2011 – 5 –
LUMINAIRES –
Part 2-2: Particular requirements –
Recessed luminaires
2.1 Scope
This part of IEC 60598 specifies requirements for recessed luminaires incorporating electric
light sources for operation from supply voltages up to 1 000 V. This section does not apply to
air-handling or liquid-cooled luminaires.
2.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60227 (all parts), Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V
IEC 60245 (all parts), Rubber insulated cables – Rated voltages up to and including
450/750 V
IEC 60598-1, Luminaires – Part 1: General requirements and tests
2.3 General test requirements
The provisions of section 0 of IEC 60598-1 apply. The tests described in each appropriate
section of part 1 shall be carried out in the order listed in this section of part 2.
A procedure measuring ambient temperature in an installation is given in Annex A.
2.4 Definitions
For the purposes of this document, the definitions of Section 1 of IEC 60598-1 apply.
2.5 Classification of luminaires
Luminaires shall be classified in accordance with the provisions of Section 2 of IEC 60598-1.
2.6 Marking
The provisions of Section 3 of IEC 60598-1 apply.
2.7 Construction
The provisions of Section 4 of IEC 60598-1 apply.
2.8 Creepage distances and clearances
The provisions of Section 11 of IEC 60598-1 apply.

– 6 – 60598-2-2 © IEC:2011
2.9 Provision for earthing
The provisions of Section 7 of IEC 60598-1 apply.
2.10 Terminals
The provisions of Sections 14 and 15 of IEC 60598-1 apply.
2.11 External and internal wiring
The provisions of Section 5 of IEC 60598-1 apply.
Flexible cables or cords used as a means of connection to the supply, when supplied by the
luminaire manufacturer, shall
...
