IEC 61158-3-3:2007

IEC 61158-3-3
Edition 1.0 2007-12
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 3-3: Data-link layer service definition – Type 3 elements

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61158-3-3
Edition 1.0 2007-12
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 3-3: Data-link layer service definition – Type 3 elements

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XB
ICS 35.100.20; 25.040.40 ISBN 2-8318-9412-3

– 2 – 61158-3-3 © IEC:2007(E)

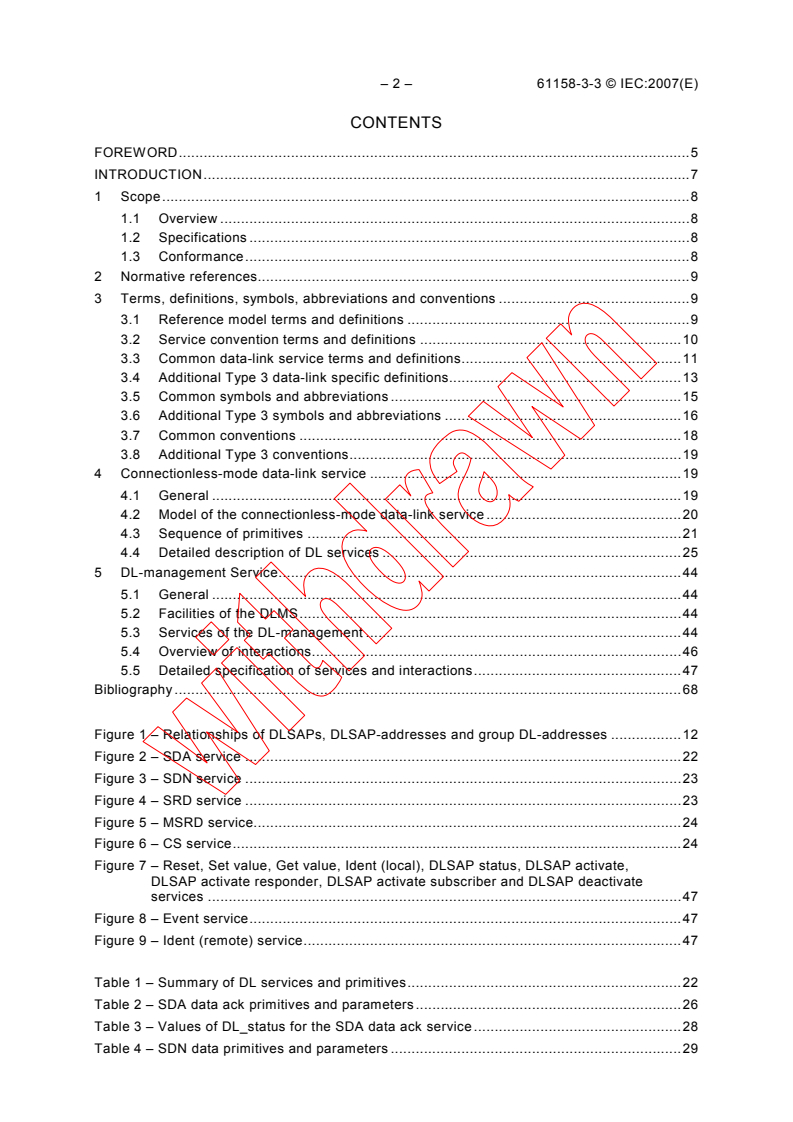

CONTENTS
FOREWORD.5
INTRODUCTION.7
1 Scope.8
1.1 Overview .8
1.2 Specifications .8
1.3 Conformance.8
2 Normative references.9
3 Terms, definitions, symbols, abbreviations and conventions .9
3.1 Reference model terms and definitions .9
3.2 Service convention terms and definitions .10
3.3 Common data-link service terms and definitions.11
3.4 Additional Type 3 data-link specific definitions.13
3.5 Common symbols and abbreviations .15
3.6 Additional Type 3 symbols and abbreviations .16
3.7 Common conventions .18
3.8 Additional Type 3 conventions.19
4 Connectionless-mode data-link service .19
4.1 General .19
4.2 Model of the connectionless-mode data-link service .20
4.3 Sequence of primitives .21
4.4 Detailed description of DL services .25
5 DL-management Service.44
5.1 General .44
5.2 Facilities of the DLMS.44
5.3 Services of the DL-management .44
5.4 Overview of interactions.46
5.5 Detailed specification of services and interactions.47
Bibliography .68

Figure 1 – Relationships of DLSAPs, DLSAP-addresses and group DL-addresses .12
Figure 2 – SDA service .22
Figure 3 – SDN service .23
Figure 4 – SRD service .23
Figure 5 – MSRD service.24
Figure 6 – CS service.24
Figure 7 – Reset, Set value, Get value, Ident (local), DLSAP status, DLSAP activate,
DLSAP activate responder, DLSAP activate subscriber and DLSAP deactivate
services .47
Figure 8 – Event service.47
Figure 9 – Ident (remote) service.47

Table 1 – Summary of DL services and primitives.22
Table 2 – SDA data ack primitives and parameters.26
Table 3 – Values of DL_status for the SDA data ack service .28
Table 4 – SDN data primitives and parameters .29

61158-3-3 © IEC:2007(E) – 3 –
Table 5 – Values of DL_status for the SDN data service .30
Table 6 – SRD data reply primitives and parameters.32
Table 7 – Values of Update_status for the SRD data reply service .33
Table 8 – Additional values of DL_status for the SRD data reply service .34
Table 9 – SRD reply-update primitives and parameters.34
Table 10 – Values of DL_status for the SRD reply-update service.35
Table 11 – MSRD MCT data reply primitives and parameters.37
Table 12 – MSRD DXM data reply primitive and parameters .39
Table 13 – CS time event primitives and parameters .40
Table 14 – Values of DL_status for the CS time event service .42
Table 15 – CS clock value primitives and parameters .42
Table 16 – Values of CS_status for the CS clock value service.43
Table 17 – Values of DL_status for the CS clock value service .44
Table 18 – Summary of DL-management services and primitives.46
Table 19 – Reset primitives and parameters .47
Table 20 – Values of DLM_status for the reset service.48
Table 21 – Set value primitives and parameters.48
Table 22 – Mandatory DLE-variables .49
Table 23 – Optional DLE-variables .49
Table 24 – Permissible values of mandatory DLE-variables .50
Table 25 – Permissible values of optional DLE-variables .50
Table 26 – Meaning of the values for the parameter isochronous_mode.51
Table 27 – Default reaction times and operating parameters for a master station for
asynchronous transmission.51
Table 28 – Default reaction times and operating parameters for a slave station with
asynchronous transmission.51
Table 29 – Default reaction times and operating parameters for master stations for
coupling of synchronous and asynchronous transmission segments .52
Table 30 – Default reaction times and operating parameter for slave stations for
coupling of synchronous and asynchronous transmission segments .52
Table 31 – Values of DLM_status for the set value service .52
Table 32 – Get value primitives and parameters .53
Table 33 – Additional mandatory DLE-variables in master stations.53
Table 34 – Permissible values of the additional DLE-variables in master stations.54
Table 35 – Values of DLM_status for the get value service .54
Table 36 – Event primitive and parameters .55
Table 37 – Mandatory DLL events and fault types .55
Table 38 – Permissible values of T .55
SH
Table 39 – Ident primitives and parameters .56
Table 40 – Ident_list for the ident service .57
Table 41 – Values of DLM_status for the ident service (local) .57
Table 42 – Values of DLM_status for the ident service (remote).57
Table 43 – DLSAP status primitives and parameters.58
Table 44 – Values of DLM_status for the DLSAP status service .59

– 4 – 61158-3-3 © IEC:2007(E)
Table 45 – DLSAP activate primitives and parameters .59
Table 46 – DLSAP activate service_list.60
Table 47 – DLSAP activate DLSDU_length_list (SDA, SDN, SRD, MSRD and CS) .61
Table 48 – DLSDU lengths of SDA and SDN as used in the DLSAP activate service .61
Table 49 – DLSDU lengths of SRD and MSRD as used in the (master station) DLSAP
activate service .61
Table 50 – DLSDU lengths of CS as used in the DLSAP activate service .62
Table 51 – Values of DLM_status for the DLSAP activate service .62
Table 52 – DLSAP activate responder primitives and parameters.62
Table 53 – DLSDU_length_list for the DLSAP activate responder service.63
Table 54 – DLSDU length of SRD and MSRD as used in the DLSAP activate responder
service .63
Table 55 – Values of DLM_status for the DLSAP activate responder service.64
Table 56 – DLSAP activate subscriber primitives and parameters .65
Table 57 – DLSDU_length_list for the DLSAP activate subscriber service .65
Table 58 – DLSDU lengths of MSRD as used in the DLSAP activate subscriber service
(master and slave stations).65
Table 59 – Values of DLM_status for the DLSAP activate subscriber service .66
Table 60 – DLSAP deactivate primitives and parameters .66
Table 61 – Values of DLM_status for the DLSAP deactivate service.67

61158-3-3 © IEC:2007(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 3-3: Data-link layer service definition – Type 3 elements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
NOTE  Use of some of the associated protocol types is restricted by their intellectual-property-right holders. In all
cases, the commitment to limited release of intellectual-property-rights made by the holders of those rights permits
a particular data-link layer protocol type to be used with physical layer and application layer protocols in type
combinations as specified explicitly in the IEC 61784 series. Use of the various protocol types in other combinations
may require permission of their respective intellectual-property-right holders.
International Standard IEC 61158-3-3 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This first edition and its companion parts of the IEC 61158-3 subseries cancel and replace
IEC 61158-3:2003. This edition of this part constitutes an editorial revision.
This edition includes the following significant changes with respect to the previous edition:
a) deletion of the former Type 6 fieldbus, and the placeholder for a Type 5 fieldbus data-link
layer, for lack of market relevance;
b) addition of new types of fieldbuses;
c) division of this part into multiple parts numbered 3-1, 3-2, …, 3-19.

– 6 – 61158-3-3 © IEC:2007(E)
The text of this standard is based on the following documents:
FDIS Report on voting
65C/473/FDIS 65C/484/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under http://webstore.iec.ch in the data
related to the specific publication. At this date, the publication will be:
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
NOTE  The revision of this standard will be synchronized with the other parts of the IEC 61158 series.
The list of all the parts of the IEC 61158 series, under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.

61158-3-3 © IEC:2007(E) – 7 –
INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of
automation system components. It is related to other standards in the set as defined by the
“three-layer” fieldbus reference model described in IEC/TR 61158-1.
Throughout the set of fieldbus standards, the term “service” refers to the abstract capability
provided by one layer of the OSI Basic Reference Model to the layer immediately above. Thus,
the data-link layer service defined in this standard is a conceptual architectural service,
independent of administrative and implementation divisions.

– 8 – 61158-3-3 © IEC:2007(E)
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 3-3: Data-link layer service definition – Type 3 elements

1 Scope
1.1 Overview
This part of IEC 61158 provides common elements for basic time-critical messaging
communications between devices in an automation environment. The term “time-critical” is
used to represent the presence of a time-window, within which one or more specified actions
are required to be completed with some defined level of certainty. Failure to complete specified
actions within the time window risks failure of the applications requesting the actions, with
attendant risk to equipment, plant and possibly human life.
This standard defines in an abstract way the externally visible service provided by the Type 3
fieldbus data-link layer in terms of
a) the primitive actions and events of the service;
b) the parameters associated with each primitive action and event, and the form which they
take; and
c) the interrelationship between these actions and events, and their valid sequences.
The purpose of this standard is to define the services provided to
• the Type 3 fieldbus application layer at the boundary between the application and data-link
layers of the fieldbus reference model, and
• systems management at the boundary between the data-link layer and systems
management of the fieldbus reference model.
1.2 Specifications
The principal objective of this standard is to specify the characteristics of conceptual data-link
layer services suitable for time-critical communications, and thus supplement the OSI Basic
Reference Model in guiding the development of data-link protocols for time-critical
communications. A secondary objective is to provide migration paths from previously existing
industrial communications protocols.
This specification may be used as the basis for formal DL-Programming-Interfaces.
Nevertheless, it is not a formal programming interface, and any such interface will need to
address implementation issues not covered by this specification, including
a) the sizes and octet ordering of various multi-octet service parameters, and
b) the correlation of paired request and confirm, or indication and response, primitives.
1.3 Conformance
This standard does not specify individual implementations or products, nor do they constrain
the implementations of data-link entities within industrial automation systems.
There is no conformance of equipment to this data-link layer service definition standard.
Instead, conformance is achieved through implementation of the corresponding data-link
protocol that fulfills the Type 1 data-link layer services defined in this standard.

61158-3-3 © IEC:2007(E) – 9 –
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model — Basic Reference Model: The Basic Model
ISO/IEC 7498-3, Information technology – Open Systems Interconnection – Basic Reference
Model: Naming and addressing
ISO/IEC 10731, Information technology – Open Systems Interconnection – Basic Reference
Model – Conventions for the definition of OSI services
3 Terms, definitions, symbols, abbreviations and conventions
For the purposes of this document, the following terms, definitions, symbols, abbreviations and
conventions apply.
3.1 Reference model terms and definitions
This standard is based in part on the concepts developed in ISO/IEC 7498-1 and
ISO/IEC 7498-3, and makes use of the following terms defined therein.
3.1.1 DL-address [7498-3]
3.1.2 DL-address-mapping [7498-1]
3.1.3 called-DL-address [7498-3]
3.1.4 calling-DL-address [7498-3]
3.1.5 centralized multi-end-point-connection [7498-1]
3.1.6 DL-connection [7498-1]
3.1.7 DL-connection-end-point [7498-1]
3.1.8 DL-connection-end-point-identifier [7498-1]
3.1.9 DL-connection-mode transmission [7498-1]
3.1.10 DL-connectionless-mode transmission [7498-1]
3.1.11 correspondent (N)-entities [7498-1]
correspondent DL-entities  (N=2)
correspondent Ph-entities  (N=1)
[7498-1]
3.1.12 DL-duplex-transmission
[7498-1]
3.1.13 (N)-entity
DL-entity  (N=2)
Ph-entity  (N=1)
3.1.14 DL-facility [7498-1]
3.1.15 flow control [7498-1]
– 10 – 61158-3-3 © IEC:2007(E)
3.1.16 (N)-layer [7498-1]
DL-layer  (N=2)
Ph-layer  (N=1)
3.1.17 layer-management [7498-1]
3.1.18 DL-local-view [7498-3]
3.1.19 DL-name [7498-3]
[7498-3]
3.1.20 naming-(addressing)-domain
[7498-1]
3.1.21 peer-entities
[7498-3]
3.1.22 primitive name
[7498-1]
3.1.23 DL-protocol
[7498-1]
3.1.24 DL-protocol-connection-identifier
[7498-1]
3.1.25 DL-protocol-data-unit
[7498-1]
3.1.26 DL-relay
[7498-1]
3.1.27 reset
[7498-3]
3.1.28 responding-DL-address
3.1.29 routing [7498-1]
3.1.30 segmenting [7498-1]
3.1.31 (N)-service [7498-1]
DL-service  (N=2)
Ph-service  (N=1)
3.1.32 (N)-service-access-point [7498-1]
DL-service-access-point  (N=2)
Ph-service-access-point  (N=1)
[7498-3]
3.1.33 DL-service-access-point-address
[7498-1]
3.1.34 DL-service-connection-identifier
[7498-1]
3.1.35 DL-service-data-unit
[7498-1]
3.1.36 DL-simplex-transmission
[7498-1]
3.1.37 DL-subsystem
[7498-1]
3.1.38 systems-management
[7498-1]
3.1.39 DLS-user-data
3.2 Service convention terms and definitions
This standard also makes use of the following terms defined in ISO/IEC 10731 as they apply to
the data-link layer:
3.2.1 acceptor
3.2.2 asymmetrical service
61158-3-3 © IEC:2007(E) – 11 –
3.2.3 confirm (primitive);
requestor.deliver (primitive)
3.2.4 deliver (primitive)
3.2.5 DL-confirmed-facility
3.2.6 DL-facility
3.2.7 DL-local-view
3.2.8 DL-mandatory-facility
3.2.9 DL-non-confirmed-facility
3.2.10 DL-provider-initiated-facility
3.2.11 DL-provider-optional-facility
3.2.12 DL-service-primitive;
primitive
3.2.13 DL-service-provider
3.2.14 DL-service-user
3.2.15 DLS-user-optional-facility
3.2.16 indication (primitive);
acceptor.deliver (primitive)
3.2.17 multi-peer
3.2.18 request (primitive);
requestor.submit (primitive)
3.2.19 requestor
3.2.20 response (primitive);
acceptor.submit (primitive)
3.2.21 submit (primitive)
3.2.22 symmetrical service
3.3 Common data-link service terms and definitions
NOTE  Many definitions are common to more than one protocol Type; they are not necessarily used by all protocol
Types.
3.3.1
DL-segment, link, local link
single DL-subnetwork in which any of the connected DLEs may communicate directly, without
any intervening DL-relaying, whenever all of those DLEs that are participating in an instance of
communication are simultaneously attentive to the DL-subnetwork during the period(s) of
attempted communication
3.3.2
DLSAP
distinctive point at which DL-services are provided by a single DL-entity to a single higher-layer
entity
NOTE  This definition, derived from ISO/IEC 7498-1, is repeated here to facilitate understanding of the critical
distinction between DLSAPs and their DL-addresses.

– 12 – 61158-3-3 © IEC:2007(E)
DLS-user-entity
DLS-user-entity
DLS-users
DLSAP DLSAP DLSAP
DLSAP-
address DLSAP-
DLSAP-
group DL-
address
addresses
address
DL-layer
DL-entity
PhSA P PhSA P
Ph-layer
NOTE 1  DLSAPs and PhSAPs are depicted as ovals spanning the boundary between two adjacent layers.
NOTE 2  DL-addresses are depicted as designating small gaps (points of access) in the DLL portion of a DLSAP.
NOTE 3  A single DL-entity may have multiple DLSAP-addresses and group DL-addresses associated with a single
DLSAP.
Figure 1 – Relationships of DLSAPs, DLSAP-addresses and group DL-addresses
3.3.3
DL(SAP)-address
either an individual DLSAP-address, designating a single DLSAP of a single DLS-user, or a
group DL-address potentially designating multiple DLSAPs, each of a single DLS-user
NOTE  This terminology is chosen because ISO/IEC 7498-3 does not permit the use of the term DLSAP-address to
designate more than a single DLSAP at a single DLS-user.
3.3.4
(individual) DLSAP-address
DL-address that designates only one DLSAP within the extended link
NOTE  A single DL-entity may have multiple DLSAP-addresses associated with a single DLSAP.
3.3.5
extended link
DL-subnetwork, consisting of the maximal set of links interconnected by DL-relays, sharing a
single DL-name (DL-address) space, in which any of the connected DL-entities may
communicate, one with another, either directly or with the assistance of one or more of those
intervening DL-relay entities
NOTE  An extended link may be composed of just a single link.
3.3.6
frame
denigrated synonym for DLPDU
61158-3-3 © IEC:2007(E) – 13 –
3.3.7
group DL-address
DL-address that potentially designates more than one DLSAP within the extended link. A single
DL-entity can have multiple group DL-addresses associated with a single DLSAP. A single
DL-entity also can have a single group DL-address associated with more than one DLSAP
3.3.8
node
single DL-entity as it appears on one local link
3.3.9
receiving DLS-user
DL-service user that acts as a recipient of DLS-user-data
NOTE  A DL-service user can be concurrently both a sending and receiving DLS-user.
3.3.10
sending DLS-user
DL-service user that acts as a source of DLS-user-data
3.4 Additional Type 3 data-link specific definitions
3.4.1
acknowledgement DLPDU
reply DLPDU that contains no DLSDU
3.4.2
bit time
time to transmit one bit
3.4.3
clock synchronization
represents a sequence of interactions to synchronize the clocks of all time receivers by a time
master
3.4.4
controller_type
hardware class of the communications entity
3.4.5
data DLPDU
DLPDU that carries a DLSDU from a local DLS-user to a remote DLS-user
3.4.6
DL_status, DLM_status
status that specifies the result of the execution of the associated request
3.4.7
GAP
range of station (DLE) DL-addresses from this station (TS) to its successor (NS) in the logical
token ring, excluding stations above HSA
3.4.8
isochronous mode
special operational mode that implies both a constant (isochronous) cycle with a fixed schedule
of high and low priority messages, and the synchronization of the DLS-users with this constant
(isochronous) cycle
– 14 – 61158-3-3 © IEC:2007(E)
3.4.9
local DLE
DLE in a current master station that initiates the current transaction
3.4.10
local DLS-user
DLS-user that initiates the current service
3.4.11
publisher
transmitter of messages for consumption by subscribers
3.4.12
region/segment address
address extension that identifies a particular fieldbus subnetwork
NOTE  This supports DL-routing between fieldbuses.
3.4.13
remote DLE
addressed DLE of a service request (that is, the intended receiving DLE of any resulting
request DLPDU)
3.4.14
remote DLS-user
addressed DLS-user of a service request (that is, the intended receiver of any resulting
indication primitive)
3.4.15
reply DLPDU
DLPDU transmitted from a remote DLE to the initiating (local) DLE, and possibly other DLEs
NOTE  When the remote DLE is a Publisher, the reply DLPDU also can be sent to several remote DLEs.
3.4.16
request DLPDU
DLPDU that carries either a request for data or a DLSDU or both from a local DLS-user to a
remote DLS-user
3.4.17
response DLPDU
reply DLPDU that carries a DLSDU from a remote DLS-user to local DLS-user
3.4.18
station
master or slave device containing a DLE
3.4.19
subscriber
receiver of messages produced by a publisher
3.4.20
time event
message that represents a trigger for a moment of time
3.4.21
time master
device which is able to send clock synchronization messages

61158-3-3 © IEC:2007(E) – 15 –
NOTE  Link devices have time master functionality.
3.4.22
time receiver
fieldbus device able to be time synchronized by a time master
3.4.23
token passing
medium access method, in which the right to transmit is passed from master station to master
station in a logical ring
3.5 Common symbols and abbreviations
NOTE  Many symbols and abbreviations are common to more than one protocol Type; they are not necessarily
used by all protocol Types.
data-link layer (as a prefix)
3.5.1 DL-
DL-connection
3.5.2 DLC
DL-connection-end-point
3.5.3 DLCEP
DL-entity (the local active instance of the data-link layer)
3.5.4 DLE
DL-layer
3.5.5 DLL
DL-protocol-control-information
3.5.6 DLPCI
3.5.7 DLPDU DL-protocol-data-unit
3.5.8 DLM DL-management
3.5.9 DLME DL-management Entity (the local active instance of
DL-management)
3.5.10 DLMS DL-management Service
3.5.11 DLS DL-service
3.5.12 DLSAP DL-service-access-point
3.5.13 DLSDU DL-service-data-unit
3.5.14 FIFO first-in first-out (queuing method)
3.5.15 OSI open systems interconnection
3.5.16 Ph- physical layer (as a prefix)
3.5.17 PhE Ph-entity (the local active instance of the physical layer)
3.5.18 PhL Ph-layer
3.5.19 QoS quality of service
– 16 – 61158-3-3 © IEC:2007(E)
3.6 Additional Type 3 symbols and abbreviations
3.6.1 ACK acknowledge(ment) DLPDU
3.6.2 cnf confirm primitive
3.6.3 CS clock synchronization
3.6.4 DA destination address of a DLPDU
3.6.5 DAE destination address extension(s) of a DLPDU which conveys
D_SAP_index or destination region/segment address or both
3.6.6 DS DL/DLM_status: Disconnected station, local DL-entity not in logical
token ring or disconnected from line
destination service access point, the DLSAP which identifies the
3.6.7 D_SAP
remote DLS-user.
destination service access point index, that component of a DLSAP-
3.6.8 D_SAP_index
address which designates a DLSAP and remote DLS-user within the
remote DLE
3.6.9 DXM data exchange multicast
3.6.10 EXT address extension bit of a DLPDU
3.6.11 FC frame control (DLPDU type) field of a DLPDU
GAP update factor, the number of token cycles between GAP
3.6.12 G
maintenance (update) cycles
highest station address installed (configured) on this fieldbus
3.6.13 HSA
indication primitive
3.6.14 ind
isochronous mode
3.6.15 IsoM
list of master stations
3.6.16 LMS
DL/DLM_status: Local resource not available or not sufficient
3.6.17 LR
DL/DLM_status: Local service not activated at DLSAP or local
3.6.18 LS
DLSAP not activated
3.6.19 MSRD send and request data with multicast reply (DL-service)
3.6.20 NA DL/DLM_status: No acknowledgement/response
3.6.21 NIL locally existing value, but not fixed
3.6.22 NO DL/DLM_status: Not ok
3.6.23 NR DL/DLM_status: No response, DL/DLM-data acknowledgement
negative and send data ok
3.6.24 NS Next station, the station to which this Master will pass the token
3.6.25 OK DL/DLM_status: Service finished according to the rules
3.6.26 RDH DL/DLM_status: Response DL-data high and no resource for send
data
61158-3-3 © IEC:2007(E) – 17 –
3.6.27 RDL DL/DLM_status: Response DL/DLM-data low and no resource for
send data
3.6.28 req request primitive
3.6.29 RR DL/DLM_status: No resource for send data and no response DL-data
available (acknowledgement negative)
3.6.30 RS DL/DLM_status: No service or no remote address activated at
remote-service-access-point (acknowledgement negative)
source address of a DLPDU
3.6.31 SA
source address extension(s) of a DLPDU, which conveys
3.6.32 SAE
S_SAP_index or source region/segment address or both
single character acknowledge DLPDU
3.6.33 SC
send data with acknowledge (DL-service)
3.6.34 SDA
send data with no acknowledge (DL-service)
3.6.35 SDN
send and request data with reply (DL-service)
3.6.36 SRD
source service access point, the DLSAP associated with the initiates
3.6.37 S_SAP
local DLS-user
3.6.38 S_SAP_index source service access point index, a component of a DLSAP-
address which designates that DLSAP within the DLE at which the
transaction is being initiated
synchronizing bits of a DLPDU (period of IDLE), which guarantees
3.6.39 SYN
the specified DLPDU integrity and facilitates receiver synchronization
synchronization telegram, indicates the start of a new cycle in IsoM
3.6.40 SYNCHT
bit time, DL-symbol period, the time to transmit one bit on the
3.6.41 tBIT
fieldbus: 1/(data signaling rate in bit/s)
3.6.42 TCSI clock synchronization interval time
3.6.43 TCT Isochronous cycle time, the requested duration for one cycle in IsoM
3.6.44 TQUI quiet time, transmitter fall time (line state uncertain time) or repeater
switch time or both. The time a transmitting station needs to wait
after the end of a DLPDU before enabling its receiver.
ready time, the time after which the transmitting master will expect a
3.6.45 TRDY
reply DLPDU
real rotation time, the time between the last successive receptions of
3.6.46 TRR
the token by the observing master station
3.6.47 TS This Station
3.6.48 TSDI station delay of initiator, the time a master station will wait before
sending successive DLPDUs
3.6.49 TSDR station delay of responder, the actual time a responder needs to
generate a reply DLPDU
3.6.50 TSET setup time, the time between an event (e.g. interrupt SYN timer
expired) and the necessary reaction (e.g. enabling a receiver)

– 18 – 61158-3-3 © IEC:2007(E)
3.6.51 TSH time shift, the time a real isochronous cycle deviates from the
requested duration for one cycle in IsoM
3.6.52 TSL slot time, the maximum time a master station waits for a reply
DLPDU
3.6.53 TSYN synchronization time, the period of IDLE before the beginning of a
DLPDU after which a station enables its receiver; the required
minimum inter-DLPDU idle period to guarantee DLPDU integrity and
a valid DLPDU
synchronization interval time, the maximum time that a receiving
3.6.54 TSYNI
station waits for the required inter-DLPDU idle period, of duration
TSYN, to occur before it detects a bus fault
3.6.55 TTR Target rotation time, the anticipated time for one token cycle,
including allowances for high and low priority transactions, errors
and GAP maintenance
3.6.56 UE DL/DLM_status: Negative acknowledgement, remote user interface
error
3.7 Common conventions
This standard uses the descriptive conventions given in ISO/IEC 10731.
The service model, service primitives, and time-sequence diagrams used are entirely abstract
descriptions; they do not represent a specification for implementation.
Service primitives, used to represent service user/service provider interactions (see
ISO/IEC 10731), convey parameters that indicate information available in the user/provider
interaction.
This standard uses a tabular format to describe the component parameters of the DLS
primitives. The parameters that apply to each group of DLS primitives are set out in tables
throughout the remainder of this standard. Each table consists of up to six columns, containing
the name of the service parameter, and a column each for those primitives and parameter-
transfer directions used by the DLS:
⎯ the request primitive’s input parameters;
⎯ the request primitive’s output parameters;
⎯ the indication primitive’s output parameters;
⎯ the response primitive’s input parameters; and
⎯ the confirm primitive’s output parameters.
NOTE  The request, indication, response and confirm primitives are also known as requestor.submit,
acceptor.deliver, acceptor.submit, and requestor.deliver primitives, respectively (see ISO/IEC 10731).
One parameter (or part of it) is listed in each row of each table. Under the appropriate service
primitive columns, a code is used to specify the type of usage of the parameter on the primitive
and parameter direction specified in the column:

61158-3-3 © IEC:2007(E) – 19 –
M — parameter is mandatory for the primitive.
U — parameter is a User option, and may or may not be provided depending on
the dynamic usage of the DLS-user. When not provided, a default value for
the parameter is assumed.
C — parameter is conditional upon other parameters or upon the environment of
the DLS-user.
(blank) — parameter is never present.
Some entries are further qualified by items in brackets. These may be
a) a parameter-specific constraint
(=) indicates that the parameter is semantically equivalent to the parameter in the
service primitive to its immediate left in the table.
b) an indication that some note applies to the entry
(n) indicates that the following note n contains additional information pertaining to the
parameter and its use.
In any particular interface, not all parameters need be explicitly stated. Some may be implicitly
associated with the DLSAP at which the primitive is issued.
In the diagrams which illustrate these interfaces, dashed lines indicate cause-and-effect or
time-sequence relationships, and wavy lines indicate that events are roughly
contemporaneous.
3.8 Additional Type 3 conventions
In the diagrams which illustrate the DLS and DLM interfaces, dashed lines indicate cause-and-
effect or time-sequence relationships between actions at different stations, while solid lines
with arrows indicate cause-and-effect time-sequence relationships which occur within the DLE-
provider at a single station.
The following notation, a shortened form of the primitive classes defined in 3.7, is used in the
figures.
4 Connectionless-mode data-link service
4.1 General
This clause describes the interface between a DLE and a data-link service user (DLS-user).
The services of this interface are typical of those needed in application fields such as process
control, factory automation, power distribution, building automation and other primary process
industries:
— general purpose data transfer service;
— time transfer service.
request primitive
req
ind indication primitive
cnf confirm primitive (confirmation)

– 20 – 61158-3-3 © IEC:2007(E)
4.2 Model of the connectionless-mode data-link service
4.2.1 Overview
This subclause describes the abstract model for data and time transfer services. The model
defines interactions between the DLS-user and the DLL that take place at the DLSAPs.
Information is passed between the DLS-user and the local DLE by DLS primitives and their
associated parameters.
The DLS-user is provided with the following data and time transfer services:
— Acknowledged connectionless data transfer:
Send Data with Acknowledge (SDA)
— Unacknowledged connectionless data transfer:
Send Data with No Acknowledge (SDN)
— Two-way connectionless data exchange:
Send a
...
