IEC 62271-111:2012
(Main)High-voltage switchgear and controlgear - Part 111: Automatic circuit reclosers and fault interrupters for alternating current systems up to 38 kV
High-voltage switchgear and controlgear - Part 111: Automatic circuit reclosers and fault interrupters for alternating current systems up to 38 kV
IEC 62271-111:2012(E) applies to all overhead, pad mounted, dry vault and submersible single or multi-pole alternating current automatic circuit reclosers and fault interrupters for rated maximum voltages above 1 000 V and up to 38 kV. This second edition cancels and replaces the first edition, published in 2005, and constitutes a technical revision. The main changes with respect to the previous edition are as follows:
a) addition of exclusion of devices with dependent manual operation to 1.1;
b) harmonization of the amplitude factor kaf used for calculating the TRV for cable connected systems consistent with recent harmonization of the circuit-breaker standards between IEEE and IEC;
c) deletion of requirements for radio influence voltage (RIV) tests;
d) addition of specifications and ratings to cover the cutout recloser and its special requirements.
This standard has been jointly revised by Switchgear Committee of the IEEE Power and Energy Society, in cooperation with subcommittee 17A: High-voltage switchgear and controlgear with reference to IEEE Std C37.60-2012(E).
This publication is to be read in conjunction with IEC 62271-1:2007.
General Information
Relations
Overview
IEC 62271-111:2012 is the international standard that specifies requirements, tests and ratings for automatic circuit reclosers (ACRs) and fault interrupters for single- or multi-pole alternating‑current systems with rated maximum voltages above 1 000 V and up to 38 kV. It covers overhead, pad‑mounted, dry‑vault and submersible reclosers and fault interrupters. Edition 2.0 (2012) is a technical revision harmonized with IEEE Std C37.60‑2012 and is intended to be read in conjunction with IEC 62271‑1:2007.
Key Topics and Technical Requirements
- Scope and service conditions: Defines normal and special service conditions (altitude, pollution, temperature, vibration, wind) for indoor and outdoor installations.
- Ratings and characteristics: Requirements for rated voltage, frequency, rated normal current, rated short‑time and peak withstand currents, rated interrupting and making currents, and rated operating sequences.
- Transient Recovery Voltage (TRV): Updated TRV calculation guidance, including harmonization of the amplitude factor (kaf) for cable‑connected systems consistent with IEEE/IEC circuit‑breaker harmonization.
- Design and construction: Enclosure protection (IP/IK), insulation and creepage distances, liquid/gas tightness, tank construction for submersible/dry‑vault units, stored energy and power operation provisions, nameplates and position indication.
- Type tests and routine tests: Dielectric tests, temperature‑rise, short‑time and peak withstand current tests, tightness tests, EMC testing, auxiliary/control circuit tests. Note: radio influence voltage (RIV) test requirements were deleted in this edition.
- Special device types: Addition of specifications and ratings for cutout reclosers and their special requirements.
- Operational mode exclusions: Excludes devices with dependent manual operation (per clause 1.1).
Practical Applications and Who Uses This Standard
IEC 62271‑111 is essential for:
- Utilities and distribution network operators specifying ACRs and fault interrupters for overhead and underground distribution systems.
- Manufacturers and designers developing reclosers, cutout reclosers, and submersible fault interrupters to meet international test and safety benchmarks.
- Test laboratories performing type and routine testing (dielectric, TRV, short‑circuit, EMC).
- Protection and relay engineers, procurement/specification teams, and standards compliance officers ensuring equipment interoperability and safety up to 38 kV.
Typical applications include automated fault isolation and service restoration, rural and urban distribution feeders, pad‑mounted transformer protection, and submarine/submersible installations.
Related Standards
- IEC 62271‑1:2007 - General definitions and common requirements for high‑voltage switchgear and controlgear (to be read together).
- IEEE Std C37.60‑2012 - Harmonized companion standard (joint revision).
Keywords: IEC 62271-111, automatic circuit recloser, fault interrupter, high-voltage switchgear, 38 kV, TRV, IEEE C37.60, type tests, pad-mounted recloser, submersible recloser.
Standards Content (Sample)

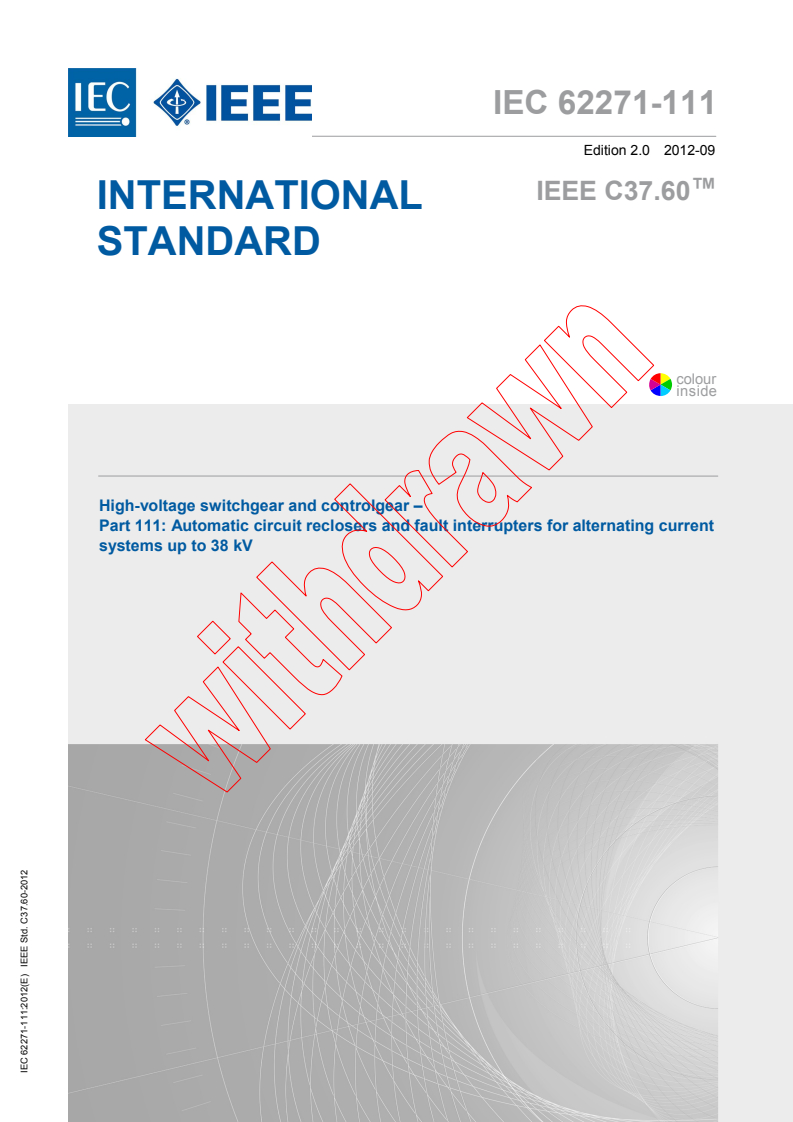

IEC 62271-111
Edition 2.0 2012-09
™
IEEE C37.60
INTERNATIONAL
STANDARD
colour
inside
High-voltage switchgear and controlgear –
Part 111: Automatic circuit reclosers and fault interrupters for alternating current
systems up to 38 kV
All rights reserved. IEEE is a registered trademark in the U.S. Patent & Trademark Office, owned by the Institute of
Electrical and Electronics Engineers, Inc.
Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from the IEC Central
Office.
Any questions about IEEE copyright should be addressed to the IEEE. Enquiries about obtaining additional rights to
this publication and other information requests should be addressed to the IEC or your local IEC member National
Committee.
IEC Central Office Institute of Electrical and Electronics Engineers, Inc.
3, rue de Varembé 3 Park Avenue
CH-1211 Geneva 20 New York, NY 10016-5997
Switzerland United States of America
Tel.: +41 22 919 02 11 stds.info@ieee.org
Fax: +41 22 919 03 00 www.ieee.org
info@iec.ch
www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

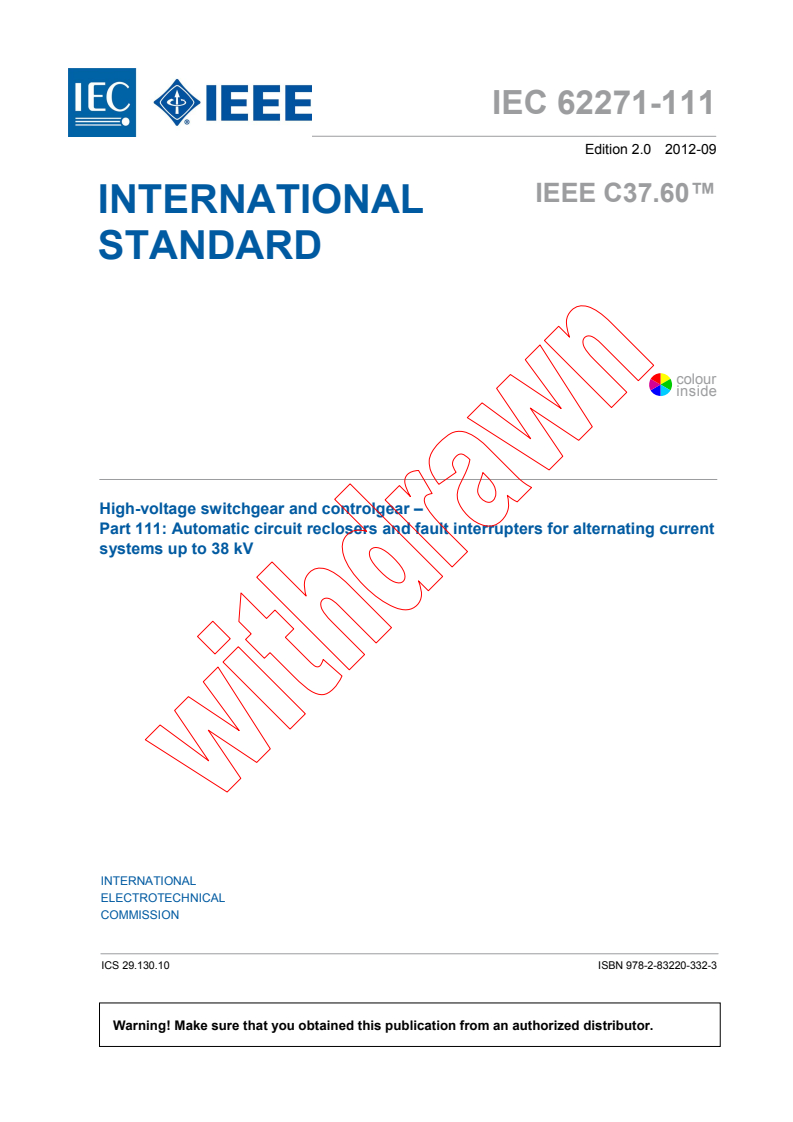

IEC 62271-111
Edition 2.0 2012-09
IEEE C37.60™
INTERNATIONAL
STANDARD
colour
inside
High-voltage switchgear and controlgear –
Part 111: Automatic circuit reclosers and fault interrupters for alternating current
systems up to 38 kV
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XF
ICS 29.130.10 ISBN 978-2-83220-332-3
– 2 – IEC 62271-111:2012(E)
IEEE Std C37.60-2012(E)

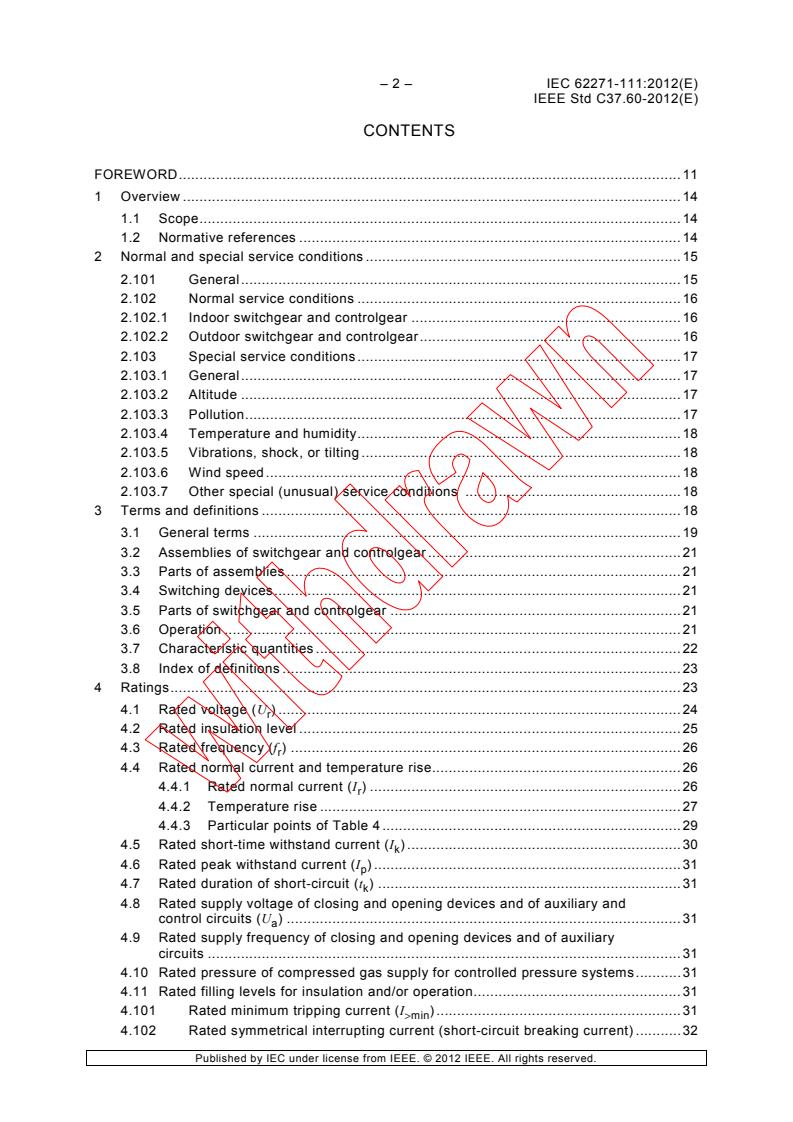

CONTENTS
