IEC 61689:2022
(Main)Ultrasonics - Physiotherapy systems - Field specifications and methods of measurement in the frequency range 0,5 MHz to 5 MHz
Ultrasonics - Physiotherapy systems - Field specifications and methods of measurement in the frequency range 0,5 MHz to 5 MHz
IEC 61689:2022 is applicable to ultrasonic equipment designed for physiotherapy containing an ultrasonic transducer generating continuous or quasi-continuous (e.g. tone burst) wave ultrasound in the frequency range 0,5 MHz to 5 MHz. This document only relates to ultrasonic physiotherapy equipment employing a single plane non-focusing circular transducer per treatment head, producing static beams perpendicular to the face of the treatment head. This document specifies:
- methods of measurement and characterization of the output of ultrasonic physiotherapy equipment based on reference testing methods;
- characteristics to be specified by manufacturers of ultrasonic physiotherapy equipment based on reference testing methods;
- guidelines for safety of the ultrasonic field generated by ultrasonic physiotherapy equipment;
- methods of measurement and characterization of the output of ultrasonic physiotherapy equipment based on routine testing methods;
- acceptance criteria for aspects of the output of ultrasonic physiotherapy equipment based on routine testing methods.
Therapeutic value and methods of use of ultrasonic physiotherapy equipment are not within the scope of this document.
Ultrasonic physiotherapy equipment using ultrasound in the frequency range from 20 kHz to 500 kHz is dealt with in IEC 63009.
IEC 61689:2022 cancels and replaces the third edition published in 2013. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition.
a) The requirement on water oxygen content is specified in 6.1.
b) Former recommendations in 6.2 have been changed to become requirements.
c) Several definitions in Clause 3 have been updated in line with other TC 87 documents.
d) The formerly informative Annex A has been changed to become normative, and now contains details on how conformance with IEC 60601-2-5 requirements is checked.
e) Annex D has been considerably shortened and reference to a now withdrawn regulatory document has been removed.
Ultrasons - Systèmes de physiothérapie - Spécifications des champs et méthodes de mesure dans la plage de fréquences de 0,5 MHz à 5 MHz
L'IEC 61689:2022 est applicable aux appareils à ultrasons, conçus pour la physiothérapie, qui comprennent un transducteur ultrasonique fournissant des ultrasons à onde entretenue ou quasi entretenue (par exemple, salve d’impulsions) dans la plage de fréquences de 0,5 MHz à 5 MHz. Le présent document ne traite que des appareils à ultrasons pour physiothérapie qui emploient un seul transducteur circulaire plan sans focalisation par transducteur, produisant des faisceaux statiques perpendiculaires à la face de ce même transducteur.
Le présent document spécifie:
- les méthodes de mesure et la caractérisation de la sortie des appareils à ultrasons pour physiothérapie, qui reposent sur des méthodes d’essai de référence;
- les caractéristiques à spécifier par les fabricants des appareils à ultrasons pour physiothérapie qui reposent sur des méthodes d’essai de référence;
- les lignes directrices de sécurité du champ ultrasonique créé par les appareils à ultrasons pour physiothérapie;
- les méthodes de mesure et la caractérisation de la sortie des appareils à ultrasons pour physiothérapie, qui reposent sur des méthodes d’essai individuel de série;
- les critères d’aptitude relatifs aux aspects de la sortie des appareils à ultrasons pour physiothérapie, qui reposent sur des méthodes d’essai individuel de série.
La valeur thérapeutique et les modes d’utilisation des appareils à ultrasons pour physiothérapie n’entrent pas dans le domaine d’application du présent document.
Les appareils à ultrasons pour physiothérapie qui utilisent des ultrasons dont la plage de fréquences est comprise entre 20 kHz et 500 kHz sont couverts par l’IEC 63009.
L'IEC 61689:2022 annule et remplace la troisième édition parue en 2013. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente.
a) L’exigence relative à la teneur en oxygène de l’eau est spécifiée en 6.1.
b) Les anciennes recommandations spécifiées en 6.2 ont été modifiées pour constituer des exigences.
c) Plusieurs définitions de l’Article 3 ont été actualisées conformément à d’autres documents qui relèvent du CE 87.
d) L’ancienne Annexe A informative a été modifiée en annexe normative, et contient désormais des informations détaillées sur la méthode selon laquelle la conformité aux exigences de l’IEC 60601-2-5 est vérifiée.
e) L’Annexe D a été raccourcie de manière importante et la référence à un document réglementaire désormais supprimé a été retirée.
General Information
Relations
Overview
IEC 61689:2022 - Ultrasonics - Physiotherapy systems - Field specifications and methods of measurement in the frequency range 0.5 MHz to 5 MHz - defines how to measure, characterize and specify the ultrasonic output of physiotherapy equipment that uses a single-plane non-focusing circular transducer per treatment head producing static beams perpendicular to the face.
The standard covers type testing (reference procedures) and routine testing (production/acceptance), specifies measurement conditions and test equipment, and provides guidance on safety of the ultrasonic field. It does not cover therapeutic value or clinical methods of use. (Note: devices operating 20 kHz–500 kHz are covered by IEC 63009.)
Key topics and technical requirements
- Scope and terminology: Updated terms and definitions aligned with TC 87 documents; applies to continuous and quasi-continuous (e.g., tone burst) ultrasound in 0.5–5 MHz.
- Measurement conditions: Test vessel, hydrophone specifications and positioning, and requirements for RMS/peak signal measurement.
- Type testing (reference procedures): Methods to measure rated output power, effective radiating area (ERA), beam cross-sectional area, and beam non‑uniformity ratio (BNR) using hydrophone scans (raster, diametrical/line scans) and radiation-force/aperture methods.
- Routine testing: Simplified, repeatable measurement procedures and acceptance criteria for production and maintenance checks.
- Safety and performance guidance: Normative Annex A now includes how conformance with IEC 60601-2-5 requirements is checked; guidance on effective intensity and BNR rationale.
- Uncertainty & sampling: Methods for uncertainty determination and sampling plans for reference and routine measurements.
- Notable technical changes (edition 4.0):
- Water oxygen content requirement added;
- Former recommendations tightened into requirements;
- Annex A elevated to normative (conformance checks for IEC 60601-2-5);
- Annex D shortened and obsolete regulatory references removed.
Practical applications and users
Who uses IEC 61689:2022:
- Medical device manufacturers - design verification, product specification, labeling of ultrasonic physiotherapy heads.
- Test and calibration laboratories - performing reference hydrophone scans, radiation force balance tests, ERA determination, and uncertainty analysis.
- Regulatory bodies and conformity assessors - assessing compliance with field-output safety and performance requirements.
- Hospital biomedical engineers and procurement teams - acceptance testing, routine maintenance checks, and purchase specifications.
- Quality assurance teams - establishing production acceptance criteria and release testing.
Related standards
- IEC 63009 - ultrasonics for physiotherapy at 20 kHz–500 kHz.
- IEC 60601-2-5 - medical electrical equipment - particular requirements for ultrasonic physiotherapy equipment (conformance checks referenced in Annex A).
Keywords: IEC 61689:2022, ultrasonics, physiotherapy systems, measurement methods, effective radiating area, hydrophone, beam non‑uniformity ratio, radiation force balance, type testing, routine testing.
Standards Content (Sample)
IEC 61689 ®
Edition 4.0 2022-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Ultrasonics – Physiotherapy systems – Field specifications and methods
of measurement in the frequency range 0,5 MHz to 5 MHz
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61689 ®
Edition 4.0 2022-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Ultrasonics – Physiotherapy systems – Field specifications and methods
of measurement in the frequency range 0,5 MHz to 5 MHz
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 11.040.60 ISBN 978-2-8322-5072-3
– 2 – IEC 61689:2022 RLV © IEC 2022

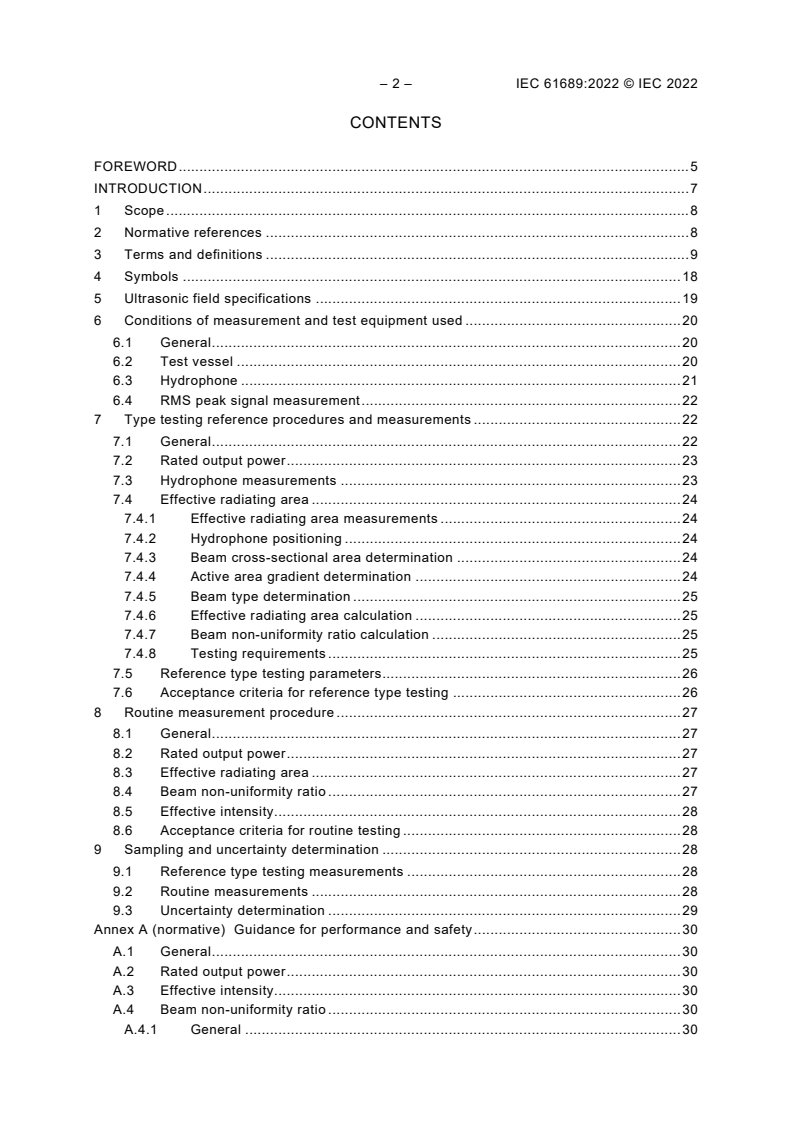

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 9
4 Symbols . 19
5 Ultrasonic field specifications . 20
6 Conditions of measurement and test equipment used . 21
6.1 General . 21
6.2 Test vessel . 21
6.3 Hydrophone . 22
6.4 RMS or peak signal measurement . 23
7 Type testing reference procedures and measurements . 24
7.1 General . 24
7.2 Rated output power . 24
7.3 Hydrophone measurements . 24
7.4 Effective radiating area . 25
7.4.1 Effective radiating area measurements . 25
7.4.2 Hydrophone positioning . 26
7.4.3 Beam cross-sectional area determination . 26
7.4.4 Active area gradient determination . 26
7.4.5 Beam type determination . 26
7.4.6 Effective radiating area calculation . 26
7.4.7 Beam non-uniformity ratio calculation . 26
7.4.8 Testing requirements . 27
7.5 Reference type testing parameters. 27
7.6 Acceptance criteria for reference type testing . 28
8 Routine measurement procedure . 28
8.1 General . 28
8.2 Rated output power . 28
8.3 Effective radiating area . 28
8.4 Beam non-uniformity ratio . 29
8.5 Effective intensity. 29
8.6 Acceptance criteria for routine testing . 29
9 Sampling and uncertainty determination . 30
9.1 Reference type testing measurements . 30
9.2 Routine measurements . 30
9.3 Uncertainty determination . 30
Annex A (informative normative) Guidance for performance and safety . 31
A.1 General . 31
A.2 Rated output power . 31
A.3 Effective intensity. 31
A.4 Beam non-uniformity ratio . 31
A.4.1 General . 31
A.4.2 Rationale behind using a limiting value for the beam non-uniformity ratio
(R ) . 31
BN
Annex B (normative) Raster scan measurement and analysis procedures . 36
B.1 General . 36
B.2 Requirements for raster scans . 36
B.3 Requirements for analysis of raster scan data . 37
B.3.1 General . 37
B.3.2 Total mean square acoustic pressure . 37
B.3.3 Calculation of the beam cross-sectional area, A . 37
BCS
Annex C (normative) Diametrical or line scan measurement and analysis procedures . 39
C.1 General . 39
C.2 Requirements for line scans . 39
C.3 Analysis of line scans . 39
Annex D (informative) Rationale concerning the beam cross-sectional area definition . 43
Annex E (informative) Factor used to convert the beam cross-sectional area (A ) at
BCS
the face of the treatment head to the effective radiating area (A ) . 48
ER
Annex F (informative) Determining acoustic power through radiation force
measurements . 50
Annex G (informative) Validity of low-power measurements of the beam cross-
sectional area (A ) . 52
BCS
Annex H (informative) Influence of hydrophone effective diameter . 53
Annex I (informative) Effective radiating area measurements using a radiation force
balance and absorbing apertures . 55
I.1 General . 55
I.2 Concept of aperture method . 55
I.3 Requirements for the aperture method . 56
I.3.1 Radiation force balance . 56
I.3.2 Apertures . 56
I.4 Measurement procedure for determining the effective radiating area . 57
I.5 Analysis of raw data to derive the effective radiating area . 58
I.6 Implementation of the aperture technique . 64
I.7 Relationship of results to reference testing method . 65
Annex J (informative) Guidance on uncertainty determination . 66
Annex K (informative) Examples of pulse duration and pulse repetition period of
amplitude modulated waves . 68
Bibliography . 70
Figure A.1 – Normalized, time-averaged values of acoustic intensity (solid line) and of
one of its plane-wave approximations (broken line), existing on the axis of a circular
piston source of ka = 30, plotted against the normalized distance s , where s = λz/a . 34
n n
Figure A.2 – Histogram of R values for 37 treatment heads of various diameters and
BN
frequencies . 35
Figure D.1 – Iso-pressure lines of a typical physiotherapy treatment head of small
geometrical area (ka = 17) .
Figure D.2 – Plot of beam cross-sectional area against different limit values for a
small range of values in distance along the beam alignment axis, z .
– 4 – IEC 61689:2022 RLV © IEC 2022
Figure D.3 – Normalized values of beam cross-sectional area for IEC and FDA limit
values for five transducers of different ka values .
Figure D.4 – Range of values of the beam cross-sectional area (A ) with distance
BCS
from the face of the treatment head .
Figure D.5 – Range of values of the normalized beam cross-sectional area (A ) with
BCS
transducer ka .
Figure E.1 – Conversion factor F as a function of the ka product for ka product
ac
between 40 and 160 . 49
Figure I.1 – Schematic representation of aperture measurement set-up . 56
Figure I.2 – Measured power as a function of aperture diameter for commercially
available 1 MHz physiotherapy treatment heads . 60
Figure I.3 – Cumulative sum of annular power contributions, previously sorted in
descending order of intensity contributions, plotted against the cumulative sum of their
respective annular areas . 64
Figure K.1 – Example 1: Tone-burst (i.e. rectangular modulation waveform) . 68
Figure K.2 – Example 2: Half-wave modulation with no filtering of the AC mains voltage. 68
Figure K.3 – Example 3: Full-wave modulation with no filtering of the AC mains voltage . 68
Figure K.4 – Example 4: Half-wave modulation with filtering of the AC mains voltage;
filtering insufficient to define the wave as continuous wave (3.17) . 69
Figure K.5 – Example 5: Full-wave modulation with filtering of the AC mains voltage;
filtering insufficient to define the wave as continuous wave (3.17) . 69
Table C.1 – Constitution of the transformed array [B] used for the analysis of half-line
scans . 41
Table F.1 – Necessary target size, expressed as the minimum target radius b, as a
function of the ultrasonic frequency, f, the effective radius of the treatment head, a ,
and the target distance, z, calculated in accordance with A.5.3.1 of IEC 61161:2013
(see [8]) . 51
Table G.1 – Variation of the beam cross-sectional area A (z) with the indicated
BCS
output power from two transducers . 52
Table H.1 – Comparison of measurements of the beam cross-sectional area A (z)
BCS
made using hydrophones of geometrical active element radii 0,3 mm, 0,5 mm and
2,0 mm . 54
Table I.1 – Aperture measurement check sheet . 59
Table I.2 – Annular power contributions . 61
Table I.3 – Annular intensity contributions. 61
Table I.4 – Annular intensity contributions, sorted in descending order . 62
Table I.5 – Annular power contributions, sorted in descending order of intensity
contribution . 62
Table I.6 – Cumulative sum of annular power contributions, previously sorted in
descending order of intensity contribution, and the cumulative sum of their respective
annular areas . 63
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ULTRASONICS – PHYSIOTHERAPY SYSTEMS –
FIELD SPECIFICATIONS AND METHODS OF MEASUREMENT
IN THE FREQUENCY RANGE 0,5 MHz TO 5 MHz
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes made to
the previous edition IEC 61689:2013. A vertical bar appears in the margin wherever a change has
been made. Additions are in green text, deletions are in strikethrough red text.
– 6 – IEC 61689:2022 RLV © IEC 2022
IEC 61689 has been prepared by IEC technical committee 87: Ultrasonics. It is an International
Standard.
This fourth edition cancels and replaces the third edition published in 2013. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition.
a) The requirement on water oxygen content is specified in 6.1.
b) Former recommendations in 6.2 have been changed to become requirements.
c) Several definitions in Clause 3 have been updated in line with other TC 87 documents.
d) The formerly informative Annex A has been changed to become normative, and now
contains details on how conformance with IEC 60601-2-5 requirements is checked.
e) Annex D has been considerably shortened and reference to a now withdrawn regulatory
document has been removed.
The text of this International Standard is based on the following documents:
Draft Report on voting
87/784/FDIS 87/789/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
NOTE The following print types are used:
• Requirements: in Arial 10 point
• Notes: in Arial 8 point
• Words in bold in the text are defined in Clause 3
• Symbols and formulae: Times New Roman + Italic
• Compliance clauses: in Arial Italic
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.
INTRODUCTION
Ultrasound at low megahertz frequencies is widely used in medicine for the purposes of
physiotherapy. Such equipment consists of a generator of high frequency electrical energy
and usually a hand-held treatment head, often referred to as an applicator. The treatment
head contains a transducer, usually a disc of piezoelectric material, for converting the electrical
energy to ultrasound and is often designed for contact with the human body.
– 8 – IEC 61689:2022 RLV © IEC 2022
ULTRASONICS – PHYSIOTHERAPY SYSTEMS –
FIELD SPECIFICATIONS AND METHODS OF MEASUREMENT
IN THE FREQUENCY RANGE 0,5 MHz TO 5 MHz
1 Scope
This document is applicable to ultrasonic equipment designed for physiotherapy containing an
ultrasonic transducer generating continuous or quasi-continuous (e.g. tone burst) wave
ultrasound in the frequency range 0,5 MHz to 5 MHz. This document only relates to ultrasonic
physiotherapy equipment employing a single plane non-focusing circular transducer per
treatment head, producing static beams perpendicular to the face of the treatment head.
This document specifies:
• methods of measurement and characterization of the output of ultrasonic physiotherapy
equipment based on reference testing methods;
• characteristics to be specified by manufacturers of ultrasonic physiotherapy equipment
based on reference testing methods;
• guidelines for safety of the ultrasonic field generated by ultrasonic physiotherapy
equipment;
• methods of measurement and characterization of the output of ultrasonic physiotherapy
equipment based on routine testing methods;
• acceptance criteria for aspects of the output of ultrasonic physiotherapy equipment
based on routine testing methods.
Therapeutic value and methods of use of ultrasonic physiotherapy equipment are not within
the scope of this document.
Ultrasonic physiotherapy equipment using ultrasound in the frequency range from 20 kHz
to 500 kHz is dealt with in IEC 63009.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60601-1, Medical electrical equipment – Part 1: General requirements for basic safety and
essential performance
IEC 60601-2-5, Medical electrical equipment – Part 2-5: Particular requirements for the basic
safety and essential performance of ultrasonic physiotherapy equipment
IEC 61161:2013, Ultrasonics – Power measurement – Radiation force balances and
performance requirements
IEC 62127-1:2007, Ultrasonics – Hydrophones – Part 1: Measurement and characterization of
medical ultrasonic fields up to 40 MHz
Amendment 1:2013
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
NOTE SI units (see ISO/IEC Directives – Part 2:2011, Annex I b) are used in the Notes to entry below certain
parameter definitions for defining certain parameters, such as beam areas and intensities. It may be convenient to
use decimal multiples or submultiples in practice but care should be taken in using decimal prefixes in combination
with units when using and calculating numerical data. For example, beam area may be specified in cm and intensities
2 2
in W/cm or mW/cm .
3.1
absolute maximum rated output power
sum of the rated output power, the 95 % confidence overall uncertainty in the rated output
power, and the maximum increase in the rated output power for a ±10 % variation in the rated
value of the mains voltage
Note 1 to entry: The possibility of variation in the rated output power resulting from ±10 % variation in the rated
value of the mains voltage should be checked by using a variable output transformer between the mains voltage
supply and the ultrasonic physiotherapy equipment. See Clause A.2 for further guidance.
Note 2 to entry: Absolute maximum rated output power is expressed in watts (W).
3.2
active area coefficient
Q
quotient of the active area gradient, m, and the beam cross-sectional area at 0,3 cm from
the face of the treatment head, A (0,3 cm)
BCS
−1
Note 1 to entry: Active area coefficient is expressed in units of one per metre (m ).
3.3
active area gradient
m
gradient of the line connecting the beam cross-sectional area at 0,3 cm from the face of the
treatment head, A (0,3), and the beam cross-sectional area at the position of the last axial
BCS
maximum acoustic pressure, A (z ), versus distance
BCS N
ratio of the difference of the beam cross-sectional area at z , A (z ), and the beam cross-
N BCS N
sectional area at 0,3 cm from the face of the treatment head, A (0,3 cm), divided by the
BCS
difference of the respective distances
A zA− (0,3 cm)
( )
BCS N BCS
m = (1)
z − 0,3 cm
N
where
A is the beam cross-sectional area;
BCS
z is the distance from the face of the treatment head to the last maximum of the RMS
N
acoustic pressure on the beam alignment axis
Note 1 to entry: Active area gradient is expressed in metres (m).
– 10 – IEC 61689:2022 RLV © IEC 2022
[SOURCE: IEC 61689:2013, 3.3, modified – The calculation scheme of the gradient was added
to the definition, and the formula was added.]
3.4
absolute maximum beam non-uniformity ratio
beam non-uniformity ratio plus the 95 % confidence overall uncertainty in the beam non-
uniformity ratio
3.5
absolute maximum effective intensity
value of the effective intensity corresponding to the absolute maximum rated output power
and the absolute minimum effective radiating area from the equipment
3.6
absolute minimum effective radiating area
effective radiating area minus the 95 % confidence overall uncertainty in the effective
radiating area
3.7
acoustic-working frequency
acoustic frequency
f
awf
frequency of an acoustic signal based on the observation of the output of a hydrophone placed
in an acoustic field at the position corresponding to the spatial-peak temporal-peak acoustic
pressure
Note 1 to entry: The signal is analysed using either the zero-crossing acoustic-working frequency technique or
a spectrum analysis method. Acoustic-working frequencies are defined in 3.7.1 and 3.7.2.
Note 2 to entry: In a number of cases the present definition is not very helpful or convenient, especially for
broadband transducers. In that case a full description of the frequency spectrum should be given in order to enable
any frequency-dependent correction to the signal.
Note 3 to entry: Acoustic frequency is expressed in hertz (Hz).
[SOURCE: IEC 62127-1:2007 Amendment 1:2013, 3.3]
3.7.1
arithmetic-mean acoustic-working frequency
f
awf
arithmetic mean of the most widely separated frequencies f and f , within the range of three
1 2
times f , at which the magnitude of the acoustic pressure spectrum is 3 dB below the peak
magnitude
Note 1 to entry: This frequency definition usually is intended for pulse-wave systems that produce short pulses
containing only a few cycles, but it could be used for tone bursts.
Note 2 to entry: It is assumed that f < f .
1 2
Note 3 to entry: If f is not found within the range < 3f , f is to be understood as the lowest frequency above this
2 1 2
range at which the spectrum magnitude is 3 dB below the peak magnitude.
[SOURCE: IEC 62127-1:2007 and IEC 62127-1:2007/AMD1:2013, 3.3.2, modified – Note 3 1 to
entry has been added modified.]
3.7.2
zero-crossing acoustic-working frequency
f
awf
number, n, of consecutive half-cycles (irrespective of polarity) divided by twice the time between
the commencement of the first half-cycle and the end of the n-th half-cycle
Note 1 to entry: None of the n consecutive half-cycles should show evidence of phase change.
Note 2 to entry: The measurement should be performed at terminals in the receiver that are as close as possible to
the receiving transducer (hydrophone) and, in all cases, before rectification.
Note 3 to entry: This frequency is determined in accordance with the procedure specified in IEC TR 60854.
Note 4 to entry: This frequency is intended for continuous wave or quasi-continuous-wave (e.g. tone-burst)
systems only.
[SOURCE: IEC 62127-1:2007/AMD1:2013, 3.3.1, modified – In Note 4 to entry, "or quasi-
continuous-wave (e.g. tone-burst)" has been added.]
3.8
acoustic pulse waveform
temporal waveform of the instantaneous acoustic pressure at a specified position in an
acoustic field and displayed over a period sufficiently long to include all significant acoustic
information in a single pulse or tone-burst, or one or more cycles in a continuous wave
Note 1 to entry: Temporal waveform is a representation (e.g. oscilloscope presentation or equation) of the
instantaneous acoustic pressure.
[SOURCE: IEC 62127-1:2007 and IEC 62127-1:2007/AMD1:2013, 3.1, modified – deletion of
NOTE 2]
3.9
acoustic repetition period
arp
pulse repetition period equal to the time interval between corresponding points of consecutive
cycles for continuous wave systems
Note 1 to entry: Acoustic repetition period is expressed in seconds (s).
[SOURCE: IEC 62127-1:2007 Amendment 1:2013, 3.2, modified – The definition cited above is
has been made more specific for non-scanning systems.]
3.10
amplitude modulated wave
wave in which the ratio p / √2p p /(√2p ) at any point in the far field on the beam
p rms tp RMS
alignment axis is greater than 1,05, where p p is the temporal-peak acoustic pressure and
p tp
p p is the RMS acoustic pressure
rms RMS
3.11
attachment head
accessory intended to be attached to the treatment head for the purpose of modifying the
ultrasonic beam characteristics
[SOURCE: IEC 60601-2-5:2009, 201-3-202]
3.12
beam alignment axis
straight line joining two points of spatial-peak temporal-peak acoustic pressure on two plane
surfaces parallel to the faces of the treatment head. One plane is at a distance of approximately
A /(πλ) where A is the nominal value of the effective radiating area of the treatment
ERN ERN
head and λ is the wavelength of the ultrasound corresponding to the nominal value of the
acoustic-working frequency. The second plane surface is at a distance of either 2A /(πλ)
ERN
or A /(3πλ), whichever is the more appropriate. For the purposes of alignment, this line may
ERN
be projected to the face of the treatment head
– 12 – IEC 61689:2022 RLV © IEC 2022
Note 1 to entry: If the nominal value of the effective radiating area is unknown, then another suitable area may be
used to define the beam alignment axis such as the area of the active element of the ultrasonic transducer.
straight line joining two points of maximum RMS acoustic pressure on two plane surfaces
parallel to the faces of the treatment head at specific distances
Note 1 to entry: One plane is at a distance of approximately a /λ where a is the geometrical radius of the active
2 2
element of the treatment head. The second plane surface is at a distance of either 2a /λ or a /(3λ), whichever is the
more appropriate. For the purposes of alignment, this line may be projected to the face of the treatment head.
Note 2 to entry: As the beam alignment axis is used purely for the purposes of alignment, the definitions of specific
distances may be relaxed slightly to reflect the constraints of the measurement system employed. For example, some
treatment heads will have A /(πλ) a /λ considerably greater than 12 cm, in which case a maximum distance of 12
ERN
cm may be used to define the first plane. General guidelines for determining the beam alignment axis are given in
7.3.
3.13
beam cross-sectional area
A
BCS
minimum area in a specified plane perpendicular to the beam alignment axis for which the
sum of the mean square acoustic pressure is 75 % of the total mean square acoustic
pressure
Note 1 to entry: Beam cross-sectional area is expressed in units of square metre (m ).
Note 2 to entry: The rationale supporting the definition is described in Annex D.
3.14
beam maximum intensity
product of the beam non-uniformity ratio and effective intensity
Note 1 to entry: Beam maximum intensity is expressed in units of watt per square metre (W/m ).
3.15
beam non-uniformity ratio
R
BN
ratio of the square of the maximum RMS acoustic pressure to the spatial average of the
square of the RMS acoustic pressure, where the spatial average is taken over the effective
radiating area. Beam non-uniformity ratio is given by:
p A
max ER
R = (1)
BN
pms A
t o
pA
max,RMS ER
R = (2)
BN
pms A
t 0
where
p is the maximum RMS acoustic pressure;
max,RMS
A is the effective radiating area;
ER
pms is the total mean square acoustic pressure;
t
A is the unit area for the raster scan.
3.16
beam type
descriptive classification of the ultrasonic beam
Note 1 to entry: There are three beam types: collimated (3.18), convergent (3.19) and divergent (3.20).
3.17
continuous wave
wave in which the ratio p /√2p p /(√2 p ), at any point in the far field on the beam
p rms tp RMS
alignment axis, is less than or equal to 1,05, where p p is the temporal-peak acoustic
p tp
pressure and p is the RMS acoustic pressure
RMS
3.18
collimated
having an active area coefficient, Q, that obeys the following inequality
−1 −1
−0,05 cm ≤ Q ≤ 0,1 cm
3.19
convergent
having an active area coefficient, Q, that obeys the following inequality
−1
Q < −0,05 cm
3.20
divergent
having an active area coefficient, Q, that obeys the following inequality
−1
Q > 0,1 cm
3.21
duty factor
ratio of the pulse duration to the pulse repetition period
3.22
effective intensity
I
e
intensity given by I = P/A where P is the output power and A is the effective radiating
e ER ER
area
Note 1 to entry: Effective intensity is expressed in units of watt per square metre (W/m ).
3.23
effective radiating area
A
ER
beam cross-sectional area determined at a distance of 0,3 cm from the front of the treatment
head, A (0,3 cm), multiplied by a dimensionless factor F equal to 1,333
BCS ac
Note 1 to entry: The conversion factor F is used here in order to derive the area close to the treatment head
ac
which contains 100 % of the total mean square acoustic pressure. The origin of the value of F is described in
ac
Annex E, in references [1] and [2] in Annex K.
Note 2 to entry: Effective radiating area is expressed in units of square metre (m ).
3.24
end-of-cable loaded sensitivity
end-of-cable loaded sensitivity of a hydrophone
end-of-cable loaded sensitivity of a hydrophone-assembly
M (f)
L
ratio of the instantaneous voltage at the end of any integral cable or output connector of a
hydrophone or hydrophone-assembly, when connected to a specified electric load
impedance, to the instantaneous acoustic pressure in the undisturbed free field of a plane
wave in the position of the reference centre of the hydrophone if the hydrophone were
removed
– 14 – IEC 61689:2022 RLV © IEC 2022
Note 1 to entry: End-of-cable loaded sensitivity is expressed in volt per pascal (V/Pa).
[SOURCE: IEC 62127-3:2007, definition 3.5]
M (f)
L
quotient of the Fourier transformed hydrophone
voltage-time signal (u (t)) at the end of any integral cable or output connector of a
L
hydrophone or hydrophone assembly, when connected to a specified electric load impedance,
to the Fourier transformed acoustic pulse waveform (p(t)) in the undisturbed free field of a
plane wave in the position of the reference centre of the hydrophone if the hydrophone were
removed
ut( )
( )
L
Mf =
( ) (3)
L
pt
( ( ))
Note 1 to entry: The end-of-cable loaded sensitivity is a complex-valued parameter. Its modulus is expressed in
units of volt per pascal (V/Pa), its phase angle is expressed in degrees, and represents the phase difference between
the electrical voltage and the sound pressure.
[SOURCE: IEC 61828:2020, 3.50]
3.25
far field
region of the field where z > z aligned along the beam axis for planar non-focusing transducers
T
where z is the distance from the face of the treatment head to a specified point on the beam
alignment axis
Note 1 to entry: In the far field, the sound pressure appears to be spherically divergent from a point on or near
the radiating surface. Hence the pressure produced by the sound source is approximately inversely proportional to
the distance from the source.
Note 2 to entry: The term "far field" is used in this document only in connection with non-focusing source
transducers. For focusing transducers a different terminology for the various parts of the transmitted field applies
(see IEC 61828).
Note 3 to entry: For the purposes of this document, the far field starts at a distance where z = A /(πλ), where
T ERN
A is the nominal value of the effective radiating area of the treatment head and λ is the wavelength of the
ERN
ultrasound corresponding to the acoustic working frequency. This differs from the NOTE in IEC 62127-1
Amendment 1:2013.
[SOURCE: IEC 62127-1:2007/AMD1:2013, 3.28, modified – The above definition has replaced
the Note 3 to entry In the definition, specification of z has been added and Note 3 to entry has
been replaced to provide specific information on z ]
T
3.26
hydrophone
transducer that produces electrical signals in response to waterborne acoustic signals pressure
fluctuations in water
Note 1 to entry: A hydrophone is principally a passive device designed and built to respond to sound pressure.
Note 2 to entry: In some applications, a hydrophone is used as an active device to transmit sound.
[SOURCE: IEC 60050-801:19942021, 801-32-26]
3.27
instantaneous acoustic pressure
p(t)
pressure at a particular instant in time and at a particular point in an acoustic field, minus the
ambient pressure
Note 1 to entry: Instantaneous acoustic pressure is expressed in pascals (Pa).
[SOURCE: IEC 60050-802:2011, 802-01-03, modified – only grammatical, plus addition of the
Note 1 to entry]
3.28
maximum RMS acoustic pressure
p
max,RMS
maximum value of the rms acoustic pressure detected by a hydrophone over the entire
acoustic field of the RMS acoustic pressure
Note 1 to entry: Maximum RMS acoustic pressure is expressed in pascals (Pa).
3.29
mean square acoustic pressure
mean square of the instantaneous acoustic pressure at a particular point in the acoustic field,
taken over an integral number of acoustic repetition periods
Note 1 to entry: In practice, the mean value is often derived from RMS measurements.
Note 2 to entry: Mean square acoustic pressure is expressed in units of pascal squared (Pa ).
3.30
modulation waveform
temporal envelope waveform of the amplitude modulated wave at the point of peak RMS
acoustic pressure on the beam alignment axis and displayed over a period sufficiently long
to include all significant acoustic information in the amplitude modulated wave
Note 1 to entry: See Annex K for examples.
3.31
output power
P
time-average ultrasonic power emitted by a treatment head of ultrasonic physiotherapy
equipment into an approximately free field under specified conditions in a specified medium,
preferably in water
Note 1 to entry: Output power is expressed in watts (W).
[SOURCE: IEC 61161:2013, 3.3, modified – In the definition, "ultrasonic transducer" has been
replaced by "treatment head of ultrasonic physiotherapy equipment".]
3.32
peak RMS acoustic pressure
maximum value of the RMS acoustic pressure over a specified region, line or plane in an
acoustic field
Note 1 to entry: Peak RMS ac
...
IEC 61689 ®
Edition 4.0 2022-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ultrasonics – Physiotherapy systems – Field specifications and methods
of measurement in the frequency range 0,5 MHz to 5 MHz
Ultrasons – Systèmes de physiothérapie – Spécifications des champs
et méthodes de mesure dans la plage de fréquences de 0,5 MHz à 5 MHz
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch
IEC 61689 ®
Edition 4.0 2022-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ultrasonics – Physiotherapy systems – Field specifications and methods
of measurement in the frequency range 0,5 MHz to 5 MHz
Ultrasons – Systèmes de physiothérapie – Spécifications des champs
et méthodes de mesure dans la plage de fréquences de 0,5 MHz à 5 MHz
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 11.040.60 ISBN 978-2-8322-1080-0
– 2 – IEC 61689:2022 © IEC 2022
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 9
4 Symbols . 18
5 Ultrasonic field specifications . 19
6 Conditions of measurement and test equipment used . 20
6.1 General . 20
6.2 Test vessel . 20
6.3 Hydrophone . 21
6.4 RMS peak signal measurement . 22
7 Type testing reference procedures and measurements . 22
7.1 General . 22
7.2 Rated output power . 23
7.3 Hydrophone measurements . 23
7.4 Effective radiating area . 24
7.4.1 Effective radiating area measurements . 24
7.4.2 Hydrophone positioning . 24
7.4.3 Beam cross-sectional area determination . 24
7.4.4 Active area gradient determination . 24
7.4.5 Beam type determination . 25
7.4.6 Effective radiating area calculation . 25
7.4.7 Beam non-uniformity ratio calculation . 25
7.4.8 Testing requirements . 25
7.5 Reference type testing parameters. 26
7.6 Acceptance criteria for reference type testing . 26
8 Routine measurement procedure . 27
8.1 General . 27
8.2 Rated output power . 27
8.3 Effective radiating area . 27
8.4 Beam non-uniformity ratio . 27
8.5 Effective intensity. 28
8.6 Acceptance criteria for routine testing . 28
9 Sampling and uncertainty determination . 28
9.1 Reference type testing measurements . 28
9.2 Routine measurements . 28
9.3 Uncertainty determination . 29
Annex A (normative) Guidance for performance and safety . 30
A.1 General . 30
A.2 Rated output power . 30
A.3 Effective intensity. 30
A.4 Beam non-uniformity ratio . 30
A.4.1 General . 30
A.4.2 Rationale behind using a limiting value for the beam non-uniformity ratio
(R ) . 30
BN
Annex B (normative) Raster scan measurement and analysis procedures . 35
B.1 General . 35
B.2 Requirements for raster scans . 35
B.3 Requirements for analysis of raster scan data . 36
B.3.1 General . 36
B.3.2 Total mean square acoustic pressure . 36
B.3.3 Calculation of the beam cross-sectional area, A . 36
BCS
Annex C (normative) Diametrical or line scan measurement and analysis procedures . 37
C.1 General . 37
C.2 Requirements for line scans . 37
C.3 Analysis of scans . 37
Annex D (informative) Rationale concerning the beam cross-sectional area definition . 41
Annex E (informative) Factor used to convert the beam cross-sectional area (A ) at
BCS
the face of the treatment head to the effective radiating area (A ) . 42
ER
Annex F (informative) Determining acoustic power through radiation force
measurements . 44
Annex G (informative) Validity of low-power measurements of the beam cross-
sectional area (A ) . 46
BCS
Annex H (informative) Influence of hydrophone effective diameter . 47
Annex I (informative) Effective radiating area measurements using a radiation force
balance and absorbing apertures . 49
I.1 General . 49
I.2 Concept of aperture method . 49
I.3 Requirements for the aperture method . 50
I.3.1 Radiation force balance . 50
I.3.2 Apertures . 50
I.4 Measurement procedure for determining the effective radiating area . 51
I.5 Analysis of raw data to derive the effective radiating area . 52
I.6 Implementation of the aperture technique . 58
I.7 Relationship of results to reference testing method . 59
Annex J (informative) Guidance on uncertainty determination . 60
Annex K (informative) Examples of pulse duration and pulse repetition period of
amplitude modulated waves . 62
Bibliography . 64
Figure A.1 – Normalized, time-averaged values of acoustic intensity (solid line) and of
one of its plane-wave approximations (broken line), existing on the axis of a circular
piston source of ka = 30, plotted against the normalized distance s , where s = λz/a . 33
n n
Figure A.2 – Histogram of R values for 37 treatment heads of various diameters and
BN
frequencies . 34
Figure E.1 – Conversion factor F as a function of the ka product for ka product
ac
between 40 and 160 . 43
Figure I.1 – Schematic representation of aperture measurement set-up . 50
Figure I.2 – Measured power as a function of aperture diameter for commercially
available 1 MHz physiotherapy treatment heads . 54
– 4 – IEC 61689:2022 © IEC 2022
Figure I.3 – Cumulative sum of annular power contributions, previously sorted in
descending order of intensity contributions, plotted against the cumulative sum of their
respective annular areas . 58
Figure K.1 – Example 1: Tone-burst (i.e. rectangular modulation waveform) . 62
Figure K.2 – Example 2: Half-wave modulation with no filtering of the AC mains voltage. 62
Figure K.3 – Example 3: Full-wave modulation with no filtering of the AC mains voltage . 62
Figure K.4 – Example 4: Half-wave modulation with filtering of the AC mains voltage;
filtering insufficient to define the wave as continuous wave (3.17) . 63
Figure K.5 – Example 5: Full-wave modulation with filtering of the AC mains voltage;
filtering insufficient to define the wave as continuous wave (3.17) . 63
Table C.1 – Constitution of the transformed array [B] used for the analysis of half-line
scans . 39
Table F.1 – Necessary target size, expressed as the minimum target radius b, as a
function of the ultrasonic frequency, f, the effective radius of the treatment head, a ,
and the target distance, z, calculated in accordance with A.5.3.1 of IEC 61161:2013
(see [8]) . 45
Table G.1 – Variation of the beam cross-sectional area A (z) with the indicated
BCS
output power from two transducers . 46
Table H.1 – Comparison of measurements of the beam cross-sectional area A (z)
BCS
made using hydrophones of geometrical active element radii 0,3 mm, 0,5 mm and
2,0 mm . 48
Table I.1 – Aperture measurement check sheet . 53
Table I.2 – Annular power contributions . 55
Table I.3 – Annular intensity contributions. 55
Table I.4 – Annular intensity contributions, sorted in descending order . 56
Table I.5 – Annular power contributions, sorted in descending order of intensity
contribution . 56
Table I.6 – Cumulative sum of annular power contributions, previously sorted in
descending order of intensity contribution, and the cumulative sum of their respective
annular areas . 57
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ULTRASONICS – PHYSIOTHERAPY SYSTEMS –
FIELD SPECIFICATIONS AND METHODS OF MEASUREMENT
IN THE FREQUENCY RANGE 0,5 MHz TO 5 MHz
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61689 has been prepared by IEC technical committee 87: Ultrasonics. It is an International
Standard.
This fourth edition cancels and replaces the third edition published in 2013. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition.
a) The requirement on water oxygen content is specified in 6.1.
b) Former recommendations in 6.2 have been changed to become requirements.
c) Several definitions in Clause 3 have been updated in line with other TC 87 documents.
d) The formerly informative Annex A has been changed to become normative, and now
contains details on how conformance with IEC 60601-2-5 requirements is checked.
e) Annex D has been considerably shortened and reference to a now withdrawn regulatory
document has been removed.
– 6 – IEC 61689:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
87/784/FDIS 87/789/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
NOTE The following print types are used:
• Requirements: in Arial 10 point
• Notes: in Arial 8 point
• Words in bold in the text are defined in Clause 3
• Symbols and formulae: Times New Roman + Italic
• Compliance clauses: in Arial Italic
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Ultrasound at low megahertz frequencies is widely used in medicine for the purposes of
physiotherapy. Such equipment consists of a generator of high frequency electrical energy
and usually a hand-held treatment head, often referred to as an applicator. The treatment
head contains a transducer, usually a disc of piezoelectric material, for converting the electrical
energy to ultrasound and is often designed for contact with the human body.
– 8 – IEC 61689:2022 © IEC 2022
ULTRASONICS – PHYSIOTHERAPY SYSTEMS –
FIELD SPECIFICATIONS AND METHODS OF MEASUREMENT
IN THE FREQUENCY RANGE 0,5 MHz TO 5 MHz
1 Scope
This document is applicable to ultrasonic equipment designed for physiotherapy containing an
ultrasonic transducer generating continuous or quasi-continuous (e.g. tone burst) wave
ultrasound in the frequency range 0,5 MHz to 5 MHz. This document only relates to ultrasonic
physiotherapy equipment employing a single plane non-focusing circular transducer per
treatment head, producing static beams perpendicular to the face of the treatment head.
This document specifies:
• methods of measurement and characterization of the output of ultrasonic physiotherapy
equipment based on reference testing methods;
• characteristics to be specified by manufacturers of ultrasonic physiotherapy equipment
based on reference testing methods;
• guidelines for safety of the ultrasonic field generated by ultrasonic physiotherapy
equipment;
• methods of measurement and characterization of the output of ultrasonic physiotherapy
equipment based on routine testing methods;
• acceptance criteria for aspects of the output of ultrasonic physiotherapy equipment
based on routine testing methods.
Therapeutic value and methods of use of ultrasonic physiotherapy equipment are not within
the scope of this document.
Ultrasonic physiotherapy equipment using ultrasound in the frequency range from 20 kHz
to 500 kHz is dealt with in IEC 63009.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60601-1, Medical electrical equipment – Part 1: General requirements for basic safety and
essential performance
IEC 60601-2-5, Medical electrical equipment – Part 2-5: Particular requirements for the basic
safety and essential performance of ultrasonic physiotherapy equipment
IEC 61161, Ultrasonics – Power measurement – Radiation force balances and performance
requirements
IEC 62127-1, Ultrasonics – Hydrophones – Part 1: Measurement and characterization of
medical ultrasonic fields
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
absolute maximum rated output power
sum of the rated output power, the 95 % confidence overall uncertainty in the rated output
power, and the maximum increase in the rated output power for a ±10 % variation in the rated
value of the mains voltage
Note 1 to entry: The possibility of variation in the rated output power resulting from ±10 % variation in the rated
value of the mains voltage should be checked by using a variable output transformer between the mains voltage
supply and the ultrasonic physiotherapy equipment. See Clause A.2 for further guidance.
Note 2 to entry: Absolute maximum rated output power is expressed in watts (W).
3.2
active area coefficient
Q
quotient of the active area gradient, m, and the beam cross-sectional area at 0,3 cm from
the face of the treatment head, A (0,3 cm)
BCS
−1
Note 1 to entry: Active area coefficient is expressed in units of one per metre (m ).
3.3
active area gradient
m
ratio of the difference of the beam cross-sectional area at z , A (z ), and the beam cross-
N BCS N
sectional area at 0,3 cm from the face of the treatment head, A (0,3 cm), divided by the
BCS
difference of the respective distances
A zA− 0,3 cm
( ) ( )
BCS N BCS
m= (1)
z − 0,3 cm
N
where
A is the beam cross-sectional area;
BCS
z is the distance from the face of the treatment head to the last maximum of the RMS
N
acoustic pressure on the beam alignment axis
Note 1 to entry: Active area gradient is expressed in metres (m).
[SOURCE: IEC 61689:2013, 3.3, modified – The calculation scheme of the gradient was added
to the definition, and the formula was added.]
3.4
absolute maximum beam non-uniformity ratio
beam non-uniformity ratio plus the 95 % confidence overall uncertainty in the beam non-
uniformity ratio
– 10 – IEC 61689:2022 © IEC 2022
3.5
absolute maximum effective intensity
value of the effective intensity corresponding to the absolute maximum rated output power
and the absolute minimum effective radiating area from the equipment
3.6
absolute minimum effective radiating area
effective radiating area minus the 95 % confidence overall uncertainty in the effective
radiating area
3.7
acoustic-working frequency
acoustic frequency
f
awf
frequency of an acoustic signal based on the observation of the output of a hydrophone placed
in an acoustic field at the position corresponding to the spatial-peak temporal-peak acoustic
pressure
Note 1 to entry: The signal is analysed using either the zero-crossing acoustic-working frequency technique or
a spectrum analysis method. Acoustic-working frequencies are defined in 3.7.1 and 3.7.2.
Note 2 to entry: In a number of cases the present definition is not very helpful or convenient, especially for
broadband transducers. In that case a full description of the frequency spectrum should be given in order to enable
any frequency-dependent correction to the signal.
Note 3 to entry: Acoustic frequency is expressed in hertz (Hz).
[SOURCE: IEC 62127-1:2007, 3.3]
3.7.1
arithmetic-mean acoustic-working frequency
f
awf
arithmetic mean of the most widely separated frequencies f and f , within the range of three
1 2
times f , at which the magnitude of the acoustic pressure spectrum is 3 dB below the peak
magnitude
Note 1 to entry: This frequency definition usually is intended for systems that produce short pulses containing only
a few cycles, but it could be used for tone bursts.
Note 2 to entry: It is assumed that f < f .
1 2
Note 3 to entry: If f is not found within the range < 3f , f is to be understood as the lowest frequency above this
2 1 2
range at which the spectrum magnitude is 3 dB below the peak magnitude.
[SOURCE: IEC 62127-1:2007 and IEC 62127-1:2007/AMD1:2013, 3.3.2, modified – Note 1 to
entry has been modified.]
3.7.2
zero-crossing acoustic-working frequency
f
awf
number, n, of consecutive half-cycles (irrespective of polarity) divided by twice the time between
the commencement of the first half-cycle and the end of the n-th half-cycle
Note 1 to entry: None of the n consecutive half-cycles should show evidence of phase change.
Note 2 to entry: The measurement should be performed at terminals in the receiver that are as close as possible to
the receiving transducer (hydrophone) and, in all cases, before rectification.
Note 3 to entry: This frequency is determined in accordance with the procedure specified in IEC TR 60854.
Note 4 to entry: This frequency is intended for continuous wave or quasi-continuous-wave (e.g. tone-burst)
systems only.
[SOURCE: IEC 62127-1:2007/AMD1:2013, 3.3.1, modified – In Note 4 to entry, "or quasi-
continuous-wave (e.g. tone-burst)" has been added.]
3.8
acoustic pulse waveform
temporal waveform of the instantaneous acoustic pressure at a specified position in an
acoustic field and displayed over a period sufficiently long to include all significant acoustic
information in a single pulse or tone-burst, or one or more cycles in a continuous wave
Note 1 to entry: Temporal waveform is a representation (e.g. oscilloscope presentation or equation) of the
instantaneous acoustic pressure.
[SOURCE: IEC 62127-1:2007 and IEC 62127-1:2007/AMD1:2013, 3.1]
3.9
acoustic repetition period
arp
pulse repetition period equal to the time interval between corresponding points of consecutive
cycles for continuous wave systems
Note 1 to entry: Acoustic repetition period is expressed in seconds (s).
[SOURCE: IEC 62127-1:2007, 3.2, modified – The definition has been made more specific for
non-scanning systems.]
3.10
amplitude modulated wave
wave in which the ratio p /(√2p ) at any point in the far field on the beam alignment axis
tp RMS
is greater than 1,05, where p is the temporal-peak acoustic pressure and p is the RMS
tp RMS
acoustic pressure
3.11
attachment head
accessory intended to be attached to the treatment head for the purpose of modifying the
ultrasonic beam characteristics
[SOURCE: IEC 60601-2-5:2009, 201-3-202]
3.12
beam alignment axis
straight line joining two points of maximum RMS acoustic pressure on two plane surfaces
parallel to the faces of the treatment head at specific distances
Note 1 to entry: One plane is at a distance of approximately a /λ where a is the geometrical radius of the active
2 2
element of the treatment head. The second plane surface is at a distance of either 2a /λ or a /(3λ), whichever is the
more appropriate. For the purposes of alignment, this line may be projected to the face of the treatment head.
Note 2 to entry: As the beam alignment axis is used purely for the purposes of alignment, the definitions of specific
distances may be relaxed slightly to reflect the constraints of the measurement system employed. For example, some
treatment heads will have a /λ considerably greater than 12 cm, in which case a maximum distance of 12 cm may
be used to define the first plane. General guidelines for determining the beam alignment axis are given in 7.3.
– 12 – IEC 61689:2022 © IEC 2022
3.13
beam cross-sectional area
A
BCS
minimum area in a specified plane perpendicular to the beam alignment axis for which the
sum of the mean square acoustic pressure is 75 % of the total mean square acoustic
pressure
Note 1 to entry: Beam cross-sectional area is expressed in units of square metre (m ).
Note 2 to entry: The rationale supporting the definition is described in Annex D.
3.14
beam maximum intensity
product of the beam non-uniformity ratio and effective intensity
Note 1 to entry: Beam maximum intensity is expressed in units of watt per square metre (W/m ).
3.15
beam non-uniformity ratio
R
BN
ratio of the square of the maximum RMS acoustic pressure to the spatial average of the
square of the RMS acoustic pressure, where the spatial average is taken over the effective
radiating area
pA
max,RMS ER
R = (2)
BN
pms A
t 0
where
p is the maximum RMS acoustic pressure;
max,RMS
is the effective radiating area;
A
ER
pms is the total mean square acoustic pressure;
t
A is the unit area for the raster scan.
3.16
beam type
descriptive classification of the ultrasonic beam
Note 1 to entry: There are three beam types: collimated (3.18), convergent (3.19) and divergent (3.20).
3.17
continuous wave
wave in which the ratio p /(√2 p ), at any point in the far field on the beam alignment axis,
tp RMS
is less than or equal to 1,05, where p is the temporal-peak acoustic pressure and p is
tp RMS
the RMS acoustic pressure
3.18
collimated
having an active area coefficient, Q, that obeys the following inequality
−1 −1
−0,05 cm ≤ Q ≤ 0,1 cm
3.19
convergent
having an active area coefficient, Q, that obeys the following inequality
−1
Q < −0,05 cm
3.20
divergent
having an active area coefficient, Q, that obeys the following inequality
−1
Q > 0,1 cm
3.21
duty factor
ratio of the pulse duration to the pulse repetition period
3.22
effective intensity
I
e
intensity given by I = P/A where P is the output power and A is the effective radiating
e ER ER
area
Note 1 to entry: Effective intensity is expressed in units of watt per square metre (W/m ).
3.23
effective radiating area
A
ER
beam cross-sectional area determined at a distance of 0,3 cm from the front of the treatment
head, A (0,3 cm), multiplied by a dimensionless factor F equal to 1,333
BCS ac
Note 1 to entry: The conversion factor F is used here in order to derive the area close to the treatment head
ac
which contains 100 % of the total mean square acoustic pressure. The origin of the value of F is described in
ac
Annex E.
Note 2 to entry: Effective radiating area is expressed in units of square metre (m ).
3.24
end-of-cable loaded sensitivity
M (f)
L
quotient of the Fourier transformed hydrophone
voltage-time signal (u (t)) at the end of any integral cable or output connector of a
L
hydrophone or hydrophone assembly, when connected to a specified electric load impedance,
to the Fourier transformed acoustic pulse waveform (p(t)) in the undisturbed free field of a
plane wave in the position of the reference centre of the hydrophone if the hydrophone were
removed
ut()
( )
L
Mf( )=
(3)
L
pt
( ())
Note 1 to entry: The end-of-cable loaded sensitivity is a complex-valued parameter. Its modulus is expressed in
units of volt per pascal (V/Pa), its phase angle is expressed in degrees, and represents the phase difference between
the electrical voltage and the sound pressure.
[SOURCE: IEC 61828:2020, 3.50]
– 14 – IEC 61689:2022 © IEC 2022
3.25
far field
region of the field where z > z aligned along the beam axis for planar non-focusing transducers
T
where z is the distance from the face of the treatment head to a specified point on the beam
alignment axis
Note 1 to entry: In the far field, the sound pressure appears to be spherically divergent from a point on or near
the radiating surface. Hence the pressure produced by the sound source is approximately inversely proportional to
the distance from the source.
Note 2 to entry: The term "far field" is used in this document only in connection with non-focusing source
transducers. For focusing transducers a different terminology for the various parts of the transmitted field applies
(see IEC 61828).
Note 3 to entry: For the purposes of this document, the far field starts at a distance where z = A /(πλ), where
T ERN
A is the nominal value of the effective radiating area of the treatment head and λ is the wavelength of the
ERN
ultrasound corresponding to the acoustic working frequency.
[SOURCE: IEC 62127-1:2007/AMD1:2013, 3.28, modified – In the definition, specification of z
has been added and Note 3 to entry has been replaced to provide specific information on z ]
T
3.26
hydrophone
transducer that produces electrical signals in response to pressure fluctuations in water
Note 1 to entry: A hydrophone is principally a passive device designed and built to respond to sound pressure.
Note 2 to entry: In some applications, a hydrophone is used as an active device to transmit sound.
[SOURCE: IEC 60050-801:2021, 801-32-26]
3.27
instantaneous acoustic pressure
p(t)
pressure at a particular instant in time and at a particular point in an acoustic field, minus the
ambient pressure
Note 1 to entry: Instantaneous acoustic pressure is expressed in pascals (Pa).
[SOURCE: IEC 60050-802:2011, 802-01-03]
3.28
maximum RMS acoustic pressure
p
max,RMS
maximum value over the entire acoustic field of the RMS acoustic pressure
Note 1 to entry: Maximum RMS acoustic pressure is expressed in pascals (Pa).
3.29
mean square acoustic pressure
mean square of the instantaneous acoustic pressure at a particular point in the acoustic field,
taken over an integral number of acoustic repetition periods
Note 1 to entry: In practice, the mean value is often derived from RMS measurements.
Note 2 to entry: Mean square acoustic pressure is expressed in units of pascal squared (Pa ).
3.30
modulation waveform
temporal envelope waveform of the amplitude modulated wave at the point of peak RMS
acoustic pressure on the beam alignment axis and displayed over a period sufficiently long
to include all significant acoustic information in the amplitude modulated wave
Note 1 to entry: See Annex K for examples.
3.31
output power
P
time-average ultrasonic power emitted by a treatment head of ultrasonic physiotherapy
equipment into an approximately free field under specified conditions in a specified medium,
preferably in water
Note 1 to entry: Output power is expressed in watts (W).
[SOURCE: IEC 61161:2013, 3.3, modified – In the definition, "ultrasonic transducer" has been
replaced by "treatment head of ultrasonic physiotherapy equipment".]
3.32
peak RMS acoustic pressure
maximum value of the RMS acoustic pressure over a specified region, line or plane in an
acoustic field
Note 1 to entry: Peak RMS acoustic pressure is expressed in pascals (Pa).
3.33
pulse duration
time interval beginning when the modulation waveform exceeds a reference value and ending
at the next time the modulation waveform returns to that value
Note 1 to entry: The reference value is equal to the sum of the minimum value of the modulation waveform and
10 % of the difference between the maximum and minimum value of the modulation waveform.
Note 2 to entry: This definition differs from that in IEC 62127-1:2007 to be applicable to amplitude modulated
waves.
Note 3 to entry: See Annex K for examples.
Note 4 to entry: Pulse duration is expressed in seconds (s).
3.34
pulse repetition period
prp
time interval between equivalent points on the modulation waveform for an amplitude
modulated wave
Note 1 to entry: See Annex K for examples.
Note 2 to entry: Pulse repetition period is expressed in seconds (s).
3.35
pulse repetition rate
prr
reciprocal of the pulse repetition period
Note 1 to entry: The pulse repetition rate is equal to the repetition frequency of the modulated waveform.
Note 2 to entry: The pulse repetition rate is expressed in hertz (Hz)
[SOURCE: IEC 62127-1:2007, 3.52, modified – Note 1 to entry differs from the original NOTE 1.]
– 16 – IEC 61689:2022 © IEC 2022
3.36
rated output power
maximum output power of the ultrasonic physiotherapy equipment at the rated value of the
mains voltage, with control settings configur
...
Frequently Asked Questions
IEC 61689:2022 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Ultrasonics - Physiotherapy systems - Field specifications and methods of measurement in the frequency range 0,5 MHz to 5 MHz". This standard covers: IEC 61689:2022 is applicable to ultrasonic equipment designed for physiotherapy containing an ultrasonic transducer generating continuous or quasi-continuous (e.g. tone burst) wave ultrasound in the frequency range 0,5 MHz to 5 MHz. This document only relates to ultrasonic physiotherapy equipment employing a single plane non-focusing circular transducer per treatment head, producing static beams perpendicular to the face of the treatment head. This document specifies: - methods of measurement and characterization of the output of ultrasonic physiotherapy equipment based on reference testing methods; - characteristics to be specified by manufacturers of ultrasonic physiotherapy equipment based on reference testing methods; - guidelines for safety of the ultrasonic field generated by ultrasonic physiotherapy equipment; - methods of measurement and characterization of the output of ultrasonic physiotherapy equipment based on routine testing methods; - acceptance criteria for aspects of the output of ultrasonic physiotherapy equipment based on routine testing methods. Therapeutic value and methods of use of ultrasonic physiotherapy equipment are not within the scope of this document. Ultrasonic physiotherapy equipment using ultrasound in the frequency range from 20 kHz to 500 kHz is dealt with in IEC 63009. IEC 61689:2022 cancels and replaces the third edition published in 2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition. a) The requirement on water oxygen content is specified in 6.1. b) Former recommendations in 6.2 have been changed to become requirements. c) Several definitions in Clause 3 have been updated in line with other TC 87 documents. d) The formerly informative Annex A has been changed to become normative, and now contains details on how conformance with IEC 60601-2-5 requirements is checked. e) Annex D has been considerably shortened and reference to a now withdrawn regulatory document has been removed.
IEC 61689:2022 is applicable to ultrasonic equipment designed for physiotherapy containing an ultrasonic transducer generating continuous or quasi-continuous (e.g. tone burst) wave ultrasound in the frequency range 0,5 MHz to 5 MHz. This document only relates to ultrasonic physiotherapy equipment employing a single plane non-focusing circular transducer per treatment head, producing static beams perpendicular to the face of the treatment head. This document specifies: - methods of measurement and characterization of the output of ultrasonic physiotherapy equipment based on reference testing methods; - characteristics to be specified by manufacturers of ultrasonic physiotherapy equipment based on reference testing methods; - guidelines for safety of the ultrasonic field generated by ultrasonic physiotherapy equipment; - methods of measurement and characterization of the output of ultrasonic physiotherapy equipment based on routine testing methods; - acceptance criteria for aspects of the output of ultrasonic physiotherapy equipment based on routine testing methods. Therapeutic value and methods of use of ultrasonic physiotherapy equipment are not within the scope of this document. Ultrasonic physiotherapy equipment using ultrasound in the frequency range from 20 kHz to 500 kHz is dealt with in IEC 63009. IEC 61689:2022 cancels and replaces the third edition published in 2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition. a) The requirement on water oxygen content is specified in 6.1. b) Former recommendations in 6.2 have been changed to become requirements. c) Several definitions in Clause 3 have been updated in line with other TC 87 documents. d) The formerly informative Annex A has been changed to become normative, and now contains details on how conformance with IEC 60601-2-5 requirements is checked. e) Annex D has been considerably shortened and reference to a now withdrawn regulatory document has been removed.
