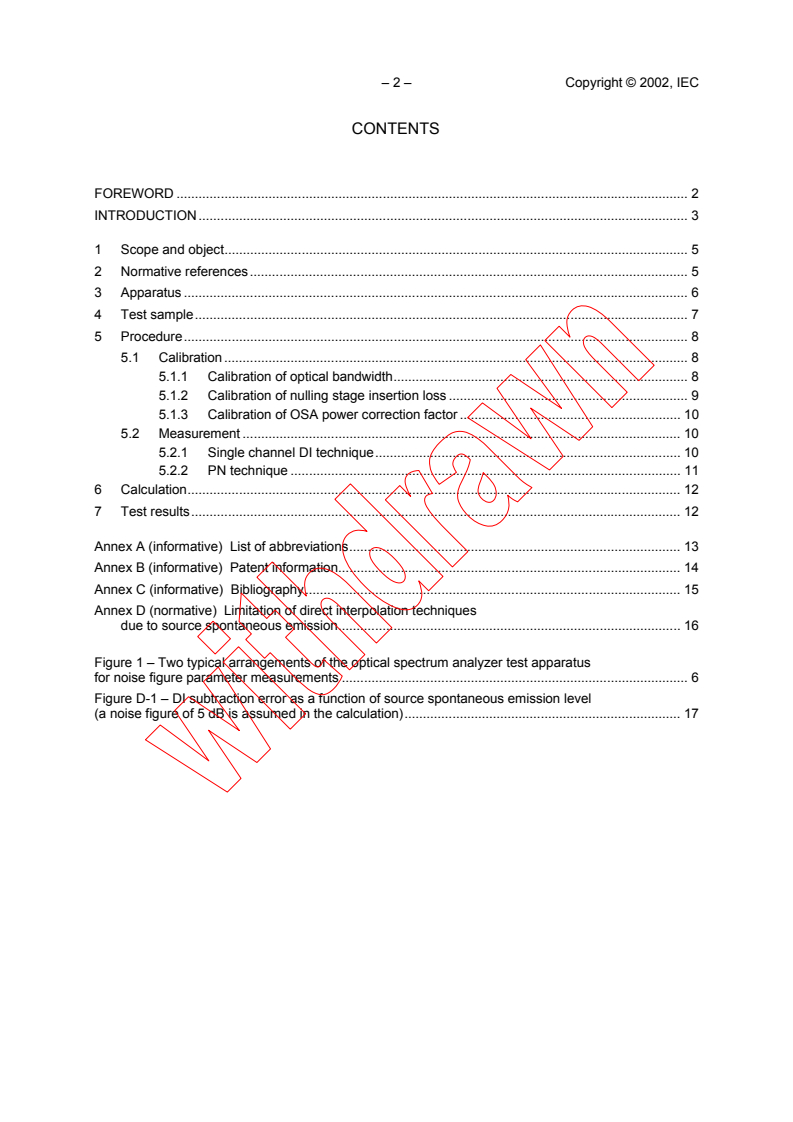

CONTENTS
FOREWORD . 2

INTRODUCTION . 3

1 Scope and object. 5

2 Normative references. 5

3 Apparatus . 6

4 Test sample. 7
5 Procedure. 8
5.1 Calibration . 8
5.1.1 Calibration of optical bandwidth. 8
5.1.2 Calibration of nulling stage insertion loss . 9
5.1.3 Calibration of OSA power correction factor . 10
5.2 Measurement . 10
5.2.1 Single channel DI technique. 10
5.2.2 PN technique . 11
6 Calculation. 12
7 Test results. 12
Annex A (informative) List of abbreviations. 13
Annex B (informative) Patent information. 14
Annex C (informative) Bibliography. 15
Annex D (normative) Limitation of direct interpolation techniques
due to source spontaneous emission. 16
Figure 1 – Two typical arrangements of the optical spectrum analyzer test apparatus
for noise figure parameter measurements . 6
Figure D-1 – DI subtraction error as a function of source spontaneous emission level
(a noise figure of 5 dB is assumed in the calculation). 17

INTERNATIONAL ELECTROTECHNICAL COMMISSION

___________
OPTICAL FIBRE AMPLIFIERS – BASIC SPECIFICATION –

PART 3-1: Test methods for noise figure parameters –

Optical spectrum analyzer
FOREWORD
A PAS is a technical specification not fulfilling the requirements for a standard, but made available to the public.
IEC-PAS 61290-3-1 has been processed by subcommittee 86C: Fibre optic systems and active devices, of IEC
technical committee 86: Fibre optics.
The text of this PAS is based on the This PAS was approved for publication
following document: by the P-members of the committee
concerned as indicated in the following
document:
Draft PAS Report on voting
86C/392/PAS 86C/401/RVD
Following publication of this PAS, the technical committee or subcommittee concerned will investigate the
possibility of transforming the PAS into an International Standard.
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising all national
electrotechnical committees (IEC National Committees). The object of the IEC is to promote international co-operation on all
questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, the
IEC publishes International Standards. Their preparation is entrusted to technical committees; any IEC National Committee
interested in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. The IEC collaborates closely with the
International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all interested
National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form of
standards, technical specifications, technical reports or guides and they are accepted by the National Committees in that
sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International Standards
transparently to the maximum extent possible in their national and regional standards. Any divergence between the IEC
Standard and the corresponding national or regional standard shall be clearly indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment
declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this PAS may be the subject of patent rights. The IEC shall
not be held responsible for identifying any or all such patent rights.

– 4 – Copyright © 2002, IEC
INTRODUCTION
This part of IEC 61290 is devoted to the subject of optical amplifiers. The technology of optical

amplifiers is still rapidly evolving, hence amendments and new additions to this publication can be

expected. Each abbreviation introduced in this part of IEC 61290 is generally explained in the text the

first time it appears. However, for an easier understanding of the whole text, a list of all abbreviations

used in this document is given in annex A.

Information concerning a patent involved in this part of IEC 61290, the holder of which accepted the

IEC policy on patents, is given in annex B.

This document should be read in conjunction with IEC 61291-1: Optical amplifiers − Part 1: Generic
specification.
OPTICAL FIBRE AMPLIFIERS – BASIC SPECIFICATION –

Part 3-1: Test methods for noise figure parameters –

Optical spectrum analyzer
1 Scope and object
This part of IEC 61290 applies to commercially available optical fibre amplifiers (OFAs) using active

fibres containing rare-earth dopants, or semiconductor optical amplifiers (SOWs) using laser gain

media.
The object of this part of IEC 61290 is to establish uniform requirements for accurate and reliable
measurements, by means of the optical spectrum analyzer test method, of the following OA
parameters, as defined in clause 3 of the international standard IEC 61291-1:
a) signal-spontaneous noise figure
b) forward amplified spontaneous emission (ASE) power level
The methods described in this document apply to single-channel stimulus only.
Two alternatives for determining the signal-spontaneous beat noise are possible, namely the ASE
direct interpolation technique (DI) and the polarization nulling with interpolation technique (PN). The
accuracy of the DI technique will suffer when the slope of the OA spectral ASE curve has large
wavelength dependence, as in the case of an OA with an internal narrowband ASE suppressing filter.
The accuracy of the DI technique degrades at high input power level due to the spontaneous emission
from the laser source(s). Annex D provides guidance on the limits of this technique for high input
power.
NOTE 1 – All numerical values followed by (‡) are intended to be currently under study.
NOTE 2 – General aspects of noise figure test methods are reported in the international standard IEC 61290-3
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 60793-1-1: Optical fibres – Part 1-1: Generic specification – General

IEC 60825-1: Safety of laser products – Part 1: Equipment classification, requirements and user's
guide
IEC 60825-2: Safety of laser products – Part 2: Safety of optical fibre communication systems
IEC 60874-1: Connectors for optical fibres and cables – Part 1: Generic specification
IEC 61290-1-1: Optical amplifier test methods − Basic specification − Test methods for gain
parameters – Part 1-1: Optical spectrum analyser
IEC 61290-3-1: Optical fibre amplifiers – Basic specification − Part 1-1: Test methods for gain
parameters – Optical spectrum analyser
IEC 61291-1: Optical amplifiers – Part 1: Generic specification
NOTE – A list of informative (not normative) references is given in annex C.

– 6 – Copyright © 2002, IEC
3 Apparatus
Two schemes of the measurement set-up (for DI and PN techniques, respectively), are given in

figure 1.
The test equipment listed below, with the required characteristics, is needed.

a) Narrowband optical source:
The optical source shall be either at a fixed wavelength or wavelength tunable.

– Fixed-wavelength optical source:

This optical source shall generate light with a wavelength and optical power specified in the
relevant detail specification. Unless otherwise specified, the optical source shall emit light with the
full width at half maximum of the spectrum narrower than 1 nm (‡). Single-line lasers such as a
distributed feedback (DFB) laser, a distributed Bragg reflector (DBR) laser, an external cavity laser
(ECL) are applicable. Also applicable is a light emitting diode (LED) with a narrowband filter. The
suppression ratio for the side modes for the single-line laser shall be higher than 30 dB (‡).
The output power fluctuation shall be less than 0,05 dB (‡), which may be better attainable with an
optical isolator at the output port of the optical source. Source-spontaneous emission and spectral
broadening at the base of the lasing spectrum should be minimal for laser sources.
– Wavelength-tunable optical source:
This optical source shall generate wavelength-tunable light within the range specified in the
relevant detail specification. Its optical power shall be specified in the relevant detail specification.
Unless otherwise specified, the optical source shall emit light with the full width at half maximum of
the spectrum narrower than 1 nm (‡). A single-line laser or an LED with a narrow bandpass optical
filter is applicable for example. The suppression ratio of the side modes for the single-line laser
shall be higher than 30 dB (‡). The output power fluctuation shall be less than 0,05 dB (‡), which
may be better attainable with an optical isolator at the output port of the optical source. Source-
spontaneous emission and spectral broadening at the base of the lasing spectrum should be
minimal for the ECL.
Narrowband Polarization Optical
DB
Linear
optical OA spectrum
polarizer controller
analyzer
source
Variable
optical
OA
attenuator
under
test
Source module
a) DI technique
Narrowband
Linear
Optical
DB Polarization
optical
Polarization
OA Linear
polarizer spectrum
controller
controller
source
Variable polarizer
analyzer
optical
OA
attenuator
Nulling stage
under
test
Source module
PN technique
b)
Figure 1 – Two typical arrangements of the optical spectrum analyzer
test apparatus for noise figure parameter measurements
b) Polarization controller:
This device shall be able to convert any state of polarization of a signal to any other state of
polarization. The polarization controller may consist of an all fibre polarization controller or a
quarter-wave plate rotatable by a minimum of 90 degrees followed by a half wave plate rotatable
by a minimum of 180 degrees. The reflectance of this device shall be smaller than −50 dB (‡) at
each port. The insertion loss variation of this device shall be less than 0,2 dB (‡).

c) Linear polarizer:
This device should have a minimum extinction ration of 30 dB (‡), and reflectance smaller than

−50 dB (‡) at each port. A rotatable polarizer is preferred to maximize the input signal power.

d) Variable optical attenuator:

The attenuation range and stability shall be over 40 dB (‡) and better than 0,1 dB (‡), respectively.

The reflectance from this device shall be smaller than −50 dB (‡) at each port.

e) Optical spectrum analyzer:
The optical spectrum analyzer (OSA) shall have polarization sensitivity less than 0,1 dB (‡),

stability better than 0,1 dB (‡), and wavelength accuracy better than 0,05 nm (‡). The linearity

should be better than 0,2 dB (‡) over the device dynamic range. The reflectance from this device

shall be smaller than −50 dB (‡) at its input port.
f) Optical power meter:
This device shall have a measurement accuracy better than 0,2 dB (‡), irrespective of the state of
polarization,
...
