IEC TS 62896:2015

IEC TS 62896 ®
Edition 1.0 2015-11
TECHNICAL
SPECIFICATION
Hybrid insulators for a.c. and d.c. high-voltage applications – Definitions, test
methods and acceptance criteria

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00

CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

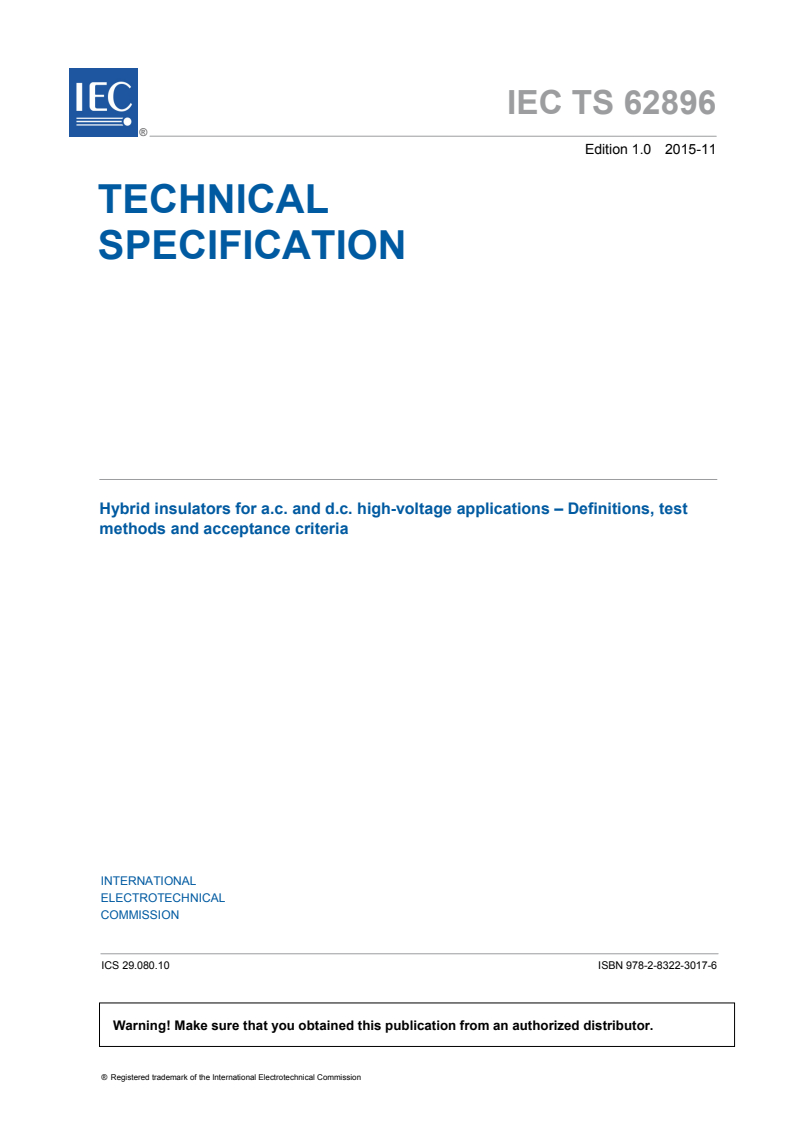

IEC TS 62896 ®
Edition 1.0 2015-11
TECHNICAL
SPECIFICATION
Hybrid insulators for a.c. and d.c. high-voltage applications – Definitions, test

methods and acceptance criteria

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.080.10 ISBN 978-2-8322-3017-6

– 2 – IEC TS 62896:2015  IEC 2015

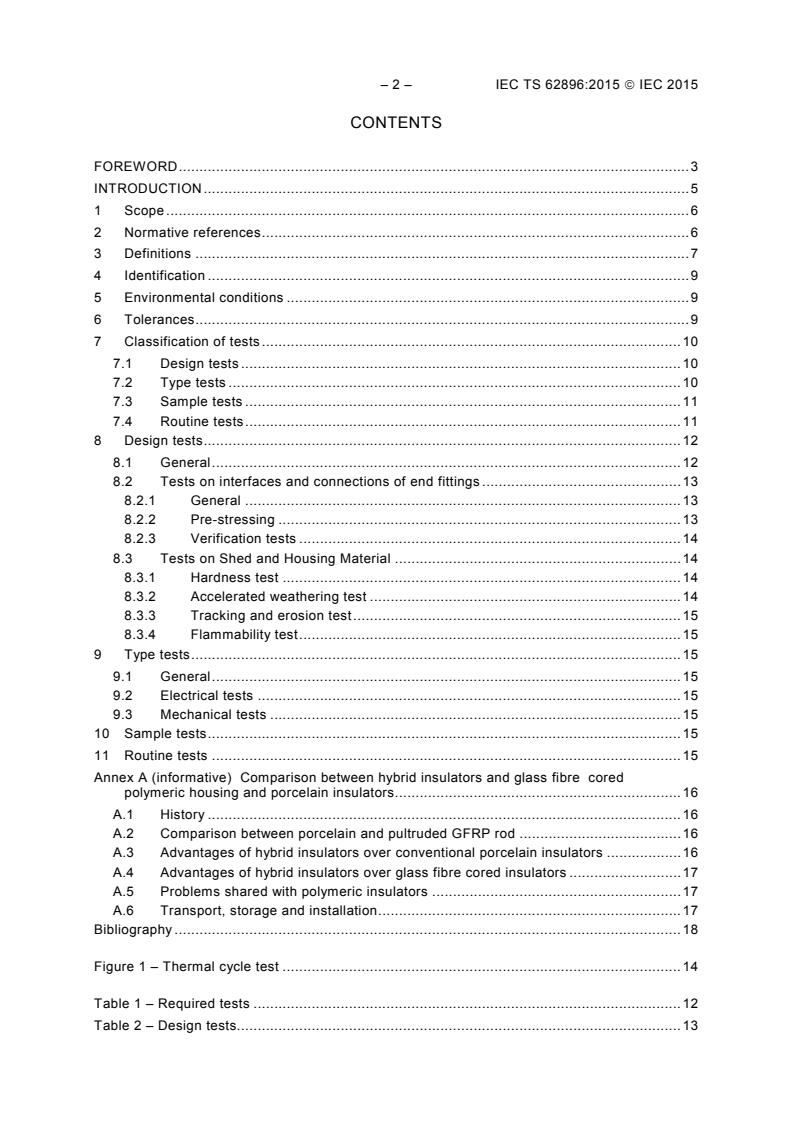

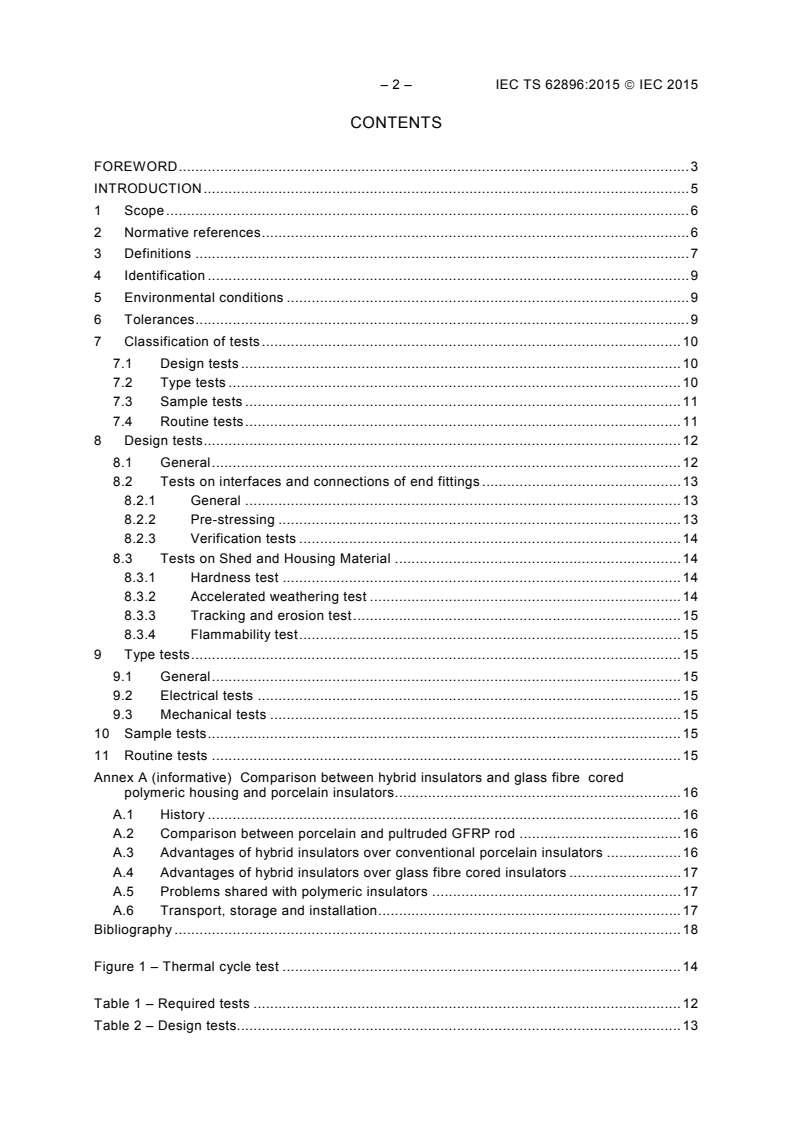

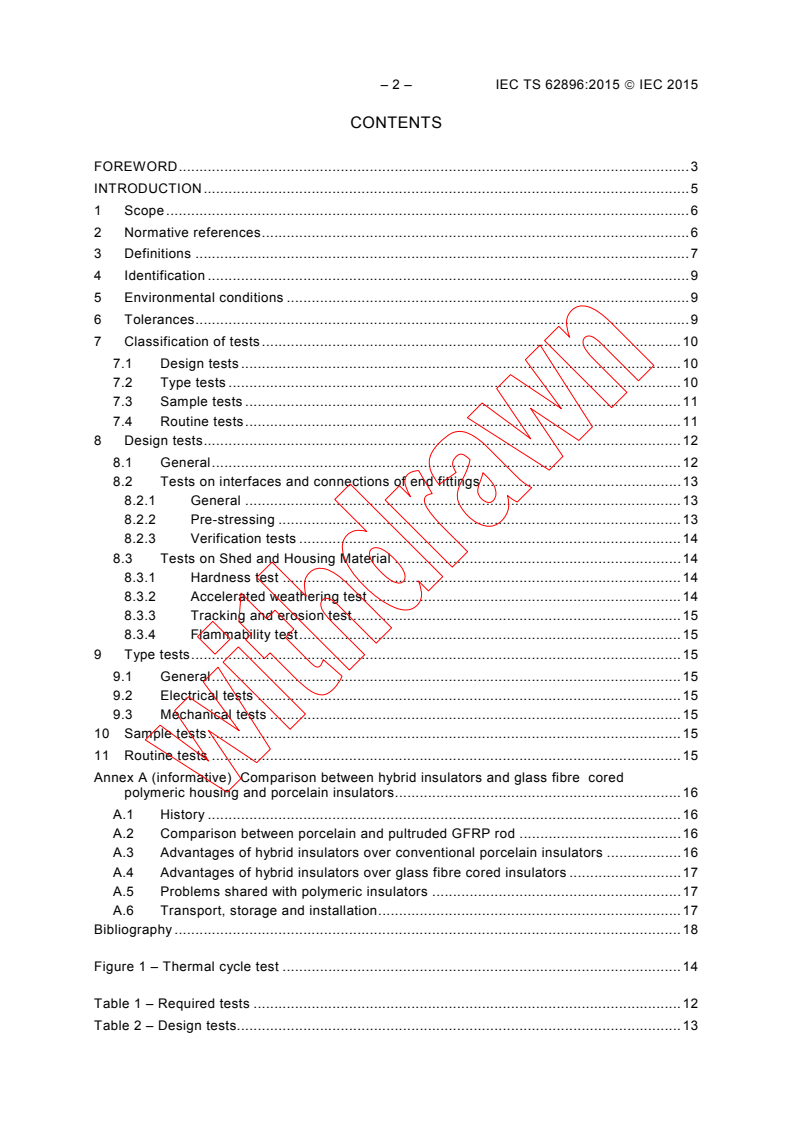

CONTENTS
FOREWORD . 3

INTRODUCTION . 5

1 Scope . 6

2 Normative references . 6

3 Definitions . 7

4 Identification . 9

5 Environmental conditions . 9
6 Tolerances . 9
7 Classification of tests . 10
7.1 Design tests . 10
7.2 Type tests . 10
7.3 Sample tests . 11
7.4 Routine tests . 11
8 Design tests . 12
8.1 General . 12
8.2 Tests on interfaces and connections of end fittings . 13
8.2.1 General . 13
8.2.2 Pre-stressing . 13
8.2.3 Verification tests . 14
8.3 Tests on Shed and Housing Material . 14
8.3.1 Hardness test . 14
8.3.2 Accelerated weathering test . 14
8.3.3 Tracking and erosion test . 15
8.3.4 Flammability test . 15
9 Type tests . 15
9.1 General . 15
9.2 Electrical tests . 15
9.3 Mechanical tests . 15
10 Sample tests . 15
11 Routine tests . 15
Annex A (informative) Comparison between hybrid insulators and glass fibre cored

polymeric housing and porcelain insulators. 16
A.1 History . 16
A.2 Comparison between porcelain and pultruded GFRP rod . 16
A.3 Advantages of hybrid insulators over conventional porcelain insulators . 16
A.4 Advantages of hybrid insulators over glass fibre cored insulators . 17
A.5 Problems shared with polymeric insulators . 17
A.6 Transport, storage and installation . 17
Bibliography . 18

Figure 1 – Thermal cycle test . 14

Table 1 – Required tests . 12
Table 2 – Design tests. 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HYBRID INSULATORS FOR A.C. AND D.C. HIGH-VOLTAGE

APPLICATIONS – DEFINITIONS, TEST METHODS

AND ACCEPTANCE CRITERIA
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC TS 62896, which is a technical specification, has been prepared by IEC technical
committee 36: Insulators.
– 4 – IEC TS 62896:2015  IEC 2015

The text of this technical specification is based on the following documents:

Enquiry draft Report on voting

36/362/DTS 36/368/RVC
Full information on the voting for the approval of this technical specification can be found in the

report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Hybrid insulators consist of an insulating core, bearing the mechanical load protected by a

polymeric housing, the load being transmitted to the core by end fittings. Despite these

common features, the materials used and the construction details employed by different

manufacturers may be quite different. The core is made of ceramic or glass material.

Hybrid insulators are applied as overhead line, post or hollow core equipment insulators. In

order to perform the design tests, IEC 62217 shall be applied for the polymeric housing and the

interfaces between core and the housing. For the core, the test standards for the respective

ceramic product (IEC 60168, IEC 60383 and IEC 62155) shall be applied.

Some tests have been grouped together as "design tests", to be performed only once on
insulators which satisfy the same design conditions. For all design tests of hybrid insulators,
the common clauses defined in IEC 62217 are applied. As far as practical, the influence of time
on the electrical and mechanical properties of the components (core material, housing,
interfaces etc.) and of the complete hybrid insulators has been considered in specifying the
design tests to ensure a satisfactory life-time under normally known stress conditions in
service.
Polymeric housing materials that show the hydrophobicity transfer mechanism (HTM) are
preferred for hybrid insulators. They are applied as a countermeasure against severe polluted
service conditions. For the time being, no ageing or pollution tests have been developed for the
verification of this property, but CIGRE Technical Brochure No. 442 is available for the
evaluation of the retention of the hydrophobicity and the HTM of polymeric housing materials.
Artificial pollution tests for insulators with polymeric housings under AC and DC voltage stress
are presently under development by CIGRE.

– 6 – IEC TS 62896:2015  IEC 2015

HYBRID INSULATORS FOR A.C. AND D.C. HIGH-VOLTAGE

APPLICATIONS – DEFINITIONS, TEST METHODS

AND ACCEPTANCE CRITERIA
1 Scope
This technical specification applies to hybrid insulators for a.c. and d.c. applications consisting

of a load-bearing insulating solid or hollow core consisting of ceramic or glass, a housing
(defined geometry, outside the insulating core) made of polymeric material and end fittings
permanently attached to the insulating core.
Hybrid insulators covered by this technical specification are intended for use as
suspension/tension line insulators, line post insulators, station post insulators and hollow core
insulators for apparatus.
The object of this technical specification is to:
• define the terms used;
• prescribe test methods;
• prescribe acceptance criteria.
Silicone or other functional coatings (CIGRE Technical Brochure No. 478, Appendix B), booster
sheds, shed extenders and rain deflectors are not within the scope of this technical
specification.
This technical specification does not include requirements dealing with the choice of insulators
for specific operating conditions.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 60050-471:2007, International Electrotechnical Vocabulary – Part 471: Insulators

IEC 60168, Tests on indoor and outdoor post insulators of ceramic material or glass for
systems with nominal voltages greater than 1000 V
IEC 60383-1, Insulators for overhead lines with a nominal voltage above 1000 V – Part 1:
Ceramic or glass insulator units for a.c. systems – Definitions, test methods and acceptance
criteria
IEC 60383-2, Insulators for overhead lines with a nominal voltage above 1000 V – Part 2:
Insulator strings and insulator sets for a.c. systems – Definitions, test methods and acceptance
criteria
IEC 62155, Hollow pressurized and unpressurized ceramic and glass insulators for use in
electrical equipment with rated voltages greater than 1 000 V

IEC 62217, Polymeric HV insulators for indoor and outdoor use – General definitions, test

methods and acceptance criteria

3 Definitions
For the purpose of this document the terms and definitions given in IEC 60050-471 and the

following apply (some definitions from IEC 62217 are reproduced here for ease of reference).

3.1
high voltage
HV
voltage over 1 000 V a.c. or over 1 500 V d.c. or over 1 500 V peak value
3.2
polymeric insulator
insulator whose insulating body consists of only polymer containing materials, to the ends of
which coupling devices may be attached
Note 1 to entry: Polymeric insulators are also known as non-ceramic insulators.
3.2.1
resin insulator
polymeric insulator whose insulating body consists of a solid shank and sheds protruding from
the shank made from only one organic based housing material (e.g. cycloaliphatic epoxy)
3.2.2
composite insulator
polymeric insulator made of at least two polymeric insulating parts, namely a core and a
housing, equipped with metal fittings
Note 1 to entry: Composite insulators, for example, can consist either of individual sheds mounted on the core,
with or without an intermediate sheath, or alternatively, of a housing directly moulded or cast in one or several
pieces on to the core.
3.3
hybrid insulator
insulator that consists of a ceramic or glass core and a polymeric housing, equipped with one
or more metal fittings
Polymeric insulator Ceramic / glass insulator

Resin Composite
Hybrid insulator
insulator insulator
IEC
Note 1 to entry: The mechanical functions are mainly characterised by the core, the electrical functions are mainly
characterised by the polymeric housing. The housing may cover the core completely or partly. In the latter case the
exposed portions of the ceramic core are usually covered by glaze.

– 8 – IEC TS 62896:2015  IEC 2015

3.4
core of a hybrid insulator
the internal insulating part, consisting of ceramic or glass, of a hybrid insulator which is

designed to ensure the mechanical characteristics

Note 1 to entry: The core for composite insulators is defined in IEC 62217.

3.5
shank of a hybrid insulator
the section between two adjacent sheds (also known as trunk on larger insulators)

3.6
housing
external insulating part which is made of polymeric material providing necessary creepage
distance and protecting the core from environment
3.7
shed
insulating part, projecting from the insulator trunk, intended to increase the creepage distance
Note 1 to entry: The shed can be with or without ribs.
[SOURCE: IEC 60050-471:2007, 471-01-15]
3.8
creepage distance
shortest distance or the sum of the shortest distances along the surface on an insulator
between two conductive parts which normally have the operating voltage between them
Note 1 to entry: The surface of cement or of any other non-insulating jointing material is not considered as forming
part of the creepage distance.
Note 2 to entry: If a high resistance coating is applied to parts of the insulating part of an insulator, such parts are
considered to be effective insulating surfaces and the distance over them is included in the creepage distance.
[SOURCE: IEC 60050-471:2007, 471-01-04]
3.9
arcing distance
s
...
