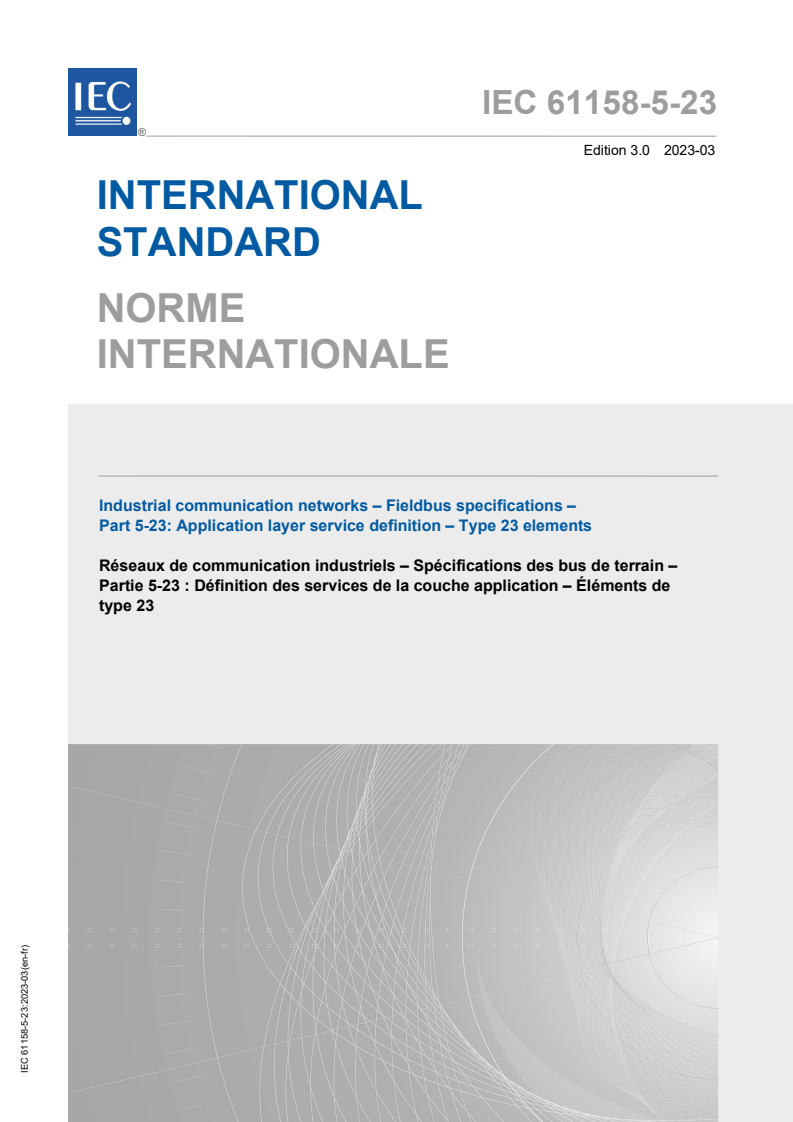

IEC 61158-5-23:2023

IEC 61158-5-23 ®
Edition 3.0 2023-03
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 5-23: Application layer service definition – Type 23 elements

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.

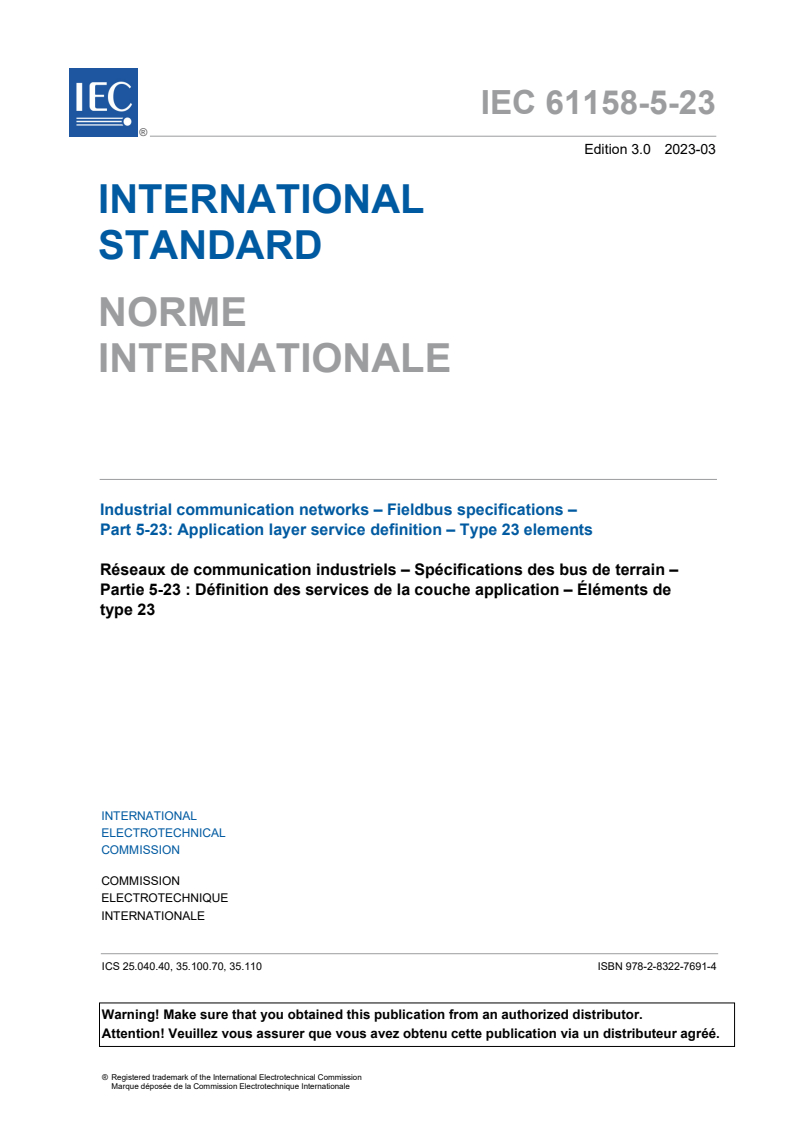

IEC 61158-5-23 ®
Edition 3.0 2023-03
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –

Part 5-23: Application layer service definition – Type 23 elements

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.100.70; 35.110 ISBN 978-2-8322-6579-6

– 2 – IEC 61158-5-23:2023 © IEC 2023

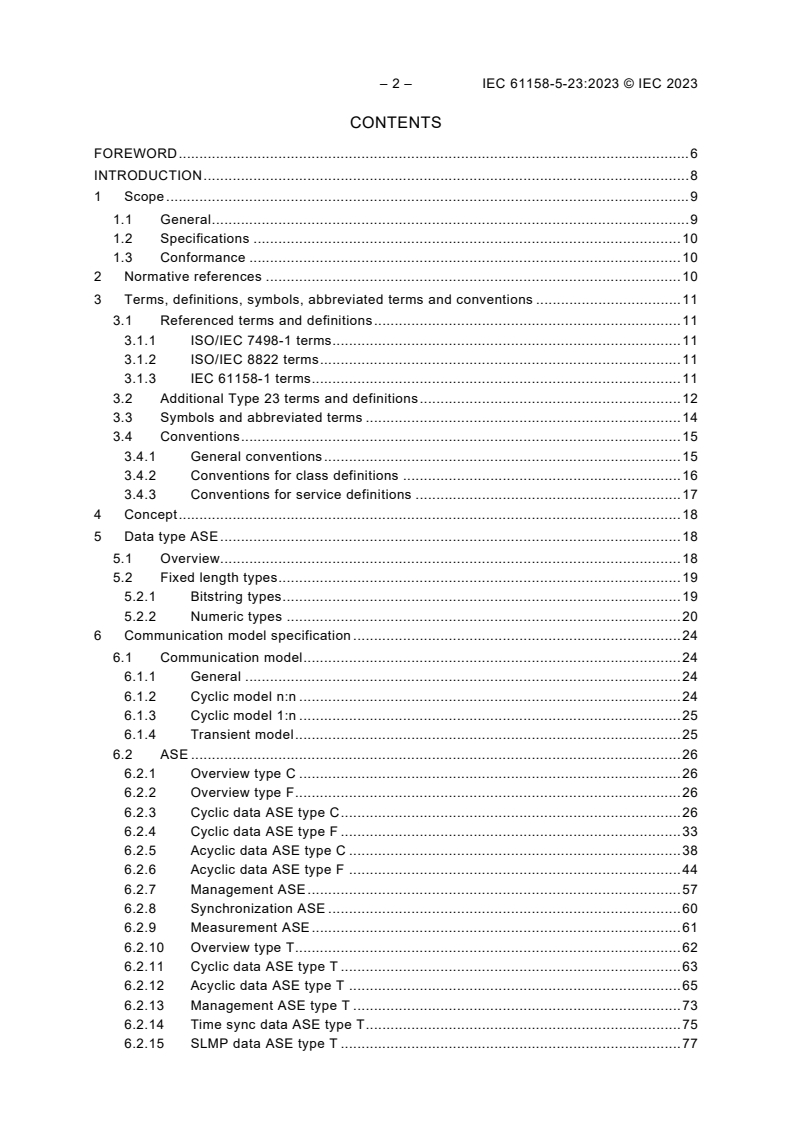

CONTENTS
FOREWORD . 6
INTRODUCTION . 8
1 Scope . 9
1.1 General . 9
1.2 Specifications . 10
1.3 Conformance . 10
2 Normative references . 10
3 Terms, definitions, symbols, abbreviated terms and conventions . 11
3.1 Referenced terms and definitions . 11
3.1.1 ISO/IEC 7498-1 terms . 11
3.1.2 ISO/IEC 8822 terms . 11
3.1.3 IEC 61158-1 terms . 11
3.2 Additional Type 23 terms and definitions . 12
3.3 Symbols and abbreviated terms . 14
3.4 Conventions . 15
3.4.1 General conventions . 15
3.4.2 Conventions for class definitions . 16
3.4.3 Conventions for service definitions . 17
4 Concept . 18
5 Data type ASE . 18
5.1 Overview. 18
5.2 Fixed length types . 19
5.2.1 Bitstring types . 19
5.2.2 Numeric types . 20
6 Communication model specification . 24
6.1 Communication model . 24
6.1.1 General . 24
6.1.2 Cyclic model n:n . 24
6.1.3 Cyclic model 1:n . 25
6.1.4 Transient model . 25
6.2 ASE . 26
6.2.1 Overview type C . 26
6.2.2 Overview type F . 26
6.2.3 Cyclic data ASE type C . 26
6.2.4 Cyclic data ASE type F . 33
6.2.5 Acyclic data ASE type C . 38
6.2.6 Acyclic data ASE type F . 44
6.2.7 Management ASE . 57
6.2.8 Synchronization ASE . 60
6.2.9 Measurement ASE . 61
6.2.10 Overview type T . 62
6.2.11 Cyclic data ASE type T . 63
6.2.12 Acyclic data ASE type T . 65
6.2.13 Management ASE type T . 73
6.2.14 Time sync data ASE type T . 75
6.2.15 SLMP data ASE type T . 77

6.3 AR type C . 78
6.3.1 Overview . 78
6.3.2 Connection Control . 79
6.3.3 Cyclic transmission type C . 83
6.3.4 Acyclic transmission type C . 84
6.3.5 Common parameter dist . 87
6.4 AR type F . 92
6.4.1 Overview . 92
6.4.2 Channel control . 93
6.4.3 Cyclic transmission type F . 100
6.4.4 Acyclic transmission type F. 102
6.4.5 Parameter dist . 105
6.4.6 Synchronous trigger. 108
6.4.7 Measurement transmission . 109
6.5 AR type T . 111
6.5.1 Overview . 111
6.5.2 Cyclic transmission type T . 112
6.5.3 Acyclic transmission type T. 113
6.5.4 Channel control type T . 114
6.5.5 Time sync control . 117
6.5.6 IP trans control . 118
6.5.7 Handler. 119
Bibliography . 120

Figure 1 – Cyclic model (n:n type distributed shared memory, unconfirmed push model) . 25
Figure 2 – Cyclic model (1:n type distributed shared memory, unconfirmed push model) . 25
Figure 3 – Transient model (Client server model) . 25
Figure 4 – Transient model (Push model) . 26
Figure 5 – Structure of ASE type C of FAL Type 23 . 26
Figure 6 – Structure of ASE type F of FAL Type 23 . 26
Figure 7 – Structure of ASE type T of FAL Type 23 . 63
Figure 8 – Structure of AR type C . 78
Figure 9 – Structure of AR type F . 92
Figure 10 – Structure of AR type T . 111

Table 1 – Ld service parameters . 28
Table 2 – Set service parameters. 28
Table 3 – Reset service parameters . 28
Table 4 – Read service parameters . 29
Table 5 – Write service parameters . 29
Table 6 – Ld service parameters . 30
Table 7 – Set service parameters. 31
Table 8 – Reset service parameters . 31
Table 9 – Read service parameters . 32
Table 10 – Write service parameters . 32
Table 11 – Ld service parameters . 34

– 4 – IEC 61158-5-23:2023 © IEC 2023
Table 12 – Set service parameters . 35
Table 13 – Reset service parameters . 35
Table 14 – Read service parameters . 36
Table 15 – Write service parameters . 36
Table 16 – Get memory access info service parameters . 39
Table 17 – Run service parameters . 40
Table 18 – Stop service parameters . 41
Table 19 – Read memory service parameters . 42
Table 20 – Write memory service parameters . 43
Table 21 – Get memory access info service parameters . 45
Table 22 – Run service parameters . 46
Table 23 – Stop service parameters . 47
Table 24 – Read memory service parameters . 48
Table 25 – Write memory service parameters . 49
Table 26 – Vendor command service parameters . 50
Table 27 – Distribute node info service parameters . 51
Table 28 – Get statistics service parameters . 52
Table 29 – Get node info detail service parameters . 54
Table 30 – AC data service parameters . 56
Table 31 – AC data ND service parameters . 57
Table 32 – Get attribute service parameters . 58
Table 33 – Set attribute service parameters . 59
Table 34 – Synchronization trigger service parameters . 60
Table 35 – Start measurement service parameters . 61
Table 36 – Get offset service parameters . 62
Table 37 – Read service parameters . 64
Table 38 – Write service parameters . 64
Table 39 – Priority service parameters . 66
Table 40 – Detection service parameters . 67
Table 41 – Detection Ack service parameters . 68
Table 42 – Test data service parameters . 70
Table 43 – Test data ack service parameters . 71
Table 44 – Acyclic data rsv service parameters . 72
Table 45 – Acyclic data nrsv service parameters . 73
Table 46 – Get attribute service parameters . 74
Table 47 – Set attribute service parameters . 75
Table 48 – TimeSyncMng service parameters . 76
Table 49 – SLMP data service parameters . 77
Table 50 – Control cyclic service parameters . 82
Table 51 – CT Update service parameters . 84
Table 52 – AC Send service parameters . 85
Table 53 – AC Param send service parameters. 87
Table 54 – CPD Set service parameters . 92

Table 55 – Control cyclic service parameters . 99
Table 56 – CT Update service parameters . 101
Table 57 – AC Send service parameters . 102
Table 58 – AC Send ND service parameters . 104
Table 59 – Synchronous trigger internal service parameters . 108
Table 60 – Measure send service parameters . 109
Table 61 – MeasureAck send service parameters . 110
Table 62 – Offset send service parameters . 110
Table 63 – Update send service parameters . 111
Table 64 – C Update service parameters . 112
Table 65 – AC Update service parameters . 114
Table 66 – Send cyclic service parameters . 115
Table 67 – Send acyclic service parameters . 116
Table 68 – TimeSync service parameters. 117
Table 69 – SLMPSend service parameters . 118

– 6 – IEC 61158-5-23:2023 © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 5-23: Application layer service definition –
Type 23 elements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
Attention is drawn to the fact that the use of the associated protocol type is restricted by its
intellectual-property-right holders. In all cases, the commitment to limited release of
intellectual-property-rights made by the holders of those rights permits a layer protocol type to
be used with other layer protocols of the same type, or in other type combinations explicitly
authorized by its intellectual-property-right holders.
NOTE Combinations of protocol types are specified in the IEC 61784-1 series and the IEC 61784-2 series.
IEC 61158-5-23 has been prepared by subcommittee 65C: Industrial networks, of IEC
technical committee 65: Industrial-process measurement, control and automation. It is an
International Standard.
This third edition cancels and replaces the second edition published in 2019. This edition
constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of Type T ASE (6.2.10 to 6.2.15).
b) addition of Type T AR (6.5).
The text of this International Standard is based on the following documents:
Draft Report on voting
65C/1203/FDIS 65C/1244/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/publications.
A list of all the parts of the IEC 61158 series, published under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 8 – IEC 61158-5-23:2023 © IEC 2023
INTRODUCTION
This document is one of a series produced to facilitate the interconnection of automation
system components. It is related to other standards in the set as defined by the "three-layer"
fieldbus reference model described in IEC 61158-1.
The application service is provided by the application protocol making use of the services
available from the data-link or other immediately lower layer. This document defines the
application service characteristics that fieldbus applications and/or system management can
exploit.
Throughout the set of fieldbus standards, the term "service" refers to the abstract capability
provided by one layer of the OSI Basic Reference Model to the layer immediately above. Thus,
the application layer service defined in this document is a conceptual architectural service,
independent of administrative and implementation divisions.

INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 5-23: Application layer service definition –
Type 23 elements
1 Scope
1.1 General
The Fieldbus Application Layer (FAL) provides user programs with a means to access the
fieldbus communication environment. In this respect, the FAL can be viewed as a "window
between corresponding application programs".
This part of IEC 61158 provides common elements for basic time-critical and non-time-critical
messaging communications between application programs in an automation environment and
material specific to Type 23 fieldbus. The term "time-critical" is used to represent the
presence of a time-window, within which one or more specified actions are required to be
completed with some defined level of certainty. Failure to complete specified actions within
the time window risks failure of the applications requesting the actions, with attendant risk to
equipment, plant and possibly human life.
This document defines in an abstract way the externally visible service provided by the
different Types of the fieldbus Application Layer in terms of
a) an abstract model for defining application resources (objects) capable of being
manipulated by users via the use of the FAL service,
b) the primitive actions and events of the service;
c) the parameters associated with each primitive action and event, and the form that they
take; and
d) the interrelationship between these actions and events, and their valid sequences.
The purpose of this document is to define the services provided to
a) the FAL user at the boundary between the user and the Application Layer of the Fieldbus
Reference Model, and
b) Systems Management at the boundary between the Application Layer and Systems
Management of the Fieldbus Reference Model.
This document specifies the structure and services of the IEC Fieldbus Application Layer, in
conformance with the OSI Basic Reference Model (ISO/IEC 7498-1) and the OSI Application
Layer Structure (ISO/IEC 9545).
FAL services and protocols are provided by FAL application-entities (AE) contained within the
application processes. The FAL AE is composed of a set of object-oriented Application
Service Elements (ASEs) and a Layer Management Entity (LME) that manages the AE. The
ASEs provide communication services that operate on a set of related application process
object (APO) classes. One of the FAL ASEs is a management ASE that provides a common
set of services for the management of the instances of FAL classes.

– 10 – IEC 61158-5-23:2023 © IEC 2023
Although these services specify, from the perspective of applications, how request and
responses are issued and delivered, they do not include a specification of what the requesting
and responding applications are to do with them. That is, the behavioral aspects of the
applications are not specified; only a definition of what requests and responses they can
send/receive is specified. This permits greater flexibility to the FAL users in standardizing
such object behavior. In addition to these services, some supporting services are also defined
in this document to provide access to the FAL to control certain aspects of its operation.
1.2 Specifications
The principal objective of this document is to specify the characteristics of conceptual
application layer services suitable for time-critical communications, and thus supplement the
OSI Basic Reference Model in guiding the development of application layer protocols for time-
critical communications.
A secondary objective is to provide migration paths from previously existing industrial
communications protocols. It is this latter objective which gives rise to the diversity of services
standardized as the various Types of IEC 61158, and the corresponding protocols
standardized in subparts of IEC 61158-6.
This document can be used as the basis for formal Application Programming-Interfaces.
Nevertheless, it is not a formal programming interface, and any such interface will need to
address implementation issues not covered by this specification, including
a) the sizes and octet ordering of various multi-octet service parameters, and
b) the correlation of paired request and confirm, or indication and response, primitives.
1.3 Conformance
This document does not specify individual implementations or products, nor does it constrain
the implementations of application layer entities within industrial automation systems.
There is no conformance of equipment to this application layer service definition standard.
Instead, conformance is achieved through implementation of conforming application layer
protocols that fulfill any given Type of application layer services as defined in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
NOTE All parts of the IEC 61158 series, as well as the IEC 61784-1 series and the IEC 61784-2 series are
maintained simultaneously. Cross -references to these documents within the text therefore refer to the editions as
dated in this list of normative references.
IEC 61158-1:2023, Industrial communication networks – Fieldbus specifications – Part 1:
Overview and guidance for the IEC 61158 and IEC 61784 series
IEC 61158-6 (all parts), Industrial communication networks – Fieldbus specifications – Part 6-
X: Application layer protocol specification
ISO/IEC 646, Information technology – ISO 7-bit coded character set for information
interchange
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model: The Basic Model
ISO/IEC 8822, Information technology – Open Systems Interconnection – Presentation
service definition
ISO/IEC 8824-1, Information technology – Abstract Syntax Notation One (ASN.1) – Part 1:
Specification of basic notation
ISO/IEC 9545, Information technology – Open Systems Interconnection – Application Layer
structure
ISO/IEC 10731, Information technology – Open Systems Interconnection – Basic Reference
Model – Conventions for the definition of OSI services
IEEE Std 802.1AS, Standard for Local and Metropolitan Area Networks – Timing and
Synchronization for Time-Sensitive Applications in Bridged Local Area Networks
IEEE Std 1588, Standard for a Precision Clock Synchronization Protocol for Networked
Measurement and Control Systems
3 Terms, definitions, symbols, abbreviated terms and conventions
For the purposes of this document, the following terms, definitions, symbols, abbreviated
terms and conventions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1 Referenced terms and definitions
3.1.1 ISO/IEC 7498-1 terms
For the purposes of this document, the following terms given in ISO/IEC 7498-1 apply:
a) application entity
b) application process
c) application protocol data unit
d) application service element
3.1.2 ISO/IEC 8822 terms
For the purposes of this document, the following terms given in ISO/IEC 8822 apply:
a) abstract syntax
3.1.3 IEC 61158-1 terms
For the purposes of this document, the following terms given in IEC 61158-1 apply:
a) DLL mapping protocol machine
b) fieldbus application layer
c) FAL service protocol machine
d) protocol data unit.
– 12 – IEC 61158-5-23:2023 © IEC 2023
3.2 Additional Type 23 terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.2.1
cyclic transmission
transmission that is performed periodically used for the link device update
3.2.2
intelligent device station
node capable of performing 1:n bit data and word data cyclic transmission and transient
transmission with the master station, and transient transmission with slave stations, excluding
remote I/O stations and having client functions and server functions during transient
transmission
3.2.3
link bit
link relay bit data that are shared by all the nodes through the cyclic transmission and is used
as one bit unit shared memory of the n:n type
3.2.4
link device
link bit, link word, link x and link y or RX, RY, RWr, and RWw
3.2.5
link word
link register two octet unit data that are shared by all the nodes through the cyclic
transmission and is used as two octet unit shared memory of the n:n type
3.2.6
link x
link input received bit data that are transmitted from each node through the cyclic
transmission and is used as an input shared memory of the 1:n type
3.2.7
link y
link output bit data that are sent to each node through the cyclic transmission and is used as
an output shared memory of the 1:n type
3.2.8
local station
node capable of performing n:n bit data and word data cyclic transmission and transient
transmission with the master station and other local stations, and transient transmission with
slave stations, excluding remote I/O stations and having server functions and client functions
during transient transmission
3.2.9
management node
node in which parameters are set
3.2.10
master ID
ID that represents the node number of the master station
3.2.11
master station
node that has control information (parameters) and manages cyclic transmission

3.2.12
node
element that forms a network and performs data transmission, reception, and transfer
3.2.13
node-to-node test
physical layer test between two nodes
3.2.14
normal node
node other than a management node
3.2.15
remote device station
node capable of performing 1:n bit data and word data cyclic transmission and transient
transmission with the master station, and transient transmission with slave stations, excluding
remote I/O stations and having server functions during transient transmission
3.2.16
remote I/O station
node capable of performing 1:n bit data cyclic transmission with the master station
3.2.17
reserve node
node that is not yet connected, but counted in the total node number of the network not
performing cyclic transmission, but always regarded as normal from applications
3.2.18
RX
remote input as viewed from the master station with bit data that are periodically updated by
cyclic transmission, salve to master, or in local station as viewed from the master station is
RY of the local station
3.2.19
RY
remote output as viewed from the master station with bit data that are periodically updated by
cyclic transmission, master to salve, or in local station as viewed from the master station is
RX of the local station
3.2.20
RWr
remote register (input) as viewed from the master station with word data that are periodically
updated by cyclic transmission, slave to master, or in local station as viewed from the master
station is RWw of the local station
3.2.21
RWw
remote register (output) as viewed from the master station with word data that are periodically
updated by cyclic transmission, master to slave, or in local station as viewed from the master
station is RWr of the local station
3.2.22
slave station
node other than the master station
3.2.23
station
node of a network
– 14 – IEC 61158-5-23:2023 © IEC 2023
3.2.24
synchronization manager
single node in a master station role per network that manages synchronization, distributing
synchronization timing to other nodes
3.2.25
transient transmission
transmission that is performed upon each request
3.2.26
transient transmission client function
function that issues a transient request
3.2.27
transient transmission server function
function that receives a transient request and issues a response
3.2.28
transmission control manager
single node in a master station role per network that performs token passing management
3.2.29
word
unit representing data, 16 bits in length
3.3 Symbols and abbreviated terms
AE Application Entity
AL Application Layer
AP Application Process
APDU Application Protocol Data Unit
APO Application Process Object
AR Application Relationship
AREP Application Relationship Endpoint
ASE Application Service Element
ASN.1 Abstract Syntax Notation 1
CRC Cyclic Redundancy Check
DLL Data-link Layer
DMPM DLL Mapping Protocol Machine
FAL Fieldbus Application Layer
FSPM FAL Service Protocol Machine
LB Link Bit
LSB Least Significant Bit
LW Link Word
LX Link X
LY Link Y
MSB Most Significant Bit
OSI Open Systems Interconnection
PDU Protocol Data Unit
3.4 Conventions
3.4.1 General conventions
This document uses the descriptive conventions given in ISO/IEC 10731.
The service model, service primitives, and time-sequence diagrams used are entirely abstract
descriptions; they do not represent a specification for implementation.
Service primitives, used to represent service user/service provider interactions (see
ISO/IEC 10731), convey parameters that indicate information available in the user/provider
interaction.
This document uses a tabular format to describe the component parameters of the service
primitives. The parameters that apply to each group of service primitives are set out in tables
throughout the remainder of this document. Each table consists of up to five columns,
containing the name of the service parameter, and a column each for those primitives and
parameter-transfer directions used by the service:
– the request primitive’s input parameters;
– the indication primitive’s output parameters;
– the response primitive’s input parameters; and
– the confirm primitive’s output parameters.
NOTE The request, indication, response and confirm primitives are also known as requestor.submit,
acceptor.deliver, acceptor.submit, and requestor.deliver primitives, respectively (see ISO/IEC 10731).
One parameter (or part of it) is listed in each row of each table. Under the appropriate service
primitive columns, a code is used to specify the type of usage of the parameter on the
primitive and parameter direction specified in the column:
M parameter is mandatory for the primitive.
U parameter is a User option, and can be provided or not depending on the dynamic
usage of the service-user. When not provided, a default value for the parameter is
assumed.
C parameter is conditional upon other parameters or upon the environment of the
service-user.
(blank) parameter is never present.

Some entries are further qualified by items in brackets. These may be a parameter-specific
constraint:
(=) indicates that the parameter is semantically equivalent to the parameter in the
service primitive to its immediate left in the table.

In any particular interface, not all parameters need to be explicitly stated. Some may be
implicitly associated with the primitive.
In the diagrams which illustrate these interfaces, dashed lines indicate cause-and-effect or
time-sequence relationships, and wavy lines indicate that events are roughly
contemporaneous.
– 16 – IEC 61158-5-23:2023 © IEC 2023
3.4.2 Conventions for class definitions
Class definitions are defined using templates. Each template consists of a list of attributes
and services for the class. The general form of the template is shown below:
FAL ASE: ASE Name
CLASS: Class Name
CLASS ID: #
PARENT CLASS: Parent Class Name
ATTRIBUTES:
1 (o) Key Attribute: numeric identifier
2 (o) Key Attribute: name
3 (m) Attribute: attribute name (values)
4 (m) Attribute: attribute name (values)
4.1 (s) Attribute: attribute name (values)
4.2 (s) Attribute: attribute name (values)
4.3 (s) Attribute: attribute name (values)
5 (c) Constraint: constraint expression
5.1 (m) Attribute: attribute name (values)
5.2 (o) Attribut
...
