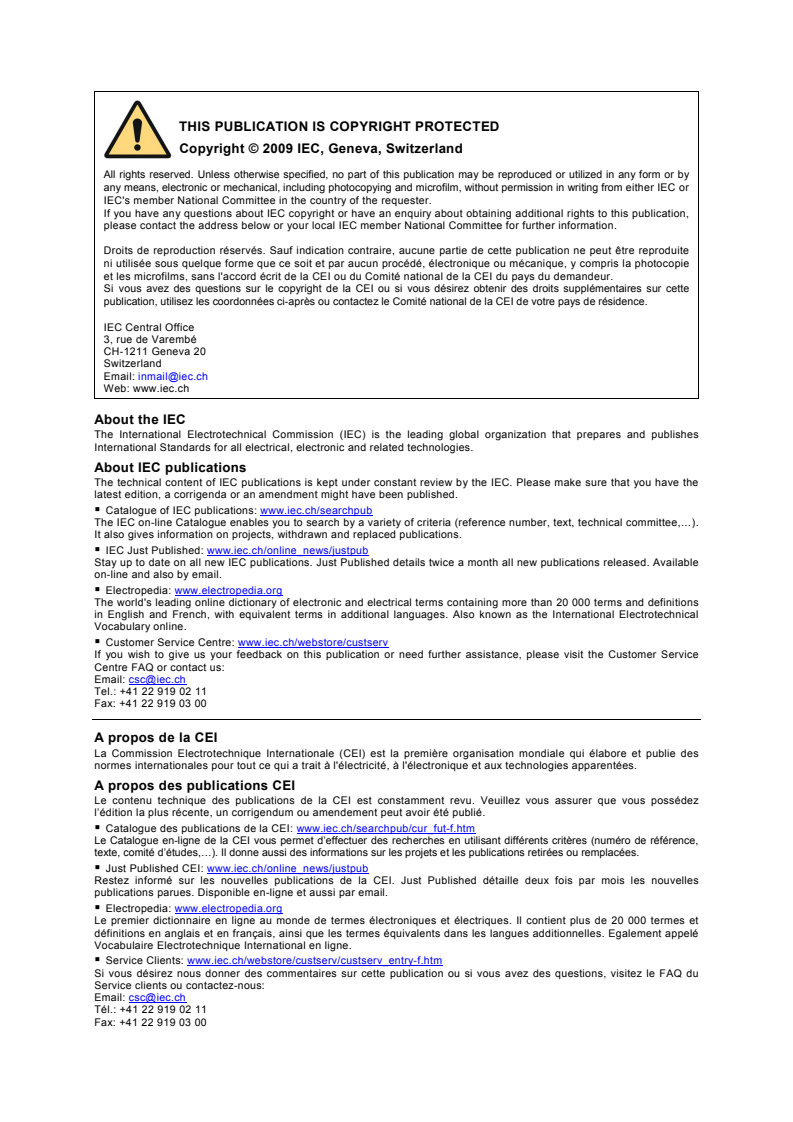

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC/TR 62271-301 ®
Edition 2.0 2009-09
TECHNICAL
REPORT
RAPPORT
TECHNIQUE
High-voltage switchgear and controlgear –
Part 301: Dimensional standardisation of high-voltage terminals

Appareillage à haute tension –
Partie 301: Normalisation dimensionnelle des bornes à haute tension

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
H
CODE PRIX
ICS 29.130.10 ISBN 978-2-88910-658-5

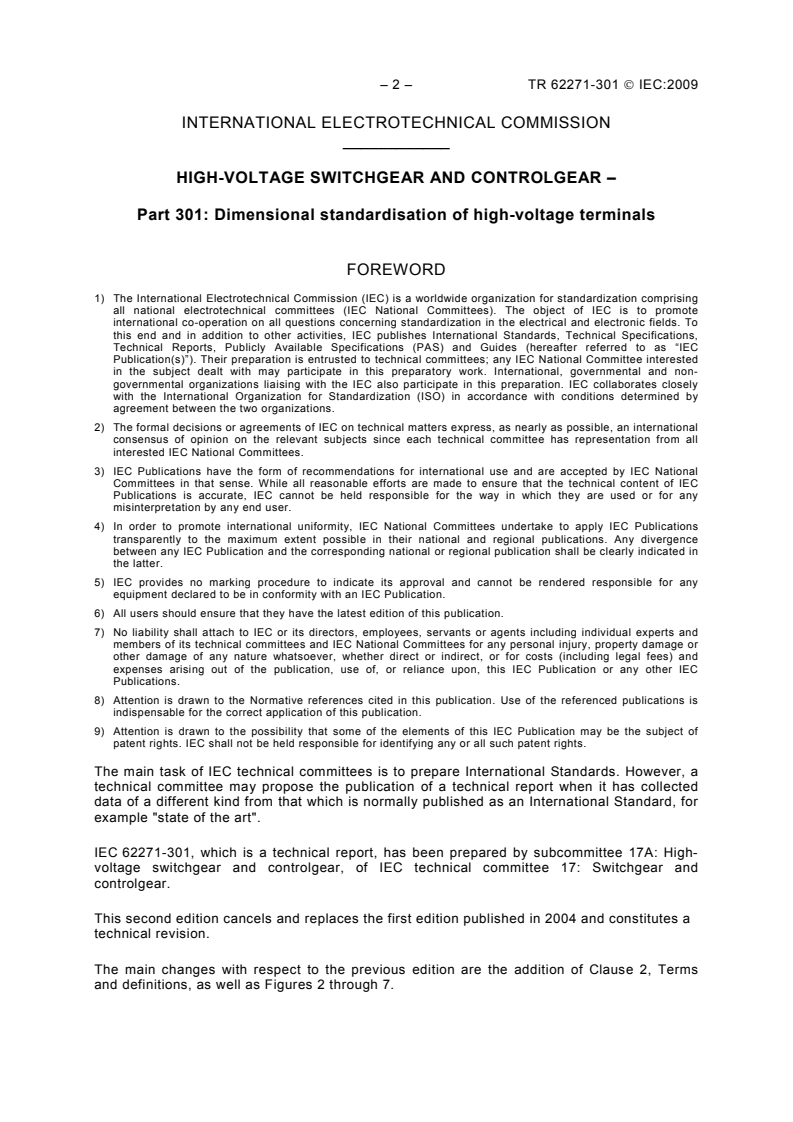

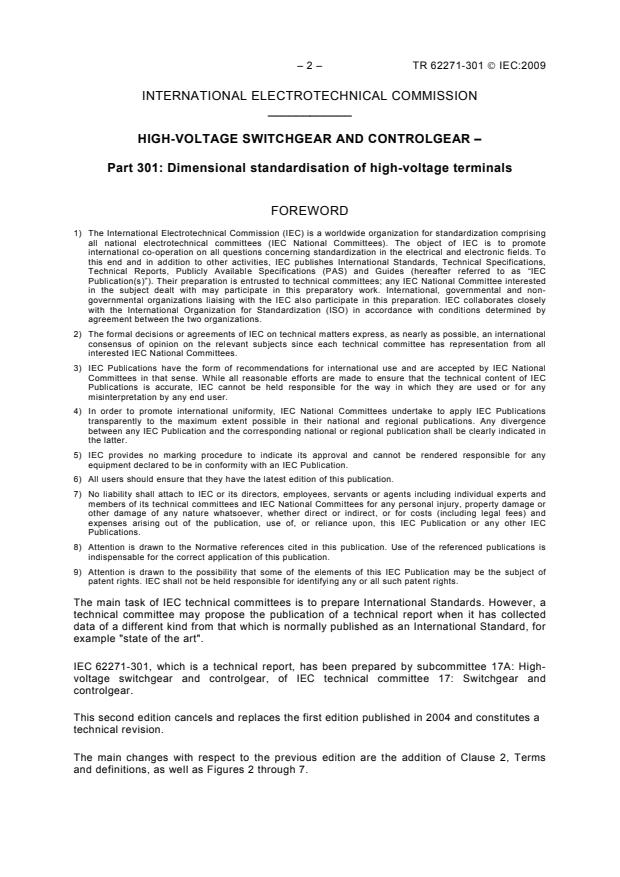

– 2 – TR 62271-301 © IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 301: Dimensional standardisation of high-voltage terminals

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC 62271-301, which is a technical report, has been prepared by subcommittee 17A: High-
voltage switchgear and controlgear, of IEC technical committee 17: Switchgear and
controlgear.
This second edition cancels and replaces the first edition published in 2004 and constitutes a
technical revision.
The main changes with respect to the previous edition are the addition of Clause 2, Terms
and definitions, as well as Figures 2 through 7.

TR 62271-301 © IEC:2009 – 3 –
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
17A/873/DTR 17A/882/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 62271series, published under general title High-voltage switchgear
and controlgear, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 4 – TR 62271-301 © IEC:2009
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 301: Dimensional standardisation of high-voltage terminals

1 Scope
This technical report applies to high-voltage switchgear and controlgear such as circuit-
breakers, disconnectors and switches. However, its application to other equipment is not
excluded. No coordination between dimensions and the rated normal current can be given.
2 Terms and definitions
For the purposes of this document, the following terms and definition apply.
2.1
high-voltage (HV) terminal
conductive part of switchgear and controlgear to which a terminal connector is fastened
2.2
terminal connector
part that joins a conductor to a HV terminal
3 HV terminals with cylindrical shape
The following dimensions are recommended (see Figure 1):

TR 62271-301 © IEC:2009 – 5 –
d
L
IEC  1382/04
Diameter d (mm) 20 30 30 30 32 32 40 40 50 50 50 60 80
Corresponding length 80 80 125 130 80 130 80 125 40 80 100 125 125
L (mm)
Figure 1 – Dimensions for HV terminals with cylindrical shape
NOTE Solutions combining two cylindrical terminals on the same plate can be used, for example two cylinders of
40 mm × 80 mm with a centre distance of 200 mm.
4 HV terminals with rectangular shape
The recommended dimensions for rectangular HV terminals should be restricted to the
diameters of and the distances between the holes.
The dimensions are as follows:
– hole diameters: 14 mm, 16 mm, 17 mm, 18 mm 19 mm and 22 mm;
– distance between holes: 40 mm, 45 mm, 50 mm and 60 mm (centre-to-centre).
NOTE A hole diameter of 14,3 mm and distance between holes of 44,5 mm exist in certain countries.
Any possible combination of these dimensions is permitted.
The distance between holes should be applied to two adjacent holes, both along the abscissa
or ordinate.
Typical examples of hole arrangements are given in Figures 2 through 7.

– 6 – TR 62271-301 © IEC:2009
A
C
IEC  1811/09
A C
mm mm
32 14
40 14
44,5 14,3
Figure 2 – Two hole HV terminals
B
A
C
IEC  1812/09
A B C
mm mm mm
40 40 14
44,5 44,5 14,3
45 45 14
45 45 16
50 50 14
Figure 3 – Four hole HV terminals (2 × 2 hole pattern)

TR 62271-301 © IEC:2009 – 7 –
BB
A
C
IEC  1813/09
A B C
mm mm mm
44,5 44,5 14,3
45 45 14
45 45 16
Figure 4 – Six hole HV terminal (2 × 3 hole pattern)
IEC  1814/09
A B C
mm mm mm
44,5 44,5 14,3
45 45 14
45 45 16
Figure 5 – Six hole HV terminal (3 × 2 hole pattern)

– 8 – TR 62271-301 © IEC:2009
IEC  1815/09
A B C
mm mm mm
50 50 14
Figure 6 – Eight hole HV terminal (2 × 4 hole pattern)
IEC  1816/09
A B C
mm mm mm
45 45 16
40 40 14
Figure 7 – Nine hole HV terminal (3 × 3 hole pattern)
