IEC 62439-7:2011/COR1:2015

 IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 62439-7 IEC 62439-7
Edition 1.0  2011-12 Édition 1.0  2011-12

INDUSTRIAL COMMUNICATION NETWORKS – RESEAUX DE COMMUNICATION INDUSTRIELS –
HIGH AVAILABILITY AUTOMATION NETWORKS – RESEAUX DE HAUTE DISPONIBILITE POUR
Part 7: Ring-based Redundancy Protocol (RRP) L'AUTOMATION – Partie 7: Protocole de
redondance pour réseau en anneau (RRP)

CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.
10 RRP Management Information Base (MIB)
Replace the existing text in Clause 10 with the following text (note that only sections
highlighted in yellow have actually been changed):

-- ****************************************************************************

IEC-62439-7-MIB DEFINITIONS ::= BEGIN

-- ****************************************************************************
-- Imports
-- ****************************************************************************

IMPORTS
OBJECT-IDENTITY,
OBJECT-TYPE,
TimeTicks,
Counter32,
Unsigned32,
Counter64,
VISIBLE-STRING,
INTEGER         FROM SNMPv2-SMI
Boolean         FROM HOST-RESOURCES-MIB
MacAddress        FROM BRIDGE-MIB
iso           FROM RFC1155-SMI;

-- ***********************************************************************
-- Declaration of TIMEOFDAY
-- ***********************************************************************
TIMEOFDAY  ::= TEXTUAL-CONVENTION
STATUS     current
DESCRIPTION "
The IEC 61158-5-21 defines the structure of
the TIMEOFDAY as a data type numeric
identifier 12.
"
SYNTAX     VISIBLE STRING (SIZE (6))

-- ***********************************************************************
IEC 6439-7:2011-12/COR1:2015-05 (en-fr)

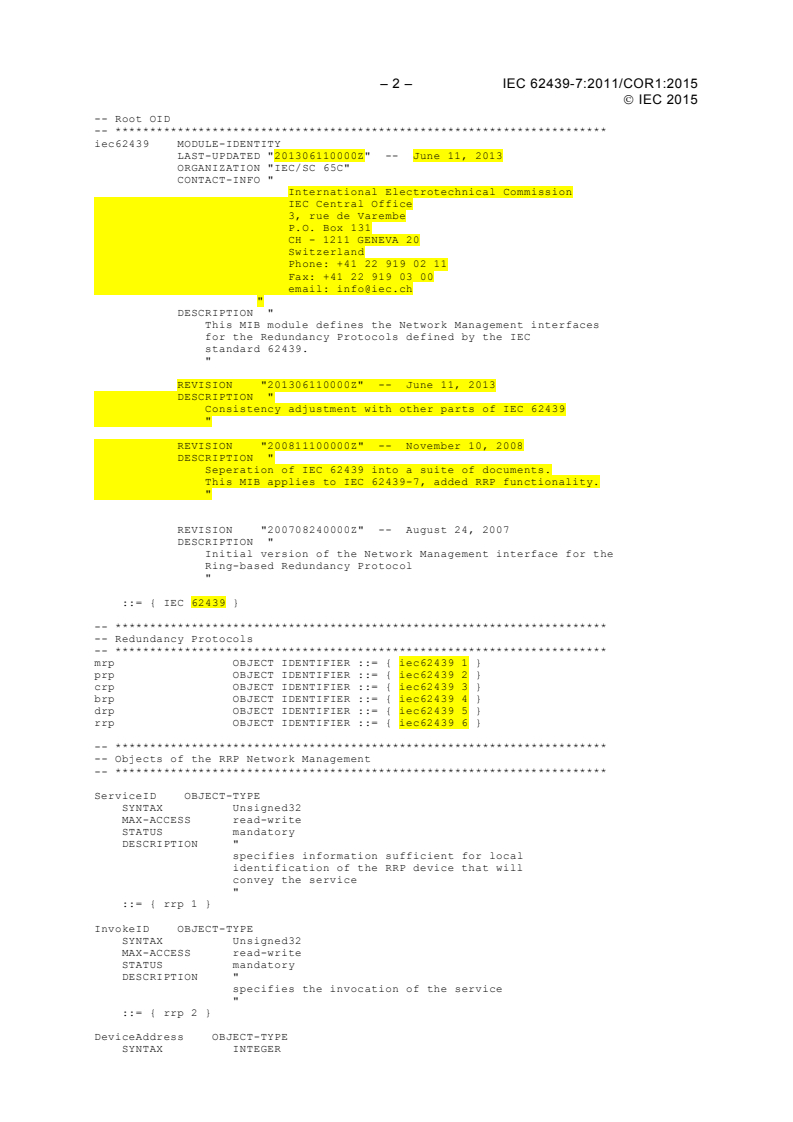

– 2 – IEC 62439-7:2011/COR1:2015
 IEC 2015
-- Root OID
-- ***********************************************************************
iec62439  MODULE-IDENTITY
LAST-UPDATED "201306110000Z" -- June 11, 2013
ORGANIZATION "IEC/SC 65C"
CONTACT-INFO "
International Electrotechnical Commission
IEC Central Office
3, rue de Varembe
P.O. Box 131
CH - 1211 GENEVA 20
Switzerland
Phone: +41 22 919 02 11
Fax: +41 22 919 03 00
email: info@iec.ch
"
DESCRIPTION "
This MIB module defines the Network Management interfaces
for the Redundancy Protocols defined by the IEC
standard 62439.
"
REVISION  "201306110000Z" -- June 11, 2013
DESCRIPTION "
Consistency adjustment with other parts of IEC 62439
"
REVISION  "200811100000Z" -- November 10, 2008
DESCRIPTION "
Seperation of IEC 62439 into a suite of documents.
This MIB applies to IEC 62439-7, added RRP functionality.
"
REVISION  "200708240000Z" -- August 24, 2007
DESCRIPTION "
Initial version of the Network Management interface for the
Ring-based Redundancy Protocol
"
::= { IEC 62439 }
-- ***********************************************************************
-- Redundancy Protocols
-- ***********************************************************************
mrp         OBJECT IDENTIFIER ::= { iec62439 1 }
prp         OBJECT IDENTIFIER ::= { iec62439 2 }
crp         OBJECT IDENTIFIER ::= { iec62439 3 }
brp         OBJECT IDENTIFIER ::= { iec62439 4 }
drp         OBJECT IDENTIFIER ::= { iec62439 5 }
rrp         OBJECT IDENTIFIER ::= { iec62439 6 }

-- ***********************************************************************
-- Objects of the RRP Network Management
-- ***********************************************************************

ServiceID  OBJECT-TYPE
SYNTAX     Unsigned32
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies information sufficient for local
identification of the RRP device that will
convey the service
"
::= { rrp 1 }
InvokeID  OBJECT-TYPE
SYNTAX     Unsigned32
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the invocation of the service
"
::= { rrp 2 }
DeviceAddress  OBJECT-TYPE
SYNTAX     INTEGER
 IEC 2015
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the value for the RRP device address
"
::= { rrp 3 }
DeviceFlags  OBJECT-TYPE
SYNTAX     BITS {
DeviceAddressCollision(0),
DeviceStateChanged(1)
}
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the flags for events that occurred
in a local device
"
::= { rrp 4 }
DeviceState  OBJECT-TYPE
SYNTAX     INTEGER {
Invalid(0),
SA(1),
LNM(2),
GD(3),
RNMP(4),
RNMS(5)
}
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the device state of the RRP device
"
::= { rrp 5 }
DeviceUID  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the unique 8-octet identification that
identifies a RRP device in a network
"
::= { rrp 6 }
DeviceUIDRport1  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the UID of the device that is linked
through the R-port1
"
::= { rrp 7 }
DeviceUIDRport2  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the UID of the device that is linked
through the R-port2
"
::= { rrp 8 }
MACAddress  OBJECT-TYPE
SYNTAX     MacAddress
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the MAC address of the RRP device
"
::= { rrp 9 }
Rport1Information  OBJECT-TYPE
SYNTAX     BITS {
PortLinkDown(0),

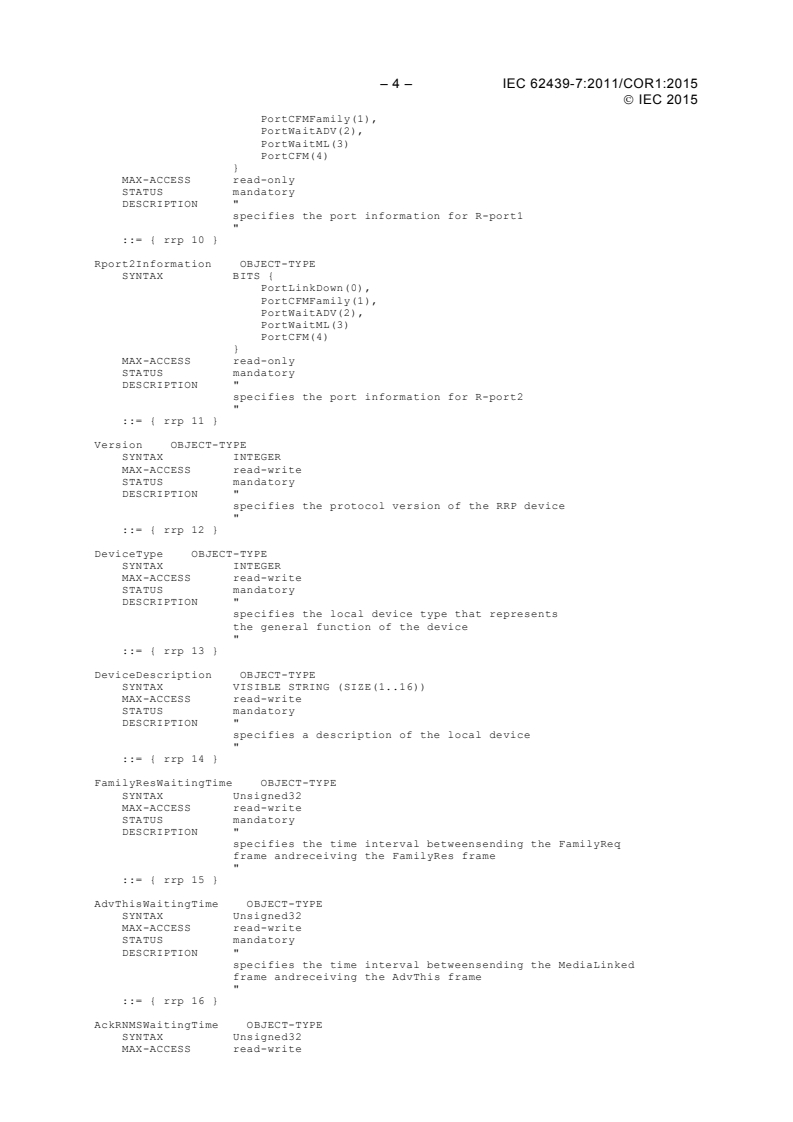

– 4 – IEC 62439-7:2011/COR1:2015
 IEC 2015
PortCFMFamily(1),
PortWaitADV(2),
PortWaitML(3)
PortCFM(4)
}
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the port information for R-port1
"
::= { rrp 10 }
Rport2Information  OBJECT-TYPE
SYNTAX     BITS {
PortLinkDown(0),
PortCFMFamily(1),
PortWaitADV(2),
PortWaitML(3)
PortCFM(4)
}
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the port information for R-port2
"
::= { rrp 11 }
Version  OBJECT-TYPE
SYNTAX     INTEGER
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the protocol version of the RRP device
"
::= { rrp 12 }
DeviceType  OBJECT-TYPE
SYNTAX     INTEGER
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the local device type that represents
the general function of the device
"
::= { rrp 13 }
DeviceDescription  OBJECT-TYPE
SYNTAX     VISIBLE STRING (SIZE(1.16))
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies a description of the local device
"
::= { rrp 14 }
FamilyResWaitingTime  OBJECT-TYPE
SYNTAX     Unsigned32
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the time interval betweensending the FamilyReq
frame andreceiving the FamilyRes frame
"
::= { rrp 15 }
AdvThisWaitingTime  OBJECT-TYPE
SYNTAX     Unsigned32
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the time interval betweensending the MediaLinked
frame andreceiving the AdvThis frame
"
::= { rrp 16 }
AckRNMSWaitingTime  OBJECT-TYPE
SYNTAX     Unsigned32
MAX-ACCESS   read-write
 IEC 2015
STATUS     mandatory
DESCRIPTION   "
specifies the time interval betweensending the RingStart
frame andreceiving the AckRNMS frame
"
::= { rrp 17 }
RingStateChangeTimeout  OBJECT-TYPE
SYNTAX     Unsigned32
MAX-ACCESS   read-write
STATUS     mandatory
DESCRIPTION   "
specifies the timeout to generate event for changing
RNMP device state
"
::= { rrp 18 }
DiagnosticInformation  OBJECT-TYPE
SYNTAX     INTEGER {
NetworkInformation(1),
PathTableInformation(2)
}
MAX-ACCESS   write-only
STATUS     mandatory
DESCRIPTION   "
specifies the type of diagnostic information
"
::= { rrp 19 }
-- ***********************************************************************
-- Objects of the RRP Network Information
-- ***********************************************************************

NetworkTopology  OBJECT-TYPE
SYNTAX     INTEGER {
Invalid(0),
NET_TPG_SA(1),
NET_TPG_LINE(2),
NET_TPG_RING(3)
}
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the type of network topology
"
::= { rrp 20 }
CollisionCnt  OBJECT-TYPE
SYNTAX     INTEGER
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the device address collision count
for remote devices
"
::= { rrp 21 }
DeviceCnt  OBJECT-TYPE
SYNTAX     INTEGER
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the total number of devices on the network
"
::= { rrp 22 }
TopologyChangeCnt  OBJECT-TYPE
SYNTAX     INTEGER
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the topology change count
"
::= { rrp 23 }
LastTopologyChangeTime  OBJECT-TYPE
SYNTAX     TIMEOFDAY
MAX-ACCESS   read-only
– 6 – IEC 62439-7:2011/COR1:2015
 IEC 2015
STATUS     mandatory
DESCRIPTION   "
specifies the date and time at whichthe network topology
was last changed
"
::= { rrp 24 }
RNMPDeviceUID  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the UID of the device selected as the RNMP
on the network
"
::= { rrp 25 }
RNMSDeviceUID  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the UID of the device selected as the RNMS
on the network
"
::= { rrp 26 }
LNMDeviceUIDRport1  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the UID of the device selected as the LNM
in the R-port1 direction
"
::= { rrp 27 }
LNMDeviceUIDRport2  OBJECT-TYPE
SYNTAX     Counter64
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the UID of the device selected as the LNM
in the R-port2 direction
"
::= { rrp 28 }
NetworkFlags  OBJECT-TYPE
SYNTAX     BITS {
NetworkTopologyChanged(0),
DeviceAddressCollisionInNetwork(1),
DeviceJoinedNetwork(2),
DeviceLeftNetwork(3)
}
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
specifies the flags for events that occurred
in the network
"
::= { rrp 29 }
-- ***********************************************************************
-- Objects of the RRP Path Table Information
-- ***********************************************************************

PathTableInfo  OBJECT-TYPE
SYNTAX     SEQUENCE OF PathTableInfoEntry
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "
Path Table in the form of an array table containing
the path information foreach RRP device on the network
"
::= { rrp 30 }
PathTableEntry  OBJECT-TYPE
SYNTAX     PathTableInfoEntry

 IEC 2015
MAX-ACCESS   read-only
STATUS     mandatory
DESCRIPTION   "Row of Path Table Information"
INDEX      { PathTableIndex }
::= { PathTableInfo 1 }
PathTableInfoEntry ::= SEQUENCE {
pathDevAddress           INTEGER,
pathHopCntRp1            INTEGER,
pathHopCntRp2            INTEGER,
pathPreferRp            INTEGER,
pathDstRp              INTEGER,
pathDevState            INTEGER,
pathMACAddress           MacAddress,
pathRp1Info             INTEGER,
pathRp2Info             INTEGER,
pathVersion             INTEGER,
pathDevType             INTEGER,
pathDevDesc             VISIBLE STRING (SIZE(1.16)),
pathDevUID             Counter64,
pathDevUIDRp1
...
