CISPR 14-1:2020
(Main)Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 1: Emission
Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 1: Emission
CISPR 14-1:2020 specifies the requirements that apply to the emission of radio-frequency disturbances in the frequency range 9 kHz to 400 GHz from appliances, electric tools and similar apparatus as defined below, whether powered by AC or DC (including a battery). This document is applicable to the following equipment:
- household appliances or similar equipment;
- electric tools;
- similar apparatus.
Also included in the scope of this document are separate parts of the above mentioned equipment such as motors and switching devices (e.g. power or protective relays). However, no emission requirements apply to such separate parts, unless otherwise stated in this document. Products which incorporate radio transmit/receive functions are included in the scope of this document. Equipment under the scope of this document making use of IPT is also in the scope. Excluded from the scope of this document are:
- equipment for which all emission requirements in the radio-frequency range are explicitly formulated in other CISPR standards;
- equipment intended to be used only on a vehicle, ship or aircraft;
- equipment used only in industrial environment
- the effects of electromagnetic phenomena relating to the safety of the equipment.
Multifunction equipment may be required to comply with clauses in this and other standards. The details are given in 6.5. The emission requirements in this document are not intended to be applicable to the intentional transmissions from a radio transmitter as defined by the ITU including their spurious emissions. This seventh edition cancels and replaces the sixth edition published in 2016. This edition constitutes a technical revision. This edition includes the following significant changes with respect to the previous edition:
- extension of the frequency range for radiated measurements above 1 GHz;
- revision of general test conditions and addition of new specific test conditions (e.g. for robotic equipment);
- introduction of additional requirements for equipment making use of inductive power transfer technology;
- remove from the normative text any compliance requirement based on statistical evaluation;
- revision of clicks analysis, with particular relevance to the determination of the observation time and the application of the upper quartile method for different types of click analysers.
Refer to the Foreword of the document for examples of equipment.
Compatibilité électromagnétique - Exigences relatives aux appareils électrodomestiques, aux outils électriques et aux appareils analogues - Partie 1: Emission
CISPR 14-1:2020 spécifie les exigences qui s'appliquent à l'émission de perturbations radioélectriques dans la plage de fréquences comprise entre 9 kHz et 400 GHz par les appareils, outils électriques et appareils analogues définis ci-après, alimentés par un réseau d'alimentation en courant alternatif ou en courant continu (y compris une pile ou un accumulateur).
Le présent document s'applique aux équipements suivants:
- les appareils électrodomestiques ou équipements analogues;
- les outils électriques;
- les appareils analogues.
Le domaine d'application du présent document inclut également les pièces détachées des équipements mentionnés ci-dessus, comme les moteurs et les dispositifs de commutation (par exemple, relais d'alimentation ou de protection). Toutefois, aucune exigence d'émission ne s'applique à ces pièces détachées, sauf indication contraire dans le présent document. Les produits qui comportent des fonctions d'émission/réception radioélectrique relèvent du domaine d'application du présent document. Les équipements qui relèvent du domaine d’application du présent document et utilisant le TPI sont également couverts. Sont exclus du domaine d’application du présent document:
- les équipements pour lesquels toutes les exigences d'émission dans la plage des radiofréquences sont explicitement données dans d'autres normes du CISPR;
- les équipements destinés à être utilisés exclusivement dans un véhicule, un navire ou un avion;
- les équipements utilisés uniquement dans un environnement industriel;
- les effets des phénomènes électromagnétiques sur la sécurité des équipements.
Les équipements multifonctions peuvent devoir respecter des articles de la présente norme ainsi que d'autres normes. Pour plus d'informations, consulter 6.5. Les exigences données dans le présent document concernant les émissions ne sont pas destinées à s'appliquer aux transmissions intentionnelles issues d'un émetteur radio définies par l'Union internationale des télécommunications (UIT), y compris leurs émissions parasites. Cette septième édition annule et remplace la sixième édition parue en 2016. Cette édition constitue une révision technique. Cette édition inclut les modifications majeures suivantes par rapport à l'édition précédente:
- l’extension de la plage de fréquences pour les mesurages des perturbations rayonnées supérieures à 1 GHz;
- la révision des conditions générales d'essai et l’ajout de nouvelles conditions d'essai spécifiques (par exemple pour les équipements robotisés);
- l’introduction d'exigences supplémentaires pour les équipements utilisant la technologie de transfert de puissance par induction;
- la suppression du texte normatif de toute exigence de conformité fondée sur une évaluation statistique;
- la révision de l'analyse des claquements, avec un intérêt particulier pour la détermination de la durée d'observation et l'application de la méthode du quartile supérieur pour différents types d'analyseurs de claquements.
Veuillez vous référer à l'avant-propos du document pour des exemples d'équipements.
General Information
Relations
Buy Standard
Standards Content (Sample)
CISPR 14-1 ®
Edition 7.0 2020-09
INTERNATIONAL
STANDARD
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
Electromagnetic compatibility – Requirements for household appliances, electric
tools and similar apparatus –
Part 1: Emission
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and definitions clause of IEC
publications issued between 2002 and 2015. Some entries
IEC Customer Service Centre - webstore.iec.ch/csc have been collected from earlier publications of IEC TC 37, 77,
If you wish to give us your feedback on this publication or need 86 and CISPR.
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
CISPR 14-1 ®
Edition 7.0 2020-09
INTERNATIONAL
STANDARD
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
Electromagnetic compatibility – Requirements for household appliances, electric
tools and similar apparatus –
Part 1: Emission
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100.10 ISBN 978-2-8322-8744-6
– 2 – CISPR 14-1:2020 © IEC 2020

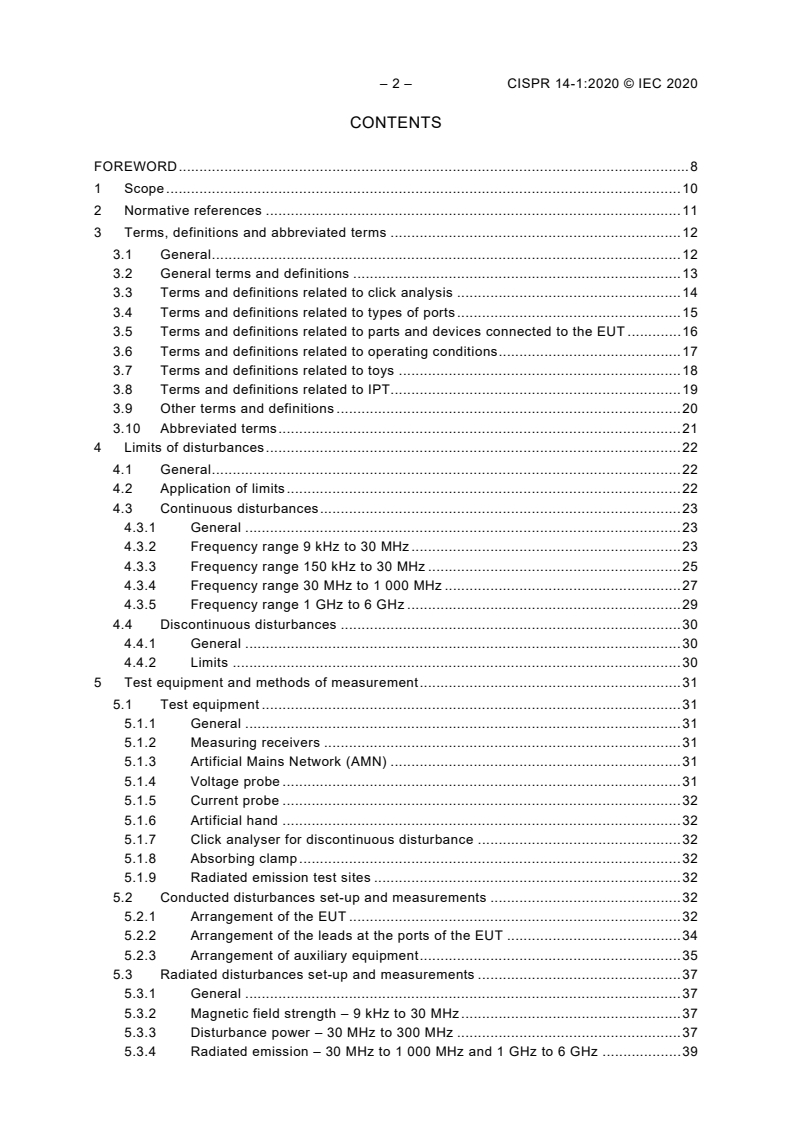

CONTENTS
