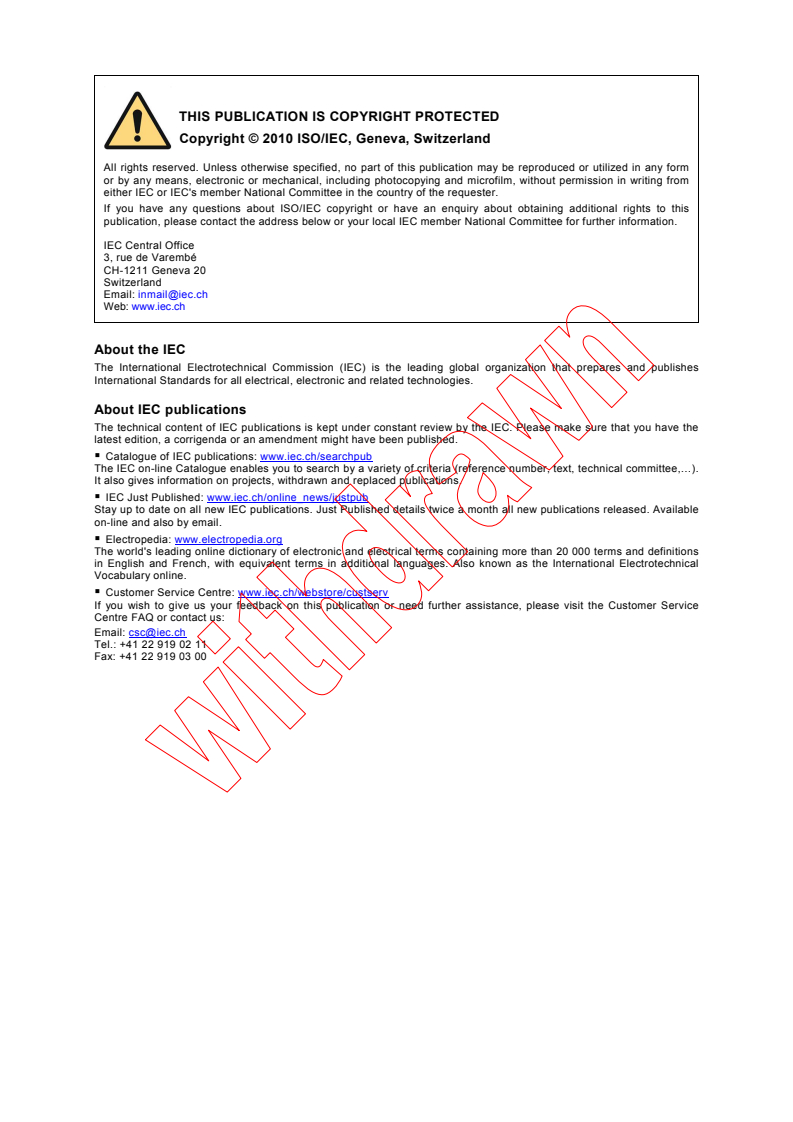

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.

If you have any questions about ISO/IEC copyright or have an enquiry about obtaining additional rights to this

publication, please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
ISO/IEC 11801
Edition 2.0 2010-04
INTERNATIONAL
STANDARD
AMENDMENT 2
Information technology – Generic cabling for customer premises

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
X
ICS 35.200 ISBN 978-2-88910-819-0

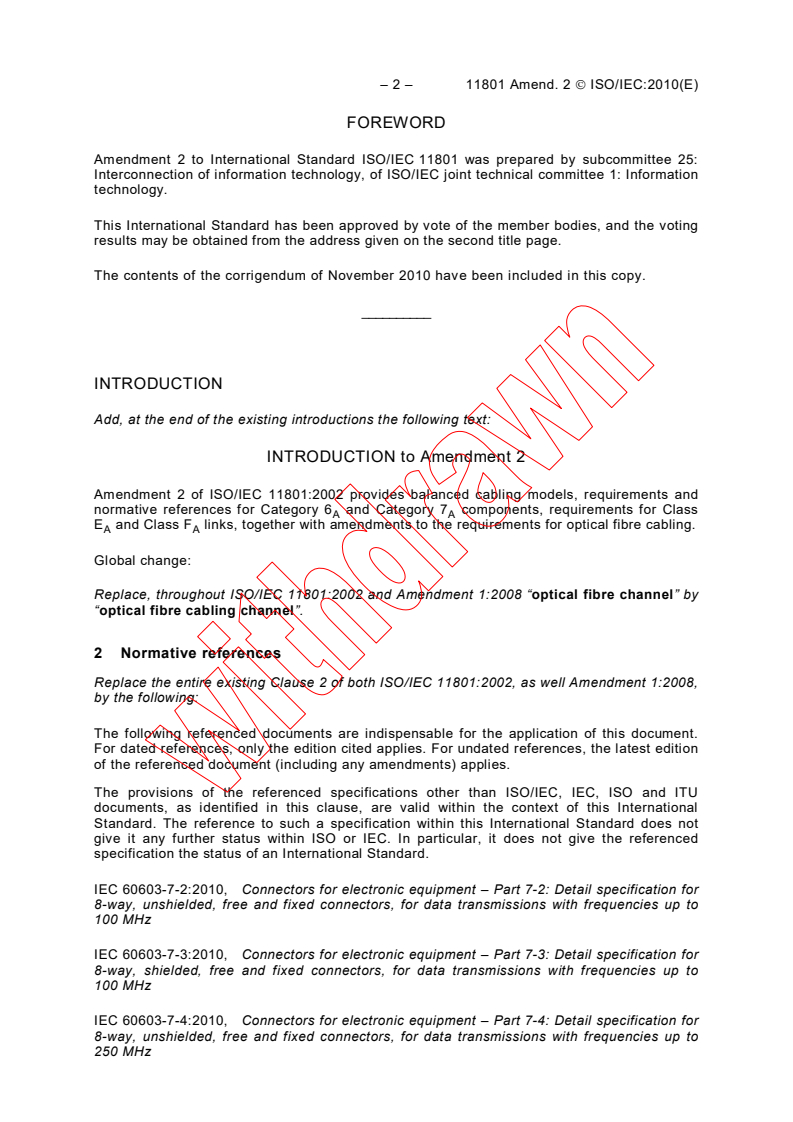

– 2 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

FOREWORD
Amendment 2 to International Standard ISO/IEC 11801 was prepared by subcommittee 25:

Interconnection of information technology, of ISO/IEC joint technical committee 1: Information

technology.
This International Standard has been approved by vote of the member bodies, and the voting

results may be obtained from the address given on the second title page.

The contents of the corrigendum of November 2010 have been included in this copy.

__________
INTRODUCTION
Add, at the end of the existing introductions the following text:
INTRODUCTION to Amendment 2
Amendment 2 of ISO/IEC 11801:2002 provides balanced cabling models, requirements and
normative references for Category 6 and Category 7 components, requirements for Class
A A
E and Class F links, together with amendments to the requirements for optical fibre cabling.
A A
Global change:
Replace, throughout ISO/IEC 11801:2002 and Amendment 1:2008 “optical fibre channel” by
“optical fibre cabling channel”.
2 Normative references
Replace the entire existing Clause 2 of both ISO/IEC 11801:2002, as well Amendment 1:2008,
by the following:
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.

The provisions of the referenced specifications other than ISO/IEC, IEC, ISO and ITU
documents, as identified in this clause, are valid within the context of this International
Standard. The reference to such a specification within this International Standard does not
give it any further status within ISO or IEC. In particular, it does not give the referenced
specification the status of an International Standard.
IEC 60603-7-2:2010, Connectors for electronic equipment – Part 7-2: Detail specification for
8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up to
100 MHz
IEC 60603-7-3:2010, Connectors for electronic equipment – Part 7-3: Detail specification for
8-way, shielded, free and fixed connectors, for data transmissions with frequencies up to
100 MHz
IEC 60603-7-4:2010, Connectors for electronic equipment – Part 7-4: Detail specification for
8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up to
250 MHz
11801 Amend. 2 Ó ISO/IEC:2010(E) – 3 –

IEC 60603-7-5:2010, Connectors for electronic equipment – Part 7-5: Detail specification for

8-way, shielded, free and fixed connectors, for data transmissions with frequencies up to

250 MHz
IEC 60603-7-41:2010, Connectors for electronic equipment – Part 7-41: Detail specification

for 8-way, unshielded, free and fixed connectors, for data transmissions with frequencies up

to 500 MHz
IEC 60603-7-51:2010, Connectors for electronic equipment – Part 7-51: Detail specification

for 8-way, shielded, free and fixed connectors, for data transmissions with frequencies up to

500 MHz
IEC 61156-2:2010, Multicore and symmetrical pair/quad cables for digital communications –
Part 2: Symmetrical pair/quad cables with transmission characteristics up to 100 MHz –
Horizontal floor cable – Sectional specification
IEC 61156-6:2010, Multicore and symmetrical pair/quad cables for digital communications –
Part 6: Symmetrical pair/quad cables with transmission characteristics up to 1 000 MHz –
Work area wiring – Sectional specification
ISO/IEC 14763-1, Information technology – Implementation and operation of customer
premises cabling – Part 1: Administration
3.1 Terms and definitions
Add the following new terms and definitions:
3.1.84
cabled optical fibre category
system of defining requirements for the cabled optical fibre performance within optical fibre
cabling channels and links
NOTE Also referred to as performance codes in some standards.
3.1.85
equipment interface
location where a connection between equipment and the cabling system occurs
3.1.86
test interface
location where a connection between test equipment and the cabling to be tested occurs

3.1.74
Replace, in ISO/IEC 11801:2002, the existing definition 3.1.56 for the term “small form factor
connector” (renumbered as 3.1.74 by Amendment 1:2008) by the following:
3.1.74
small form factor connector
optical fibre connector designed to accommodate two or more optical fibres with at least the
same mounting density as achievable within the IEC 60603-7 series
3.2 Abbreviations
Add the following new abbreviations:
___________
Standards developed by IEC subcommittee 86C use this definition in support of JTC 1/SC25 standards.

– 4 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

EI Equipment interface
TI Test interface
4 Conformance
Replace, in Amendment 1:2008, point 2) of item b) by the following:

2) attachment of appropriate components to a permanent link or CP link design meeting the

prescribed performance class of Clause 6 and Annex A. Channel performance shall be

ensured where a channel is created by adding more than one cord to either end of a link

meeting the requirements of Annex A;

Delete, in Amendment 1:2008, the following text and referenced footnote:
Until amendment 2 of ISO/IEC 11801:2002 has been published:
· conformance for Classes D, E and F with regards to TCL, ELTCTL and coupling
attenuation can only be achieved by option 1) above;
· conformance for Classes E and F can only be achieved by option 1) above.
A A
Add, after bullet h), the following text:
Test methods to assess conformance with the channel and link requirements of Clause 6 and
Annex A respectively are specified in IEC 61935-1 for balanced cabling and ISO/IEC 14763-3
for optical fibre cabling. The treatment of measured results that fail to meet the requirements
of Clause 6 and Annex A respectively, or lie within the relevant measurement accuracy, shall
be clearly documented within a quality plan as described in ISO/IEC 14763-2.
Installation and administration of cabling in accordance with this International Standard shall
be undertaken in accordance with ISO/IEC 14763-2.
This International Standard does not specify which tests and sampling levels should be
adopted. The test parameters to be measured and the sampling levels to be applied for a
particular installation shall be defined in the installation specification and quality plans for that
installation prepared in accordance with ISO/IEC 14763-2.
5.5 Accommodation of functional elements
Replace, in ISO/IEC 11801:2002, the second sentence of the second paragraph beginning
with “Guidance for …” by the following:
Requirements for the accommodation of distributors are given in ISO/IEC 14763-2 (first
edition). Until ISO/IEC 14763-2 is published, relevant information can be found in

ISO/IEC TR 14763-2.
Replace, in ISO/IEC 11801:2002, the second sentence of the third paragraph beginning with
“Requirements for …” by the following:
Requirements for pathways and cable management systems are provided in ISO/IEC 14763-2
(first edition). Until ISO/IEC 14763-2 is published, relevant information can be found in
ISO/IEC 18010.
5.6.1 Equipment interfaces and test interfaces
Replace, in ISO/IEC 11801:2002, the existing Figure 7 by the following new Figure 7:
___________
The entire Clause 4 of ISO/IEC 11801:2002, has been replaced by Amendment 1:2008.

11801 Amend. 2 Ó ISO/IEC:2010(E) – 5 –

Horizontal cabling
EI
EI EI
C C C C C C
EQP TE
CP
TO
TI TI TI TI TI
Backbone cabling EI EI EI EI
C C C C C C
EQP EQP
TI TI C = connection TI TI
Key
EI Equipment interface
TI Test interface
Figure 7 – Equipment and test interfaces
5.6.2 Channel and permanent link
Replace, in ISO/IEC 11801:2002, the existing first paragraph of by the following:
The transmission performance of generic cabling is detailed in Clauses 6, 8 and Annex A, in
terms of the channel and the permanent link.
5.7.5.1 General requirements
Replace, in ISO/IEC 11801:2002, the second sentence of the first bullet point by the following:
Requirements on work area size are given in ISO/IEC 14763-2 (first edition). Until
ISO/IEC 14763-2 is published, relevant information can be found in ISO/IEC TR 14763-2.
Replace the last paragraph by the following:
For balanced cables, 2 pairs per TO may be used as an alternative to 4 pairs. However, this
may require pair reassignment and will not support some applications (see Annex F). Care

should be taken that the initial pair assignment, and all subsequent changes, are recorded
(see ISO/IEC 14763-2 for details of administration requirements. Until ISO/IEC 14763-2 (first
edition) is published, relevant information can be found in ISO/IEC TR 14763-2). Pair
reassignment by means of inserts is allowed.
5.7.6 Consolidation point
Replace, in ISO/IEC 11801:2002, the existing text of bullet point d) by “void”.
6.2 Layout
Delete, in Amendment 1:2008, the NOTE which reads:
NOTE Component performance requirements for Category 6 and Category 7 will be available in Amendment 2
A A
to ISO/IEC 11801:2002.
– 6 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

Delete, in ISO/IEC 11801:2002, the entire fourth paragraph beginning with “Most Class F

channels…”.
Replace, in ISO/IEC 11801:2002, the existing paragraph prior to Figure 11, as well as

Figure 11 by the following:
Figure 11 shows an example of terminal equipment in the work area connected to

transmission equipment using two different media channels which are cascaded. In fact, there

is an optical fibre cabling channel (see Clause 8) connected via an active component in the

FD to a balanced cabling channel. There are four channel interfaces; one at each end of the

balanced channel and one at each end of the optical fibre cabling channel.

BD
C C C C C C C TE
TO
C C C
Optical fibre cabling channel Balanced cabling
channel
C C C
EQP OE EQP
CD FD
= connection
C
= optional connection
C
OE EQP = Opto- electronic equipment

Figure 11 – Example of a system showing the location of cabling interfaces
and extent of associated channels
Delete, in Amendment 1:2008, the NOTE which reads:
NOTE Permanent link and CP link requirements for Class E and Class F will be available in amendment 2 to
A A
ISO/IEC 11801:2002.
Delete, in ISO/IEC 11801:2002, the entire last paragraph beginning with “Most Class F
channels…”.
6.3 Classification of balanced cabling

Replace, in ISO/IEC 11801:2002, the second sentence of the second paragraph by the
following:
Similarly, Class B, C, D, E, E , F and F channels provide the transmission performance to
A A
support Class B, C, D, E, E , F and F applications respectively.
A A
6.4.2 Return loss
Replace, in ISO/IEC 11801:2002, the existing first paragraph by he following:
The return loss requirements are applicable to Classes C, D, E, E , F and F only.
A A
6.4.3 Insertion loss/attenuation
Replace, in ISO/IEC 11801:2002, the last paragraph before Table 4 by the following:

11801 Amend. 2 Ó ISO/IEC:2010(E) – 7 –

When required, the insertion loss shall be measured according to IEC 61935-1.

6.4.5.1 General
Replace, in Amendment 1:2008, the entire text of this subclause by the following:

ACR-N and PS ACR-N requirements are applicable to Classes D, E, E , F and F only.
A A
Except for the name, the definition and equations for ACR-N and PS ACR-N are identical to

those used for ACR and PS ACR, respectively, in prior editions of this standard.

6.4.6.1 General
Replace, in Amendment 1:2008, the first paragraph by the following:
ACR-F and PS ACR-F requirements are applicable to Classes D, E, E , F and F only.
A A
6.4.9 Current carrying capacity

Replace, in ISO/IEC 11801:2002, the existing subclause by the following:
The minimum current carrying capacity for channels of Classes D, E, EA, F and FA shall be in
accordance with Table 84. This shall be achieved by an appropriate design.
Table 84 – Current carrying capacity for channel
Minimum Operating
temperature (t)
current carrying
capacity
A d.c. °C
0,300 t ≤ (TR –10)
0,175 (T – 10) < t ≤ T
R R
Where T is the lowest maximum
R
operating temperature specified for the
components comprising the cabling
subsystem.
For information on current carrying capacity in respect to applications using remote power
supplied over balanced cabling, see ISO/IEC TR 29125.
6.4.13 Delay skew
Replace, in ISO/IEC 11801:2002, the existing second paragraph by the following:
When required, the delay skew shall be calculated according to IEC 61935-1.
6.4.15.5 PS AFEXT for Class E channels
A
Replace, in Amendment 1:2008, the existing third paragraph by the following:
The measured pair-to-pair AFEXT values of a wire pair k in a disturbed channel from the
disturbing channel l are normalized by the difference of the insertion losses of disturbing and
disturbed channels.
7.1 General
Replace, in ISO/IEC 11801:2002, the existing text by the following:

– 8 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

This clause describes implementations of generic balanced cabling that utilise components

and assemblies referenced in Clauses 9, 10 and 13. These reference implementations meet

the requirements of Clause 5, and when installed in accordance with ISO/IEC 14763-2 (until

ISO/IEC 14763-2 is published, relevant information can be found in ISO/IEC TR 14763-2),

comply with the channel performance requirements of Clause 6.

7.2.1 General
Replace, in ISO/IEC 11801:2002, the first paragraph by the following:

Balanced components referenced in Clauses 9 and 10 are defined in terms of impedance and

category. In the reference implementations of this clause, the components used in each
cabling channel shall have the same nominal impedance in accordance with 9.2.
7.2.2.1 Component choice
Replace, in Amendment 1 to ISO/IEC 11801:2008, the existing bullet points for Category 6
A
and Category 7 by the following:
A
· Category 6 components provide Class E balanced cabling performance;
A A
· Category 7 components provide Class F balanced cabling performance;
A A
7.2.2.2 Dimensions
Replace, in ISO/IEC 11801:2002, the existing Figure 12 by the following:

11801 Amend. 2 Ó ISO/IEC:2010(E) – 9 –

a) Interconnect - TO Model
Channel = 100 m max.
Fixed horizontal cable
FD
EQP C C C C TE
TO
Equipment
Work area
cord
cord
= connection
C
b) Cr ossconnect - TO Model
Channel = 100 m max.
Fixed horizontal cable
FD
EQP C C C C C TE
TO
Equipment Patch cord/
Work area
cord Jumper
cord
= connection
C
c) Interconnect - CP - TO Model
Channel = 100 m max.
Fixed horizontal cable
FD
EQP C C C C C TE
CP TO
Equipment
CP Work area
cord
cable cord
= connection
C
d) Cr ossconnect - CP - TO Model
Channel = 100 m max.
Fixed horizontal cable
FD
EQP C C C C C C TE
CP TO
Equipment Patch cord/
CP Work area
cord Jumper
cable cord
= connection
C
Figure 12 – Horizontal cabling models

– 10 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

7.2.2.2 Dimensions
Replace, in Amendment 1:2008, the existing paragraph before Table 31 by the following:

Table 31 contains the length assumptions of the mathematical model used to validate channel

performance using components of Clauses 9, 10 and 13. They do not represent absolute

restrictions on the implementation of channels and permanent links, but may be used for

guidance in reference implementations.

Table 31
Replace, in Amendment 1:2008, the table title by the following:
Table 31 – Length assumptions used in the mathematical modelling of balanced
horizontal cabling
Add, in Amendment 1:2008, the following text before Table 32:
In addition to the cords, the channels shown in Figure 12c and Figure 12d contain a CP cable.
The insertion loss specification for the CP cable may differ from that of both the fixed
horizontal cable and the cords. In order to accommodate cables used for work area cords, CP
cables, patch cords, jumpers and equipment cords with different insertion loss, the length of
the cables used within a channel shall be determined by the equations shown in Table 32.
Replace, in Amendment 1:2008, Table 32 by the following:
(Note that Table 21 in ISO/IEC 11801:2002 has been replaced and renumbered by Amend-
ment 1:2008 as Table 32.)
Table 32 – Horizontal channel length equations
Implementation equation
Model Figure Class D Class E and E Class F and F
A A
a a
Interconnect - TO 12a H = 109 – FX H = 107 – 3 – FX H = 107 – 2 – FX
a a
H = 107 – FX H = 106 – 3 – FX H = 106 – 3 – FX
Cross-connect - TO 12b
a a
Interconnect - CP -TO 12c H = 107 – FX – CY H = 106 - 3 – FX – CY H = 106 – 3 – FX – CY
a a
Cross-connect - CP - TO 12d H = 105 – FX – CY H = 105 - 3 – FX – CY H = 105 – 3 – FX – CY
H the maximum length of the fixed horizontal cable (m)
F combined length of patch cords/jumpers, equipment and work area cords (m)
C the length of the CP cable (m)

X the ratio of cord cable insertion loss (dB/m) to fixed horizontal cable insertion loss (dB/m)
Y the ratio of CP cable insertion loss (dB/m) to fixed horizontal cable insertion loss (dB/m)
NOTE For operating temperatures above 20 °C, H should be reduced by 0,2 % per °C for screened cables; 0,4 %
per °C (20 °C to 40 °C) and 0,6 % per °C (>40 °C to 60 °C) for unscreened cables.
a
This length reduction is to provide an allocated margin to accommodate insertion loss deviation.

Move, in Amendment 1:2008, after Table 32 the following text above the bulleted list:
For the purpose of calculation in Table 32 it is assumed that:
___________
Refers to Table 31 as added by Amendment 1 and not Table 31 (renumbered as Table 42 by Amend-
ment 1:2008) in ISO/IEC 11801:2002.

11801 Amend. 2 Ó ISO/IEC:2010(E) – 11 –

7.2.3.2 Dimensions
Replace, in ISO/IEC 11801:2002, the last sentence of the first paragraph by the following:

This represents the maximum configuration for a Class D, E, E , F or F backbone channel.
A A
Replace, in ISO/IEC 11801:2002, the existing Figure 13 of by the following:

Channel
Backbone cable
FD or BD BD or CD
EQP C C C C C C EQP
Equipment Patch cord/ Patch cord/ Equipment
cord Jumper cable Jumper cable cable

EQP = equipment; C = connection (mated pair)
Figure 13 – Backbone cabling model
Replace, in ISO/IEC 11801:2002, the introductory sentence of the second paragraph with
bullet points by the following:
The following general restrictions apply for Classes D, E, E , F and F :
A A
Replace, in Amendment 1:2008, Table 33 by the following:
(Note that Table 22 in ISO/IEC 11801:2002 has been replaced and renumbered by Amend-
ment 1:2008 as Table 33.)
– 12 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

Table 33 – Backbone channel length equations

a
Implementation equations
Component Class
Class B Class C Class D Class E Class E Class F Class F
A A
Category A
B = B = B =
5 2 000 – – – –
250 − FX 170 − FX 105 − FX
B = B = B = B =
6 2 000 – – –
b
260 − FX 185 − FX 111 − FX 105 − 3 − FX

B = B = B = B = B =
6 2 000 – –
A
b b
260 − FX 189 − FX 114 − FX 108 − 3 − FX 105 − 3 − FX
B = B = B = B = B = B =
7 2 000 –
b b b
260 − FX 190 − FX 115 − FX 109 − 3 − FX 107 − 3 − FX 105 − 3 − FX
B = B = B = B = B = B = B =
7 2 000
A
b b b b
260 − FX 192 − FX 117 − FX 111 − 3 − FX 110 − 3 − FX 105 − 3 − FX 110 − 3 − FX
B the maximum length of the backbone cable (m)
F combined length of patch cords/jumpers and equipment cords (m)
X the ratio of cord cable insertion loss (dB/m) to backbone cable insertion loss (dB/m)
NOTE 1 Where channels contain a different number of connections than in the model shown in Figure 13, the fixed
cable length is reduced (where more connections exist) or increased (where fewer connections exist) by 2 m per
connection for Category 5 cables and 1 m per connection for Category 6, 6 , 7 and 7 cables. Additionally, the
A A
NEXT, return loss (RL) and ACR-F performance should be verified.
NOTE 2 For operating temperatures above 20 °C, B should be reduced by 0,2 % per °C for screened cables; 0,4 %
per °C (20 °C to 40 °C) and 0,6 % per °C (>40 °C to 60 °C) for unscreened cables.
a
Applications limited by propagation delay or delay skew may not be supported if channel lengths exceed 100 m.
b
This length reduction is to provide an allocated margin to accommodate insertion loss deviation.

8.1 General
Replace, in ISO/IEC 11801:2002, the entire text of this subclause by the following:
The selection of an optical fibre cabling channel design for use within a generic cabling
system should be made with reference to Annex F. This standard specifies the following
classes for optical fibre cabling:

Class OF-300 channels support applications over the cabled optical fibre Categories
referenced in Clause 9 to a minimum of 300 m
Class OF-500 channels support applications over the cabled optical fibre Categories
referenced in Clause 9 to a minimum of 500 m
Class OF-2 000 channels support applications over the cabled optical fibre Categories
referenced in Clause 9 to a minimum of 2 000 m
Optical fibre cabling channels shall be comprised of components that comply with Clauses 9
and 10. These clauses specify physical construction (core/cladding diameter and numerical
aperture) and transmission performance. Within the reference implementations of this clause,
the cabled optical fibres used in each cabling channel shall be of the same specification.

11801 Amend. 2 Ó ISO/IEC:2010(E) – 13 –

8.2 Component choice
Replace, in ISO/IEC 11801:2002, the existing first paragraph by the following:

The selection of optical fibre components shall take into account the initial class of

applications to be supported, and the required channel lengths, and should take into account

any predicted changes to the class of applications to be supported during the expected life of

the cabling.
8.3 Channel attenuation
Replace, in ISO/IEC 11801:2002, the existing last sentence of the first paragraph by the

following:
The attenuation of channels and permanent links at a specified wavelength shall not exceed
the sum of the specified attenuation values for the components at that wavelength (where the
attenuation of a length of cabled optical fibre is calculated from its attenuation coefficient
multiplied by its length).
8.4 Channel topology
Replace, in ISO/IEC 11801:2002, the existing first sentence of the second paragraph by the
following:
The delivery of cabled optical fibre to the TO would not generally require transmission
equipment at the FD (unless the design of optical fibre in the backbone cabling subsystem
differs from that in the horizontal cabling subsystem).
Replace, in ISO/IEC 11801:2002, the existing Figure 14 by the following:

– 14 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

a) “Patched” combined channel
Channel
Fixed horizontal
Backbone cable cable
BD FD
EQP C C C C C C C C TE
CP TO
Equipment Patch cord/ Patch cord/
CP Work area
cord Jumper
jumper cord
cable
EQP C C C C C C C TE
TO
Fixed horizontal
cable
= connection
C
b) “Spliced” combined channel
Channel
Backbone cable Fixed horizontal cable
BD FD
s
EQP C C C C C C TE
CP TO
Equipment Patch cord/ Work area
CP
cable Jumper
cord
cable
EQP C C C s C C TE
TO
Fixed horizontal cable
= connection
C
= splice
s
c) “Direct” combined channel
Channel
Backbone/fixed horizontal cable
BD FD
EQP C C C C C C TE
CP TO
Equipment Patch cord/
Work area
CP
cable Jumper
cord
cable
EQP C C C C C TE
TO
Backbone/fixed horizontal cable
= connection
C
Figure 14 – Combined backbone/horizontal channels
8.5 Propagation delay
Replace, in ISO/IEC 11801:2002, the existing text of this subclause by the following:

11801 Amend. 2 Ó ISO/IEC:2010(E) – 15 –

For some applications, knowledge of the delay of optical fibre cabling channels is important.

This ensures compliance with end-to-end delay requirements of complex networks consisting

of multiple cascaded channels. For this reason, it is important to know the lengths of the

optical fibre cabling channels. It is possible to calculate propagation delay based on cable

performance (see Clause 9).
9.1 General
Replace, in ISO/IEC 11801:2002, the existing first paragraph by the following:

This clause specifies the minimum cable performance requirements for the reference

implementations in Clause 7. The requirements in this clause are specified at a temperature
of 20 °C. They include:
9.2 Balanced cables
9.2.1 Basic performance requirements
Replace, in ISO/IEC 11801:2002, the existing title of this subclause as follows:
9.2.1 Performance for balanced cables
Replace, in ISO/IEC 11801:2002, Table 24 (renumbered as Table 35 by Amendment 1:2008)
by the following new title and Table 35:
Table 35 – Performance for balanced cables
IEC 61156-2, Sectional specification for multicore and symmetrical pair/quad cables for digital
a
third edition communications – Horizontal wiring
IEC 61156-3, Sectional specification for multicore and symmetrical pair/quad cables for digital
a
third edition communications – Work area wiring
IEC 61156-4 Sectional specification for multicore and symmetrical pair/quad cables for digital
a
third edition communications – Riser cables

IEC 61156-5 Symmetrical pair/quad cables for digital communications with transmission
a
second edition characteristics up to 1 000 MHz – Part 5: Horizontal wiring
IEC 61156-6 Symmetrical pair/quad cables for digital communications with transmission
a
third edition characteristics up to 1 000 MHz – Part 6: Work area wiring
a
In preparation, see Clause 2.
9.2.2.3 Mean characteristic impedance

Replace, in ISO/IEC 11801:2002, the title and the text of the entire subclause by the
following:
9.2.2.3 Characteristic impedance
Refer to 6.3.10 of IEC 61156-5:2009, measured according to 6.3.10.1.1 of IEC 61156-1:2007,
on a standard length of 100 m. The nominal impedance shall be 100 W.
Alternative test methodologies that have been shown to correlate with these requirements
may also be used.
9.2.2.4 Attenuation
Replace, in ISO/IEC 11801:2002, the first paragraph by the following:

– 16 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

For the attenuation of Category 5 cable the constants specified in 6.3.3.2 of

IEC 61156-5:2009 shall be used. They result in a lower attenuation than given in Table 4 of

6.3.3.1 of IEC 61156-5:2009, for example in 21,3 dB/100 m at 100 MHz.

9.2.2.5 ELFEXT and PS ELFEXT
Replace, in ISO/IEC 11801:2002, the title and text of the entire subclause by the following:

9.2.2.5 ACR-F and PS ACR-F
9.2.2.5.1 ACR-F
The ACR-F of each pair combination shall meet the requirements derived by the equation in
Table 60.
Table 60 – ACR-F for cables
a, b
Minimum ACR-F
dB
Frequency
MHz
Cable category
5 6 6 7 7
A A
1 £ f £ 100 63,8 − 20 lg(f) – – – –
1 £ f £ 250 – 67,8 − 20 lg(f) – – –
– – 67,8 − 20 lg(f) – –
1 £ f £ 500
1 £ f £ 600 – – – 94,0 − 20 lg(f) –
1 £ f £ 1 000 – – – – 105,3 − 20 lg(f)
a
ACR-F at frequencies that correspond to measured FEXT values of greater than 70 dB, are
for information only.
b
ACR-F at frequencies that correspond to calculated values of greater than 75,0 dB shall
revert to a minimum requirement of 75,0 dB.
Table 61 – Informative ACR-F values for cables at key frequencies
Minimum ACR-F
dB
Frequency
MHz
Cable category
5 6 6 7 7
A A
1 63,8 67,8 67,8 75,0 75,0
100 23,8 27,8 27,8 54,0 65,3
250 – 19,8 19,8 46,0 57,3
500 – – 13,8 40,0 51,3
600 – – – 38,4 49,7
1 000 – – – – 45,3
9.2.2.5.2 PS ACR-F
The PS ACR-F of each pair combination shall meet the requirements derived by the equation
in Table 62.
11801 Amend. 2 Ó ISO/IEC:2010(E) – 17 –

Table 62 – PS ACR-F for cables

a, b
Minimum PS ACR-F
dB
Frequency
MHz
Cable category
5 6 6 7 7
A A
60,8 − 20 lg(f) – – – –
1 £ f £ 100
1 £ f £ 250 – 64,8 − 20 lg(f) – – –

1 £ f £ 500 – – 64,8 − 20 lg(f) – –

1 £ f £ 600 – – – 91,0 − 20 lg(f)
–
– – – 102,3 − 20 lg(f)
1 £ f £ 1 000 –
a
PS ACR-F at frequencies that correspond to measured PS FEXT values of greater than
67 dB, are for information only.
b
PS ACR-F at frequencies that correspond to calculated values of greater than 72,0 dB
shall revert to a minimum requirement of 72,0 dB.
Table 63 – Informative PS ACR-F values for cables at key frequencies
Minimum PS ACR-F
dB
Frequency
MHz
Cable category
5 6 6 7 7
A A
1 60,8 64,8 64,8 72,0 72,0
100 20,8 24,8 24,8 51,0 62,3
250 – 16,8 16,8 43,0 54,3
– –
500 10,8 37,0 48,3
600 – – – 35,4 46,7
1 000 – – – – 42,3
9.2.2.6 Current carrying capacity
Replace, in ISO/IEC 11801:2002, the entire text of this subclause by the following:
The minimum d.c. current carrying capacity shall be as indicated in Table 64.

Table 64 – Current carrying capacity for channel
Minimum Operating
temperature (t)
current
A d.c. °C
0,300 t ≤ (T – 10)
R
0,175 (T – 10) < t ≤ T
R R
Where TR is the lowest maximum
operating temperature specified for the
components comprising the cabling
subsystem.
Conformance shall be achieved by design.
Refer to ISO/IEC TR 29125 for additional information on current carrying capacity under
different installation conditions.

– 18 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

9.2.2.7 Coupling attenuation
Replace, in ISO/IEC 11801:2002, the entire text of this subclause by the following:

Screened cables shall meet the requirements of Type II as described in IEC 61156-5.

9.2.2.8 Transfer impedance
Replace, in ISO/IEC 11801:2002, the entire text of this subclause by the following:

Screened cables shall meet the grade 2 transfer impedance requirements as described in

IEC 61156-5.
Insert, after 9.2.2.8, the following new subclause:
9.2.2.9 Unbalance attenuation, near-end
Unscreened cables shall meet the requirements of level 2 as described in IEC 61156-5.
9.3 Additional crosstalk considerations for cable sharing in balanced cables
9.3.1 General
Replace, in ISO/IEC 11801:2002, the titles of 9.3 and 9.3.1 as follows:
9.3 Additional crosstalk considerations for balanced cables
9.3.1 Cable sharing
Delete the first paragraph of 9.3.1.
9.3.2 Power summation in backbone cables
Replace the last sentence of the first paragraph of by the following:
These cables shall additionally meet the PS NEXT requirements for crosstalk in bundled
cable, i.e. 3.3.10 of IEC 61156-5:2002 .
Insert, after subclause 9.3.3, the following new subclause:
9.3.4 Alien crosstalk
Cables used in class E and class F channels shall meet alien crosstalk requirements for
A A
category 6 and category 7 cables respectively, as specified in IEC 61156-5 and
A A
IEC 61156-6.
9.4 Optical fibre cables
Replace, in ISO/IEC 11801:2002, the title of this subclause as follows:
___________
IEC 61156-5:2002, Multicore and symmetrical pair/quad cables for digital communications – Part 5:
Symmetrical pair/quad cables with transmission characteristics up to 600 MHz – Horizontal floor wiring –
Sectional specification
11801 Amend. 2 Ó ISO/IEC:2010(E) – 19 –

9.4 Optical fibre cable (cabled optical fibres)

9.4.1 Optical fibre types
Replace, in ISO/IEC 11801:2002, the title and the entire subclause by the following:

9.4.1 Cabled optical fibre Categories

Six cabled optical fibre Categories are specified to support various classes of applications,

four multimode Categories (OM1, OM2, OM3 and OM4) and two single-mode Categories (OS1

and OS2).
Replace, in ISO/IEC 11801:2002, Table 26 (renumbered as Table 37 by Amendment 1:2008)
by the following:
Table 37 – Cabled optical fibre attenuation
Cabled optical fibre attenuation (maximum)
dB/km
OM1, OM2 OM3 and
OS1 single-mode OS2 single-mode
OM4 multimode
Wavelength 850 nm 1 300 nm 1 310 nm 1 550 nm 1 310 nm 1 383 nm 1 550 nm
Attenuation 3,5 1,5 1,0 1,0 0,4 0,4 0,4
9.4.3 Multimode optical fibre cable
Replace, in ISO/IEC 11801:2002, the entire text and table of this subclause by the following:
(Note that Table 27 was renumbered as Table 38 by Amendment 1:2008.)
Requirements of multimode optical fibre cables include compliance to
a) the cabled optical fibre performance,
b) the type of fibre,
c) the physical cable performance.
The cabled optical fibre Category designated as OM1 and OM2 is achieved using a
multimode, graded-index optical fibre waveguide with nominal 50/125 mm or 62,5/125 mm
core/cladding diameter and numerical aperture complying with A1b or A1a.1 optical fibre,
respectively, of IEC 60793-2-10.
The cabled optical fibre Category designated as OM3 and OM4 is achieved using a

multimode, graded-index optical fibre waveguide with nominal 50/125 mm core/cladding
diameter and numerical aperture complying with A1a.2 and A1a.3 optical fibre respectively of
IEC 60793-2-10.
The limits to be met for cabled optical fibre transmission performance are specified in
Table 37 and Table 38. Attenuation shall be measured in accordance with IEC 60793-1-40.
The optical fibre cable shall meet mechanical and environmental requirements of the relevant
specification of the IEC 60794 series.

– 20 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

Table 38 – Multimode optical fibre modal bandwidth

Minimum modal bandwidth
MHz × km
Overfilled launch bandwidth Effective modal bandwidth

Wavelength 850 nm 1 300 nm 850 nm

Nominal core
diameter
Category
mm
OM1 50 or 62,5 200 500 Not specified

OM2 50 or 62,5 500 500 Not specified

OM3 50 1 500 500 2 000
OM4 50 3 500 500 4 700
NOTE Modal bandwidth requirements apply to the optical fibre used to produce the relevant cabled optical fibre
category and are assured by the parameters and test methods specified in IEC 60793-2-10. Optical fibres that meet
only the overfilled launch modal bandwidth may not support some applications specified in Annex F.

9.4.4 Single-mode optical fibre cables
Replace, in ISO/IEC 11801:2002, the entire text by the following:
Requirements of single-mode optical fibre cables include compliance to
a) the cabled optical fibre performance,
b) the type of fibre,
c) the physical cable performance.
The cabled optical fibre category designated as OS1 is achieved using a single-mode, optical
fibre waveguide complying with B1.1, B1.3 or B6_a, respectively, of IEC 60793-2-50.
The cabled optical fibre category designated as OS2 is achieved using a single-mode, optical
fibre waveguide complying with B1.1, B1.3 or B6_a, respectively, of IEC 60793-2-50.
NOTE 1 If concatenating different OSx cabled optical fibres manufactured with different optical fibre types, refer to
IEC/TR 62000:2010 for additional guidance.
The requirements for cabled optical fibre transmission performance are specified:
a) for the attenuation in Table 37 when measured in accordance with IEC 60793-1-40;
b) for the cut-off wavelength being less than 1 260 nm when measured in accordance

with IEC 60793-1-44.
The optical fibre cable shall meet mechanical and environmental requirements of the
relevant specification of the IEC 60794 series.
NOTE 2 Channels with a specified attenuation at 1 383 nm can only be created using B1.3 or B6_a optical fibres.
NOTE 3 B1.1 optical fibre is not recommended where channels may contain both category OS1 and OS2 cabled
optical fibre.
NOTE 4 B6_a optical fibre is recommended when it is expected that the optical fibre or the cable will have to
support smaller bend radii than 25 mm.
10.1.1 Applicability
Replace, in ISO/IEC 11801:2002, the last sentence of the first paragraph by the following:
___________
The second edition is planned to be published in 2010.

11801 Amend. 2 Ó ISO/IEC:2010(E) – 21 –

The requirements of the detail specifications for free connectors and fixed connectors

referenced in this clause shall also be met.

10.1.6 Installation practices
Replace, in ISO/IEC 11801:2002, the existing third paragraph by the following:

The connecting hardware shall be identified according to the requirements of

ISO/IEC 14763-2 (until ISO/IEC 14763-2 is published, relevant information can be found in

ISO/IEC 14763-1). Planning and installation of connecting hardware should be carried out in

accordance with ISO/IEC 14763-2 (until ISO/IEC 14763-2 is published, relevant information

can be found in ISO/IEC TR 14763-2).
10.2.1 General requirements
Replace, in ISO/IEC 11801:2002, the entire text by the following:
The following requirements apply to all connecting hardware used to provide electrical
connections with balanced cables that comply with the requirements of Clause 9. It is
desirable that hardware used to directly terminate balanced cable elements be of the
insulation piercing connection (IPC) type or the insulation displacement connection (IDC)
type. In addition to these requirements, connecting hardware used with screened cabling shall
be in full compliance with Clause 11.
The requirements of 10.2.3 and 10.2.4 are based upon the categories of connecting hardware
specified in the reference implementations of Clause 7. For channel, permanent link, and CP
link design routes to conformance, as specified in Clause 4, other connecting hardware can
be used at places other than the TO.
10.2.3 Mechanical characteristics
Replace, in ISO/IEC 11801:2002, Table 28 (renumbered as Table 39 by Amendment 1:2008)
by the following:
– 22 – 11801 Amend. 2 Ó ISO/IEC:2010(E)

Table 39 – Mechanical characteristics of connecting hardware for use

with balanced cabling
Component or test
Mechanical characteristics Requirement
standard
Category 5 unscreened Mating dimensions and gauging IEC 60603-7-2

Category 5 screened Mating dimensions and gauging IEC 60603-7-3

Category 6 unscreened Mating dimensions and gauging IEC 60603-7-4
Physical dimensions Category 6 screened Mating dimensions and gauging IEC 60603-7-5

a)
(TO only) Category 6 unscreened Mating dimensions and gauging IEC 60603-7-41
A
Category 6 screened Mating dimensions and gauging IEC 60603-7-51
A
h
Category 7 screened Mating dimensions and gauging IEC 60603-7-7
h, i
Category 7 screened Mating dimensions and gauging IEC 60603-7-71

A
Cable termination compatibility

a
Nominal conductor diameter – mm 0,5 to 0,65 –
d
Patching Stranded or solid conductors –
Cable type Jumpers Stranded or solid conductors –
Other Solid conductors –
Nominal diameter of b, c
Categories 5 and 6 0,7 to 1,4
insulated conductor –
b, c
Categories 6 , 7, and 7 0,7 to 1,6
mm
b)
A A
Telecommunications
Number of
outlet Visual inspection
conductors
Other ³2 ´ n (n = 1, 2, 3, .)
Outlet
Cable outer diameter £20
–
e
mm
Free connector (plug) £9
Mechanical and environmental
f
Means to connect screen Annex C and Clause 11
performance
Mechanical operation (durability)
Non-reusable IDC 1 IEC 60352-3 or IEC 60352-4
Cable termination
Reusable IDC ³20 IEC 60352-3 or IEC 60352-4
(cycles)
Non-reusable IPC 1 IEC 60352-6
g
c)
Jumper termination (cycles) ³200 IEC 60352-3 or IEC 60352-4
IEC 60603-7 (unscreened)
TO-type interface (cycles) ³750 or
IEC 60603-7-1 (screened)
Other connections ³200 Annex C
a
It is not required that connecting hardware be compatible with cables outside of this range. However, when cables
with conductor diameters as low as 0,4 mm or as high as 0,8 mm are used, special care shall be taken to ensure
compatibility with connecting hardware to which they connect.
b
Use of the free connector (plug) specified in series IEC 60603-7 is typically limited to cables having insulated
conductor diameters in the range of 0,8 mm to 1,0 mm.
c
It is not required that connecting hardware be compatible with cables outside of this range. However, when cables
with insulated conductor diameters as high as 1,6 mm are used, special care shall be taken to ensure compatibility
with connecting hardware to which they connect.
d
Free connectors (plugs) shall be compatible with the solid or stranded cable selected for work area or equipment
cords.
e
Applicable only to individual cable units.
f
If it is intended to use screened cabling, care should be taken that the connector is designed to terminate the

screen. There may be a difference between connectors designed to terminate balanced cables with overall
screens only, as opposed to cables having both individually screened elements and an overall screen (see
ANNEX E).
g
This durability requirement is only applicable to connections designed to administer cabling sy
...
