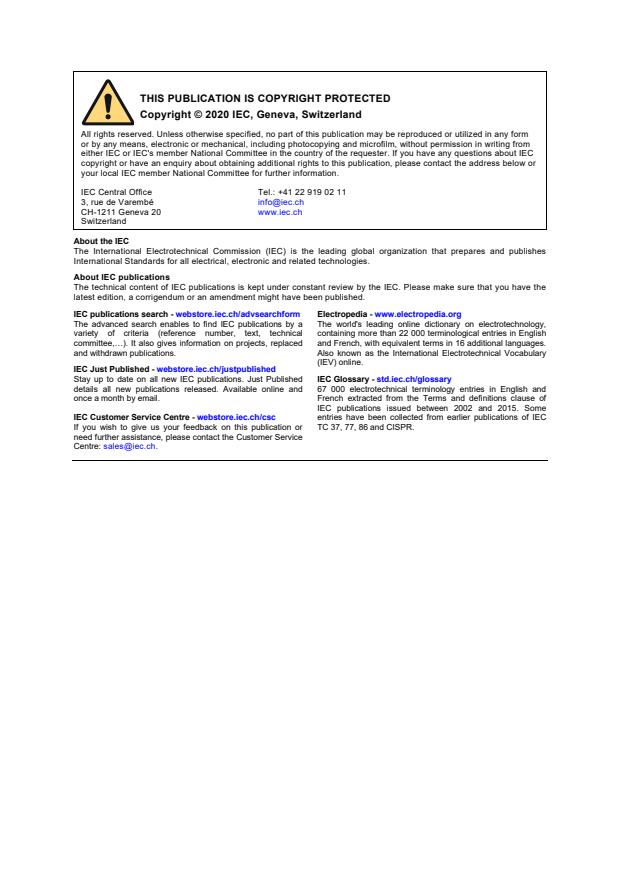

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60127-3 ®
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Miniature fuses –
Part 3: Sub-miniature fuse-links

Coupe-circuit miniatures –
Partie 3: Éléments de remplacement subminiatures

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.50 ISBN 978-2-8322-9509-0

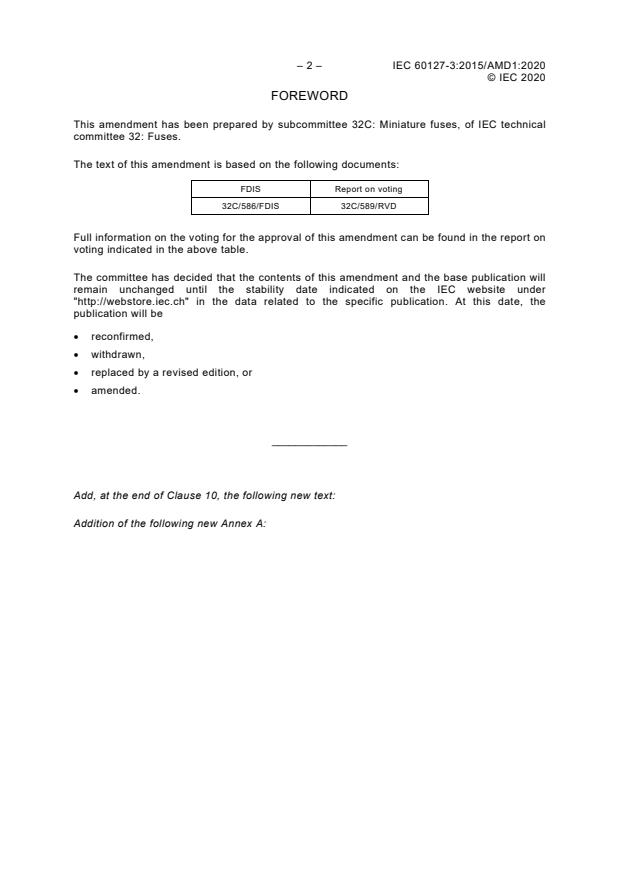

– 2 – IEC 60127-3:2015/AMD1:2020
© IEC 2020
FOREWORD
This amendment has been prepared by subcommittee 32C: Miniature fuses, of IEC technical
committee 32: Fuses.
The text of this amendment is based on the following documents:
FDIS Report on voting
32C/586/FDIS 32C/589/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Add, at the end of Clause 10, the following new text:
Addition of the following new Annex A:

© IEC 2020
Annex A
(normative)
Sub-miniature fuse-links according to standard sheet 3 and 4
with optional DC ratings
A.1 General
This annex supplements the requirements of this standard and is to be applied to already tested
and approved sub-miniature fuse-links.
This annex relates to requirements applicable to sub-miniature fuse-links adapted to printed
circuits and used for the protection of electric appliances, electronic equipment and component
parts thereof, normally intended to be used indoors.
The object of this annex is to define additional test methods for sub-miniature fuse-links
according to standard sheet 3 and 4 with optional DC ratings.
A.2 General notes on tests
In addition to the requirements of Clause 7 of IEC 60127-1:2006, the following criteria shall be
observed.
A.2.1 Type tests
Replacement of 7.2.1:
15 additional samples chosen at random are required.
The schedule for testing sub-miniature fuse-links with DC ratings shall be according to
Table A.1.
The requirements of 7.2.3 of IEC 60127-1:2006 are not applicable.
No failure is allowed in any of the additional tests specified in this annex.
Table A.1 – Testing schedule
Fuse-link number
Sub-
DC1 DC4 DC7 DC10 DC13
Description
clause
DC2 DC5 DC8 DC11 DC14
DC3 DC6 DC9 DC12 DC15
A.4.1 Rated breaking capacity X
A.4.1   5 times the rated current   5 I X
N
A.4.1  10 times the rated current   10 I  X
N
A.4.1  50 times the rated current   50 I   X
N
A.4.1 250 times the rated current  250 I   X
N
A.4.1 Insulation resistance X X X X X
NOTE Applicable only when the defined rated breaking capacity is not exceeded.

– 4 – IEC 60127-3:2015/AMD1:2020
© IEC 2020
A.2.2 Test bases for tests
Sub-miniature fuse-links shall be tested in a test board as shown in Figure 1. The test board
shall then be mounted on the test base of Figure 2.
A.3 Marking
Clause 6 of IEC 60127-1:2006 applies except as follows.
6.3
Addition after first paragraph:
Furthermore the DC rated breaking capacity in amperes (A) or in kilo amperes (kA) as well as
the DC rated voltage (VDC) shall be marked on the package label.
A.4 Electrical requirements
A.4.1 Breaking capacity
Replacement of 9.3.1:
Fuse-links shall operate satisfactorily without endangering the surroundings when breaking
prospective currents between the conventional non-fusing current and rated breaking capacity.
The recovery voltage shall be between 1,02 and 1,05 times the rated voltage of the fuse-links
(the upper tolerance may be exceeded with the manufacturer's consent) and shall be maintained
for 30 s after the fuse has operated.
Typical test circuits for DC are given in Figure A.1. The cross-sectional area of copper wire
shall be approximately 6 mm .
For tests at lower prospective currents (5 I , 10 I , 50 I , 250 I ), the inductance of the circuit
N N N N
shall remain constant and the current shall be adjusted by changing the resistance only.
In the case of fuse-links in which any component is organic (such as with a moulded body), the
recovery voltage shall be maintained for 5 min after the fuse has operated.
In principle, the DC rated voltage, rated breaking capacity and associated time constant,
respectively, shall be specified by the manufacturer.
Unless otherwise stated by the manufacturer, the time constant of the test circuit shall be
chosen from Table
...
