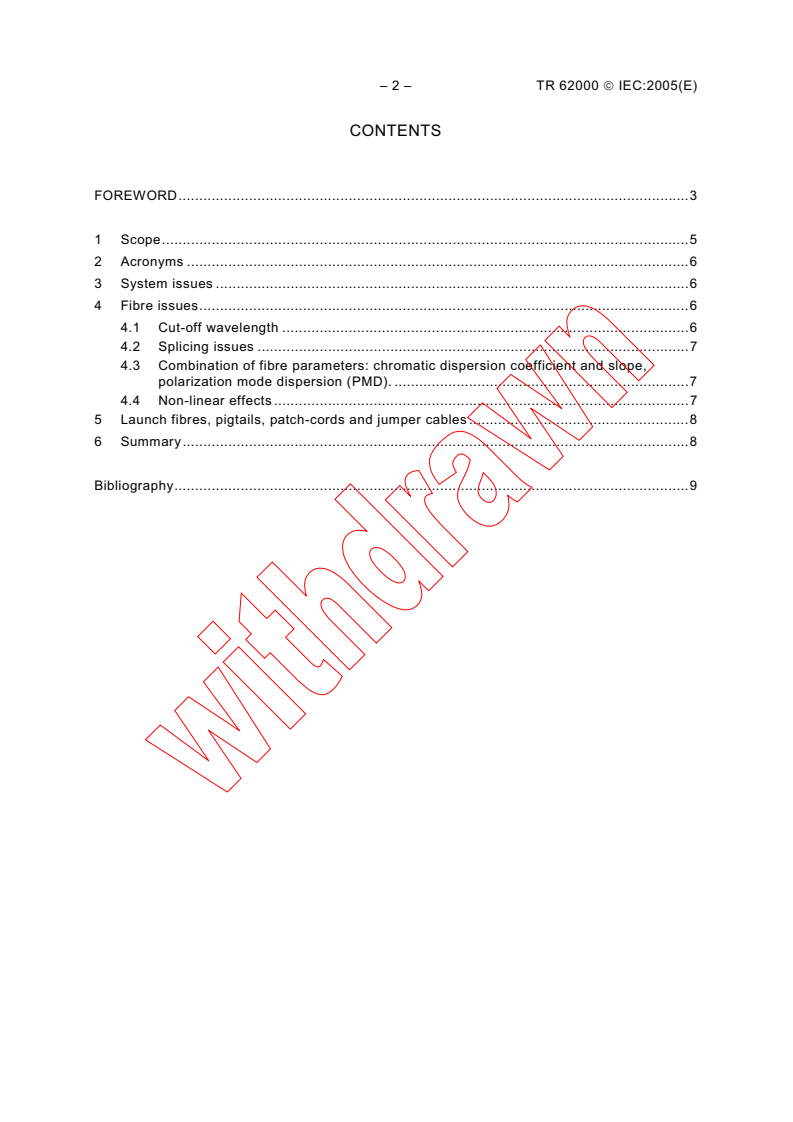

CONTENTS
FOREWORD.3

1 Scope.5

2 Acronyms .6

3 System issues .6

4 Fibre issues.6
4.1 Cut-off wavelength .6
4.2 Splicing issues .7
4.3 Combination of fibre parameters: chromatic dispersion coefficient and slope,
polarization mode dispersion (PMD). .7
4.4 Non-linear effects .7
5 Launch fibres, pigtails, patch-cords and jumper cables .8
6 Summary.8
Bibliography.9

TR 62000 ¤ IEC:2005(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
SINGLE-MODE FIBRE COMPATIBILITY GUIDELINES

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC 62000, which is a technical report, has been prepared by subcommittee 86A: Fibres and
cables, of IEC technical committee 86: Fibre optics.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
86A/1022/DTR 86A/1026/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – TR 62000 ¤ IEC:2005(E)
The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or

• amended.
A bilingual version of this publication may be issued at a later date.

TR 62000 ¤ IEC:2005(E) – 5 –
SINGLE-MODE FIBRE COMPATIBILITY GUIDELINES

1 Scope
This technical report provides guidelines indicating the items that should be taken into
account when planning to connect

a) different implementations of single-mode fibres of the same type, e.g. different
implementations of type B single-mode fibres, and
b) single-mode fibres of different types, e.g. B1.1 with B4.
See IEC 60793-2-50 for the attributes and definitions of single-mode fibres, summarised in
Table 1 below.
A given type of single-mode fibre, for example B4, may have different implementations by
suitably optimising several of the following parameters: mode field diameter (hence effective
area), chromatic dispersion coefficient, slope of the chromatic dispersion curve and cable cut-
off wavelength.
Table 1 – Attributes and definitions of single-mode fibres
Common name Use (IEC 60793-2-50) IEC ITU-T
category/ Recommendation
type
Dispersion unshifted Optimised for use in the 1 310 nm region but can be B1.1 G.652 A, B
single-mode fibre used in the 1550 nm region
Cut-off shifted Optimised for low loss in the 1 550 nm region, with cut B1.2 G.654
single-mode fibre off wavelength shifted above the 1 310 nm region
Extended band Intended to extend the range of possible transmission B1.3 G.652 C, D
dispersion unshifted signals, using 1 310 nm band power budgets, to
single-mode fibre portions of the band above 1 360 nm and below
1 530 nm
Dispersion shifted Optimised for single channel transmission in the B.2 G.653
single-mode fibre 1 550 nm region. Multiple channels can only be
transmitted if care is taken to avoid the effects of four
wave mixing by, for example, moderating the power
levels or appropriate spacing or placement of the
channels
Non-zero Optimised for multiple channel transmission in the B4 G.655
dispersion-shifted 1 550 nm region with a cut off wavelength that may be
single-mode fibre shifted above the 1 310 nm region
Wideband Optimised for multiple channel transmission in the B5 G.656
non-zero dispersion- wavelength range of 1 460 nm – 1625 nm with the
shifted single-mode positive value of the chromatic dispersion coefficient
fibre that is greater
...
