IEC 62271-200:2021
(Main)High-voltage switchgear and controlgear - Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV
High-voltage switchgear and controlgear - Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV
IEC 62271-200:2021 is applicable to prefabricated metal‑enclosed switchgear and controlgear assemblies designed for:
– alternating current;
– rated voltages above 1 kV and up to and including 52 kV;
– service frequencies up to and including 60 Hz;
– indoor and outdoor installation.
The assembly can include air-insulated and/or fluid-filled compartments.
This third edition cancels and replaces the second edition published in 2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) clause numbering aligned with IEC 62271‑1:2017, including the adoption of the subclause names of Clause 3;
b) in Clause 3 specific definitions are added for "in service", "normal operating condition" and "normal use";
c) internal arc testing on pole-mounted switchgear is taken out of this document, as it is now covered by the specific standard IEC 62271‑214:2019;
d) a more precise description of earthing circuit is given with the inclusion of ratings and test requirements;
e) number of mechanical tests on interlocks is reduced for type testing; a more precise description of forces to apply during type testing is given (refer to 7.102);
f) resistance measuring on main circuit is only needed before continuous current tests (as reference for routine tests) and no longer needed after this continuous current test. Rationale for this deletion is that this measured resistance does not mean anything; as the temperature rise test was just finished, a new temperature rise test will not give new information;
g) IEC 62271-100:2021, IEC 62271-103:2021, IEC 62271-105:2021 and IEC 62271-106:2021 are referred to in the document;
h) IEC 62271‑107:2019 and IEC IEEE 62271‑37‑013:2015 are also considered in 7.101.2;
i) a more precise description of LSC category is given with the inclusion of an explanatory flowchart (Annex D);
j) examples not covered by the IAC test are transferred from Clause 6 to 9.103;
k) the term "assembly" is defined in Clause 3 and used as synonym for "metal-enclosed switchgear and controlgear" in this document;
l) "metallic" is replaced by "metal" where applicable;
m) 6.105 is now covered by 7.7;
n) a 1 s rule was introduced for Criterion 4 during IAC tests regarding hot gases versus glowing particles as cause of ignition;
o) a more precise description of internal arc tests for switchgear with protrusions is given in Annex A.
Appareillage à haute tension - Partie 200: Appareillage sous enveloppe métallique pour courant alternatif de tensions assignées supérieures à 1 kV et inférieures ou égales à 52 kV
L’IEC 62271-200:2021 est applicable aux ensembles d'appareillages préfabriqués sous enveloppe métallique conçus pour:
- le courant alternative;
- des tensions assignées supérieures à 1 kV et inférieures ou égales à 52 kV;
- des fréquences de service jusqu’à 60 Hz inclus;
- une installation à l'intérieur et à l'extérieur.
L’ensemble peut comprendre des compartiments isolés dans l’air et/ou remplis de fluide.
Cette troisième édition annule et remplace la deuxième édition publiée en 2011. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) numérotation des articles alignée sur l’IEC 62271‑1:2017, y compris l'adoption des noms des paragraphes de l’Article 3;
b) des définitions spécifiques sont ajoutées à l'Article 3 pour "en service", "condition normale de fonctionnement" et "utilisation normale";
c) l'essai d'arc interne sur les appareillages montés sur poteau est exclu du présent document, car il est maintenant couvert par la norme spécifique IEC 62271‑214:2019;
d) une description plus exacte du circuit de terre est donnée avec l'inclusion des valeurs assignées et des exigences d'essai;
e) réduction du nombre d'essais mécaniques sur les verrouillages pour les essais de type; meilleure description des forces à appliquer lors des essais de type (voir 7.102);
f) le mesurage de la résistance sur le circuit principal n'est nécessaire qu'avant les essais au courant permanent (comme référence pour les essais individuels de série) et n'est plus nécessaire après cet essai au courant permanent. La raison de cette suppression est que cette résistance mesurée ne signifie rien; comme l'essai d’échauffement vient de se terminer, un nouvel essai d’échauffement n’apporterait pas de nouvelles informations;
g) l’IEC 62271-100:2021, l’IEC 62271-103:2021, l’IEC 62271-105:2021 et l’IEC 62271‑106:2021 sont citées dans le present document;
h) l’IEC 62271‑107:2012 et l’IEC 62271‑37‑013:2015 sont également prises en considération en 7.101.2;
i) une description plus précise de la catégorie LSC est donnée avec l'inclusion d'un ordinogramme explicatif (Annexe D);
j) les exemples non couverts par l’essai IAC sont transférés de l’Article 6 au paragraphe 9.103;
k) le terme "ensemble" est défini à l'Article 3 et est utilisé comme synonyme d'"appareillage sous enveloppe métallique" dans le présent document;
l) "métallique" est remplacé par "en métal" le cas échéant;
m) le paragraphe 6.105 est maintenant couvert par le paragraphe 7.7;
n) une règle de 1 s a été introduite pour le Critère No 4 lors des essais IAC concernant les gaz chauds par rapport aux particules incandescentes comme cause d'amorçage;
o) une description plus précise des essais d'arc interne pour les appareillages avec des protubérances est donnée à l’Annexe A.
La présente version bilingue (2021-07) correspond à la version anglaise monolingue publiée en 2021-05.
La version française de cette norme n'a pas été soumise au vote.
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 62271-200 ®
Edition 3.0 2021-05
INTERNATIONAL
STANDARD
colour
inside
High-voltage switchgear and controlgear –
Part 200: AC metal-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 52 kV
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62271-200 ®
Edition 3.0 2021-05
INTERNATIONAL
STANDARD
colour
inside
High-voltage switchgear and controlgear –
Part 200: AC metal-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 52 kV
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.130.10 ISBN 978-2-8322-9793-3
– 2 – IEC 62271-200:2021 IEC 2021
CONTENTS
FOREWORD . 6
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 10
3 Terms and definitions . 11
3.1 General terms and definitions . 11
3.2 Assemblies of switchgear and controlgear . 13
3.3 Parts of assemblies . 13
3.4 Switching devices . 13
3.5 Parts of switchgear and controlgear . 13
3.6 Operational characteristics of switchgear and controlgear . 16
3.7 Characteristic quantities . 18
3.8 Index of definitions . 19
4 Normal and special service conditions . 20
5 Ratings . 21
5.1 General . 21
5.2 Rated voltage (U ) . 21
r
5.3 Rated insulation level (U , U , U ) . 21
d p s
5.4 Rated frequency (f ) . 21
r
5.5 Rated continuous current (I ) . 21
r
5.6 Rated short-time withstand currents (I , I ) . 21
k ke
5.7 Rated peak withstand currents (I , I ) . 22
p pe
5.8 Rated durations of short-circuit (t , t ) . 22
k ke
5.9 Rated supply voltage of auxiliary and control circuits (U ) . 23
a
5.10 Rated supply frequency of auxiliary and control circuits . 23
5.11 Rated pressure of compressed gas supply for controlled pressure systems . 23
5.101 Classification of earthing function through main switching device . 23
5.102 Rated cable test voltages (U , U ) . 23
ct (AC) ct (DC)
5.103 Ratings of the internal arc classification (IAC) . 23
6 Design and construction . 25
6.1 Requirements for liquids in switchgear and controlgear . 25
6.2 Requirements for gases in switchgear and controlgear . 25
6.3 Earthing of switchgear and controlgear . 25
6.4 Auxiliary and control equipment and circuits . 26
6.5 Dependent power operation . 26
6.6 Stored energy operation. 26
6.7 Independent unlatched operation (independent manual or power operation) . 26
6.8 Manually operated actuators . 26
6.9 Operation of releases. 26
6.10 Pressure/level indication . 27
6.11 Nameplates . 27
6.12 Locking devices . 28
6.13 Position indication . 29
6.14 Degrees of protection provided by enclosures . 29
6.15 Creepage distances for outdoor insulators . 30
6.16 Gas and vacuum tightness . 30
6.17 Tightness for liquid systems . 30
6.18 Fire hazard (flammability) . 30
6.19 Electromagnetic compatibility (EMC) . 30
6.20 X-ray emission . 30
6.21 Corrosion . 30
6.22 Filling levels for insulation, switching and/or operation . 30
6.101 General requirements for assemblies . 31
6.102 Metal enclosure . 31
6.103 High-voltage compartments . 33
6.104 Removable parts . 37
6.105 Provisions for dielectric tests on cables . 37
6.106 Internal arc fault . 38
7 Type tests . 38
7.1 General . 38
7.2 Dielectric tests . 39
7.3 Radio interference voltage (RIV) test . 43
7.4 Resistance measurement . 43
7.5 Continuous current tests . 43
7.6 Short-time withstand current and peak withstand current tests . 45
7.7 Verification of the protection . 47
7.8 Tightness tests . 47
7.9 Electromagnetic compatibility tests (EMC) . 48
7.10 Additional tests on auxiliary and control circuits . 48
7.11 X-radiation test for vacuum interrupters . 48
7.101 Verification of making and breaking capacities . 48
7.102 Mechanical operation tests . 50
7.103 Pressure withstand test for gas-filled compartments . 51
7.104 Tests to verify the protection of persons against dangerous electrical effects . 52
7.105 Internal arc test . 53
8 Routine tests . 57
8.1 General . 57
8.2 Dielectric test on the main circuit . 57
8.3 Tests on auxiliary and control circuits . 57
8.4 Measurement of the resistance of the main circuit . 58
8.5 Tightness test . 58
8.6 Design and visual checks . 58
8.101 Partial discharge measurement . 58
8.102 Mechanical operation tests . 58
8.103 Pressure tests of gas-filled compartments . 59
8.104 Tests after erection on site. 59
8.105 Measurement of fluid condition after filling on site . 59
9 Guide to the selection of switchgear and controlgear (informative) . 59
9.1 General . 59
9.2 Selection of rated values . 60
9.3 Cable-interface considerations . 60
– 4 – IEC 62271-200:2021 IEC 2021
9.4 Continuous or temporary overload due to changed service conditions . 60
9.5 Environmental aspects . 60
9.101 Selection of design and construction . 60
9.102 Ratings related to earthing circuits . 64
9.103 Internal arc fault .
...
IEC 62271-200 ®
Edition 3.1 2024-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
High-voltage switchgear and controlgear –
Part 200: AC metal-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 52 kV
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.

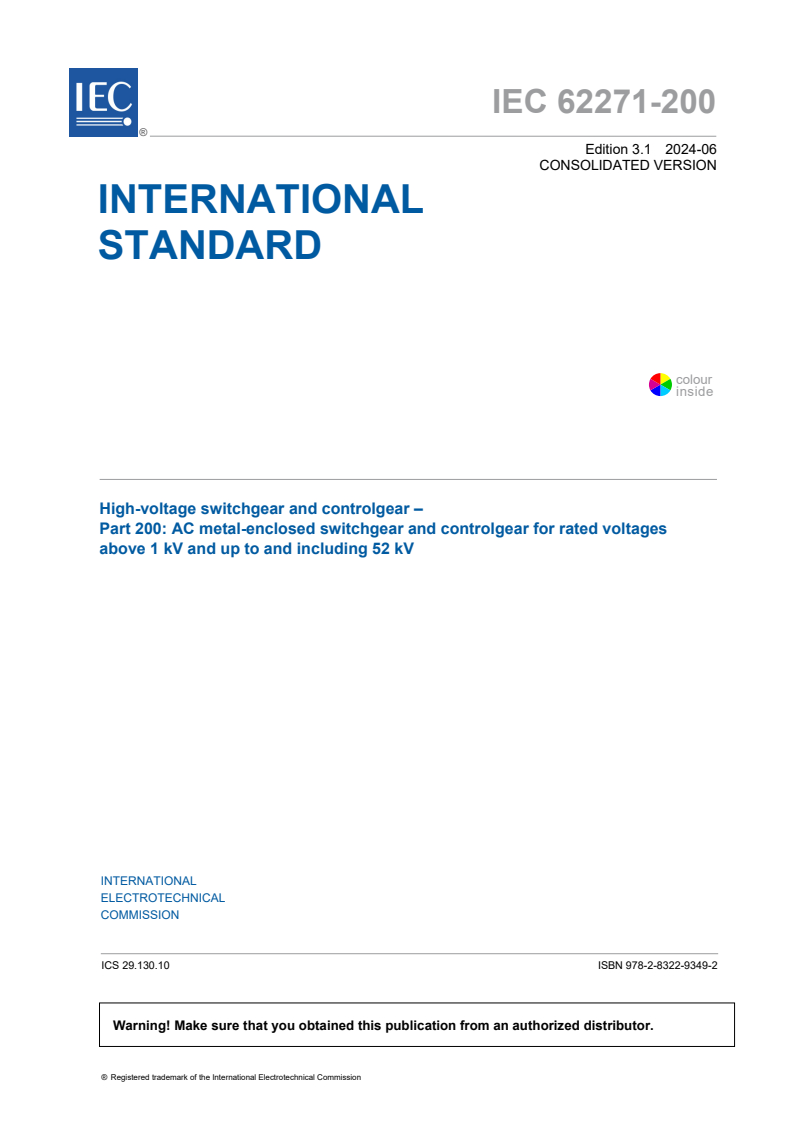

IEC 62271-200 ®
Edition 3.1 2024-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
High-voltage switchgear and controlgear –
Part 200: AC metal-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 52 kV
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.130.10 ISBN 978-2-8322-9349-2

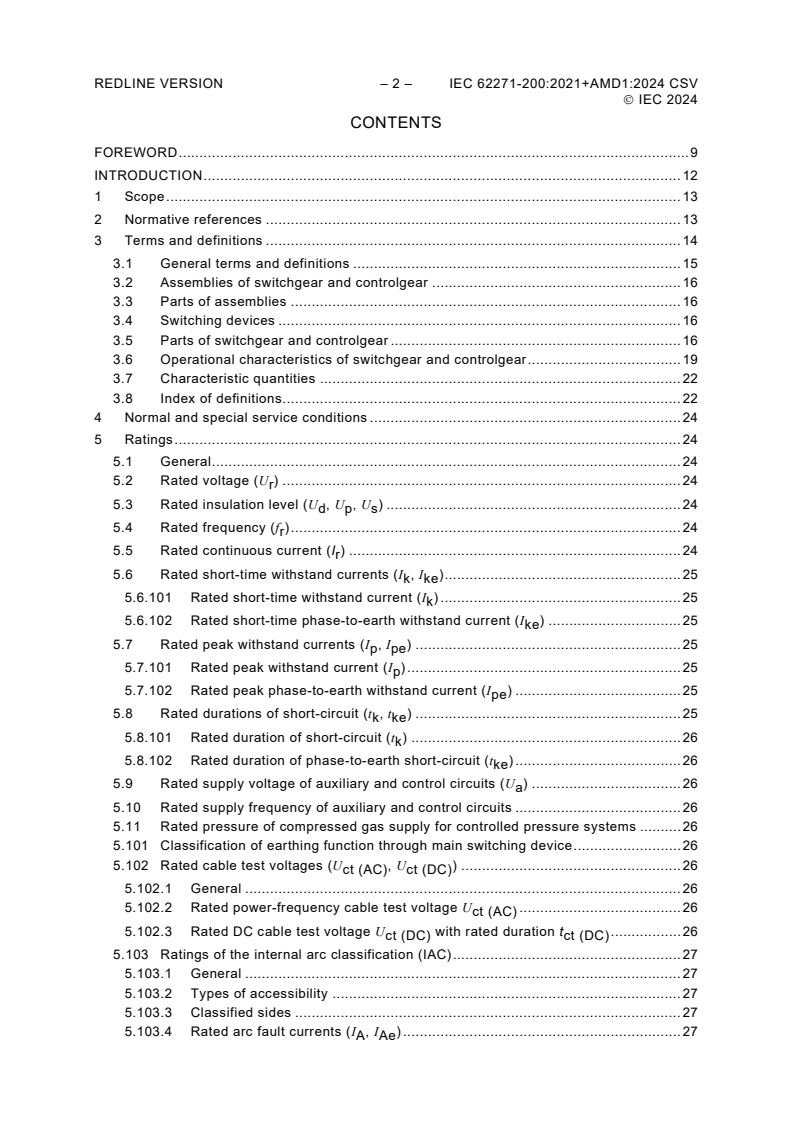

REDLINE VERSION – 2 – IEC 62271-200:2021+AMD1:2024 CSV
IEC 2024
CONTENTS
FOREWORD . 9
INTRODUCTION . 12
1 Scope . 13
2 Normative references . 13
3 Terms and definitions . 14
3.1 General terms and definitions . 15
3.2 Assemblies of switchgear and controlgear . 16
3.3 Parts of assemblies . 16
3.4 Switching devices . 16
3.5 Parts of switchgear and controlgear . 16
3.6 Operational characteristics of switchgear and controlgear . 19
3.7 Characteristic quantities . 22
3.8 Index of definitions . 22
4 Normal and special service conditions . 24
5 Ratings . 24
5.1 General . 24
5.2 Rated voltage (U ) . 24
r
5.3 Rated insulation level (U , U , U ) . 24
d p s
5.4 Rated frequency (f ) . 24
r
5.5 Rated continuous current (I ) . 24
r
5.6 Rated short-time withstand currents (I , I ) . 25
k ke
5.6.101 Rated short-time withstand current (I ) . 25
k
5.6.102 Rated short-time phase-to-earth withstand current (I ) . 25
ke
5.7 Rated peak withstand currents (I , I ) . 25
p pe
5.7.101 Rated peak withstand current (I ) . 25
p
5.7.102 Rated peak phase-to-earth withstand current (I ) . 25
pe
5.8 Rated durations of short-circuit (t , t ) . 25
k ke
5.8.101 Rated duration of short-circuit (t ) . 26
k
5.8.102 Rated duration of phase-to-earth short-circuit (t ) . 26
ke
5.9 Rated supply voltage of auxiliary and control circuits (U ) . 26
a
5.10 Rated supply frequency of auxiliary and control circuits . 26
5.11 Rated pressure of compressed gas supply for controlled pressure systems . 26
5.101 Classification of earthing function through main switching device . 26
5.102 Rated cable test voltages (U , U ) . 26
ct (AC) ct (DC)
5.102.1 General . 26
5.102.2 Rated power-frequency cable test voltage U . 26
ct (AC)
5.102.3 Rated DC cable test voltage U with rated duration t . 26
ct (DC) ct (DC)
5.103 Ratings of the internal arc classification (IAC) . 27
5.103.1 General . 27
5.103.2 Types of accessibility . 27
5.103.3 Classified sides . 27
5.103.4 Rated arc fault currents (I , I ) . 27
A Ae
IEC 2024
5.103.5 Rated arc fault duration (t , t ) . 28
A Ae
6 Design and construction . 28
6.1 Requirements for liquids in switchgear and controlgear . 28
6.2 Requirements for gases in switchgear and controlgear . 28
6.3 Earthing of switchgear and controlgear . 28
6.3.101 Earthing of the high-voltage conductive parts . 28
6.3.102 Earthing of enclosure(s) . 28
6.3.103 Earthing of withdrawable and removable parts . 29
6.3.104 Earthing circuit . 29
6.4 Auxiliary and control equipment and circuits . 29
6.5 Dependent power operation . 29
6.6 Stored energy operation. 29
6.7 Independent unlatched operation (independent manual or power operation) . 30
6.8 Manually operated actuators . 30
6.9 Operation of releases. 30
6.10 Pressure/level indication . 30
6.11 Nameplates . 30
6.12 Locking devices . 32
6.13 Position indication . 33
6.14 Degrees of protection provided by enclosures . 33
6.14.1 General . 33
6.14.2 Protection of persons against access to hazardous parts and protection
of the equipment against ingress of solid foreign objects (IP coding) . 33
6.14.3 Protection against ingress of water (IP coding) . 33
6.14.4 Protection of equipment against mechanical impact under normal
operating conditions (IK coding) . 33
6.15 Creepage distances for outdoor insulators . 33
6.16 Gas and vacuum tightness . 33
6.17 Tightness for liquid systems . 34
6.18 Fire hazard (flammability) . 34
6.19 Electromagnetic compatibility (EMC) . 34
6.20 X-ray emission . 34
6.21 Corrosion . 34
6.22 Filling levels for insulation, switching and/or operation . 34
6.101 General requirements for assemblies . 34
6.102 Metal enclosure . 35
6.102.1 General . 35
6.102.2 Covers and doors . 35
6.102.3 Partition or shutter being part of the enclosure . 36
6.102.4 Inspection windows . 37
6.102.5 Ventilating openings, vent outlets . 37
6.103 High-voltage compartments . 37
6.103.1 General . 37
6.103.2 Fluid-filled compartments (gas or liquid) . 38
6.103.3 Partitions and shutters . 39
6.104 Removable parts . 41
6.105 Provisions for dielectric tests on cables . 41
6.106 Internal arc fault . 41
7 Type tests . 42
REDLINE VERSION – 4 – IEC 62271-200:2021+AMD1:2024 CSV
IEC 2024
7.1 General . 42
7.1.1 Basics . 42
7.1.2 Information for identification of test objects . 43
7.1.3 Information to be included in type-test reports . 43
7.2 Dielectric tests . 43
7.2.1 General .
...

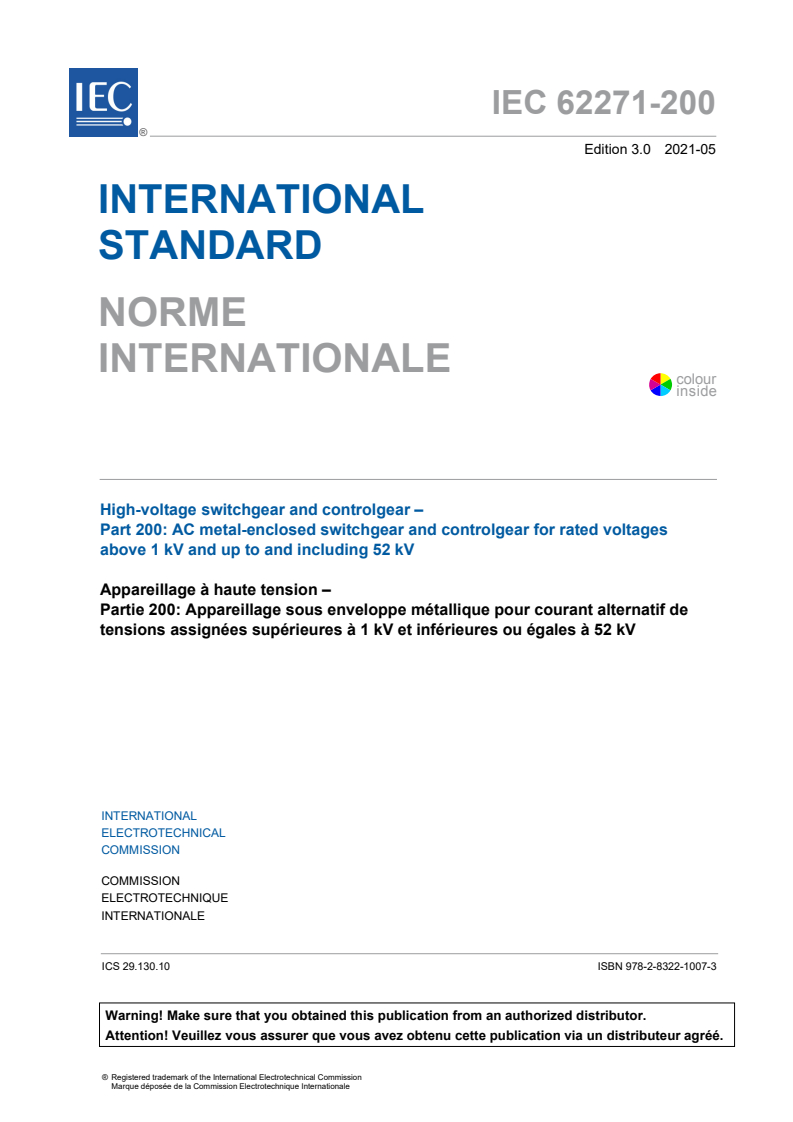

IEC 62271-200 ®
Edition 3.0 2021-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
High-voltage switchgear and controlgear –
Part 200: AC metal-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 52 kV
Appareillage à haute tension –
Partie 200: Appareillage sous enveloppe métallique pour courant alternatif de
tensions assignées supérieures à 1 kV et inférieures ou égales à 52 kV
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

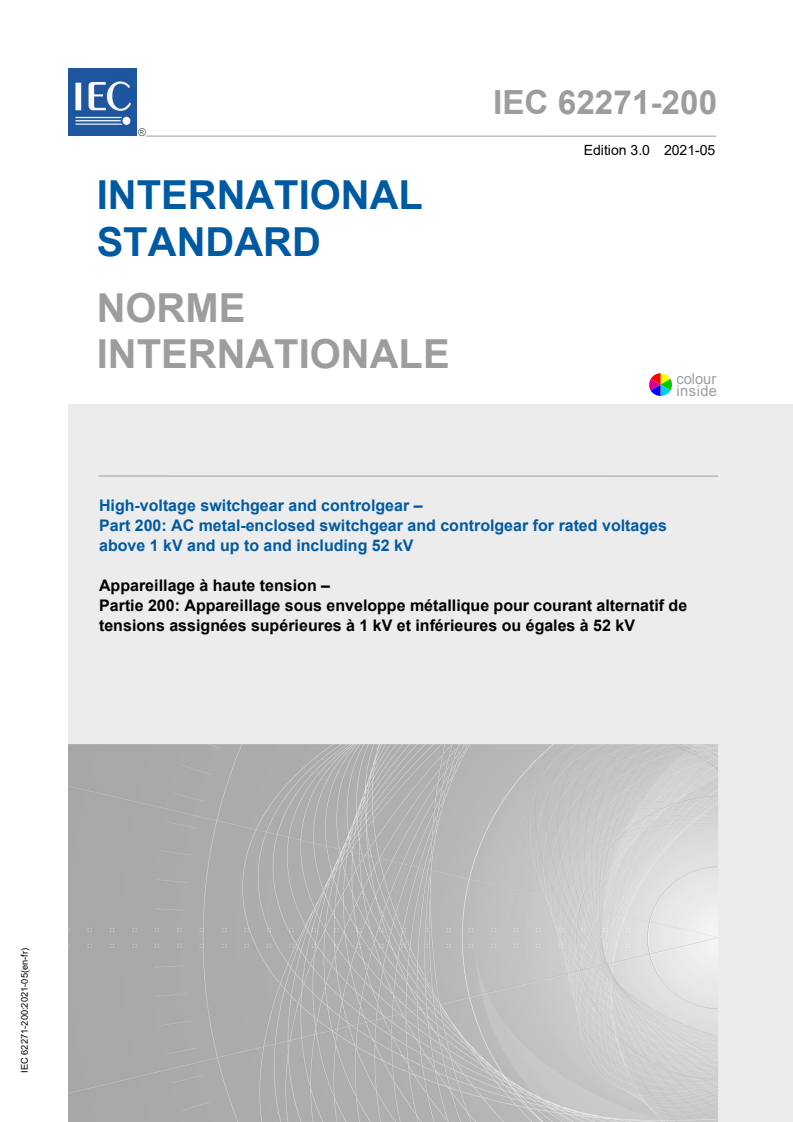

IEC 62271-200 ®
Edition 3.0 2021-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
High-voltage switchgear and controlgear –
Part 200: AC metal-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 52 kV
Appareillage à haute tension –
Partie 200: Appareillage sous enveloppe métallique pour courant alternatif de
tensions assignées supérieures à 1 kV et inférieures ou égales à 52 kV
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.10 ISBN 978-2-8322-1007-3

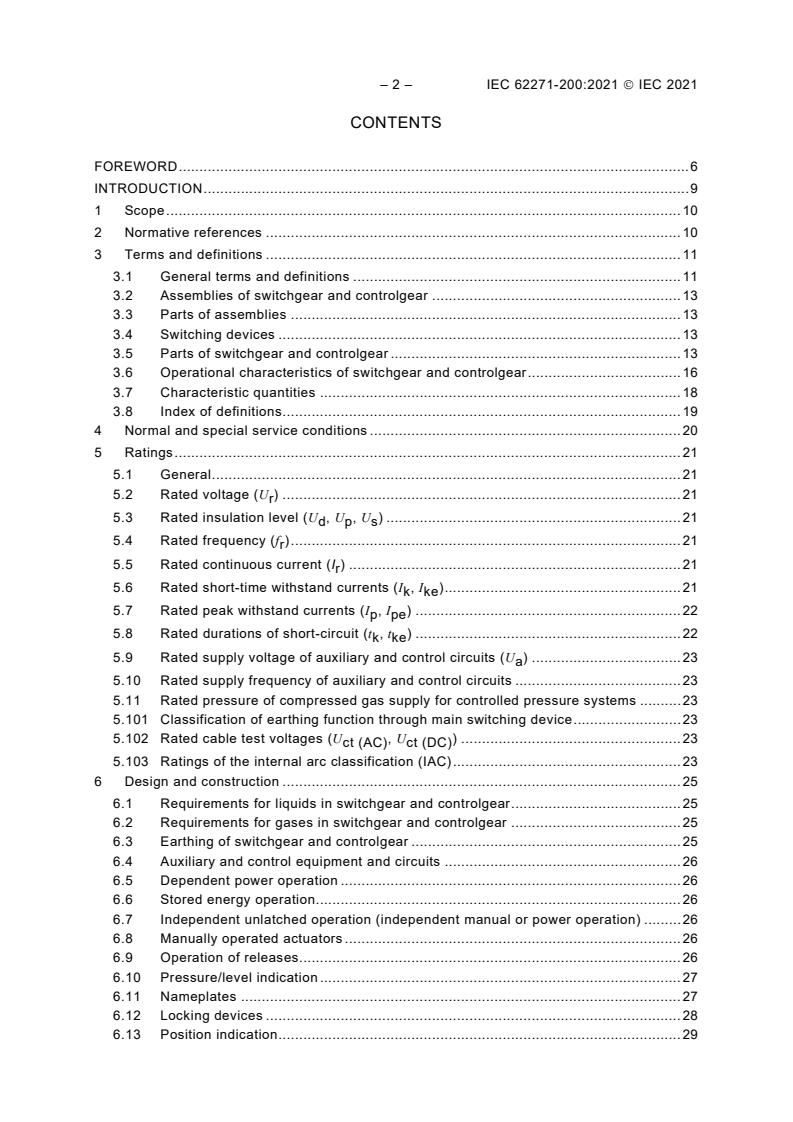

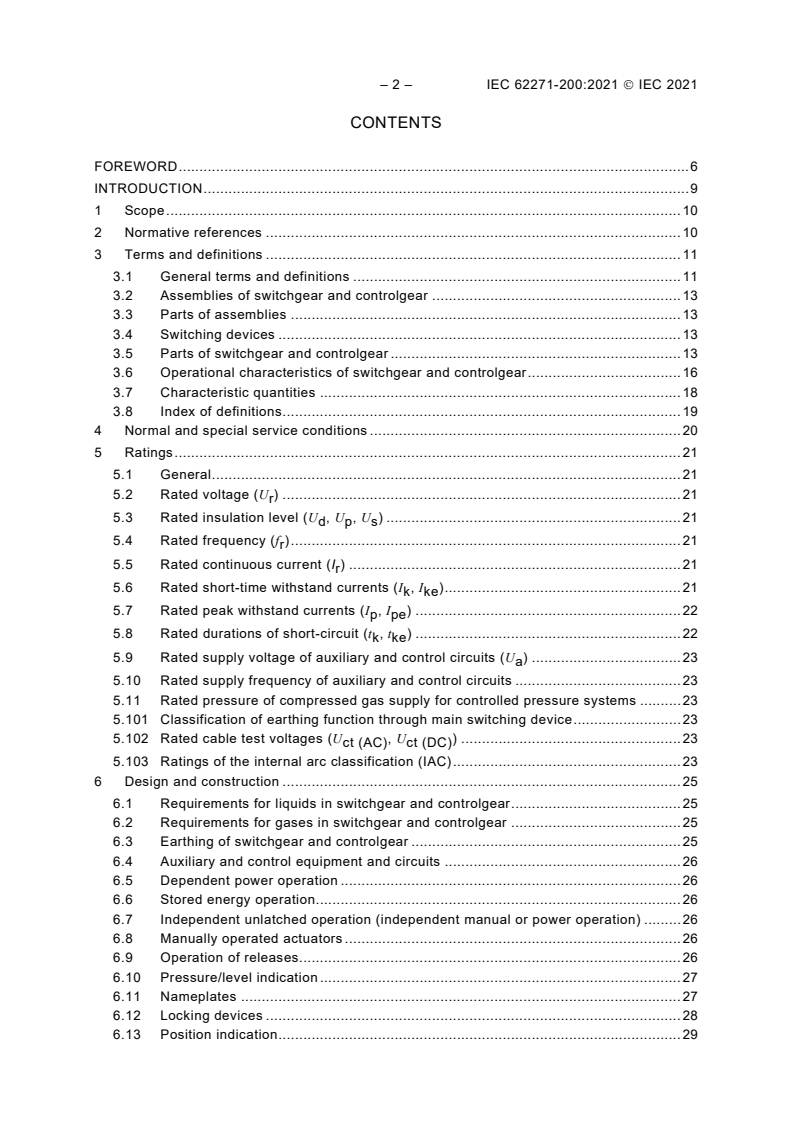

– 2 – IEC 62271-200:2021 IEC 2021
CONTENTS
FOREWORD . 6
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 10
3 Terms and definitions . 11
3.1 General terms and definitions . 11
3.2 Assemblies of switchgear and controlgear . 13
3.3 Parts of assemblies . 13
3.4 Switching devices . 13
3.5 Parts of switchgear and controlgear . 13
3.6 Operational characteristics of switchgear and controlgear . 16
3.7 Characteristic quantities . 18
3.8 Index of definitions . 19
4 Normal and special service conditions . 20
5 Ratings . 21
5.1 General . 21
5.2 Rated voltage (U ) . 21
r
5.3 Rated insulation level (U , U , U ) . 21
d p s
5.4 Rated frequency (f ) . 21
r
5.5 Rated continuous current (I ) . 21
r
5.6 Rated short-time withstand currents (I , I ) . 21
k ke
5.7 Rated peak withstand currents (I , I ) . 22
p pe
5.8 Rated durations of short-circuit (t , t ) . 22
k ke
5.9 Rated supply voltage of auxiliary and control circuits (U ) . 23
a
5.10 Rated supply frequency of auxiliary and control circuits . 23
5.11 Rated pressure of compressed gas supply for controlled pressure systems . 23
5.101 Classification of earthing function through main switching device . 23
5.102 Rated cable test voltages (U , U ) . 23
ct (AC) ct (DC)
5.103 Ratings of the internal arc classification (IAC) . 23
6 Design and construction . 25
6.1 Requirements for liquids in switchgear and controlgear . 25
6.2 Requirements for gases in switchgear and controlgear . 25
6.3 Earthing of switchgear and controlgear . 25
6.4 Auxiliary and control equipment and circuits . 26
6.5 Dependent power operation . 26
6.6 Stored energy operation. 26
6.7 Independent unlatched operation (independent manual or power operation) . 26
6.8 Manually operated actuators . 26
6.9 Operation of releases. 26
6.10 Pressure/level indication . 27
6.11 Nameplates . 27
6.12 Locking devices . 28
6.13 Position indication . 29
6.14 Degrees of protection provided by enclosures . 29
6.15 Creepage distances for outdoor insulators . 30
6.16 Gas and vacuum tightness . 30
6.17 Tightness for liquid systems . 30
6.18 Fire hazard (flammability) . 30
6.19 Electromagnetic compatibility (EMC) . 30
6.20 X-ray emission . 30
6.21 Corrosion . 30
6.22 Filling levels for insulation, switching and/or operation . 30
6.101 General requirements for assemblies . 31
6.102 Metal enclosure . 31
6.103 High-voltage compartments . 33
6.104 Removable parts . 37
6.105 Provisions for dielectric tests on cables . 37
6.106 Internal arc fault . 38
7 Type tests . 38
7.1 General . 38
7.2 Dielectric tests . 39
7.3 Radio interference voltage (RIV) test . 43
7.4 Resistance measurement . 43
7.5 Continuous current tests . 43
7.6 Short-time withstand current and peak withstand current tests . 45
7.7 Verification of the protection . 47
7.8 Tightness tests . 47
7.9 Electromagnetic compatibility tests (EMC) . 48
7.10 Additional tests on auxiliary and control circuits . 48
7.11 X-radiation test for vacuum interrupters . 48
7.101 Verification of making and breaking capacities . 48
7.102 Mechanical operation tests .
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
