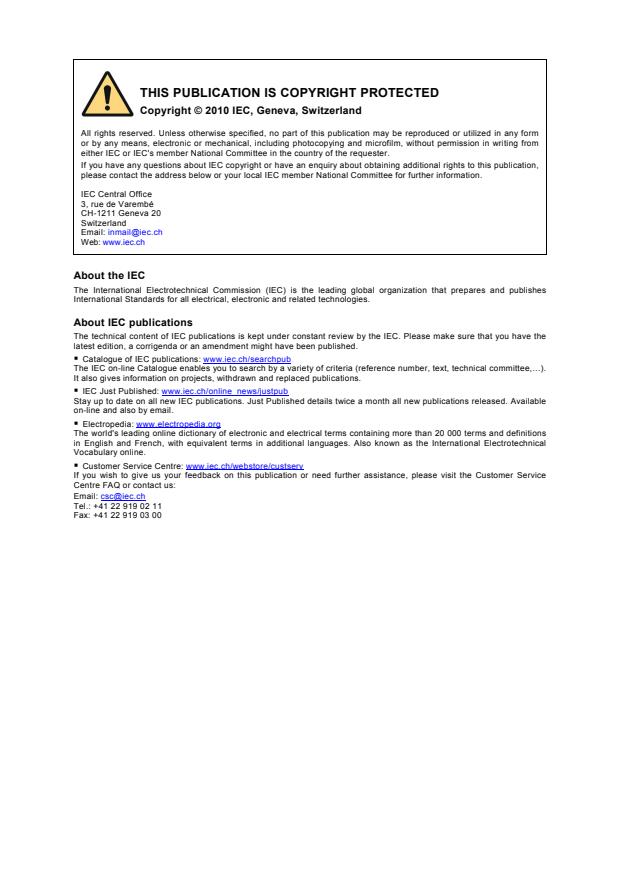

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: 0Hinmail@iec.ch
Web: 1Hwww.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: 2Hwww.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: 3Hwww.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: 4Hwww.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: 5Hwww.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: 6Hcsc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61158-6-18 ®
Edition 2.0 2010-08
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 6-18: Application layer protocol specification – Type 18 elements

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XA
ICS 25.04.40; 35.100.70; 35.110 ISBN 978-2-88912-132-8
– 2 – 61158-6-18 © IEC:2010(E)

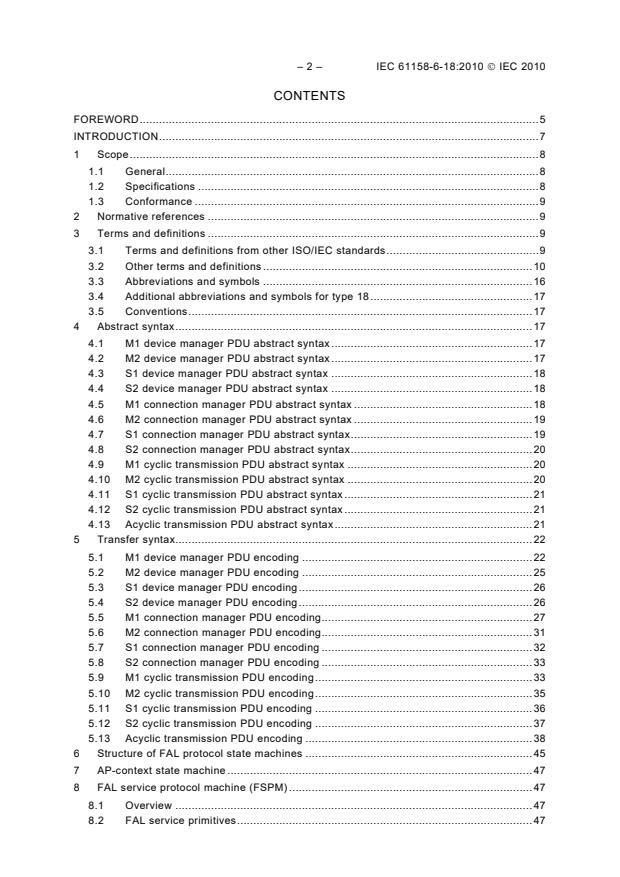

CONTENTS
FOREWORD.5
INTRODUCTION.7
1 Scope.8
1.1 General .8
1.2 Specifications.8
1.3 Conformance.9
2 Normative references .9
3 Terms and definitions .9
3.1 Terms and definitions from other ISO/IEC standards .9
3.2 Other terms and definitions .10
3.3 Abbreviations and symbols.16
3.4 Additional abbreviations and symbols for type 18 .16
3.5 Conventions .17
4 Abstract syntax.17
4.1 M1 device manager PDU abstract syntax .17
4.2 M2 device manager PDU abstract syntax .17
4.3 S1 device manager PDU abstract syntax.18
4.4 S2 device manager PDU abstract syntax.18
4.5 M1 connection manager PDU abstract syntax.18
4.6 M2 connection manager PDU abstract syntax.19
4.7 S1 connection manager PDU abstract syntax .19
4.8 S2 connection manager PDU abstract syntax .20
4.9 M1 cyclic transmission PDU abstract syntax.20
4.10 M2 cyclic transmission PDU abstract syntax.20
4.11 S1 cyclic transmission PDU abstract syntax .21
4.12 S2 cyclic transmission PDU abstract syntax .21
4.13 Acyclic transmission PDU abstract syntax .21
5 Transfer syntax .22
5.1 M1 device manager PDU encoding.22
5.2 M2 device manager PDU encoding.25
5.3 S1 device manager PDU encoding .26
5.4 S2 device manager PDU encoding .26
5.5 M1 connection manager PDU encoding .27
5.6 M2 connection manager PDU encoding .31
5.7 S1 connection manager PDU encoding.32
5.8 S2 connection manager PDU encoding.33
5.9 M1 cyclic transmission PDU encoding .33
5.10 M2 cyclic transmission PDU encoding .35
5.11 S1 cyclic transmission PDU encoding.36
5.12 S2 cyclic transmission PDU encoding.37
5.13 Acyclic transmission PDU encoding.38
6 Structure of FAL protocol state machines .45
7 AP-context state machine.47
8 FAL service protocol machine (FSPM).47
8.1 Overview .47
8.2 FAL service primitives .47

61158-6-18 © IEC:2010(E) – 3 –
9 AR protocol machine (ARPM) .48
9.1 Overview .48
9.2 M1 master ARPM .49
9.3 M2 master ARPM .53
9.4 Slave ARPM.56
10 DLL mapping protocol machine (DMPM).59
10.1 Overview .59
10.2 Primitives received from the ARPM .59
10.3 Indications received from the DL .59
Bibliography.60

Figure 1 – Parameter block 1 command parameter field.40
Figure 2 – Parameter block 2 command parameter field.41
Figure 3 – Relationships among protocol machines and adjacent layers .46
Figure 4 – ARPM M1 master AR state diagram .49
Figure 5 – ARPM M2 master AR state diagram .53
Figure 6 – ARPM slave AR state diagram .56

Table 1 – M1 device manager attribute format .17
Table 2 – M2 device manager attribute format .17
Table 3 – S1 device manager attribute format.18
Table 4 – S2 device manager attribute format.18
Table 5 – M1 connection manager attribute format.18
Table 6 – M2 connection manager attribute format.19
Table 7 – S1 connection manager attribute format .20
Table 8 – S2 connection manager attribute format .20
Table 9 – M1 cyclic transmission attribute format.20
Table 10 – M2 cyclic transmission attribute format.21
Table 11 – S1 cyclic transmission attribute format .21
Table 12 – S2 cyclic transmission attribute format .21
Table 13 – Acyclic transmission attribute format .21
Table 14 – M1 device manager attribute encoding .23
Table 15 – M2 device manager attribute encoding .25
Table 16 – S1 device manager attribute encoding.26
Table 17 – S2 device manager attribute encoding.27
Table 18 – M1 connection manager attribute encoding .28
Table 19 – M2 connection manager attribute encoding .31
Table 20 – S1 connection manager attribute encoding .32
Table 21 – S2 connection manager attribute encoding .33
Table 22 – M1 cyclic transmission attribute encoding.34
Table 23 – M2 cyclic transmission attribute encoding.36
Table 24 – S1 cyclic transmission attribute encoding .36
Table 25 – S2 cyclic transmission attribute encoding .38
Table 26 – Acyclic transmission – message data encoding .38

– 4 – 61158-6-18 © IEC:2010(E)
Table 27 – Command header format .39
Table 28 – Command codes .39
Table 29 – System information command parameter field .42
Table 30 – System information command parameter field .42
Table 31 – System information command parameter field .42
Table 32 – System information command parameter field .43
Table 33 – Line test command parameter field.43
Table 34 – Memory read command parameter field.44
Table 35 – Memory write command parameter field .45
Table 36 – FSPM events.48
Table 37 – M1 master state-event table 1 – events .51
Table 38 – M1 master state-event table 2 – receipt of FSPM service primitives .51
Table 39 – M1 master state-event table 3 – receipt of DMPM service primitives.53
Table 40 – M2 master state-event table 1 – events .54
Table 41 – M2 master state-event table 2 – receipt of FSPM service primitives .55
Table 42 – M2 master state-event table 3 – receipt of DMPM service primitives.55
Table 43 – S1 connect monitoring time .57
Table 44 – S2 connect monitoring time .57
Table 45 – Slave state-event table 1 – events.58
Table 46 – Slave state-event table 2 – receipt of FSPM service primitives .58
Table 47 – Slave state-event table 3 – receipt of DMPM service primitives .58
Table 48 – ARPM to DL mapping .59
Table 49 – DL to ARPM mapping .59

61158-6-18 © IEC:2010(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 6-18: Application layer protocol specification –
Type 18 elements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
International Standard IEC 61158-6-18 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This second edition cancels and replaces the first edition published in 2007. This edition
constitutes a technical revision.
The main changes with respect to the previous edition are listed below:
• editorial corrections;
• addition of cyclic data segmenting.

– 6 – 61158-6-18 © IEC:2010(E)
The text of this standard is based on the following documents:
FDIS Report on voting
65C/607/FDIS 65C/621/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61158 series, published under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be:
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
NOTE The revision of this standard will be synchronized with the other parts of the IEC 61158 series.

61158-6-18 © IEC:2010(E) – 7 –
INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of
automation system components. It is related to other standards in the set as defined by the
“three-layer” fieldbus reference model described in IEC/TR 61158-1.
The application protocol provides the application service by making use of the services
available from the data-link or other immediately lower layer. The primary aim of this standard
is to provide a set of rules for communication expressed in terms of the procedures to be
carried out by peer application entities (AEs) at the time of communication. These rules for
communication are intended to provide a sound basis for development in order to serve a
variety of purposes:
• as a guide for implementers and designers;
• for use in the testing and procurement of equipment;
• as part of an agreement for the admittance of systems into the open systems environment;
• as a refinement to the understanding of time-critical communications within OSI.
This standard is concerned, in particular, with the communication and interworking of sensors,
effectors and other automation devices. By using this standard together with other standards
positioned within the OSI or fieldbus reference models, otherwise incompatible systems may
work together in any combination.
NOTE Use of some of the associated protocol types is restricted by their intellectual-property-right holders. In all
cases, the commitment to limited release of intellectual-property-rights made by the holders of those rights permits
a particular data-link layer protocol type to be used with physical layer and application layer protocols in Type
combinations as specified explicitly in the profile parts. Use of the various protocol types in other combinations
may require permission from their respective intellectual-property-right holders.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is
claimed that compliance with this document may involve the use of patents concerning Type
18 elements and possibly other types given in subclause 4. 5, 5.5, 6.9.2 and 9.2.2 as follows:
3343036/Japan [MEC] “Network System for a Programmable Controller”
5896509/USA [MEC] “Network System for a Programmable Controller”
246906/Korea [MEC] “Network System for a Programmable Controller”
19650753/Germany [MEC] “Network System for a Programmable Controller”

IEC takes no position concerning the evidence, validity and scope of these patent rights.
The holder of these patent rights has assured the IEC that he/she is willing to negotiate
licences either free of charge or under reasonable and non-discriminatory terms and
conditions with applicants throughout the world. In this respect, the statement of the holder of
these patent rights is registered with IEC. Information may be obtained from:
[MEC] Mitsubishi Electric Corporation
Corporate Licensing Division
7-3, Marunouchi 2-chome, Chiyoda-ku,
Tokyo 100-8310, Japan
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://www.iec.ch/tctools/patent_decl.htm) maintain on-
line data bases of patents relevant to their standards. Users are encouraged to consult the
data bases for the most up to date information concerning patents.

– 8 – 61158-6-18 © IEC:2010(E)
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 6-18: Application layer protocol specification –
Type 18 elements
1 Scope
1.1 General
The Fieldbus Application Layer (FAL) provides user programs with a means to access the
fieldbus communication environment. In this respect, the FAL can be viewed as a “window
between corresponding application programs”.
This standard provides common elements for basic time-critical and non-time-critical
messaging communications between application programs in an automation environment and
material specific to Type 18 fieldbus. The term “time-critical” is used to represent the
presence of a time-window, within which one or more specified actions are required to be
completed with some defined level of certainty. Failure to complete specified actions within
the time window risks failure of the applications requesting the actions, with attendant risk to
equipment, plant and possibly human life.
This standard specifies interactions between remote applications and defines the externally
visible behavior provided by the Type 18 fieldbus application layer in terms of
a) the formal abstract syntax defining the application layer protocol data units conveyed
between communicating application entities;
b) the transfer syntax defining encoding rules that are applied to the application layer
protocol data units;
c) the application context state machine defining the application service behavior visible
between communicating application entities;
d) the application relationship state machines defining the communication behavior visible
between communicating application entities.
The purpose of this standard is to define the protocol provided to
a) define the wire-representation of the service primitives defined in IEC 61158-5-18, and
b) define the externally visible behavior associated with their transfer.
This standard specifies the protocol of the Type 18 fieldbus application layer, in conformance
with the OSI Basic Reference Model (ISO/IEC 7498-1) and the OSI application layer structure
(ISO/IEC 9545).
1.2 Specifications
The principal objective of this standard is to specify the syntax and behavior of the application
layer protocol that conveys the application layer services defined in IEC 61158-5-18.
A secondary objective is to provide migration paths from previously-existing industrial
communications protocols. It is this latter objective which gives rise to the diversity of
protocols standardized in the IEC 61158-6 series.

61158-6-18 © IEC:2010(E) – 9 –
1.3 Conformance
This standard does not specify individual implementations or products, nor do they constrain
the implementations of application layer entities within industrial automation systems.
Conformance is achieved through implementation of this application layer protocol
specification.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61158-5-18:2010 , Industrial communication networks – Fieldbus specifications – Part
5-18: Application layer service definition – Type 18 elements
ISO/IEC 10731, Information technology – Open Systems Interconnection – Basic Reference
Model – Conventions for the definition of OSI services
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model: The Basic Model
ISO/IEC 8822, Information technology – Open Systems Interconnection – Presentation
service definition
ISO/IEC 8824-1, Information technology – Abstract Syntax Notation One (ASN.1):
Specification of basic notation
ISO/IEC 9545, Information technology – Open Systems Interconnection – Application Layer
structure
3 Terms and definitions
3.1 Terms and definitions from other ISO/IEC standards
3.1.1 ISO/IEC 7498-1 terms
For the purposes of this document, the following terms as defined in ISO/IEC 7498-1 apply:
a) application entity
b) application process
c) application protocol data unit
d) application service element
e) application entity invocation
f) application process invocation
g) application transaction
h) real open system
i) transfer syntax
3.1.2 ISO/IEC 8822 terms
For the purposes of this document, the following terms as defined in ISO/IEC 8822 apply:
———————
o be published.
– 10 – 61158-6-18 © IEC:2010(E)
a) abstract syntax
b) presentation context
3.1.3 ISO/IEC 9545 terms
For the purposes of this document, the following terms as defined in ISO/IEC 9545 apply:
a) application-association
b) application-context
c) application context name
d) application-entity-invocation
e) application-entity-type
f) application-process-invocation
g) application-process-type
h) application-service-element
i) application control service element
3.1.4 ISO/IEC 8824-1 terms
For the purposes of this document, the following terms as defined in ISO/IEC 8824-1 apply:
a) object identifier
b) type
3.2 Other terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.2.1
alarm
activation of an event that shows a critical state
3.2.2
alarm ack
acknowledgment of an event that shows a critical state
3.2.3
application
function or data structure for which data is consumed or produced
3.2.4
application layer interoperability
capability of application entities to perform coordinated and cooperative operations using the
services of the FAL
3.2.5
application objects
multiple object classes that manage and provide a run time exchange of PDUs across the
network and within the network device
3.2.6
application process
part of a distributed application on a network, which is located on one device and
unambiguously addressed
61158-6-18 © IEC:2010(E) – 11 –
3.2.7
application process identifier
distinguishes multiple application processes used in a device
NOTE Application process identifier is assigned by PROFIBUS International (PI).
3.2.8
application process object
component of an application process that is identifiable and accessible through an FAL
application relationship
NOTE Application process object definitions are composed of a set of values for the attributes of their class (see
the definition for Application Process Object Class Definition). Application process object definitions may be
accessed remotely using the services of the FAL Object Management ASE. FAL Object Management services can
be used to load or update object definitions, to read object definitions, and to dynamically create and delete
application objects and their corresponding definitions.
3.2.9
application process object class
a class of application process objects defined in terms of the set of their network-accessible
attributes and services
3.2.10
application relationship
cooperative association between two or more application-entity-invocations for the purpose of
exchange of information and coordination of their joint operation. This relationship is activated
either by the exchange of application-protocol-data-units or as a result of preconfiguration
activities
3.2.11
application relationship application service element
application-service-element that provides the exclusive means for establishing and
terminating all application relationships
3.2.12
application relationship endpoint
context and behavior of an application relationship as seen and maintained by one of the
application processes involved in the application relationship
NOTE Each application process involved in the application relationship maintains its own application relationship
endpoint.
3.2.13
attribute
description of an externally visible characteristic or feature of an object
NOTE The attributes of an object contain information about variable portions of an object. Typically, they provide
status information or govern the operation of an object. Attributes may also affect the behavior of an object.
Attributes are divided into class attributes and instance attributes.
3.2.14
backup
status of the IO AR, which indicates that it, is in the standby state
3.2.15
behavior
indication of how an object responds to particular events
3.2.16
class
a set of objects, all of which represent the same kind of system component

– 12 – 61158-6-18 © IEC:2010(E)
NOTE A class is a generalization of an object; a template for defining variables and methods. All objects in a
class are identical in form and behavior, but usually contain different data in their attributes.
3.2.17
class attributes
attribute that is shared by all objects within the same class
3.2.18
class code
unique identifier assigned to each object class
3.2.19
class specific service
service defined by a particular object class to perform a required function which is not
performed by a common service
NOTE A class specific object is unique to the object class which defines it.
3.2.20
clear
status of the IO controller, which indicates that the control algorithm is currently not running
3.2.21
cyclic
repetitive in a regular manner
3.2.22
device
physical hardware connected to the link
NOTE A device may contain more than one node.
3.2.23
device ID
a vendor assigned device type identification
3.2.24
device profile
a collection of device dependent information and functionality providing consistency between
similar devices of the same device type
3.2.25
diagnosis data object
object(s) which contains diagnosis information referenced by device/slot/subslot/index
3.2.26
diagnosis information
all data available at the server for maintenance purposes
3.2.27
endpoint
one of the communicating entities involved in a connection
3.2.28
engineering
abstract term that characterizes the client application or device responsible for configuring an
automation system via interconnecting data items

61158-6-18 © IEC:2010(E) – 13 –
3.2.29
error
discrepancy between a computed, observed or measured value or condition and the specified
or theoretically correct value or condition
3.2.30
error class
general grouping for related error definitions and corresponding error codes
3.2.31
error code
identification of a specific type of error within an error class
3.2.32
event
an instance of a change of conditions
3.2.33
frame
denigrated term for DLPDU, unit of data transfer on a link
3.2.34
identification data object
object(s) that contain information about device, module and sub-module manufacturer and
type referenced by device/slot/subslot/index
3.2.35
implicit AR endpoint
AR endpoint that is defined locally within a device without use of the create service
3.2.36
index
address of a record data object within an application process
3.2.37
instance
the actual physical occurrence of an object within a class that identifies one of many objects
within the same object class
3.2.38
instance attributes
attribute that is unique to an object instance and not shared by the object class
3.2.39
instantiated
object that has been created in a device
3.2.40
interface
collection of FAL class attributes and services that represents a specific view on the FAL
class
3.2.41
invocation
act of using a service or other resource of an application process
NOTE Each invocation represents a separate thread of control that may be described by its context. Once the
service completes, or use of the resource is released, the invocation ceases to exist. For service invocations, a

– 14 – 61158-6-18 © IEC:2010(E)
service that has been initiated but not yet completed is referred to as an outstanding service invocation. Also for
service invocations, an Invoke ID may be used to unambiguously identify the service invocation and differentiate it
from other outstanding service invocations.
3.2.42
IO controller
controlling device, which acts as client for several IO devices (field devices)
NOTE This is usually a programmable controller or a distributed control system.
3.2.43
IO data object
object designated to be transferred cyclically for the purpose of processing and referenced by
device/slot/subslot
3.2.44
IO device
field device which acts as server for IO operation
3.2.45
IO supervisor
engineering device which manages commissioning and diagnosis of an IO system
3.2.46
IO system
system composed of all its IO subsystems
NOTE As an example a PLC with more than one IO controller (network interface) controls one IO system
composed of an IO subsystems for each IO controller.
3.2.47
logical device
a certain FAL class that abstracts a software component or a firmware component as an
autonomous self-contained facility of an automation device
3.2.48
member
piece of an attribute that is structured as an element of an array
3.2.49
method
a synonym for an operational service which is provided by the server ASE and
invoked by a client
3.2.50
module
hardware or logical component of a physical device
3.2.51
network
a set of nodes connected by some type of communication medium, including any intervening
repeaters, bridges, routers and lower-layer gateways
3.2.52
object
abstract representation of a particular component within a device, usually a collection of
related data (in the form of variables) and methods (procedures) for operating on that data
that have clearly defined interface and behavior

61158-6-18 © IEC:2010(E) – 15 –
3.2.53
object specific service
service unique to the object class which defines it
3.2.54
operate
status of the IO controller that indicates that the control algorithm is currently running
3.2.55
peer
role of an AR endpoint in which it is capable of acting as both client and server
3.2.56
physical device
a certain FAL class that abstracts the hardware facilities of an automation device
3.2.57
point-to-point connection
connection that exists between exactly two application objects
3.2.58
primary
status of the IO AR that indicates that it is in the operating state
NOTE Besides a primary IO AR a backup IO AR may exist. In example used for redundancy and dynamic
reconfiguration of IO data.
3.2.59
property
a synonym for ASE attributes which are readable or writeable via operational ASE services
NOTE These services are generally named “get_” or “set_” and correspond
with the IDL keywords “propget” and “propput”.
3.2.60
provider
a) source of a data connection
b) node or source sending data to one or many consumer
3.2.61
Register X
register containing bit-oriented cyclic data of type input data that is transmitted from a slave to
a master
3.2.62
Register Y
register containing bit-oriented cyclic data of type output data that is transmitted from a
master to a slave
3.2.63
Register Wr
register containing word-oriented cyclic data of type input data that is transmitted from a slave
to a master
3.2.64
Register Ww
register containing word-oriented cyclic data of type output data that is transmitted from a
master to a slave
– 16 – 61158-6-18 © IEC:2010(E)
3.2.65
resource
processing or information capability
3.2.66
run
status of the IO controller which indicates that the control algorithm is currently operating
3.2.67
runtime object model
objects that exist in a device together with their interfaces and methods that are accessible
3.2.68
service
operation or function than an object and/or object class performs upon request from another
object and/or object class
3.2.69
slot
address of a structural unit within an IO device
NOTE Within a modular device, a slot typically addresses a physical module. Within compact devices, a slot
typically addresses a logical function or virtual module.
3.2.70
stop
status of the IO controller which indicates that the control algorithm is currently not running
3.2.71
vendor ID
central administrative number used as manufacturer identification
NOTE The vendor ID is assigned by PROFIBUS International (PI).
3.3 Abbreviations and symbols
AE Application entity
AL Application layer
AP Application process
APDU Application protocol data unit
AR Application relationship
AREP Application relationship endpoint
ASE Application service element
DL- (as a prefix) data-link-
DLL Data-link layer
DLPDU Data-link protocol data unit
DLSDU DL-service data unit
FAL Fieldbus application layer
ID Identifier
PDU Protocol data unit
PL Physical layer
SDU Service Data Unit
3.4 Additional abbreviations and symbols for type 18
RX Register X
61158-6-18 © IEC:2010(E) – 17 –
RY Register Y
RWr Register Wr
RWw Register Ww
3.5 Conventions
3.5.1 General concept
The FAL is defined as a set of object-oriented ASEs. Each ASE is specified in a separate
subclause. Each ASE specification is composed of three parts: its class definitions, its
services, and its protocol specification. The first two are contained in IEC 61158-5-18. The
protocol specification for each of the ASEs is defined in this standard.
The class definitions define the attributes of the classes supported by each ASE. The
attributes are accessible from instances of the class using the Management ASE services
specified in IEC 61158-5-18 standard. The service specification defines the services that are
provided by the ASE.
This standard uses the descriptive conventions given in ISO/IEC 10731.
4 Abstract syntax
4.1 M1 device manager PDU abstract syntax
The abstract syntax for attributes belonging to this class is described in Table 1.
Table 1 – M1 device manager attribute format
Attribute Format Size (bits)
Management information Structure of 6 elements: 9 octets
Transmission speed Unsigned8 8
Number of occupied stations Unsigned8 8
Station number Unsigned8 8
Vendor code Unsigned16 16
Model code 3 octets, bit mapped 24
Software/protocol version 1 octet, bit mapped 8
Connected Slave management information Array of 64 members: 640 octets
Slave information 1 - 64 Structure of 5 elements: 10 octets
Station number Unsigned8 8
Vendor code Unsigned16 16
Model code 3 octets, bit mapped 24
Software/protocol version 1 octet, bit mapped 8
Reserved field 3 octets 24
4.2 M2 device manager PDU abstract syntax
The abstract syntax for attributes belonging to this class is described in Table 2.
Table 2 – M2 device manager attribute format
Attribute Format Size (bits)
Slave station information Array of 64 members: 128 octets

– 18 – 61158-6-18 © IEC:2010(E)
Attribute Format Size (bits)
Slave station information 1 - 64 Word 16
Slave station status information Array of 64 members: 32 octets
Slave station status information 1 - 64 4 Bits 4

4.3 S1 device manager PDU abstract syntax
The abstract syntax for attributes belonging to this class is described in Table 3.
Table 3 – S1 device manager attribute format
Attribute Format Size (bits)
Management information Structure of 5 elements: 10 octets
Station number Unsigned8 8
Vendor code Unsigned16 16
Model code 3 octets, bit mapped 24
Software/protocol version 1 octet, bit mapped 8
Reserved field 3 octets 24
4.4 S2 device manager PDU abstract syntax
The abstract syntax for attributes belonging to this class is described in Table 4.
Table 4 – S2 device manager attribute format
Attribute Format Size (bits)
Slave station information Word 16
Slave station status information 4 Bits 4

4.5 M1 connection manager PDU abstract syntax
The abstract syntax for attributes belonging to this class is described in Table 5.
Table 5 – M1 connection manager attribute format
Attribute Format Size (bits)
Pa
...
