IEC 60684-3-205:2011

IEC 60684-3-205 ®
Edition 1.0 2011-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving – Sheet 205: Heat-
shrinkable chlorinated polyolefin sleeving, flame retarded, nominal shrink ratio
1,7:1 and 2:1
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines – Feuille 205: Gaines
thermorétractables en polyoléfine chlorée, retardées à la flamme, rapport de
rétreint nominal de 1,7:1 et 2:1
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60684-3-205 ®
Edition 1.0 2011-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving – Sheet 205: Heat-
shrinkable chlorinated polyolefin sleeving, flame retarded, nominal shrink ratio
1,7:1 and 2:1
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines – Feuille 205: Gaines
thermorétractables en polyoléfine chlorée, retardées à la flamme, rapport de
rétreint nominal de 1,7:1 et 2:1

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.035.20 ISBN 978-2-88912-546-3

– 2 – 60684-3-205 © IEC:2011

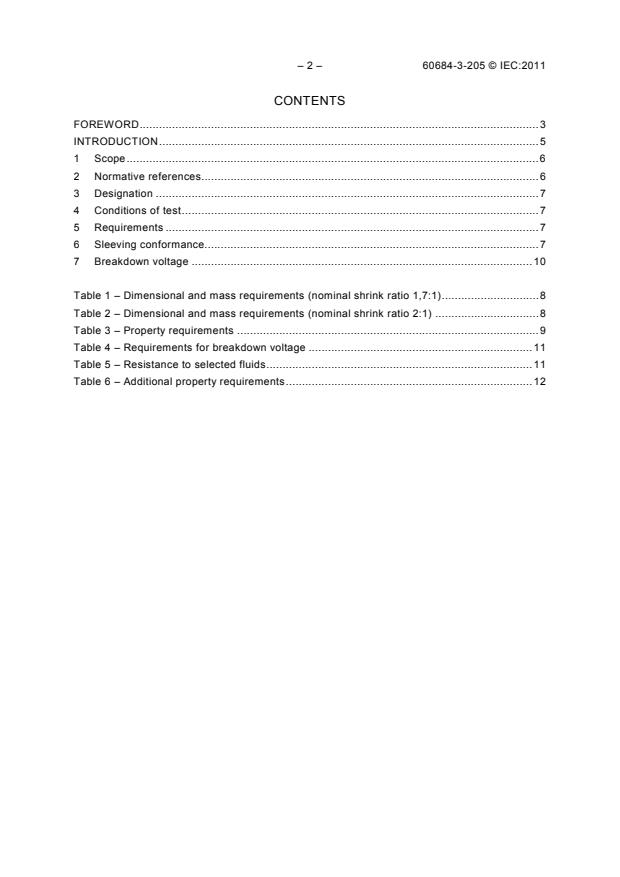

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references. 6
3 Designation . 7
4 Conditions of test . 7
5 Requirements . 7
6 Sleeving conformance. 7
7 Breakdown voltage . 10

Table 1 – Dimensional and mass requirements (nominal shrink ratio 1,7:1) . 8
Table 2 – Dimensional and mass requirements (nominal shrink ratio 2:1) . 8
Table 3 – Property requirements . 9
Table 4 – Requirements for breakdown voltage . 11
Table 5 – Resistance to selected fluids . 11
Table 6 – Additional property requirements . 12

60684-3-205 © IEC:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 205: Heat-shrinkable chlorinated polyolefin sleeving,
flame retarded, nominal shrink ratio 1,7:1 and 2:1

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-205 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
The text of this standard is based on the following documents:
FDIS Report on voting
15/626/FDIS 15/638/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 60684-3-205 © IEC:2011
A list of all the parts in the IEC 60684 series, under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60684-3-205 © IEC:2011 – 5 –
INTRODUCTION
This International Standard is one of a series which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1)
Part 2: Methods of test (IEC 60684-2)
Part 3: Specifications for individual types of sleeving (IEC 60684-3)
This standard gives one of the sheets comprising part 3 as follows:
Sheet 205: Heat-shrinkable chlorinated polyolefin sleeving, flame retarded, nominal shrink ratio
1,7:1 and 2:1
– 6 – 60684-3-205 © IEC:2011
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 205: Heat-shrinkable chlorinated polyolefin sleeving,
flame retarded, nominal shrink ratio 1,7:1 and 2:1

1 Scope
This part of IEC 60684 gives the requirements for one type of heat-shrinkable chlorinated
polyolefin sleeving, flame retarded, nominal shrink ratio 1,7:1 and 2:1 for use at temperatures
up to 120 °C.
These sleevings are normally supplied with internal diameters up to 102 mm, and the standard
colour is black.
Sizes or colours other than those specifically listed in this standard may be available as custom
items. These items shall be considered to comply with this standard if they comply with the
property requirements listed in Tables 3, 4 and 5 except for dimensions and mass, and
Table 6, as applicable.
Materials which conform to this specification meet established levels of performance. However,
the selection of a material by a user for a specific application should be based on the actual
requirements necessary for adequate performance in that application and not based on this
specification alone
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements
IEC 60684-2:1997, Flexible insulating sleeving – Part 2: Methods of test
Amendment 1 (2003)
Amendment 2 (2005)
IEC 60757:1983, Code for designation of colours
ISO 846:1997, Plastics – Evaluation of the action of micro-organisms
ISO 1817:2005, Rubber, vulcanized – Determination of the effect of liquids

60684-3-205 © IEC:2011 – 7 –
3 Designation
The sleeving shall be identified by the following designation:
Description IEC publication IEC Part IEC sheet Size (expanded and Colour
number number number recovered internal diameter
in mm)
↓ ↓ ↓ ↓ ↓ ↓
Sleeving IEC 60684 - 3 -205 - 12,7/6,4 - BK

Any colour abbreviation shall comply with IEC 60757, where applicable. Non-standard colours
shall be written out in full.
4 Conditions of test
Unless otherwise specified, the sleeving shall be shrunk in a forced air circulation oven for
(5 ± 1) min at 175 °C ± 3 K prior to testing.
5 Requirements
In addition to the general requirements given in IEC 60684-1, the sleeving shall comply with the
requirements of Tables 1, 2, 3, 4, 5 and 6 as applicable.
6 Sleeving conformance
Product conformance shall normally be based on the results from size 12,7/7,3 mm black
sleeving. The colour fastness to light shall be qualified for all colours.

– 8 – 60684-3-205 © IEC:2011
Table 1 – Dimensional and mass requirements (nominal shrink ratio 1,7:1)
Internal diameter Mass per unit
Recovered wall
mm
length
thickness
Size code
g/m
Expanded Recovered
mm
min. max. max.
3,2/1,8 3,2 1,8
0,70 ± 0,25
9,91
4,8/2,7 4,8 2,7
0,89 ± 0,25
16,60
6,4/3,6 6,4 3,6
0,89 ± 0,25
20,49
9,5/5,4 9,5 5,4
1,00 ± 0,25
31,52
12,7/7,3 12,7 7,3 1,20 ± 0,40
54,00
15,9/9,1 15,9 9,1 1,30 ± 0,40
69,62
19,1/10,9 19,1 10,9 1,45 ± 0,40
86,68
22,2/12,7 22,2 12,7
1,65 ± 0,50
121,07
25,4/14,5 25,4 14,5
1,77 ± 0,50
144,35
31,8/18,1 31,8 18,1
2,20 ± 0,50
250,83
38,1/21,8 38,1 21,8
2,40 ± 0,50
271,61
44,5/25,4 44,5 25,4
2,70 ± 0,50
347,03
50,8/29,0 50,8 29,0
2,80 ± 0,50
404,18
76,2/43,4 76,2 43,4 3,20 ± 0,50
660,81
101,6/57,9 101,6 57,9 3,55 ± 0,50
951,38
Table 2 – Dimensional and mass requirements (nominal shrink ratio 2:1)
Internal diameter Mass per unit
Recovered wall
mm
length
thickness
Size code
g/m
Expanded Recovered
mm
max.
min. max.
6,4/3,2 6,4 3,2
0,89 ± 0,25
18,76
9,5/4,8 9,5 4,8 1,00 ± 0,25
28,68
12,7/6,4 12,7 6,4
1,20 ± 0,40
48,54
15,9/7,9 15,9 7,9
1,30 ± 0,40
61,88
19,1/9,5 19,1 9,5 1,40 ± 0,40
77,13
22,2/11,1 22,2 11,1
1,65 ± 0,50
108,02
25,4/12,7 25,4 12,7
1,77 ± 0,50
128,86
31,1/15,5 31,1 15,5 2,20 ± 0,50
186,33
38,1/19,0 38,1 19,0
2,40 ± 0,50
240,82
44,5/22,2 44,5 22,2
2,70 ± 0,50
308,21
50,8/25,4 50,8 25,4 2,80 ± 0,50
359,13
76,2/38,1 76,2 38,1
3,20 ± 0,50
586,46
101,6/51,0 101,6 51,0
3,55 ± 0,50
845,41
60684-3-205 © IEC:2011 – 9 –
Table 3 – Property requirements
IEC 60684-2
Max.
Clause or
Property Units or Requirements Remarks
subclause
min.
Dimensions 3
– internal diameter 3.1.2 mm Table 1 and 2
– wall thickness 3.3.2 mm Table 1 and 2
– concentricity 3.3.3 % Min.
• expanded 65
• recovered 85
Heat shock 6 - - No cracking, flowing Heat at 200 °C ± 3 K.
or dripping
Longitudinal change 9 % Max. + 1 Heat the expanded sleeving at
175 °C ± 3 K for (15 ± 1) min.
- 10
Bending at low 14 – – There shall be no Test the expanded sleeving.
temperature signs of cracking.
Test temperature
–70 °C ± 3 K. For strips, the
mandrel shall be no more than
10 times the wall thickness.
Full section sleeving shall be
tested unfilled and the mandrel
shall be no more than 10 times the
outer diameter.
Dimensional stability 16 – – The dimensions
on storage shall be as specified
in Table 1.
Tensile strength 19.1 and 19.2 MPa Min. 10 Rate of jaw separation 100 mm/min.
Below 6,5 mm diameter as
Elongation at break 19.1 and 19.2 % Min. 225
sleeving; at 6,5 mm diameter
and above as dumb-bells.
a
Tensile stress at 200 % 19.5 MPa Max. 10,3

Elongation
Breakdown voltage 21 kV Min. Table 4
Volume resistivity 23
– at room temperature 23.4.2 Min. 10
Ω∙cm
Flame propagation 26
Method C
Time of burning s Max. 15
Length burned mm Max. 75
a
Use the test procedure from 19.5, but measure the elongation at 200 %.

– 10 – 60684-3-205 © IEC:2011
Table 3 (continued)
IEC 60684-2 Max.
Property Clause or Units or Requirements Remarks
subclause min.
Copper corrosion 33 % Max. None above the
Heat for (16 ± 0,5) h at
allowable 8 %
150 °C ± 3 K.
Colour fastness to light 34  The colour contrast Fastness standard No. 5
between the exposed
and unexposed parts
of the specimens
shall be equal to or
less than that of the
fastness standard
Resistance to selected 36  Use the fluids and test
fluids temperatures specified
in Table 5.
Tensile strength 19.1 and 19.2 MPa Min. 6,9
Elongation at break 19.1 and 19.2 % Min. 175
Mass per unit length 38 g/m Max. Table 1 and 2
Heat ageing 39  Heat at 120 °C ± 5 K.
Tensile strength 19.1 and 19.2 MPa Min. 8,2
Elongation at break 19.1 and 19.2 % Min. 175
Water absorption 40 % Max. 1,0
Restricted shrinkage 41 _ _ No cracking or splitting Heat the specimens at
135 °C.
kV Min. 2
Long term ageing 50  175 The ageing temperature
shall be 120 ° C.
Elongation % Min.
19.1 and 19.2
7 Breakdown voltage
The breakdown voltage shall be determined by any of the methods described in 21.2, 21.3 or
21.4 of IEC 60684-2. The central value shall comply with the minimum value in Table 4.
The rate of application of the voltage shall be 500 V/s.

60684-3-205 © IEC:2011 – 11 –
Table 4 – Requirements for breakdown voltage
Nominal recovered Breakdown voltage
a
wall thickness
min.
mm
kV
0,70  8,3
0,89 10,7
1,00 12,0
1,20 14,4
1,30 15,6
1,40 16,8
1,65 19,8
1,77 14,0
2,20 17,6
2,40 19,2
2,70 21,6
2,80 22,4
3,20 25,6
3,55 28,4
a
For non-standard wall thicknesses, the electric strength shall be at least that
of the next smallest standard wall thickness. For wall thicknesses smaller
than 0,69 mm, the electric strength shall be at least 12,0 kV/mm.

Table 5 – Resistance to selected fluids
Immersion
temperature
Fluids Type Standard or sy
...
