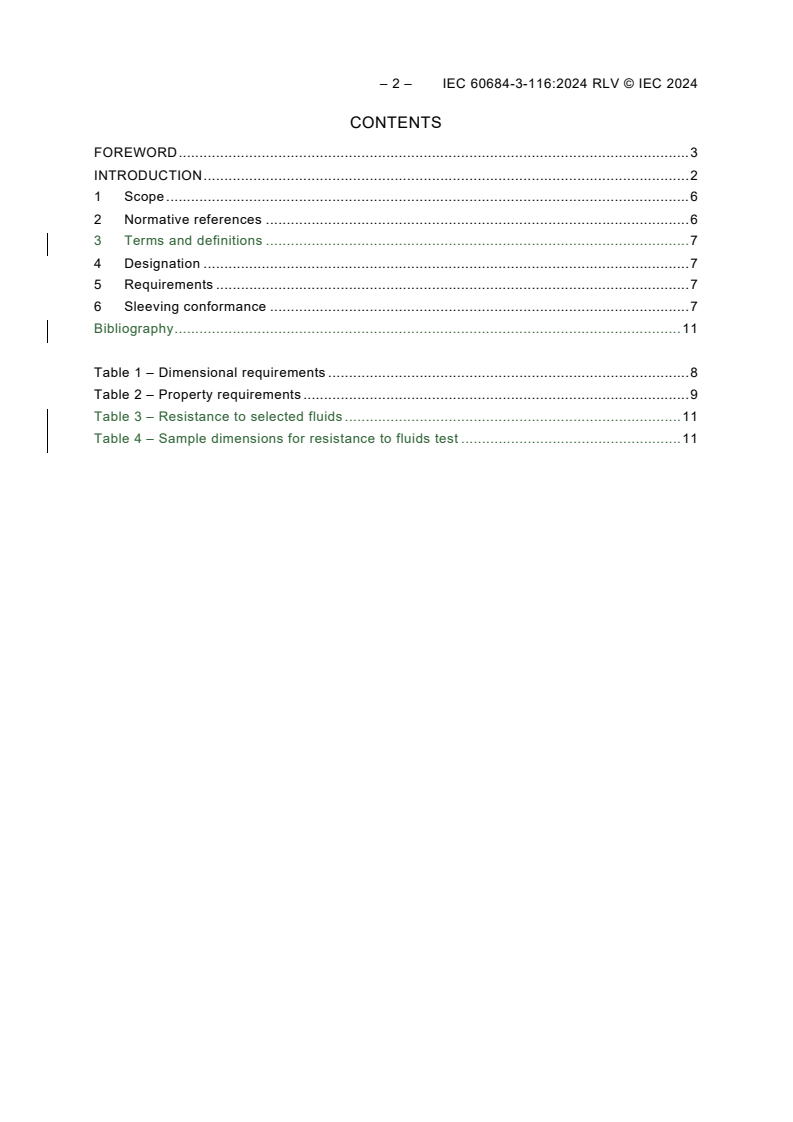

CONTENTS
FOREWORD . 3
INTRODUCTION . 2
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Designation . 7
5 Requirements . 7
6 Sleeving conformance . 7
Bibliography . 11

Table 1 – Dimensional requirements . 8
Table 2 – Property requirements . 9
Table 3 – Resistance to selected fluids . 11
Table 4 – Sample dimensions for resistance to fluids test . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheets 116 and 117: Extruded polychloroprene, general purpose

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 60684-3-116:2010. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
– 4 – IEC 60684-3-116:2024 RLV © IEC 2024
IEC 60684-3-116 has been prepared by IEC technical committee 15: Solid electrical insulating
materials. It is an International Standard.
This fourth edition cancels and replaces the third edition published in 2010 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of clause references in Table 2;
b) addition of resistance to fluids test.
The text of this International Standard is based on the following documents:
Draft Report on voting
15/1005/CDV 15/1020/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all the parts in the IEC 60684 series, published under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

INTRODUCTION
This document is one of a series of standards which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1);
Part 2: Methods of test (IEC 60684-2);
Part 3: Specification requirements for individual types of sleeving (IEC 60684-3).
This document comprises two of the sheets of Part 3, as follows:
Sheet 116: Extruded polychloroprene, general purpose: thin wall;
Sheet 117: Extruded polychloroprene, general purpose: thick wall.

– 6 – IEC 60684-3-116:2024 RLV © IEC 2024
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheets 116 and 117: Extruded polychloroprene, general purpose

1 Scope
This part of IEC 60684 gives the requirements for non-heat-shrinkable sleeving, extruded from
compounds based on polychloroprene elastomer. This sleeving has been found suitable for
temperatures up to 95 °C.
Sleeving of this type is normally available with internal diameters up to 25 mm, and in the
following opaque colours: black, brown, red, orange, yellow, green, blue, violet, grey, white and
pink. Sizes or colours other than those specifically listed in this document may can possibly be
available as custom items. These items shall be are considered to comply with this document
if they comply with the other property requirements listed in Table 2.
Materials which conform to this specification meet established levels of performance. However,
the selection of a material by a user for a specific application should will be based on the actual
requirements necessary for adequate performance in the application and not based on the
specification alone.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements
IEC 60684-2:—, Flexible insulating sleeving – Part 2: Methods of test
IEC 60684-2:19972011, Flexible insulating sleeving – Part 2: Methods of test
Amendment 1 (2003)
Amendment 2 (2005)
IEC 60068-2-74 :1999, Environmental testing – Part 2-74: Tests – Test Xc: Fluid contamination
IEC 60068-2-74:1999/AMD1:2018
IEC 60757:1983, Code for designation of colours
ISO 1817, Rubber, vulcanized or thermoplastic – Determination of the effect of liquids
___________
Third edition to be published
There exists a consolidated version 1.1:2018 that includes IEC 60068-2-74:1999 and its Amendment 1:2018.

3 Terms and definitions
There are no terms and definitions in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Designation
The sleeving shall be identified by the following designation:
Description IEC IEC Part IEC Sheet Size internal diameter, in Colour
publication number number millimetres
number
↓ ↓ ↓ ↓ ↓ ↓
Sleeving IEC 60684 3 116 2,5 GN

Any abbreviation for colour shall comply with IEC 60757 where applicable. Non-standard
colours shall be written out in full.
5 Requirements
In addition to the general requirements given in IEC 60684-1, the sleeving shall comply with the
requirements of Table 1 and Table 2, Table 3 and Table 4.
6 Sleeving conformance
Product qualification shall normally be based on results from 10 mm internal diameter sleeving.
Colour and colour fastness to light shall be qualified for all colours.

– 8 – IEC 60684-3-116:2024 RLV © IEC 2024
a
Table 1 – Dimensional requirements
b
Wall thickness
Internal diameter
mm
mm
Sheet 116: Sheet 117:
Nominal
Thin wall Thick wall
Min. Max. Min. Max. Min. Max.
0,5 0,4 0,7 0,4 0,6 0,6 0,8
0,8 0,6 0,9 0,4 0,6 0,6 0,8
1,0 0,9 1,2 0,4 0,6
0,6 0,8
1,2
1,0 1,4 0,4 0,6 0,6 0,8
1,5 1,3 1,8 0,5 0,7 0,7 0,9
2,0 1,7 2,3 0,5 0,7 0,7 0,9
2,5 2,1 2,9 0,5 0,7 0,7 0,9
3,0 2,5 3,5 0,5 0,7 0,7
0,9
4,0
3,3 4,6 0,5 0,9 0,9 1,2
5,0 4,2 5,8 0,5 0,9 0,9 1,2
8,0 6,8 9,2 0,5 1,1 1,1 1,5
10,0 8,6 11,4 0,5 1,2 1,2 1,8
12,0 10,4 13,6 0,5
1,2 1,2 1,8
16,0 14,0
18,0 0,5 1,4 1,4 2,0
20,0 17,5 22,5 0,7 1,5 1,5 2,4
25,0 21,5 28,5 0,7 1,5 1,5 2,4
a
Measurements shall be made to the nearest 0,05 mm.
b
Sleeving with a non-standard nominal internal diameter shall have a wall thickness at least as large as the
next larger standard size. Sleeving with a non-standard internal diameter greater than 25,0 mm shall have a
wall thickness that meets the requirements of the 25,0 mm internal diameter sleeving.

Table 2 – Property requirements
Property IEC 60684- Units Max. Requirements Remarks
2:2011, or
clause or min.
subclause
Dimensions 3 mm Table 1
Bending after 13 – – There shall be no Oven temperature 95 °C ± 2 K. For
heating sign of cracking nominal internal diameters of 8 mm or
and the original less, the mandrel diameters shall be
colour shall be between four and five times the
clearly nominal internal diameter of the
recognizable. sleeving. Above 8 mm nominal internal
diameter, strips 6 mm wide cut from the
sleeving shall be bent around a
mandrel 6 mm ± 1 mm in diameter.
Bending at low 14 – – There shall be no
Test temperature –35 °C ± 2 K
temperature sign of cracking.
Sleeving shall be tested unfilled and
the mandrel diameter shall be between
15 and 20 times the specified maximum
wall thickness. For strips cut from
sleeving the mandrel diameter shall be
between eight and ten times the
specified maximum wall thickness.
Elongation at 19.12 and % Min. 400 Dumbbell specimens shall be cut from
break 19.3 sleeving of 8 mm or greater diameter.
Breakdown 21 kV Min. Sheet 116:  2,0 The voltage shall be applied at a rate of
voltage Sheet 117:  4,0 500 V/s or such that the required
breakdown value is reached between
10 s and 20 s.
Volume 23 Ω.m Min.
resistivity
– at room 23.4.2
5 × 10
temperature
– after damp 23.4.4
4 × 10
heat
Flame 26 s Max. 30 In addition, the indicator flag shall not
propagation Method A be burned, nor shall flaming or glowing
particles or drops ignite the cotton in
any of the three tests.
Silver staining 30 – – Any stain shall not
be darker than the
standard shade.
Colour fastness 34 – – The colour Light fastness standard 3 shall be
contrast between
used.
the exposed parts
of the specimens
shall be equal to
or less than that of
the fastness
standard.
Ozone 35 – – There shall be no The ozone concentration shall be
resistance sign of cracking.
(1 ± 0,2) ml/m and the temperature
shall be 30 °C to 40 °C. The mandrel
shall be twice the nominal diameter of
the sleeving. The duration of the

exposure shall be (20 ± 0,5) h.
Tension test 48 % Max. 25 The test shall be carried out at a
temperature of 23 °C ± 2 K.
Tear 3 – – There shall be no Oven temperature 95 °C ± 2 K. The
5049.3
propagation splitting. mandrel diameter shall be 3D, where D
is the nominal bore of the sleeves.
Test time: 6 h
___________
3 rd
This subclause refers to the 3 edition of IEC 60684-2, which is to be published.

– 10 – IEC 60684-3-116:2024 RLV © IEC 2024
Property IEC 60684- Units Max. Requirements Remarks
2:2011, or
clause or min.
subclause
NOTE Test not applicable to sleeves
with less than 2 mm internal diameter.
Circumferential 4 – – There shall be no Oven temperature 70 °C ± 2 K. The
59 58
extension splitting mandrel diameter shall be 3,5D, where
D is the nominal bore of the sleeves.
NOTE Test not applicable to sleeves
with less than 2 mm internal diameter.
Voltage proof 5 kV Min. There shall be no Applied test voltage: up to and
60 59
breakdown. including 0,5 mm wall shall be 2 kV,
over 0,5 mm wall shall be 4 kV.
Thermal shock – – The sleeves shall Oven temperature 95 °C ± 2 K
61.4.1
show no signs of
60 cracking, splitting
or change of
colour. The
sleeves shall not
slip off the
mandrel under
their own weight.
Any printing shall
remain legible.
Resistance to 36  Sleeves shall not Three test pieces shall be fitted to a
selected fluids slip down the smooth non-ferrous mandrel, the
mandrel under diameter of which is twice the nominal
their own weight internal diameter of the sleeve.
and shall not split
Use the fluids and test temperatures
or become
specified in Table 3.
gelatinous or
Use the sample length listed in Table 4.
tacky either on
removal from the
Immersion time: (24 ± 1) h
fluid or after
Dry time: 2 hours at 70 °C ± 2 K
conditioning.
___________
4 rd
This subclause refers to the 3 edition of IEC 60684-2, which is to be published.
5 rd
This subclause refers to the 3 edition of IEC 60684-2, which is to be published.
6 rd
This subclause refers to the 3 edition of IEC 60684-2, which is to be published.

Table 3 – Resistance to selected fluids
Fluids Type Standard or symbol Immersion
temperature
°C ± 2 K
IEC 60068-2- Gasoline (piston engine) ISO 1817 Test Liquid B 40
74:1999/AMD1:2018
Fluid (b)
IEC 60068-2-74: Cleaning Fluid Propan-2-ol 50
1999/AMD1:2018
CAS 67-63-0
Fluid (h)
IEC 60068-2-74: De-icing Fluid Ethylene Glycol CAS 107-21-1 with a 23
1999/AMD1:2018 volume fraction of 50 % in water
Fluid (l)
IEC 60068-2-74: Mineral based Hydraulic NATO H-520 (ON-18) 70
1999/AMD1:2018 Fluid
(or as an alternative NATO H-515)
Fluid (c)
IEC 60068-2-74: Silicone based Hydraulic NATO S-1714 (ZX-42) 80
1999/AMD1:2018 Fluid
Fluid (e)
Table 4 – Sample dimensions for resistance to fluids test
Nominal internal diameter Length of sleeve
mm mm
0,5 to 1,5 4 ± 1
1,6 to 9,0 7 ± 2
10,0 to 25 12 ± 3
– 12 – IEC 60684-3-116:2024 RLV © IEC 2024
Bibliography
IEC 60684-3 (all parts), Flexible insulating sleeving – Part 3: Specifications for individual types
of sleeving
___________
IEC 60684-3-116 ®
Edition 4.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving – Sheets 116 and 117:
Extruded polychloroprene, general purpose

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines – Feuilles 116 et 117:
Polychloroprène extrudé, utilisation générale
– 2 – IEC 60684-3-116:2024 © IEC 2024
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Designation . 7
5 Requirements . 7
6 Sleeving conformance . 7
Bibliography . 12

Table 1 – Dimensional requirements . 8
Table 2 – Property requirements . 9
Table 3 – Resistance to selected fluids . 10
Table 4 – Sample dimensions for resistance to fluids test . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheets 116 and 117: Extruded polychloroprene, general purpose

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60684-3-116 has been prepared by IEC technical committee 15: Solid electrical insulating
materials. It is an International Standard.
This fourth edition cancels and replaces the third edition published in 2010 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of clause references in Table 2;
b) addition of resistance to fluids test.

– 4 – IEC 60684-3-116:2024 © IEC 2024
The text of this International Standard is based on the following documents:
Draft Report on voting
15/1005/CDV 15/1020/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all the parts in the IEC 60684 series, published under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this
...
