IEC 61290-1-1:2015

IEC 61290-1-1 ®
Edition 3.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical amplifiers – Test methods –
Part 1-1: Power and gain parameters – Optical spectrum analyzer method

Amplificateurs optiques – Méthodes d'essai –
Partie 1-1: Paramètres de puissance et de gain – Méthode de l’analyseur
de spectre optique

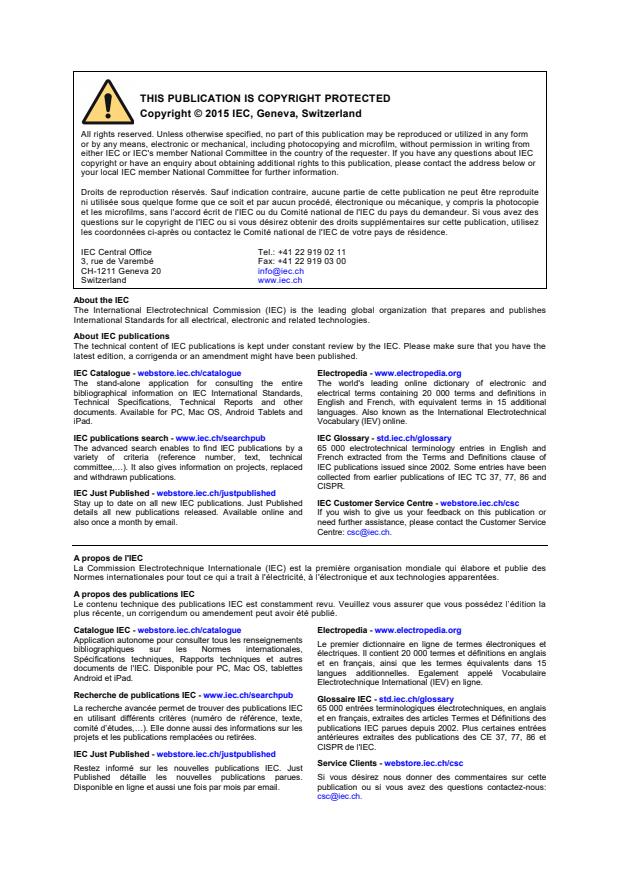

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

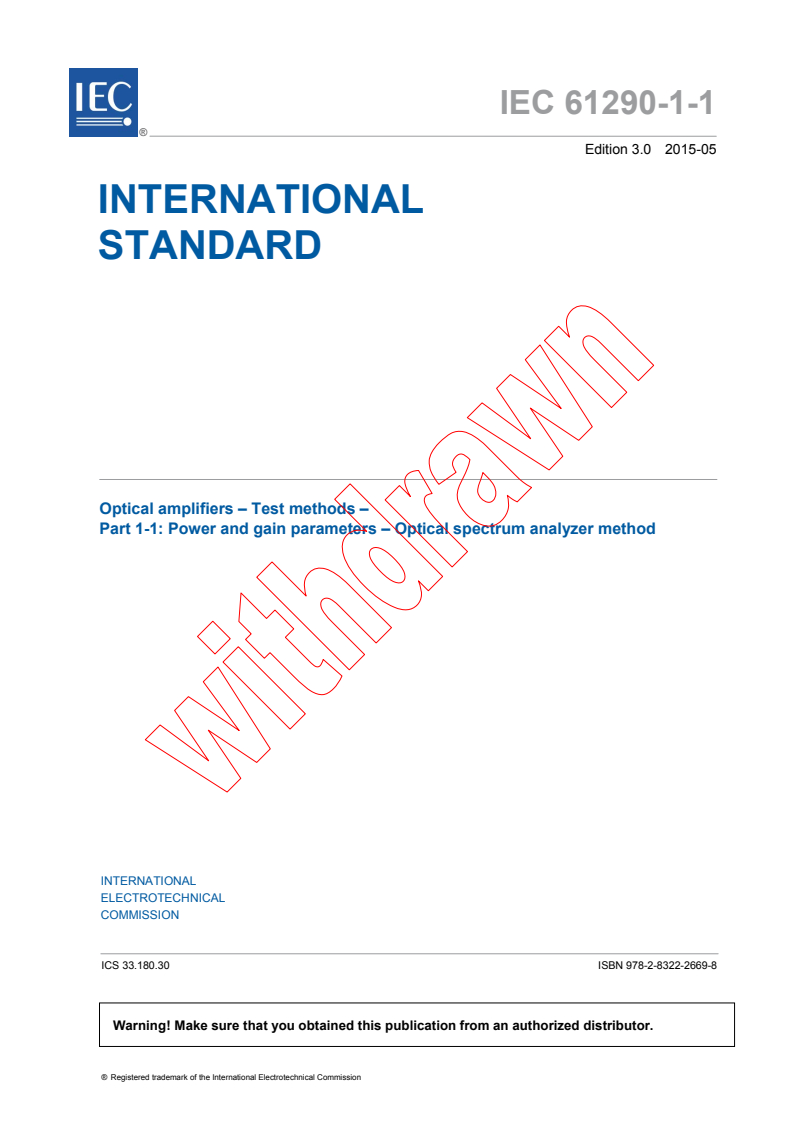

IEC 61290-1-1 ®
Edition 3.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical amplifiers – Test methods –

Part 1-1: Power and gain parameters – Optical spectrum analyzer method

Amplificateurs optiques – Méthodes d'essai –

Partie 1-1: Paramètres de puissance et de gain – Méthode de l’analyseur

de spectre optique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.30 ISBN 978-2-8322-3742-7

– 2 – IEC 61290-1-1:2015 © IEC 2015

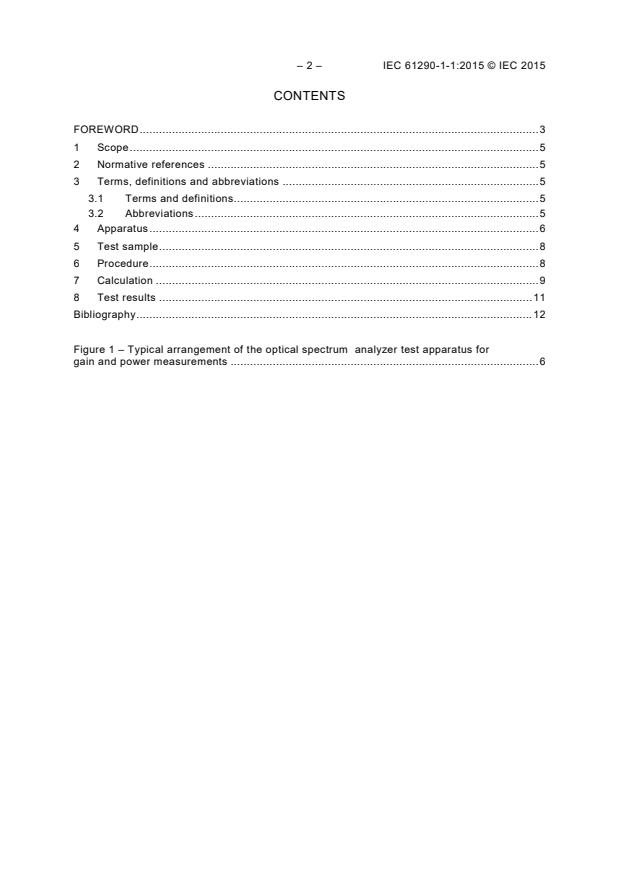

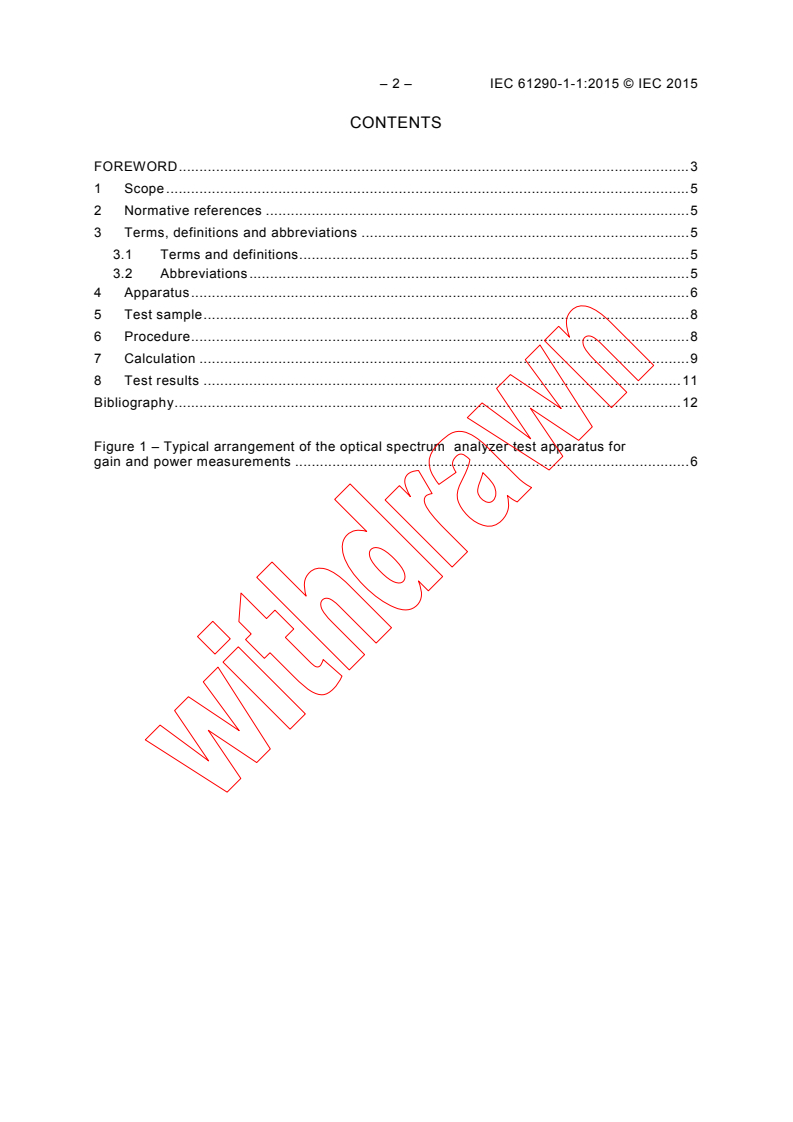

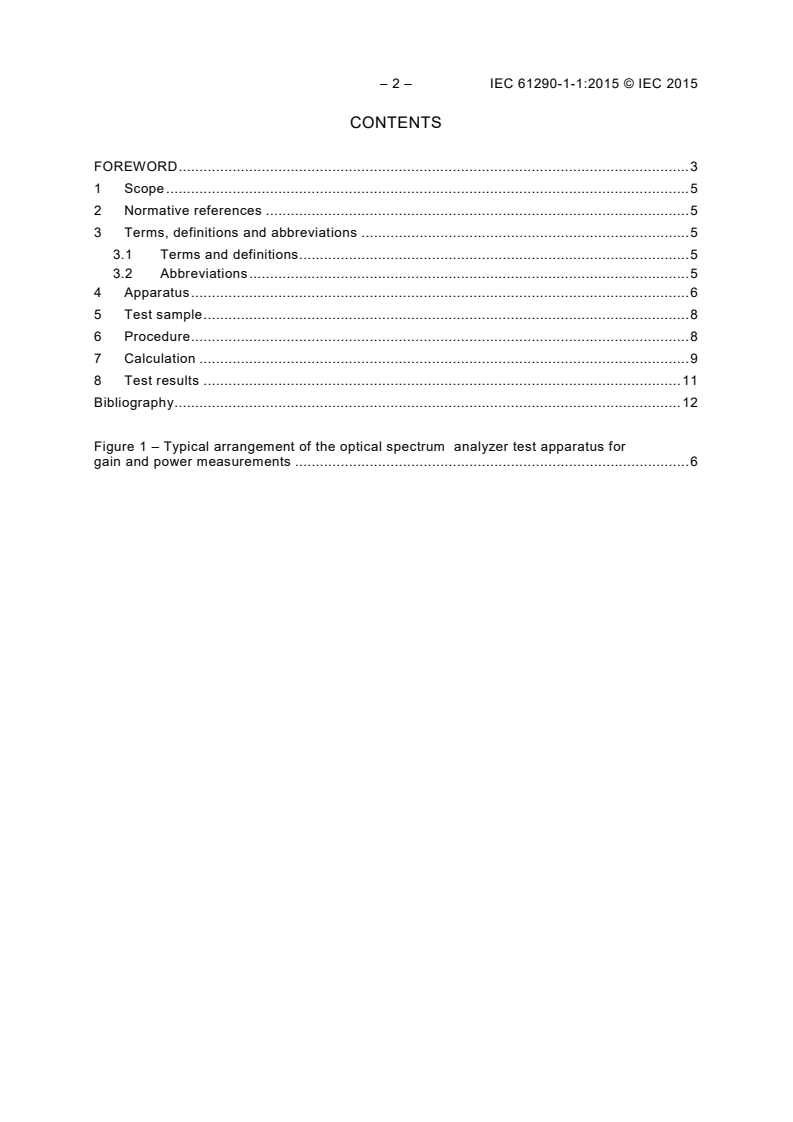

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 5
3.1 Terms and definitions . 5
3.2 Abbreviations . 5
4 Apparatus . 6
5 Test sample . 8
6 Procedure . 8
7 Calculation . 9
8 Test results . 11
Bibliography . 12

Figure 1 – Typical arrangement of the optical spectrum analyzer test apparatus for
gain and power measurements . 6

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL AMPLIFIERS – TEST METHODS –

Part 1-1: Power and gain parameters –
Optical spectrum analyzer method

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61290-1-1 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This bilingual version (2016-11) corresponds to the monolingual English version, published in
2015-05.
This third edition cancels and replaces the second edition published in 2006 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) updates on the characteristics of measurement apparatus;
b) revised list of addressed optical amplifier parameters.

– 4 – IEC 61290-1-1:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
86C/1309/FDIS 86C/1328/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard shall be used in conjunction with IEC 61290-1 and IEC 61291-1.
A list of all parts of the IEC 61290 series, published under the general title Optical amplifiers –
Test methods can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
The first editions of some of these parts were published under the general title Optical fibre amplifiers – Basic
specification or Optical amplifier test methods.

OPTICAL AMPLIFIERS – TEST METHODS –

Part 1-1: Power and gain parameters –
Optical spectrum analyzer method

1 Scope
This part of IEC 61290 applies to all commercially available optical amplifiers (OAs) and
optically amplified modules. It applies to OAs using optically pumped fibres (OFAs based on
either rare-earth doped fibres or on the Raman effect), semiconductor OAs (SOAs) and planar
optical waveguide amplifiers (POWAs).
The object of this standard is to establish uniform requirements for accurate and reliable
measurements, by means of the optical spectrum analyzer test method, of the following OA
parameters, as defined in IEC 61291-1:
a) nominal output signal power;
b) gain;
c) polarization-dependent gain;
d) maximum output signal power;
e) maximum total output power.
NOTE All numerical values followed by (‡) are suggested values for which the measurement is assured.
The object of this standard is specifically directed to single-channel amplifiers. For
multichannel amplifiers, one should refer to the IEC 61290-10 series [1] .
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61290-1, Optical amplifiers - Test methods - Part 1: Power and gain parameters
IEC 61291-1, Optical amplifiers - Part 1: Generic specification
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61291-1 apply.
3.2 Abbreviations
ASE amplified spontaneous emission
DBR distributed Bragg reflector (laser diode)
DFB distributed feed-back (laser diode)
_____________
Numbers in square brackets refer to the Bibliography

– 6 – IEC 61290-1-1:2015 © IEC 2015
ECL external cavity laser (diode)
LED light emitting diode
OA optical amplifier
OFA optical fibre amplifier
POWA planar optical waveguide amplifier
SOA semiconductor optical amplifier
4 Apparatus
A diagram of the measurement set-up is given in Figure 1.

Polarization
J1
Optical
Optical
dB controller
power
source
(optional)
meter
Variable
optical
attenuator
IEC
Figure 1a – Calibration
J2
Polarization
J1
Optical
Optical
dB controller
spectrum
source
(optional)
analyzer
Variable
optical
attenuator
IEC
Figure 1b – Input signal power measurement
J2
Optical
J1
Polarization
Optical
dB OA spectrum
controller
source
analyzer
(optional)
Variable
optical
OA
attenuator
under test
IEC
Figure 1c – Output power measurement
Figure 1 – Typical arrangement of the optical spectrum
analyzer test apparatus for gain and power measurements
The test equipment listed below, with the required characteristics, is needed.
a) optical source:
The optical source shall be either at fixed wavelength or wavelength-tuneable.
– fixed-wavelength optical source: This optical source shall generate a light with a
wavelength and optical power specified in the relevant detail specification. Unless
otherwise specified, the optical source shall emit a continuous wave with the full width
at half maximum of the spectrum narrower than 1 nm (‡). A distributed feed-back (DFB)
laser, a distributed Bragg reflector (DBR) laser, an external cavity laser (ECL) diode
and a light emitting diode (LED) with a narrow-band filter are applicable, for example.
The suppression ratio for the side modes for the DFB laser, the DBR laser or the ECL

shall be higher than 30 dB (‡). The output power fluctuation shall be less than 0,05 dB
(‡), which may be better attainable with an optical isolator at the output port of the
optical source. Spectral broadening at the foot of the lasing spectrum shall be minimal
for laser sources and the ratio of the source power to total spontaneous emission
power of the laser shall be more than 30 dB;
– wavelength-tuneable optical source: This optical source shall be able to generate a
wavelength-tunable light within the range specified in the relevant detail specification.
Its optical power shall be specified in the relevant detail specification. Unless
otherwise specified, the optical source shall emit a continuous wave with the full width
at half maximum of the spectrum narrower than 1 nm (‡). An ECL or an LED with a
narrow bandpass optical filter is applicable, for example. The suppression ratio of side
modes for the ECL shall be higher than 30 dB (‡). The output power fluctuation shall
be less than 0,05 dB, which may be more easily attainable with an optical isolator at
the output port of the optical source. Spectral broadening at the foot of the lasing
spectrum shall be minimal for the ECL. Spectral broadening at the foot of the lasing
spectrum shall be minimal for laser sources and the ratio of the source power to total
spontaneous emission power of the laser shall be more than 30 dB.
The use of an LED shall be limited to small-signal gain measurements.
b) optical power meter:
It shall have a measurement uncertainty better than ±0,2 dB, irrespective of the state of
polarization, within the operational wavelength bandwidth of the OA. A dynamic range
exceeding the measured gain is required (e.g. 40 dB);
c) optical spectrum analyzer:
Within the operational wavelength bandwidth of the OA, the linearity of the spectral power
measurement shall be better than the desired gain uncertainty and at most ±0,5 dB, and
the amplitude stability of the spectral power measurement shall be better than the desired
power uncertainty and at least better than ±0,2 dB over the duration of the measurement.
Polarization dependence of the spectral power measurement shall be better than ±0,5 dB.
The wavelength measurement uncertainty shall be better than ±0,5 nm. A dynamic range
exceeding the measured gain is required (e.g. 40 dB). The spectral resolution shall be
equal or better than 1 nm;
d) optical isolator:
Optical isolators may be used to bracket the OA. The polarization-dependent loss variation
of the isolator shall be better than 0,2 dB (‡). Optical isolation shall be better than
40 dB (‡). The reflectance from this device shall be smaller than –40 dB (‡) at each port;
e) variable optical attenuator:
The attenuation range and stability shall be over 40 dB (‡) and better than ±0,1 dB (‡),
respectively. The reflectance from this device shall be smaller than –40 dB (‡) at each port;
f) polarization controller:
This device shall be able to provide as input signal light all possible states of polarization
(e.g. linear, elliptical and circular). For example, the polarization controller may consist of
a linear polarizer followed by an all-fibre-type polarization controller, or by a linear
polarizer followed by a quarter-wave plate rotatable by minimum of 90°, and a half wave
plate rotatable by minimum of 180°. The loss variation of the polarization controller shall
be less than 0,2 dB (‡). The reflectance from this device shall be smaller than –40 dB (‡)
at each port. The use of a polarization controller is considered optional, except for the
measurement of polarization dependent gain, but may also be necessary to achieve the
desired uncertainty of other power and gain parameters for OA devices exhibiting
significant polarization dependent gain;
g) optical fibre jumpers:
The mode field diameter of the optical fibre jumpers used shall be as close as possible to
that of fibres used as input and output ports of the OA. The reflectance from this device
shall be smaller than –40 dB (‡) at each port, and the length of the jumper shall be shorter
than 2 m;
– 8 – IEC 61290-1-1:2015 © IEC 2015
Standard optical fibres type B1 as defined in IEC 60793-2-50 [2] are recommended.
However, other fibre types may be used as input/output fibre. In this case, type of fibre will
be considered.
h) optical connectors, J1 and J2:
The connection loss repeatability shall be better than ±0,2 dB.
5 Test sample
The OA under test shall operate at nominal operating conditions. If the OA is likely to cause
laser oscillations due to unwanted reflections, optical isolators shall be used to bracket the
OA under test. This will minimize the signal instability and the measurement uncertainty.
For measurements of the parameters of Clause 1, care shall be taken in maintaining the state
of polarization of the input light during the measurement. Changes in the polarization state of
the input light may result in input optical power changes because of the slight polarization
dependency expected from all the optical components used, this leading to measurement
errors.
6 Procedure
The procedure is as follows:
a) Gain and nominal output signal power:
This method permits determination of the gain through the measurements of the OA input
signal power, P , the OA output power, P , and the OA amplified spontaneous emission
in out
(ASE) power, P at the signal wavelength. The measurement procedures described
ASE
below shall be followed:
1) set the optical source at the test wavelength specified in the relevant detail
specification. Set the optical source and the variable optical attenuator in a way to
provide, at the input port of the OA, the optical power P specified in the relevant
in
detail specification;
2) measure P with the optical power meter, as shown in Figure 1a, to calibrate the
in
optical spectrum analyzer;
3) measure P with the optical spectrum analyzer, as shown in Figure 1b;
in
4) measure P with the optical spectrum analyzer, as shown in Figure 1c;
out
5) measure P with the optical spectrum analyzer, as shown in Figure 1c, according to
ASE
the technique specified in the relevant detail specification;
In cases using a polarization controller, the following procedure shall be used:
6) measure P by adjusting the polarization controller until a minimum P is achieved
out out
and repeat step 5).
Various techniques for P measurements are applicable. One technique makes use of

ASE
an interpolation procedure to evaluate the ASE level at the signal wavelength by
measuring the ASE level at wavelength offset to both side of signal wavelength on the
optical spectrum analyzer display. Another technique employs a polarizer, placed between
the variable optical attenuator and the OA under test, to eliminate the signal component
from the OA output to measure the ASE level without being affected by the amplified
signal spectrum. In the latter case, the input optical signal shall be linearly polarized with
an extinction ratio better than 30 dB (‡), and P shall be calculated as an averaged value

out
overall the polarization states. If the polarizer technique cannot sufficiently eliminate the
signal power, the interpolation technique can be used in addition to the polarizer technique.
Optical connectors J1 and J2 shall not be removed during the measurement to avoid
measurement errors due to re-connection.
b) Polarization-dependent gain variation:

As in a), but use a polarization controller between the variable optical attenuator and the
connector J1 (see Figure 1), repeat all procedures at different states of polarization as
specified in the relevant detail specification, and replace procedure 1) with the following:
1) set the optical source to the test wavelength specified in the relevant detail specification.
Set the polarization controller at a given state of polarization as specified in the relevant
detail specification. Set the optical source and the variable optical attenuator in a way to
provide, at the input port of the OA, the optical power P specified in the relevant detail
in
specification.
c) Maximum output signal power:
As in a), but this parameter is determined by repeating all steps at different wavelengths
specified in detailed specification, and replace steps 1), 4), and 6) with the following:
1) set the wavelength-tuneable optical source at the test wavelength specified in the
relevant detail specification. Set the optical source and the variable optical attenuator
in a way to provide, at the input port of the OA, the maximum input optical power
P specified in the relevant detail specification;
in max
4) activate OA and adjust the maximum pump power or maximum pump current of OA to
the nominal condition as specified in the relevant detail specification. When the OA
under test is integrated with control circuitry, the OA shall be tested with constant
pump power mode or constant pump current mode and measure P with the optical
out
spectrum analyzer, as shown in Figure 1c;
6) measure maximum output signal power by adjusting the polarization controller until a
maximum P is achieved, and repeat 6 a), step 5).
out
d) Maximum total output power:
Same procedure as for c).
The state of polarization of the input signal shall be changed after each measurement of
P , P and P by means of the polarization controller, so that substantially all the

in out ASE
states of polarization, in principle, are successively launched into the input port of the OA
under test.
The polarization controller shall be operated as specified in the relevant detail specifications.
A possible way, when using a linear polarizer followed by a quarter-wave rotatable plate, is
the following: the linear polarizer is adjusted so that the OA output power is maximized; the
quarter-wave plate is then rotated by a minimum of 90° step-by-step. At each step, the half-
wave plate is rotated by a minimum of 180° step-by-step. Another possible way is to select
four known and specified states of polarization to allow matrix calculation of the resulting
polarization dependent gain.
A short optical jumper at the OA input, kept as straight as possible, shall be used, in order to
minimize the change of the state of polarization induced in it by possible stress and
anisotropy.
The polarization-dependent loss variation of the optical connector shall be less than 0,2 dB
(‡).
7 Calculation
The calculations shall be made as follows:
a) Nominal output signal power:
The nominal output signal power P (in dBm) shall be calculated as:
sig-out-nom
P = 10 log (P – P ) + L (dBm)
sig-out-nom out ASE bj
where
P is the recorded absolute value of output optical signal power (in mW);
out
– 10 – IEC 61290-1-1:2015 © IEC 2015
P is the recorded absolute value of output ASE power through the optical bandpass

ASE
filter (in mW);
L is the insertion loss of the fibre jumper placed between the OA and the optical
bj
power meter (in dB).
NOTE 1 The measurement error can be better than 1,5 dB (‡), depending on the optical spectrum analyzer
uncertainty.
b) Gain:
The gain G at the signal wavelength shall be calculated as:
G = (P – P )/ P (linear units)

out ASE in
or
G = 10 log [(P – P )/ P ] (dB)

out ASE in
NOTE 2 The small-signal regime is the range of input signal power sufficiently small so that the OA under
test operates in the linear regime. This regime can be established by plotting G versus P . The linear regime
in
demands P to be in the range where the gain is quite independent from P An input signal power ranging
.
in in
from –30 dBm to –40 dBm generally is well within this range.
NOTE 3 The measurement error can be better than ±1,5 dB (‡), depending on the optical spectrum analyzer
uncertainty, mainly in terms of its polarization dependency. If linearly polarized light (i.e. light generated by a
laser) and a polarization controller are used, the measurement error can be much reduced by adjusting the
state of polarization of the input signal to the OA so that the optical spectrum analyzer always indicates the
minimum (or maximum) signal power in each measurement. On the other hand, an LED and a monochromator
can be used as an optical source to reduce the optical spectrum analyzer error to ±0,2 dB, since LEDs emit
unpolarized light. However, it is to be noted that the optical power level obtainable from such a source is much
lower than that of a laser.
c) Polarization-dependent gain:
Calculate the gain values at the different states of polarization, as in 7, point b) above.
Identify the maximum, G , and the minimum, G , gain as the highest and the lowest of
max min
all these gain values, respectively. The polarization-dependent gain variation ∆G shall be

p
calculated as follows:
∆G = G – G (dB)
p max-pol min-pol
NOTE 4 ∆G does not necessarily indicate the possible maximum variation of the polarization dependency. In

p
fact, the evolution of the state of polarization inside the OA depends on temperature and other parameters,
and the attenuation through the OA under test is maximum only when each input state of polarization
simultaneously yields maximum attenuation for each component in the OA under test.
NOTE 5 The measurement error can be better than ±1 dB (‡), depending on the optical spectrum analyzer
uncertainty, mainly in terms of its polarization dependency.
d) Maximum output signal power:
The maximum output signal power P (in dBm) shall be calculated as:
sig-out-max
P = P – P (linear units)
sig-out-max out-max ASE
P = 10 log (P – P ) (dBm)
sig-out-max out-max ASE
where
P is the recorded absolute maximum value of output optical power (in mW);
out-max
e) Maximum total output power:
The maximum total output power P (in dBm) shall be calculated as:
out-max
P = 10 log (P out-max) (dBm)
out-max
where
P is the recorded absolute maximum value of output optical power (in mW).
out-max
8 Test results
Test results are as follows:
a) Nominal output signal power:
The following details shall be presented
1) arrangement of the test set-up;
2) type of optical source;
3) indication of the optical pump power (if applicable);
4) operating temperature (when required);
5) input signal optical power, P ;
in
6) resolution bandwidth of the optical spectrum analyzer;
7) wavelength of the measurement.
b) Gain:
The details 1) to 7), previously listed for nominal output signal power, shall be presented
and, in addition
8) gain.
c) Polarization-dependent gain:
The details 1) to 7), previously listed for nominal output signal power, shall be presented
and, in addition
8) polarization dependency of the optical spectrum analyzer power uncertaint
...
