IEC 60684-3-282:2010

IEC 60684-3-282 ®
Edition 1.0 2010-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 282: Heat-shrinkable, polyolefin sleeving – Stress control

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 282: Gaines thermorétractables en polyoléfine – Contrôle de fatigue

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60684-3-282 ®
Edition 1.0 2010-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 282: Heat-shrinkable, polyolefin sleeving – Stress control

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 282: Gaines thermorétractables en polyoléfine – Contrôle de fatigue

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
J
CODE PRIX
ICS 29.035.20 ISBN 978-2-88910-962-3
– 2 – 60684-3-282 © IEC:2010

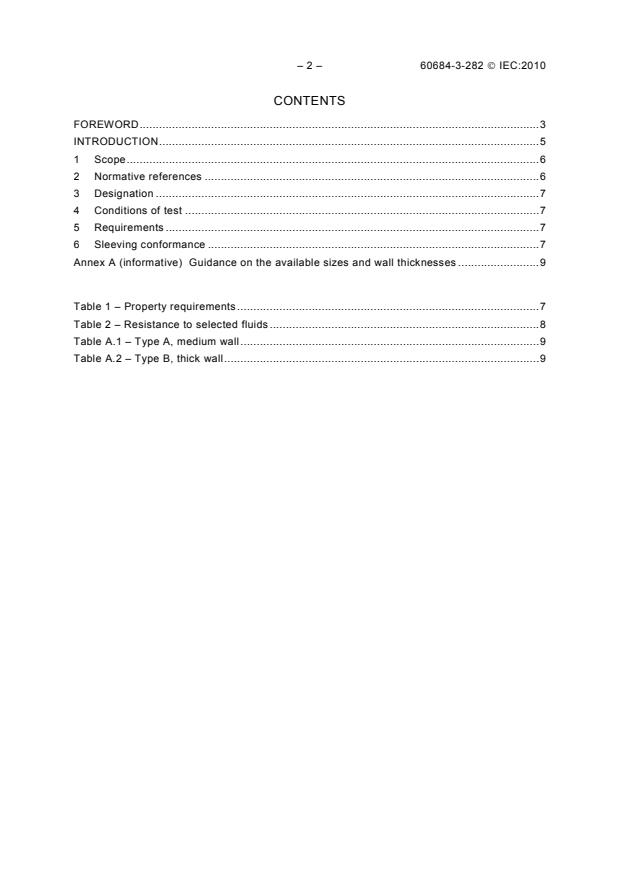

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references .6
3 Designation .7
4 Conditions of test .7
5 Requirements .7
6 Sleeving conformance .7
Annex A (informative) Guidance on the available sizes and wall thicknesses .9

Table 1 – Property requirements .7
Table 2 – Resistance to selected fluids .8
Table A.1 – Type A, medium wall.9
Table A.2 – Type B, thick wall.9

60684-3-282 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 282: Heat-shrinkable, polyolefin sleeving –
Stress control
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-282 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
The text of this standard is based on the following documents:
FDIS Report on voting
15/564/FDIS 15/587/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 60684-3-282 © IEC:2010
A list of all the parts in the IEC 60684 series, under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60684-3-282 © IEC:2010 – 5 –
INTRODUCTION
This International Standard is one of a series which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1)
Part 2: Methods of test (IEC 60684-2)
Part 3: Specifications for individual types of sleeving (IEC 60684-3)
This standard comprises one of the sheets of Part 3 as follows:
Sheet 282: Heat-shrinkable, polyolefin sleeving – Stress control

– 6 – 60684-3-282 © IEC:2010
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 282: Heat-shrinkable, polyolefin sleeving –
Stress control
1 Scope
This part of IEC 60684 gives the requirements for two types of heat-shrinkable, polyolefin
sleeving, stress control, not flame retarded, with a nominal shrink ratio up to 3:1.
This sleeving has been found suitable for use up to temperatures of 100 °C.
– Type A : Medium wall Internal diameter up to 65,0 mm typically
– Type B : Thick wall Internal diameter up to 95,0 mm typically
These sleevings are normally supplied in colour black.
Since these types of sleevings cover a significantly large range of sizes and wall thicknesses,
Tables A.1 and A.2 in this standard provides guidance to the range of sizes available. The
actual size shall be agreed between the user and the supplier.
Materials which conform to this specification meet established levels of performance.
However, the selection of a material by a user for a specific application should be based on
the actual requirements necessary for adequate performance in that application and not
based on this specification alone.
This sleeving is designed to be used in MV cable accessories and as such electrical
performance must be proven as part of the assembly. Examples of this are described in
HD 629 and the IEC 60502 series.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60296:2003, Fluids for electrotechnical applications – Unused mineral insulating oils for
transformers and switchgear
IEC 60502 (all parts), Power cables with extruded insulation and their accessories for rated
voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)
IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements
IEC 60684-2:1997, Flexible insulating sleeving – Part 2: Methods of test
Amendment 1 (2003)
Amendment 2 (2005)
IEC 60757:1983, Code for designation of colours

60684-3-282 © IEC:2010 – 7 –
HD 629, Test requirements on accessories for use on power cables of rated voltages from
3,6/6(7,2)KV up to 20,8/36 (42)KV– Part 1: Cables with extruded insulation
3 Designation
The sleeving shall be identified by the following designation:
Description IEC publication IEC part IEC sheet Type Size (expanded and Colour
number number number recovered internal
diameter in
millimetres)
↓ ↓ ↓ ↓ ↓ ↓ ↓
Sleeving IEC 60684 - 3 -282 - A - 45,0/20,0 - BK
Colour abbreviation shall comply with IEC 60757.
NOTE This information is for labelling only in accordance with IEC 60684-1.
4 Conditions of test
Unless otherwise specified, the sleeving shall be shrunk in a forced air circulation oven for
(10 ± 1) min at 200 °C ± 3 K prior to testing.
5 Requirements
In addition to the general requirements given in IEC 60684-1, the sleeving shall comply with
the requirements of Tables 1 and 2.
6 Sleeving conformance
Conformance to the requirements of this specification shall normally be based on the results
from typical sizes.
– Type A : Recovered ID 25 mm - 30 mm
– Type B : Recovered ID 25 mm - 30 mm
Table 1 – Property requirements
Property IEC 60684-2 Units Max. Requirements Remarks
clause or or
subclause min.
Dimensions 3
– Internal diameter 3.1.2 mm
– Wall thickness 3.3.2 mm
– Concentricity 3.3.3 % To be agreed between
the purchaser and the
– expanded Min.
– recovered Min. supplier
Heat shock 6  Heat at
150 °C ± 5 K.
Tensile strength 19.1 and 19.2 MPa Min. 8
Elongation at break 19.1 and 19.2 % Min. 175
Longitudinal 9 % Max. +5
change -10
Bending at low 14 – – No cracking Test at –40 °C.
temperature shall be visible. For strips, the mandrel
shall be between 20
– 8 – 60684-3-282 © IEC:2010
Property IEC 60684-2 Units Max. Requirements Remarks
clause or or
subclause min.
and 22 times the wall
thickness. Full section
sleeving is tested
unfilled and the mandrel
shall be between 20
and 22 times the outer
diameter.
Dimensional 16 – – The dimensions shall See Clause 1 Scope.
stability on storage remain as agreed.
Tensile strength 19.1 and 19.2 MPa Min. 10 Use a jaw separation
rate of 100 mm/min
Elongation at break 19.1 and 19.2 % Min. 200
Below 6,5 mm ∅ as
sleeving. At 6,5 mm ∅
and above as
dumbbells.
Secant modulus 19.4 MPa Max. 100
at 2 % elongation
Resistance to
selected fluids 36
Use the fluids and test
temperatures specified
Tensile strength 19.1 and 19.2 MPa Min. 4
in Table 2.
Elongation at break 19.1 and 19.2 % Min. 150
Heat ageing 39
Heat at 135 °C ± 3 K.
Te
...
