IEC 62439-4:2010/AMD1:2012

IEC 62439-4 ®
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Industrial communication networks – High availability automation networks –
Part 4: Cross-network Redundancy Protocol (CRP)

Réseaux de Communication Industriels – Réseaux de haute disponibilité pour
l'automation - Partie 4: Protocole de Redondance a réseau Croisé (CRP)
IEC 62439-4:2010/A1:2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 62439-4 ®
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Industrial communication networks – High availability automation networks –

Part 4: Cross-network Redundancy Protocol (CRP)

Réseaux de Communication Industriels – Réseaux de haute disponibilité pour

l'automation - Partie 4: Protocole de Redondance a réseau Croisé (CRP)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX D
ICS 25.040; 35.040 ISBN 978-2-88912-929-4

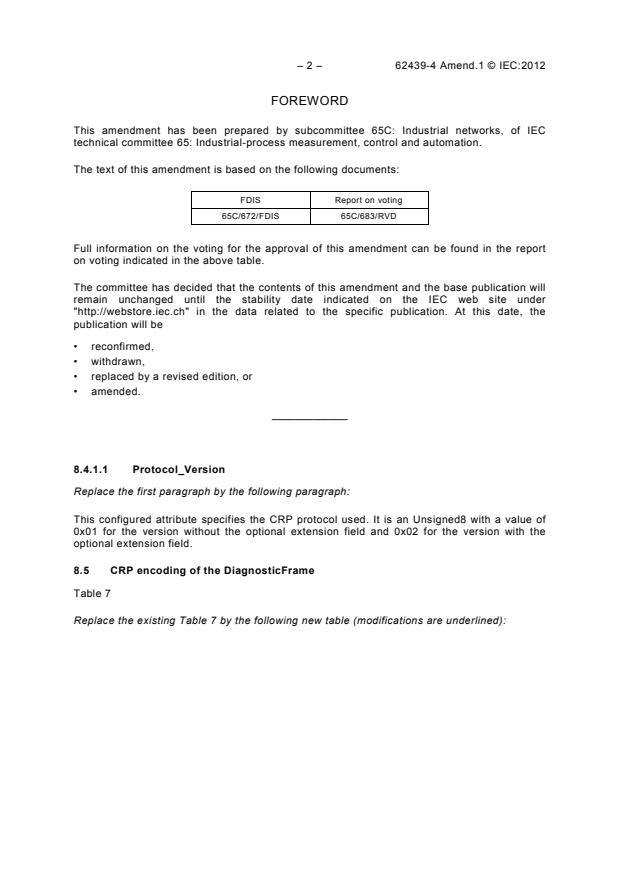

– 2 – 62439-4 Amend.1 © IEC:2012
FOREWORD
This amendment has been prepared by subcommittee 65C: Industrial networks, of IEC
technical committee 65: Industrial-process measurement, control and automation.
The text of this amendment is based on the following documents:
FDIS Report on voting
65C/672/FDIS 65C/683/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
8.4.1.1 Protocol_Version
Replace the first paragraph by the following paragraph:
This configured attribute specifies the CRP protocol used. It is an Unsigned8 with a value of
0x01 for the version without the optional extension field and 0x02 for the version with the
optional extension field.
8.5 CRP encoding of the DiagnosticFrame
Table 7
Replace the existing Table 7 by the following new table (modifications are underlined):

62439-4 Amend.1 © IEC:2012 – 3 –
Table 7 – CRP DiagnosticFrame format
Parameter name Offset Data type Size Description
Ethernet DLL header
Preamble 0 8 Alternating ones and zeros
Destination address 8 6 Broadcast, multicast MAC address
Source address 14 6 Unicast source MAC address of adapter used
to send this message.
Type 20 2 0x800 for IP datagrams
IP header
IP version 22 4 IP version (4 bit field) = 4
IP header length  Internet header length (4 bit field) is the
length of the internet header in 32 bit words
= 6
IP type of service  Type of service (8 bit field) – set all fields = 0
Bits 0-2: precedence.
Bit 3: 0 = normal delay, 1 = low delay.
Bits 4: 0 = normal throughput, 1 = high
throughput.
Bits 5: 0 = normal reliability, 1 = high
reliability.
Bit 6-7: reserved for future use.
IP total length  Length of IP field (16 bit field) in bytes,
including IP header and data = 346
IP identifier 26 4 Identifier for fragmented packets. Set = 0
IP flags  Flags (3 bit field)
Bit 0: reserved, shall be zero
Bit 1: don't fragment = 1
Bit 2: 0 = last fragment
IP fragment offset  Position in original datagram. First fragment
= 0
IP time to live 30 Unsigned8 4 Set to 1
IP protocol Unsigned8 User datagram = 1
...
