IEC 61000-4-24:2015/AMD1:2023

IEC 61000-4-24 ®
Edition 2.0 2023-08
INTERNATIONAL
STANDARD
colour
inside
AMENDMENT 1
Electromagnetic compatibility (EMC) –
Part 4-24: Testing and measurement techniques – Test methods for protective
devices for HEMP conducted disturbance
IEC 61000-4-24:2015-11/AMD1:2023-08(en)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61000-4-24 ®
Edition 2.0 2023-08
INTERNATIONAL
STANDARD
colour
inside
AMENDMENT 1
Electromagnetic compatibility (EMC) –

Part 4-24: Testing and measurement techniques – Test methods for protective

devices for HEMP conducted disturbance

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100.01  ISBN 978-2-8322-7395-1

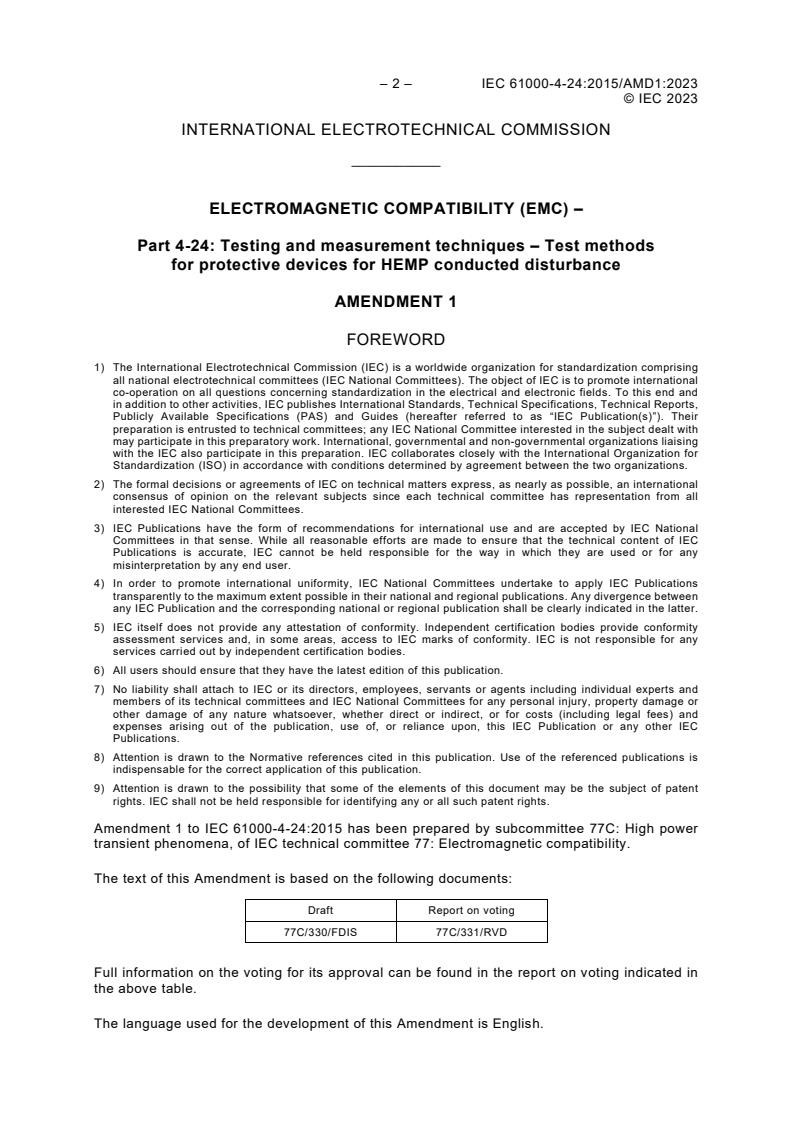

– 2 – IEC 61000-4-24:2015/AMD1:2023
© IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROMAGNETIC COMPATIBILITY (EMC) –

Part 4-24: Testing and measurement techniques – Test methods
for protective devices for HEMP conducted disturbance

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 61000-4-24:2015 has been prepared by subcommittee 77C: High power
transient phenomena, of IEC technical committee 77: Electromagnetic compatibility.
The text of this Amendment is based on the following documents:
Draft Report on voting
77C/330/FDIS 77C/331/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2023
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

___________
– 4 – IEC 61000-4-24:2015/AMD1:2023
© IEC 2023
2 Normative references
Replace the reference with the following new reference:
IEC 61000-2-10:2021, Electromagnetic compatibility (EMC) – Part 2-10: Environment –
Description of HEMP environment – Conducted disturbance
3 Terms, definitions and abbreviated terms
Replace the definition of 3.1.2 with the following new definition:
3.1.2
gas discharge tube
GDT
device with two or three metal electrodes hermetically sealed so that gas mixture and pressure
are under control and designed to protect apparatus or personnel from high transient voltages

Add, after Clause 5, the following new Clause 6:
6 Measurement method of HEMP protectors for RF antenna ports
6.1 General
For the early-time HEMP, the high-amplitude electric field couples efficiently to antennas which
are used within the frequency spectrum of HEMP. The HEMP coupling into the antenna is called
front-door coupling. The antenna coupling mechanism is extremely variable and dependent on
the details of the antenna design. The near worst-case peak response of a vertical electric
monopole to the HEMP early-time waveform is considered for the test level for RF antenna
ports. The waveforms for the conducted environments at antenna ports are damped sinusoids
with a frequency approximately equal to the designed dominant response frequency f of the
c
antenna.
6.2 Test level and injection waveform specification
Table 7 – Pulsed current injection test level for RF antenna ports
Type of Dominant Peak current Injection Rise time FWHM
a
Injection response waveform
injection test
frequency
level, A
f , MHz
ns ns
c
b
Double
≤ 30 1 200 Refer to Table 1 Refer to Table 1
exponential
Inner
conductor to
outer shield c
30 < f ≤ 1 000 36 000/f , in MHz
Damped sinusoidal
c c
± 2
± 20
a
The test level in the current is measured with the condition of short-circuit of the output of the generator.
b
Double exponential waveform of conducted early-time HEMP shown in Table 1.
c
Above 1 GHz, the HEMP requirement is under consideration.

The early-time HEMP double exponential waveform shall be used for antenna port testing at a
dominant response frequency ≤ 30 MHz. The double exponential generator is used because
most of the energy content of early time HEMP is below 30 MHz. The double exponential
generator specified in Table 1 is needed to reach the peak test level.

© IEC 2023
A damped sinusoidal waveform shall be used for antenna port testing when its dominant
response frequency is 30 MHz ≤ f ≤ 1 000 MHz. A recommended waveform is provided in
IEC 61000-2-10:2021, Annex E. If the required current injection level exceeds the damped
sinusoidal pulse generator capability, an early-time HEMP double exponential waveform shall
be used.
If the output voltage of a damped sinusoidal pulse generator is measured instead of short-circuit
current, the test level voltage shall be determined by multiplying the required current test level,
specified in Table 7, with the antenna load impedance (usually 50 Ω).
6.3 Verification of test level
The configuration for test level verification is shown in Figure 9.

(a) Configuration of verification for short-circuit current test level

(b) Configuration of verification for test level in voltage
Figure 9 – Typical verification setup
Parasitic coupling between the pulse generator and the oscilloscope shall be avoided. It is
recommended to use cables with multiple braided wire shields or solid shields. The cable and
connectors shall be capable of withstanding the high voltage pulse without a breakdown. The
shorting connection shall be as short as possible.
Perform the verification of the test level with 10 %, 25 %, 50 % and 100 % of the maximum test
current and record the verified levels, the charging voltage and settings of the pulse generator
required to achieve these test levels.
6.4 Measurement procedure
The measurement setup is shown in Figure 10.

– 6 – IEC 61000-4-24:2015/AMD1:2023
© IEC 2023
(a) Setup for current measurement at DUT output with a 50 Ω resistive load (R )
L
(b) Setup for voltage measurement at DUT output
Figure 10 – Typical measurement setup
The measurement procedures shall be as follows:
a) Set up the DUT and measurement instruments as shown in Figure 10.
b) Inject a pulse three times into the DUT with the generator charging voltages verified in 6.3.
c) Record the measurement results of the DUT output waveform. Either the current waveform
or voltage waveform shall be measured.
d) Compare the results to the performance criteria (see 6.5).
6.5 Evaluation of test results
The pass/fail results shall be classified in terms of the peak current or voltage at the output of
a HEMP protector for an RF antenna. The required performance criteria are given in Table 8
for the early-time HEMP test.
Table 8 – Performance criteria of filters against early-time HEMP – RF antenna ports
Peak residual norms
RF antenna port mode
I , A U , V
Load Load
For receive only systems < 0,5 I × R
Load L
The test shall be performed to ensure that the DUT is not damaged during the test. This shall
be checked by ensuring that the DUT operates normally after the test.
In general, the manufacturer of the DUT shall specify the peak residual voltage and the residual
energy into the nominal load. These values have to be compared with the immunity levels of
the device to be protected (receiver, transmitter, antenna matching unit etc). Refer to Annex C.

© IEC 2023
6.6 Test report
For each step in the testing sequence, the following parameters should be included in the test
report:
a) waveform, peak current and source impedance of verified pulses;
b) test mode;
c) test load resistance;
d) peak current or voltage of residual pulses;
e) measured waveforms of residual pulses;
f) comparison of results with immunity levels of equipment to be protected;
g) performance of additional tests with equipment to be protected as a load to verify proper
protection.
– 8 – IEC 61000-4-24:2015/AMD1:2023
© IEC 2023
Add the following new Annex C:
...
