ETSI EN 302 842-1 V1.2.4 (2011-10)
VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment; Part 1: Physical layer
VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment; Part 1: Physical layer
REN/AERO-00017
Radijska oprema za digitalno povezavo VHF (VDL) zrak-tla in zrak-zrak, 4. način - Tehnične karakteristike in merilne metode za aeronavtično mobilno (letalsko) opremo - 1. del: Fizična plast
Ta dokument velja za naslednje vrste radijske opreme:
• zelo visokofrekvenčno (VHF) digitalno povezavo (VDL) aeronavtičnih mobilnih (zračnih) radijskih oddajnikov, oddajnikov-prejemnikov in prejemnikov za komunikacije zrak-tla in zrak-zrak, 4. način, ki deluje v pasu VHF z uporabo modulacije frekvenčnega premičnega kodiranja prek filtra Gaussian (GFSK) z razmikom med kanali 25 kHz in je zmožna uravnavati na katerem koli izmed kanalov 25 kHz od 118.000 MHz do 136.975 MHz, kot je opredeljeno v SARPs ICAO za VDL [2].
Ta dokument podaja 1. del tehničnih specifikacij.
Ta dokument zagotavlja, da bo oprema, ki jo certificira, združljiva z ustreznimi SARPs za ICAO VDL [2] in tehničnim priročnikom ICAO za VDL4 [1].
Proizvajalci morajo biti pozorni, da lahko razpon uravnavanja za oddajnik v prihodnje zajema kateri koli kanal 25 kHz od 112.000 MHz do 117.975 MHz in za prejemnike kateri koli kanal 25 kHz od 108.000 MHz do 117.975 MHz.
Ta dokument velja za »aeronavtično mobilno (za zračna vozila in v nekaterih primerih talna vozila)« opremo, v nadaljevanju »mobilna« oprema.
Področje uporabe tega dokumenta je omejeno na mobilne postaje. Ustrezna specifikacija za talne postaje je v EN 301 842 [10].
Sistem VDL, 4. način, zagotavlja digitalne komunikacijske izmenjave med zračnim plovilom in zemeljskim sistemom ter drugimi aplikacijami, ki podpirajo nadzor in komunikacije. Podporni načini komunikacije vključujejo:
• oddajanje in komunikacijo tipa točka-točka,
• storitve oddajanja, vključno z zmožnostmi samodejnega odvisnega nadzora - oddajanje (ADS-B), storitve prometnih informacij - oddajanje (TIS-B) in storitve informacij o letih – oddajanje (FIS-B),
• storitve zrak-zrak in tla-zrak,
• delovanje brez zemeljske infrastrukture.
Ta dokument je izpeljan iz naslednjih specifikacij:
• tehnični priročnik ICAO za VDL4 [1] in SARPs ICAO za VDL [2], izdanih pod okriljem Mednarodne organizacije za civilno letalstvo (ICAO),
• drugih ustreznih standardov, kot je opredeljeno v točki 2.
Predvideva se, da proizvajalec lahko zagotovi opremo, ki podpira:
• samo storitve oddajanja,
• samo storitve točka-točka,
• storitve oddajanja in storitve točka-točka.
Ta dokument obravnava preskuse fizične plasti, potrebne za podporo vseh vrst opreme.
Ta dokument vključuje:
• točko 2, ki se sklicuje na ustrezne dokumente,
• točko 3, ki podaja uporabljene splošne definicije, okrajšave in simbole,
• točko 4, ki podaja splošen opis in arhitekturo za VDL, 4.način,
• točko 5, ki podaja funkcionalne specifikacije, ki veljajo za fizično plast, vključno z zahtevami za oddajnik/sprejemnik ter modulacijsko shemo,
• točko 6, ki podaja splošne zahteve za opremo VDL, 4 način,
• točko 7, ki podaja splošne zahteve za načrtovanje,
• točko 8, ki podaja splošne zahteve za okoljsko preskušanje,
• točko 9, ki podaja podrobne preskusne postopke za fizično plast,
• točko 10, ki podaja zahteve za nameščeno opremo,
• dodatek A, ki podaja podrobno sklicevanje na ustrezne zahteve, zajete v sklicu [1],
• dodatek B, ki podaja oceno zaloge povezav za VDL, 4. način,
• dodatek C, ki podaja bibliografijo,
• zgodovino dokumenta.
Podani so celotni preskusi fizične plasti, ki zelo ustrezajo standardnemu sklopu preskusov, uporabljenih za druge sisteme VDL.
OPOMBA: Preskusi letenja so opredeljeni v EN 302 842-2 [7].
Fraze, ki zahtevajo in ki priporočajo:
a) »Mora«
- Uporaba besede »mora« nakazuje obvezen kriterij; npr. skladnost z določenim postopkom ali specifikacijo je obvezna in nobena druga možnost se ne sme uporabiti.
b) »Naj«
- Uporaba besede »naj« (in fraze, kot je »Priporoča se, da …« itd.) nakazuje, da čeprav se postopek ali merilo šteje za prednostno možnost, se lahko uporabijo drugi postopki, specifikacije ali merila, pod pogojem, da proizvajalec, monter in preizkuševalec lahko zagotovijo informacije ali podatke, s katerimi ustrezno podprejo in upravičijo drugo možnost.
General Information
Standards Content (Sample)
European Standard
VHF air-ground and air-air Digital Link (VDL)
Mode 4 radio equipment;
Technical characteristics and methods of measurement
for aeronautical mobile (airborne) equipment;
Part 1: Physical layer

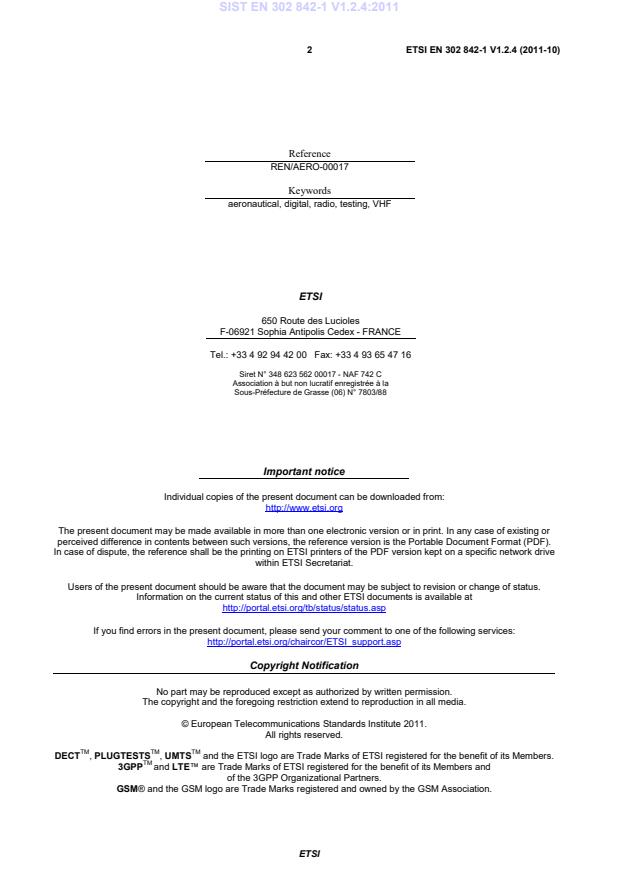

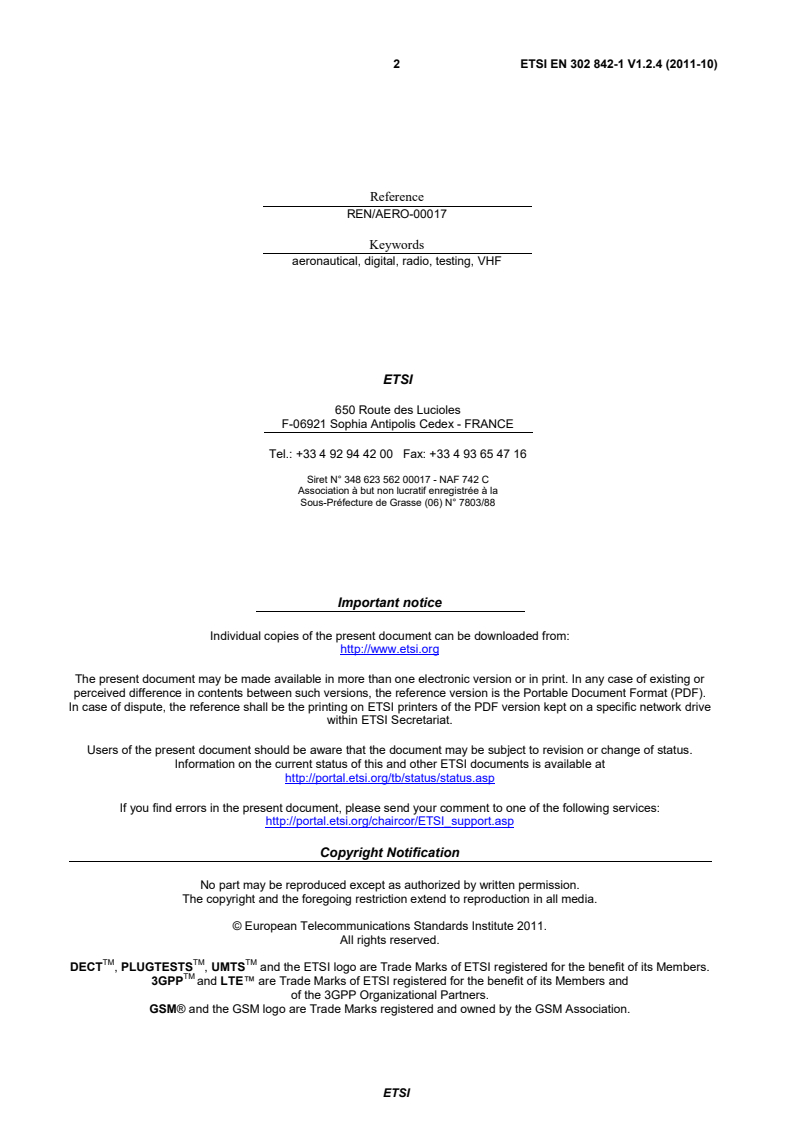

2 ETSI EN 302 842-1 V1.2.4 (2011-10)
Reference
REN/AERO-00017
Keywords
aeronautical, digital, radio, testing, VHF
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 302 842-1 V1.2.4 (2011-10)

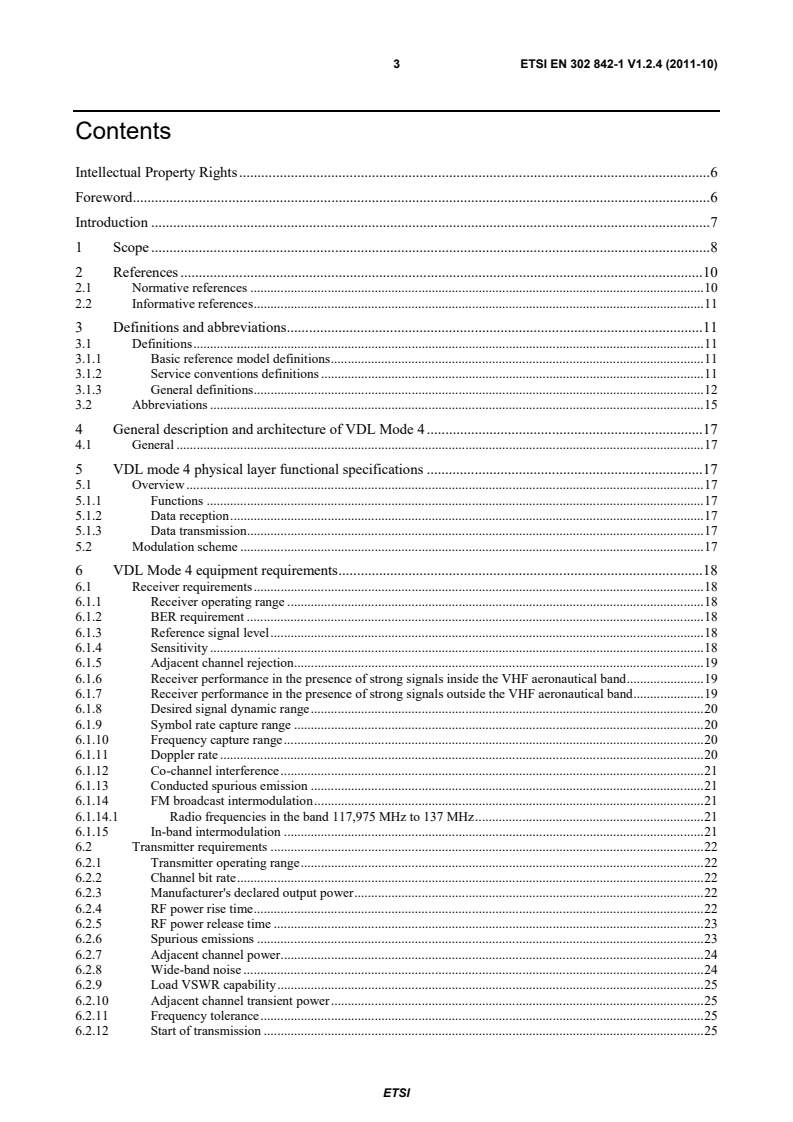

Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 10
2.1 Normative references . 10
2.2 Informative references . 11
3 Definitions and abbreviations . 11
3.1 Definitions . 11
3.1.1 Basic reference model definitions . 11
3.1.2 Service conventions definitions . 11
3.1.3 General definitio ns . 12
3.2 Abbreviations . 15
4 General description and architecture of VDL Mode 4 . 17
4.1 General . 17
5 VDL mode 4 physical layer functional specifications . 17
5.1 Overview . 17
5.1.1 Functions . 17
5.1.2 Data reception . 17
5.1.3 Data transmission . 17
5.2 Modulation scheme . 17
6 VDL Mode 4 equipment requirements . 18
6.1 Receiver requirements . 18
6.1.1 Receiver operating range . 18
6.1.2 BER requirement . 18
6.1.3 Reference signal level . 18
6.1.4 Sensitivity . 18
6.1.5 Adjacent channel rejection . 19
6.1.6 Receiver performance in the presence of strong signals inside the VHF aeronautical band . 19
6.1.7 Receiver performance in the presence of strong signals outside the VHF aeronautical band . 19
6.1.8 Desired signal dynamic range . 20
6.1.9 Symbol rate capture range . 20
6.1.10 Frequency capture range . 20
6.1.11 Doppler rate . 20
6.1.12 Co-channel interference . 21
6.1.13 Conducted spurious emission . 21
6.1.14 FM broadcast intermodulation . 21
6.1.14.1 Radio frequencies in the band 117,975 MHz to 137 MHz . 21
6.1.15 In-band intermodulation . 21
6.2 Transmitter requirements . 22
6.2.1 Transmitter operating range . 22
6.2.2 Channel bit rate . 22
6.2.3 Manufacturer's declared output power . 22
6.2.4 RF power rise time . 22
6.2.5 RF power release time . 23
6.2.6 Spurious emissions . 23
6.2.7 Adjacent channel power . 24
6.2.8 Wide-band noise . 24
6.2.9 Load VSWR capability . 25
6.2.10 Adjacent channel transient power . 25
6.2.11 Frequency tolerance . 25
6.2.12 Start of transmission . 25
ETSI
4 ETSI EN 302 842-1 V1.2.4 (2011-10)
6.2.13 Structure of bursts . 25
6.3 Transceiver requirements . 26
6.3.1 Automatic transmitter shut-down . 26
6.3.2 Tuning time . 26
6.3.3 Receiver to transmitter turnaround time . 26
6.3.4 Transmitter to receiver turnaround time . 26
6.3.5 Short power interrupt . 26
6.3.6 Demodulator action. 26
6.3.7 System timing requirements . 27
6.3.8 Reservation table stored in memory . 27
6.3.9 Failure of associated equipment . 27
6.3.10 Simultaneous reception . 27
7 General design requirements . 27
7.1 Controls and indicators . 27
7.2 Class of emission and modulation characteristics . 27
7.3 Warm up . 27
7.4 Airworthiness . 28
7.5 Intended function . 28
7.6 International Telecommunications Union Regulations . 28
7.7 Fire protection . 28
7.8 Operation of controls . 28
7.9 Accessibility of controls . 28
7.10 Effects of tests . 28
7.11 Failure of VDL Mode 4 equipment . 28
7.12 Software management . 28
7.13 Transceiver configuration . 29
7.14 Provision for multiple redundant VDL4 transceivers . 29
7.15 Reception capability . 29
7.16 Transmission capability . 29
7.17 Monitoring of proper operation . 30
7.18 Power-up self test . 30
8 Environmental test requirements . 30
8.1 Introduction . 30
8.2 Receiver . 31
8.3 Transmitter . 33
9 Detailed test procedures for the physical layer . 35
9.1 General requirements . 35
9.1.1 Test conditions . 35
9.1.2 Alignment, adjustment and calibration prior to test . 35
9.1.3 Recording of test results . 35
9.1.4 Connected load . 35
9.1.5 Test instrument precautions . 35
9.1.6 Simultaneous application of two signals to the receiver input . 36
9.1.7 Test frequencies . 36
9.1.8 Equipment configuration . 36
9.1.9 Detailed physical and MAC layer test procedures . 36
9.2 Receiver . 36
9.2.1 BER test . 36
9.2.2 Sensitivity . 38
9.2.3 Adjacent Channel Rejection (ACR) . 38
9.2.4 Rejection of signals in the VHF aeronautical band . 39
9.2.5 Rejection of signals outside the VHF aeronautical band . 40
9.2.6 Desired signal dynamic range . 41
9.2.7 Symbol rate capture range . 41
9.2.8 Frequency capture range . 42
9.2.9 Doppler rate . 42
9.2.10 Co-channel interference . 43
9.2.11 Conducted spurious emission . 43
9.2.12 FM broadcast intermodulation . 44
9.2.13 In-band intermodulation . 45
ETSI
5 ETSI EN 302 842-1 V1.2.4 (2011-10)
9.3 Transmitter . 46
9.3.1 Channel bit rate . 46
9.3.2 Manufacturer's declared output power . 46
9.3.3 RF power rise time . 47
9.3.4 RF power release time . 47
9.3.5 Spurious emissions . 48
9.3.6 Adjacent channel power . 48
9.3.6.1 Method of measurement for the first adjacent channel . 48
9.3.6.2 Method of measurement for the second adjacent channel . 49
9.3.6.3 Method of measurement for the fourth adjacent channel . 50
9.3.6.4 Alternative measurement procedure for Adjacent Channel Power (ACP) . 51
9.3.7 Wideband noise . 52
9.3.8 Load VSWR capability . 53
9.3.9 Adjacent channel transient power . 54
9.3.10 Frequency tolerance . 55
9.4 Transceiver . 55
9.4.1 Tuning time . 55
9.4.2 Receiver to transmitter turn-around time . 55
9.4.3 Transmitter to receiver turn-around time . 56
10 Installed equipment requirements . 56
10.1 Introduction . 56
10.2 Equipment installation . 56
10.2.1 Aircraft environment. 56
10.2.2 Failure protection . 56
10.2.3 Aircraft power source . 57
10.3 Installed equipment performance requirements. 57
10.3.1 Dynamic response . 57
10.3.2 Interference effects . 57
10.3.3 Regular maintenance. 57
10.4 Conditions of test . 57
10.4.1 Power input . 57
10.4.2 Associated equipment or systems . 57
10.4.3 Environment . 57
10.5 Test procedures for installed equipment performance . 58
10.5.1 Ground test procedures . 58
10.5.1.1 Conformity inspection . 58
10.5.1.2 Interference tests . 58
10.5.1.3 Power supply fluctuation test . 58
10.5.1.4 Reception . 58
10.5.1.5 Transmission . 58
10.5.1.6 Functional behaviour tests . 59
10.5.1.7 Interface conformance tests . 59
10.5.2 Flight test procedures . 59
10.5.2.1 Interference effects . 59
10.5.2.2 System performance . 60
Annex A (informative): Cross reference matrix . 61
Annex B (informative): VDL Mode 4 link budget . 64
Annex C (informative): Bibliography . 71
History . 74
ETSI
6 ETSI EN 302 842-1 V1.2.4 (2011-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (EN) has been produced by ETSI Technical Committee Aeronautics (AERO).
The present document is part 1 of a multi-part deliverable covering the VHF air-ground and air-air Digital Link (VDL)
Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne)
equipment, as identified below:
Part 1: "Physical layer";
Part 2: "General description and data link layer";
Part 3: "Additional broadcast aspects";
Part 4: "Point-to-point functions";
The present document is accompanied by an equivalent ground-based standard, EN 301 842 [10] parts 1 to 5, covering
the VHF air-ground Data Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement
for ground-based equipment.
NOTE 1: Minimum Operational Performance Specifications (MOPS) are also being developed for VDL Mode 4.
EUROCAE have previously published Interim MOPS for VDL Mode 4 [i.2] which are a sub set of
EN 302 842-1, 2 [7], 3 [8] and 4 [11]. EN 302 842-1, 2 [7], 3 [8] and 4 [11] complies with the
requirements of CEC Mandate M/318 [i.3].
NOTE 2: Following the decision taken at the ICAO Aeronautical Communication Panel's WG/M (Bangkok,
February 2011), it remains to be seen if ICAO Annex 10 Vol III will be amended changing the
recommended tuning frequency range from 108-117,975 MHz to 112-117,975 MHz. The present
deliverable will be updated accordingly if the amendment is accepted and made publicly available.
National transposition dates
Date of latest announcement of this EN (doa): 31 January 2012
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 July 2012
Date of withdrawal of any conflicting National Standard (dow): 31 July 2012
ETSI
7 ETSI EN 302 842-1 V1.2.4 (2011-10)
Introduction
The present document states the technical specifications for Very High Frequency (VHF) Digital Link (VDL) Mode 4
aeronautical mobile (airborne) radio transmitters, transceivers and receivers for air-ground and air-air communications
operating in the VHF band, using Gaussian Filtered Frequency Shift Keying (GFSK) modulation with 25 kHz channel
spacing and capable of tuning to any of the 25 kHz channels from 118,000 MHz to 136,975 MHz as defined in
ICAO VDL SARPs [2].
The present document may be used to produce tests for the assessment of the performance of the equipment. The
performance of the equipment submitted for type testing should be representative of the performance of the
corresponding production model.
The present document has been written on the assumption that:
• the type test measurements will be performed only once, in an accredited test laboratory and the measurements
accepted by the various authorities in order to grant type approval;
• if equipment available on the market is required to be checked it may be tested in accordance with the methods
of measurement specified in the present document or a documented alternative approved by the certifying
authority.
ETSI
8 ETSI EN 302 842-1 V1.2.4 (2011-10)
1 Scope
The present document applies to the following radio equipment types:
• Very High Frequency (VHF) Digital Link (VDL) Mode 4 aeronautical mobile (airborne) radio transmitters,
transceivers and receivers for air-ground and air-air communications operating in the VHF band, using
Gaussian Filtered Frequency Shift Keying (GFSK) modulation with 25 kHz channel spacing and capable of
tuning to any of the 25 kHz channels from 118,000 MHz to 136,975 MHz as defined in ICAO VDL
SARPs [2].
The present technical document provides part 1 of the technical specifications.
The present document is designed to ensure that equipment certified to it will be compatible with the relevant
ICAO VDL SARPs [2] and ICAO VDL4 Technical Manual [1].
Manufacturers should note that in future the tuning range for the transmitter may also cover any 25 kHz channel from
112,000 MHz to 117,975 MHz and the receiver(s) may cover any 25 kHz channel from 108,000 MHz to 117,975 MHz.
The present document applies to "aeronautical mobile (airborne and in some cases ground vehicles)" equipment which
will hereinafter be referred to as "mobile" equipment.
The scope of the present document is limited to mobile stations. The equivalent specification for ground stations is
EN 301 842 [10].
The VDL Mode 4 system provides digital communication exchanges between aircraft and ground-based systems and
other aircraft supporting surveillance and communication applications. The supported modes of communication include:
• broadcast and point-to-point communication;
• broadcast services including Automatic Dependent Surveillance - Broadcast (ADS-B), Traffic Information
Service - Broadcast (TIS-B) and Flight Information Service - Broadcast (FIS-B) capabilities;
• air-air and ground-air services;
• operation without ground infrastructure.
The present document is derived from the specifications:
• ICAO VDL4 Technical Manual [1] and ICAO VDL SARPs [2] produced under the auspices of the
International Civil Aviation Organization (ICAO).
• Other relevant standards as defined in clause 2.
It is envisaged that manufacturers may provide equipment supporting:
• broadcast services only;
• point-to-point services only;
• both broadcast and point-to-point services.
The present document deals with tests of the physical layer necessary to support all types of equipment.
The present document includes:
• clause 2 provides references to relevant documents;
• clause 3 provides general definitions, abbreviations and symbols used;
• clause 4 provides a general description and architecture of VDL Mode 4;
• clause 5 provides functional specifications applicable to the physical layer including transmitter/receiver
requirements and the modulation scheme;
ETSI
9 ETSI EN 302 842-1 V1.2.4 (2011-10)
• clause 6 provides VDL Mode 4 equipment requirements;
• clause 7 provides general design requirements;
• clause 8 provides environmental test requirements;
• clause 9 provides detailed test procedures for the physical layer;
• clause 10 provides installed equipment requirements;
• annex A provides a detailed cross-reference to the relevant requirements contained in reference [1];
• annex B provides an assessment of VDL Mode 4 Link Budget;
• annex C provides a Bibliography;
• a document history.
The full physical layer tests are provided which correspond closely to the standard set of tests used for other VDL
systems.
NOTE: Flight tests are defined in EN 302 842-2 [7].
Mandating and recommendation phrases
a) "Shall"
- The use of the word "Shall" indicates a mandated criterion; e.g. compliance with the particular procedure
or specification is mandatory and no alternative may be applied.
b) "Should"
- The use of the word "Should" (and phrases such as "It is recommended that.", etc.) indicate that though
the procedure or criterion is regarded as the preferred option, alternative procedures, specifications or
criteria may be applied, provided that the manufacturer, installer or tester can provide information or data
to adequately support and justify the alternative.
ETSI
10 ETSI EN 302 842-1 V1.2.4 (2011-10)
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ICAO Doc 9816 (First Edition 2004): "Manual on VHF Digital Link (VDL) Mode 4,
Part 2: Detailed Technical Specifications".
[2] ICAO Annex 10 to the Convention on International Civil Aviation: "Aeronautical
Telecommunications, Volume III: Communication Systems, Part I: Digital Data Communication
Systems, chapter 6".
[3] ISO/IEC 7498-1 (1994): "Information technology - Open Systems Interconnection - Basic
Reference Model: The Basic Model".
[4] ISO/IEC 10731 (1994): "Information technology - Open Systems Interconnection - Basic
Reference Model - Conventions for the definition of OSI services".
[5] EUROCAE ED-12B/RTCA DO-178B: "Software Considerations in Airborne Systems and
Equipment Certification".
[6] EUROCAE ED-14D/RTCA DO-160D: "Environmental Conditions and Test Procedures for
Airborne Equipment, July 1997, as amended by Change 1 (December 2000), by Change 2
(June 2001), and by Change 3 (December 2002)".
[7] ETSI EN 302 842-2 (V1.3.1): "VHF air-ground and air-air Digital Link (VDL) Mode 4 radio
equipment; Technical characteristics and methods of measurement for aeronautical mobile
(airborne) equipment; Part 2: General Description and data link layer".
[8] ETSI EN 302 842-3 (V1.3.1): "VHF air-ground and air-air Digital Link (VDL) Mode 4 radio
equipment; Technical characteristics and methods of measurement for aeronautical mobile
(airborne) equipment; Part 3: Additional broadcast aspects".
[9] Void.
[10] ETSI EN 301 842 (all parts): "VHF air-ground Digital Link (VDL) Mode 4 radio equipment;
Technical characteristics and methods of measurement for ground-based equipment".
[11] ETSI EN 302 842-4 (V1.2.2): "VHF air-ground and air-air Digital Link (VDL) Mode 4 radio
equipment; Technical characteristics and methods of measurement for aeronautical mobile
(airborne) equipment; Part 4: Point-to-point functions".
ETSI
11 ETSI EN 302 842-1 V1.2.4 (2011-10)
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 300 113-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Land
mobile service; Radio equipment intended for the transmission of data (and/or speech) using
constant or non-constant envelope modulation and having an antenna connector; Part 1: Technical
characteristics and methods of measurement".
[i.2] EUROCAE ED-108A: "MOPS for VDL Mode 4 Aircraft Transceiver for ADS-B".
[i.3] CEC Mandate M/318: "Mandate to CEN/CENELEC/ETSI for standardisation in the field ofair
traffic management systems and Galileo local components".
[i.4] EASA CS-25: "Large Aeroplanes" Appendix F (previously Joint Airworthiness Requirements
(JAR), Part 25).
3 Definitions and abbreviations
3.1 Definitions
3.1.1 Basic reference model definitions
The present document is based on the concepts developed in the open systems interconnect basic reference model and
makes use of the following terms defined in ISO/IEC 7498-1 [3]:
• layer;
• sublayer;
• entity;
• service;
• service access point;
• service data unit;
• physical layer;
• data link layer.
3.1.2 Service conventions definitions
The present document makes use of the following terms defined in ISO/IEC 10731 [4]:
• service provider;
• service user;
• service primitive;
• request;
• indication;
• confirm.
ETSI
12 ETSI EN 302 842-1 V1.2.4 (2011-10)
3.1.3 General definitions
For the purposes of the present document, the following terms and definitions apply:
adjacent channel power: amount of the modulated rf signal power which falls within a given adjacent channel
NOTE: Adjacent channel power includes discrete spurious, signal sidebands, and noise density (including phase
noise) at the transmitter output.
Adjacent Channel Rejection (ACR): receiver's ability to demodulate the desired signal and meet the BER requirement
in the presence of an interfering signal in an adjacent channel
NOTE: The ratio (in dB) between the adjacent interfering signal level and the desired signal level necessary to
achieve the specified minimum BER, is the adjacent channel rejection (ACR) ratio.
Aeronautical Mobile Service (AMS): mobile service between aeronautical stations and aircraft stations, or between
aircraft stations, in which survival craft stations may participate
Aeronautical Telecommunication Network (ATN): internetwork architecture that allows ground, air/ground, and
aircraft data subnetworks to interoperate by adopting common interface services and protocols based on the
International Organization for Standardization Open Systems Interconnection Reference Model
aircraft address: unique combination of 24 bits available for assignment to an aircraft for the purpose of
communications, navigation and surveillance
NOTE: An aircraft may choose not to use this unique address and can use instead a non-unique address.
Automatic Dependent Surveillance-Broadcast (ADS-B): surveillance application transmitting parameters, such as
position, track and ground speed, via a broadcast mode digital link for use by any air and ground users requiring it
NOTE: ADS-B is a surveillance service based on aircraft self-determination of position/velocity/time and
automatic, periodic or random, broadcast of this information along with auxiliary data such as aircraft
identity (ID), communications control parameters, etc. ADS-B is intended to support multiple high-level
applications and associated services such as cockpit display of traffic information, traffic alert and
collision avoidance functionality, enhanced traffic management in the air and on the ground, search and
rescue support and others.
autotune function: function, performed by the Link Management Entity, that allows a ground VDL Mode 4 station to
command an aircraft to change the operating characteristics of synchronization burst transmissions
Bit Error Rate (BER): ratio between the number of erroneous bits received and the total number of bits transmitted
burst length: number of slots across which the VDL Mode 4 burst is transmitted
Co-Channel Interference (CCI): capability of a receiver to demodulate the desired signal and achieve the minimum
specified BER performance in the presence of an unwanted signal at the same assigned frequency
NOTE: The ratio (in dB) between the wanted signal level and the unwanted signal level is the co-channel
interference ratio. The co-channel interference ratio has a major impact on frequency re-use planning
criteria.
conducted measurements: measurements which are made using a direct rf connection to the equipment under test
current slot: slot in which a received transmission begins
Data Link Entity (DLE): protocol state machine capable of setting up and managing a single data link connection
Data Link Service (DLS) sublayer: sublayer that resides above the VDL Mode 4 Specific Services (VSS) and the
MAC sublayers
NOTE: The data link service (DLS) manages the transmit queue, creates and destroys data link entities (DLEs)
for connection-oriented communications, provides facilities for the link management entity (LME) to
manage the DLS, and provides facilities for connection-less communications.
data rate: Mode 4 nominal data rate is 19 200 bits/s
ETSI
13 ETSI EN 302 842-1 V1.2.4 (2011-10)
delayed burst: VDL Mode 4 burst that begins sufficiently after the beginning of a slot so that the transmitting
VDL Mode 4 station is confident that no other VDL Mode 4 station that i
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment - Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment - Part 1: Physical layer49.090On-board equipment and instruments35.100.10Physical layer33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 302 842-1 Version 1.2.4SIST EN 302 842-1 V1.2.4:2011en01-december-2011SIST EN 302 842-1 V1.2.4:2011SLOVENSKI
STANDARD
European Standard SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 2
Reference REN/AERO-00017 Keywords aeronautical, digital, radio, testing, VHF ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 3 Contents Intellectual Property Rights . 6 Foreword . 6 Introduction . 7 1 Scope . 8 2 References . 10 2.1 Normative references . 10 2.2 Informative references . 11 3 Definitions and abbreviations . 11 3.1 Definitions . 11 3.1.1 Basic reference model definitions . 11 3.1.2 Service conventions definitions . 11 3.1.3 General definitions . 12 3.2 Abbreviations . 15 4 General description and architecture of VDL Mode 4 . 17 4.1 General . 17 5 VDL mode 4 physical layer functional specifications . 17 5.1 Overview . 17 5.1.1 Functions . 17 5.1.2 Data reception . 17 5.1.3 Data transmission . 17 5.2 Modulation scheme . 17 6 VDL Mode 4 equipment requirements . 18 6.1 Receiver requirements . 18 6.1.1 Receiver operating range . 18 6.1.2 BER requirement . 18 6.1.3 Reference signal level . 18 6.1.4 Sensitivity . 18 6.1.5 Adjacent channel rejection . 19 6.1.6 Receiver performance in the presence of strong signals inside the VHF aeronautical band . 19 6.1.7 Receiver performance in the presence of strong signals outside the VHF aeronautical band . 19 6.1.8 Desired signal dynamic range . 20 6.1.9 Symbol rate capture range . 20 6.1.10 Frequency capture range . 20 6.1.11 Doppler rate . 20 6.1.12 Co-channel interference . 21 6.1.13 Conducted spurious emission . 21 6.1.14 FM broadcast intermodulation . 21 6.1.14.1 Radio frequencies in the band 117,975 MHz to 137 MHz . 21 6.1.15 In-band intermodulation . 21 6.2 Transmitter requirements . 22 6.2.1 Transmitter operating range . 22 6.2.2 Channel bit rate . 22 6.2.3 Manufacturer's declared output power . 22 6.2.4 RF power rise time . 22 6.2.5 RF power release time . 23 6.2.6 Spurious emissions . 23 6.2.7 Adjacent channel power . 24 6.2.8 Wide-band noise . 24 6.2.9 Load VSWR capability . 25 6.2.10 Adjacent channel transient power . 25 6.2.11 Frequency tolerance . 25 6.2.12 Start of transmission . 25 SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 4 6.2.13 Structure of bursts . 25 6.3 Transceiver requirements . 26 6.3.1 Automatic transmitter shut-down . 26 6.3.2 Tuning time . 26 6.3.3 Receiver to transmitter turnaround time . 26 6.3.4 Transmitter to receiver turnaround time . 26 6.3.5 Short power interrupt . 26 6.3.6 Demodulator action. 26 6.3.7 System timing requirements . 27 6.3.8 Reservation table stored in memory . 27 6.3.9 Failure of associated equipment . 27 6.3.10 Simultaneous reception . 27 7 General design requirements . 27 7.1 Controls and indicators . 27 7.2 Class of emission and modulation characteristics . 27 7.3 Warm up . 27 7.4 Airworthiness . 28 7.5 Intended function . 28 7.6 International Telecommunications Union Regulations . 28 7.7 Fire protection . 28 7.8 Operation of controls . 28 7.9 Accessibility of controls . 28 7.10 Effects of tests . 28 7.11 Failure of VDL Mode 4 equipment . 28 7.12 Software management . 28 7.13 Transceiver configuration . 29 7.14 Provision for multiple redundant VDL4 transceivers . 29 7.15 Reception capability . 29 7.16 Transmission capability . 29 7.17 Monitoring of proper operation . 30 7.18 Power-up self test . 30 8 Environmental test requirements . 30 8.1 Introduction . 30 8.2 Receiver . 31 8.3 Transmitter . 33 9 Detailed test procedures for the physical layer . 35 9.1 General requirements . 35 9.1.1 Test conditions . 35 9.1.2 Alignment, adjustment and calibration prior to test . 35 9.1.3 Recording of test results . 35 9.1.4 Connected load . 35 9.1.5 Test instrument precautions . 35 9.1.6 Simultaneous application of two signals to the receiver input . 36 9.1.7 Test frequencies . 36 9.1.8 Equipment configuration . 36 9.1.9 Detailed physical and MAC layer test procedures . 36 9.2 Receiver . 36 9.2.1 BER test . 36 9.2.2 Sensitivity . 38 9.2.3 Adjacent Channel Rejection (ACR) . 38 9.2.4 Rejection of signals in the VHF aeronautical band . 39 9.2.5 Rejection of signals outside the VHF aeronautical band . 40 9.2.6 Desired signal dynamic range . 41 9.2.7 Symbol rate capture range . 41 9.2.8 Frequency capture range . 42 9.2.9 Doppler rate . 42 9.2.10 Co-channel interference . 43 9.2.11 Conducted spurious emission . 43 9.2.12 FM broadcast intermodulation . 44 9.2.13 In-band intermodulation . 45 SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 5 9.3 Transmitter . 46 9.3.1 Channel bit rate . 46 9.3.2 Manufacturer's declared output power . 46 9.3.3 RF power rise time . 47 9.3.4 RF power release time . 47 9.3.5 Spurious emissions . 48 9.3.6 Adjacent channel power . 48 9.3.6.1 Method of measurement for the first adjacent channel . 48 9.3.6.2 Method of measurement for the second adjacent channel . 49 9.3.6.3 Method of measurement for the fourth adjacent channel . 50 9.3.6.4 Alternative measurement procedure for Adjacent Channel Power (ACP) . 51 9.3.7 Wideband noise . 52 9.3.8 Load VSWR capability . 53 9.3.9 Adjacent channel transient power . 54 9.3.10 Frequency tolerance . 55 9.4 Transceiver . 55 9.4.1 Tuning time . 55 9.4.2 Receiver to transmitter turn-around time . 55 9.4.3 Transmitter to receiver turn-around time . 56 10 Installed equipment requirements . 56 10.1 Introduction . 56 10.2 Equipment installation . 56 10.2.1 Aircraft environment. 56 10.2.2 Failure protection . 56 10.2.3 Aircraft power source . 57 10.3 Installed equipment performance requirements. 57 10.3.1 Dynamic response . 57 10.3.2 Interference effects . 57 10.3.3 Regular maintenance. 57 10.4 Conditions of test . 57 10.4.1 Power input . 57 10.4.2 Associated equipment or systems . 57 10.4.3 Environment . 57 10.5 Test procedures for installed equipment performance . 58 10.5.1 Ground test procedures . 58 10.5.1.1 Conformity inspection . 58 10.5.1.2 Interference tests . 58 10.5.1.3 Power supply fluctuation test . 58 10.5.1.4 Reception . 58 10.5.1.5 Transmission . 58 10.5.1.6 Functional behaviour tests . 59 10.5.1.7 Interface conformance tests . 59 10.5.2 Flight test procedures . 59 10.5.2.1 Interference effects . 59 10.5.2.2 System performance . 60 Annex A (informative): Cross reference matrix . 61 Annex B (informative): VDL Mode 4 link budget . 64 Annex C (informative): Bibliography . 71 History . 74
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Aeronautics (AERO). The present document is part 1 of a multi-part deliverable covering the VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment, as identified below: Part 1: "Physical layer"; Part 2: "General description and data link layer"; Part 3: "Additional broadcast aspects"; Part 4: "Point-to-point functions"; The present document is accompanied by an equivalent ground-based standard, EN 301 842 [10] parts 1 to 5, covering the VHF air-ground Data Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for ground-based equipment. NOTE 1: Minimum Operational Performance Specifications (MOPS) are also being developed for VDL Mode 4. EUROCAE have previously published Interim MOPS for VDL Mode 4 [i.2] which are a sub set of EN 302 842-1, 2 [7], 3 [8] and 4 [11]. EN 302 842-1, 2 [7], 3 [8] and 4 [11] complies with the requirements of CEC Mandate M/318 [i.3]. NOTE 2: Following the decision taken at the ICAO Aeronautical Communication Panel's WG/M (Bangkok, February 2011), it remains to be seen if ICAO Annex 10 Vol III will be amended changing the recommended tuning frequency range from 108-117,975 MHz to 112-117,975 MHz. The present deliverable will be updated accordingly if the amendment is accepted and made publicly available.
National transposition dates Date of latest announcement of this EN (doa): 31 January 2012 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 July 2012 Date of withdrawal of any conflicting National Standard (dow): 31 July 2012
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 7 Introduction The present document states the technical specifications for Very High Frequency (VHF) Digital Link (VDL) Mode 4 aeronautical mobile (airborne) radio transmitters, transceivers and receivers for air-ground and air-air communications operating in the VHF band, using Gaussian Filtered Frequency Shift Keying (GFSK) modulation with 25 kHz channel spacing and capable of tuning to any of the 25 kHz channels from 118,000 MHz to 136,975 MHz as defined in ICAO VDL SARPs [2]. The present document may be used to produce tests for the assessment of the performance of the equipment. The performance of the equipment submitted for type testing should be representative of the performance of the corresponding production model. The present document has been written on the assumption that: • the type test measurements will be performed only once, in an accredited test laboratory and the measurements accepted by the various authorities in order to grant type approval; • if equipment available on the market is required to be checked it may be tested in accordance with the methods of measurement specified in the present document or a documented alternative approved by the certifying authority. SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 8 1 Scope The present document applies to the following radio equipment types: • Very High Frequency (VHF) Digital Link (VDL) Mode 4 aeronautical mobile (airborne) radio transmitters, transceivers and receivers for air-ground and air-air communications operating in the VHF band, using Gaussian Filtered Frequency Shift Keying (GFSK) modulation with 25 kHz channel spacing and capable of tuning to any of the 25 kHz channels from 118,000 MHz to 136,975 MHz as defined in ICAO VDL SARPs [2]. The present technical document provides part 1 of the technical specifications. The present document is designed to ensure that equipment certified to it will be compatible with the relevant ICAO VDL SARPs [2] and ICAO VDL4 Technical Manual [1]. Manufacturers should note that in future the tuning range for the transmitter may also cover any 25 kHz channel from 112,000 MHz to 117,975 MHz and the receiver(s) may cover any 25 kHz channel from 108,000 MHz to 117,975 MHz. The present document applies to "aeronautical mobile (airborne and in some cases ground vehicles)" equipment which will hereinafter be referred to as "mobile" equipment. The scope of the present document is limited to mobile stations. The equivalent specification for ground stations is EN 301 842 [10]. The VDL Mode 4 system provides digital communication exchanges between aircraft and ground-based systems and other aircraft supporting surveillance and communication applications. The supported modes of communication include: • broadcast and point-to-point communication; • broadcast services including Automatic Dependent Surveillance - Broadcast (ADS-B), Traffic Information Service - Broadcast (TIS-B) and Flight Information Service - Broadcast (FIS-B) capabilities; • air-air and ground-air services; • operation without ground infrastructure. The present document is derived from the specifications:
• ICAO VDL4 Technical Manual [1] and ICAO VDL SARPs [2] produced under the auspices of the International Civil Aviation Organization (ICAO). • Other relevant standards as defined in clause 2. It is envisaged that manufacturers may provide equipment supporting: • broadcast services only; • point-to-point services only; • both broadcast and point-to-point services. The present document deals with tests of the physical layer necessary to support all types of equipment. The present document includes: • clause 2 provides references to relevant documents; • clause 3 provides general definitions, abbreviations and symbols used; • clause 4 provides a general description and architecture of VDL Mode 4; • clause 5 provides functional specifications applicable to the physical layer including transmitter/receiver requirements and the modulation scheme; SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 9 • clause 6 provides VDL Mode 4 equipment requirements; • clause 7 provides general design requirements; • clause 8 provides environmental test requirements; • clause 9 provides detailed test procedures for the physical layer; • clause 10 provides installed equipment requirements; • annex A provides a detailed cross-reference to the relevant requirements contained in reference [1]; • annex B provides an assessment of VDL Mode 4 Link Budget; • annex C provides a Bibliography; • a document history. The full physical layer tests are provided which correspond closely to the standard set of tests used for other VDL systems. NOTE: Flight tests are defined in EN 302 842-2 [7]. Mandating and recommendation phrases a) "Shall" - The use of the word "Shall" indicates a mandated criterion; e.g. compliance with the particular procedure or specification is mandatory and no alternative may be applied. b) "Should" - The use of the word "Should" (and phrases such as "It is recommended that.", etc.) indicate that though the procedure or criterion is regarded as the preferred option, alternative procedures, specifications or criteria may be applied, provided that the manufacturer, installer or tester can provide information or data to adequately support and justify the alternative. SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 10 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ICAO Doc 9816 (First Edition 2004): "Manual on VHF Digital Link (VDL) Mode 4, Part 2: Detailed Technical Specifications". [2] ICAO Annex 10 to the Convention on International Civil Aviation: "Aeronautical Telecommunications, Volume III: Communication Systems, Part I: Digital Data Communication Systems, chapter 6". [3] ISO/IEC 7498-1 (1994): "Information technology - Open Systems Interconnection - Basic Reference Model: The Basic Model". [4] ISO/IEC 10731 (1994): "Information technology - Open Systems Interconnection - Basic Reference Model - Conventions for the definition of OSI services". [5] EUROCAE ED-12B/RTCA DO-178B: "Software Considerations in Airborne Systems and Equipment Certification". [6] EUROCAE ED-14D/RTCA DO-160D: "Environmental Conditions and Test Procedures for Airborne Equipment, July 1997, as amended by Change 1 (December 2000), by Change 2 (June 2001), and by Change 3 (December 2002)". [7] ETSI EN 302 842-2 (V1.3.1): "VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment; Part 2: General Description and data link layer". [8] ETSI EN 302 842-3 (V1.3.1): "VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment; Part 3: Additional broadcast aspects". [9] Void. [10] ETSI EN 301 842 (all parts): "VHF air-ground Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for ground-based equipment". [11] ETSI EN 302 842-4 (V1.2.2): "VHF air-ground and air-air Digital Link (VDL) Mode 4 radio equipment; Technical characteristics and methods of measurement for aeronautical mobile (airborne) equipment; Part 4: Point-to-point functions". SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 11 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI EN 300 113-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Land mobile service; Radio equipment intended for the transmission of data (and/or speech) using constant or non-constant envelope modulation and having an antenna connector; Part 1: Technical characteristics and methods of measurement". [i.2] EUROCAE ED-108A: "MOPS for VDL Mode 4 Aircraft Transceiver for ADS-B". [i.3] CEC Mandate M/318: "Mandate to CEN/CENELEC/ETSI for standardisation in the field ofair traffic management systems and Galileo local components". [i.4] EASA CS-25: "Large Aeroplanes" Appendix F (previously Joint Airworthiness Requirements (JAR), Part 25). 3 Definitions and abbreviations 3.1 Definitions 3.1.1 Basic reference model definitions The present document is based on the concepts developed in the open systems interconnect basic reference model and makes use of the following terms defined in ISO/IEC 7498-1 [3]: • layer; • sublayer; • entity; • service; • service access point; • service data unit; • physical layer; • data link layer. 3.1.2 Service conventions definitions The present document makes use of the following terms defined in ISO/IEC 10731 [4]: • service provider; • service user; • service primitive; • request; • indication; • confirm. SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 12 3.1.3 General definitions For the purposes of the present document, the following terms and definitions apply: adjacent channel power: amount of the modulated rf signal power which falls within a given adjacent channel NOTE: Adjacent channel power includes discrete spurious, signal sidebands, and noise density (including phase noise) at the transmitter output. Adjacent Channel Rejection (ACR): receiver's ability to demodulate the desired signal and meet the BER requirement in the presence of an interfering signal in an adjacent channel NOTE: The ratio (in dB) between the adjacent interfering signal level and the desired signal level necessary to achieve the specified minimum BER, is the adjacent channel rejection (ACR) ratio. Aeronautical Mobile Service (AMS): mobile service between aeronautical stations and aircraft stations, or between aircraft stations, in which survival craft stations may participate Aeronautical Telecommunication Network (ATN): internetwork architecture that allows ground, air/ground, and aircraft data subnetworks to interoperate by adopting common interface services and protocols based on the International Organization for Standardization Open Systems Interconnection Reference Model aircraft address: unique combination of 24 bits available for assignment to an aircraft for the purpose of communications, navigation and surveillance NOTE: An aircraft may choose not to use this unique address and can use instead a non-unique address. Automatic Dependent Surveillance-Broadcast (ADS-B): surveillance application transmitting parameters, such as position, track and ground speed, via a broadcast mode digital link for use by any air and ground users requiring it NOTE: ADS-B is a surveillance service based on aircraft self-determination of position/velocity/time and automatic, periodic or random, broadcast of this information along with auxiliary data such as aircraft identity (ID), communications control parameters, etc. ADS-B is intended to support multiple high-level applications and associated services such as cockpit display of traffic information, traffic alert and collision avoidance functionality, enhanced traffic management in the air and on the ground, search and rescue support and others. autotune function: function, performed by the Link Management Entity, that allows a ground VDL Mode 4 station to command an aircraft to change the operating characteristics of synchronization burst transmissions Bit Error Rate (BER): ratio between the number of erroneous bits received and the total number of bits transmitted burst length: number of slots across which the VDL Mode 4 burst is transmitted Co-Channel Interference (CCI): capability of a receiver to demodulate the desired signal and achieve the minimum specified BER performance in the presence of an unwanted signal at the same assigned frequency NOTE: The ratio (in dB) between the wanted signal level and the unwanted signal level is the co-channel interference ratio. The co-channel interference ratio has a major impact on frequency re-use planning criteria. conducted measurements: measurements which are made using a direct rf connection to the equipment under test current slot: slot in which a received transmission begins Data Link Entity (DLE): protocol state machine capable of setting up and managing a single data link connection Data Link Service (DLS) sublayer: sublayer that resides above the VDL Mode 4 Specific Services (VSS) and the MAC sublayers NOTE: The data link service (DLS) manages the transmit queue, creates and destroys data link entities (DLEs) for connection-oriented communications, provides facilities for the link management entity (LME) to manage the DLS, and provides facilities for connection-less communications. data rate: Mode 4 nominal data rate is 19 200 bits/s SIST EN 302 842-1 V1.2.4:2011
ETSI ETSI EN 302 842-1 V1.2.4 (2011-10) 13 delayed burst: VDL Mode 4 burst that begins sufficiently after the beginning of a slot so that the transmitting VDL Mode 4 station is confident that no other VDL Mode 4 station that it could receive from and is within the guard range is transmitting in the slot NOTE: The delayed VDL Mode 4 burst terminates by the e
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
